Manufacturer's Warranty: 2 years
Canadian model: JBBFR30NMX
Similar to USA model: JBBFR30NMX
Canadian UPC: 883049643847
Similar to USA UPC: 883049643847
EAN: 0883049643847
| Specification | Value |
|---|---|
| Model | JBBFR30NMX |

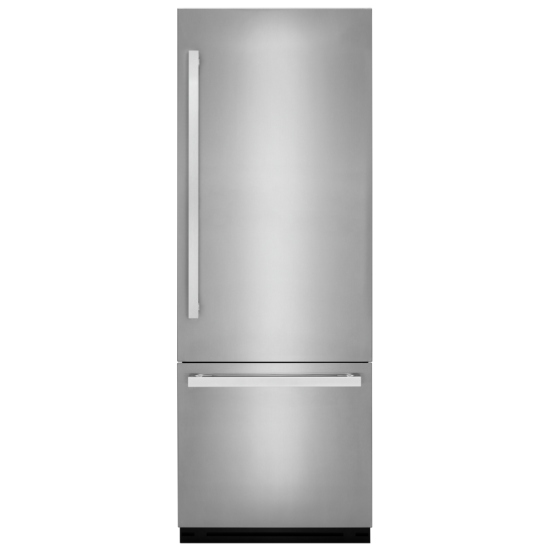

| Type | Built-In Bottom Freezer / Drawer Refrigerator |

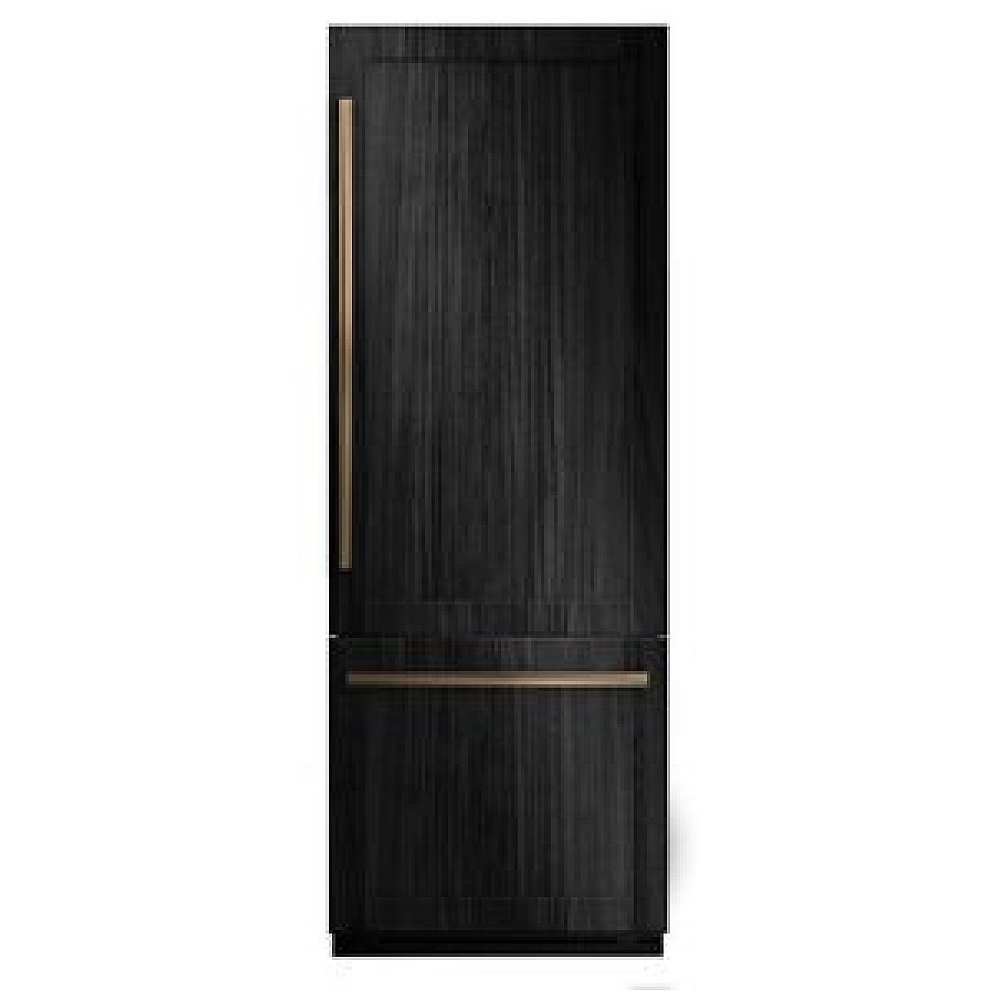

| Design Expression | Panel-Ready |
| Door Swing | Right Swing |
| Country of Origin | Italy |
| Installation Type | Built-In |
| Counter Depth | Yes (designed for 25 in. deep cabinet, fully flush & integrated) |
| Capacity: Total | 16.3 Cu Ft |
| Capacity: Refrigerator | 12.18 Cu Ft |
| Capacity: Freezer | 4.09 Cu Ft |

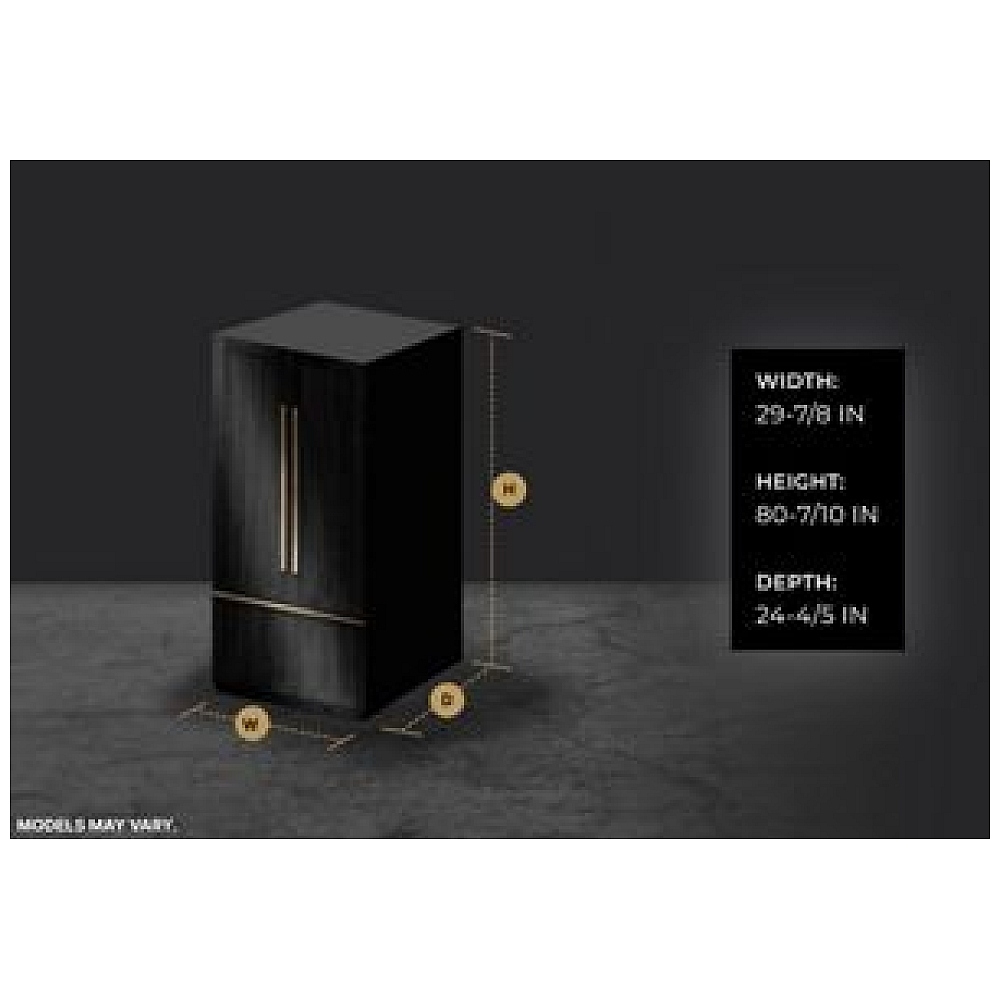

| Width | 29.88 inches (often rounded/marketed as 29.9" or 30") |
| Product Height | 80.7 inches |
| Product Depth | 24.8 inches |
| Depth Closed (Excluding Handles) | 24.8 inches |
| Depth Excluding Doors | 22.0 inches |
| Depth With Door Open 90° | 52.63 inches |
| Cabinet Width | 29.88 inches |
| Cutout Width | 30.0 inches |
| Cutout Height | 84.0 inches |
| Carton Width | 31.49 inches |
| Carton Height | 86.22 inches |
| Carton Depth | 29.92 inches |
| Net Weight | 359.35 lb |
| Gross Weight | 410.05 lb |

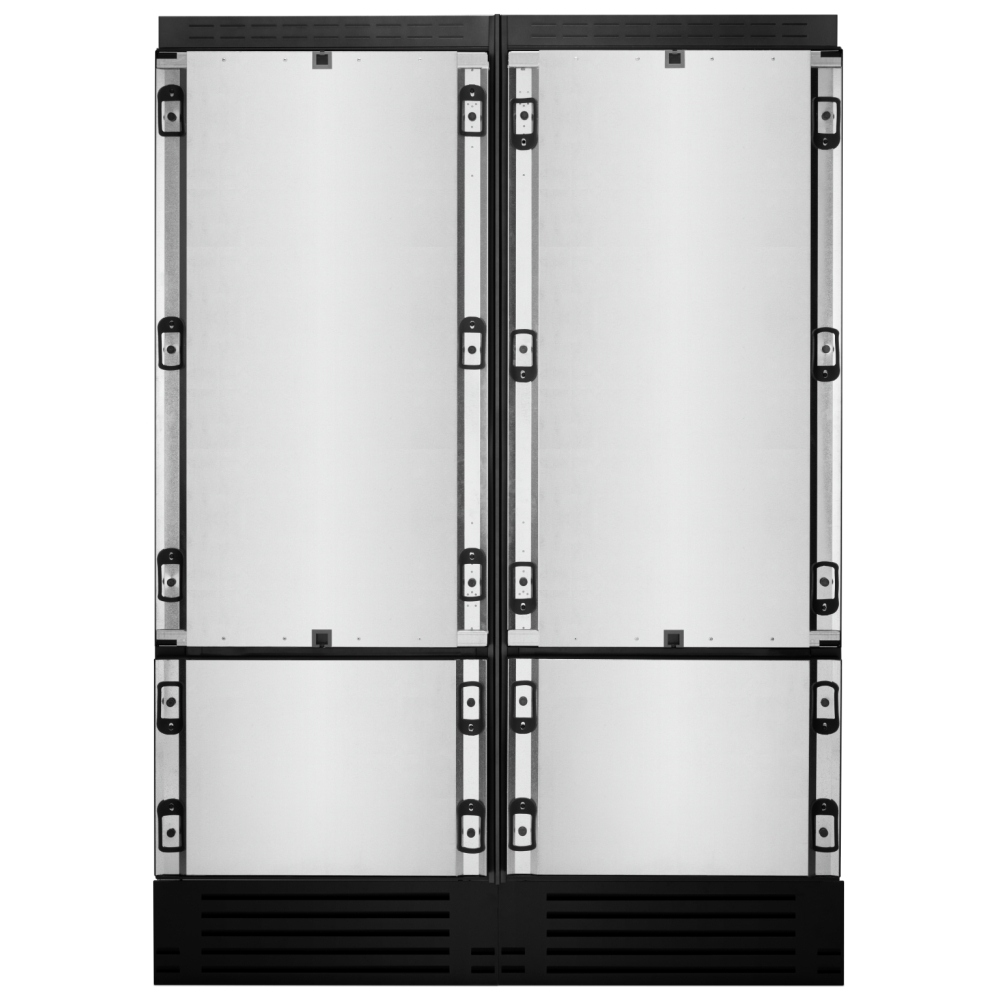

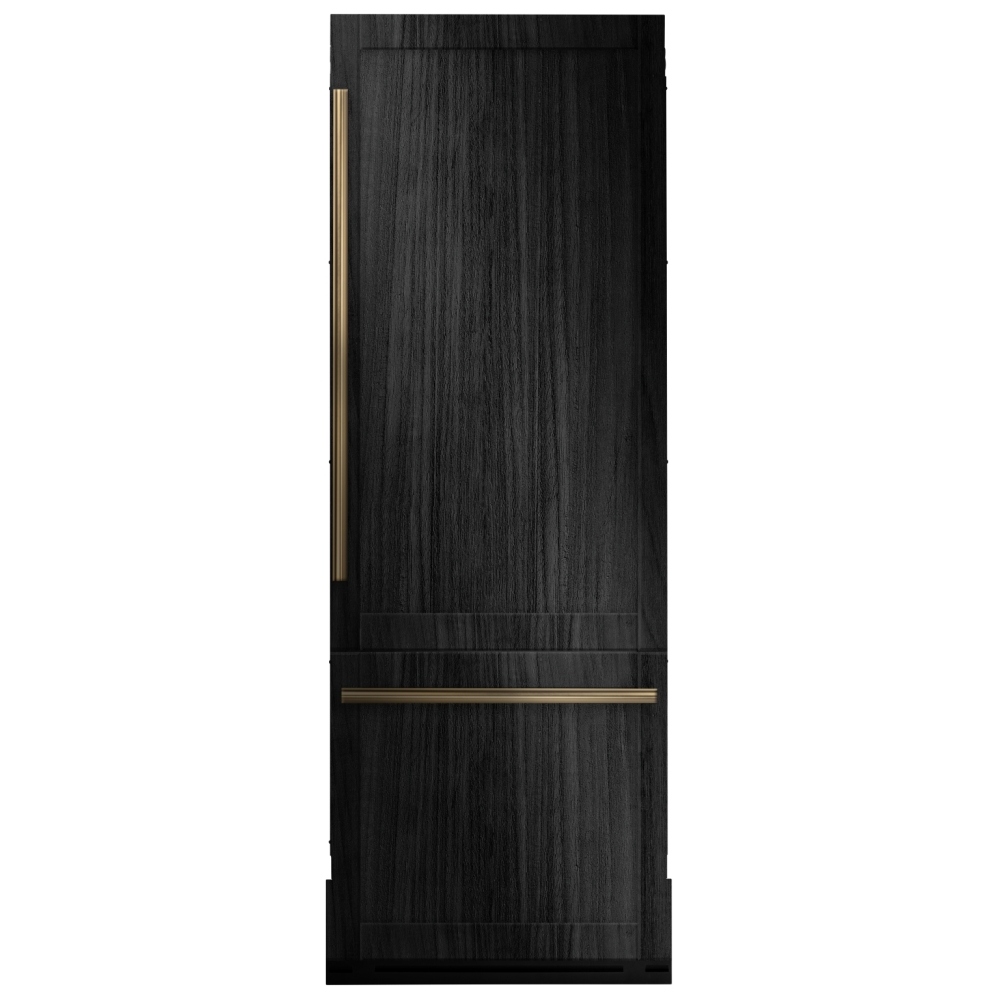

| Color | Panel Ready (accepts custom panels) |

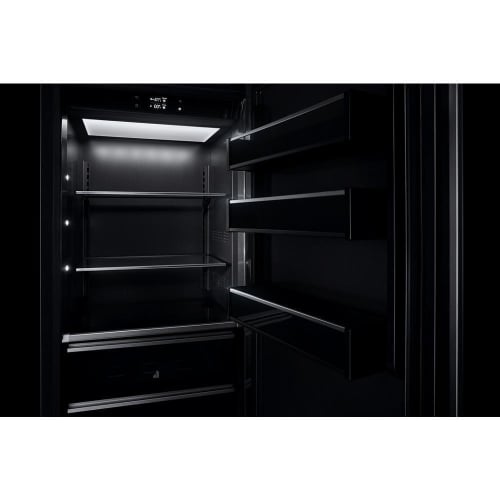

| Interior Finish | Daring Obsidian Interior |
| Base Grille Color | Black |
| Hidden Hinge | Yes |
| Number of Doors | 2 |
| Refrigerator Type (Classification) | Bottom Freezer, Built-In Bottom Mount |
| Compressor / Cooling System | Dual compressor, dual evaporator (TwinFresh™ / Precision Temperature Management™ System) |
| Cooling Type | Dual Evaporator |
| Defrost Type | Automatic |

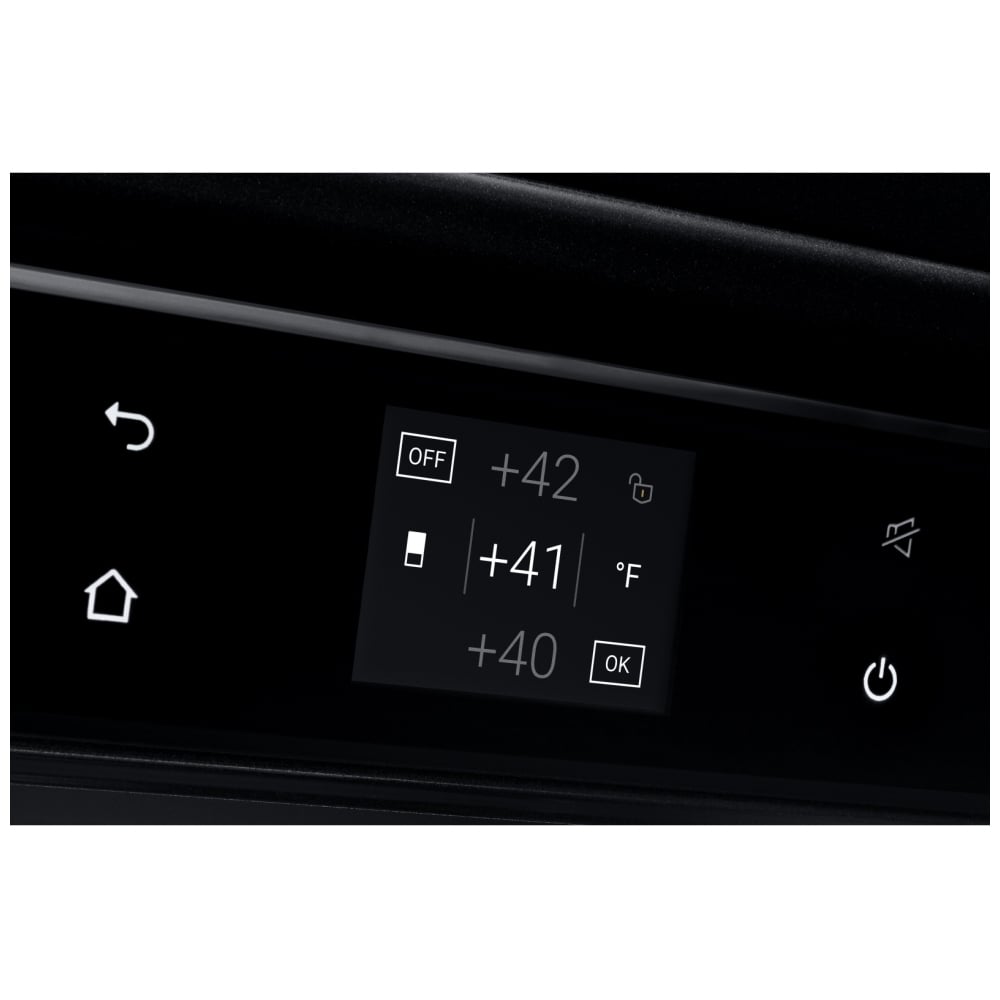

| Control Type | Color Touch LCD |
| Control Location | Interior Top |
| Display Type | Digital |
| Door Ajar / Open Alarm | Yes |
| Max Cool / Fast Cool | Yes |
| Sabbath Mode | Yes (Star-K Certified) |

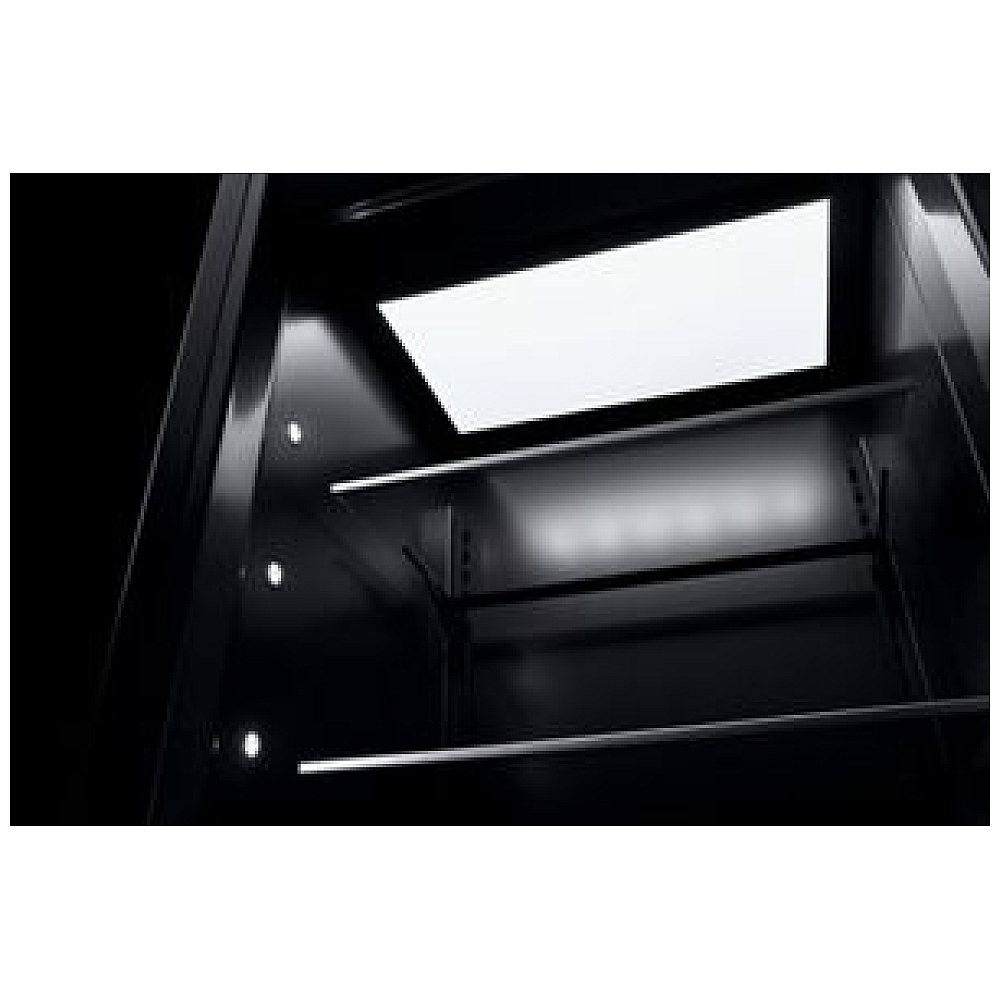

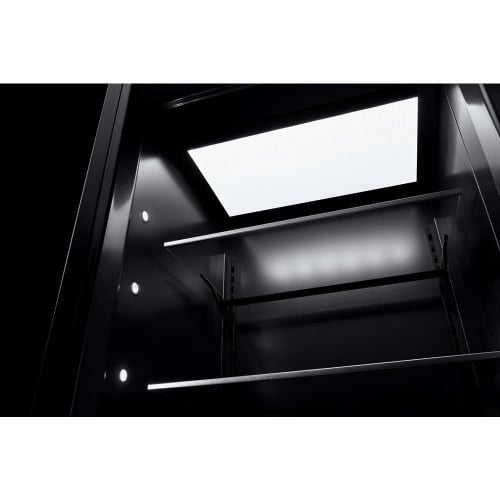

| Interior Lighting | Multi-Point LED Lighting with Full-Width Canopy Lighting |

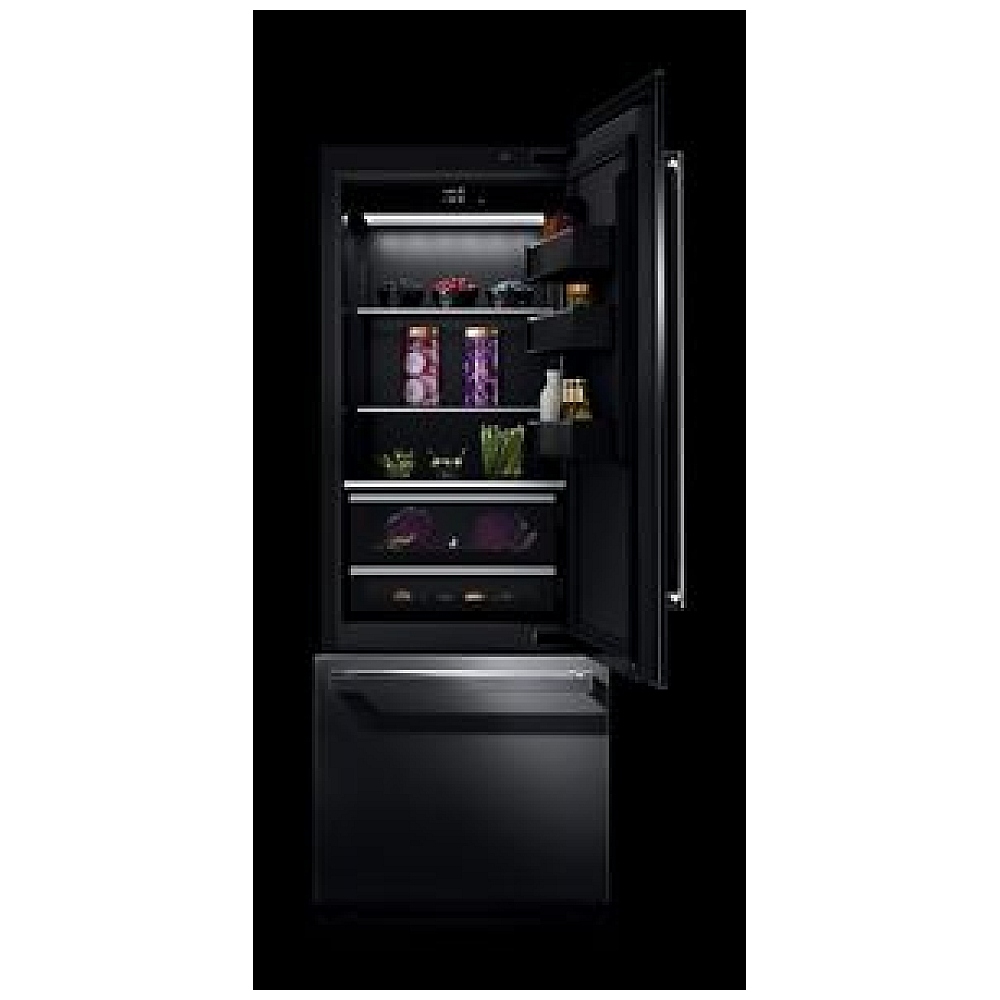

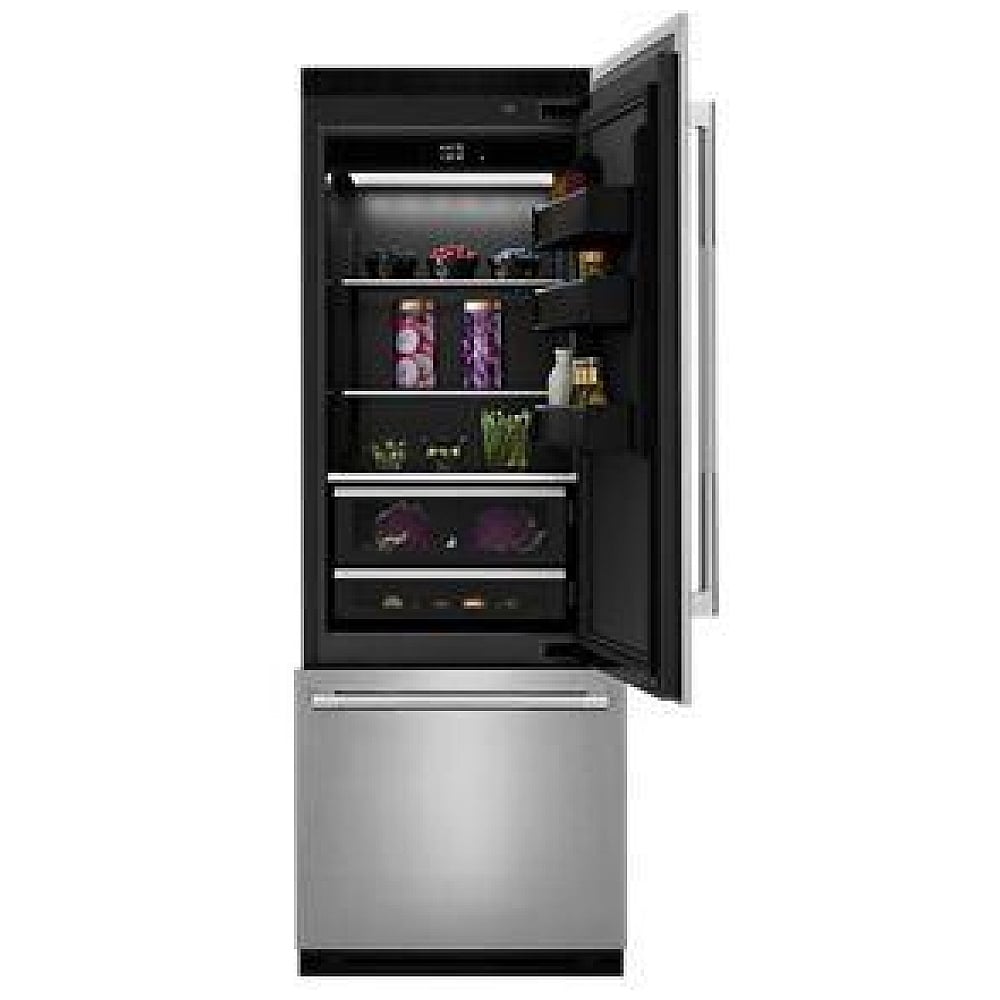

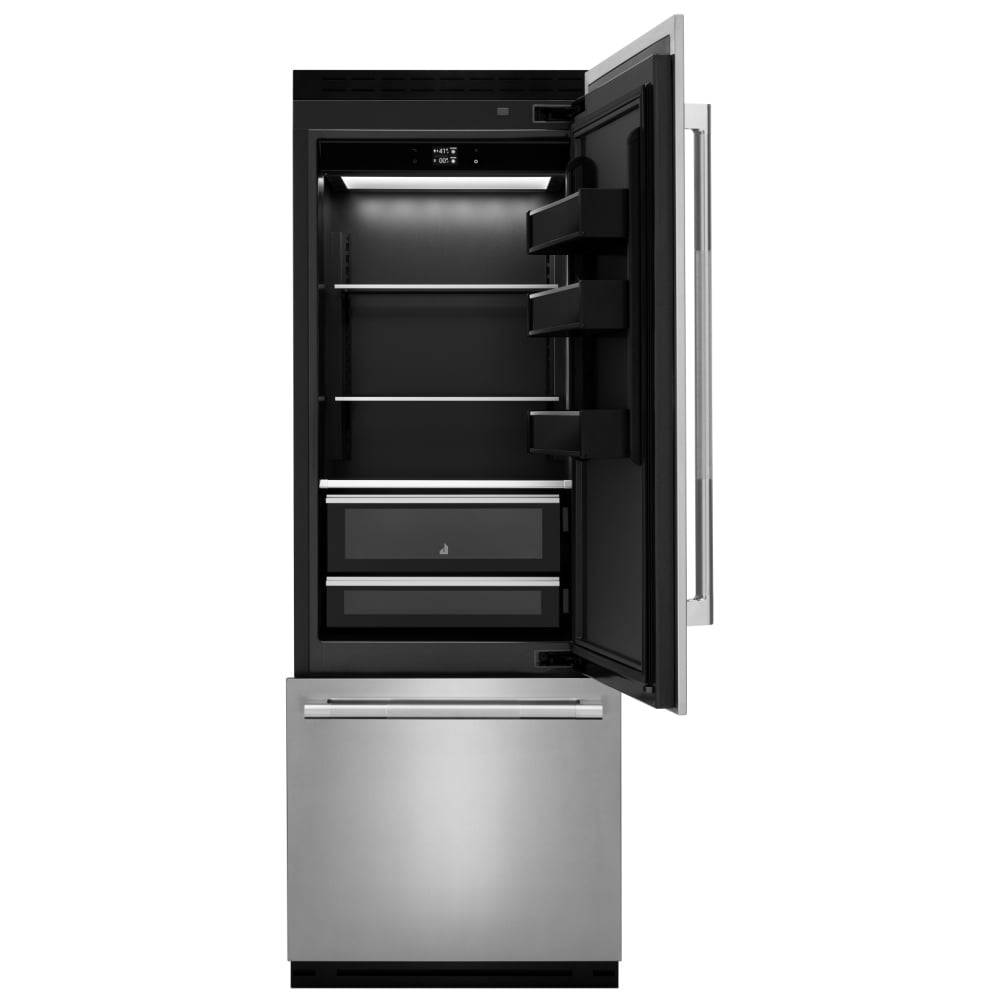

| Refrigerator Shelves - Number | 3 |

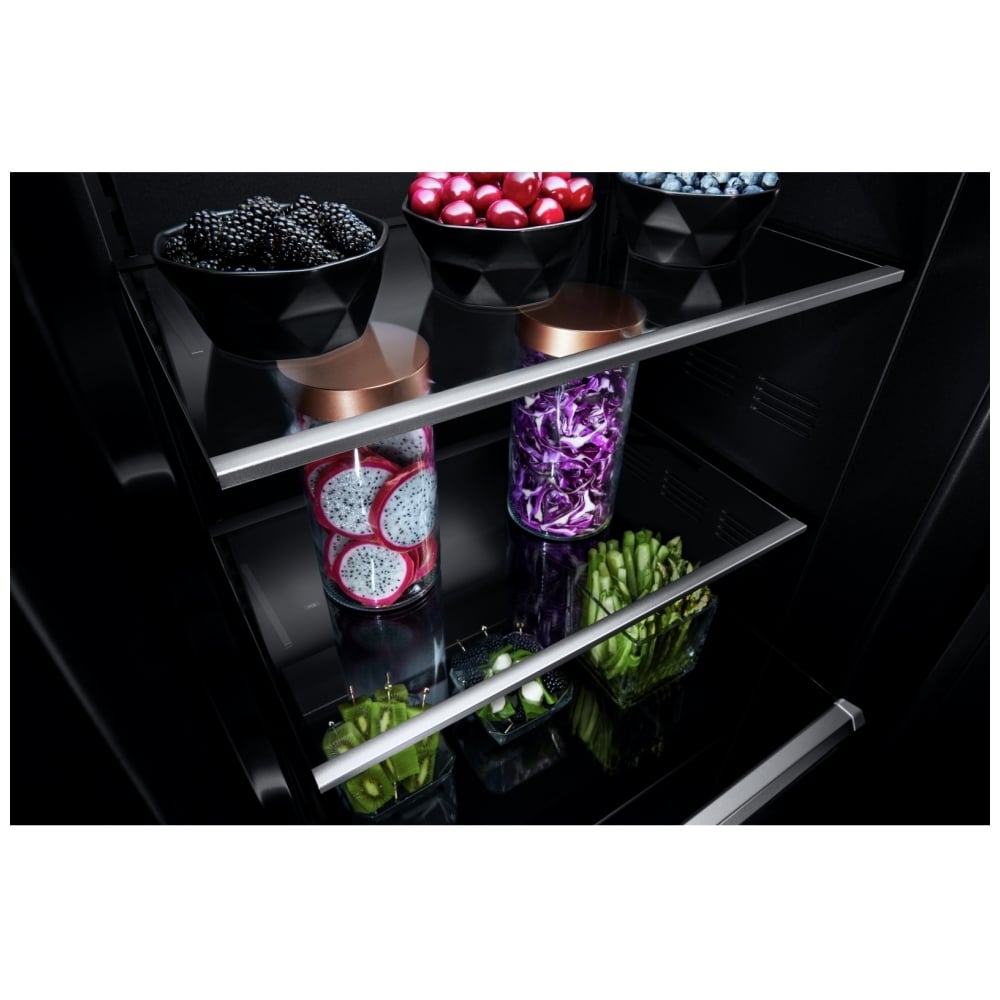

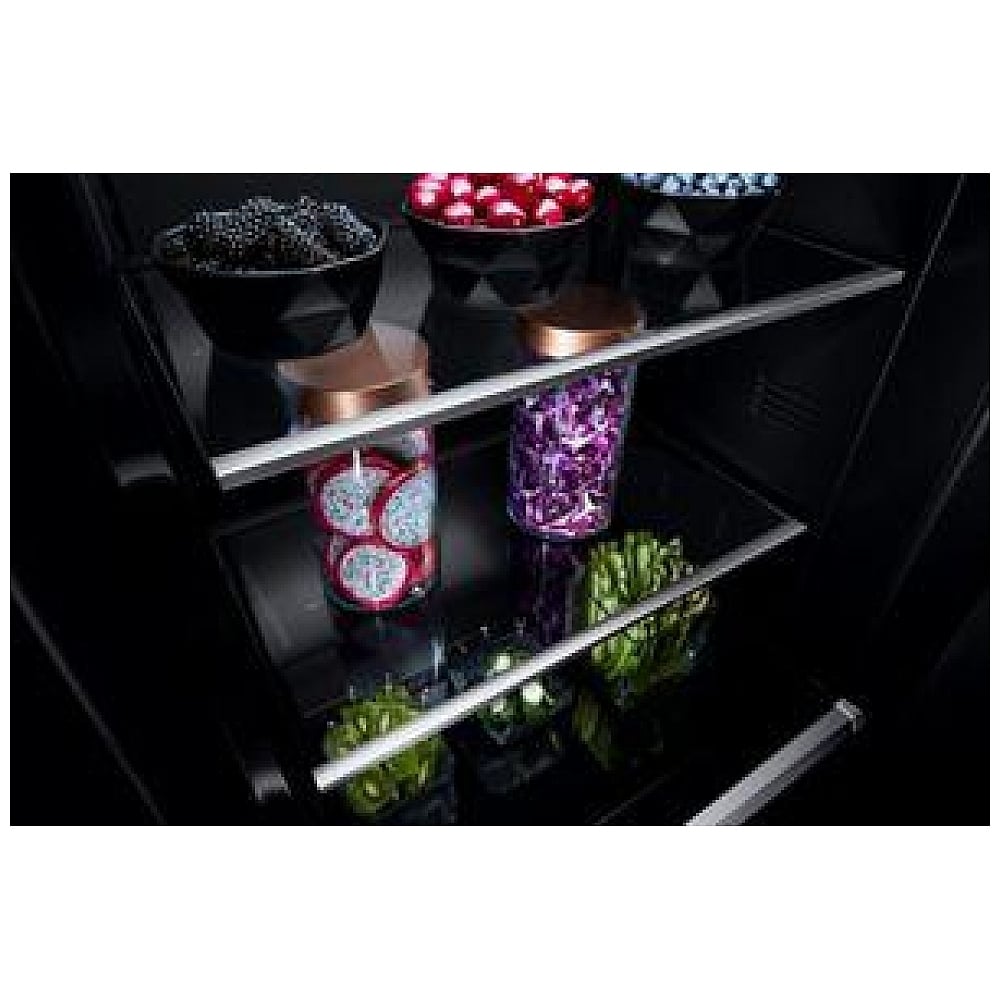

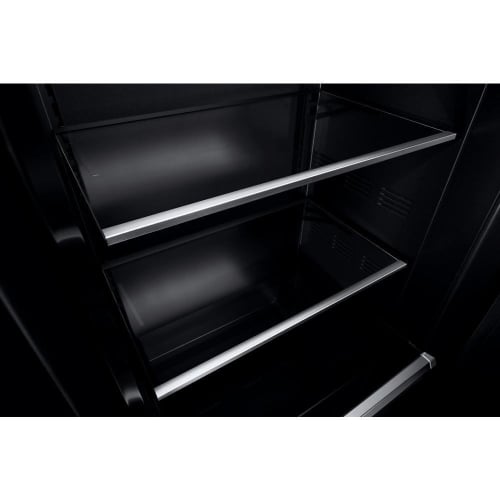

| Refrigerator Shelves - Type | Glass |

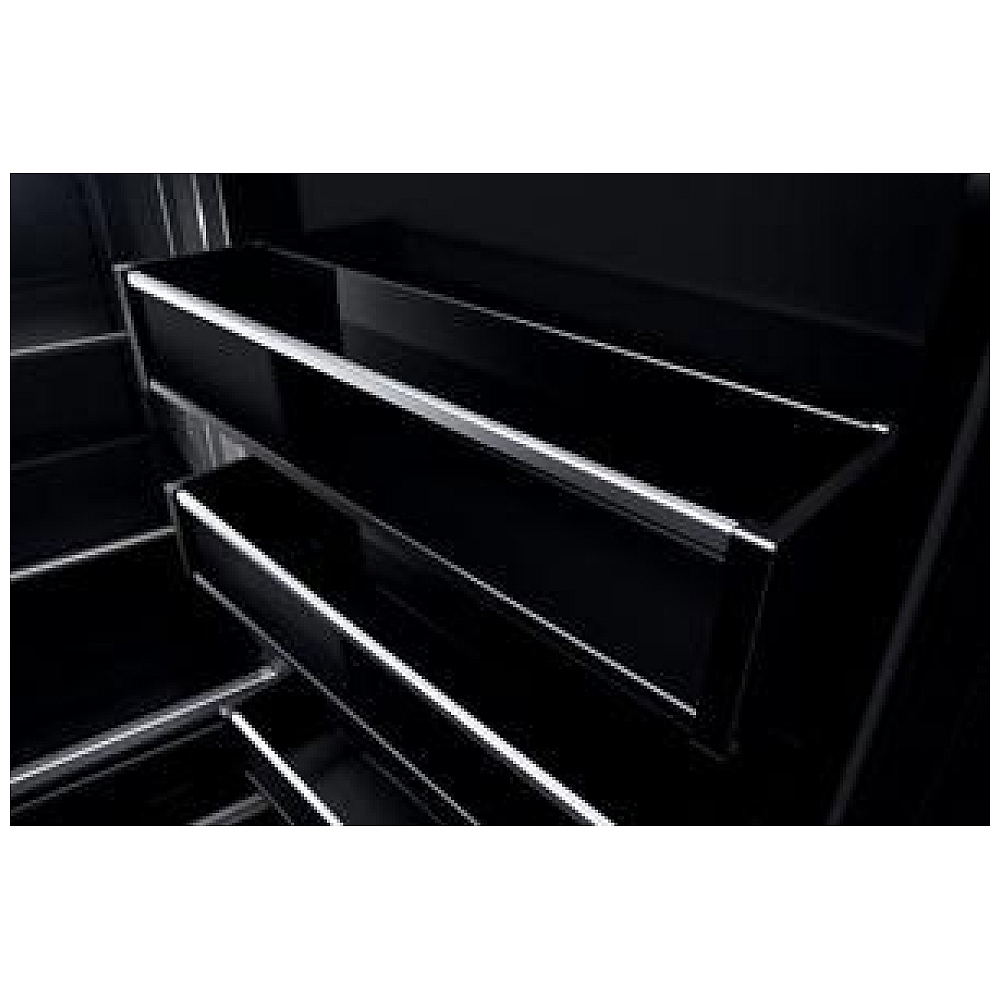

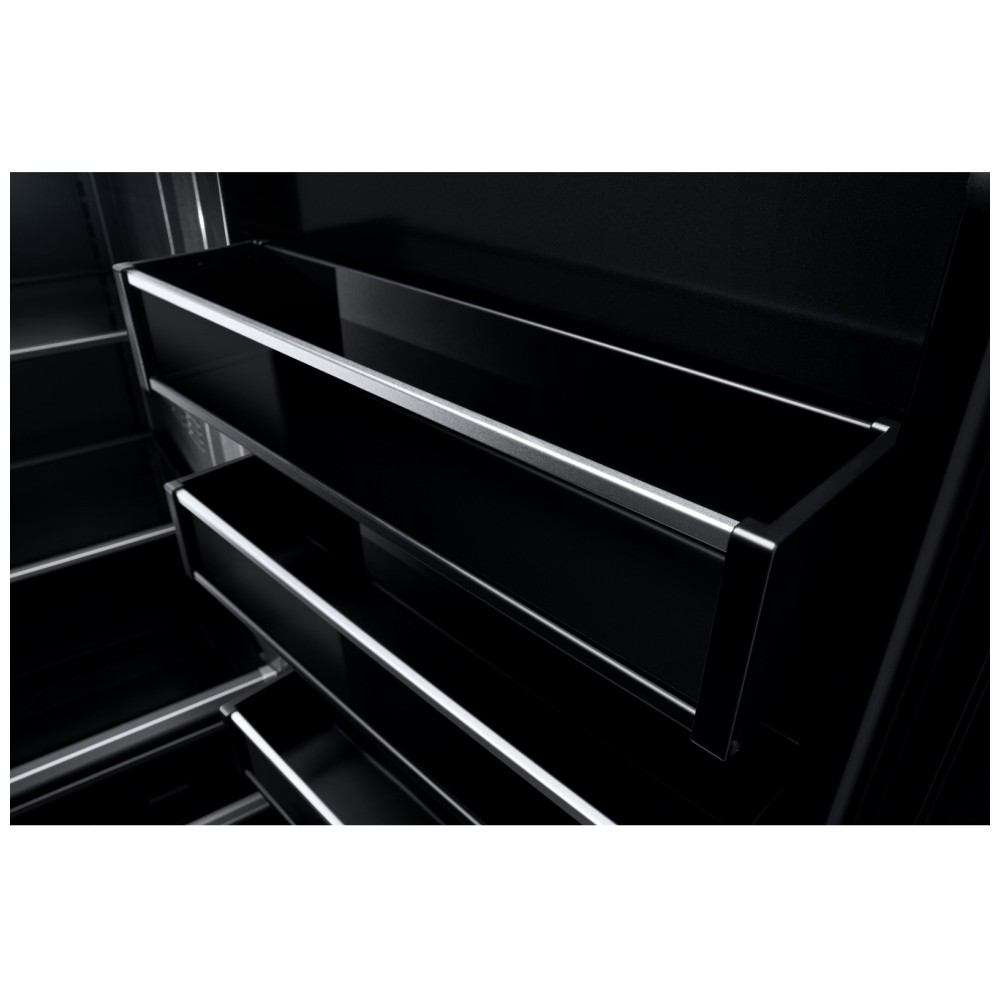

| Door Bins | 3 adjustable door bins (listed as 3 adjustable full-width or 3 adjustable half-width depending on retailer) |
| Crisper / Vegetable / Deli Drawers | 2 vegetable/deli drawers |
| Non-Climate Control Drawers | 1 full-width; 2 half-width |
| Freezer Door Type | Pull-Out Drawer |
| Freezer Drawer Baskets | 2 full-width baskets |
| Freezer Lighting | LED |
| Ice Maker | Yes (interior ice system) |
| Types of Ice | Cubed |
| Dispenser Type | No external dispenser; interior filtered ice only |
| Water / Ice Dispenser | None (no external water/ice dispenser) |
| Dispenser Options | Filtered Ice (interior) |
| Fresh Flow Air Filter Included | Yes |
| Air Filter Indicator / Reset | Yes |
| Water Filter Location | Interior |
| Water Filter Indicator / Reset | Yes |
| Water Filter Part Number | EDR2RXD1 |
| Energy Star Certified | Yes (ENERGY STAR® Qualified) |
| CEE Tier Rating | Tier I |
| Energy Rating | 540 kWh/year |
| Electrical (Amps) | 3 A (typical listing) |
| UL Listed | Yes |
| Prop 65 | Standard |
| Star-K Certified | Yes |
| ADA Compliant | No |
| Handle Type | Metal (custom panel handle kit sold separately) |
| Finish | Smooth |
| Popular Width Category | 30 Inch Wide |
| Popular Height Category | 71 Inch Tall or Higher |
| Manufacturer Warranty | 2-year manufacturer warranty (typical in Canadian listings) |
