JennAir JED4536KB
Discontinued
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
AEU648
Ratings & Reviews
AEU648
When will I get this?

Description & Features

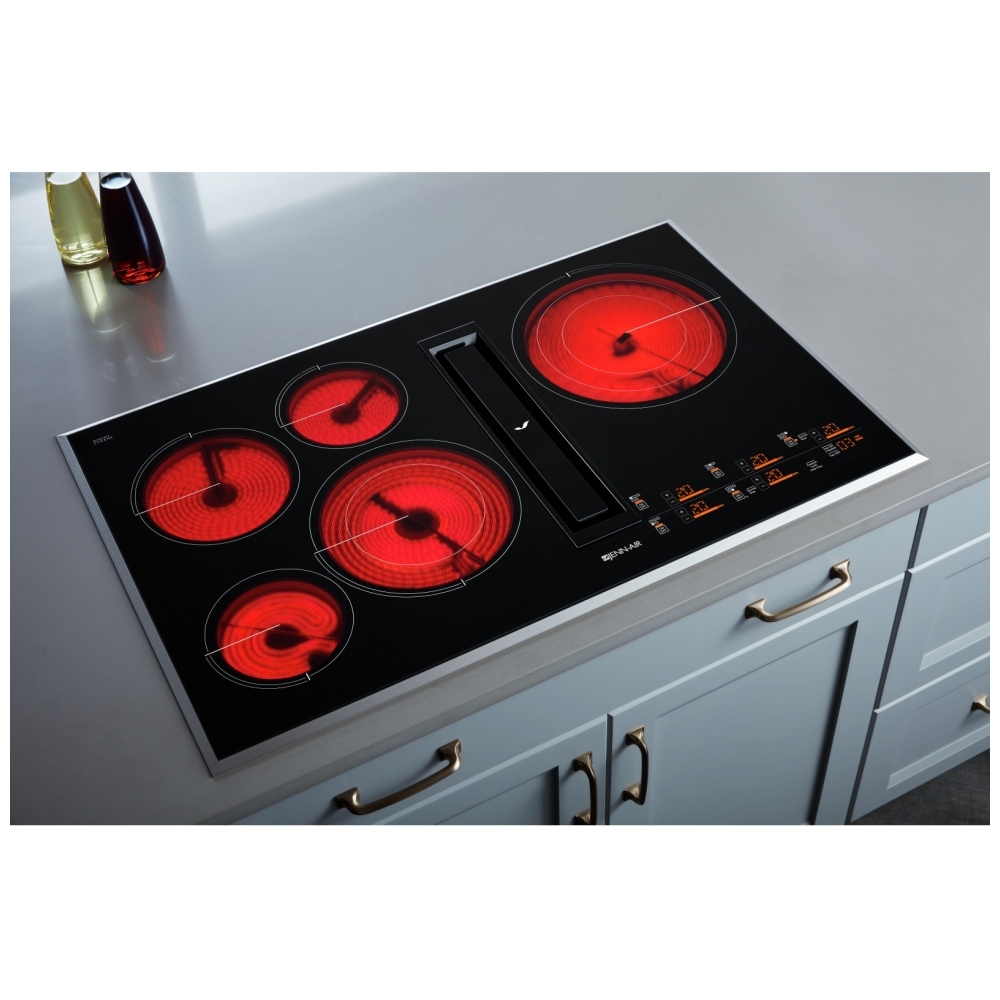

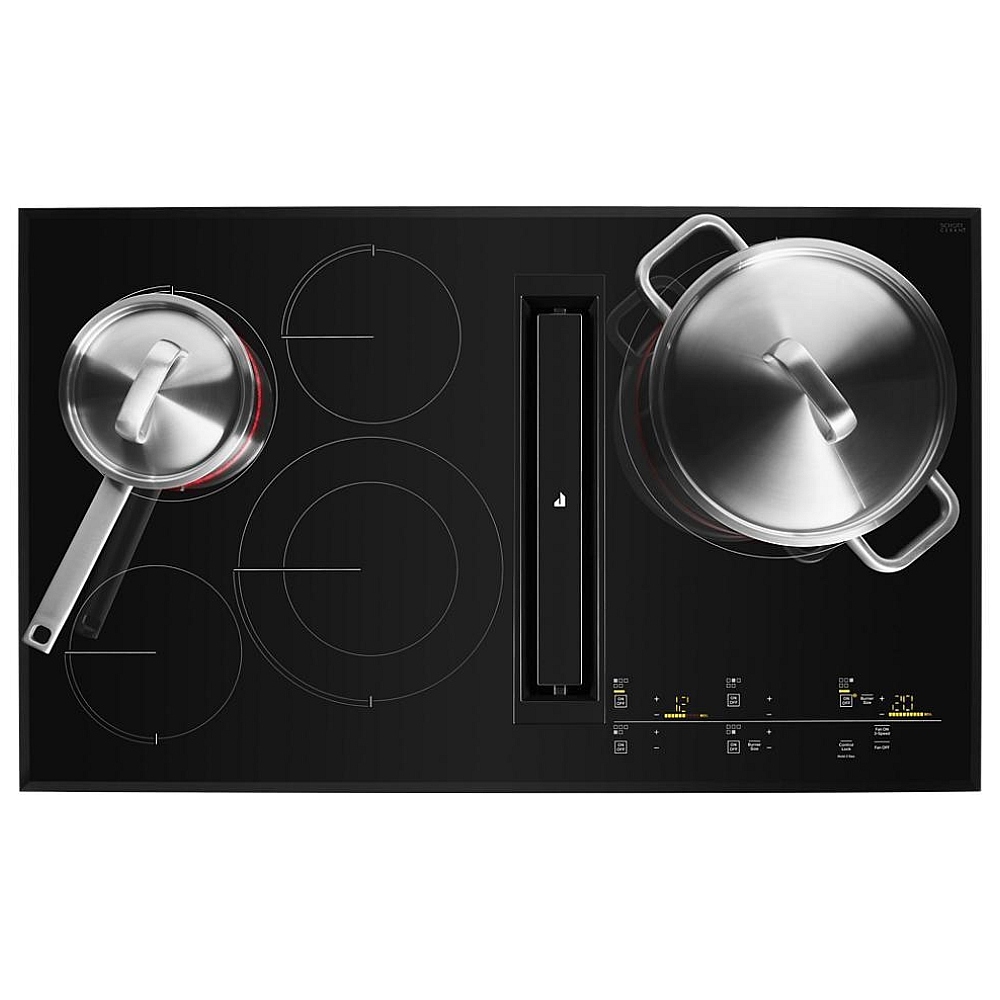

This industry exclusive tap touch radiant downdraft cooktop offers a sleek design and responsive performance. Its glass touch controls and five radiant elements create a smooth, integrated cooktop surface, and the impressive JX3™ downdraft ventilation system quickly helps clear the air without a hood.

  • 10"/6" Dual-Choice™ Element
  • An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.
  • 12"/9"/6" Triple-Choice™ Element
  • Reaching up to a powerful 4,500 watts and capable of turning down as low as 1,400 watts, this three-tiered element provides versatility in power levels while accommodating various-sized cookware.
  • 297 CFM Motor Class Blower
  • A single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 297 CFM Motor Class.
  • 8 Inch Element
  • A heating element sealed underneath a ceramic glass cooking surface that offers up to 1,800 watts of power.
  • Badasses at the Ready
  • Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you-from sales to installation to ownership.
  • Duct-Free Filter
  • Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.
  • Emotive Controls
  • Striking and inviting controls with LED lighting unleash performance at your touch.
  • Hot Surface Indicators
  • Light(s) positioned at the controls instantly show which element is still hot - even if the element has been turned off.
  • JX3™ Downdraft Ventilation System with 3 Speeds
  • Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
  • Oblivion Glass Surface
  • Sleek black glass with a beveled edge that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
  • Optional Duct-Free Ventilation Kit
  • Downdraft cooktops are manufactured to be used with ductwork, but this option enables conversion of the JX3™ downdraft cooktop to be used with a duct-free system. (Sold separately)

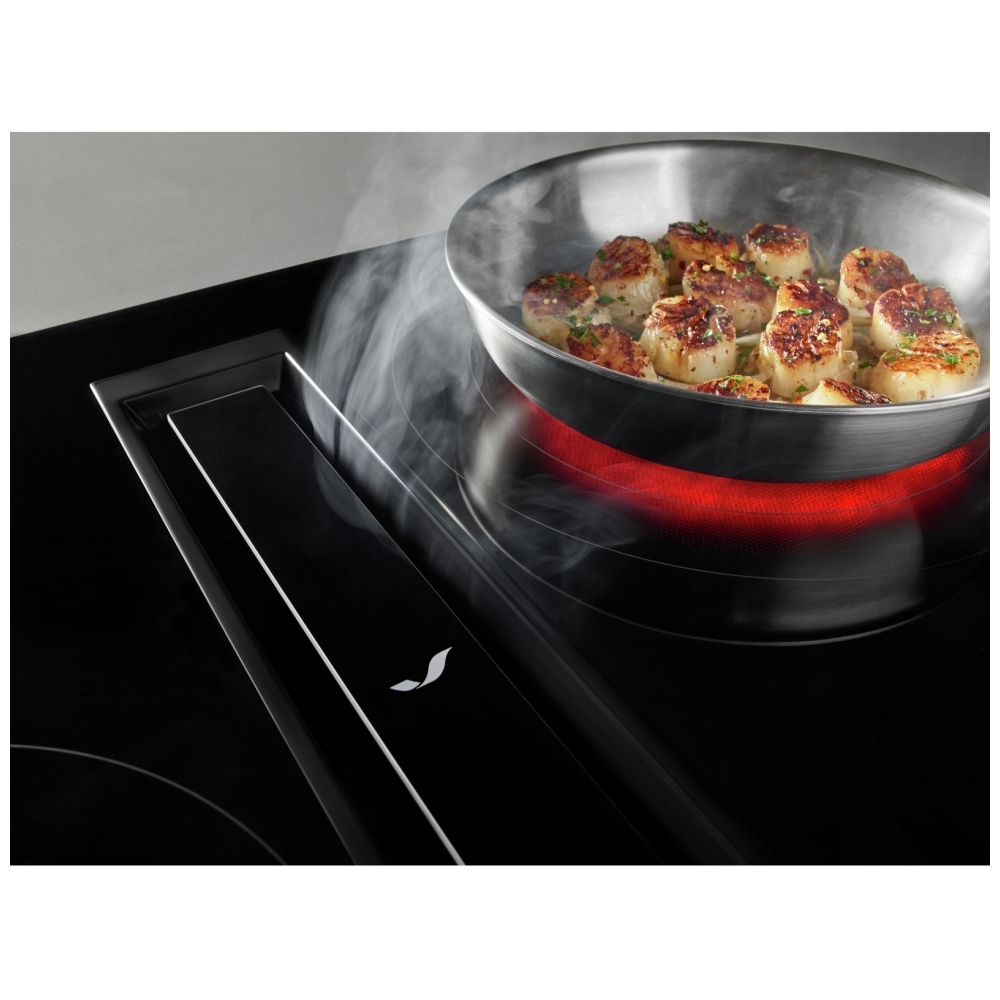

  • Perimetric Extraction
  • Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
  • Radiant Elements
  • Waiting expectantly beneath the stillness of obsidian black glass, electric elements are coiled to deliver heat upon command.
  • Semi-Flush Installation
  • Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
  • Serviced by a Select Few
  • We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
  • Two 6 Inch Elements
  • Heating elements sealed underneath a ceramic glass cooking surface that offers up to 1,200 to 1,300 watts of power.

Manufacturer's Warranty: 2 years

Canadian model: JED4536KB

Canadian UPC: 883049592350

EAN: 0883049592350

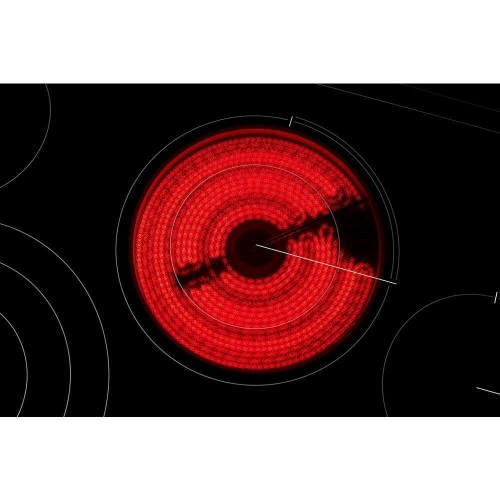

10"/6" Dual-Choice™ Element - JED4536KB
10"/6" Dual-Choice™ Element
JED4536KB - 10"/6" Dual-Choice™ Element
An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.

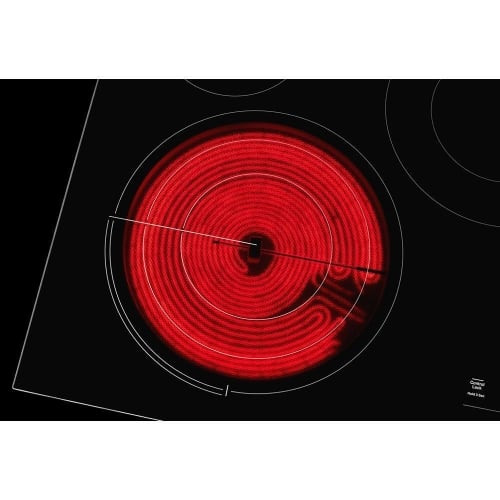

12"/9"/6" Triple-Choice™ Element - JED4536KB
12"/9"/6" Triple-Choice™ Element
JED4536KB - 12"/9"/6" Triple-Choice™ Element
Reaching up to a powerful 4,500 watts and capable of turning down as low as 1,400 watts, this three-tiered element provides versatility in power levels while accommodating various-sized cookware.

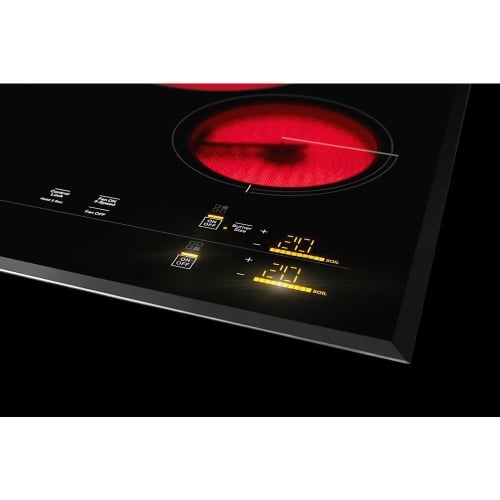

Emotive Controls - JED4536KB
Emotive Controls
JED4536KB - Emotive Controls
Striking and inviting controls with LED lighting unleash performance at your touch.

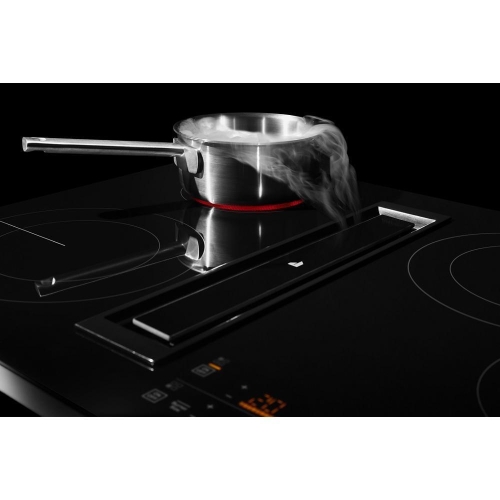

JX3™ Downdraft Ventilation System with 3 Speeds - JED4536KB
JX3™ Downdraft Ventilation System with 3 Speeds
JED4536KB - JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

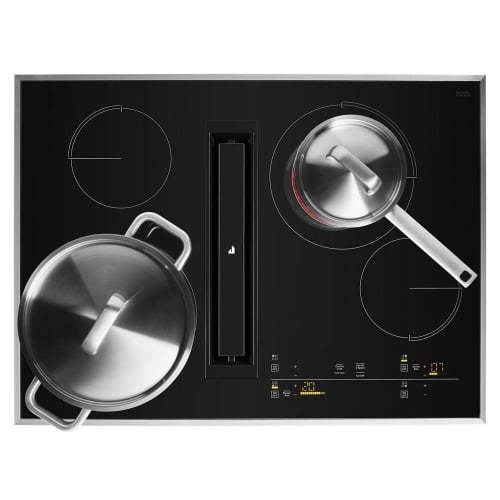

Perimetric Extraction - JED4536KB
Perimetric Extraction
JED4536KB - Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

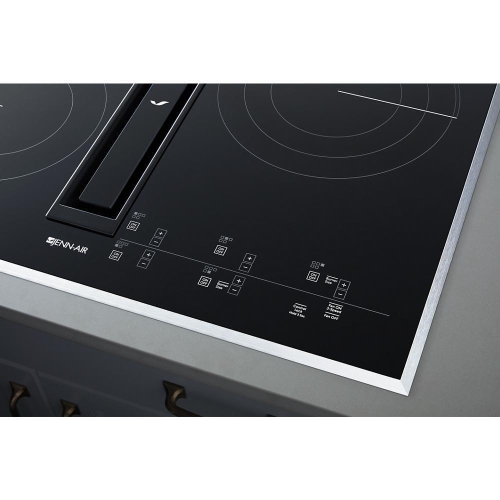

Semi-Flush Installation - JED4536KB
Semi-Flush Installation
JED4536KB - Semi-Flush Installation
Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

Specs
Certifications
Ada Compliant Yes
Prop65 Standard
Ul Yes
Controls
Control Location Right Front
Control Type Electronic Touch
Infinite Heat Controls No
Cooktop Details
Cooktop Surface Color Black
Cooktop Surface Material Ceramic Glass
Digital Display Yes
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Details
Automatic Pan Detection No
Cooktop Selections Convertible to Duct Free Ventilation; DownDraft
Design Expression Black Glass
Fuel Type Electric Radiant
Installs Over Built-in Oven No
Lp Convertible No
Number of Vent Speeds 3
Power Outage Compatible No

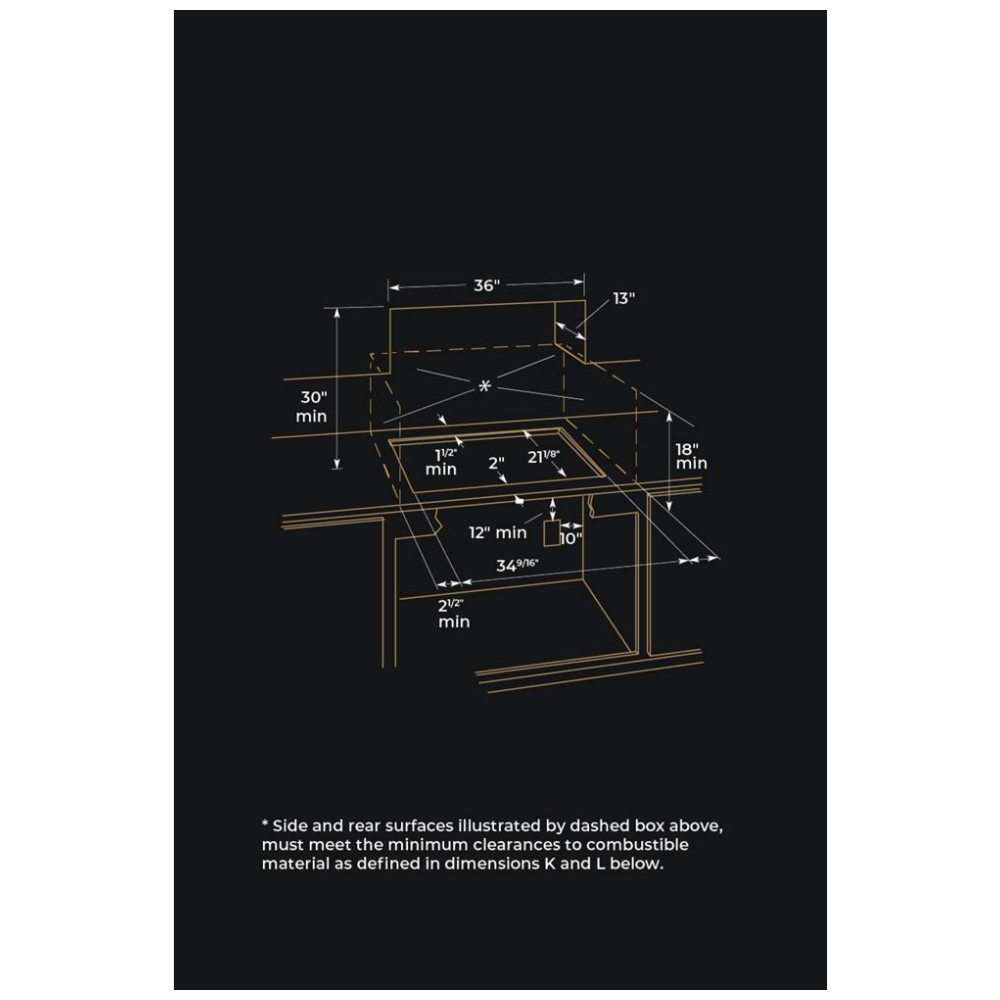

Dimensions
Product Height 3.6563
Cutout Depth 21.125
Carton Height 23.78
Gross Weight 98
Carton Depth 26.38
Carton Width 41.5
Cutout Width 34.563
Product Depth 22.0625
Net Weight 82.94
Product Width 36.3125
Electrical
Power Cord Included No

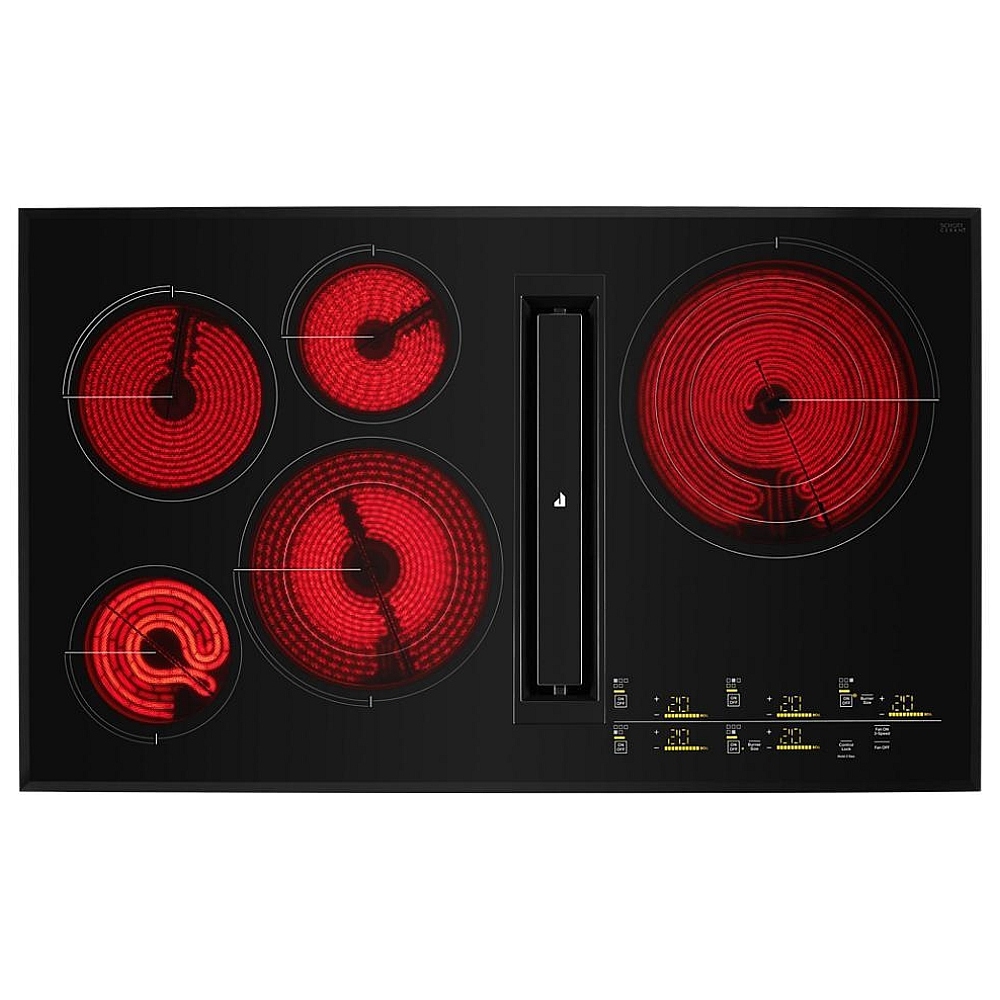

Element/burner Details
Center Front Element-burner Power 3000W/1400W
Center Front Element-burner Size 10in./6in.
Center Front Element-burner Type Dual
Center Rear Element-burner Power 1,200W
Center Rear Element-burner Size 6in.
Center Rear Element-burner Type Single
Cooktop Element Style Radiant
Cooktop Type Downdraft
Left Front Element-burner Power 1,300W
Left Front Element-burner Size 6in.
Left Front Element-burner Type Hyper
Left Rear Element-burner Power 1,800W
Left Rear Element-burner Size 8in.
Left Rear Element-burner Type Single
Number of Cooking Element-burners 5
Power Boost No
Right Rear Element-burner Power 4500/3100/1550W
Right Rear Element-burner Size 12in./9in./6in.
Right Rear Element-burner Type Triple
Ventilation Details
Cfm Motor Class 310
Downdraft Vent Yes

Dimensions
Depth 22 1/16
Width 36 5/16
Height 3 21/32
Cutout Depth 21 1/8
Cutout Width 34 9/16
Maximum Height 18 23/32
Carton Depth 26 7/16
Carton Height 23 13/16
Carton Width 41 1/2
Gross Weight 98
Net Weight 82.9

Certifications
Prop 65 Standard
ADA Compliant Yes
Energy Rating (kWh/year) 258
UL Yes

Description
Cooktop Type Downdraft
Fuel Type Electric Radiant
Size (in.) 36

Features
Hot Surface Indicator Light Yes
Digital Display Yes
Automatic Pan Detection No
Downdraft Vent Yes
Heating Element On Indicator Light Yes
Installs Over Built-In Oven No
Griddle NA
LP Convertible No
Power Boost No
Power Outage Compatible No
Selection Convertible to Duct Free Ventilation,JX3™ Downdraft Ventilation System with 3-Speed Fan

Controls
Infinite Heat Controls No
Control Location Right Front
Control Type Electronic Touch

Cooktop Details
Cooktop Element Style Radiant
Cooktop Surface Color Black
Number of Cooking Element-Burners 5
Center Rear Element-Burner Power 1200W
Left Front Element-Burner Size 6"
Center Rear Element-Burner Size 6"
Left Rear Element-Burner Size 8"
Center Front Element-Burner Power 3000W/1400W
Center Front Element-Burner Size 10"/6"
Left Front Element-Burner Power 1300W
Left Front Element-Burner Type Hyper
Center Rear Element-Burner Type Single
Left Rear Element-Burner Power 1800W
Right Rear Element-Burner Power 4500/3100/1550W
Left Rear Element-Burner Type Single
Right Rear Element-Burner Size 12"/9"/6"
Right Rear Element-Burner Type Triple
Center Front Element-Burner Type Dual

Details
Cooktop Surface Material Ceramic Glass

Electrical
Amps 40
Power Cord Included No
Volts 220

Ventilation System
CFM Motor Class 310
Number of Speeds 3

Refinement
Style Cooktops

Energy
Annual Energy Usage [kWh] 258

Design Type
Design Expression Black Glass
