JennAir JGC7636BP
Discontinued
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
AQI7E1
Ratings & Reviews
Similar Colours and Options
AQI7E1
When will I get this?

Description & Features

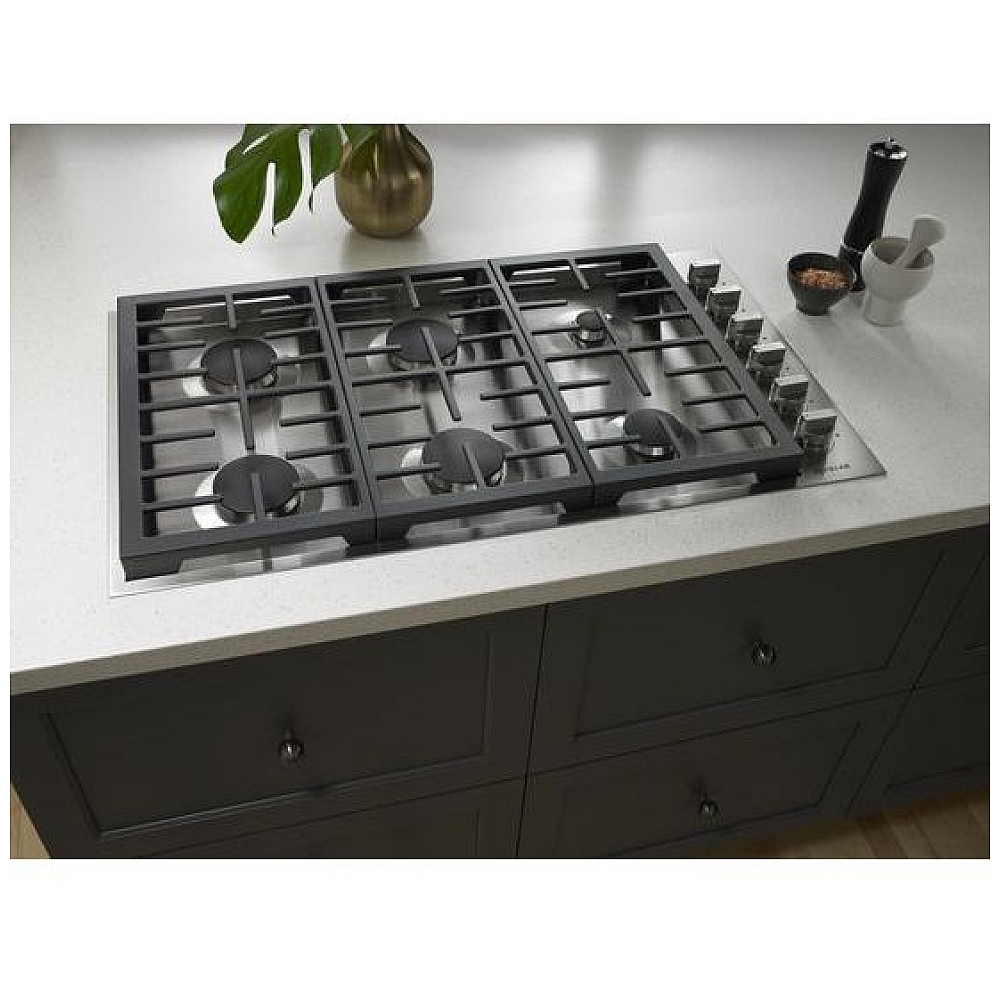

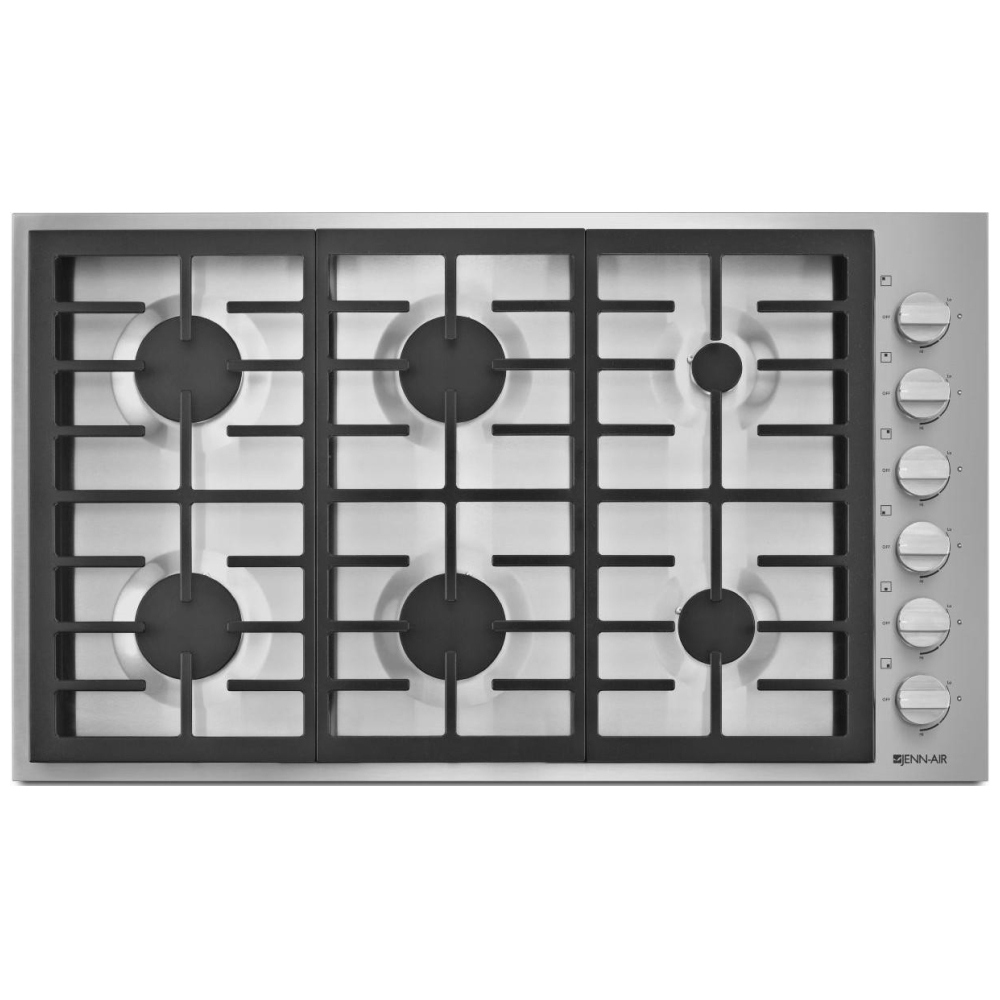

With a combined 78,000 BTUs of power, this luxury JennAir® gas cooktop is an exceptionally robust six-burner, 36-inch cooktop. Its Simmer/Melt Burner reaches as low as 800 BTU, while an extremely low profile allows for near-flush countertop installation. This cooktop pairs beautifully with appliances in our Pro-Style® Stainless suites.

  • 6,000 BTU Brass Simmer Burner
  • Melt chocolate and butter or simmer sauces just below boiling with a high-precision burner that offers a wide range of power.

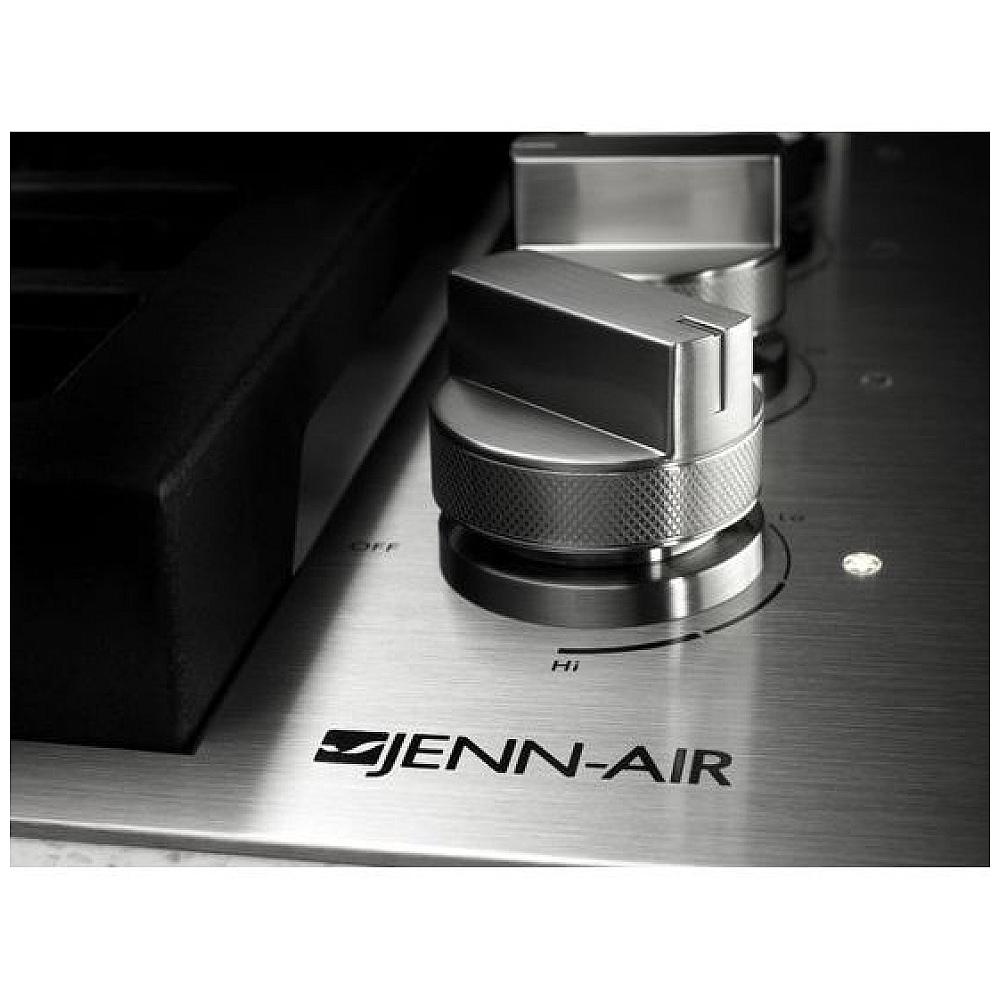

  • White LED Burner Indicator
  • White indicator light glows indicating when a burner is on, providing a modern look and a convenient reminder for cooks.
  • Single Point Electronic Ignition and Flame-Sensing™ Re-ignition
  • If the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.

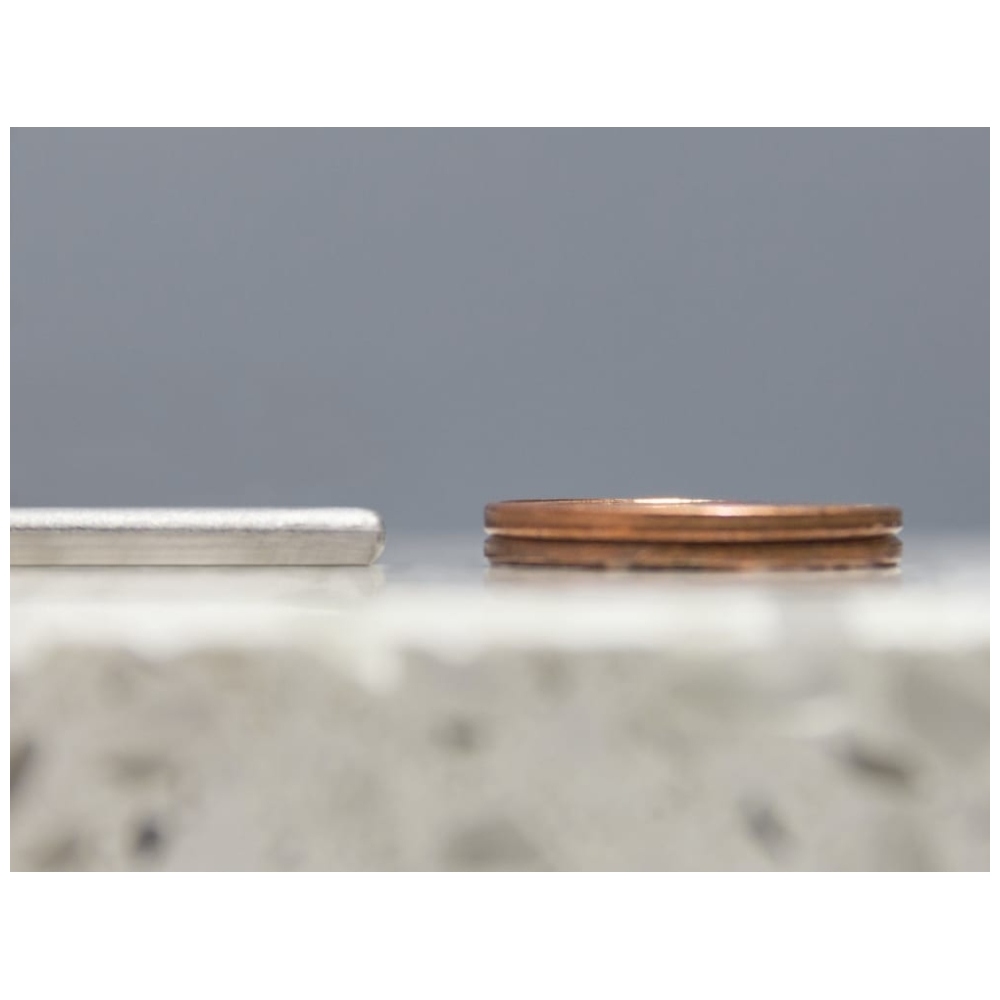

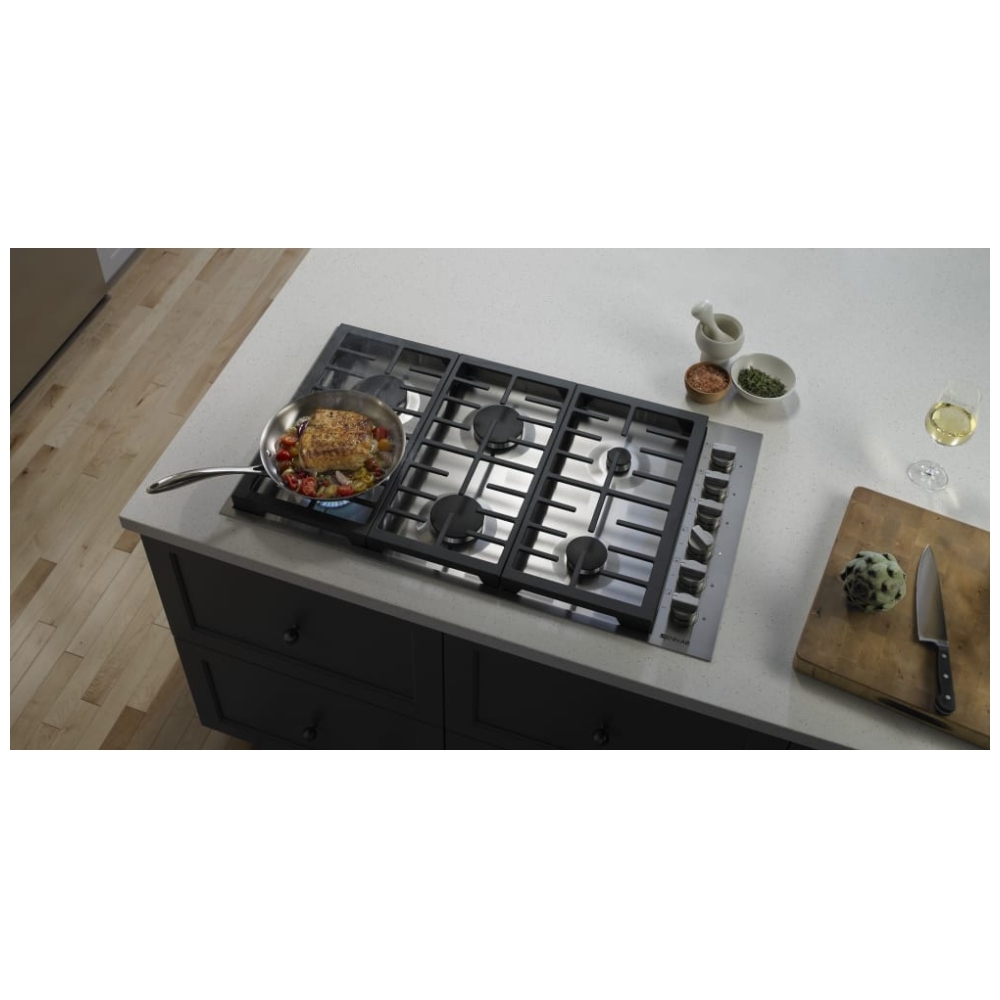

  • Low-Profile Design
  • With an extremely low profile, you can have a minimal look -nearly flush with the countertop - for an integrated transition to the cooktop.
  • Pro-Style® Stainless Design
  • Make a bold statement with a commercial-styled cooktop and match your other Jenn-Air® Pro-Style® Stainless appliances.

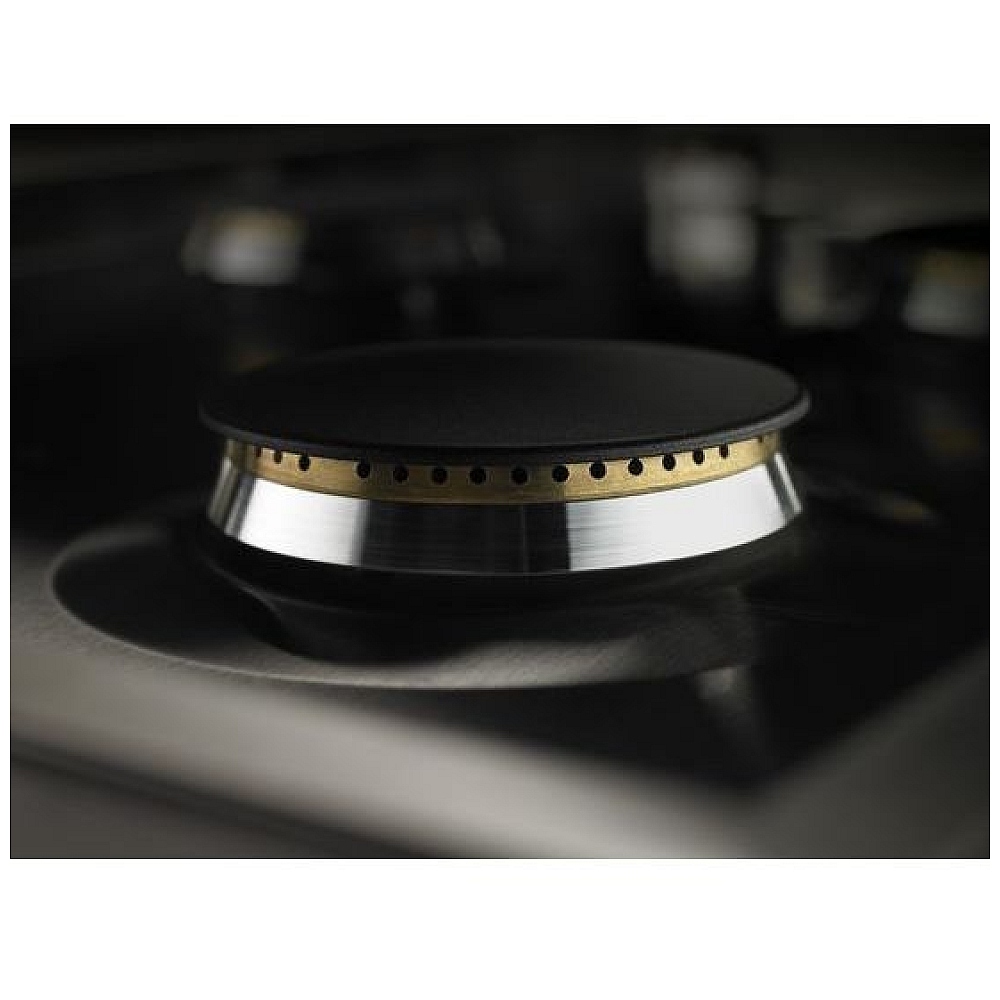

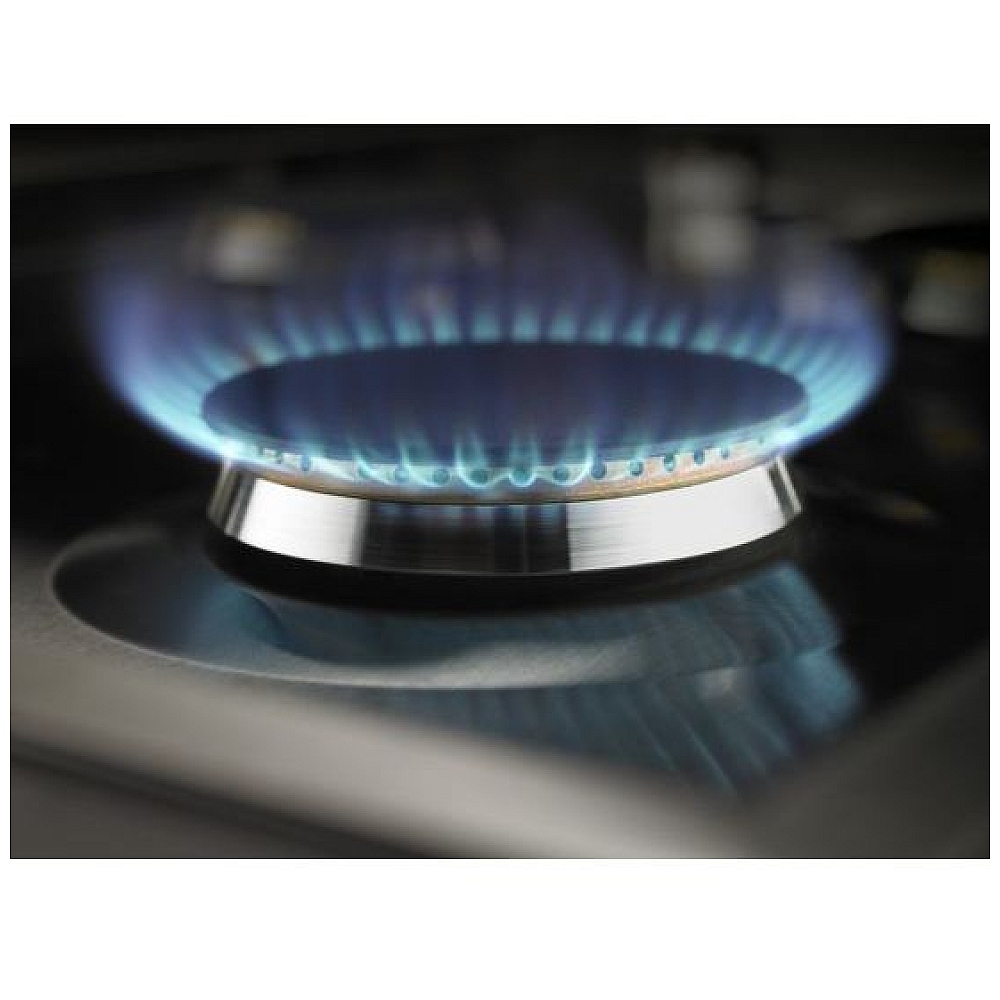

  • 18,000 BTU Brass PowerBurner
  • Enjoy the elegance of brass and robust heat from this PowerBurner that s necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
  • Built-in Oven Compatible
  • Experience premium design and performance from high-end appliances when you install a single wall oven beneath your electric cooktop.

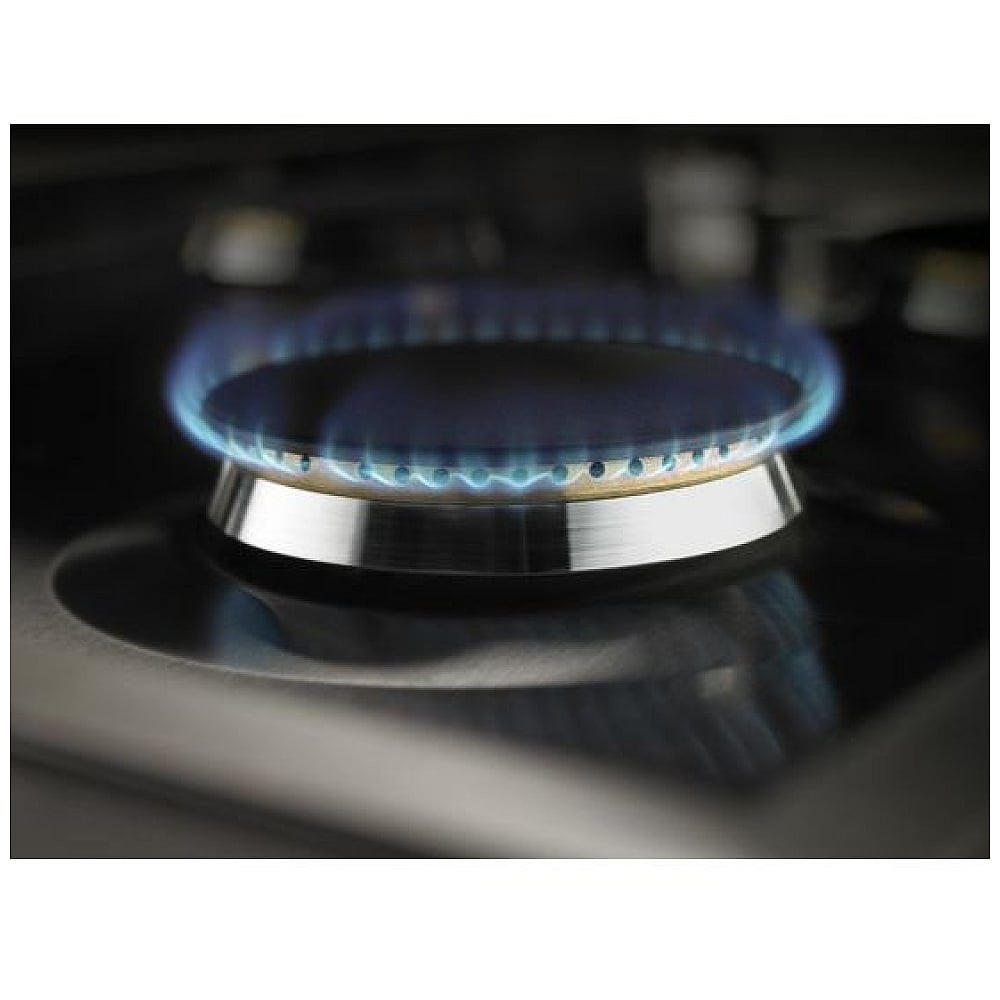

  • 15,000 BTU Brass Burner
  • Reaching a powerful 15,000 BTUs, this versatile burner features the brilliance of brass and combines precise simmer capabilities with the capacity to quickly boil water or stir fry vegetables.

Manufacturer's Warranty: 2 years

Canadian model: JGC7636BP

Canadian UPC: 883049283081

EAN: 0883049283081

Specs
Dimensions
Depth 21 in
Height 4-1/2 in
Width 36 in
Configuration and Overview
Cooktop Type Traditional
Fuel Type Gas
Installs Over Built-In Oven Yes
LP Convertible Yes - Kit Included
Power Boost No
Size 36 in
Controls
Infinite Heat Controls Yes
Location of Controls Right Side
Cooktop Details
Automatic Pan Detection No
Downdraft Vent No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light No
Number of Cooking Element-Burners 6
Number of Grates 3
Appearance
Digital Display No
Certifications
Prop 65 & AB-1200 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . California AB-1200 Disclosures
Design Type
Design Expression Stainless Steel
GDS
GPC Code 10001951
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
UDEX 1100400623
isBaseUnit true
isConsumerUnit true
Details
Cooktop Surface Material Stainless Steel
Description
Fuel Type Gas
Size 36

Dimensions
Depth 21
Width 36
Height 4 1/2
Carton Depth 21
Carton Height 3 1/4
Carton Width 36
Gross Weight 78

Certifications
Prop 65 Standard
ADA Compliant Yes
UL UL

Configuration and Overview
Fuel Type Gas
Cooktop Type Traditional
Size (IN,inches) 36
Installs Over Built-In Oven Yes
LP Convertible Yes - Kit Included
Power Boost No

Description
Combinations with Oven JJW2427,JJW2430,JJW3430

Controls
Control Type Knobs
Infinite Heat Controls Yes
Knob Color Stainless Steel
Knob Type Metal
Control Location Right Side

GDS
isBaseUnit true
isConsumerUnit true
GPC Code 10001951
IsDispatchUnit .
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
UDEX 1100400623

Appearance
Digital Display No

Cooktop Details
Automatic Pan Detection No
Downdraft Vent No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light No
Cooktop Surface Color Stainless
Cooktop Surface Material Stainless Steel
Number of Open Bays NA
Left Rear Element-Burner Power 15,000 BTU
Center Front Element-Burner Power 15,000 BTU
Left Front Element-Burner Power 18,000 BTU
Right Front Element-Burner Power 9000 BTU
Left Front Element-Burner Type Power™ Burner
Right Rear Element-Burner Power 6000 BTU
Center Front Element-Burner Type High Output
Center Rear Element-Burner Power 15,000 BTU
Center Rear Element-Burner Type High Output
Left Rear Element-Burner Type Burner
Right Front Element-Burner Type Burner
Grate Details Cast Iron Grates,Continuous,Dishwasher Safe,Matte Finish
Cooktop Element Style Sealed Burner
Ignition Type Flame-Sensing™ Re-ignition
Number of Cooking Element-Burners 6
Number of Grates 3
Right Rear Element-Burner Type Simmer

Features
Griddle NA
Selection Heating Element On Indicator Light,Simmer

Electrical
Amps 15
Hz 60
Volts 120
Power Cord Included Yes

Refinement
Style Cooktops

Design Type
Design Expression Stainless Steel

Refinement JEN
Burners/Elements for Cooktops 6
