| $4,462 | (15% off) | if you buy 2 or 3 items. |
| $4,199 | (20% off) | if you buy 4+ items. |






Manufacturer's Warranty: 2 years
Canadian model: JGCP430HM
Similar to USA model: JGCP430HM
Canadian UPC: 883049469171
Similar to USA UPC: 883049469171
EAN: 0883049469171
| Specification | Value |
|---|---|
| Brand | JennAir |
| Model | JGCP430HM |
| Product Type | Gas Rangetop |
| Design Expression | NOIR™ |
| Nominal Width | 30 inches |
| Actual Width | 29 3/4 inches |
| Overall Depth | 27 1/2 inches |
| Depth Without Control Panel | 23 1/4 inches |
| Depth With Control Panel | 25 1/2 inches |
| Depth With Knobs | 29 inches |
| Overall Height With Grates | 9 inches |
| Control Panel Height | 7 13/16 inches |
| Recessed Rangetop Height | 7 inches |
| Cooking Surface Height | 7 7/16 inches |
| Grate Width | 27 7/16 inches |
| Grate Depth | 22 inches |
| Recessed Rangetop Width | 29 1/8 inches |
| Recessed Rangetop Depth | 21 7/8 inches |
| Cutout Width | 29 1/4 inches |
| Cutout Depth | 22 1/4 inches |
| Alternate Cutout Width | 29 7/8 inches |
| Notch Width | 5/16 inch |
| Cooktop Size | 30 inches |
| Number of Burners | 4 |

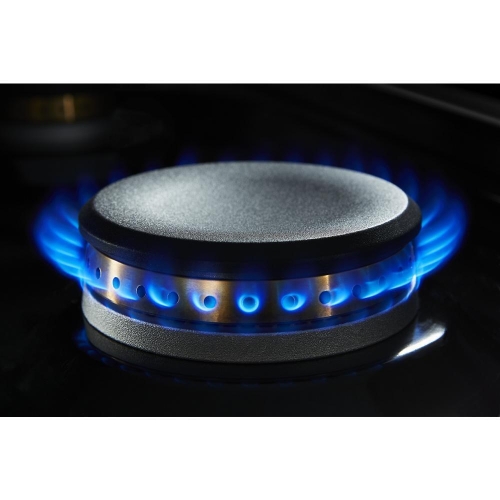

| Burner Type | Sealed Dual-Stacked PowerBurners™ |
| Front Burner Rating | 20,000 BTU |
| Rear Burner Rating | 18,000 BTU |
| Small Burner Rating | 9,200 BTU |
| Front Burner Simmer Rating | 1,650 BTU |
| Small Burner Simmer Rating | 1,000 BTU |
| Cooking Surface | Stainless Steel |
| Color | Floating Glass Black |

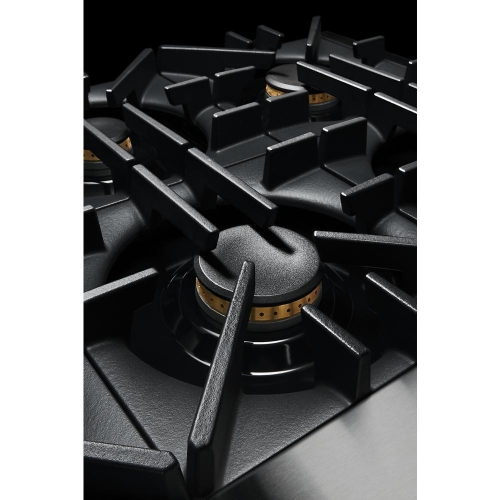

| Grate Material | Cast Iron |
| Grate Style | Continuous Grates |

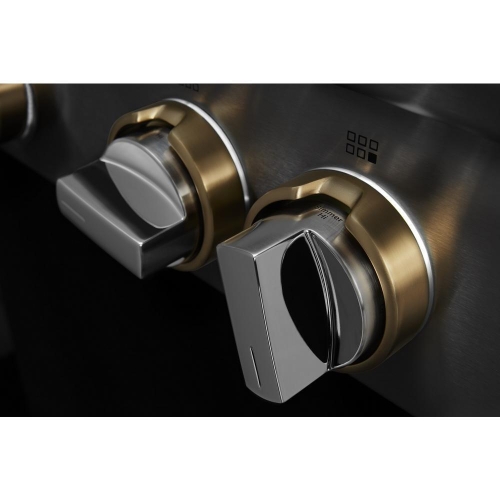

| Knob Style | Halo-Effect Knobs |
| Ignition Type | Electronic Ignition |
| Flame Reignition | Flame-Sensing™ Reignition |
| Fuel Type | Natural Gas |
| LP Convertible | Yes |
| Voltage | 120 volts |
| Frequency | 60 Hz |
| Amperage | 15 amps |
| Power Cord | 3-prong grounding-type power supply cord |
| Dedicated Circuit Recommended | Yes |
| Natural Gas Minimum Pressure | 5 inches WCP |
| Natural Gas Maximum Pressure | 14 inches WCP |
| Propane Gas Minimum Pressure | 10 inches WCP |
| Propane Gas Maximum Pressure | 14 inches WCP |
| Gas Inlet to Surface | 10 3/4 inches |
| Center to Gas Inlet | 11 inches |
| Gas Supply Zone Width | 14 inches |
| Gas Supply Location From Back | 1 7/8 inches |
| Gas Supply Location From Left Side | 4 7/8 inches |
| Minimum Clearance to Side Wall | 12 inches |
| Minimum Cabinet Height Above Cooking Surface | 42 inches |
| Minimum Cabinet Height Above Countertop | 18 inches |
| Recommended Upper Cabinet Depth | 13 inches |
| Minimum Cutout to Wall Depth | 1 1/2 inches |
| Minimum Rear Clearance Without Backsplash | 7 1/2 inches |
| Minimum Rear Clearance From Back Edge Without Backsplash | 6 inches |
| Cabinet to Countertop Height | 7 1/4 inches |
| Cabinet Depth | 24 inches |
| Electrical Outlet Zone Minimum | 10 inches |
| Electrical Outlet Zone Maximum | 16 inches |
| Altitude Rating | Input ratings for elevations up to 2,000 feet |
| Altitude Adjustment | Above 2,000 feet, reduce ratings by 4% per 1,000 feet above sea level; not applicable in Canada |
| Approval | UL, CUL or CSA approved |
| UPC | 883049469171 |
