JennAir

JXD7030YS

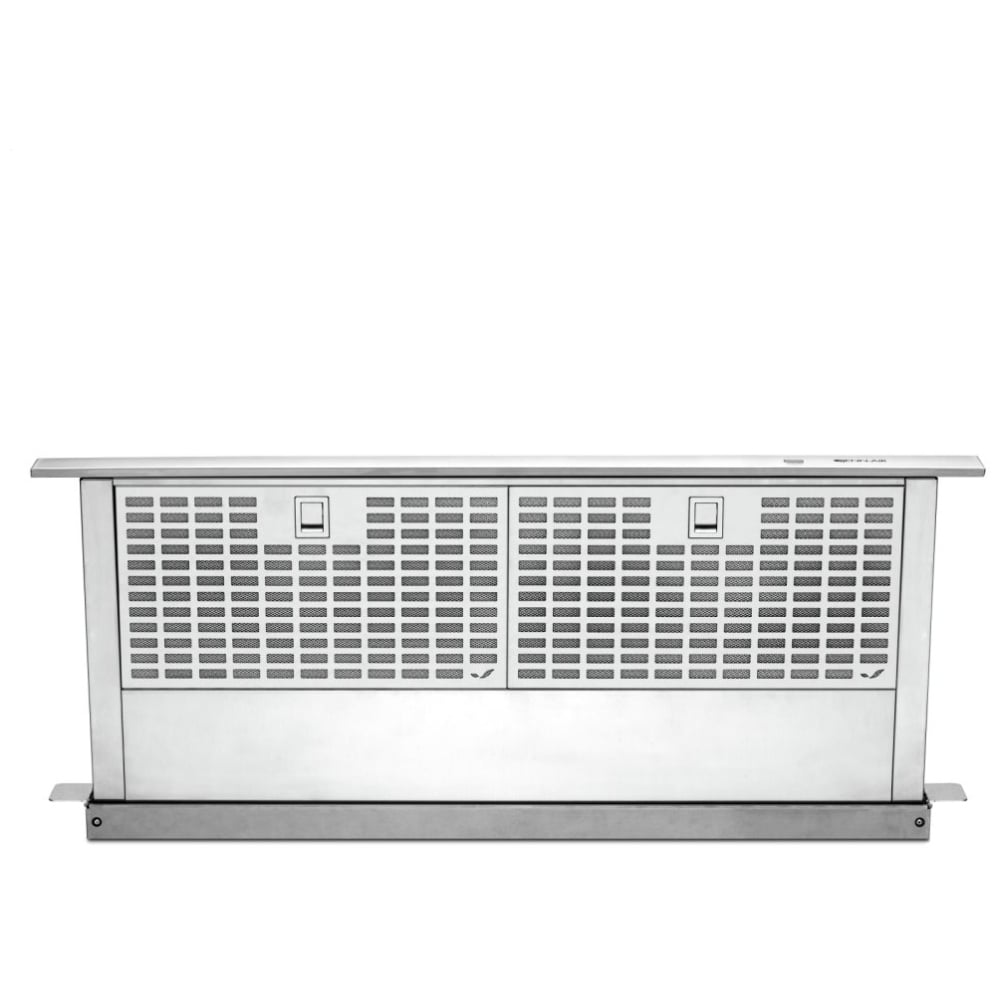

• JennAir® luxury telescoping downdraft design – integrates directly behind the cooktop, rising from the countertop for powerful ventilation and retracting out of sight when not in use for a clean, modern look.

• 600 CFM high‑performance blower – single centrifugal blower motor provides up to 600 CFM of airflow to quickly clear smoke, steam and cooking odors from the cooking surface.

• 14‑inch (35.6 cm) telescoping rise – vent rises a full 14" above the countertop to effectively capture steam and vapors, even from tall stockpots and high‑heat cooking.

• Reversible motor box – motor housing can be installed facing the front or back of the cabinet, giving flexibility to work around plumbing, gas lines or structural obstructions.

• Four fan speed settings – multiple speed options let you match ventilation power to your cooking needs, from gentle simmering to high‑heat searing, helping balance performance and noise.

• Dishwasher‑safe premium mesh filters – durable aluminum grease filters trap smoke, grease and odors and can be removed and cleaned in a standard dishwasher for easy maintenance.

• 6" round exterior venting option – supports 6‑inch round ducting so air can be exhausted vertically through an exterior wall or roof, fitting common residential duct layouts.

• 3‑1/4" x 10" rectangular exterior venting option – alternative rectangular duct connection provides additional flexibility for matching existing ductwork or tight cabinet spaces.

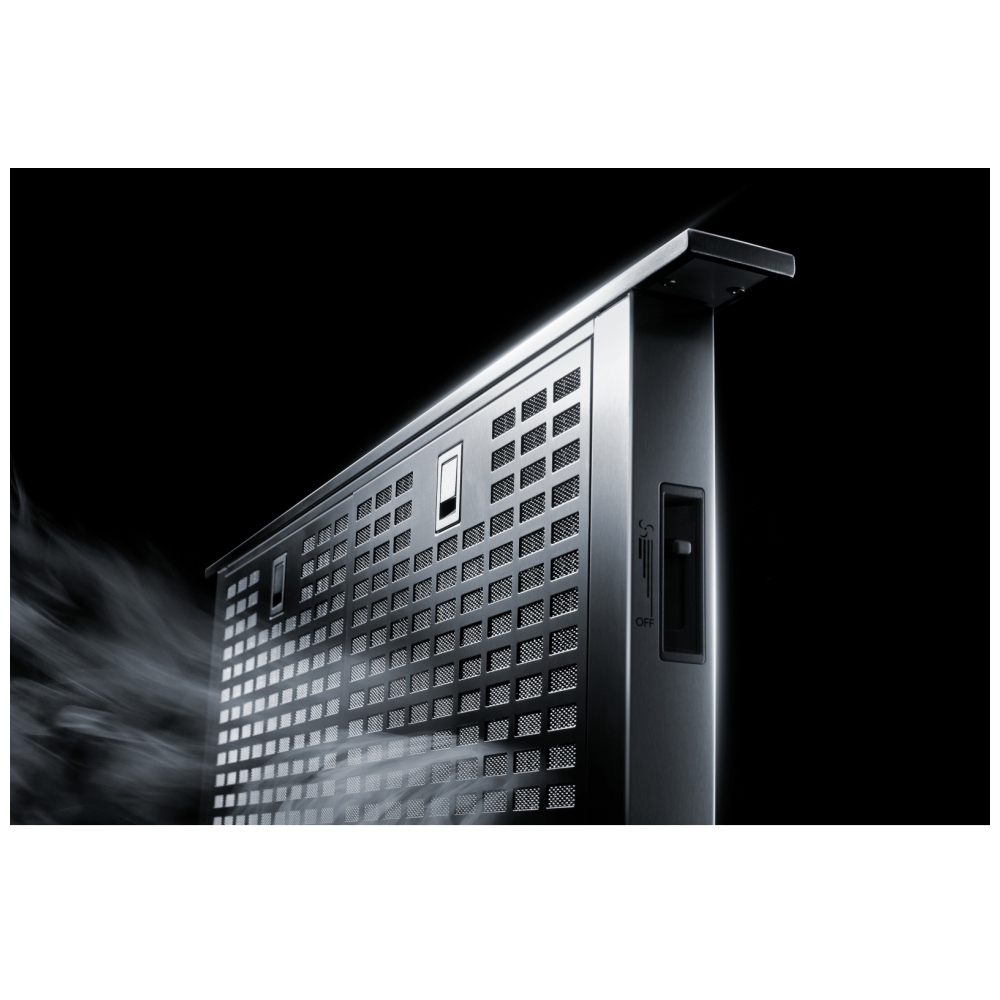

• Hidden slide controls – low‑profile manual controls are concealed along the top edge of the vent, preserving a sleek, uninterrupted appearance when the unit is retracted.

• Automatic shutoff when retracted – blower automatically turns off when the downdraft is lowered into the countertop, adding safety and preventing accidental operation.

• Slim profile housing – compact internal design minimizes the space required inside the base cabinet, helping preserve storage or clearance for cooktop utilities.

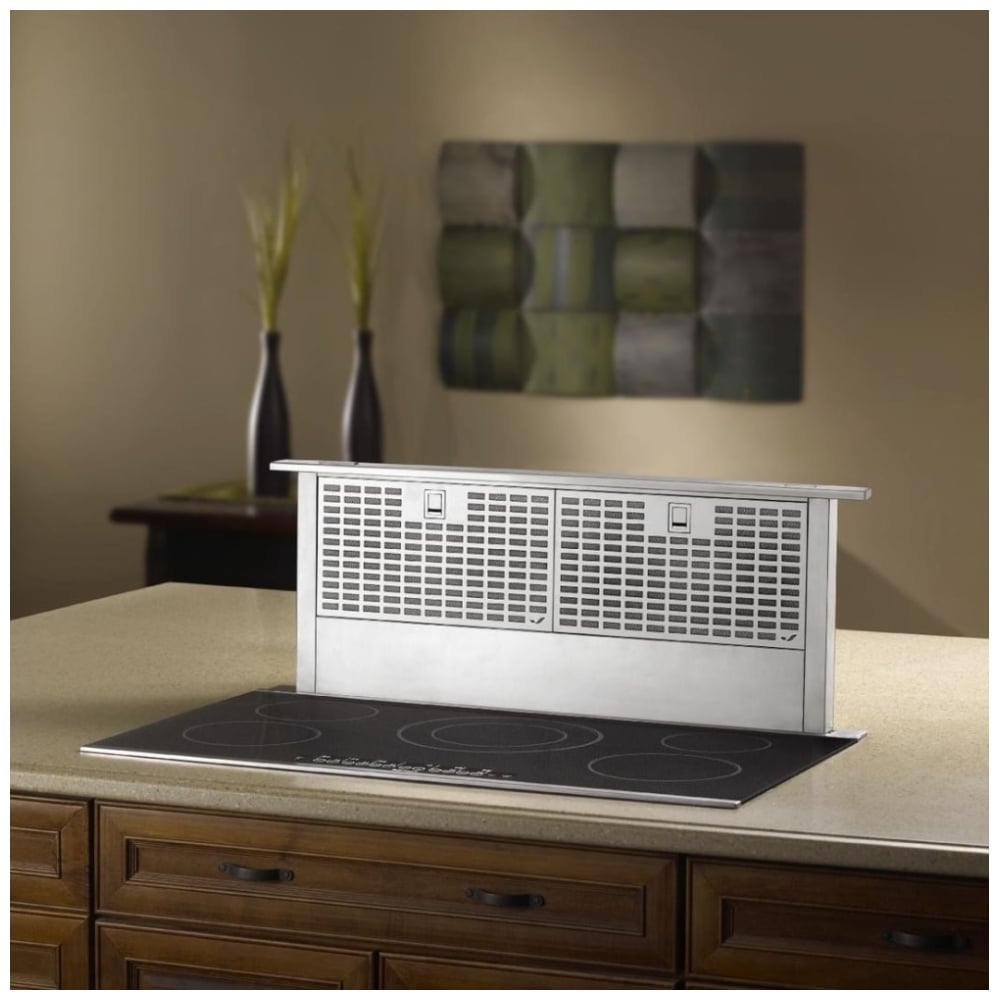

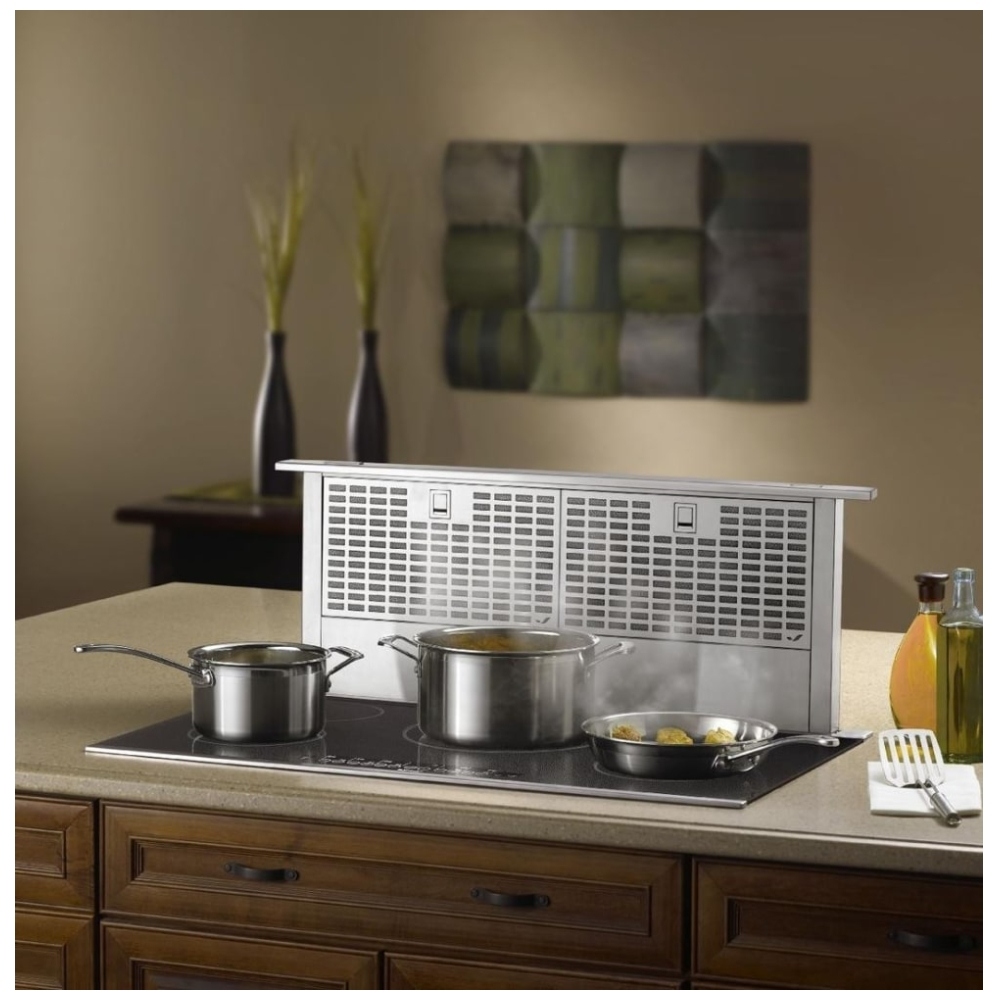

• Integrated styling for islands and peninsulas – designed to blend into countertops and kitchen islands, providing effective ventilation without an overhead hood obstructing sightlines.

• Retractable downdraft hood type – rises only when needed and retracts when not in use, ideal for open‑concept kitchens or installations where a traditional wall or ceiling hood is impractical.

• Exterior‑venting configuration – vents air to the outside of the home to help remove heat, moisture and airborne contaminants rather than recirculating them indoors.

• 30" width compatibility – sized to pair with most 30‑inch cooktops and ranges, making it suitable for standard kitchen layouts and replacements.

• Stainless steel design expression – Euro‑style stainless finish coordinates with a wide range of premium appliances and resists everyday kitchen wear.

• Four‑speed push‑button control panel – simple push‑button interface makes it easy to adjust fan speed quickly while cooking.

• Centrifugal blower type – efficient blower design helps maintain strong airflow performance while managing sound levels.

• Up to 7.9 sones at maximum speed – delivers strong ventilation performance with sound levels appropriate for residential kitchens at the highest setting.

• Vertical duct direction – designed for vertical duct runs from the downdraft unit, simplifying planning for under‑floor or ceiling‑connected venting.

• Grease filtration system – multi‑layer mesh filters capture airborne grease to help keep ductwork cleaner and reduce buildup over time.

• Designed for smaller cooking appliances – optimized to work with standard‑size cooktops and ranges where overhead ventilation space is limited.

• Ideal for open‑concept and view‑focused kitchens – removes the need for a bulky overhead hood, preserving sightlines to living areas, windows or decorative backsplashes.

• Compatible with optional installation accessories – can be paired with available trim and make‑up air kits (sold separately) to meet local code requirements and finish preferences.
