MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
| Save $600 when you buy 3 items. | ||
| Save $800 when you buy 4 items. | ||
| Save $1,200 when you buy 5 items. |






Manufacturer's Warranty: 1 year
Canadian model: KCED606GBL
Similar to USA model: KCED606GBL
Canadian UPC: 883049415949
Similar to USA UPC: 883049415949
EAN: 0883049415949
| Specification | Value |
|---|---|
| Brand | KitchenAid |
| Model | KCED606GBL |
| Product Type | Electric Downdraft Cooktop |
| Cooktop Width Class | 36 inches |
| Actual Width | 36 5/16 inches |
| Actual Depth | 22 1/16 inches |
| Cooktop Surface Height | 3 5/8 inches |
| Maximum Assembled Height | 18 3/4 inches |
| Minimum Assembled Height | 18 3/4 inches |
| Assembled Weight | 57 lbs |
| Color | Black |
| Control Color | Stainless |
| Fuel Type | Electric |
| Power Source | Electric |
| Cooking Surface Type | Smooth Surface |

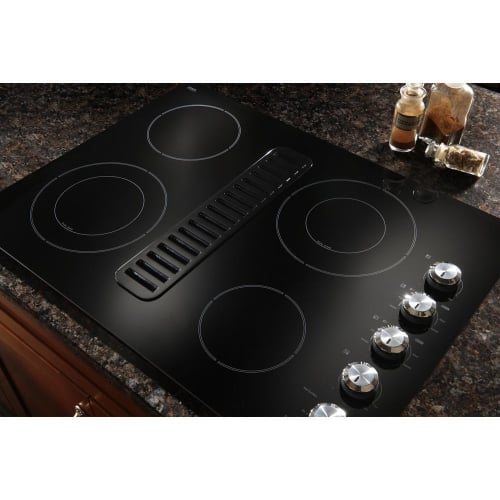

| Surface Material | Ceramic Glass |
| Control Type | Knobs |
| Control Location | Right |
| Knob Finish | Stainless Steel |
| Knob Material | Plastic |
| Number of Cooking Zones | 5 |
| Element 1 Size | 10 inches |
| Element 2 Size | 6 inches |
| Element 3 Size | 8 inches |
| Element 4 Size | 9/12 inches |

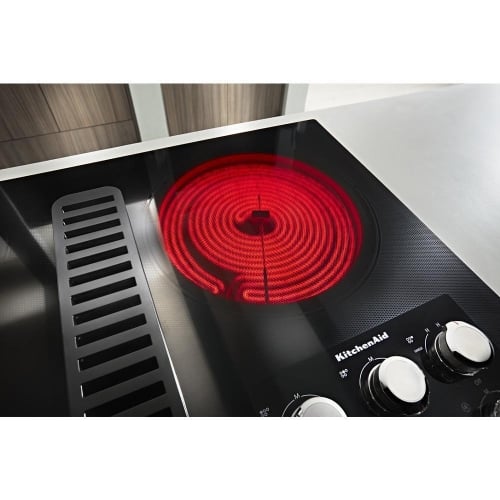

| Element 5 Size | 6/9/12 inches |

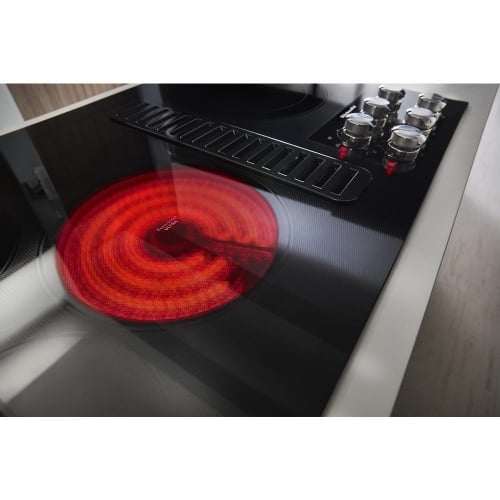

| Center Element | 10-inch Even-Heat Ultra Element with Simmer Setting |

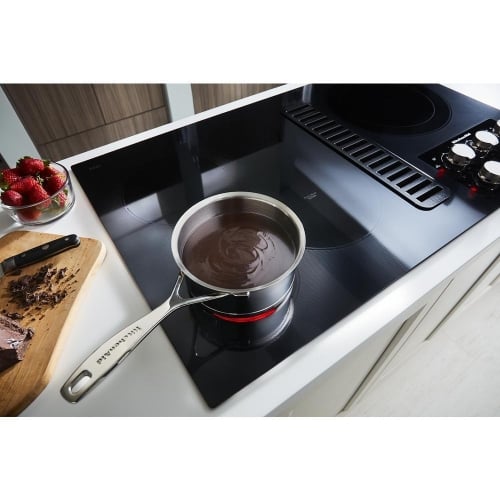

| Additional Element Feature | 6-inch Even-Heat Element with Melt Setting |
| Dual/Triple Element | Yes |
| Simmer Element | Yes |
| Melt Setting | Yes |
| Downdraft Ventilation | Yes |

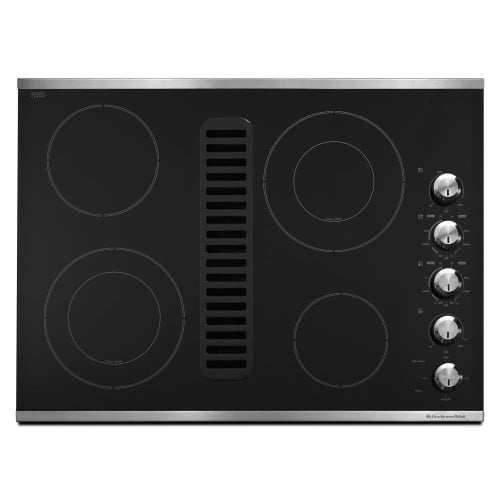

| Vent Fan Speeds | 3 |
| Exhaust Rating | 300 CFM |

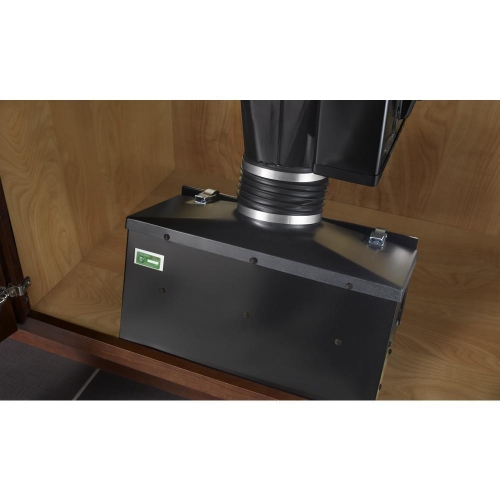

| Duct-Free Convertible | Yes, with optional kit |
| Recommended Vent Size | 6-inch round or 3 1/4 x 10-inch rectangular |
| Alternate Vent Size | 5-inch round for straight-back venting through wall up to 10 feet |
| Cutout Width | 34 9/16 inches |
| Cutout Depth | 21 1/8 inches |
| Cutout Height | 18 3/4 inches |
| Minimum Side Clearance Recommended | 6 inches |
| Minimum Clearance to Upper Cabinet | 30 inches |
| Minimum Clearance from Upper Cabinet to Countertop | 18 inches |
| Recommended Upper Cabinet Depth | 13 inches |
| Minimum Distance to Nearest Left/Right Combustible Surface Above Cooktop | 2 1/2 inches |
| Minimum Clearance Between Back Wall and Countertop | 1 1/2 inches |
| Minimum Cabinet to Motor Clearance | 2 inches |
| Electrical Requirement | 120/240 volts |
| Frequency | 60 Hz |
| Circuit Requirement | 40 amps |
| Volts Listed by Retailer | 220 volts |
| Power-On Indicator Light | Yes |
| Hot Surface Indicator Lights | Yes |
| Digital Display | No |
| Timer | No |
| Control Lockout | No |
| Bridge Element | No |
| Pan Size Sensor | No |
| Pan Presence Sensor | No |
| Power Element | No |
| Warming Zone | No |
| Induction Cooking | No |
| Installable Over Wall Oven | No |
| Built-In Counter Lip | No |
| Adjustable Height | No |
| Portable | No |
| Light | No |
| Fingerprint Resistant | No |
| Luxury | Yes |
| Common Cooktop Size | 36 inches |
| Cooktop Size Group | Large (36 - 48 inches) |
| ENERGY STAR Certified | No |
| ADA Compliant | No |
| Safety Listing | UL |
| Warranty | 1-year limited |
| Canadian Warranty Listing | 1 Year Limited Warranty (Parts & Labour); 2nd-5th Years Limited Warranty on Certain Components (Parts Only) |
