KitchenAid KCGC500JSS
KitchenAid
Authorized Dealer
>> View & Compare KitchenAid Built In Cooking Line Up << >> View & Compare KitchenAid Built In Cooking Line Up <<
>> View & Compare Whirlpool / KitchenAid / Maytag Cooktop Line Up << >> View & Compare Whirlpool / KitchenAid / Maytag Cooktop Line Up <<
>> View & Compare KitchenAid Gas Cooktop Line Up << >> View & Compare KitchenAid Gas Cooktop Line Up <<
D0CITB
Call Now! 877-374-3439 Or Chat For Bundle Discounts
Call Now! 877-374-3439 Or Chat For Bundle Discounts
Online Price
$4,195
Replaced by KCGK930TSS
Out of stock -- Not Available For Sale
Call Local Showroom
Ratings & Reviews
Similar Colours and Options
D0CITB
When will I get this?
Description & Features
The KitchenAid KCGC500JSS commercial‑style gas rangetop brings professional power and precision into a compact footprint, making it an ideal choice for serious home cooks who want restaurant‑level performance in a 30‑inch width. Behind its bold stainless‑steel knobs and heavy‑duty cast‑iron grates is a thoughtfully engineered cooking surface built to handle everything from weeknight meals to ambitious multi‑course menus. At the heart of this rangetop are two high‑output Ultra Power™ Dual‑Flame burners, each delivering up to 20,000 BTU and offering an impressively wide temperature range on a single burner, so you can move seamlessly from an intense sear on a steak to a gentle simmer for pan sauces without changing burners. Complementing this power is a dedicated 5,000 BTU Simmer & Melt burner, designed with a low, finely controlled flame that’s perfect for delicate tasks like melting chocolate, holding hollandaise, or keeping soups and reductions at the ideal just‑barely‑bubbling point. A versatile 15,000 BTU burner rounds out the configuration, giving you the high heat you need for rapid boiling, stir‑frying, or deep sautéing in larger pots and pans.

What truly sets the KCGC500JSS apart is its innovative three‑level convertible grate system, which uses removable inserts to adapt the burner height to your cooking technique. You can keep the insert level for direct, high‑heat contact when searing or sautéing, flip it to gently raise cookware above the flame for low‑and‑slow simmering or melting, or remove it entirely to cradle a round‑bottom wok directly in the flame for authentic stir‑fry results. The continuous, porcelain‑coated cast‑iron grates are not only robust and stable for moving heavy cookware across the surface, but also dishwasher‑safe for easier cleanup. With a cooking surface width of approximately 30 inches, this rangetop is sized to fit many standard kitchen layouts while still offering generous burner spacing so multiple large pots and pans can be used at once without crowding. Finished in sleek stainless steel with front‑mounted metal control knobs and equipped with flame‑sensing re‑ignition for added peace of mind, the KitchenAid KCGC500JSS delivers a premium blend of style, safety, and high‑end performance that stands out in the world of gas cooktops.

• Ultra Power™ Dual-Flame Burners – deliver up to 20,000 BTU with dual-flame technology for precise control from intense searing heat down to gentle simmers on the same burner.

• Three-Level Convertible Grates – feature removable inserts that let you choose between direct high heat, elevated low heat, or an open center to cradle a round-bottom wok for stir-frying.

• Flame-Sensing™ Re-ignition – automatically reignites the burner if the flame is blown out, helping maintain consistent cooking and enhancing safety.

• Commercial-Style Design – brings a professional, restaurant-inspired look with robust metal knobs and heavy-duty grates to a 30" home kitchen cutout.

• 5,000 BTU Simmer & Melt Burner – provides an extra-low, steady flame ideal for delicate tasks like melting chocolate or butter and gently simmering sauces.

• Dedicated 15,000 BTU Power Burner – supplies strong, even heat for searing, stir-frying, and rapidly boiling large pots of water or stock.

• Four Sealed Gas Burners – help contain spills on the cooktop surface, making cleanup easier while delivering efficient, focused flame heat.

• Porcelain-Coated Steel Cooktop Surface – offers a durable, smooth surface that resists staining and is easier to wipe clean after cooking.

• Porcelain-Coated Cast-Iron Grates – heavy-duty, matte-finish grates provide stable support for cookware and are built to withstand high-heat cooking.

• Individual Dishwasher-Safe Grates – separate grate pieces can be removed and placed in the dishwasher for more convenient deep cleaning.

• Front-Mounted Metal Control Knobs – keep burner controls within easy reach and provide a premium, professional feel when adjusting flame levels.

• Four-Burner Layout – accommodates multiple pots and pans at once, supporting everything from everyday meals to more complex, multi-course cooking.

• Natural Gas Operation – ships ready for natural gas use, suitable for most plumbed residential kitchens.

• LP Conversion Kit Included – allows conversion to liquid propane, making the rangetop adaptable for homes or cottages using LP gas.

• Power-Outage Compatible Ignition – can be lit with a match during a power outage, so you can continue cooking even when electricity is unavailable.

• Commercial-Style Cooktop Type – designed for high-performance home cooking with the look and feel of professional equipment.

• 29-3/4" Width for 30" Class Installation – fits standard 30" rangetop/cooktop cutouts, simplifying replacement or new installations.

• Deep 27-7/8" Cooktop Depth – offers generous front-to-back space for larger cookware and better burner spacing.

• Four Individual Grates – allow you to remove only the section you need for cleaning or to access the burner, without lifting a full-width grate.

• Matte-Finish Grate Texture – helps reduce visible scratches and wear while complementing the commercial-style aesthetic.

• Black Cooktop Surface Color – contrasts with stainless trim and knobs for a modern, high-end appearance that coordinates with other appliances.

• Stainless Steel Knob Finish – matches common stainless appliances and resists discoloration from heat and frequent use.

• UL & cUL Listed – tested to recognized safety standards for use in residential kitchens.

• Prop 65 Compliance Information – includes required California Proposition 65 safety disclosure for informed purchasing.

• No Downdraft Venting Required – designed to be paired with a separate overhead hood or ventilation system of your choice.

• All-Burner Configuration – dedicates the entire surface to gas burners, maximizing usable cooking area without integrated griddles.

• Knob-Based Analog Controls – provide intuitive, tactile flame adjustment without relying on electronic touch controls or displays.

• Compatible with Standard 120V Connection – uses a standard power cord for ignition and safety systems, simplifying installation.

• Professional Series Alignment – coordinates visually with other KitchenAid commercial-style ranges and wall ovens for a cohesive kitchen suite.

Manufacturer's Warranty: 1 year

Canadian model: KCGC500JSS

Similar to USA model: KCGC500JSS

Canadian UPC: 883049528304

Similar to USA UPC: 883049528304

EAN: 0883049528304

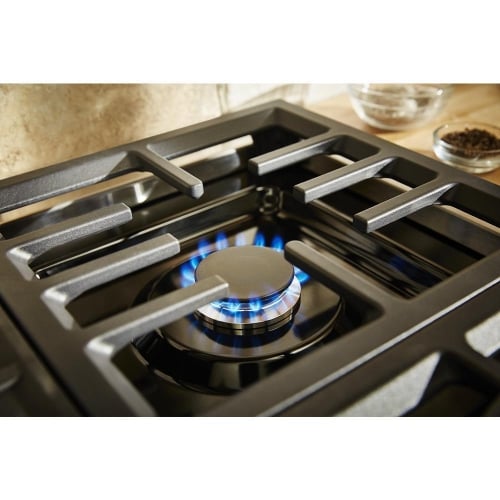

5,000 BTU Simmer & Melt Burner - KCGC500JSS
5,000 BTU Simmer & Melt Burner
KCGC500JSS - 5,000 BTU Simmer & Melt Burner
with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

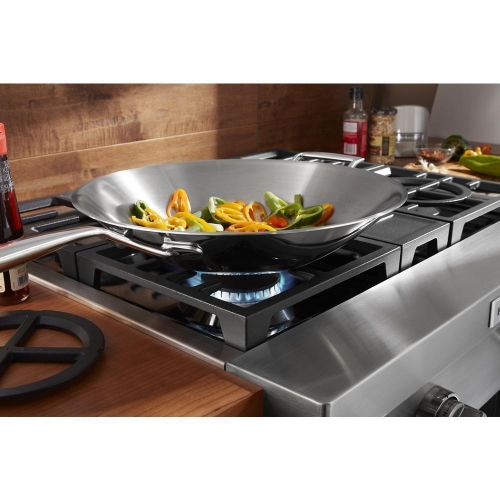

Three-Level Convertible Grates - KCGC500JSS
Three-Level Convertible Grates
KCGC500JSS - Three-Level Convertible Grates
with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

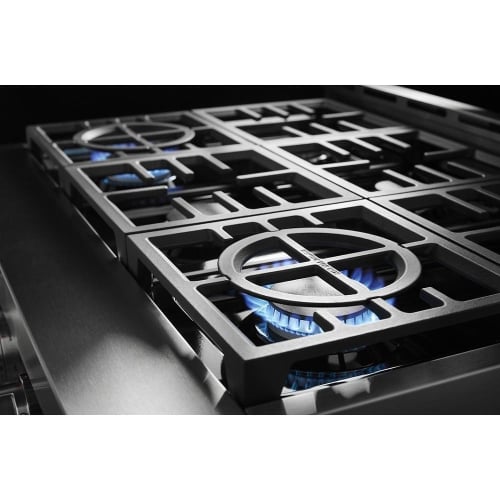

Two 20,000 BTU Ultra Power™ Dual-Flame Burners - KCGC500JSS
Two 20,000 BTU Ultra Power™ Dual-Flame Burners
KCGC500JSS - Two 20,000 BTU Ultra Power™ Dual-Flame Burners
give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

Specs
SpecificationValue
Brand KitchenAid
Model KCGC500JSS
Product Type Commercial-Style Gas Rangetop
Cooktop Type Commercial Style
Fuel Type Gas
LP Convertible Yes - Kit Included
Width 29 3/4 inches
Depth 27 7/8 inches
Height 7 7/16 inches
Nominal Width 30 inches
Overall Width 29 3/4 inches
Grate Depth 22 inches
Depth without Control Panel 23 1/4 inches
Depth with Control Panel Overhang 27 7/8 inches
Depth with Knobs 29 3/8 inches
Grate Width 27 7/16 inches
Gas Inlet to Surface 10 3/4 inches
Center to Gas Inlet 11 inches
Recessed Rangetop Width 29 1/8 inches
Height with Grates 9 inches
Control Panel Height 7 13/16 inches
Recessed Rangetop Height 7 inches
Cooking Surface Height 7 7/16 inches
Recessed Rangetop Depth 21 7/8 inches
Depth with Control Panel 25 1/2 inches
Countertop and Cabinet Cutout Width 29 1/4 inches
Countertop and Cutout Depth 22 1/4 inches
Notch Width 1/4 inch
Cutout Width 29 7/8 inches
Combustible Area above Cooking Surface Width Minimum 30 inches
Bottom of Cabinet Height above Cooking Surface Minimum 42 inches
Bottom of Cabinet Height above Countertop Minimum 18 inches
Distance to Fixed Wall or Combustible Material 12 inches
Recommended Upper Cabinet Depth 13 inches
Cutout to Wall Depth, Non-Combustible Backwall 1 3/4 inches
Cutout to Wall Depth, Combustible Backwall 7 3/4 inches
Cabinet to Countertop Height 7 1/4 inches
Cabinet Depth 24 inches
Number of Burners 4
Burner 1 Output 20,000 BTU
Burner 2 Output 20,000 BTU
Burner 3 Output 5,000 BTU
Burner 4 Output 15,000 BTU
Ultra Power Dual-Flame Burners 2
Simmer Burner Yes
Melt Burner Yes
Style Sealed Burner
Continuous Grates Yes
Convertible Grates Three-Level Convertible Grates
Dishwasher Safe Grates Yes
Control Location Front
Control Type Knobs
Knob Color Stainless Steel
Knob Type Metal
Color Stainless Steel
Surface Color Black
Trim Color Stainless Steel
Glass Surface No
Downdraft Venting No
Downdraft Vent No
Digital Display No
Automatic Pan Detection No
Hot Surface Indicator Light No
Installs Over Built-In Oven No
Power Boost No
Infinite Heat Controls No
Griddle NA
WiFi No
Sabbath Mode No
Voltage 120 Volts
Amps 15 Amps
UPC 883049528304
