24" Panel Ready Refrigerator/Freezer Drawer
Match any style with this stunning Panel Ready Refrigerator with Freezer Drawer. It can be customized to the surrounding cabinets with custom panels and handles. Its large capacity gives it ample space for wine and other entertaining needs. Inside the Freezer Drawer is an Automatic Icemaker to ensure a consistent supply of ice. The unit also features LED interior lighting.

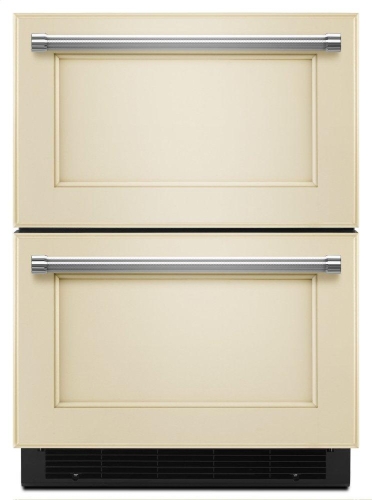

- Panel Ready
- Allows the unit to be customized to match the surrounding cabinets with custom panels and handles.
- 4.7 Cu. Ft. Capacity
- Provides more than ample space for wine and all other entertaining needs.
- Automatic Icemaker
- located in the lower freezer drawer provides a continuous supply of filtered crescent-shaped ice for all your party needs. The removable ice bin makes it easy to fill ice buckets, pitchers and coolers.
- Professionally-Inspired Design
- Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful specialty refrigeration unit features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.

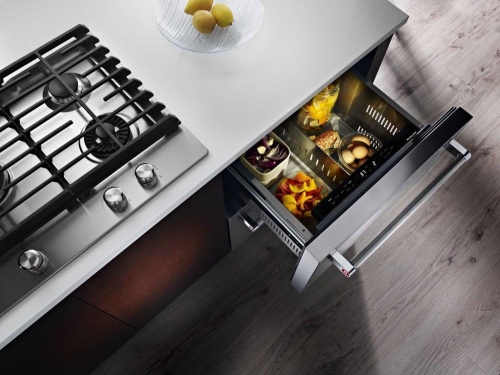

- LED Interior Lighting
- Illuminates the inside of the unit, making items easy to find.
- Touch Controls
- An easy to use electronic interface that allows pleasant and precise control over the refrigerator temperatures and settings.
- Built-In or Freestanding Installation
- Provides the ultimate versatility and flexibility for placement. Easily add a unit under counters in the kitchen, to custom cabinets in the dining room, or free standing anywhere you like around the house.
- Over-Temp Alarm
- automatically alerts you if the temperature isn't safe for cold storage. Sensors trigger the alarm if the refrigerator temperature rises above 45°F(7°C) for more than 4 hours. The alarm shuts off once temperatures return to normal.
- Door Alarm
- automatically alerts you when the door has been left open before items inside rise above their ideal temperature. The alarm sounds after fives minutes and goes off every two minutes until the door has been closed or the controls have been pressed.
PANEL READY
Allows the unit to be customized to match the surrounding cabinets with custom panels and handles.
4.7 CU. FT. CAPACITY
Provides more than ample space for wine and all other entertaining needs.
AUTOMATIC ICEMAKER
Ensures a consistent supply of ice for entertaining or any occasion.
PROFESSIONALLY-INSPIRED DESIGN
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful specialty refrigeration unit features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
LED INTERIOR LIGHTING
Illuminates the inside of the unit, making items easy to find.
TOUCH CONTROLS
An easy to use electronic interface that allows pleasant and precise control over the refrigerator temperatures and settings.
Manufacturer's Warranty: 1 year
Canadian model: KUDF204EPA
Canadian UPC: 883049352527
EAN: 0883049352527
| Filter Details | |
| Water Filter Location | Exterior |
| Description | |
| Type of Refrigerator | Double Drawer |
| Installation Option | Freestanding or Built-In |
| Appearance | |
| Handle Material | Metal |
| Handle Location | Vertical |
| Reversible Door | No |
| Cabinet Finish | Textured |
| Window | No |
| Certifications | |
| Energy Rating | 499 |
| UL | Yes |
| CEC | CEC Listed |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| GDS | |
| IsOrderableUnit | true |
| Refinement KAD | |
| LED Lighting | LED Lighting |
| Controls | |
| Door Ajar/Open Alarm | Yes |
| Ice Maker On/Off | Yes |
| Number of Temperature Controlled Zones | 2 |
| Control Lockout | Yes |
| Max Cool/Fast Cool | Fast Ice |
| Control Type | Electronic |
| Location of Controls | Interior Up Front |
| Cooling On/Off | Yes |
| Temperature Range | -8F to 42F |
| Dimensions | |
| Gross Weight | 152.000 lbs |
| Filters | |
| Water Filter Location | Exterior |
| Water Filter Part Number | EDR6D1 |
| Configuration and Overview | |
| Installation Option | Freestanding or Built-In |
| UL | UL |
| CEC | CEC Listed |
| Dimensions | |
| Minimum Height | 34-1/8 in |
| Cutout Height | 35.0 in |
| Cutout Width | 24.0 in |
| Capacity | 4.70 cu. ft. |
| Depth | 24-1/8 in |
| Height | 34-3/4 in |
| Depth Closed Including Handles | 26-1/2 in |
| Gross Weight | 152 lbs |
| Height To Top Of Cabinet | 34-3/4 in |
| Maximum Height | 34-3/4 in |
| Width | 23-3/4 in |
| Cutout Depth | 24.0 in |
| Depth Closed Excluding Handles | 24-1/8 in |
| Depth Excluding Doors | 20-5/8 in |
| Height To Top Of Door Hinge | 34-3/4 in |
| Net Weight | 139 lbs |
| Exterior | |
| Cabinet Material | Prepainted Steel |
| Handle Location | Vertical |
| Reversible Door | No |
| Cabinet Finish | Textured |
| Window | No |
| Details | |
| Interior Light | LED |
| Temperature Divider LED Dimmer Switch | No |
| Zone 1 Description | Refrigerator |
| Zone 2 Description | Freezer w/Icemaker |
| Zone 1 Capacity | 2.2 cu. ft. |
| Zone 1 Temperature Range | 32F to 42F |
| Zone 2 Capacity | 2.5 cu. ft. |
| Zone 2 Temperature Range | -8F to 6F |
| Electrical Requirements | |
| Hz | |
Dimensions
CAPACITY
4-7/10
CUTOUT DEPTH
60.96 cm, 24.0 in
CUTOUT HEIGHT
88.90 cm, 35.0 in
CUTOUT WIDTH
60.96 cm, 24.0 in
DEPTH
61.28 cm, 24-1/8 in
DEPTH CLOSED EXCLUDING HANDLES
61.28 cm, 24-1/8 in
DEPTH CLOSED INCLUDING HANDLES
67.31 cm, 26-1/2 in
DEPTH EXCLUDING DOORS
52.39 cm, 20-5/8 in
HEIGHT
88.26 cm, 34-3/4 in
HEIGHT TO TOP OF CABINET
88.26 cm, 34-3/4 in
HEIGHT TO TOP OF DOOR HINGE
88.26 cm, 34-3/4 in
MAXIMUM HEIGHT
88.26 cm, 34-3/4 in
MINIMUM HEIGHT
86.68 cm, 34-1/8 in
WIDTH
60.32 cm, 23-3/4 in
Certifications
INSTALLATION OPTION
Freestanding or Built-In
Controls
CONTROL LOCATION
Interior Up Front
COOLING ON/OFF
Yes
DOOR AJAR/OPEN ALARM
Yes
ICE MAKER ON/OFF
Yes
MAX COOL/FAST COOL
Fast Ice
NUMBER OF TEMPERATURE CONTROLLED ZONES
2
TEMPERATURE RANGE
-8F to 42F
VERROUILLAGE DES COMMANDES
Yes
Appearance
CABINET FINISH
Textured
HANDLE LOCATION
Vertical
HANDLE MATERIAL
Metal
REVERSIBLE DOOR
No
WINDOW
No
Details
INTERIOR LIGHT
LED
TEMPERATURE DIVIDER LED DIMMER SWITCH
No
ZONE 1 CAPACITY
2.2 cu. ft.
ZONE 1 DESCRIPTION
Refrigerator
ZONE 1 TEMPERATURE RANGE
32F to 42F
ZONE 2 CAPACITY
2.5 cu. ft.
ZONE 2 DESCRIPTION
Freezer w/Icemaker
ZONE 2 TEMPERATURE RANGE
-8F to 6F
Filter Details
WATER FILTER LOCATION
Exterior
Certifications
ENERGY RATING
499
PROP 65
CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
UL
UL
Electrical
HZ
60
VOLTS
115
Exterior
CABINET COLOR
Black
CABINET MATERIAL
Prepainted Steel
EndecaProps
PRODUCTOUTLETCATEGORIES
Refrigerators
STATUS BADGE ESPOT CA
New
GDS
GPC CODE
10003695
ISINVOICEUNIT
true
ISORDERABLEUNIT
true
PRODUCT TYPE
EA
UDEX
1101290375
ISBASEUNIT
true
ISCONSUMERUNIT
true
Dimension Guide (KUDF204EPA-dimension-guide-2.pdf)
