KitchenAid KUDR204EPA
Discontinued
APX5LI
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Free Delivery & Set Up*
Haul Away Included
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $153.62 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Ratings & Reviews
Similar Colours and Options
KUBR204EPA
KUBR204EPA
4.8 cu. ft. Cap.
Panel Ready
KUDF204EPA
KUDF204EPA
4.7 cu. ft. Cap.
Panel Ready

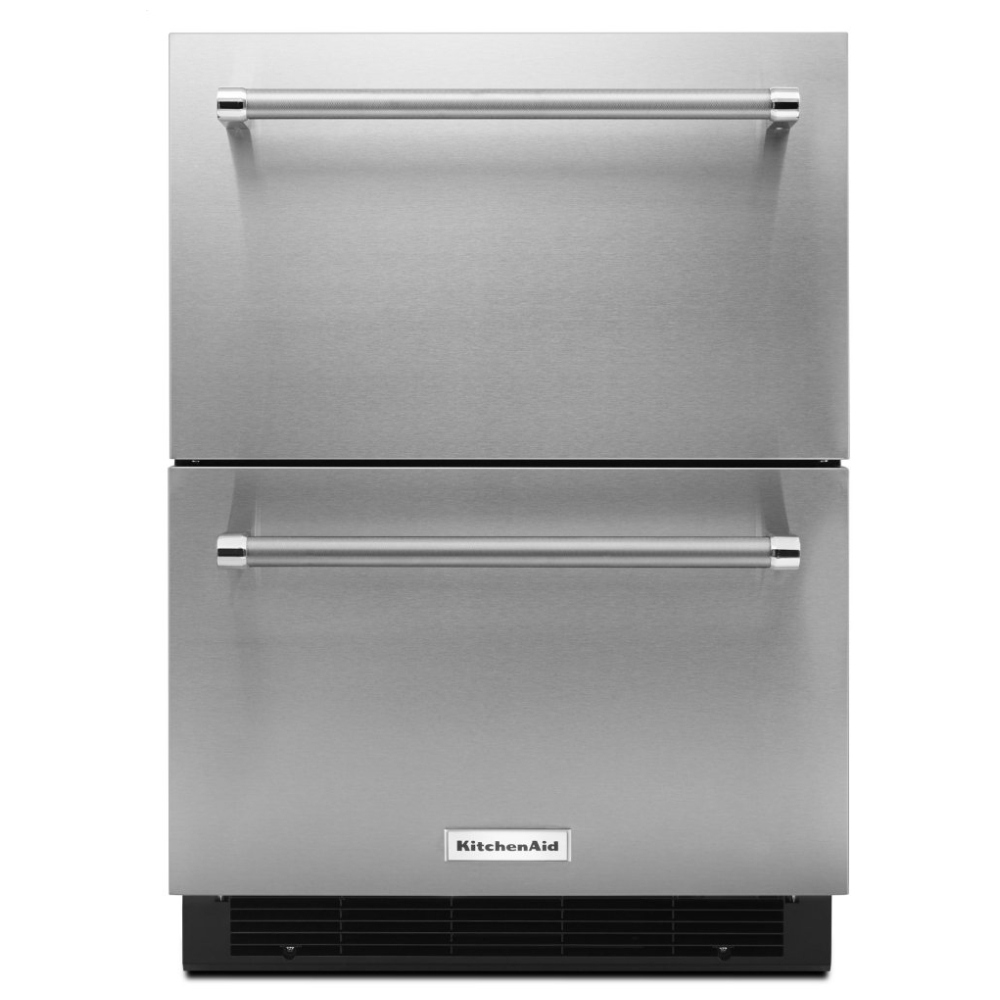

KUDR204ESB
KUDR204ESB
4.7 cu. ft. Cap.
Stainless Steel
KUDR204KPA
KUDR204KPA
Backlit Touch Controls
Panel Ready
KUWR204EPA
KUWR204EPA
Panel Ready
APX5LI
When will I get this?

Why Buy This at CAS?
Free Delivery & Set Up*
Haul Away Included
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $153.62 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Description & Features

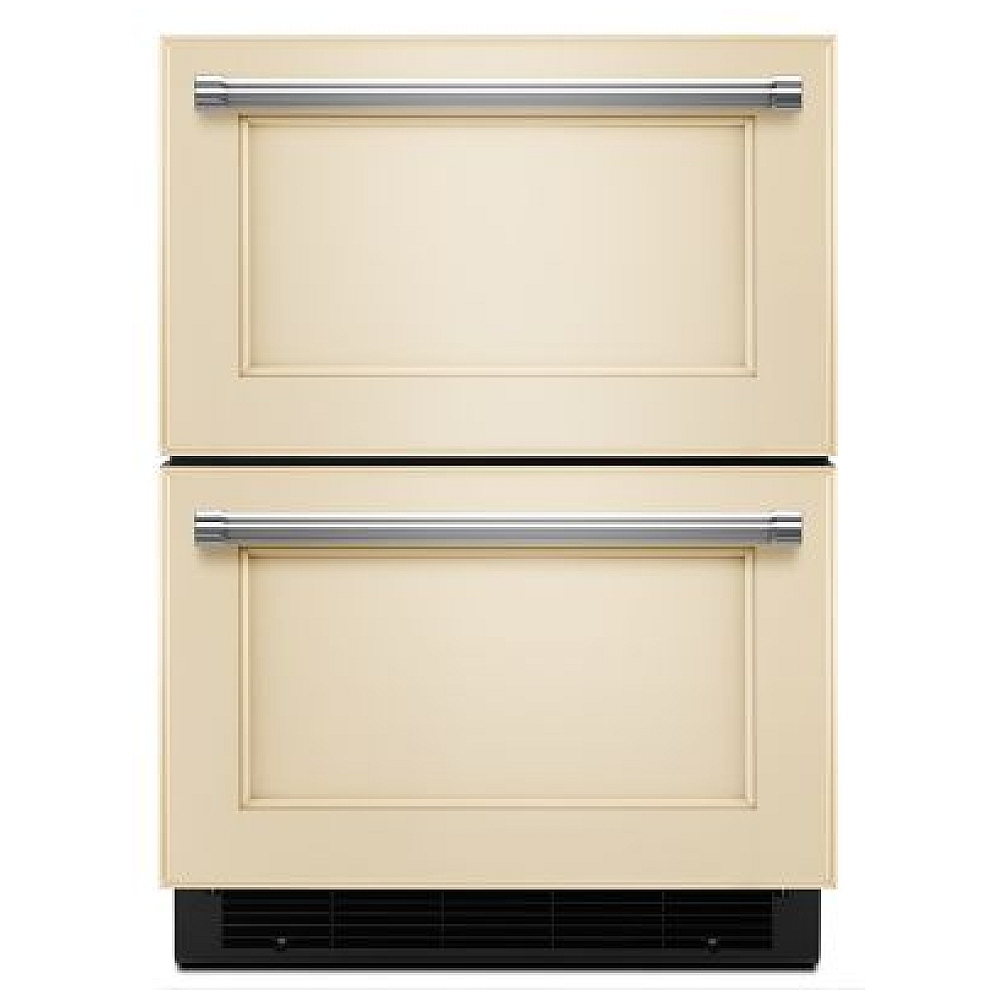

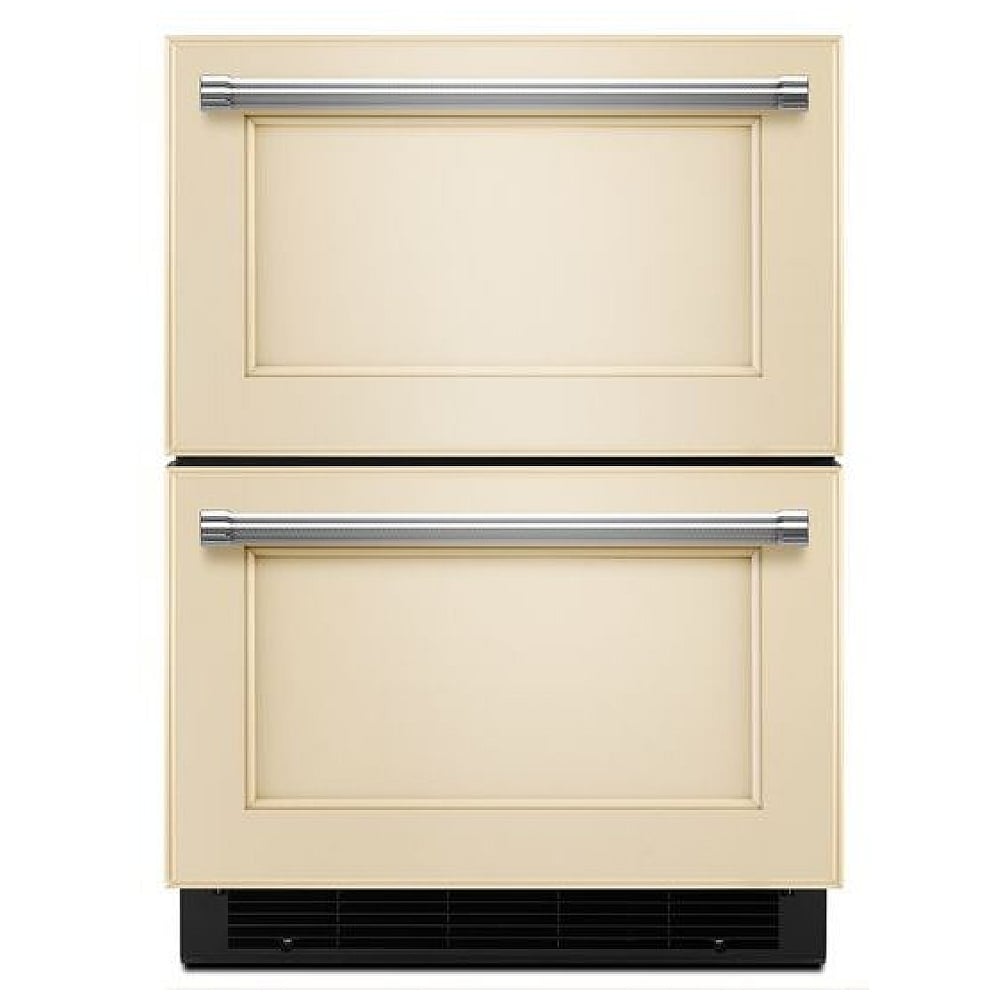

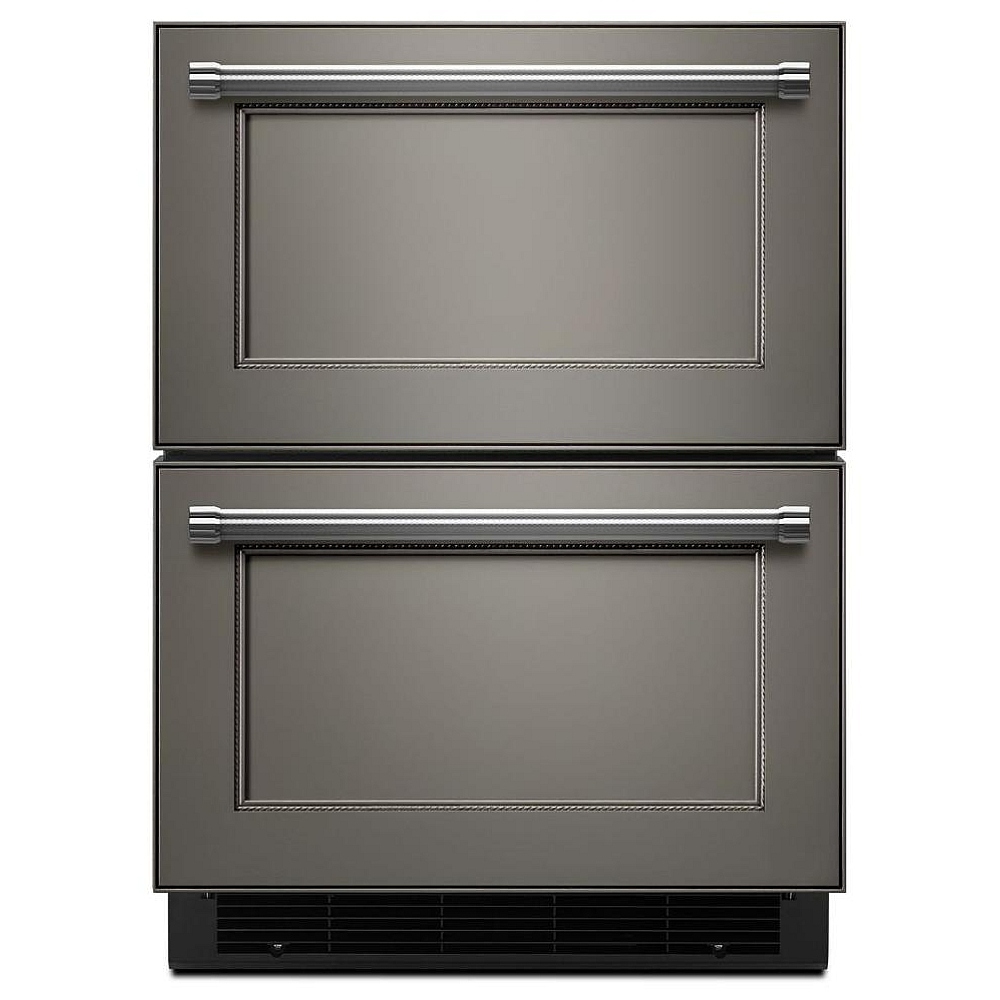

24" Panel Ready Double Refrigerator Drawer

Match any style with this stunning Panel Ready Double Refrigerator Drawer that can be customized to your cabinets. Its large capacity provides space for all your entertaining beverages while the interior LED lights make items easier to find. It also features intuitive touch controls, allowing precise temperature settings.

  • Panel Ready
  • Allows the unit to be customized to match the surrounding cabinets with custom panels and handles.
  • 4.7 Cu. Ft. Capacity
  • Provides more than ample space for wine and all other entertaining needs.
  • Professionally-Inspired Design
  • Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful specialty refrigeration unit features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
  • LED Interior Lighting
  • Illuminates the inside of the unit, making items easy to find.

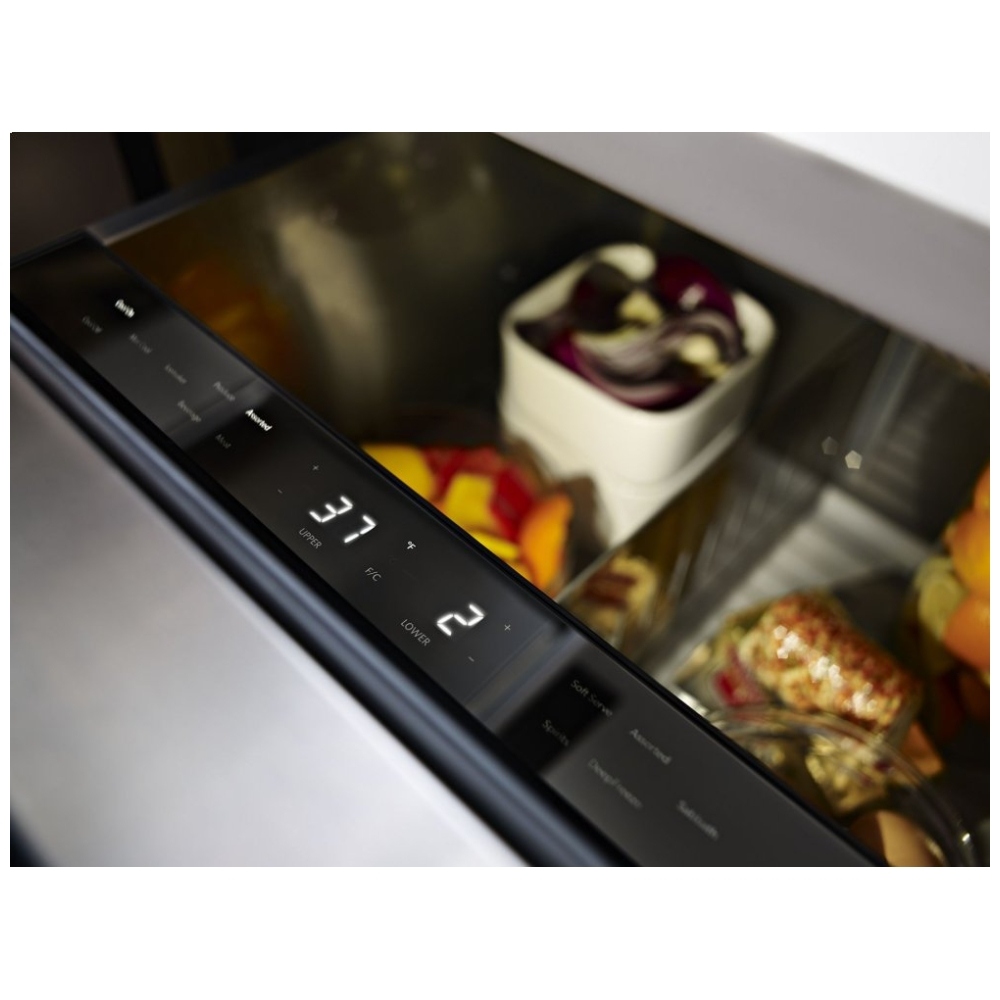

  • Touch Controls
  • An easy to use electronic interface that allows pleasant and precise control over the refrigerator temperatures and settings.
  • Built-In or Freestanding Installation
  • Provides the ultimate versatility and flexibility for placement. Easily add a unit under counters in the kitchen, to custom cabinets in the dining room, or free standing anywhere you like around the house.
  • Over-Temp Alarm
  • automatically alerts you if the temperature isn't safe for cold storage. Sensors trigger the alarm if the refrigerator temperature rises above 45°F(7°C) for more than 4 hours. The alarm shuts off once temperatures return to normal.
  • Door Alarm
  • automatically alerts you when the door has been left open before items inside rise above their ideal temperature. The alarm sounds after fives minutes and goes off every two minutes until the door has been closed or the controls have been pressed.

PANEL READY

Allows the unit to be customized to match the surrounding cabinets with custom panels and handles.

4.7 CU. FT. CAPACITY

Provides more than ample space for wine and all other entertaining needs.

PROFESSIONALLY-INSPIRED DESIGN

Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful specialty refrigeration unit features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.

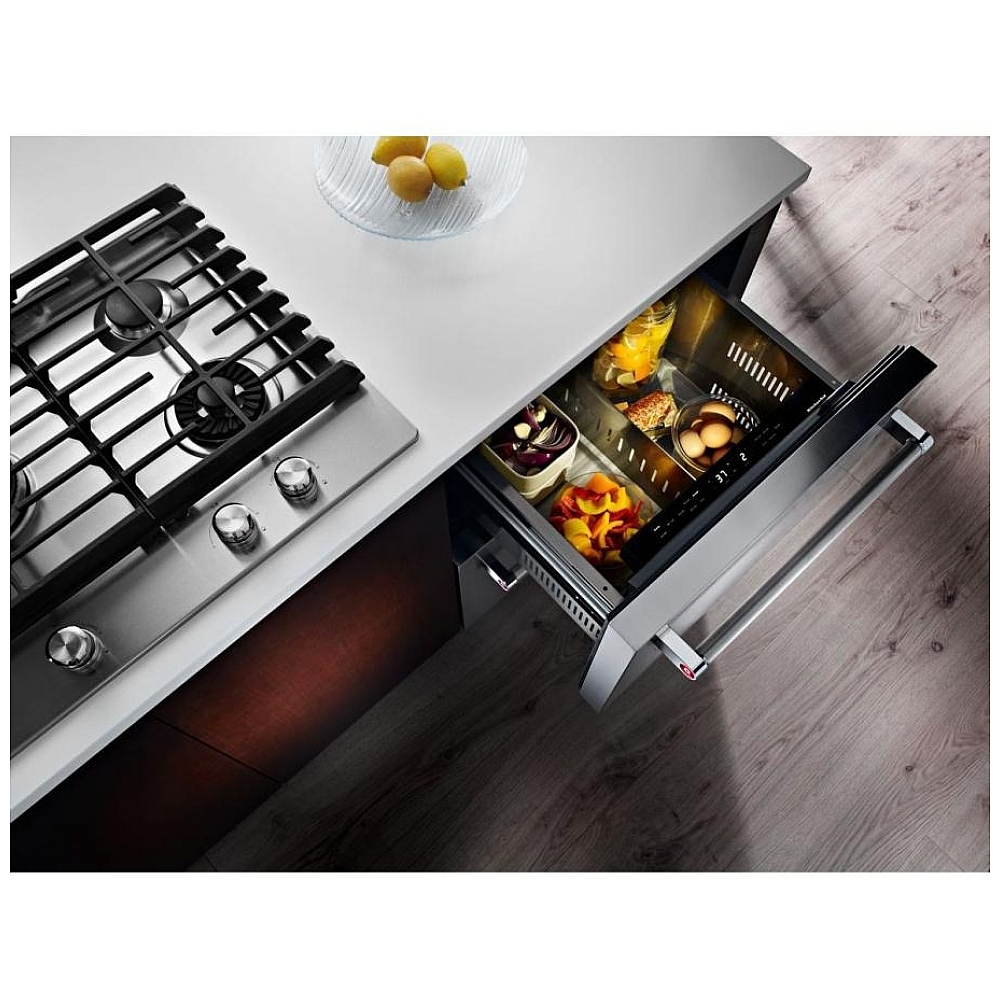

LED INTERIOR LIGHTING

Illuminates the inside of the unit, making items easy to find.

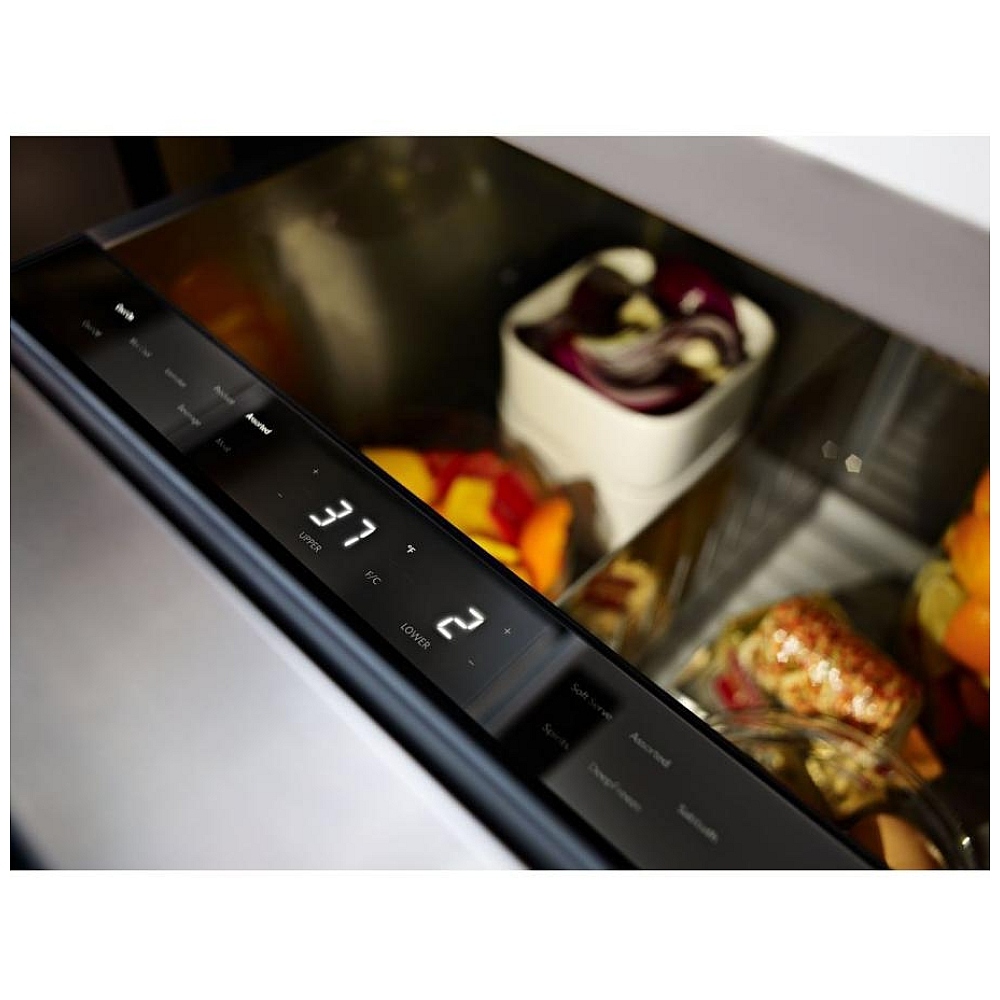

TOUCH CONTROLS

An easy to use electronic interface that allows pleasant and precise control over the refrigerator temperatures and settings.

BUILT-IN OR FREESTANDING INSTALLATION

Provides the ultimate versatility and flexibility for placement. Easily add a unit under counters in the kitchen, to custom cabinets in the dining room, or free standing anywhere you like around the house.


Manufacturer's Warranty: 1 year

Canadian model: KUDR204EPA

Canadian UPC: 883049352541

EAN: 0883049352541

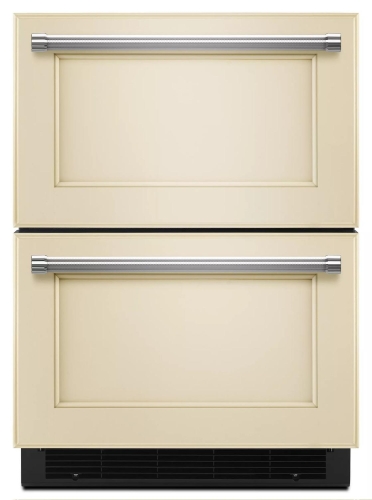

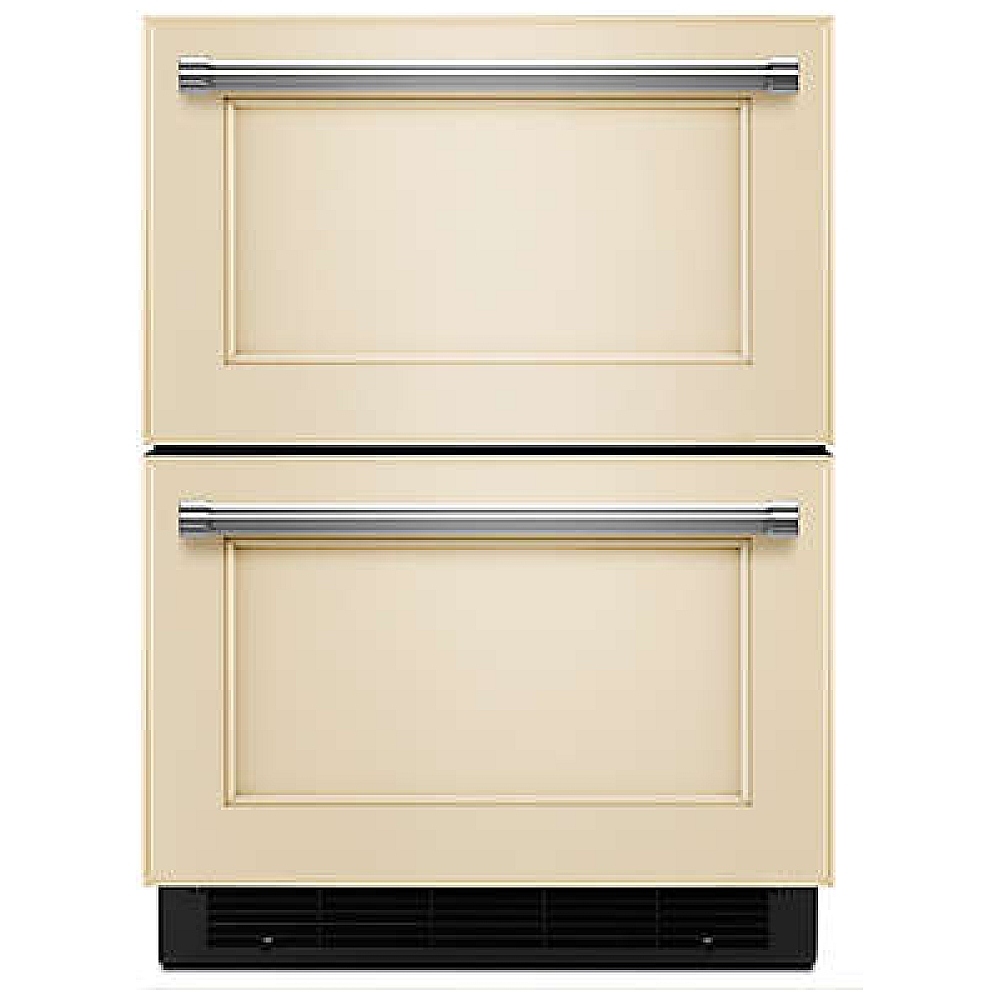

Panel Ready - KUDR204EPA
Panel Ready
KUDR204EPA - Panel Ready
Allows the unit to be customized to match the surrounding cabinets with custom panels and handles.

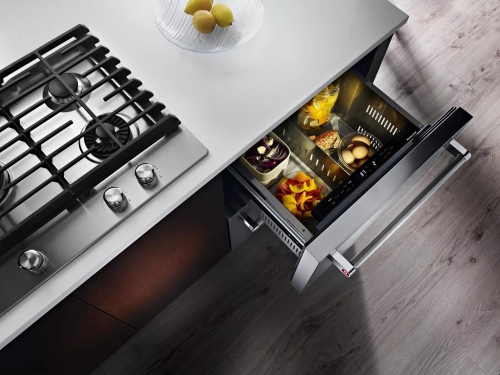

LED Interior Lighting - KUDR204EPA
LED Interior Lighting
KUDR204EPA - LED Interior Lighting
Illuminates the inside of the unit, making items easy to find.

Specs
Configuration and Overview
Installation Option Freestanding or Built-In
UL UL
CEC CEC Listed
Dimensions
Minimum Height 34-1/8 in
Cutout Height 35.0 in
Refrigerator Volume 4.70 cu. ft.
Cutout Width 24.0 in
Capacity 4.70 cu. ft.
Depth 24-1/8 in
Height 34-3/4 in
Gross Weight 160 lbs
Maximum Height 34-3/4 in
Width 23-3/4 in
Cutout Depth 24.0 in
Depth Closed Excluding Handles 24-1/8 in
Net Weight 147 lbs
Description
Type of Refrigerator Double Drawer
Installation Option Freestanding or Built-In
Exterior
Cabinet Material Prepainted Steel
Handle Location Vertical
Reversible Door No
Cabinet Finish Textured
Window No
Appearance
Handle Material Metal
Handle Location Vertical
Reversible Door No
Cabinet Finish Textured
Window No
Certifications
Energy Rating 301
UL Yes
CEC CEC Listed
Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Energy Star® Qualified No
Refinement KAD
LED Lighting LED Lighting
GDS
IsOrderableUnit true
AHAM Volumes And Shelf Area
Refrigerator Volume 4-7/10
Controls
Door Ajar/Open Alarm Yes
Sabbath Mode Yes
Number of Temperature Controlled Zones 2
Control Lockout Yes
Max Cool/Fast Cool No
Control Type Electronic
Location of Controls Interior Up Front
Cooling On/Off Yes
Temperature Range -8F to 42F
Dimensions
Gross Weight 160.000 lbs
Details
Interior Light LED
Temperature Divider LED Dimmer Switch No
Zone 1 Description Refrigerator
Zone 2 Description Refrigerator
Zone 1 Capacity 2.2 cu. ft.
Zone 1 Temperature Range 32F to 42F
Zone 2 Capacity 2.5 cu. ft.
Zone 2 Temperature Range 32F to 42F
Electrical Requirements
Hz

Dimensions

CAPACITY

4-7/10

CUTOUT DEPTH

60.96 cm, 24.0 in

CUTOUT HEIGHT

88.90 cm, 35.0 in

CUTOUT WIDTH

60.96 cm, 24.0 in

DEPTH

61.28 cm, 24-1/8 in

DEPTH CLOSED EXCLUDING HANDLES

61.28 cm, 24-1/8 in

HEIGHT

88.26 cm, 34-3/4 in

MAXIMUM HEIGHT

88.26 cm, 34-3/4 in

MINIMUM HEIGHT

86.68 cm, 34-1/8 in

REFRIGERATOR VOLUME

133.01 l, 4.70 cu. ft.

WIDTH

60.32 cm, 23-3/4 in

Certifications

INSTALLATION OPTION

Freestanding or Built-In

Controls

CONTROL LOCATION

Interior Up Front

COOLING ON/OFF

Yes

DOOR AJAR/OPEN ALARM

Yes

MAX COOL/FAST COOL

No

NUMBER OF TEMPERATURE CONTROLLED ZONES

2

SABBATH MODE

Yes

TEMPERATURE RANGE

-8F to 42F

VERROUILLAGE DES COMMANDES

Yes

Appearance

CABINET FINISH

Textured

HANDLE LOCATION

Vertical

HANDLE MATERIAL

Metal

REVERSIBLE DOOR

No

WINDOW

No

Details

INTERIOR LIGHT

LED

TEMPERATURE DIVIDER LED DIMMER SWITCH

No

ZONE 1 CAPACITY

2.2 cu. ft.

ZONE 1 DESCRIPTION

Refrigerator

ZONE 1 TEMPERATURE RANGE

32F to 42F

ZONE 2 CAPACITY

2.5 cu. ft.

ZONE 2 DESCRIPTION

Refrigerator

ZONE 2 TEMPERATURE RANGE

32F to 42F

Certifications

ENERGY RATING

301

ENERGY STAR® QUALIFIED

No

PROP 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

UL

UL

Electrical

HZ

60

VOLTS

115

Exterior

CABINET COLOR

Black

CABINET MATERIAL

Prepainted Steel

EndecaProps

PRODUCTOUTLETCATEGORIES

Refrigerators

STATUS BADGE ESPOT CA

New

GDS

GPC CODE

10003695

ISINVOICEUNIT

true

ISORDERABLEUNIT

true

PRODUCT TYPE

EA

UDEX

1101290375

ISBASEUNIT

true

ISCONSUMERUNIT

true
