The KitchenAid KUWR214KPA is a 24-inch panel-ready undercounter wine cellar designed to seamlessly integrate into your kitchen cabinetry while providing optimal storage conditions for your wine collection. With a capacity of 4.97 cubic feet, it accommodates up to 46 standard Bordeaux-size bottles, making it an ideal choice for both casual enthusiasts and serious collectors.
Design and Integration
This wine cellar features a panel-ready design, allowing you to customize the exterior to match your kitchen décor for a cohesive and elegant appearance. The wood-front racks not only enhance the aesthetic appeal but also provide sturdy support for your wine bottles. The right-hand door swing is designed for easy access, and the unit is intended for built-in installation, ensuring a flush fit with your cabinetry.
Temperature Control and Storage
Equipped with two temperature-controlled zones, the KUWR214KPA allows you to store different types of wine at their ideal serving temperatures. The upper zone can be adjusted between 42°F and 54°F, suitable for white wines, while the lower zone ranges from 42°F to 64°F, ideal for red wines. This dual-zone functionality ensures that each bottle is preserved under optimal conditions.
User-Friendly Features
The wine cellar is designed with user convenience in mind. Motion-activated LED lighting illuminates the interior as you approach, allowing you to view your collection without opening the door. The lights gradually dim and turn off when no longer needed, conserving energy. SatinGlide® full-extension wood-front racks slide out smoothly, making it easy to load and retrieve bottles. Backlit touch controls, located on the divider between the two temperature zones, provide intuitive access to settings and display current temperatures and status alerts.
Safety and Maintenance
To ensure the safety and longevity of your wine collection, the KUWR214KPA includes a temperature monitoring system that uses sensors to detect if the internal temperature rises above 70°F for more than four hours. In such cases, an over-temperature alarm and indicator light alert you to take corrective action. A door alarm sounds if the door is left open for five minutes or more, repeating every two minutes until the door is closed or the controls are touched. The automatic defrost feature cycles periodically to reduce frost build-up, eliminating the need for manual defrosting.
Additional Features
The wine cellar is Star-K certified, offering a Sabbath Mode that disables automatic lights and alarm tones to meet kosher requirements during the Jewish Sabbath and other religious holidays. The unit operates on a standard 115-volt, 15-amp electrical connection, making it compatible with most home electrical systems.
Dimensions and Capacity
The KUWR214KPA has a width of 23-7/8 inches, allowing it to fit seamlessly into standard cabinetry spaces. With a total capacity of 4.97 cubic feet, it can store up to 46 standard Bordeaux-size bottles, distributed across six wood-front racks. The upper zone holds up to 24 bottles, while the lower zone accommodates up to 22 bottles, providing ample space for a diverse wine collection.
In summary, the KitchenAid KUWR214KPA undercounter wine cellar combines elegant design with advanced features to provide optimal storage conditions for your wine collection. Its customizable panel-ready exterior, dual temperature zones, user-friendly controls, and safety features make it a valuable addition to any kitchen or entertainment space.
• SatinGlide® Full-Extension Wood-Front Racks – trademarked full-extension racks slide out smoothly for easier loading, organizing, and selecting bottles while adding a premium wood-front look.
• Sabbath Mode (Star-K Certified) – supports kosher-use requirements by disabling automatic lights and alarm tones during Sabbath and religious holidays.
• Fully Flush Installation with Hidden Hinges – creates a built-in, seamless appearance within a standard 24-inch base cabinet, with concealed hinges that let the door sit flush with surrounding cabinetry.
• Panel-Ready Design – accepts a custom door panel and handle so the unit can blend in with surrounding kitchen cabinetry for a fully integrated look.
• Two Temperature-Controlled Zones – provides separate storage areas so wines can be kept at serving-friendly temperatures below while other beverages or select foods can be chilled above.
• 46 Standard Wine Bottle Capacity – stores a substantial wine collection in an undercounter footprint, making it ideal for entertaining or dedicated wine storage.
• Temperature Monitoring System – uses internal sensors to track cabinet temperatures and help protect wine from prolonged temperature issues.
• Over-Temperature Alarm and Indicator – alerts you when internal temperatures rise too high for an extended period, helping safeguard stored wine.
• Motion-Activated LED Lighting – automatically illuminates the interior as you approach, making bottles easier to see without needing to keep the door open longer than necessary.
• Backlit Touch Controls – offers a modern, easy-to-use control interface with illuminated temperature displays and status indicators.
• Max Cool – temporarily lowers temperatures for rapid cooling when restocking bottles or when the door will be opened frequently during serving.
• Door Alarm – sounds if the door is left open, helping prevent temperature loss and protecting wine quality.
• Wood-Front Racks – provide an upscale storage presentation while helping cradle bottles securely.
• Full-Extension Racking – allows racks to pull out fully for easier access to bottles stored toward the back.
• Lower Wine Storage Zone – designed to hold wine bottles in an organized layout for dedicated preservation and serving convenience.
• Upper Storage Area for Additional Items – gives flexibility for storing select beverage accessories or complementary chilled items depending on configuration.
• 42°F to 64°F Lower Zone Range – supports storage of different wine varietals at more appropriate serving temperatures.
• 33°F to 40°F Upper Zone Range – provides colder storage capability for select beverages or accompaniments in the upper section.
• 115-Degree Door Opening – allows the door to swing wide for easier bottle loading and unloading.
• Undercounter 24-Inch Form Factor – fits common undercounter installation spaces, making it suitable for kitchens, bars, and entertaining areas.
• Integrated Luxury Appearance – supports high-end kitchen design by concealing the appliance behind custom cabinetry panels.
• Interior LED Illumination – offers clear visibility with low-heat, energy-efficient lighting that is better suited for wine storage than hotter light sources.
• Sensor-Based Temperature Protection – helps maintain more reliable storage conditions for preserving wine flavor and integrity.
• Convenient Entertaining Storage – keeps a large number of bottles organized and accessible for hosting, dinner service, or special occasions.
• Premium Undercounter Wine Preservation – combines dedicated wine storage, dual-zone cooling, and cabinetry-ready styling for upscale residential use.
Manufacturer's Warranty: 1 year
Canadian model: KUWR214KPA
Similar to USA model: KUWR214KPA
Canadian UPC: 883049592862
Similar to USA UPC: 883049592862
EAN: 0883049592862
46 Standard Wine Bottle Capacity
KUWR214KPA - 46 Standard Wine Bottle Capacity
provides room for 8 Bordeaux-size bottles on each of the five upper racks and 6 Champagne-style bottles on the lower rack. Overall capacity may be lower for collections that include taller or wider bottles in non-standard shapes and sizes.
Automatic Defrost
KUWR214KPA - Automatic Defrost
cycles automatically to help reduce frost build-up, freeing you from having to regularly empty the appliance and manually defrost.

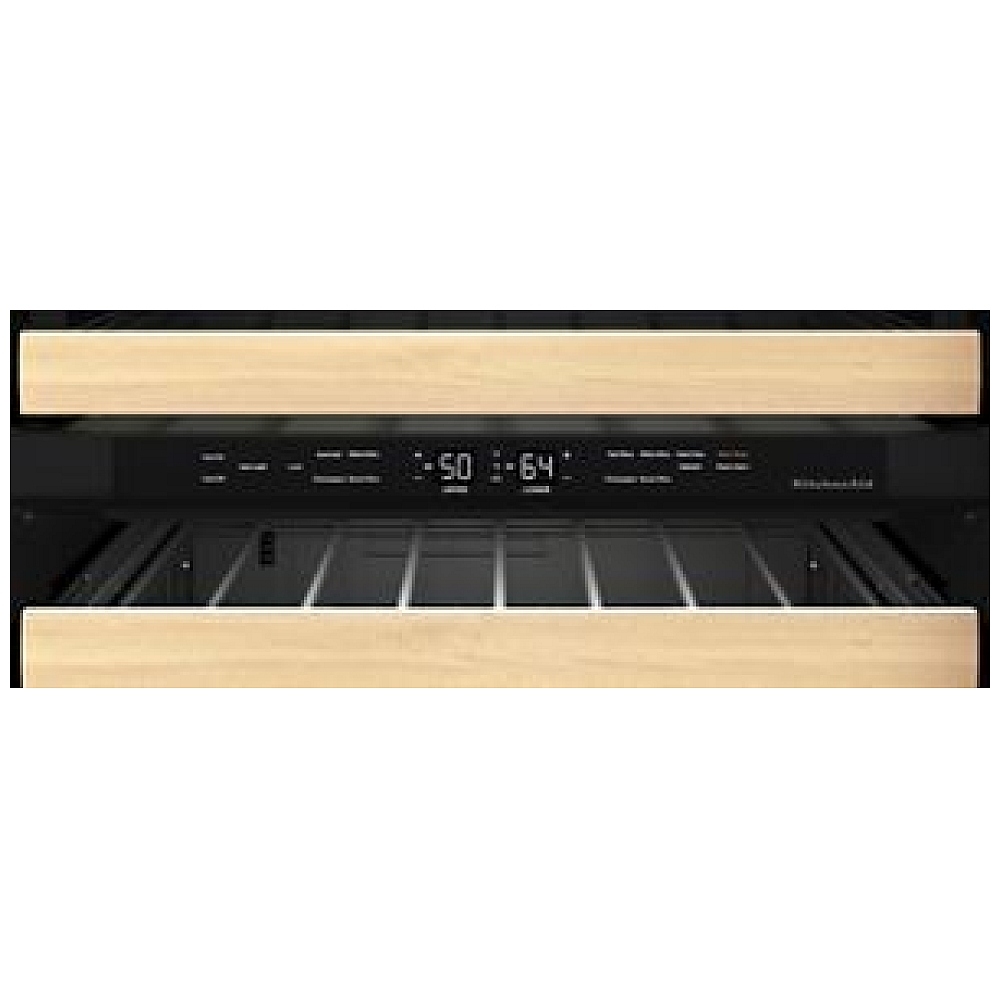

Backlit Touch Controls
KUWR214KPA - Backlit Touch Controls
located on the divider between the two temperature zones make it easy to choose settings for what you're storing. The lighted control panel displays current temperatures for each zone and other status alerts.

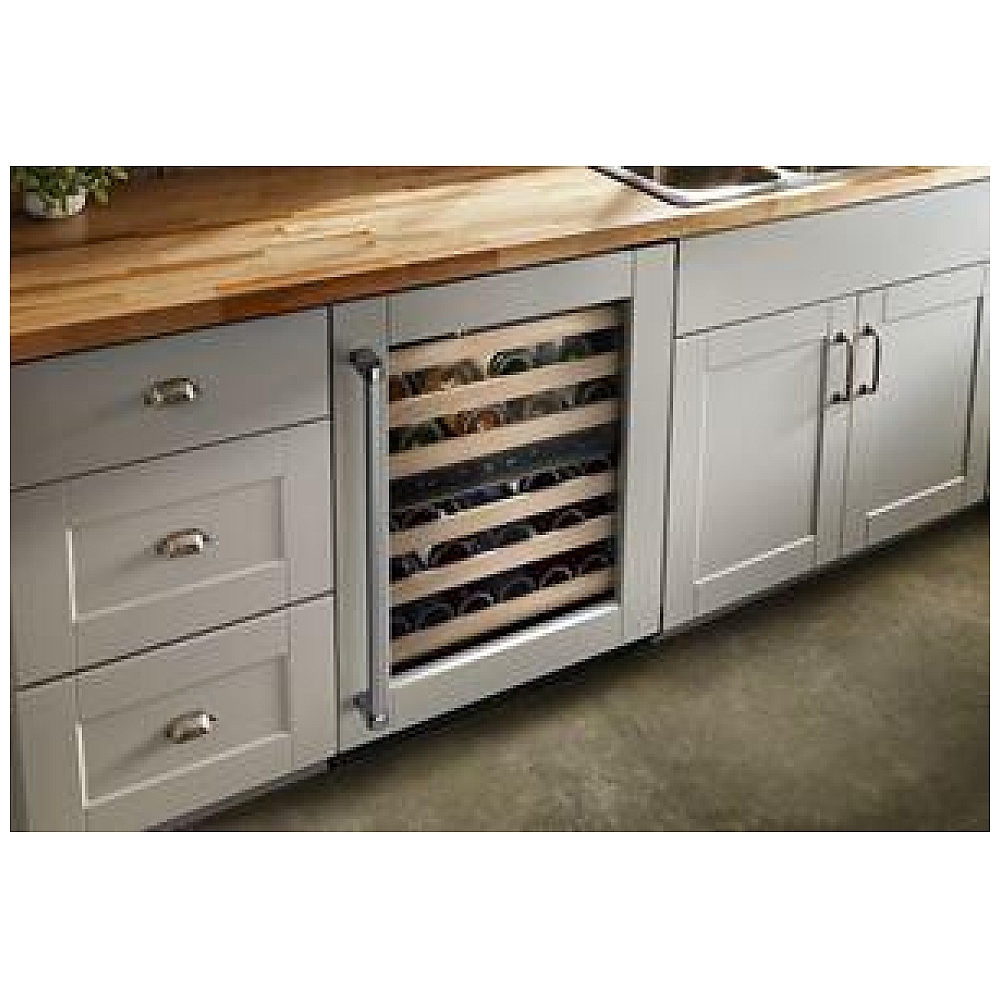

Fully Flush Installation with Hidden Hinges for a built-in look
KUWR214KPA - Fully Flush Installation with Hidden Hinges for a built-in look
provides a built-in look within a standard 24" base cabinet, so your style stands out, not the appliance. Hidden hinges allow the wine cellar door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 115 degrees.
Motion-Activated LED Lighting
KUWR214KPA - Motion-Activated LED Lighting
turns on inside as you approach, so you can see what's inside without opening the door. Lights will gradually dim and turn off when no longer needed.
Panel-Ready Design
KUWR214KPA - Panel-Ready Design
allows you to install a custom front panel and handle (not included) over the door to create a seamless look with kitchen cabinetry.
Temperature Monitoring System
KUWR214KPA - Temperature Monitoring System
uses sensors to monitor temperatures inside the wine cellar for added peace of mind. If the system detects temperatures above 70°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.
Two Temperature-Controlled Zones
KUWR214KPA - Two Temperature-Controlled Zones
allow you to chill red and white wines between 42-64°F in the lower zone and keep sodas, seltzers and craft brews at colder temperatures in the upper zone, which adjusts from a low of 33°F for cold drinks up to 40°F for cheese and charcuterie.
Two Temperature-Controlled Zones
KUWR214KPA - Two Temperature-Controlled Zones
let you separate reds and whites to store and serve each at the temperature you enjoy. Adjust the top zone from 42-54°F for whites and the bottom zone from 42-64°F for reds.
