SERIES	Mila CH77 SQ6-WM-XX

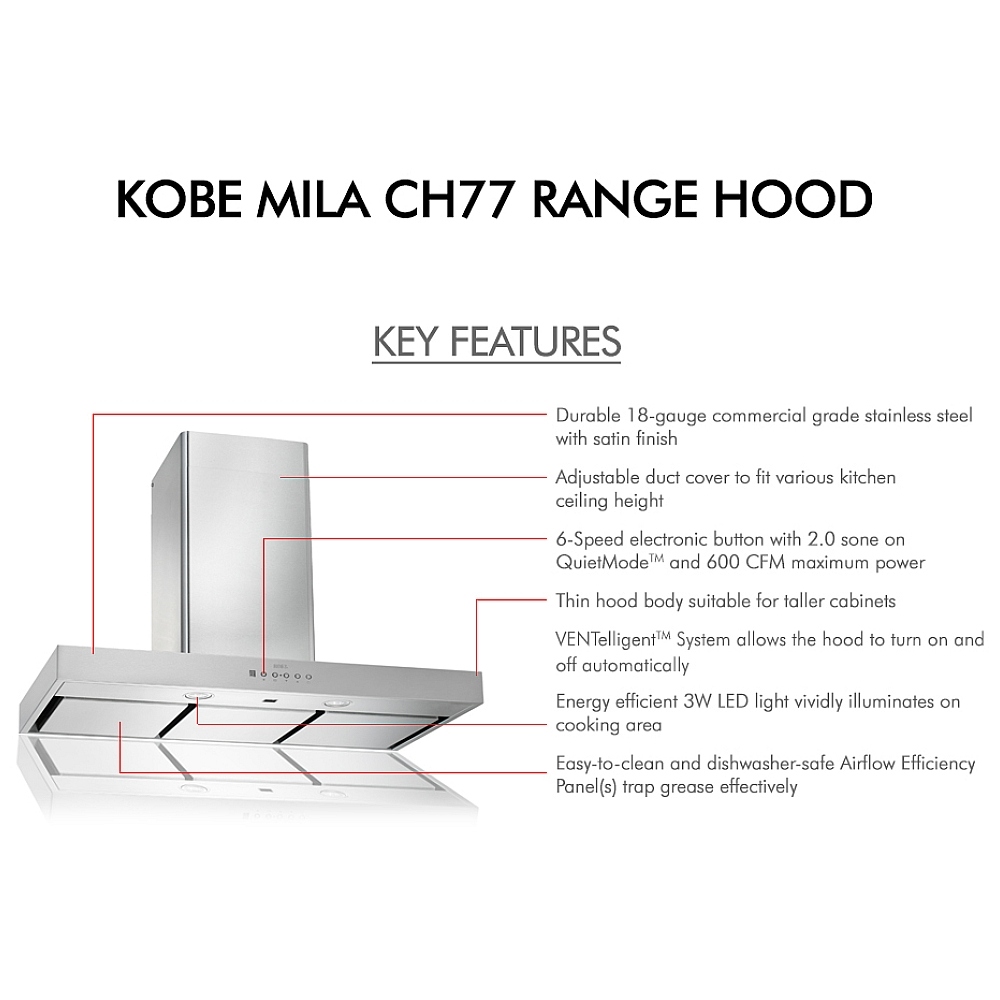

QuietMode™	At 240 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (2.0 sone).
Blower Type	Single Horizontal Squirrel Cage

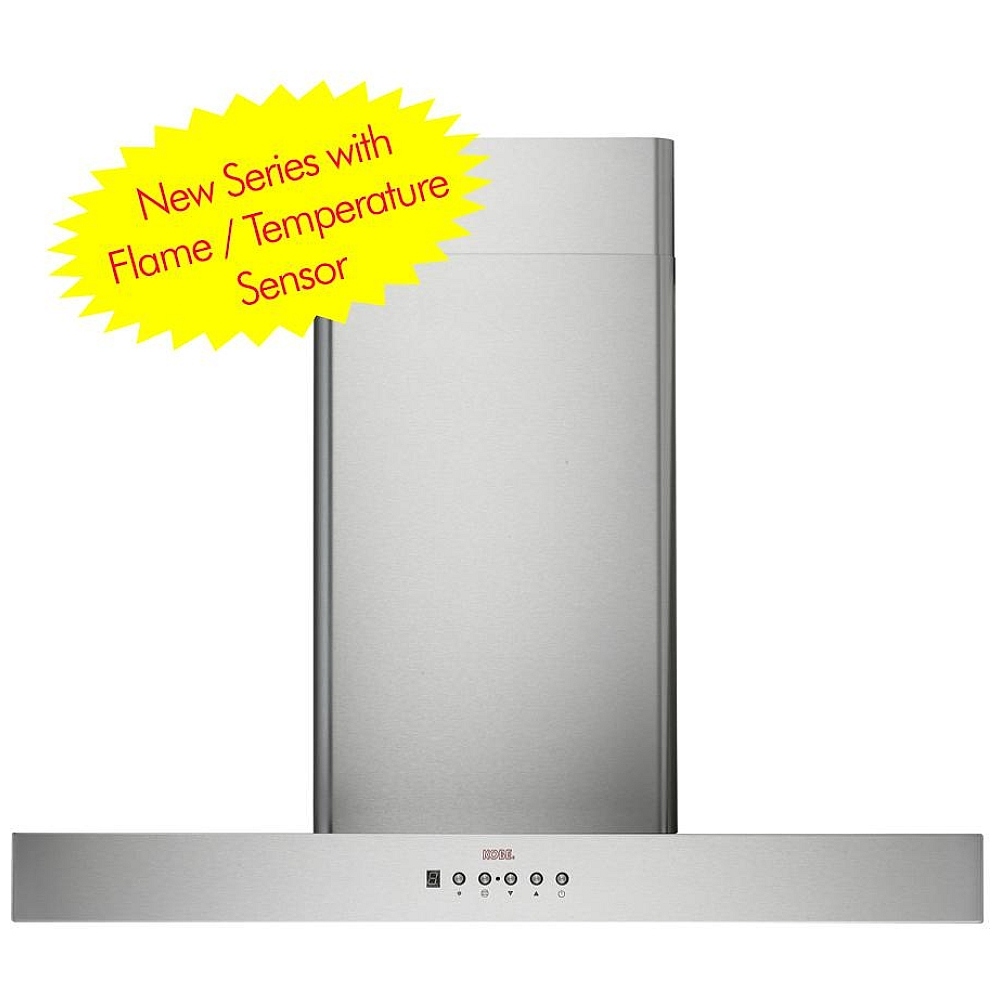

Speed / Control	6-Speed / Electronic Button with Flame Sensor / Delay Shutoff -5-Minutes
CFM / Sone	240 / 2.0 / QuietMode™ 330 / 3.5 / Speed 1 400 / 4.5 / Speed 2 470 / 5.6 / Speed 3 510 / 6.0 / Speed 4 600 / 7.0 / Speed 5
Exhaust	Top: 6″ Round
Light	The hood is equipped with 3W LED lights with 3-level lighting.
Filters	Dishwasher safe professional airflow efficiency panel(s) allow for easy cleaning.
Attractive Appearance	The seamless curves and stylish appearance of the hood will compliment any kitchen
Time Delay Control	The Time Delay System features a 5-minute delay shutoff
ECO Mode	ECO Mode runs the fan on the QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors to promote a cleaner kitchen air quality.
VENTelligent™	KOBE’s VENTelligent™ System is our unique system of Carefree venting that allows your hood to automatically turn on and off as well as go into ECO Mode.
Easy to Clean	KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Quality	Parts are checked for defects and designed for trouble free long term use.
Sizes	30″, 36″ and 48″
Easy to Install	Our special design makes installation fast and easy.
Color	Commercial Grade Stainless Steel

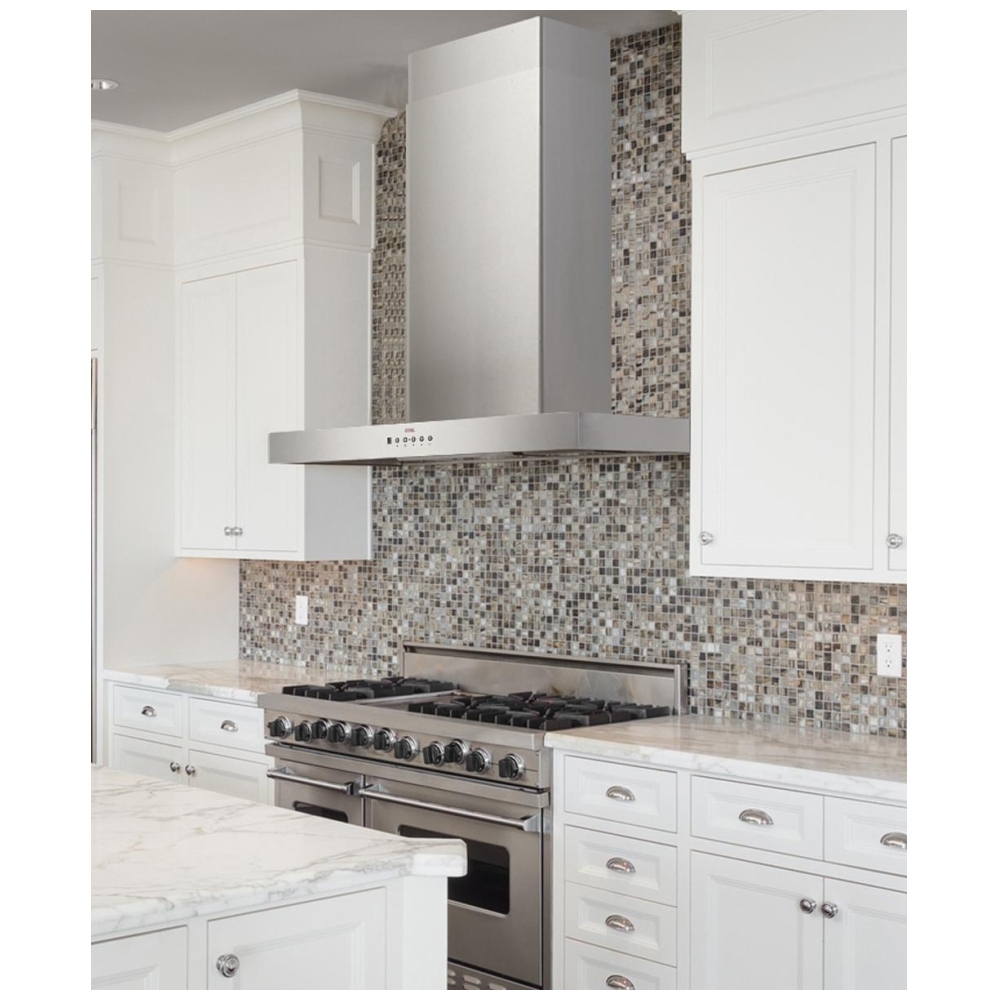

Versatile Installation	This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.

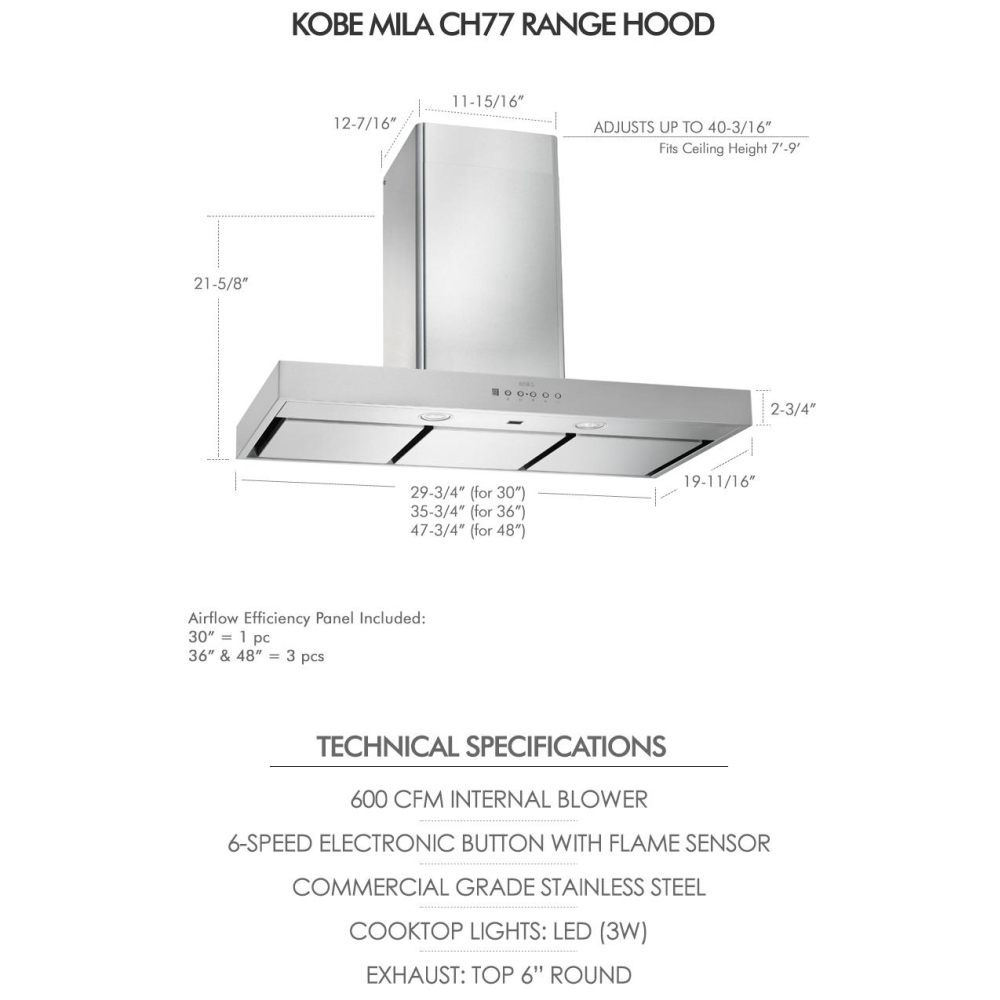

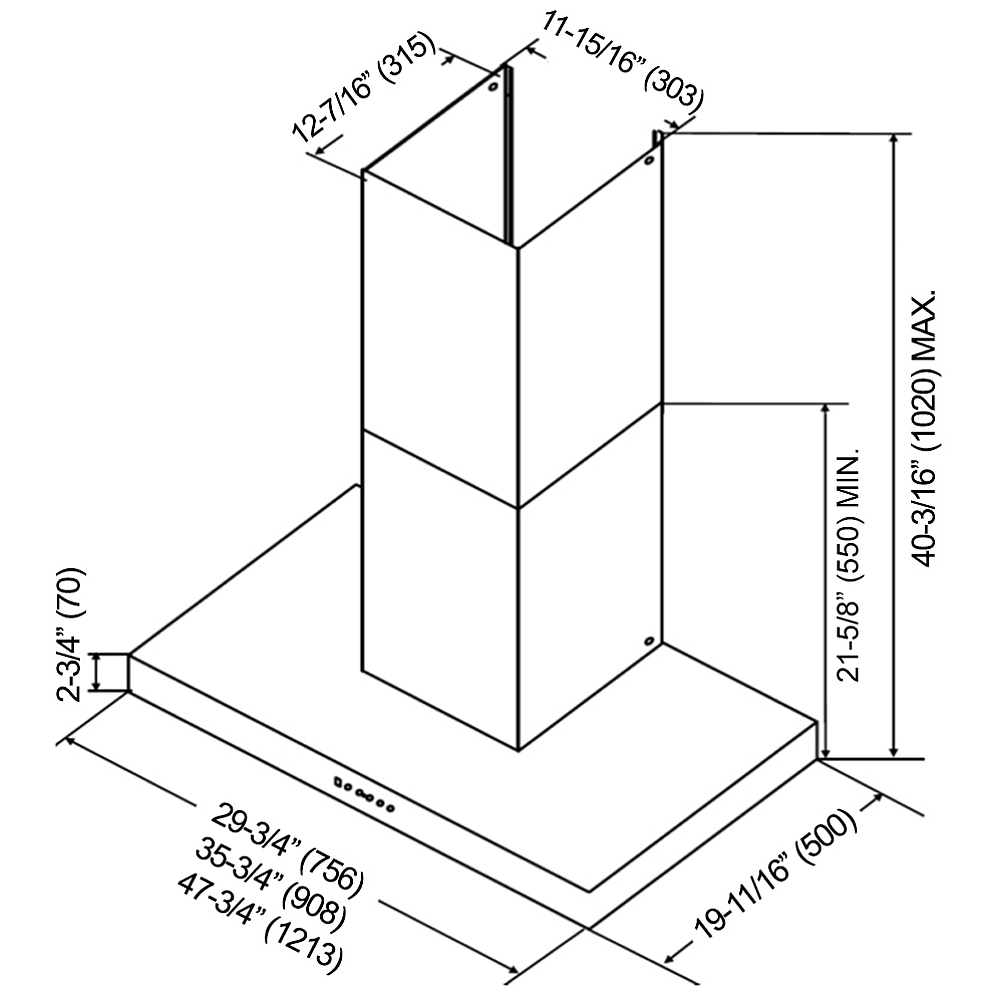

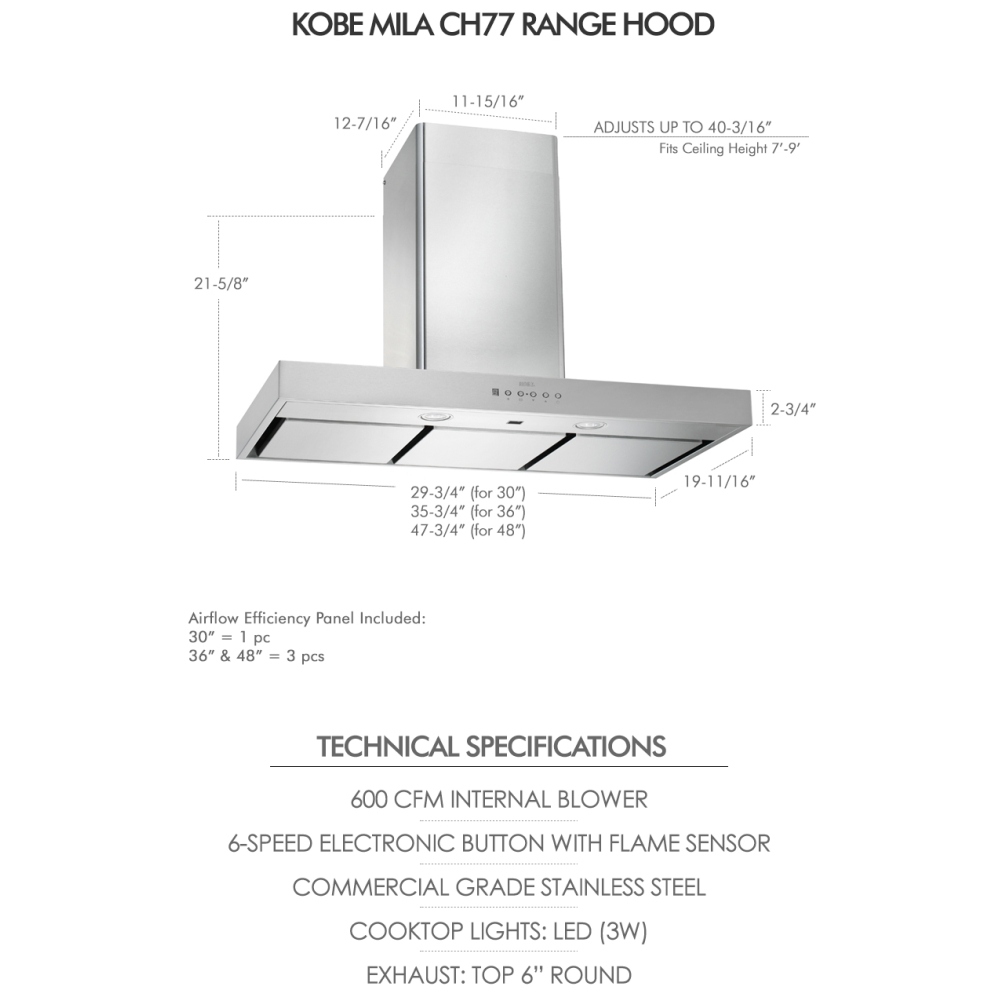

Ceiling Heights	This wall mount hood fits ceiling height between 7 feet to 9 feet.
Optional Accessories	Remote Control – Model No.: KRC6 Stainless Steel Back Splash 30″ Stainless Steel Black Splash – Model No.: SSP30 36″ Stainless Steel Back Splash – Model No.: SSP36

Models	CH7730SQ6-WM-XX (30") CH7736SQ6-WM-XX (36") CH7748SQ6-WM-XX (48")
Size	30 Inch, 36 Inch, 48 Inch
Speed	6-Speed
Control	Electronic Buttons
Blower	600 CFM Internal Blower
QuietMode	2.0
Ductless/ Recirculating	No
Ducting	Vertical
Filter	Airflow Efficiency Panel
Light	LED
ECO Mode	Yes
Ceiling (Min)	7
Ceiling (Max)	9
Fit Ceiling Height	7”, 7 1/2”, 8”, 8 1/2”, 9”
Collection	Premium
Type	Wall Mount
Exhaust	Top 6” Round
Features	Delay Shut Off, Eco Mode, Multi-Level Lighting, VENTelligent™, Wireless Remote Control

Kobe CH7748SQ6-WM-XX

Kobe CH7748SQ6-WM-XX

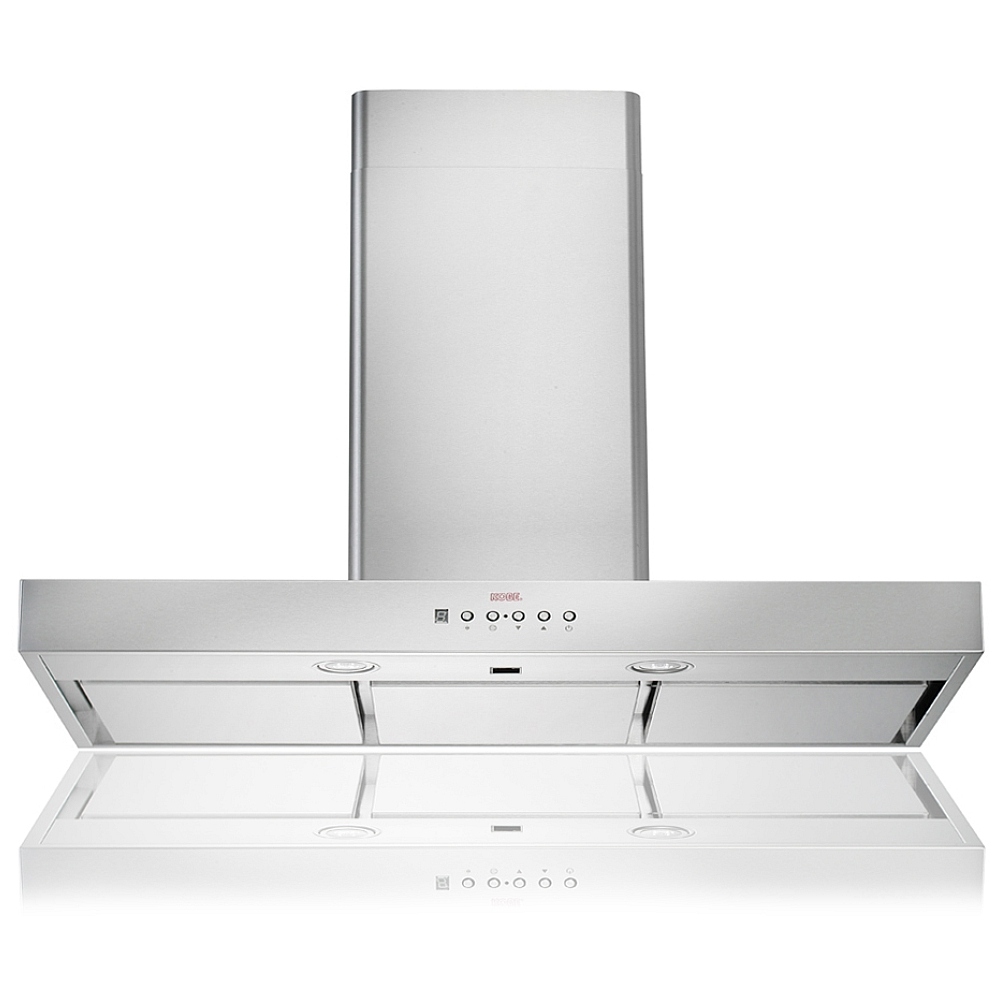

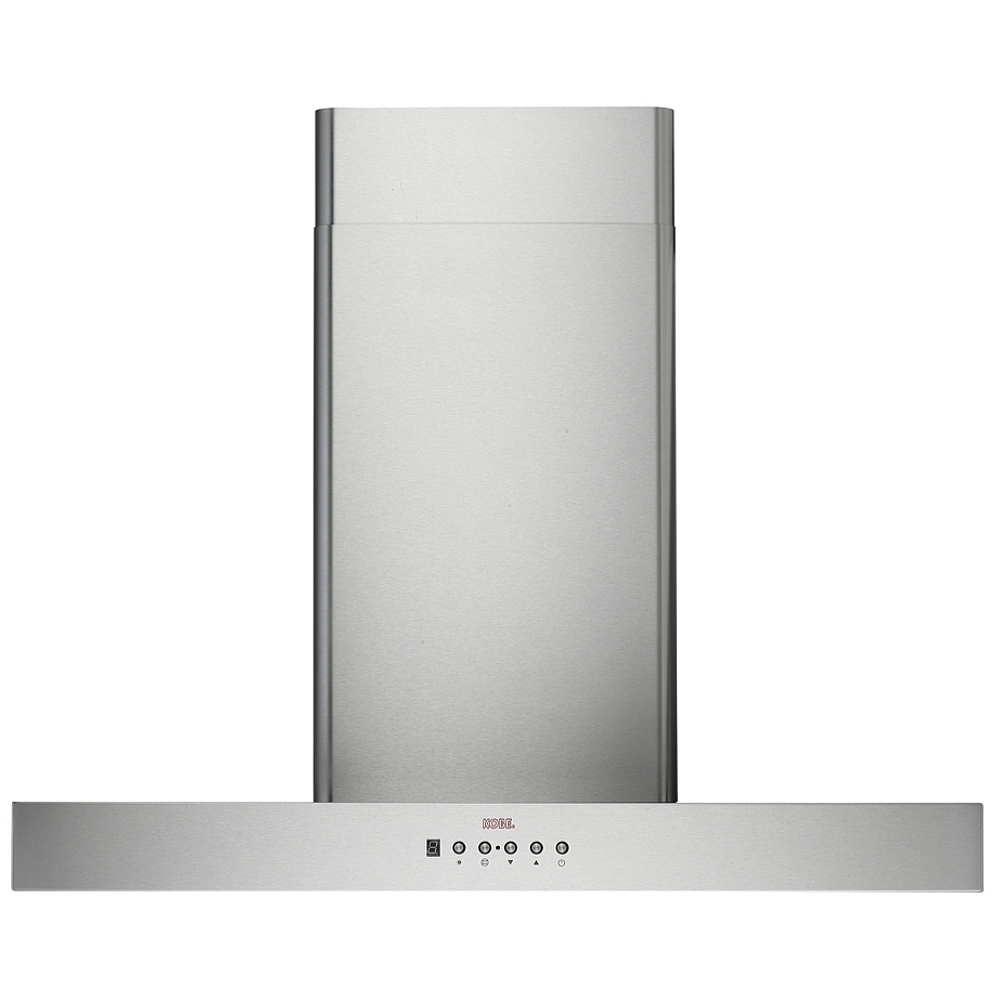

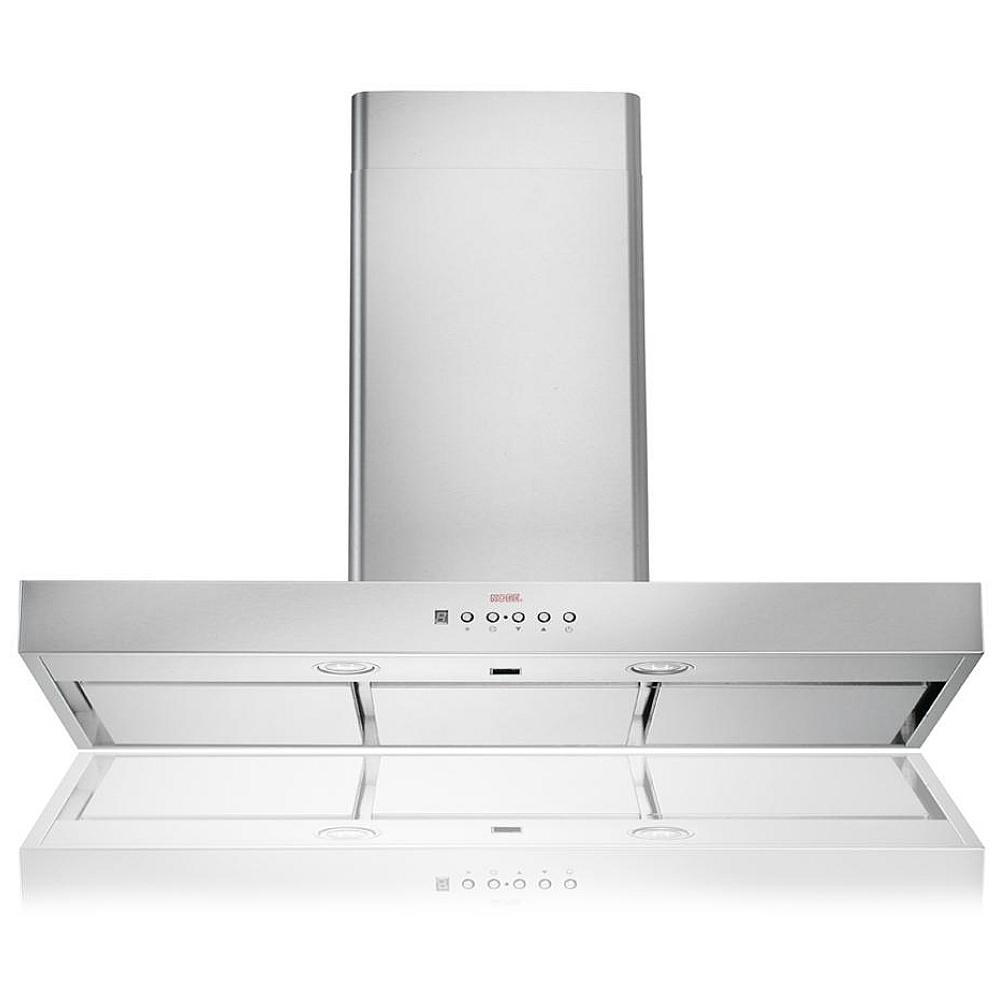

Kobe CH7748SQ6-WM-XX Range Hood, 48 inch Exterior Width, Wall Mounted, 600 CFM, LED, Stainless Steel colour
