Kobe

CHX9130SQB-2

• QuietMode™ operation – provides a low-noise ventilation setting for everyday cooking, helping remove light smoke and odors while keeping kitchen sound levels more comfortable.

• KOBE CHX9130SQB-2 30-inch under-cabinet range hood – designed to fit standard 30-inch cooking spaces and mount neatly beneath cabinetry for space-saving kitchen ventilation.

• 600 CFM internal blower performance – delivers strong airflow to help clear smoke, steam, grease, heat, and cooking odors from the kitchen more effectively.

• Twin vertical turbine impellers – uses a dual-blower design to improve air movement and support more efficient exhaust performance during cooking.

• 3-speed mechanical push-button controls – offers simple manual selection of ventilation levels so users can match airflow to light, moderate, or heavy cooking.

• Ducted ventilation system – vents contaminated air out of the home, helping reduce lingering odors, airborne grease, and excess kitchen moisture.

• Top or rear exhaust flexibility – supports multiple venting configurations to make installation easier in different kitchen layouts.

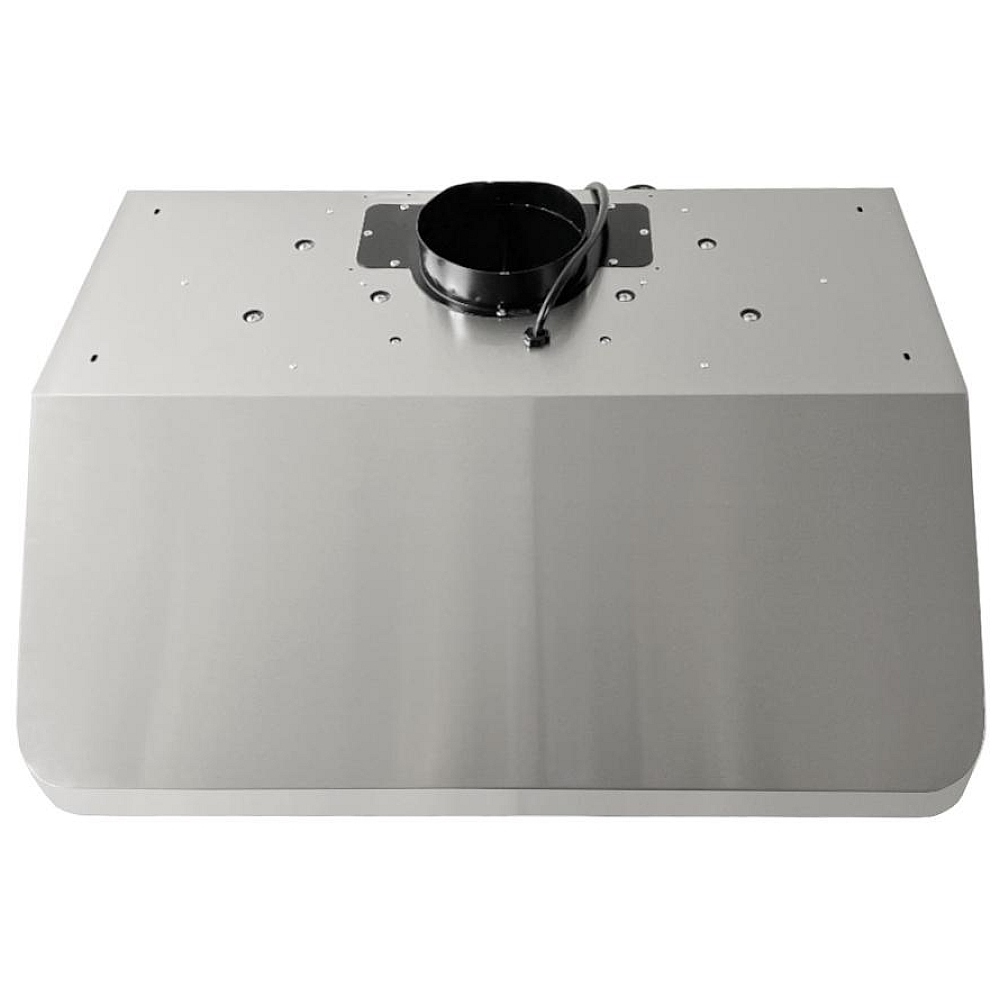

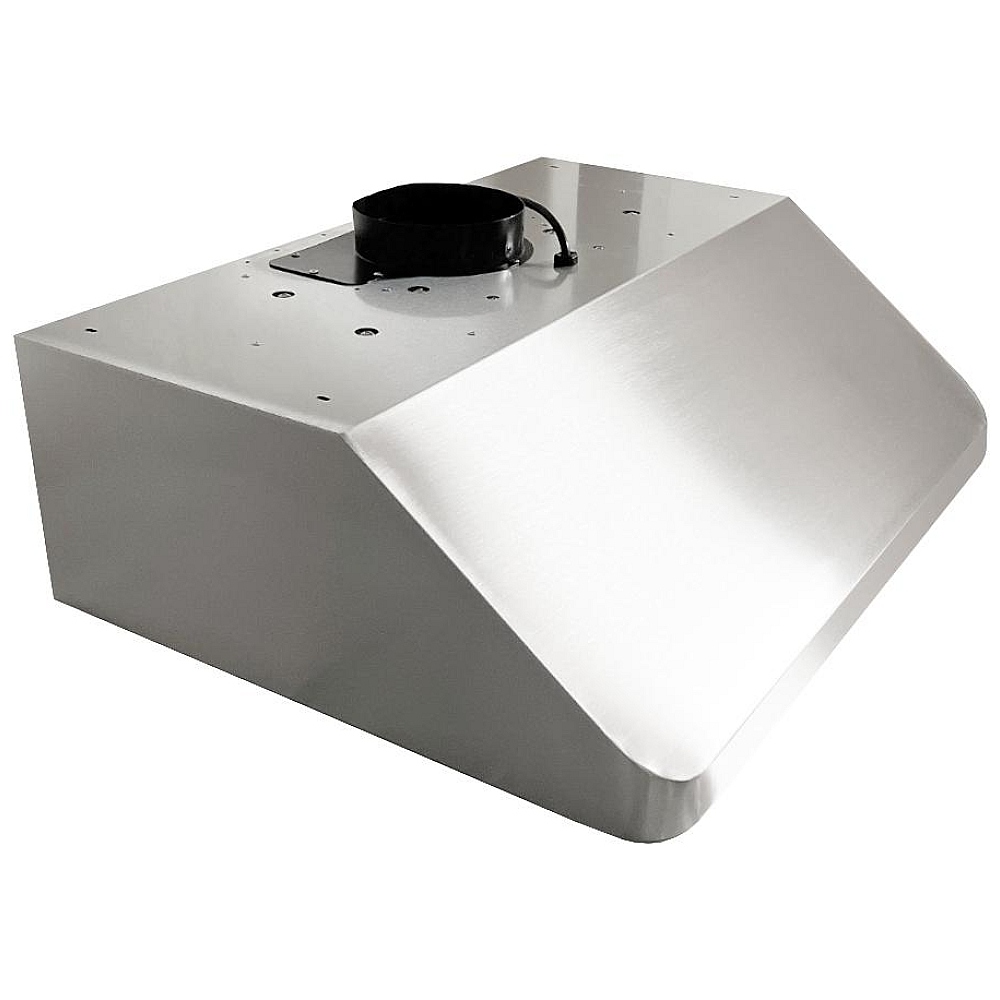

• 6-inch round top exhaust option – allows connection to compatible round ductwork for common top-vent installations.

• 3-1/4-inch x 10-inch rectangular top exhaust option – provides an alternate top-vent duct shape for kitchens using rectangular ducting.

• 3-1/4-inch x 10-inch rectangular rear exhaust option – enables rear-vented installation where wall duct routing is preferred.

• LED lighting – includes energy-efficient lighting to brighten the cooktop surface for better visibility while preparing meals.

• Dual 3-watt LED lights – provides focused illumination over the cooking area while using relatively low power.

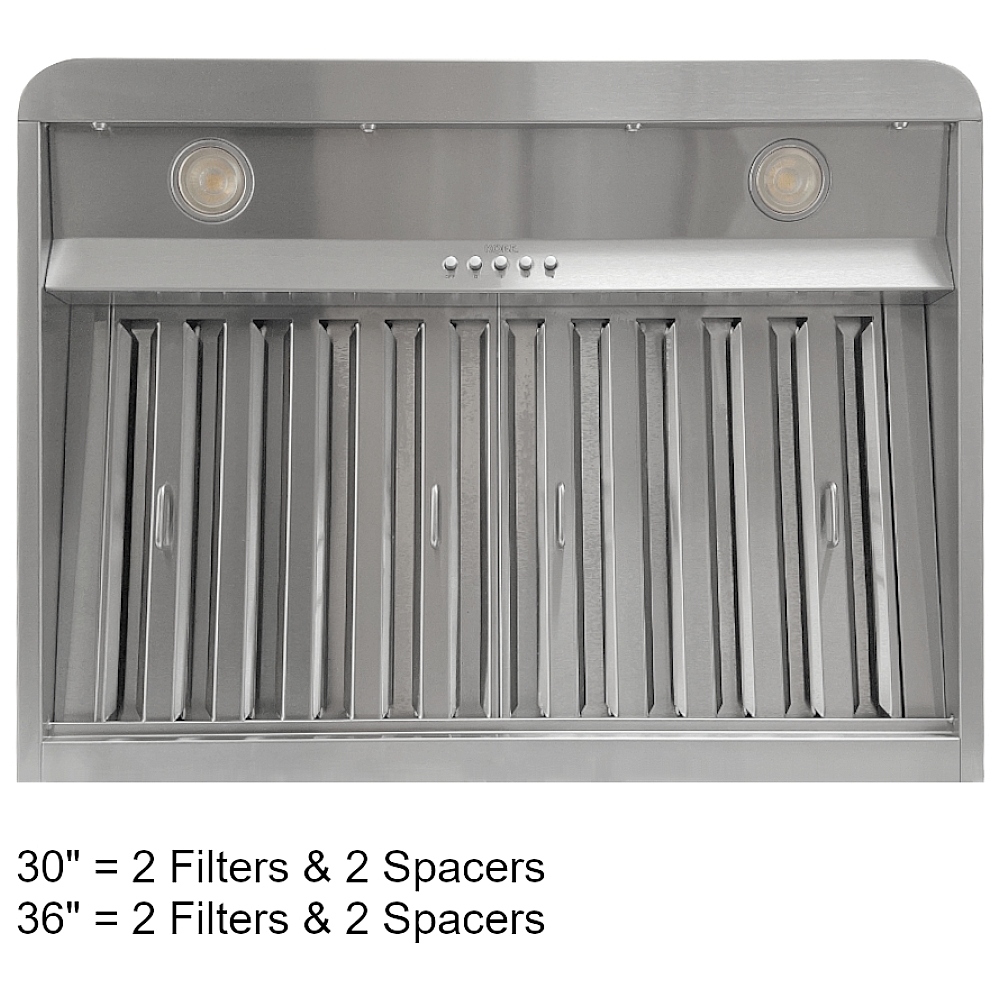

• Dishwasher-safe baffle filters – captures grease and cooking residue while allowing convenient cleaning in the dishwasher.

• Removable grease filters – makes routine maintenance easier and helps preserve airflow and ventilation efficiency over time.

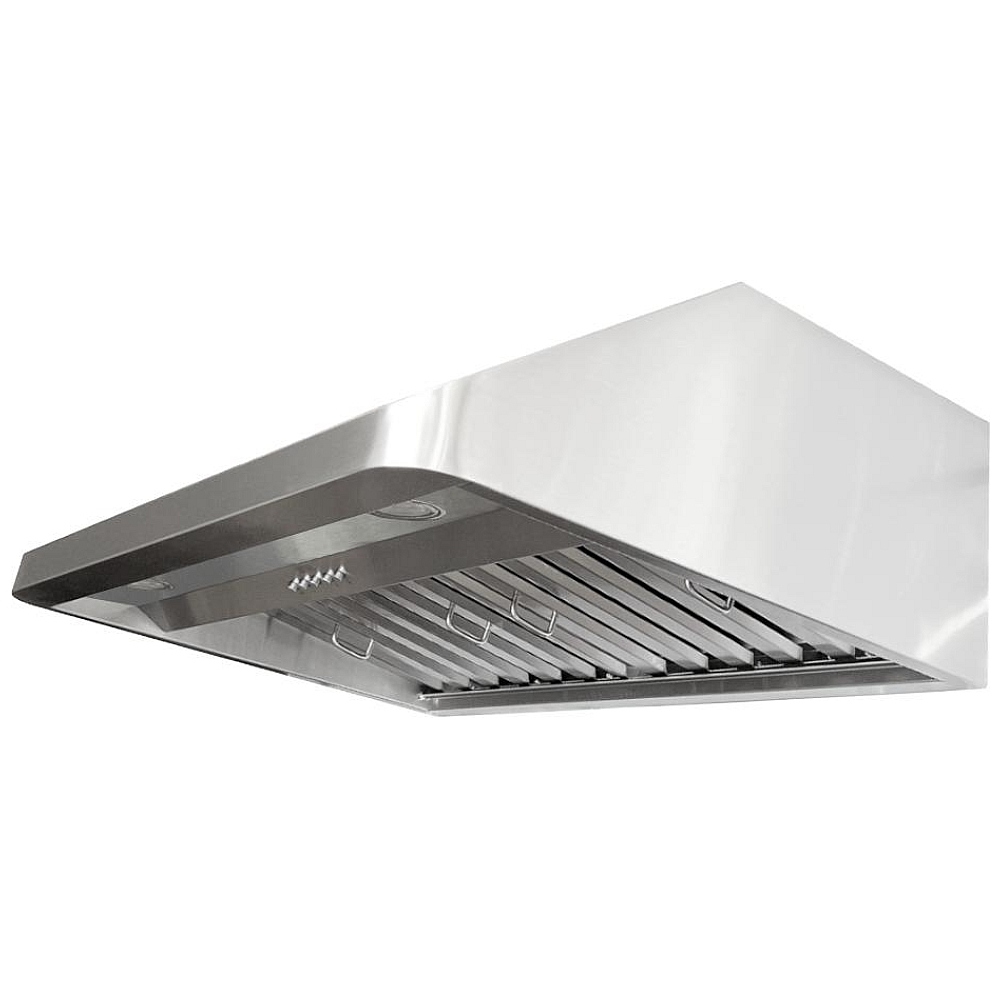

• Baffle filter system – helps trap grease more effectively than basic mesh-style filtration and supports cleaner ducted operation.

• Commercial-grade stainless steel construction – offers durability, corrosion resistance, and a professional-style appearance suited for modern kitchens.

• 18-gauge stainless steel body – provides a sturdier hood structure that can contribute to long-term durability and a more premium feel.

• Seamless satin-finish design – creates a cleaner, more refined appearance while helping simplify exterior wipe-down and maintenance.

• Subtle curved profile – adds a polished visual style that can complement both contemporary and transitional kitchen designs.

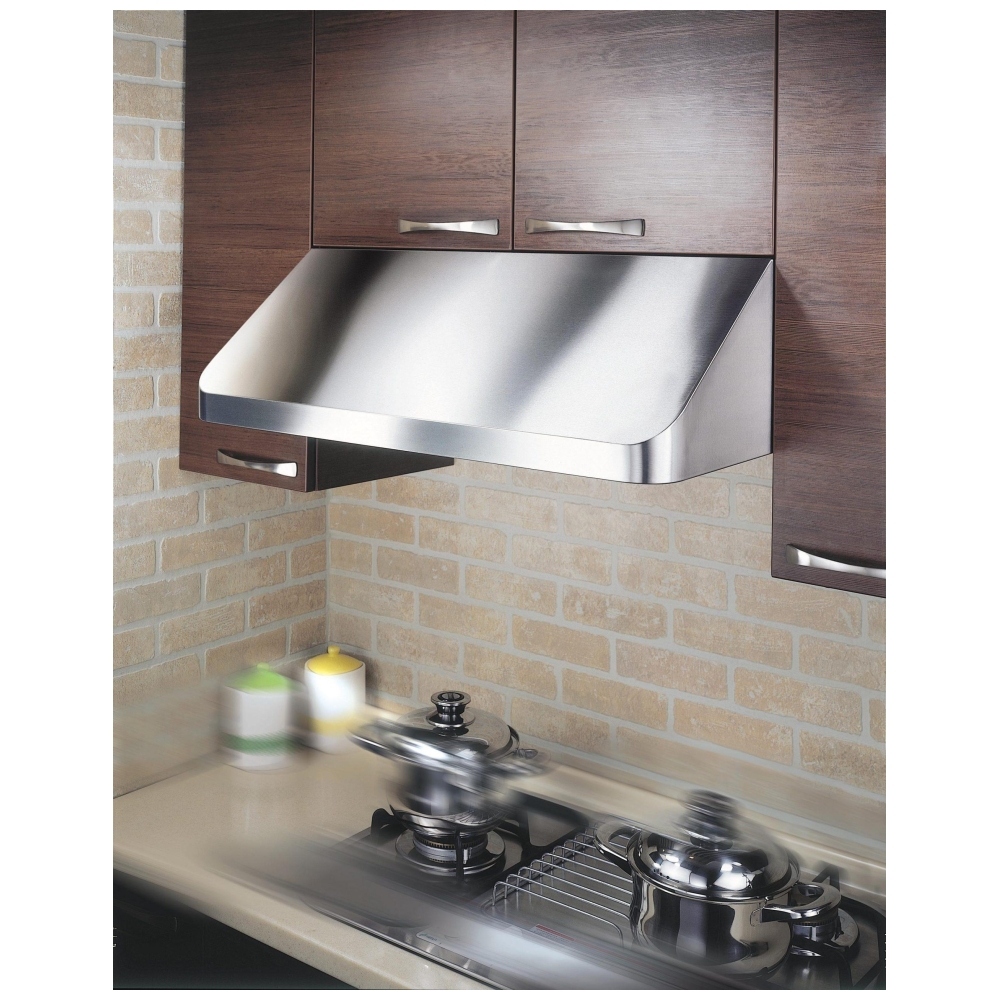

• Under-cabinet installation format – saves wall space and integrates the hood directly beneath cabinetry for a streamlined built-in look.

• Effective smoke removal – helps clear airborne smoke generated by frying, searing, and high-heat cooking.

• Odor reduction performance – helps exhaust strong food smells to keep the kitchen and nearby living areas fresher.

• Moisture and steam extraction – helps reduce humidity buildup from boiling and steaming, supporting a more comfortable cooking environment.

• Grease management support – helps reduce grease accumulation on surrounding cabinets, walls, and kitchen surfaces.

• Improved kitchen air quality – supports a cleaner cooking environment by exhausting airborne byproducts created during meal preparation.

• Approx. 306 CFM QuietMode™ airflow – suitable for lighter cooking tasks when quieter operation is preferred.

• Approx. 428 CFM low-speed airflow – provides stronger ventilation for everyday cooking needs such as sautéing and simmering.

• Up to 600 CFM high-speed airflow – supports heavier-duty ventilation for more intense cooking conditions.

• Low sound rating starting around 1.0 sone – helps maintain quieter performance on the lowest setting for less disruption in the kitchen.

• Approx. 2.2 sones at low speed – balances stronger airflow with moderate operating noise for regular use.

• Approx. 5.0 sones at high speed – delivers maximum extraction power when rapid smoke and odor removal is needed.

• 110V / 60Hz electrical compatibility – designed for standard household electrical service commonly used in residential kitchens.

• 106-watt power consumption – combines blower and lighting operation in a relatively efficient overall power profile.

• 1.17-amp operation – indicates modest electrical draw for residential installation planning.

• 29-3/4-inch width – sized to align closely with standard 30-inch ranges and cooktops for effective coverage.

• 22-inch depth – provides substantial front-to-back coverage over the cooking surface to help capture rising smoke and steam.

• 9-1/16-inch height – offers a compact under-cabinet profile while still housing the blower and filter system.

• Residential kitchen application – intended for home use to improve ventilation performance in everyday cooking spaces.

• Easy-to-use manual controls – simplifies operation for users who prefer direct button-based control without complex digital settings.

• Luxury kitchen styling – enhances the visual appeal of the cooking area with a professional stainless steel presentation.

• Reduced packaging update – reflects a more sustainability-conscious product update while maintaining the hood’s core design and function.

• Optional stainless steel back panel compatibility – can be paired with a matching back panel for added wall protection and a more finished installation appearance.

• Designed for cleaner kitchen maintenance – helps reduce buildup from grease, smoke, and cooking residue on nearby surfaces.

• Supports better cooking visibility – integrated lighting helps users monitor food texture, color, and doneness more easily.

• Helps protect cabinetry and finishes – ventilation performance can reduce exposure of surrounding materials to grease, steam, and heat.

• Professional-style ventilation solution – combines strong airflow, stainless steel construction, and baffle filtration for a more premium cooking ventilation setup.
