Kobe

RA3830SQB-WM-1

• QuietMode™ operation – trademarked low-noise setting delivers 280 CFM ventilation at just 1.0 sone / about 40 dB, helping remove cooking fumes while keeping the kitchen quieter.

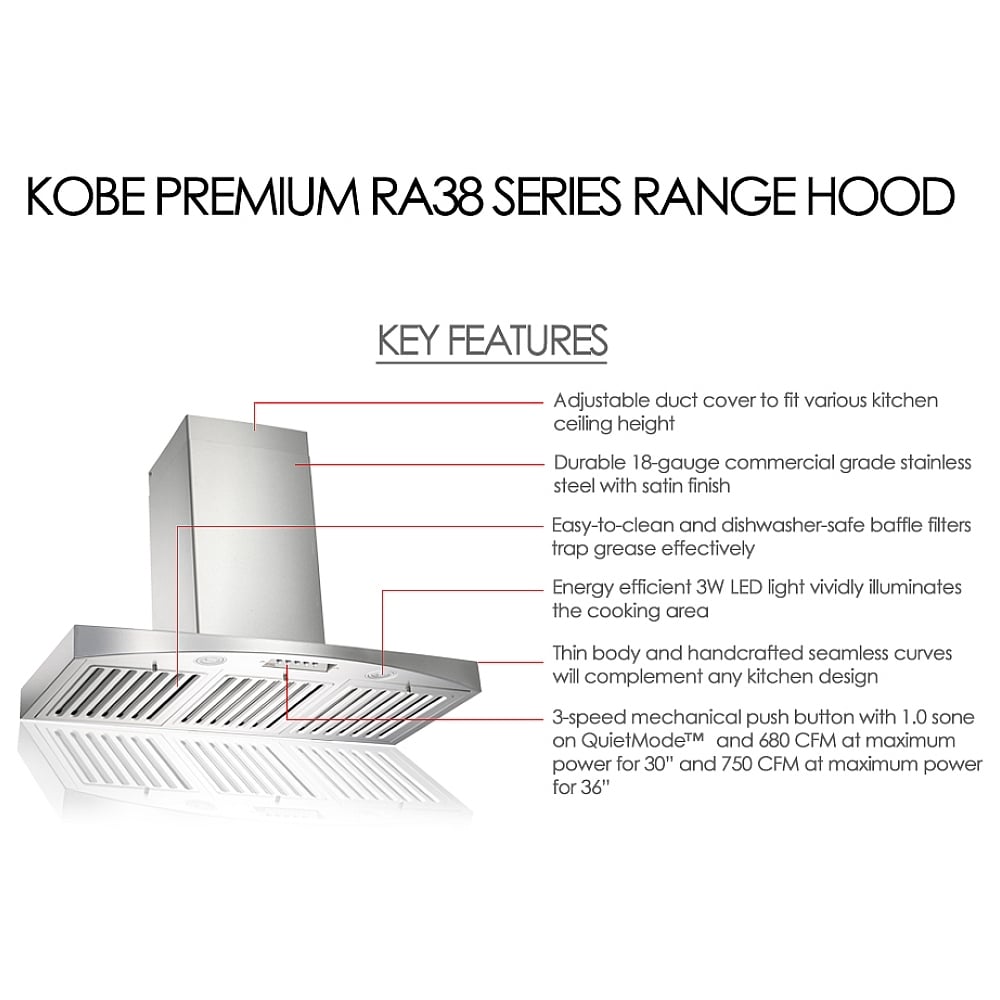

• KOBE Premium RA38 SQB-1 Series design – premium wall-mount ventilation hood built for over-the-range smoke, odor, grease, and heat removal in a sleek decorative chimney-style format.

• 680 CFM internal blower – high-performance ventilation power helps clear heavy smoke, steam, and cooking odors more effectively during high-heat cooking.

• 3-speed mechanical push-button controls – simple tactile controls let users switch between QuietMode™, low, and high ventilation speeds for flexible airflow management.

• Single horizontal squirrel cage blower – blower design supports strong air movement and efficient capture of airborne grease, smoke, and heat.

• 18-gauge commercial-grade stainless steel construction – durable heavy-duty body helps resist wear while supporting long-term kitchen use.

• Satin finish stainless steel exterior – refined finish gives the hood a polished professional appearance that complements modern kitchen designs.

• Seamless hood design – streamlined construction creates a cleaner visual look and can help reduce crevices where grease and grime collect.

• Wall-mount chimney-style installation – designed for wall installation above the cooktop to provide both functional ventilation and a focal-point appliance look.

• 30-inch width – sized to match many standard 30-inch cooking surfaces for proper coverage and balanced kitchen fit.

• Top 6-inch round duct exhaust – ducted top-vent configuration supports effective external venting of smoke, odors, and airborne grease.

• Ducted ventilation system – vents contaminated kitchen air outside rather than recirculating it, helping improve overall air quality during cooking.

• Dual 3-watt LED lights – built-in energy-efficient lighting brightens the cooktop surface for better visibility while cooking.

• Dishwasher-safe baffle filters – professional-style baffle filters capture grease and can be cleaned in the dishwasher for easier maintenance.

• Baffle filter grease capture – helps trap grease particles before they enter the duct system, supporting cleaner airflow and easier upkeep.

• Low-speed 450 CFM setting – mid-level ventilation option provides a balance of airflow and sound for everyday cooking tasks.

• High-speed 680 CFM setting – maximum fan speed is suited for intense frying, searing, wok cooking, or other smoke-heavy cooking sessions.

• 1.0 to 5.0 sone sound range – offers quieter operation at lower settings with stronger extraction available when maximum ventilation is needed.

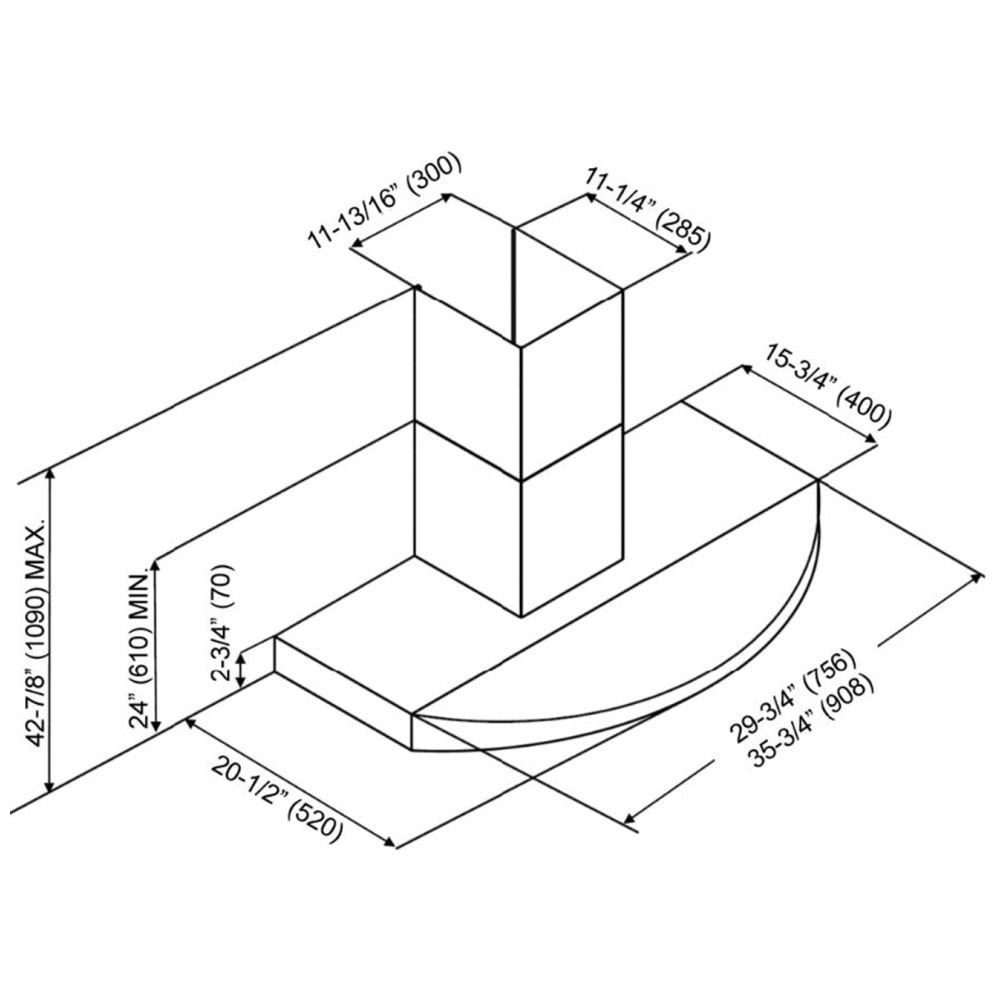

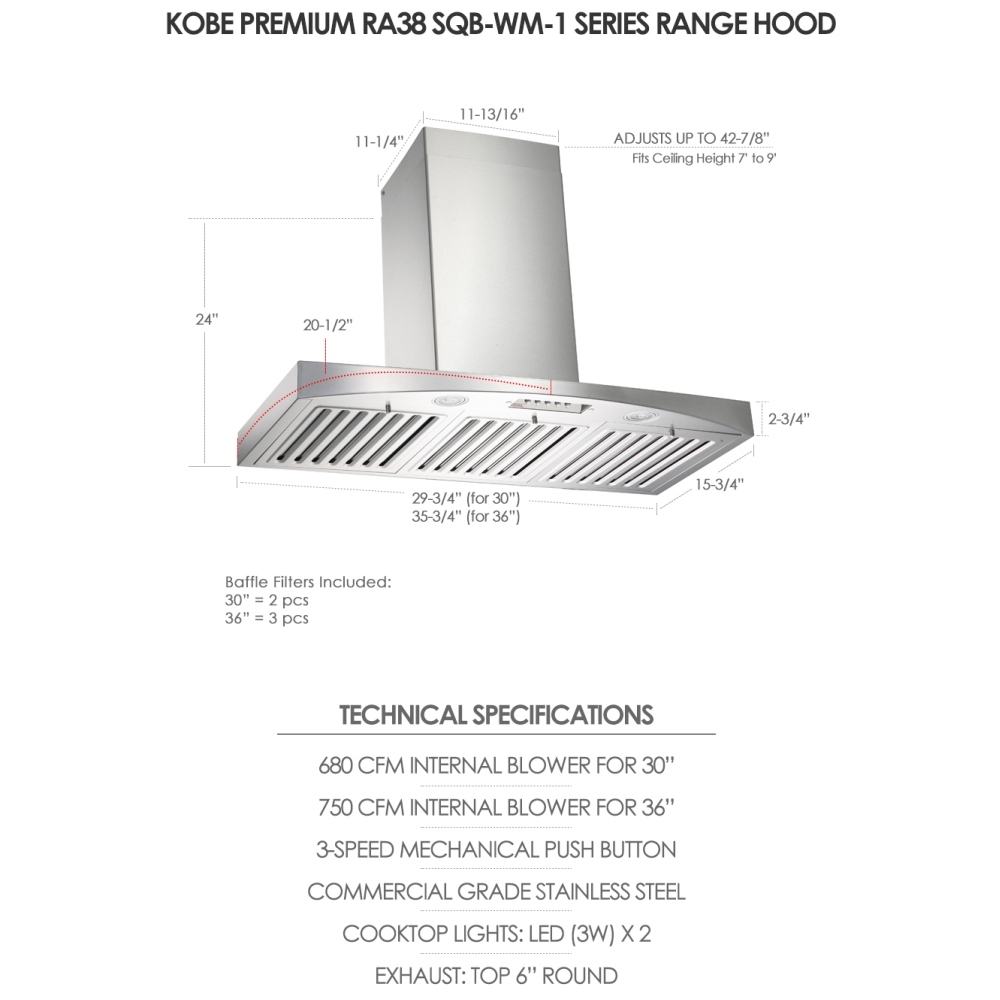

• Approx. 29-3/4-inch width – actual product width supports standard installation alignment with many 30-inch ranges and cooktops.

• 20-1/2-inch depth – deeper hood profile helps improve smoke and steam capture over the cooking surface.

• 12-5/8-inch hood height – slim body height contributes to a cleaner wall-mounted presentation while preserving ventilation performance.

• Fits 7-foot to 9-foot ceiling heights – chimney configuration is suited for common residential kitchen ceiling ranges.

• 180-watt / 1.5-amp power rating – electrical specification supports the hood’s blower and lighting performance requirements.

• Handcrafted construction – crafted build quality supports a more premium appearance and sturdier feel for upscale kitchen installations.

• Front slope curve design – angled front profile adds visual style while helping create a slimmer, more elegant wall-mount silhouette.

• Smoke removal purpose – helps pull smoke away from the cooking area to keep the kitchen clearer and more comfortable.

• Odor reduction purpose – assists in removing lingering food smells from the air during and after cooking.

• Heat extraction purpose – helps reduce excess heat buildup above the range for a more comfortable cooking environment.

• Steam ventilation purpose – draws away steam and moisture generated by boiling and simmering to help protect surrounding kitchen surfaces.

• Grease management purpose – captures grease-laden vapors to help reduce residue buildup on cabinets, walls, and nearby surfaces.

• Improved cooktop visibility – integrated LED lighting helps users better monitor food color, texture, and doneness while cooking.

• Easy-clean maintenance purpose – removable dishwasher-safe filters and stainless steel surfaces help simplify routine cleaning.

• Modern kitchen styling purpose – decorative stainless wall-mount form enhances the visual appeal of contemporary and professional-inspired kitchens.
