APPEARANCE

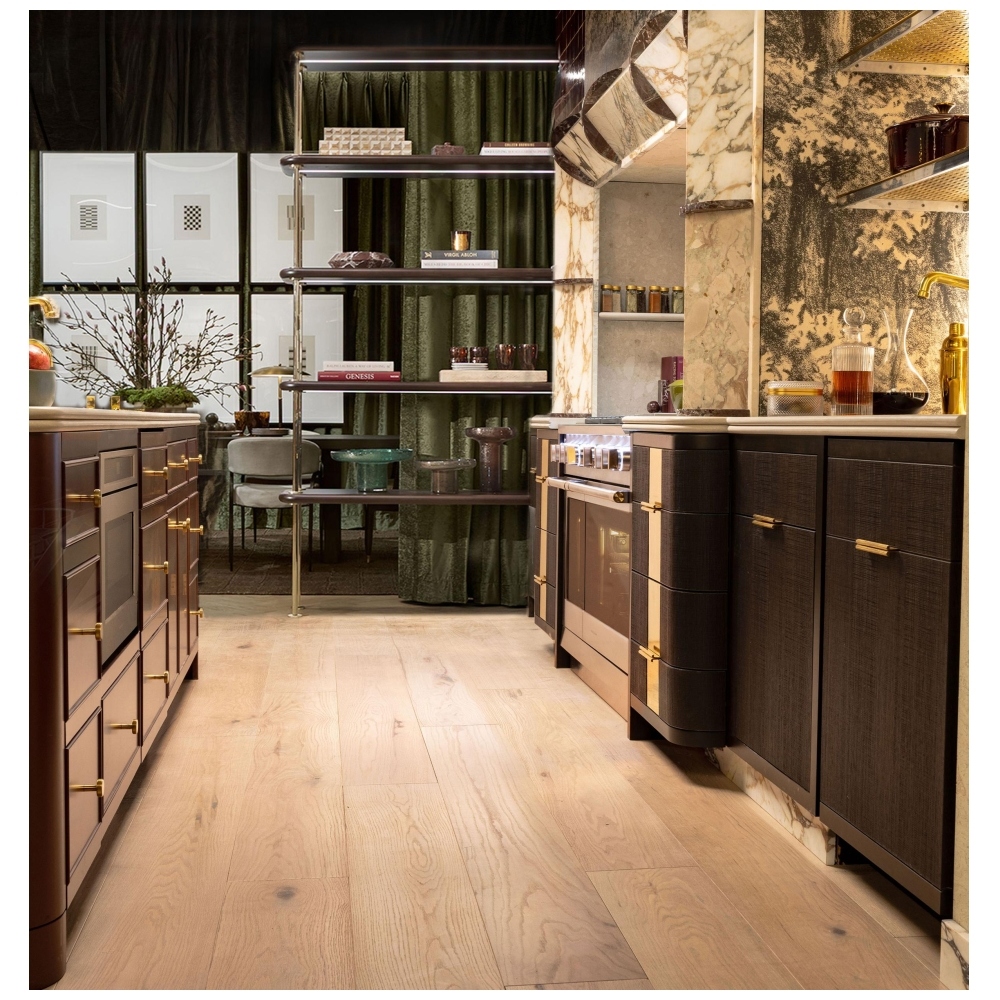

Installation	True Flush
Door Style	Long Door with Top Controls

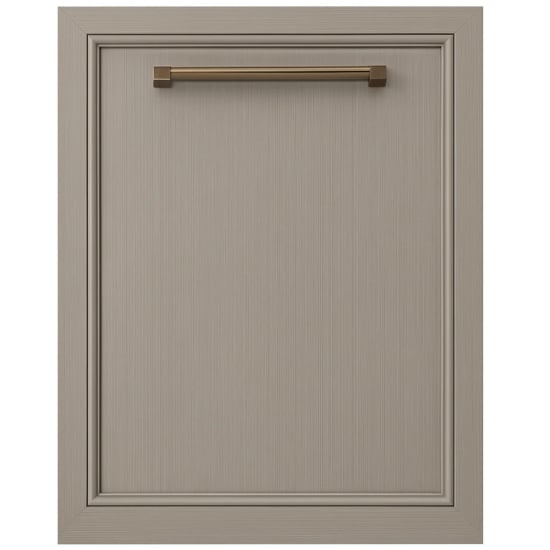

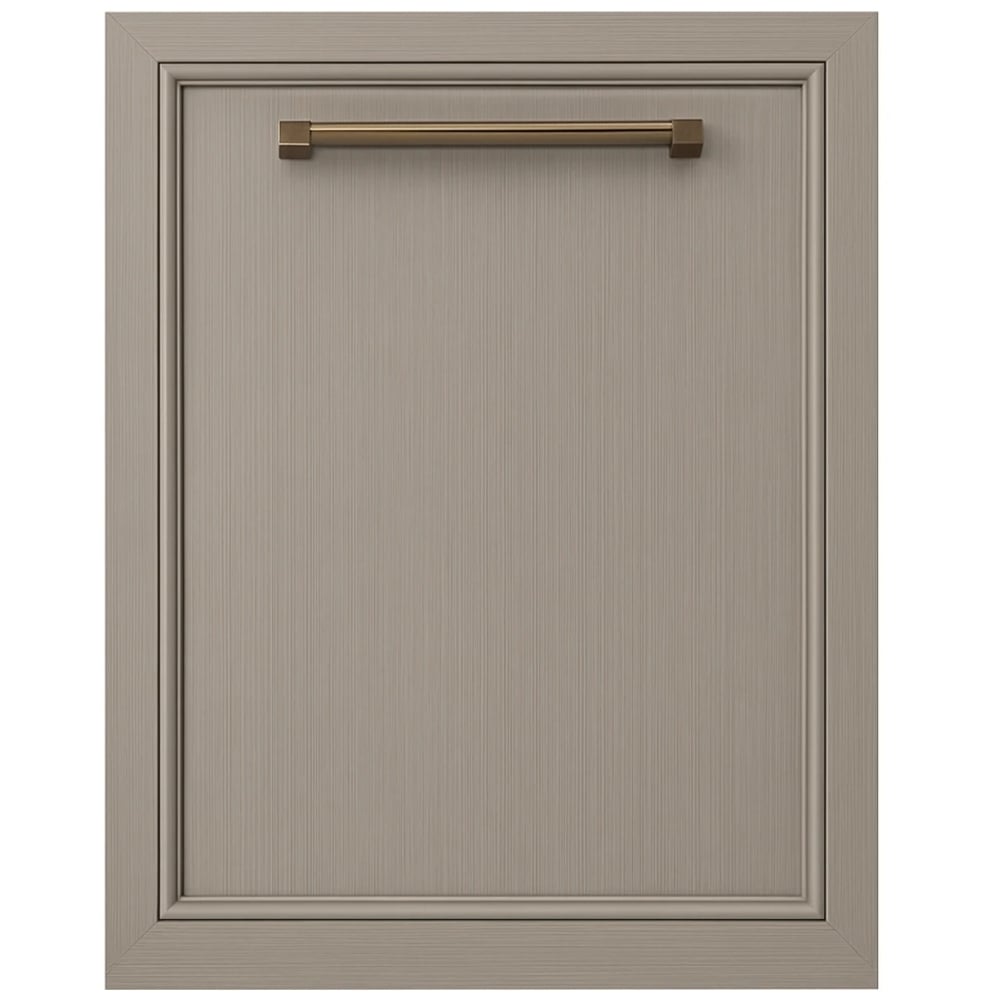

Color Appearance	Panel Ready

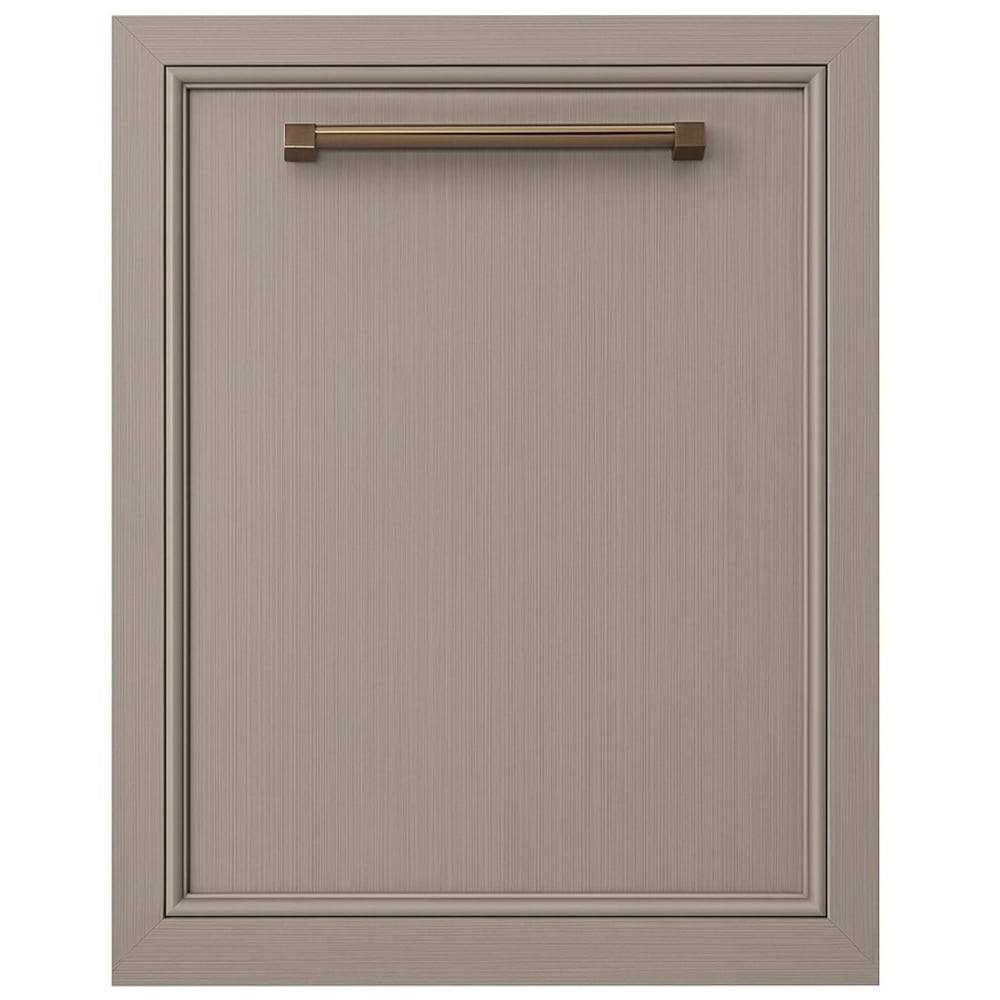

Design Style	Integrated Custom Panel
POWER / RATINGS
Power Connection	Factory installed - w/offset flat plug, optional hardwire kit WD21X23559
Energy Consumption (kWh/year)	240
Hertz	60
Electrical Requirements	120V; 60Hz; 10.2A
Watts	1296
Calrod Heater Watts	1200
WARRANTY
Labor Warranty	Limited 2-year entire appliance
Warranty Notes	Limited 5-year rack and electronic control Ltd Lifetime SS tub and inner door
Parts Warranty	Limited 2-year entire appliance
ECONOMICAL / QUIET
Door Insulation	Mastic
Outer Wrap	Bitumen + Full-wrap Blanket
Motor Type	Variable Speed
Quiet Features	40 dBA on regular cycle based on results from base model ZDT800SSYSS
WEIGHTS & DIMENSIONS
Cabinet Depth	24 in
Height w/ Legs Retracted - Minimum Height	33.375 in
Cutout Height (in)	33.5 in
Cutout Width (in)	24 in
Overall Depth	24 in
Cabinet Width	24 in
Net Weight	126 lb
Overall Width	23.75 in
Approximate Shipping Weight	139 lb
Overall Height	34 in
Cutout Depth (in)	24 in
Height w/Legs Extended - Maximum Height	34.625 in
Depth with Door Open	25.5 in
FEATURES
Wash System	800 Series
Sensor	Clean Sensor
Lower Rack	1 Rack handle Ball-Tip Tines Multi-Position Fold Down Tines
Tub Type	Tall Tub
Leveling System	Front Adjustable Leveling Legs
OU Certified	No
Number of Place Settings	16
Dishwasher Options	Bottle Wash Delay Start 1-12 Hr. Heated Dry Pre Soak Sani (Certified to NSF Standard 184) Silverware Wash Start/Reset Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only
Number of Options	11
Water Filtration System	100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray	Full 3rd Rack
Collection	Designer
Rack Features	2 Fold-Down Tines - Lower 3 Piece Silverware Basket Adjustable Upper Rack Ball-Tipped Tines
Floor Protection	Floor Protect with Alert
Dishwasher Cycles	1 Hour Wash & Dry Auto Crystal Cycles Plus Dishwasher Cleaning Favorites Intense Normal PrepRinse
Rack Color	Silver

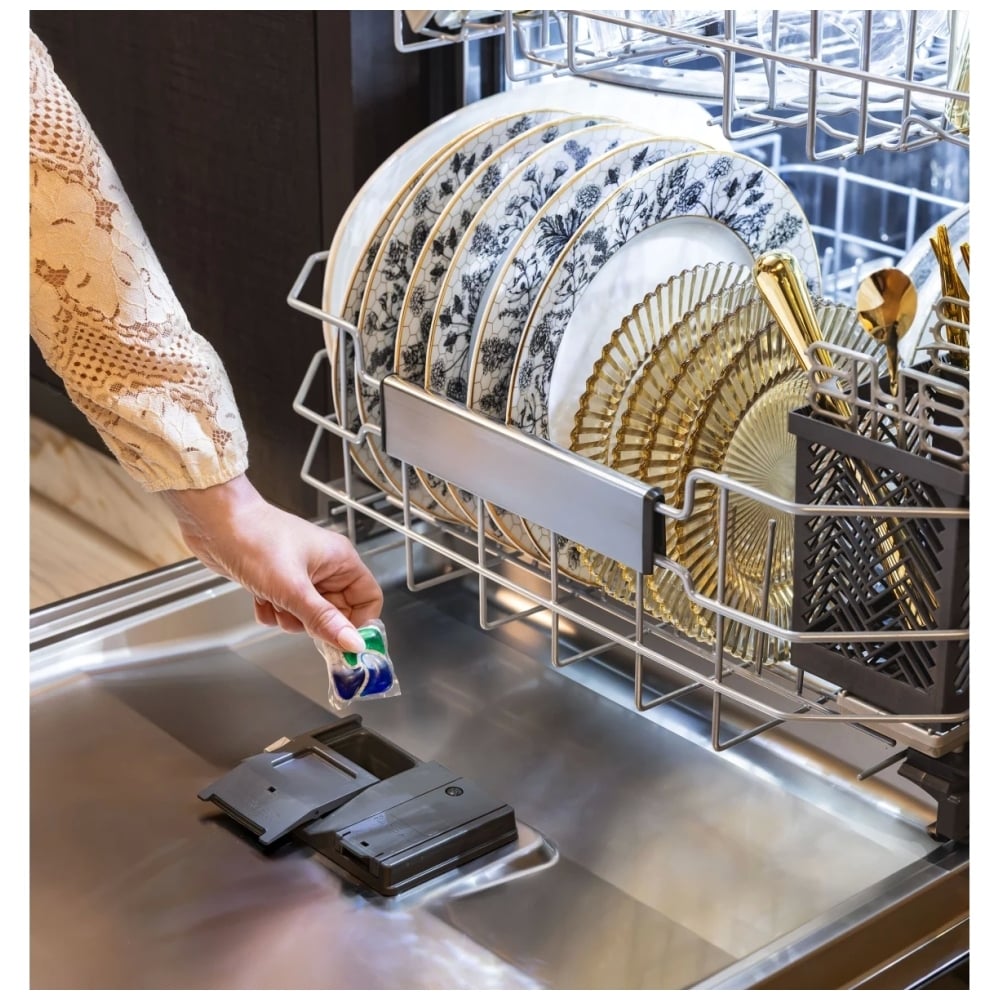

Dispenser	Electronic Low Rinse Aid Sensor Rinse Aid with Indicator and Adjustment
WiFi Connect	Built-In

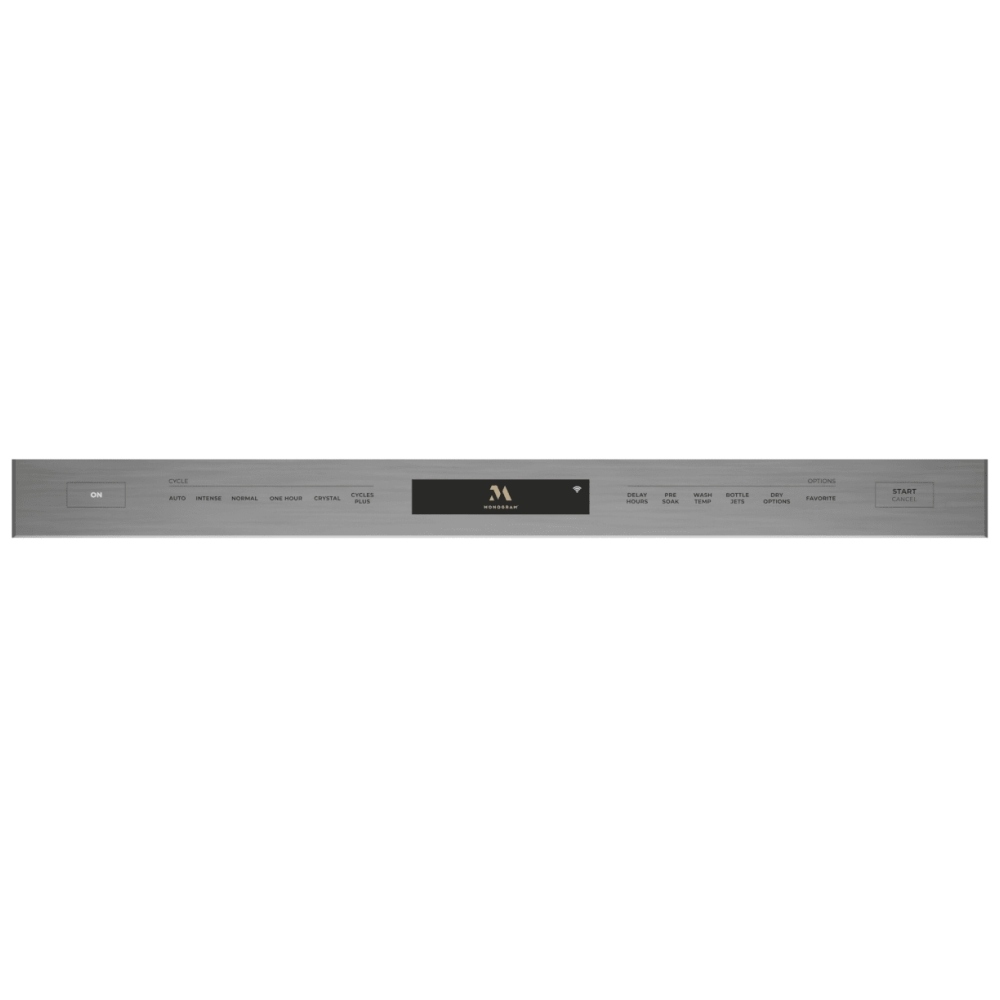

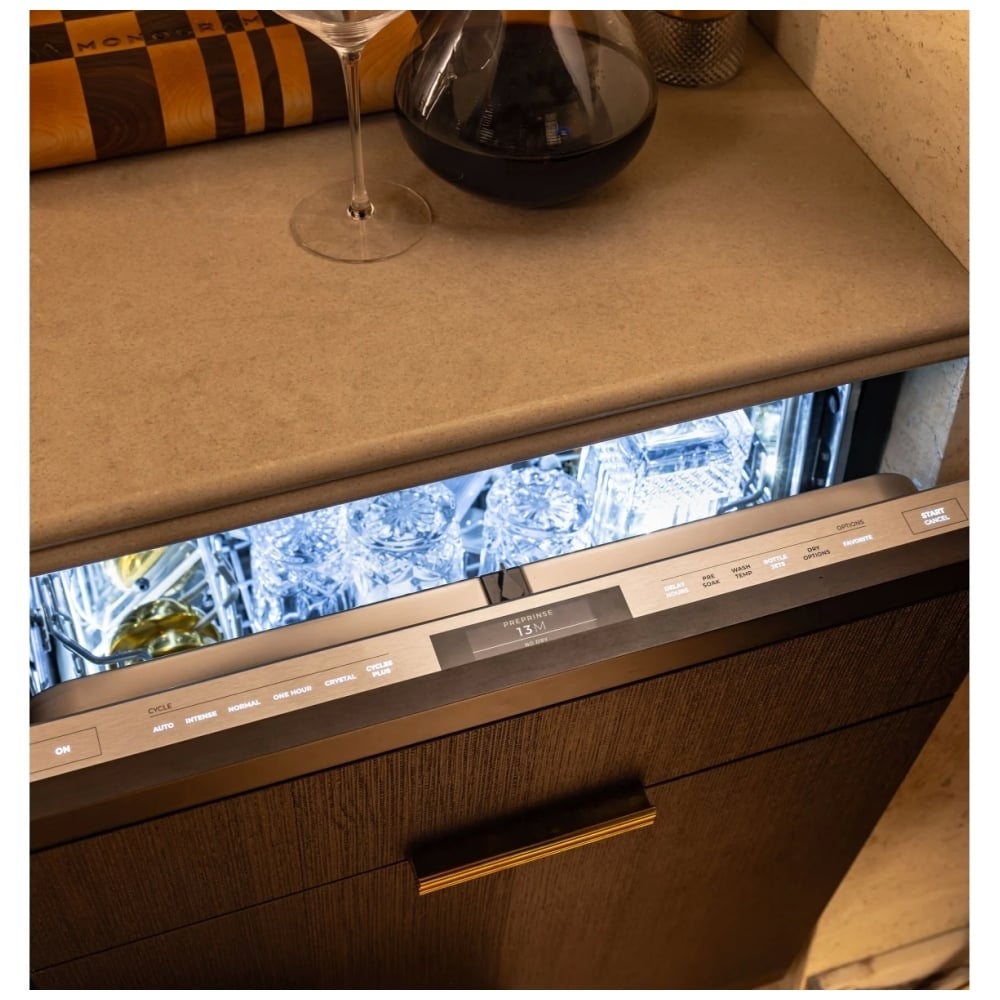

Control Type	Intuitive Touch Controls with Brilliant LCD Screens
Dishwasher Drying Features	Dual Dry System (2 Fans, 2 Heaters) with 3 Settings (Power Dry, Max Dry, Off)
Interior Lighting	LED

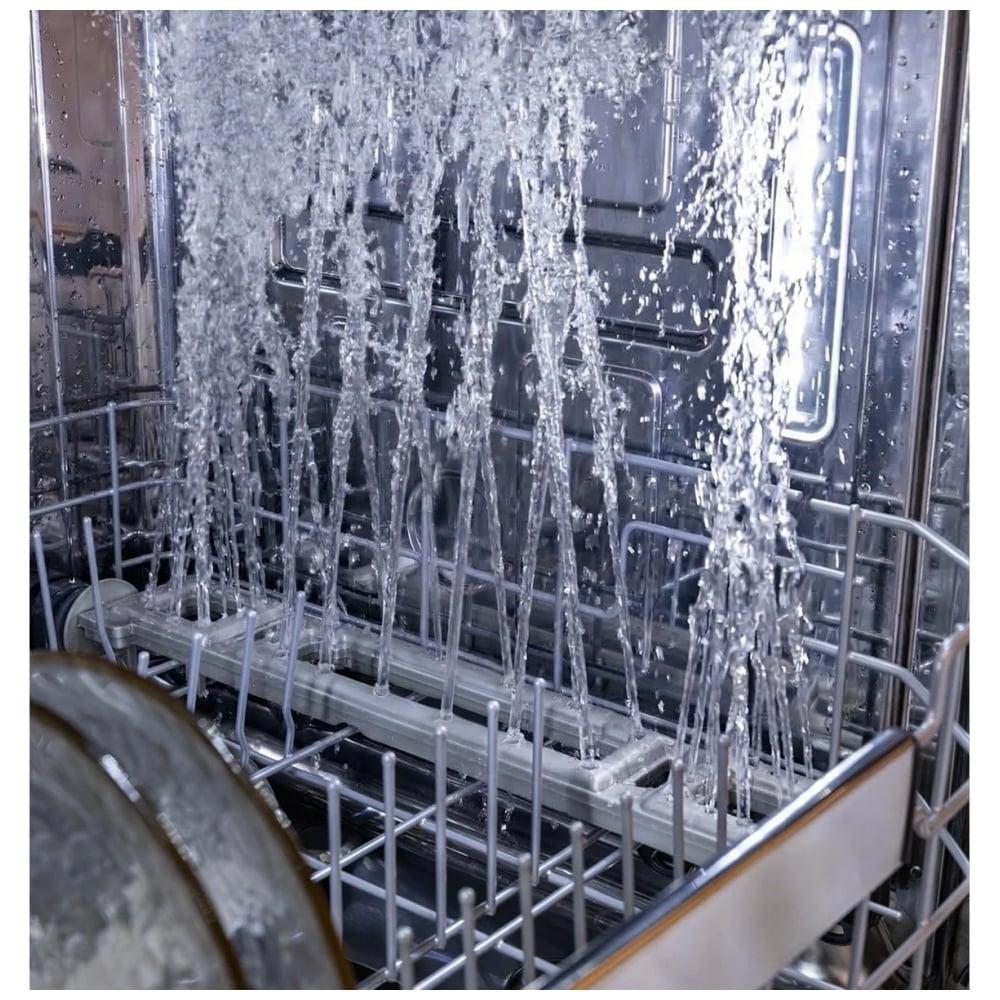

Wash System Features	3 Pressurized Wash Arms (Upper Nozzle, Middle Wash Arm, Variable Pressure Lower Wash Arm) 70+ Water Jets with 5 Pressurized Wash Zones Automatic Temperature Control with Hidden Heater Bottle Wash Jets Dedicated Flatware Jets Hard Food Disposer with Removable Filter Variable Speed Dual Pumps and Motors
Connected Features	1/2 Load Wash Zones Bottle Wash Jets Child Lock Dishwasher Cleaning Rinse Smart Assist II
Product Type	Built-In
Connected Capabilities	Amazon Alexa Amazon Dash Replenishment Google Home IFTTT Sonos The Google Assistant

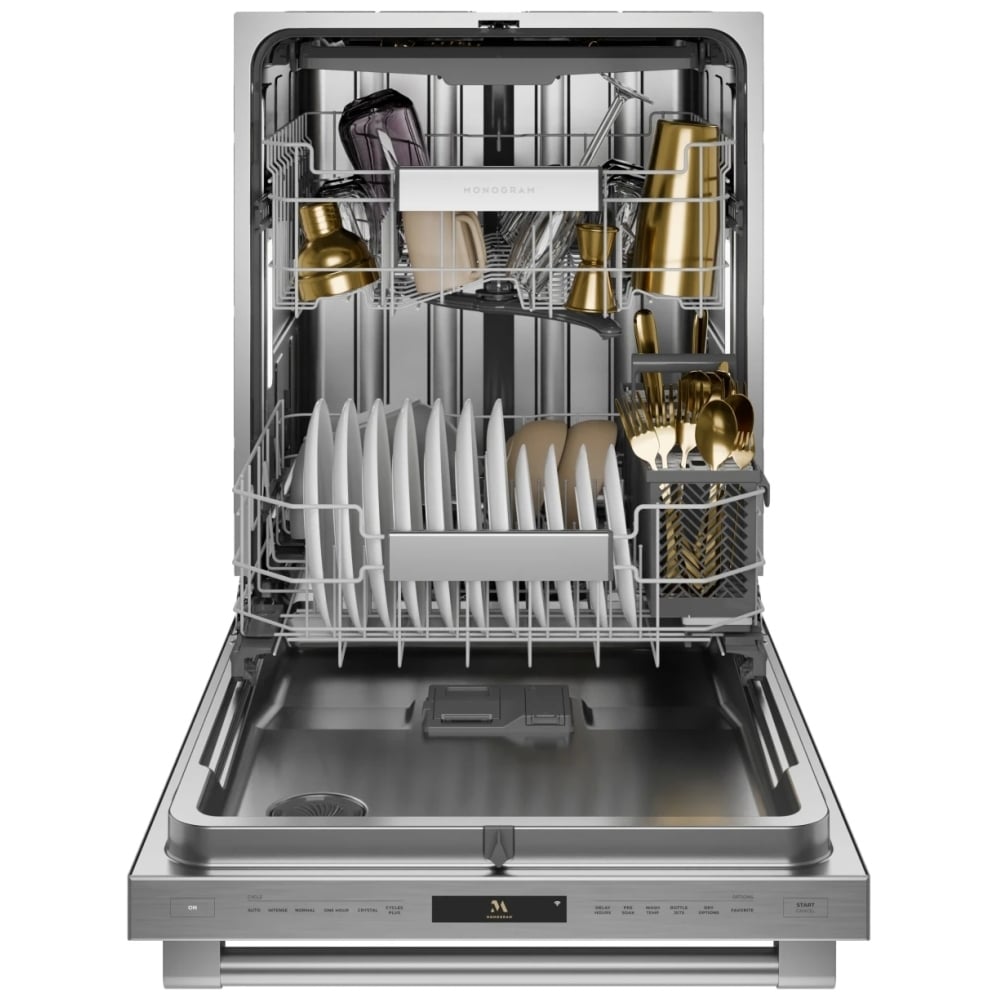

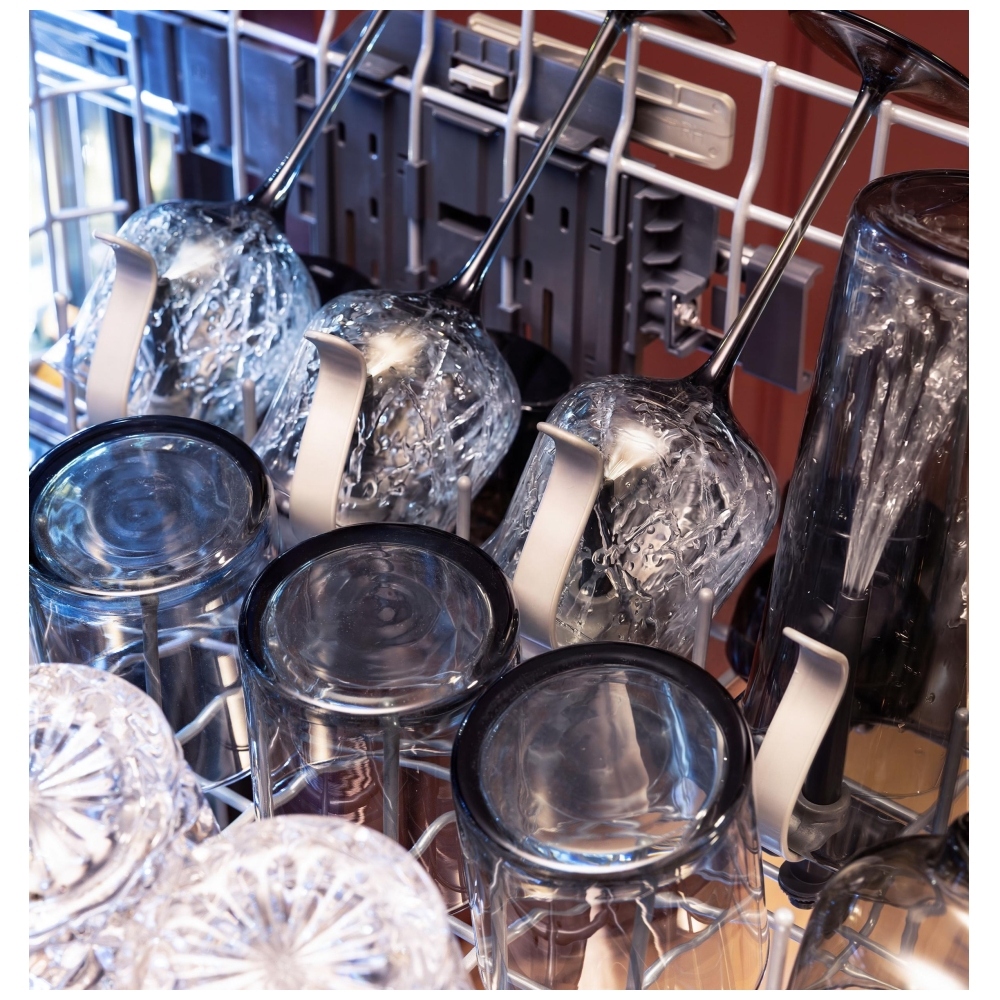

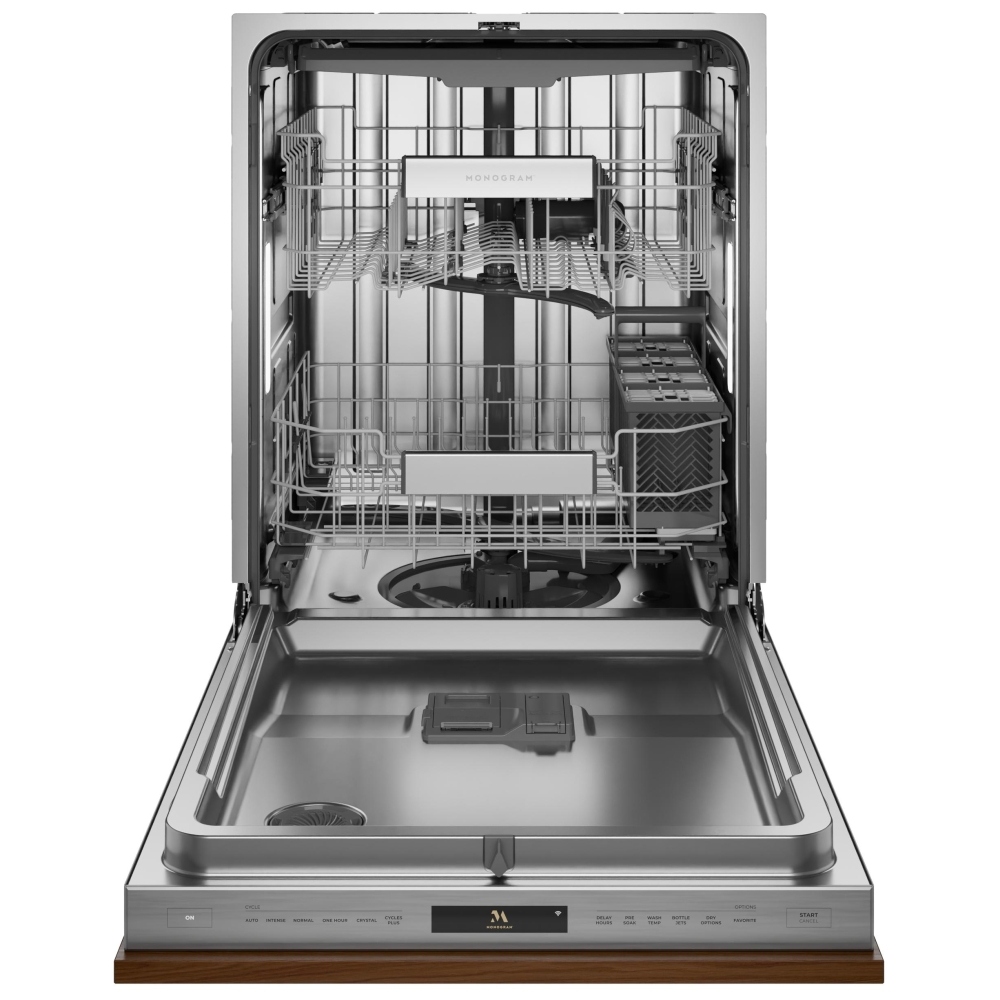

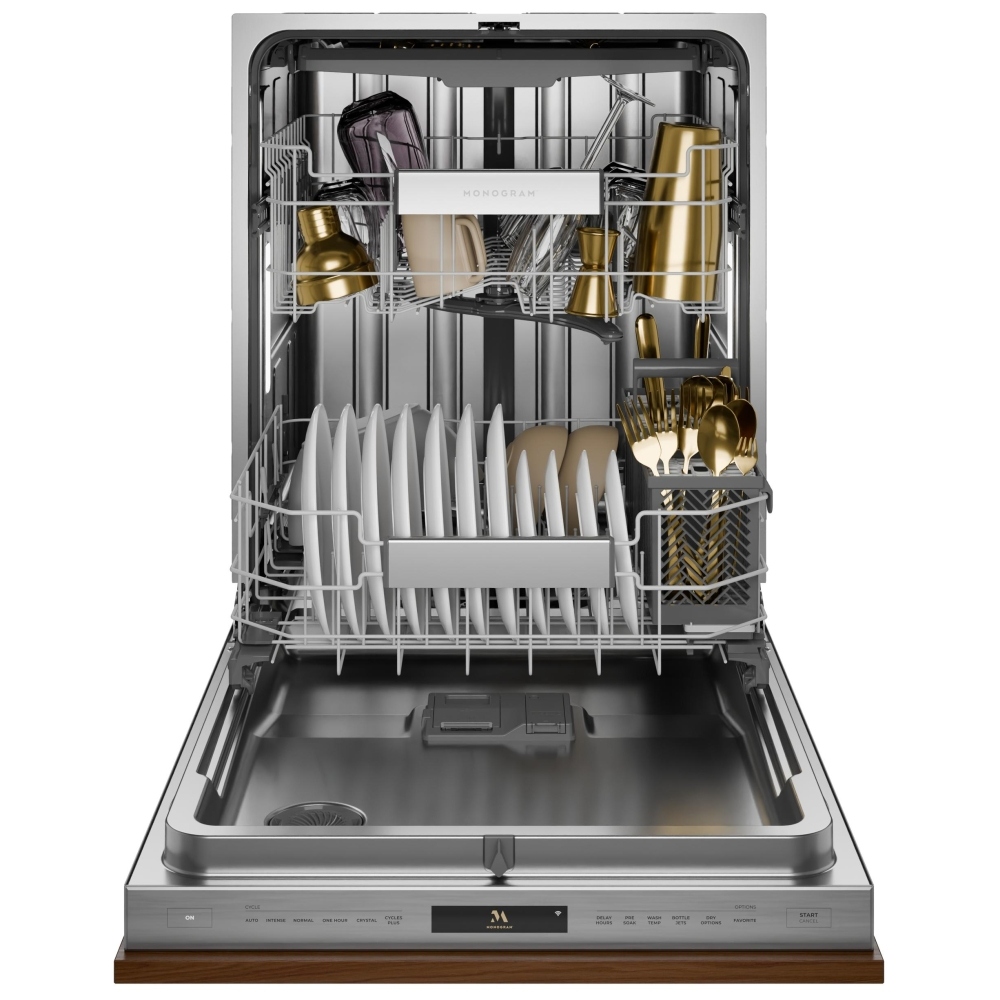

Upper Rack	1 Rack handle 1/2 fixed tines, 1/2 fold down tines 2 Stem Safe Shelves Ball-Tipped Tines Premium Height Adjustable
Dishwasher Control Features	Audible End-of-Cycle Signal Hi-Resolution Color LCD Control Display Last Cycle Memory
Number of Cycles	7

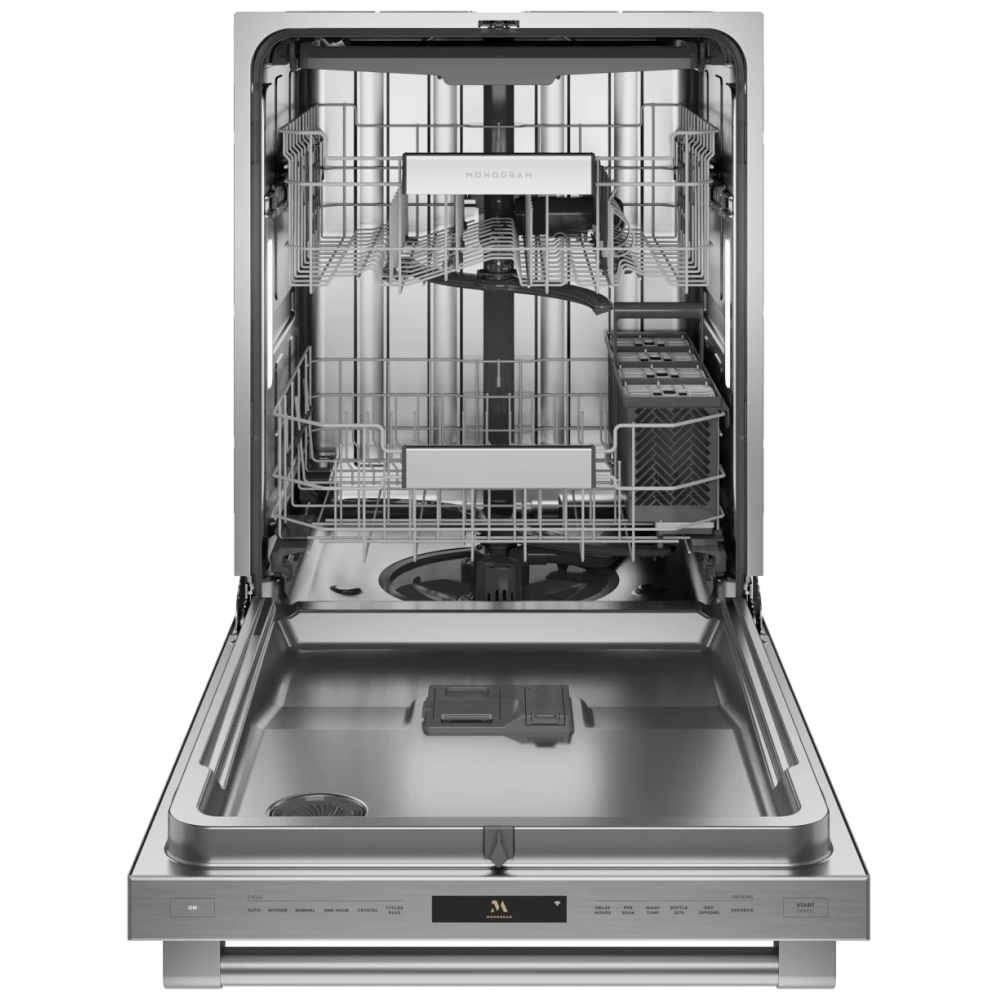

Tub and Door Liner	Stainless Steel
Sabbath Mode	Yes
Showroom Power Mode	Yes

Monogram ZDT800SIYII

Monogram ZDT800SIYII

Monogram ZDT800SIYII Dishwasher, 24 inch Exterior Width, 40 dB Decibel Level, Fully Integrated, Stainless Interior, Custom Panel Ready, 7 Wash Cycles, 16 Capacity (Place Settings), Hard Food Disposal, 3 Loading Racks, Wifi Enabled, Panel Ready
