Manufacturer's Warranty: 2 years
Canadian model: ZIR301NPNII
Canadian UPC: 084691847946
EAN: 0084691847946
| Specification | Value |
|---|---|
| Brand | Monogram |
| Model | ZIR301NPNII |
| Product Type | All-Refrigerator / Column Refrigerator / Built-in, Panel-Ready, Counter-Depth |
| Configuration | No Freezer, All Refrigerator, Fully Integrated Column |
| Design Style | Custom Panel, Fully Integrated |
| Panel Capability | Panel Ready, Flush Inset Panels, Fully Integrated |
| Handle | Custom handle required; handles purchased separately |

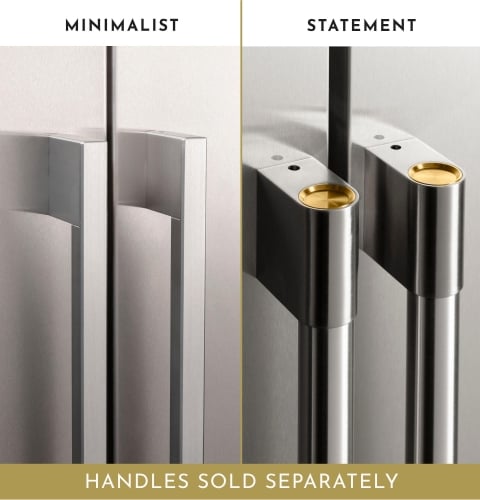

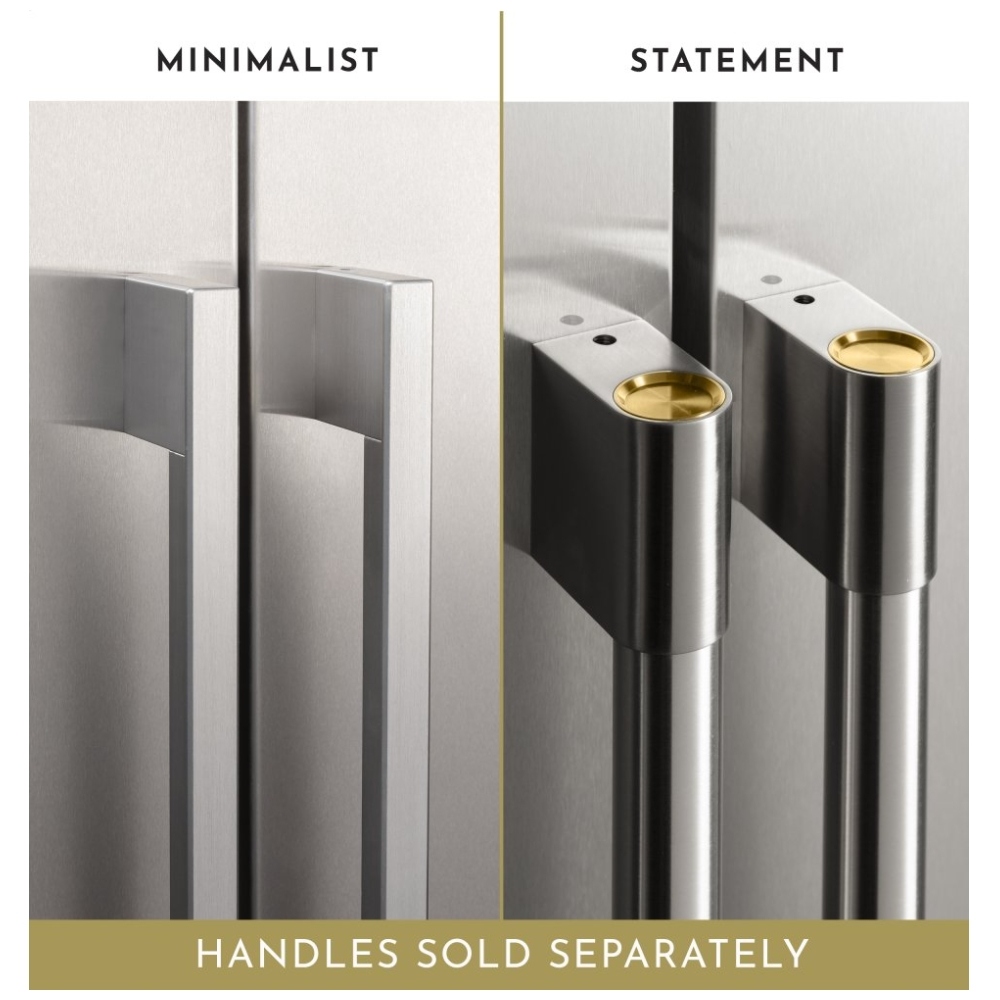

| Compatible Handle Kits | Statement Handle Kit ZKSP1H1PNSS or Minimalist Handle Kit ZKSP1H1CNSS (sold separately) |
| Color / Finish | Custom Panel Ready / Panel Ready |
| Installation Type | Built-In |
| Depth Type | Counter Depth |
| Door Swing | Reversible door |
| Door Stops | 90° and 115° |
| Door Panel Type | Panel |
| Refrigerator Type | All Refrigerator / Column Refrigerator |
| Interior Light | Yes, LED |
| Wi-Fi Connectivity | Yes, built-in Wi-Fi |
| Smart Compatible | Yes |
| WiFi Connect | Built-In |
| Remote Connectivity | Remote monitoring and control via app (change/display temp setpoint, filter status, door alarm, Sabbath status, Night Time Snack Mode) |
| Sabbath Mode | Yes, Enhanced Shabbos Mode capable (with Shabbos Keeper, sold separately) |
| Energy Star | Yes |
| ADA Compliant | No |
| Capacity | |
| Capacity: Total | 17.6 cu ft (rounded); 17.6 cu ft total capacity (North American spec) |
| Capacity: Fresh Food | 17.6 cu ft (often listed as 17.58 cu ft fresh food capacity) |
| Capacity (alternate listings) | Some retailers list 17.3 cu ft or 17.34 cu ft; manufacturer-style spec sheets show approx. 17.6 cu ft total / 17.58 cu ft fresh food |
| Dimensions (Product) | |
| Width | 29 1/2 in (29.5 in / 29.56 in nominal; 74.93 cm) |
| Height | 83 3/8 in to 83 1/2 in overall (commonly listed as 83 1/4 in or 83.5 in; case height approx. 83 3/8 in) |
| Height to Top of Door Hinge | Approx. 83 1/4 in |
| Height (with hinge, metric) | 211.46 cm |
| Depth | 24 3/4 in (24.75 in; approx. 62.9 cm) |
| Depth (without door / less door) | Approx. 22 1/4 in |
| Depth (without handles) | 24.75 in |
| Depth (with handles) | 24.75 in (panel-ready; handle projection depends on custom hardware) |
| Depth with Door Open 90° | Approx. 55.63 in |
| Standardized Width Category | 30 in appliance fit width |
| Class Width | 29 in to 31.9 in |
| Class Height | 70 in and more |
| Cutout / Installation Dimensions | |
| Recommended Cutout Width | Approx. 29 13/16 in (75.7 cm) |
| Recommended Cutout Height | Approx. 84 in (213.4 cm) |
| Recommended Cutout Depth | Approx. 25 in (63.5 cm) |
| Leveling System | 4-point front adjustable |
| Retrofit Capability | Yes; can replace 42 in or 48 in built-in side-by-side with two columns without cabinet or electrical modifications |
| Weights | |
| Net Product Weight | Approx. 495–510 lb (224.5 kg) |
| Approximate Shipping Weight | Approx. 520 lb |
| Electrical / Performance | |
| Voltage | 115 V |
| Frequency | 60 Hz |
| Amperage | 20 A |
| Electrical Requirements | 115 V; 60 Hz; 20 A dedicated circuit |
| Energy Consumption | Approx. 332 kWh/year |
| Defrost Type | Automatic / Auto Defrost |
| Sealed System Design | Dedicated evaporator sealed system |
| Interior Features – Fresh Food Section | |

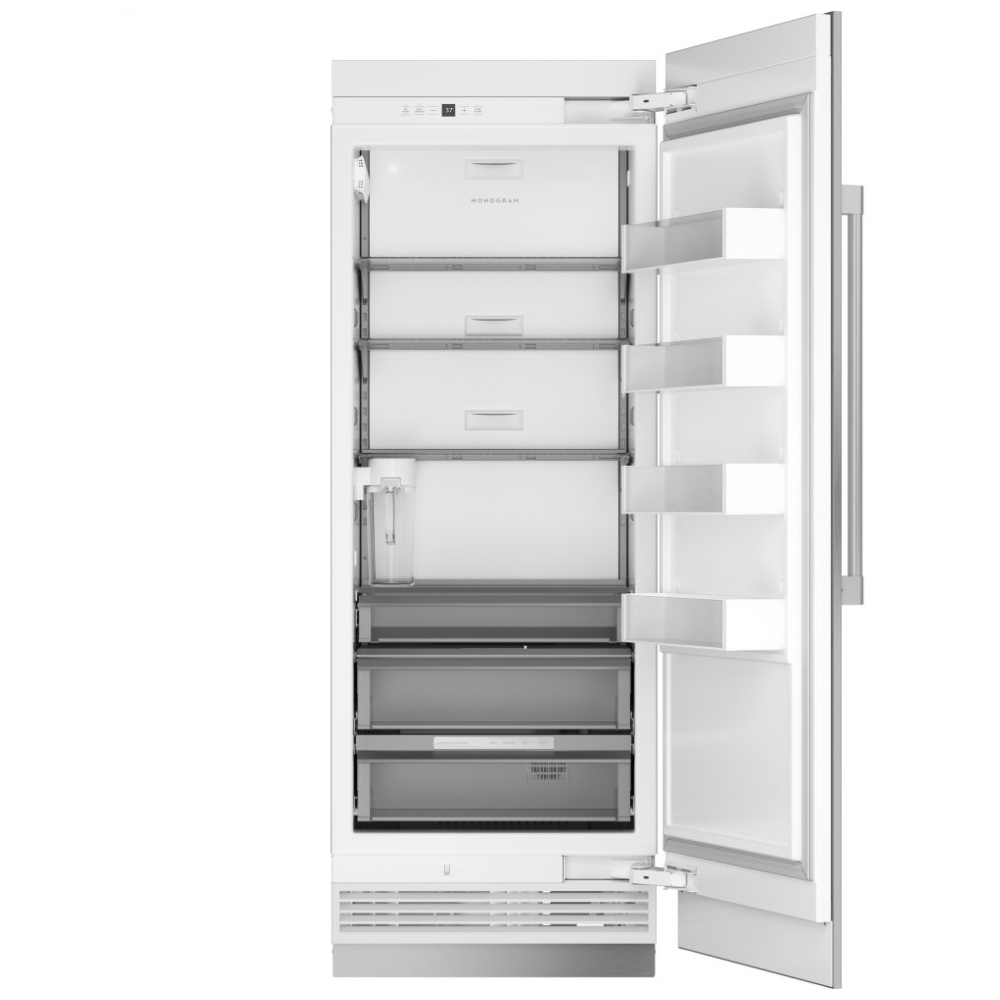

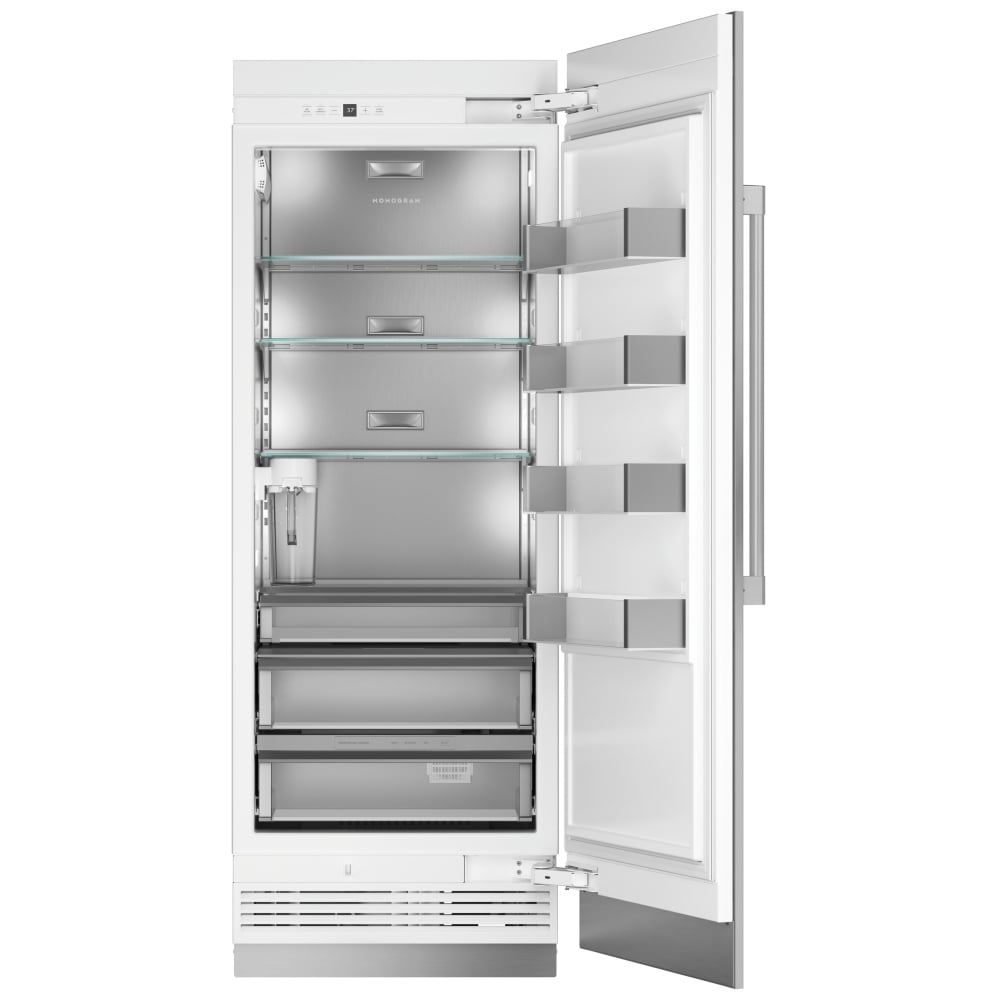

| Fresh Food Shelves | 4 total (typically 3 adjustable, 1 fixed) hydrophobic-coated, spill-resistant glass shelves with integrated LED lighting |
| Shelf Type | Adjustable, hydrophobic, spill-resistant glass shelves with integrated LED lighting |
| Door Bins | Adjustable glass and metal door bins, finely crafted aluminum with clear/glass accents; approx. 3–4 bins total |
| Temperature-Controlled Drawer | Yes; climate control drawer with pre-programmed settings (Meat, Beverage, Deli) |
| Deli Drawer | Full-extension, soft-close deli drawer |
| Produce / Vegetable Drawer | Full-extension, soft-close humidity-controlled vegetable drawer |
| Soft-Close Drawers | Yes, multiple drawers |
| Interior Lighting | Ramp-up LED interior lighting throughout fresh food compartment |

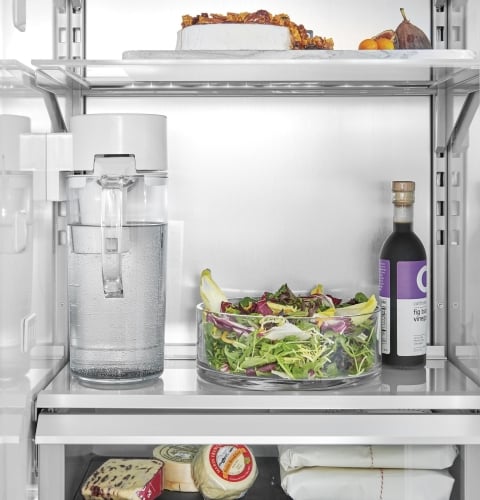

| Autofill Pitcher | Yes; internal autofill water pitcher that automatically refills on its dock |
| Ice Maker | No |
| Ice/Water Dispenser (external) | No external dispenser |
| Internal Water Dispenser | Yes, via internal autofill pitcher |
| Controls & Connectivity | |
| Control Type | Upfront capacitance touch controls with digital LED readout |
| Integrated Wi-Fi Functions | Display temp setpoint, change temp setpoint, water filter status, air filter status, Sabbath status on/off, door alarm alert, Night Time Snack Mode |
| Door Alarm | Yes |
| Smart App Compatibility | Yes (Monogram/GE smart app) |
| Filtration & Air Management | |

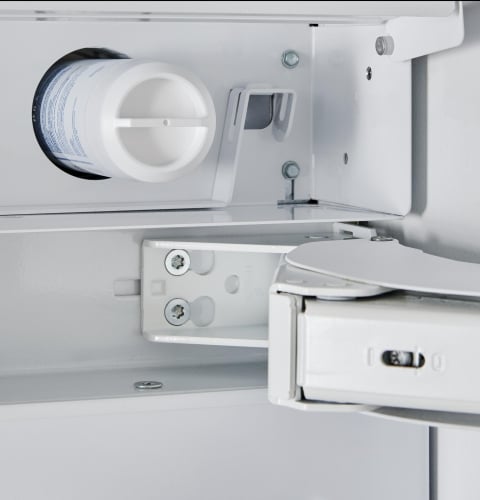

| Water Filtration | GE water filtration, 6-month filter (RPWFE type, internal) |
| Air Filtration | GE air filtration, 6-month filter |
| Filter Location | Behind front access panel at bottom of unit |
| Connectivity / Smart Modes | |
| Remote Control | Use smart device as remote control for temperature and modes |
| Remote Monitoring | Monitor status, door alarms, and temperatures via app |
| Night Time Snack Mode | Yes (adjusts lighting/behavior for nighttime use) |
| Enhanced Shabbos Mode | Compatible with Shabbos Keeper (sold separately) for automatic Sabbath/holiday modes |
| Appearance & Construction | |

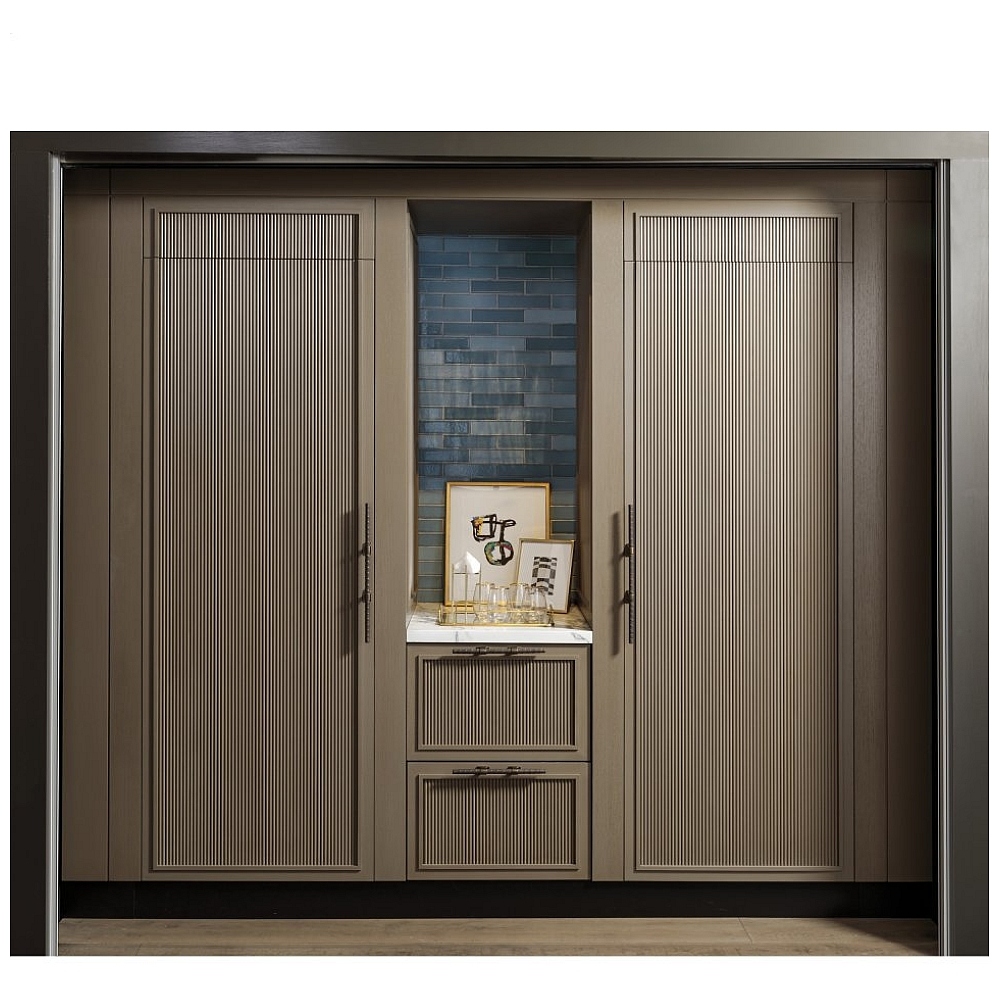

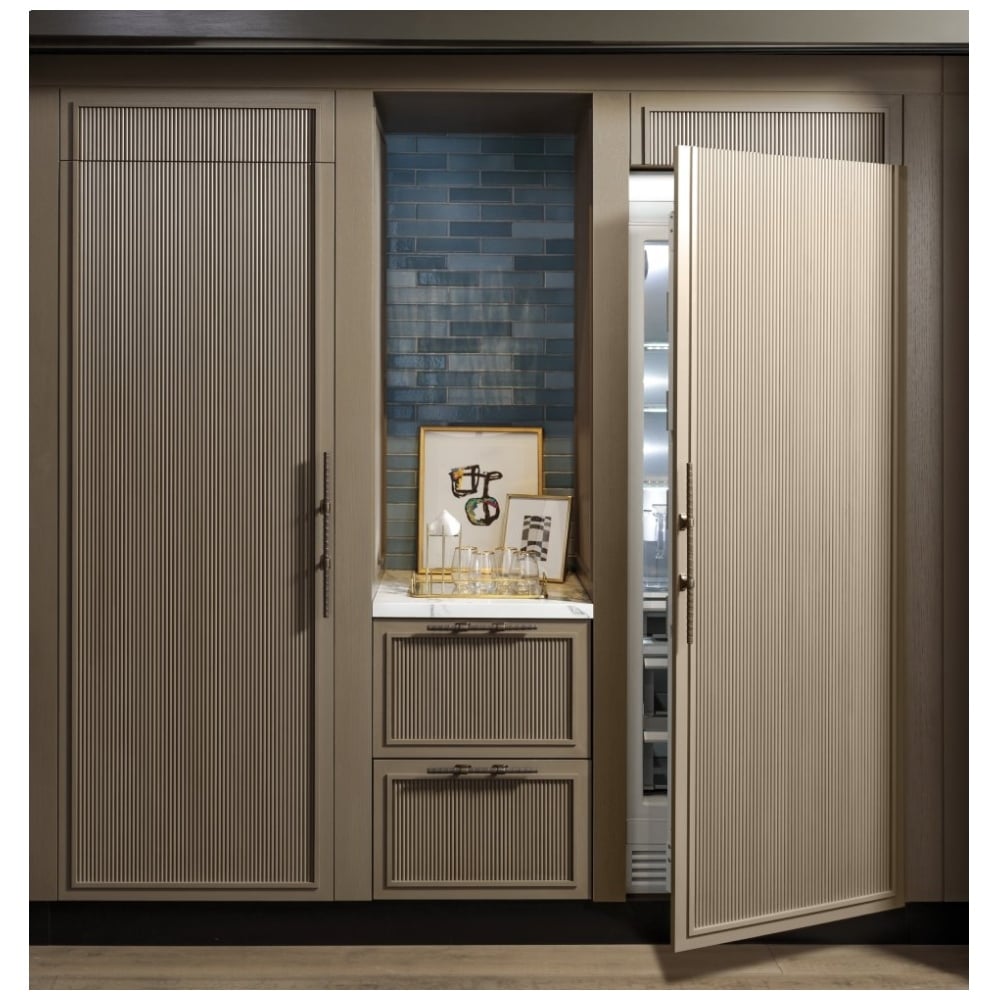

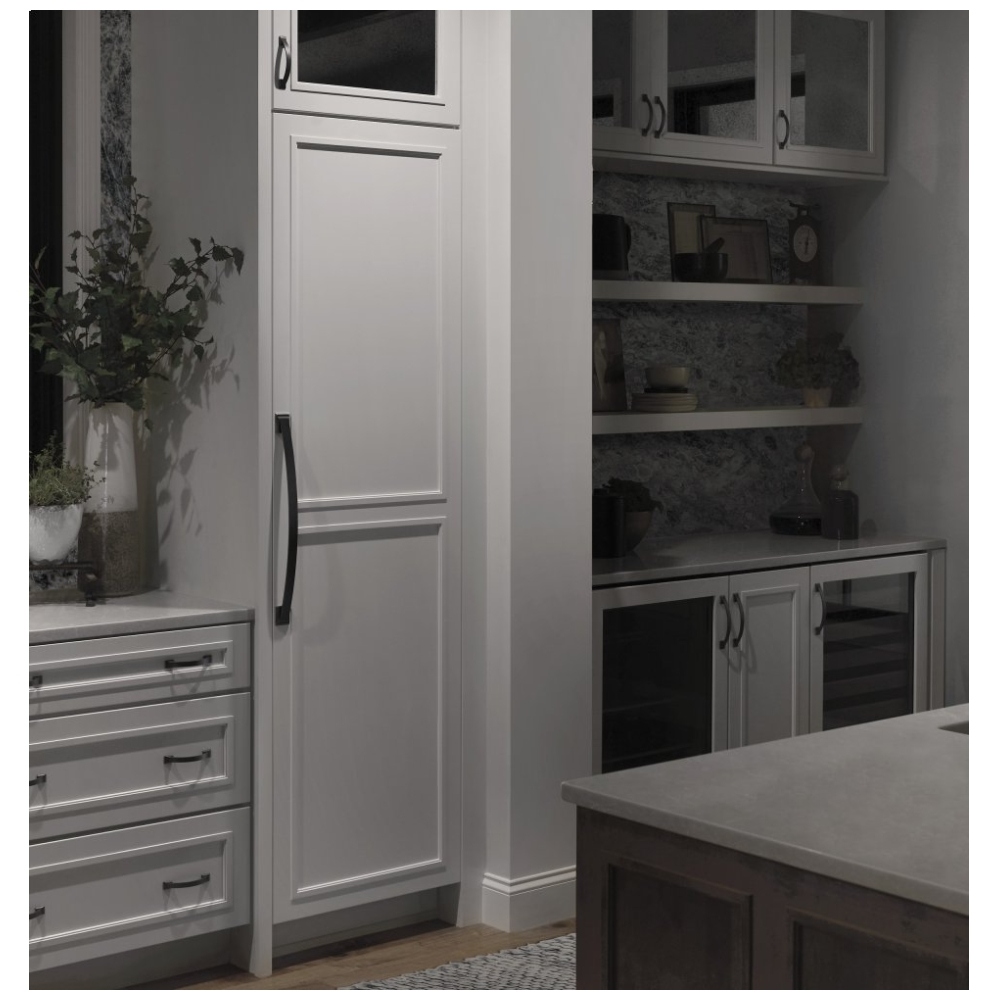

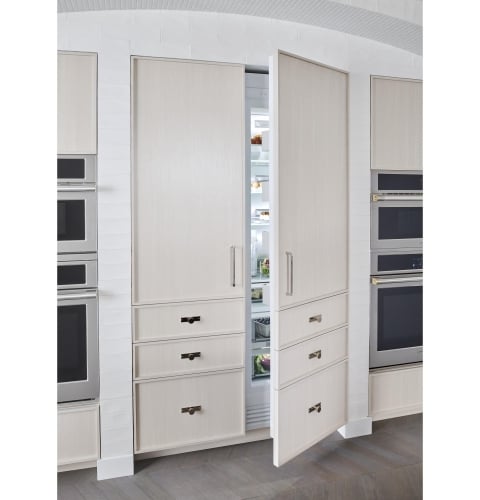

| Fully Integrated Column Design | Yes; concealed hinge, installs flush with surrounding cabinetry |
| Panel-Ready Exterior | Yes; six-way adjustability for custom panels |
| Color Appearance | Panel Ready / Custom |
| Hinge | Concealed; field-reversible |
| Finish (retailer descriptions) | Custom Panels / Stainless (with optional panel kits) |
| Alarms & Indicators | |
| Door Alarm | Yes |
| Filter Status Indicators | Water filter status, air filter status via app and controls |
| Optional Accessories | |
| Trim / Retrofit Kits | 42 in and 48 in trim/retrofit kits (e.g., ZKR48N 48 in Dual Retro Kit; other retrofit kits depending on region) |
| Heater Unification Kit | ZKUN (or ZUGC in some listings) Heater Unification Kit for pairing with adjacent column |
| Shabbos Keeper | Optional accessory for Enhanced Shabbos Mode |
| Certifications & Warranty | |
| Energy Star Certified | Yes |
| California Prop 65 | Yes (warning applicable in CA) |
| Parts & Labor Warranty (entire appliance) | Limited 2-year |
| Sealed Refrigeration System – Parts & Labor | Limited 5-year (sealed system) |
| Sealed Refrigeration System – Parts Only | Limited 12-year (sealed system parts) |
| Warranty Notes | See written warranty for complete details; extended sealed system coverage varies by region |
