Monogram

ZV800SJSS

• Monogram® professional design – premium, pro-style stainless steel construction coordinates with other Monogram appliances for a cohesive, high-end kitchen look.

• Monogram® 36" slide-out hood – low-profile, slide-out canopy design provides full-size ventilation performance while preserving clean sightlines over the cooktop.

• Under-cabinet or stand-alone installation – installs flush beneath a cabinet or as a wall-mounted chimney hood with the matching 8'–10' duct cover for flexible kitchen layouts.

• Low-profile design, high-impact style – retractable glass canopy with streamlined lines and finished edges delivers a sleek, contemporary appearance even when retracted.

• Retractable glass canopy – slides out over the cooking surface when needed to capture smoke and steam, then retracts to save space and maintain a minimalist look.

• Powerful 460 CFM ventilation – internal blower moves up to 460 cubic feet of air per minute to quickly remove smoke, steam, and cooking odors from the kitchen.

• Four-speed fan control with boost – multiple speed settings, including a high-power boost, let you match ventilation strength to light simmering or heavy searing.

• Vertical 6" round duct exhaust – designed for efficient vertical venting through a 6" round duct connection to optimize airflow performance.

• Externally vented or recirculating capable – supports traditional ducted installation or ductless operation when outside venting is not possible.

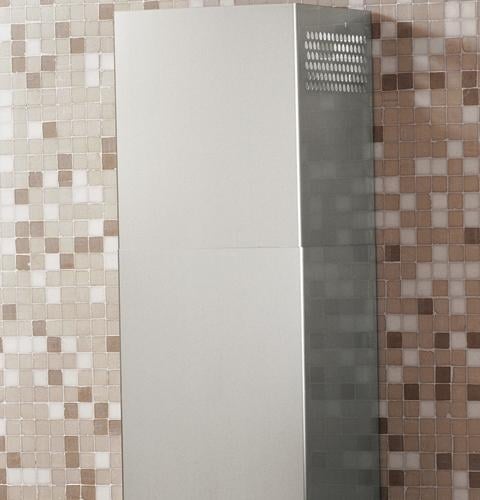

• Recirculating kit included – supplied charcoal filter kit allows conversion to ductless installation without purchasing additional major accessories.

• Recirculating charcoal filters – help absorb and reduce cooking odors when the hood is installed in recirculating (non-vented) mode.

• Stainless steel mesh filters – durable metal filters capture grease and particulates to help keep the kitchen air cleaner.

• Dishwasher-safe removable filters – stainless steel mesh filters detach easily and can be cleaned in a standard dishwasher for simple maintenance.

• Automatic light/fan activation – hood can automatically turn on lighting and/or fan when the canopy is pulled out, adding convenience and ensuring ventilation is used.

• Electronic push-button controls – front-mounted, clearly labeled buttons provide straightforward control of fan speeds and lighting levels.

• "On" indicator light – visual indicator confirms when the hood is operating so you can see at a glance if the fan or lights are active.

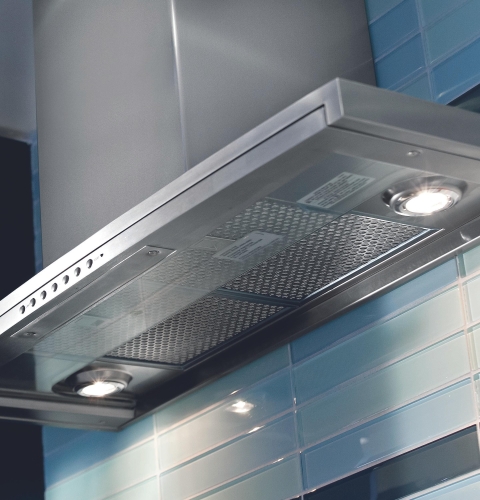

• Multilevel halogen lighting – two halogen lamps provide bright, focused illumination over the cooking surface for better visibility.

• Six lighting levels – adjustable brightness from accent to full task lighting lets you tailor light output to cooking or ambient needs.

• Even cooktop illumination – lighting placement is designed to spread light across the cooking surface, reducing shadows while you cook.

• Variable-speed fan operation – fine control over airflow helps balance noise and performance for different cooking tasks.

• 460 CFM / 7.0 sones rating – performance rating provides a clear measure of airflow and sound level at maximum speed.

• Damper in transition – built-in damper helps prevent backdrafts and outside air from entering the kitchen when the hood is not in use.

• Welded, finished seams – smooth, finished interior and exterior seams enhance durability and make surfaces easier to wipe clean.

• Internal blower design – integrated blower simplifies installation and avoids the need for a separate external or in-line motor.

• Chimney-style appearance – chimney design complements a wide range of kitchen styles, from contemporary to transitional.

• Stainless steel finish – resists corrosion and staining while offering a timeless, professional look that coordinates with other stainless appliances.

• 36" cabinet width fit – sized to install above most 36" cooktops and ranges for standard cabinetry layouts.

• Slim 1.5" visible height – very low visible height when retracted helps maintain open sightlines and a less obtrusive profile.

• Extended and retracted depth options – canopy extends to approximately 18 15/16" depth for full coverage and retracts to about 13 11/16" to save space when not in use.

• Adjustable chimney cover (with kit) – included 8'–10' ceiling duct cover accommodates a range of ceiling heights in wall-mount installations.

• Recommended 24"–30" mounting height – designed to be installed at an optimal distance above the cooktop for effective capture and safety.

• 120V, 60 Hz operation – standard household electrical requirements simplify installation in most North American homes.

• 377-watt total power rating – provides strong lighting and fan performance while maintaining reasonable energy use.

• Approximate 60 lb net weight – robust construction reflects durable materials and stable installation.

• Limited 2-year parts and labor warranty – manufacturer-backed coverage on the entire appliance provides added peace of mind.

• Energy-efficient halogen bulbs – provide bright light output with lower energy consumption than traditional incandescent bulbs.

• Easy-clean exterior surfaces – smooth stainless and glass surfaces are designed to wipe clean quickly after cooking.

• Grease and odor reduction – combination of mesh filters and strong airflow helps reduce airborne grease and lingering cooking smells.

• Improved indoor air quality – continuous removal of smoke, steam, and fumes supports a more comfortable cooking environment.

• Helps protect cabinetry and finishes – effective ventilation reduces moisture and grease buildup on surrounding cabinets and walls.

• Non-smart, simple operation – straightforward mechanical and electronic controls avoid the complexity of Wi-Fi or app-based systems.
