MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
















Manufacturer's Warranty: 1 year
Canadian model: DW80CG5457SRAA
Canadian UPC: 887276763859
EAN: 0887276763859
Similar to DW80CG5450SRAA, DW80CG5420SR, DW80CG5420SRAA
| Specification | Value |
|---|---|
| Product Type | 24" Built‑Under Top Control Dishwasher |
| Colour / Finish | Fingerprint Resistant Stainless Steel (STSS) |
| Install Type | Built under |
| Control Type | Hidden touch (top control) |
| Handle Type | Recessed / pocket handle |
| Display Colour | White LED |
| Washing Type | StormWash™ |
| Fingerprint Resistant | Yes |
| Capacity & Performance | |
| Capacity (Place Settings) | 15 place settings |
| Silence Rating | 46 dBA |
| Energy Star Certification | Yes |
| Annual Energy Consumption | 239 kWh/year |
| Water Consumption per Cycle | 3.2 gallons per cycle |
| Dry System | AutoRelease™ Door Dry |
| Cycle Time (Min) | 111 – 142 minutes (depending on program) |

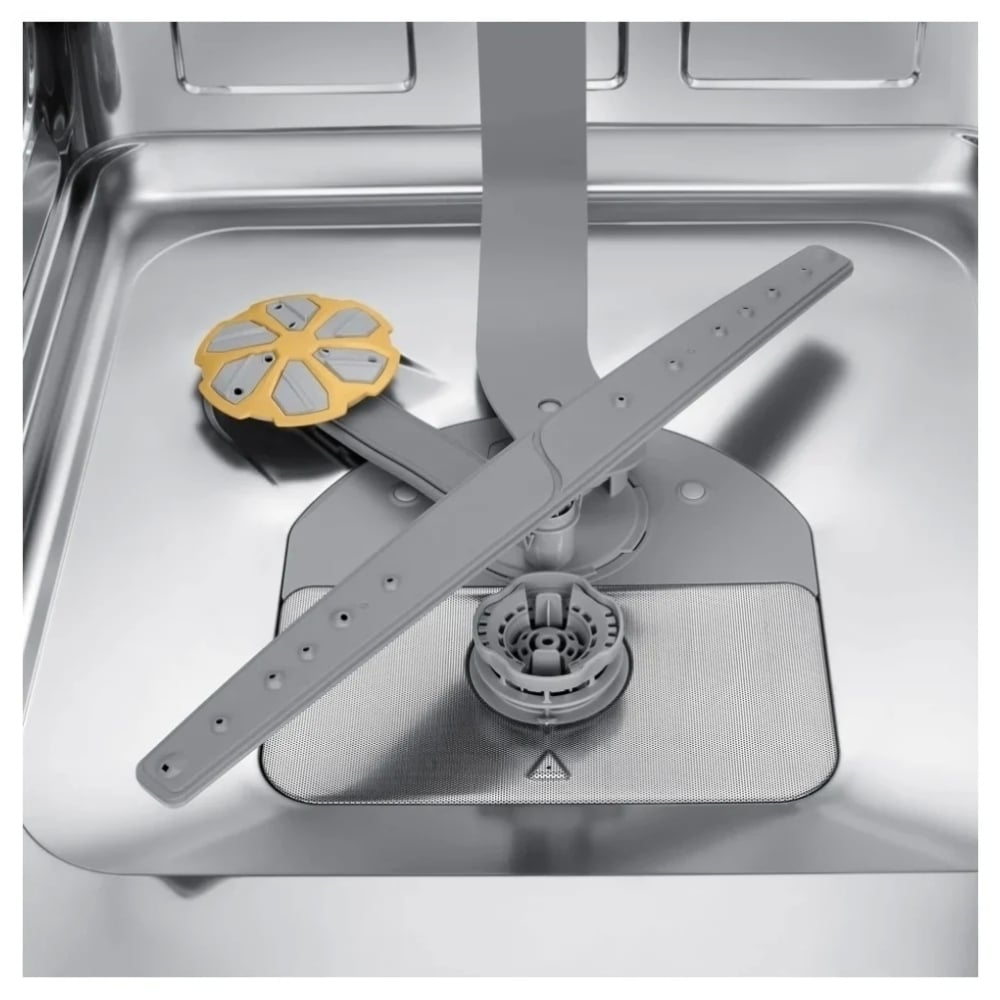

| Number of Wash Arms | 3 (Upper / Mid / Low) |
| Food Disposer | No |
| Whisper Quiet | Yes |
| Dimensions & Weight (Product) | |
| Class Width | 24 inches |
| Net Width | 23.875 inches (23 7/8") |
| Net Height (Min) | 33.875 inches |
| Product Height with Legs Extended (Max) | 35 inches |
| Net Depth (Without Handle) | 25 inches (24.9" nominal) |
| Net Weight | 38 kg (approx. 83.8–84 lb) |
| Cut‑Out / Installation Dimensions | |
| Cut‑Out Width (Min) | 24 inches |
| Cut‑Out Height (Min) | 34.1 inches |
| Cut‑Out Height (Max) | 35.3 inches |
| Cut‑Out Depth (Min) | 24 inches |
| Shipping Dimensions & Weight | |
| Gross Width | 26 inches |
| Gross Height | 34.875 inches |
| Gross Depth | 29.75 inches |
| Gross Weight | 41 kg (approx. 90.4–90.9 lb) |
| Tub & Interior | |
| Tub Material | STSS (stainless steel) |
| Rack Coating Material | Nylon |
| Heater Position | Hidden |
| Interior Finish | Full stainless steel interior |
| Number of Racks | 3 (including 3rd rack / cutlery tray) |
| 3rd Rack System | Yes (cutlery tray) |
| Cutlery Basket | Yes (removable basket) |
| Upper Rack – Adjustable Height | Yes (one‑touch height adjustable) |
| Upper Rack – Basket Handle | Yes (plastic handle) |
| Upper Rack – Adjustable Tines | 1 row adjustable tines |
| Upper Rack – Cup Shelves | Foldable plastic cup shelves |
| Lower Rack – Basket Handle | Yes (some Canadian spec sheets list “No”; manufacturer spec with handle is used) |
| Lower Rack – Fold‑Down Tines | Yes |
| Maximum Dish Loading (Lower Rack) | 12 inches |
| Programs (Cycles) | |
| Number of Programs | 7 main programs |
| Auto | Yes |
| Normal | Yes |
| Heavy | Yes |
| Delicate | Yes |
| Pre‑Blast / Pre‑Wash | Yes |
| Express 60' | Yes |
| Options | |
| Number of Options | 7 |
| StormWash™ | Yes |
| Delay Start | Yes (1–24 hours) |
| Half Load / Lower Rack Only | Yes (lower rack) |
| Sanitize (NSF Certified) | Yes |
| Hi‑Temp Wash | Yes |
| Heated Dry | Yes |
| Control Lock | Yes |
| Smart Features | |
| Wi‑Fi Embedded | Yes |
| Smart Control (Wi‑Fi) | Yes (SmartThings app compatible) |
| Remote Start / Scheduling | Yes (remotely schedule and monitor cycles) |
| Smart Energy Monitoring | Yes (monitor and control energy usage) |
| Download Cycle Support | Yes (Plastic, Pots & Pans, Baby Care, Night) |
| Safety & Certifications | |
| NSF Certified Sanitization | Yes |
| Leakage / Digital Leak Sensor | Yes |
| Cancel & Drain Button | Yes |
| Start & Pause Button | Yes |
| Energy Star Certified | Yes |
| J.D. Power Awards | Yes (brand‑level award, where listed) |
| Electrical & Power | |
| Electrical Requirements | 120 V / 60 Hz / 10–11 A (manufacturer spec 120 / 60 / 11 A; some retailers list 10 A) |
| Heater Watts | 1200 W |
| Circulation Motor | 53 W |
| Drain Pump | 35 W |
| Key Feature Highlights | |
| AutoRelease™ Door | Door automatically opens at end of cycle to improve drying performance |
| 3rd Rack | Provides extra space for cutlery and utensils |
| Height‑Adjustable Upper Rack | One‑touch adjustment for tall items in lower rack |
| Digital Leak Sensor | Detects leaks and shuts off operation |
| Foldable Cup Shelves & Adjustable Tines | Yes, for flexible loading |
| Hidden Heating Element | Yes (safer for plastics on lower rack) |
