Quickly boil water or maintain a simmer with a 19K BTU Power Burner.

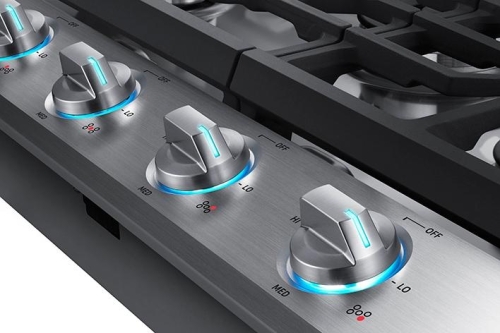

Know It's On
Blue illuminated knobs let you know when the cooktop is on or off.

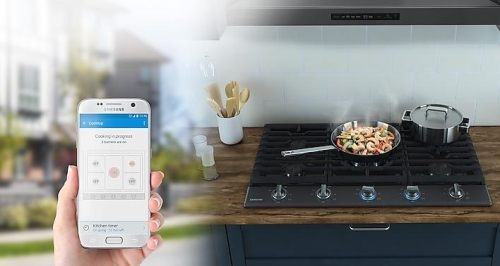

Wi-Fi connectivity
Monitor your cooktop from anywhere using the SmartThings App* on your phone so you always know if you left it on or off when you leave the house.

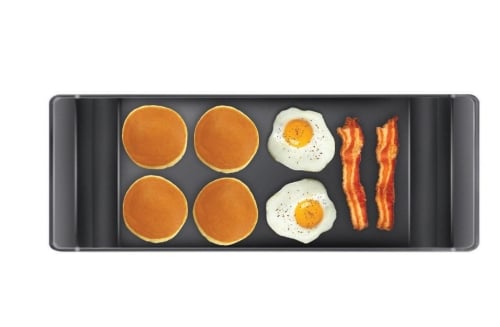

Removable Griddle
Use the griddle to cook breakfast, grill sandwiches or sauté vegetables.

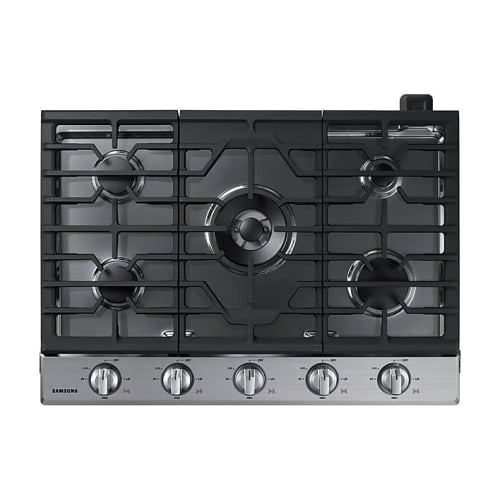

Three Cast-iron Grates
Easily slide your pots and pans across cooktop space with three cast-iron grates that add a more premium look to your kitchen. They are also easy to pick up and clean.

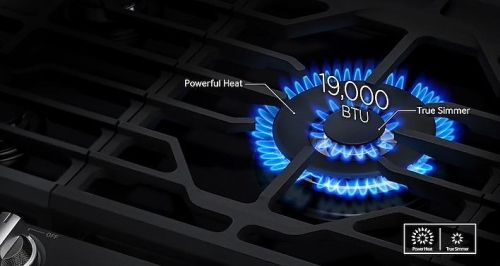

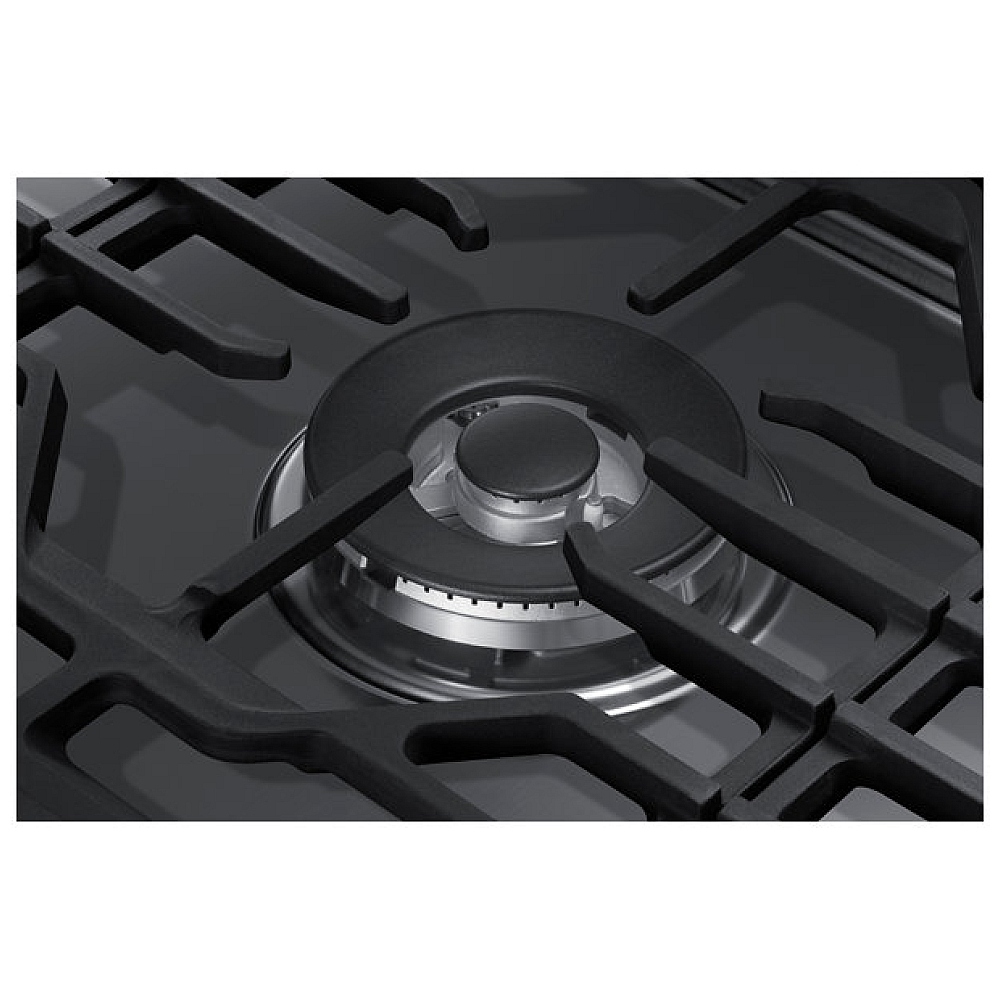

Powerful heat with precise control
A high power, Dual Burner provides powerful heat and precise control – quickly going from a high heat to a true simmer for intense and even cooking, or turn it right up to boil water in a flash and cook food faster.The Power Boost function can reduce cooking times with an extra boost of heat.
Remote & convenient cooktop monitoring
Wi-Fi Connectivity maximizes safety and offers peace of mind by letting you remotely monitor the cooktop at any time using a smartphone app*, while setting the cooking timer and receiving alerts when it finishes**.
*Available on iPhones and Android devices. A Wi-Fi connection is required. **When installing a downdraft hood, maintain a 40mm gap between the hood and the rear of the cooktop frame or detach the Wi-Fi module before installation.

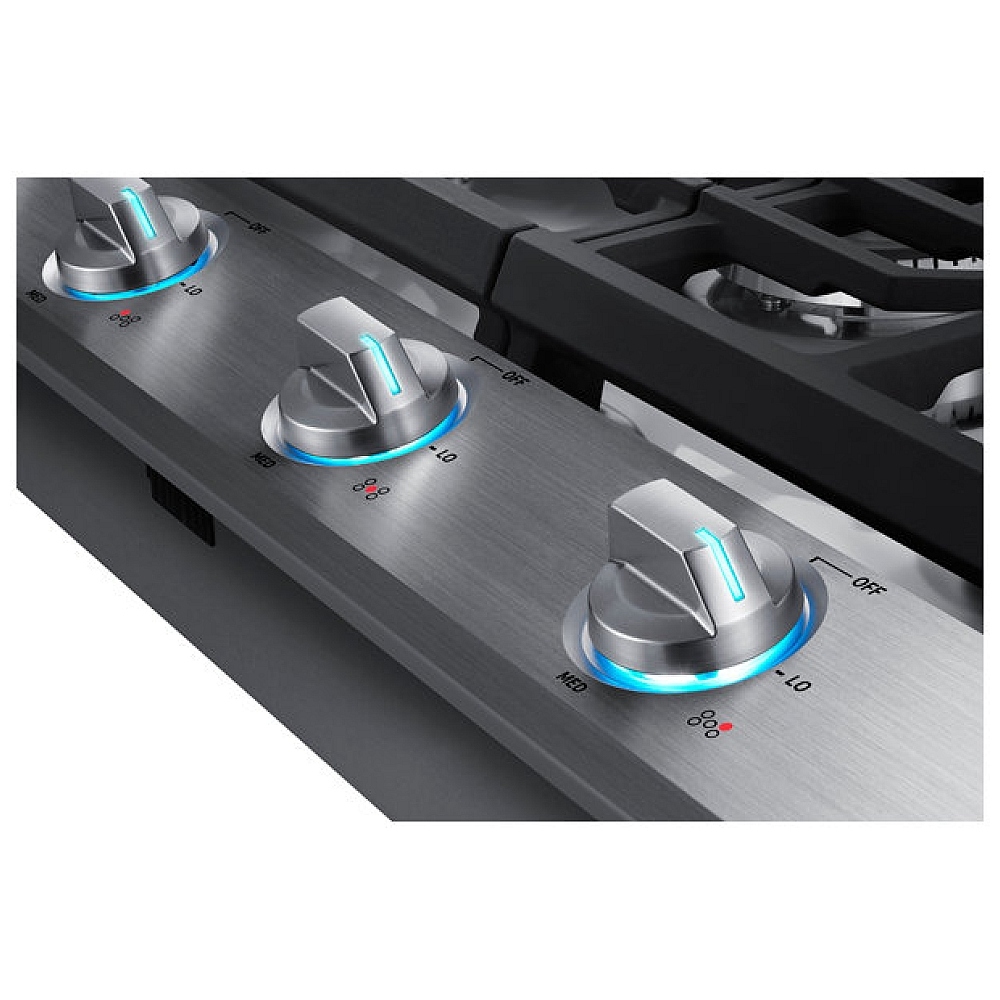

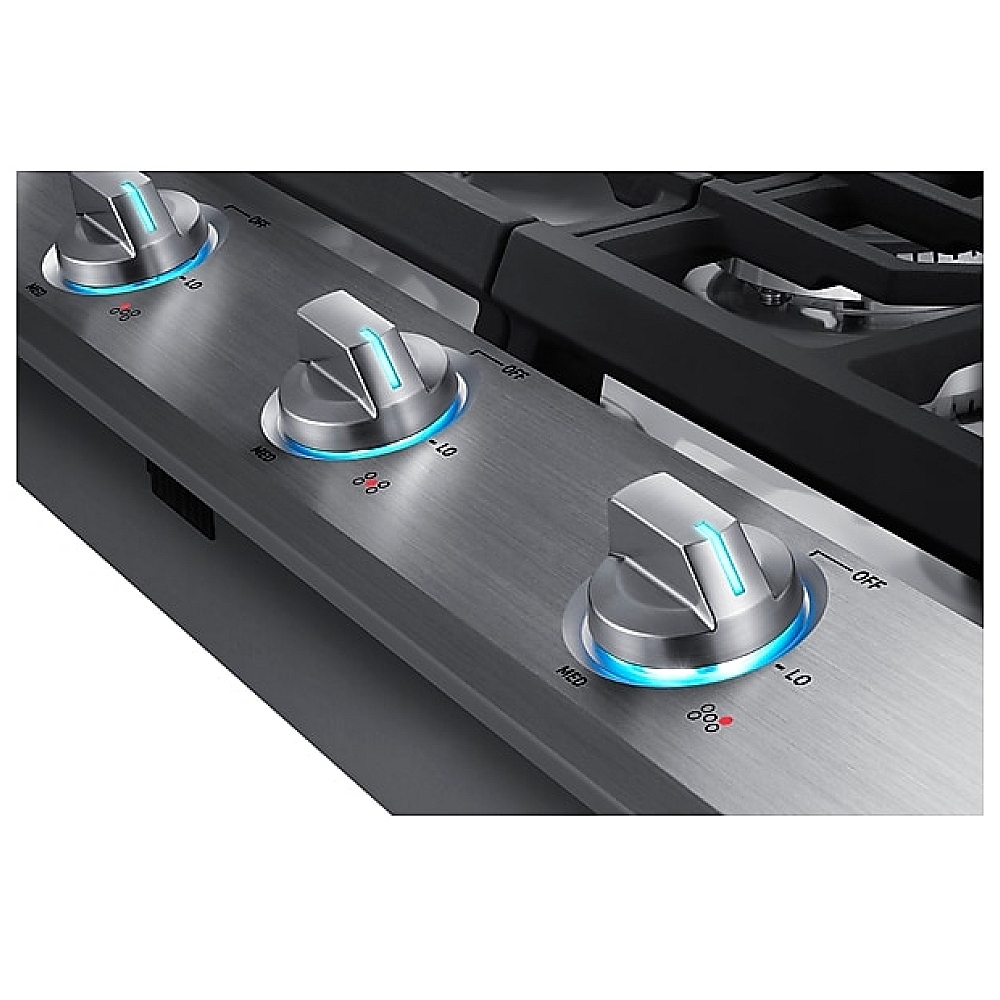

Convenient and precise burner control
With the brilliant and intuitive Illuminated Knob you can easily check whether you have left the cooktop on even from a distance. Large, ergonomic metallic knobs also enable simple and precise temperature control.

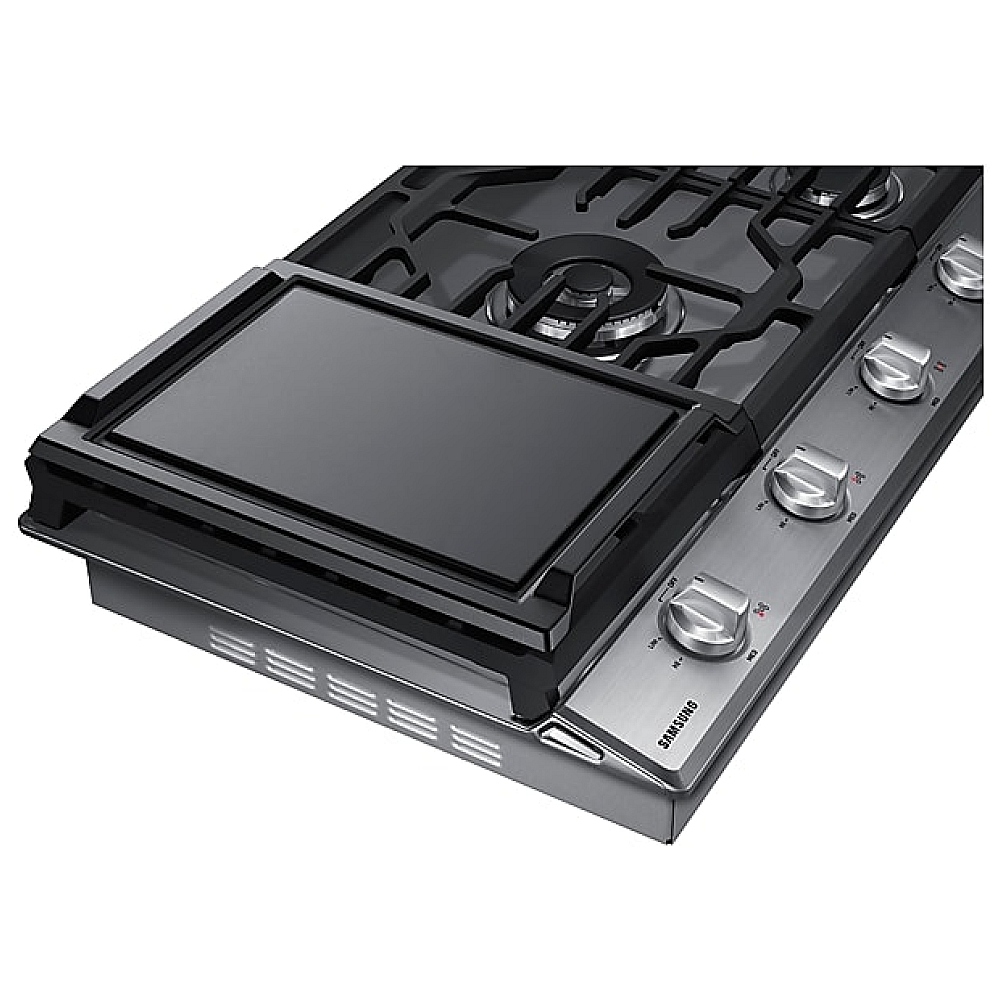

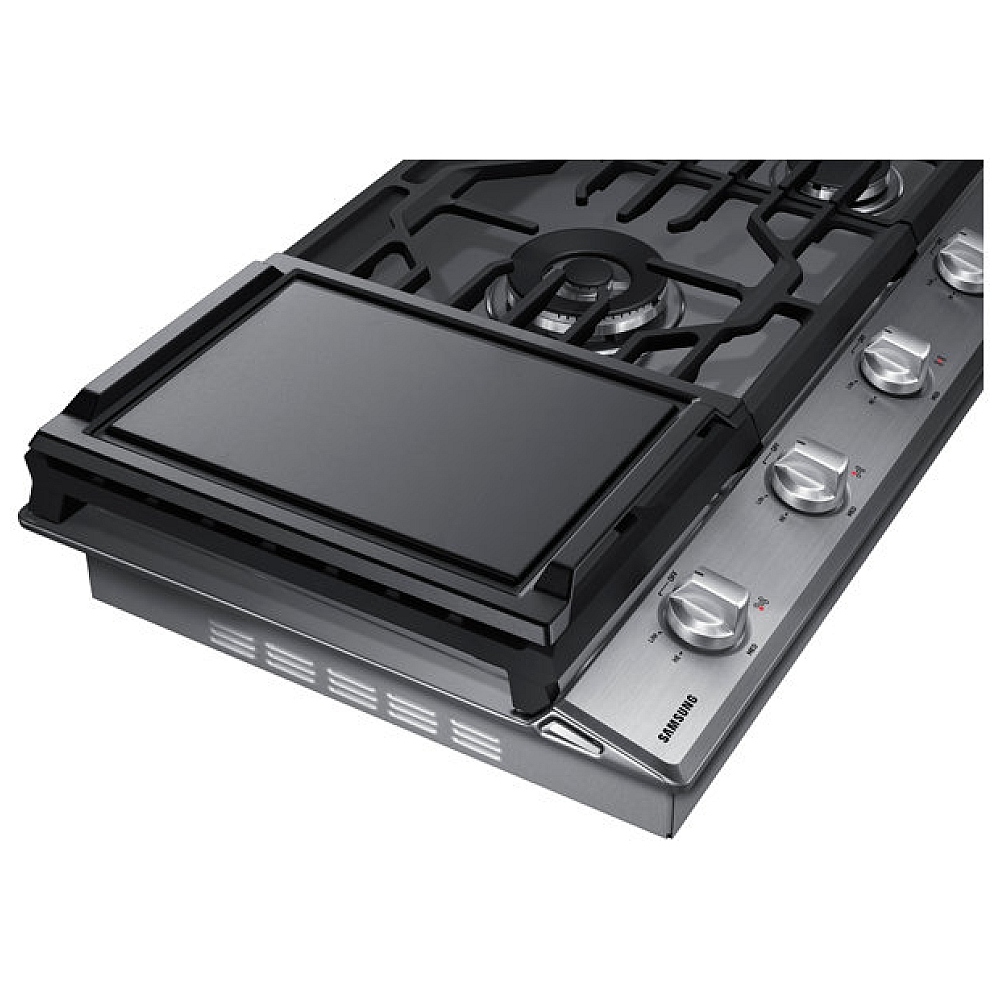

Enjoy grilled food
Included heavy-duty cast iron griddle with a wide surface is ideal for quickly and evenly sizzling, searing and sautéing. With stainless steel handles on both sides, it's easy to move and looks stylish.
Improved flexibility & space efficiency
Hexagon Grates enable a superior cooking performance by conducting heat efficiently.
Stir-fry without tipping
A specially designed Wok Grate lets you cook more efficiently and more safely. Its circular design fits snugly around the burner, so your wok or large pans are kept stable and heat is quickly and evenly distributed.
Simmer & keep food warm without burning
A Precise 5K BTU Simmer Burner ensures the cooking temperature stays low. With precise control it provides optimum conditions for gently simmering, melting or keeping delicate food warm without it burning.
Heats food evenly & stays cleaner
Equipped with Sealed Cooktop Burners, which incorporate a protective cap that evenly distributes the heat and prevents liquids and food from spilling over the burner, so they stay clean and easy to maintain.
Stylishly compatible with built-in ovens
Fully compatible with Samsung Built-in Ovens to create a sleek and stylish combination, creating the ideal kitchen. These sleek and contemporary designs, plus sophisticated technology make it easy to manage kitchen tasks, even for ambitious cooks.
Manufacturer's Warranty: 1 year
Canadian model: NA36N6555TS
Canadian UPC: 887276281742
EAN: 0887276281742
| Weights & Dimensions | |
| Product Weight | 69.4 lbs. |
| Cut-Out Dimensions | 33 7/8" W x 3 1/8" H x 19 1/8" D |
| Product Dimensions | 36" W x 5 1/2" H x 22 1/3" D |
| Product Width | 36" |
| Height (decimal) | 5.5 |
| Width (decimal) | 36 |
| Depth (decimal) | 22.3333333333333 |
| Smart | |
| Wi-Fi Connectivity | Yes |
| Power/Ratings | |
| Left Front | 9.5K BTU |
| Left Rear | 9.5K BTU |
| Right Front | 13K BTU |
| Right Rear | 5K BTU (Simmer) |
| Center | 19K BTU (Dual) |
| Key Features | |
| Illuminated Knobs | Yes |
| ADA Compliant | Yes |
| Accessories | |
| Griddle | Aluminum |
| Materials/Finishes | |
| Controls for Cooktop | Weighted Knob |
| Knob Lighting | Backlit and Indicator |
| Cooktop Type | Gas |
| Cooktop Type | Gas |
| Design | |
| Color | Stainless Steel |
| General Feature | Gas |
| Cooktop | |
| Total Power | 56K BTU |
| Total Number of Burners | 5 |
| Features | |
| Power Burner | Yes |
| Sealed Burners | Yes |
| Awards and Certificates | |
| J.D. Power Awards | Yes |
- Materials/Finishes
- Model Type Install36 inch built-in gas cooktop
- Control MethodIlluminated Knobs
- Power/Ratings
- Total Power56,000 BTU
- Power LevelLow-Med-High
- Burner - Left Front9,500 BTU
- Burner - Left Rear9,500 BTU
- Burner - Right Front13,000 BTU
- Burner - Right Rear5,000 BTU, Precise Simmer
- Burner - Center Front19,000 BTU, Dual
- Power Supply120V/60Hz, 1A
- Features
- GrateCast Iron (3pcs)
- SurfaceStainless
- Simmer/MeltYes
- Cooktop
- Number of Burner5 EA
- Fuel TypeNatural Gas (factory set)
- Accessories
- WOK grateNo
- GriddleAluminum Griddle
- LP Conversion KitYes
- Smart
- WiFi EmbeddedYes
- Auto Connectivity (with Hood)No
- BluetoothNo
- WiFi Dongle(Separate sale) SupportNo
- WiFi KitNo
- App Connectivity
- SmartThings App SupportYes
- Weights/Dimensions
- Package (WxHxD)1,030 x 270 x 650 mm
- Cutout (WxHxD)W 860.4 x D 485.8 mm
- Net (WxHxD)914.4 x 79.3 x 533 mm
- Weight (Gross)38.1 kg
- Weight (Net)31.3 kg
- Loading Quantity (20/40ft)152/328
User Manual (NA36N6555TS-user-manual-canada.pdf)
