Samsung
Buy 2 Save $150
Buy 3 Save $300
Buy 4 Save $500

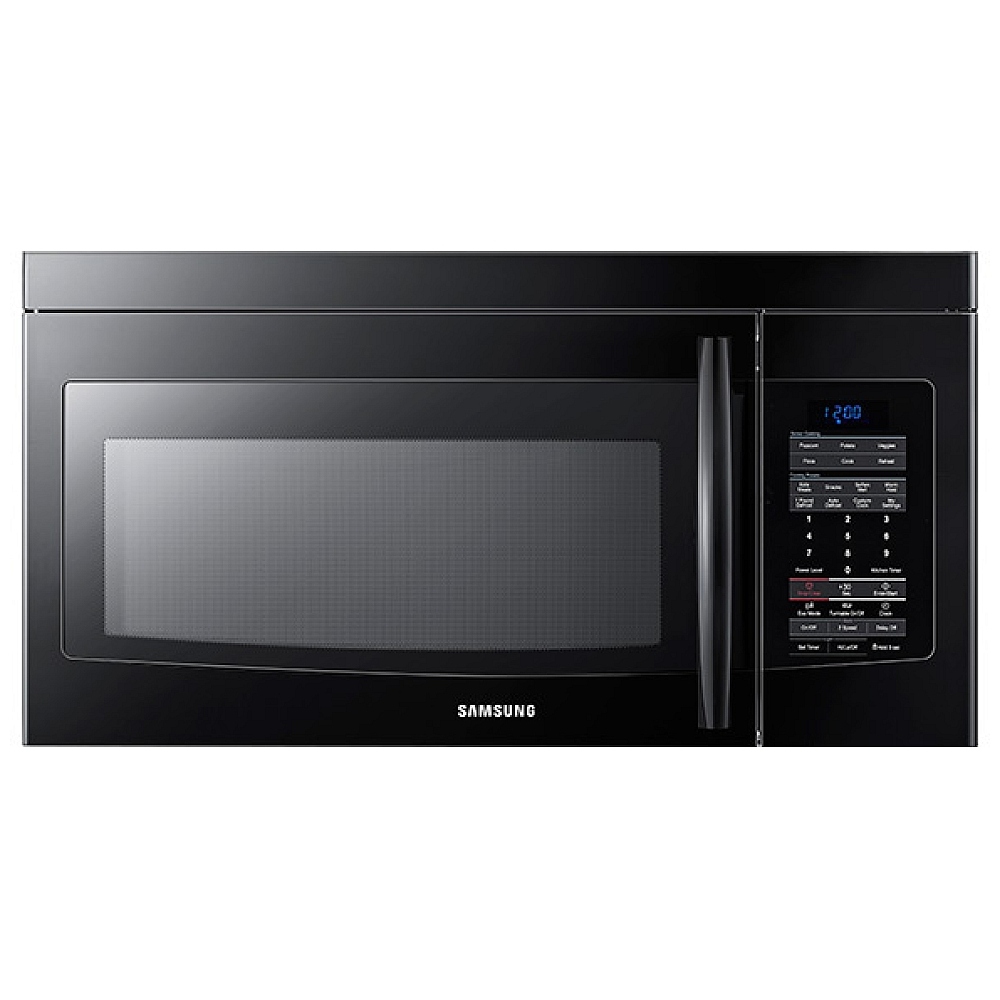

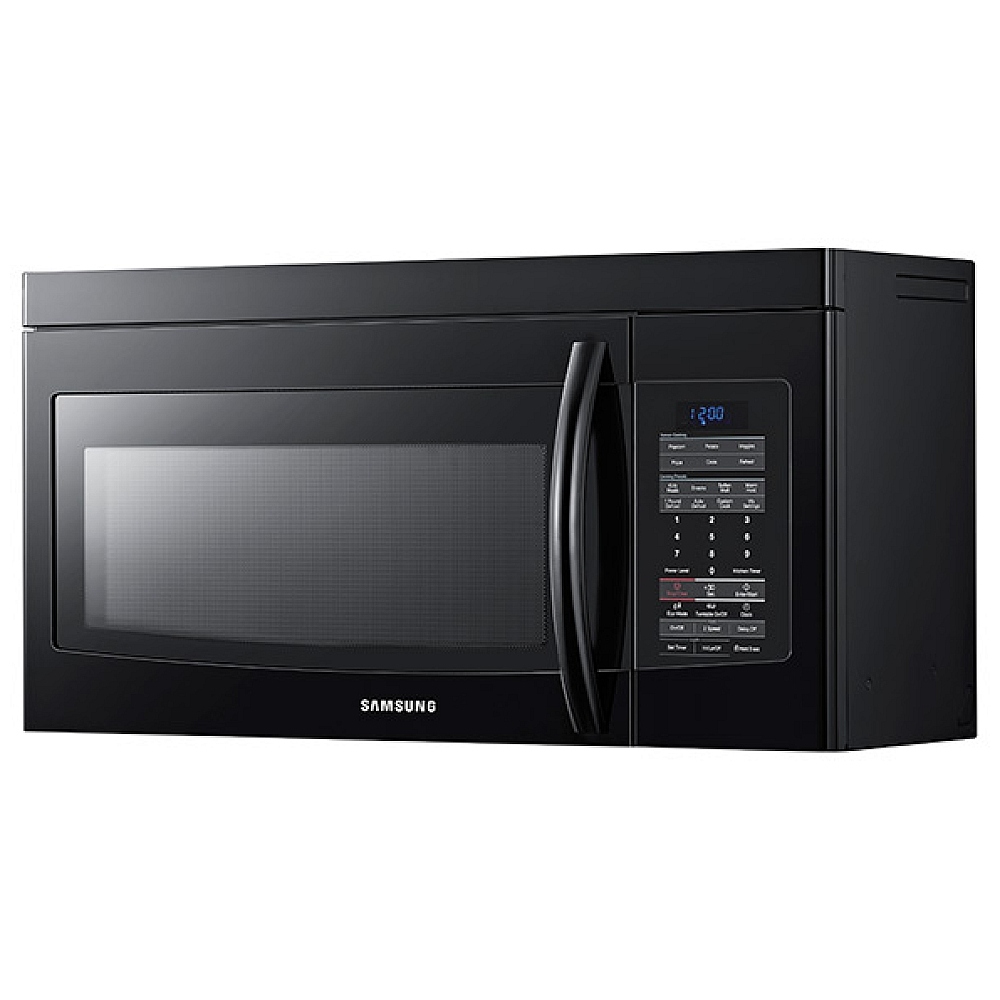

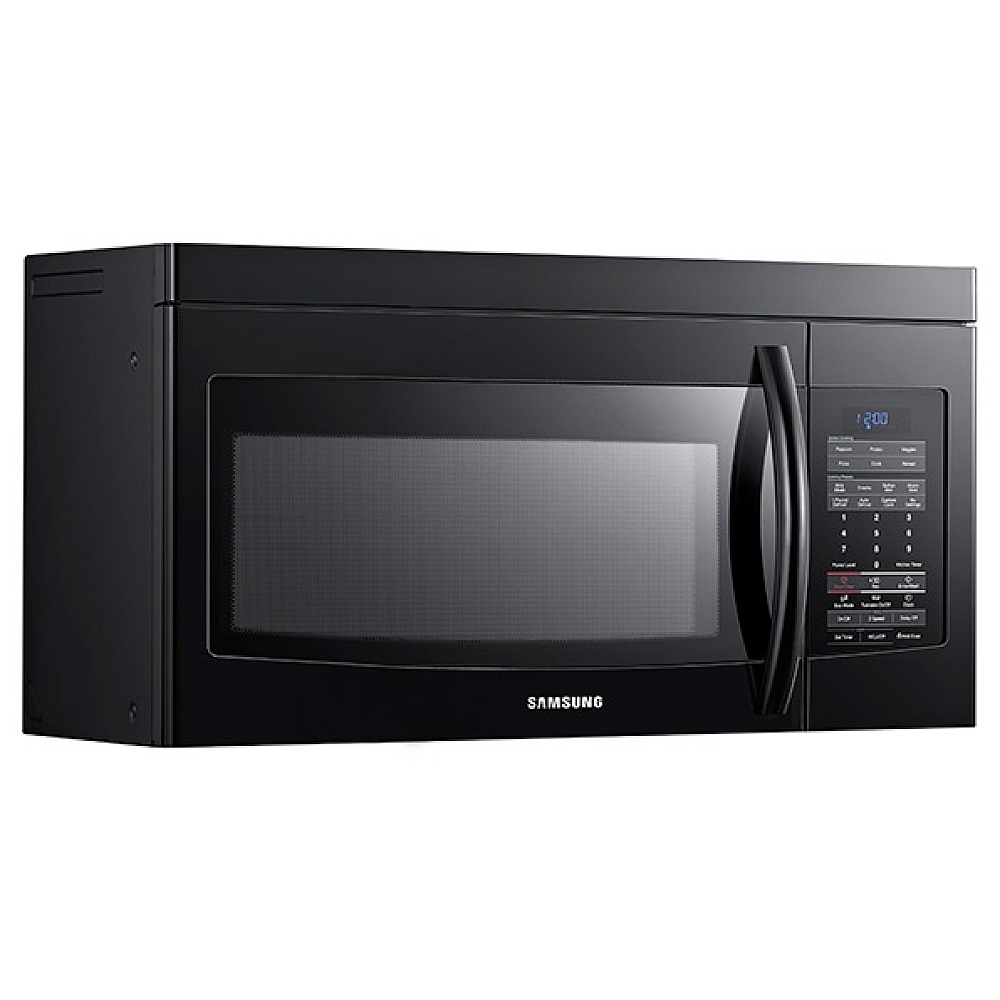

Samsung SMH1713B
Discontinued
Samsung Microwaves 2026 Samsung Microwaves 2026
ARB1LD
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $16.84 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Ratings & Reviews
ARB1LD
When will I get this?

Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $16.84 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Description & Features

This sleek, over-the-range microwave makes cooking almost effortless. It has all sorts of convenience settings, from an auto defrost setting that does the thinking for you to a two-step cooking functionality that gives you more time to focus on other things. It also lets you create your own settings for one-button operation.


Large oven cavity for big results

The large oven cavity with built-in turntable makes it easy to achieve superior cooking results.


Simultaneous programs for efficient food prep

Save time by defrosting food and also programming a two-step recipe simultaneously.


Automatic defrost guarantees accuracy

Take the guesswork out of defrosting. Auto defrost considers the weight of the food being cooked. Simply select the weight and the oven does the rest.


Select time and power with one-button ease

Easily program your desired cooking time and power level at just the touch of a button.

Convenient Sensor Cook / Reheat

Convenient Sensor Cook / Reheat

This function detects food moisture and automatically calculates the optimal time for cooking / reheat. So it makes one simple press of a button to achieve amazing cooking results.
Large Capacity

Large Capacity

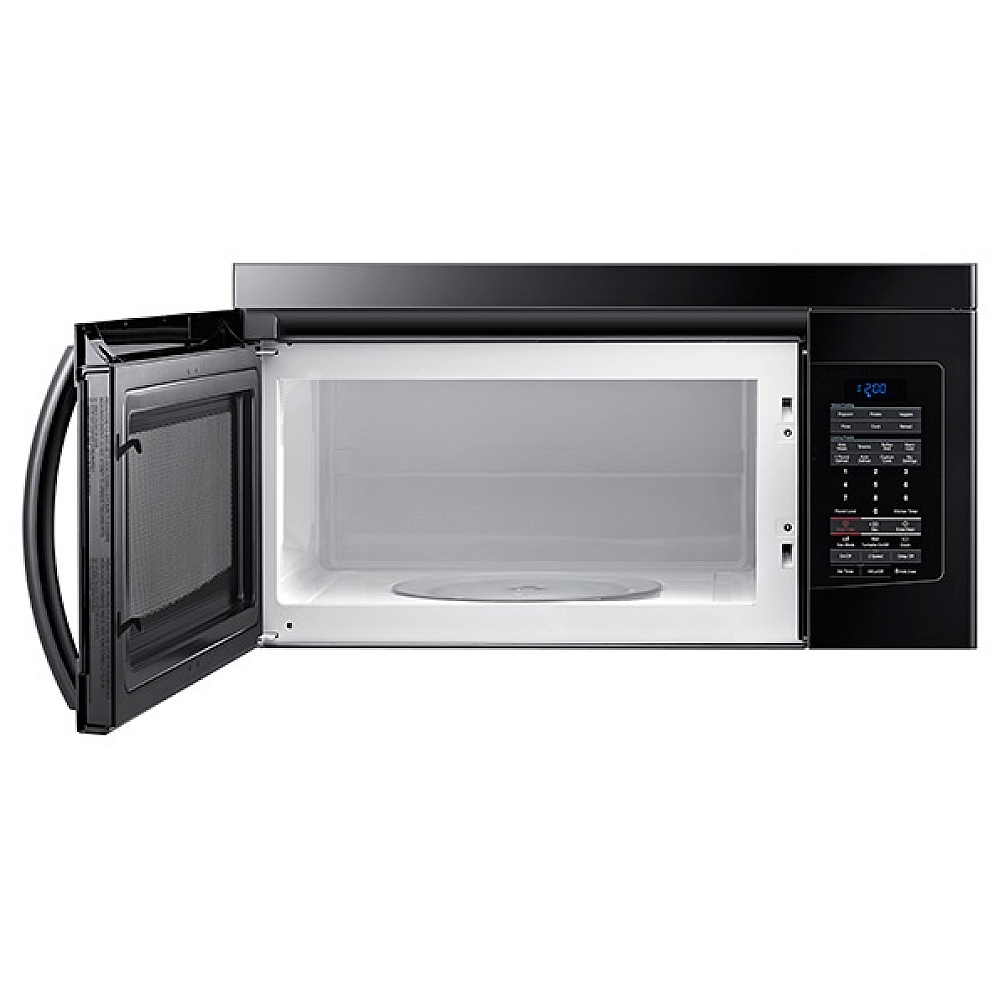

With 1.7 cu. ft. of space, there is plenty of interior space to create full meals that you previously never thought would fit. And its built-in turntable ensures that every dish is heated evenly.
Powerful 300 CFM Ventilation System

Powerful 300 CFM Ventilation System

The SMH1713 features a powerful turbo ventilation exhaust that rapidly removes steam and odours with absolutely quiet operation.

Two-Stage Programmable Cooking

Vital time-saving function, that allows you to easily program initial defrost plus a corresponding two step recipe for food simultaneously.

Electronic Touch Control

Lets you easily program the desired cooking time and power level, at the gentle press of a button, for error-free results every time.

Manufacturer's Warranty: 1 year

Canadian model: SMH1713B

Specs
Design
Color Black
Type Over-The-Range
Display Color Deep Blue
Ventilation Grill Design Open
Weights & Dimensions
Product Weight (lb.) 47 lb.
Width (in.) 29 7 8"
Depth (in.) 15 1 8"
Height (in.) 16 1 2"
Capacity (cu.ft.) 1.7
Cooking Performance
Heating Microwave
Auto Defrost Yes (0.1~6.0 lb.)
Cooking Power (Watts) 1000 W
Sensor Cooking Yes
# of Power Levels 10
Cooking Presets (Auto Cook) Yes
Soften / Melt Yes
Custom Cook Yes
Features
Vent Power (CFM) 300 CFM
Kitchen Timer Yes
Cavity Interior Epoxy
Eco Mode: Standby Power Reduction Yes
Control Material Membrane Touch
Turntable Stirrer + Turntable
Turntable On/Off Yes
Turntable Material Glass
Turntable Size 11 1/2"
Child Lock Yes
Sound On/Off Yes
Weight Option kg/lb.
Vent Filter Charcoal/Grease
Vent Fan Control Hi/Lo/Off
Vent Fan Speed 2
Cooktop Lighting Settings Hi/Lo/Off
Light Timer Yes

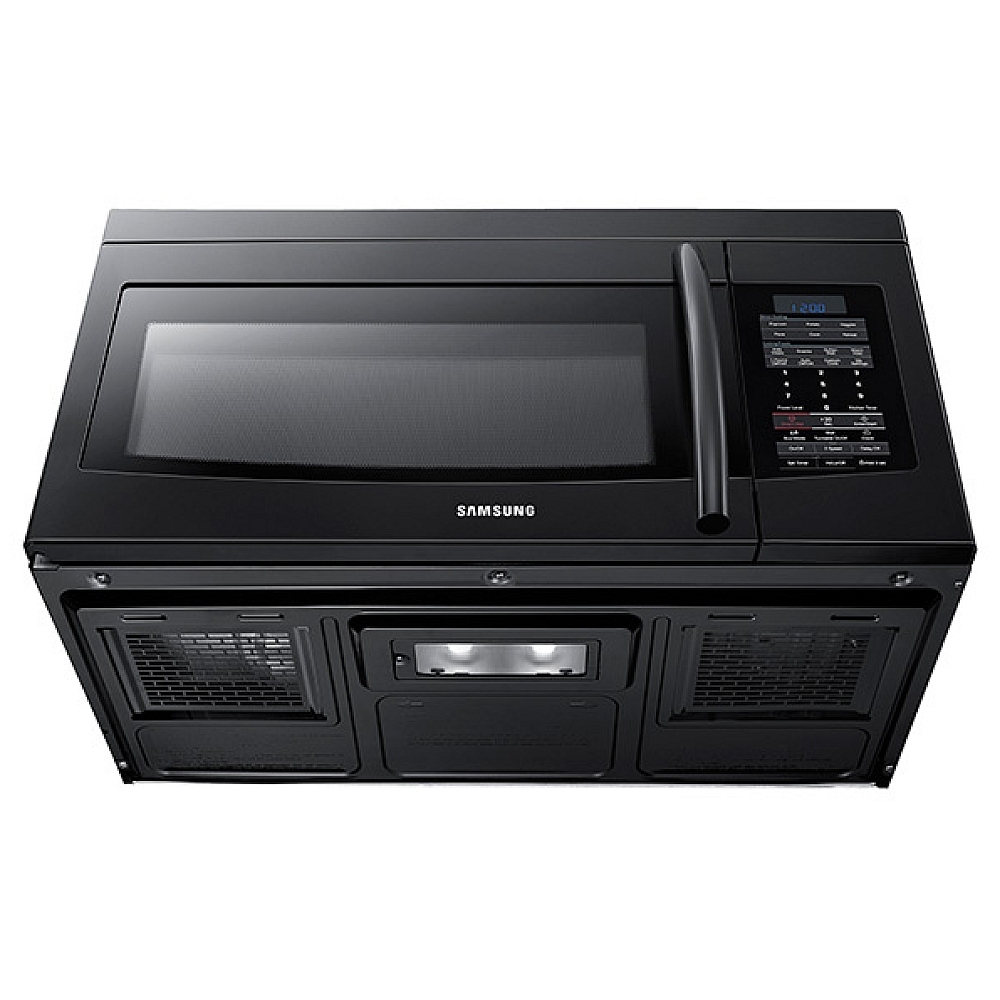

Cooktop Lighting Yes
Interior Light Incandescent
Power/Ratings
Power Source 120V/60Hz
Amp Circuit 13.5A
Power Consumption (Microwave) 1580 W
Power Cord Length (in.) 39"

Specs

Model type

  • Over-The-Range (OTR) Model type

Dimensions

  • 20.7" x 9.6" x 14.4" Cavity (W x H x D)
  • 29.9" x 16.5" x 15.1" Outside (W x H x D)
  • 33.4" x 19.9" x 19.4" (shipping) Gross (W x H x D)

General

  • Microwave only Heat Source
  • 120 V / 60 Hz Power Source
  • 1.7 cu.ft Capacity (cu. ft.)
  • 1500 W / 13.5 A Power consumption (W)
  • Membrane Touch Control method
  • 1000 W Max Output/Cooking Power (MWO) Output Power (Watts)
  • Handle, Side swing Door opening type
  • 1 Line VFD Display Type
  • Stirrer + Turntable
  • 300 Exhaust Vent Capacity (CFM-Cu.Ft./min)
  • Black Colour

Features

  • 99 min 99 sec. Max Cooking time
  • More / Less function available
  • 10 # of Power Levels
  • 2 Cooking stages
  • One Minute / 30 sec plus available
  • Defrost (Auto / Power / Sensor) available
  • Auto cook available
  • Sensor Cook available
  • Turntable On / Off available
  • Clock system option(12 H / 24 H) available
  • Child Lock available
  • Epoxy Cavity interior
  • Daylight Savings Time Adjustment available
  • Custom Cook available
  • Eco Mode (Low standby power 1 W) available
