KPF36UBL
New
Available soon
Portofino Aesthetic
EAN13: 8017709246242

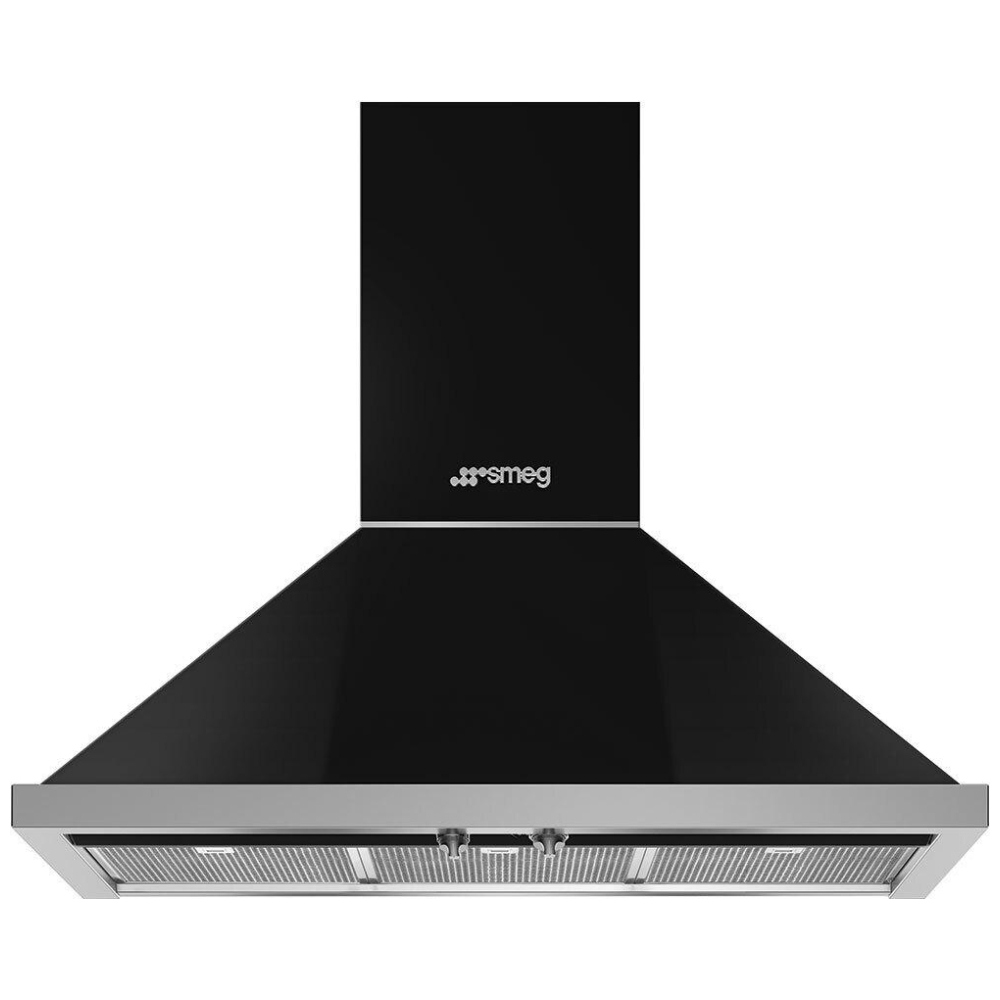

36” Portofino, Chimney Hood, Black
TECHNICAL SPECIFICATIONS
Operating mode: vented or recirculating
Control knobs
4 speed levels
Maximum extraction power: 600 CFM
Noise level at maximum speed: 75 dB(A)
2 LED lights
Motor power 455 W
3 stainless steel grease filters
ELECTRICAL SPECIFICATIONS
Electrical connection rating: 495 W
Voltage: 120 V
Frequency (Hz): 60 Hz
Manufacturer's Warranty: 2 years
Canadian model: KPF36UBL
EAN: 8017709246242
| Type | |
| Product family | Hood |
| Hood Type | Decorative wall hood |
| Hood width | 36 " |
| Extraction | Vented |
| EAN code | 8017709246242 |
| Aesthetic | |
| Color | Black |
| Aesthetics | Portofino |
| Design | Chimney |
| Material | Stainless steel |
| Stainless steel type | Brushed |
| Programs / Functions | |
| Speed levels | 4 |
| Controls | |
| Control setting | Control knobs |
| Control knobs | Portofino |
| No. of controls | 2 |
| Controls color | Stainless steel effect |
| Technical Features | |
| No. of lights | 2 |
| Lighting | LED |
| Light power | 2 W |
| Light color temperature scale (°K) | 4000 °K |
| Maximum extraction capacity at free mode | 577.5 CFM |
| Motor power | 455 W |
| No. of filters | 3 |
| Anti-grease filters | Stainless steel |
| Minimum distance from gas cooktop | 30 " |
| Minimum distance from electric cooktop | 26 " |
| Vent outlet | 150 " |
| Non-return valve | Yes |
| Electrical Connection | |
| Electrical connection rating | 495 W |
| Voltage | 120 V |
| Frequency (Hz) | 60 Hz |
| Power supply cable length | 39 3/8 " |
| Speed level 1 | |
| Extraction rate | 210.5 CFM |
| Noise level | 53 dB(A) |
| Power | 207 W |
| Speed 2 | |
| Extraction rate | 317 CFM |
| Noise level | 62 dB(A) |
| Power | 270 W |
| Speed 3 | |
| Extraction rate | 437.5 CFM |
| Noise level | 69 dB(A) |
| Power | 350 W |
| Speed level 4 | |
| Extraction rate | 573.5 CFM |
| Noise level | 75 dB(A) |
| Power | 479 W |
| Logistic Information | |
| Dimensions | 790x914x508 |
| Width | 35 " |
| Depth | 20 1/16 " |
| Height | 31 1/8 " |
| Net weight | 39 lbs |
| Gross weight | 55 lbs |
| Packaged width | 38 " |
| Packaged depth | 20 1/4 " |
| Packaged height | 26 3/4 " |
| Packaged dimensions | 680X990X515 |
| Maximum stackability | 4 |
| Packaging | Cardboard box |
| Packaging composition - Paper | 9 lbs |
| Packaging composition - Polystyrene | 2 lbs |
Electrical Connection
Electrical connection rating: 495 W
Voltage: 120 V
Frequency (Hz): 60 Hz
Versions
- KPF36UOG - Olive green
- KPF36URD - Red
- KPF36UYW - Yellow
- KPF36UWH - White
- KPF36UOR - Orange
- KPF36UX - Stainless steel
- KPF36UAN - Matte Black
