Dishwasher Install for as Low as $169
Thermador DWHD661EFM
B1FMD7
MSP Before Promo
$3,469
 Add to Cart
Call Local Showroom
Ratings & Reviews
Similar Colours and Options
DWHD661EPR
$3,469.00 CAD
B1FMD7
Region Availability:
2 - 4 Business Days
When will I get this?

Description & Features
The Thermador DWHD661EFM dishwasher brings professional‑grade cleaning and drying performance into a sleek 24‑inch built‑in design, making it an ideal choice for modern kitchens that demand both style and substance. Behind its stainless steel panel and refined Masterpiece styling, this model offers a generous 16‑place‑setting capacity in a standard 24‑inch width, so you can handle everyday loads as easily as large dinner parties. What truly sets it apart is its exclusive StarDry™ with Zeolite technology, a premium drying system that uses a natural mineral to absorb moisture and target hard‑to‑reach crevices, leaving dishes, glassware, and even many plastics cabinet‑ready at the end of the cycle without the need for additives or ongoing refills. Complementing this advanced dry is the innovative ZoneControl™ spray arm, which lets you customize cleaning power in up to four targeted zones in the lower rack, so heavily soiled pots and pans get an intense wash while more delicate items are treated with care in the same cycle. Inside, the adjustable Chef’s Tool Drawer® adds a flexible third rack that increases overall capacity and provides a dedicated space for long utensils, small bowls, and specialty tools, helping you free up room in the lower racks for larger dishes. Entertaining enthusiasts will also appreciate the thoughtful interior design that can accommodate up to 18 wine glasses at once with dedicated glass‑care features, making post‑party cleanup far more efficient than with many standard dishwashers. Despite its powerful performance, the DWHD661EFM operates at a whisper‑quiet 42 dBA, so you can run a full cycle while enjoying conversation, watching TV, or relaxing nearby without intrusive noise. A Time Remaining PowerBeam® projects the cycle countdown discreetly onto the floor, giving you at‑a‑glance status without opening the door, while the multi‑color Star Glow interior lighting adds a touch of ambiance and makes loading and unloading easier. With WiFi‑enabled Home Connect® capabilities for remote monitoring and additional cycles, plus a durable stainless steel tub and integrated water softener for sparkling results on fine crystal, this dishwasher delivers a premium blend of capacity, convenience, and cutting‑edge technology that stands out in the luxury appliance category.

StarDry™ with Zeolite drying system – uses natural Zeolite minerals to absorb moisture and deliver exceptional drying performance, even on plastics and hard‑to‑reach crevices, without needing replacement.

ZoneControl™ Spray Arm – amplifies PowerWash™ performance by letting you target up to four customized lower‑rack cleaning zones for heavily soiled or delicate items.

Powerfully Quiet® 42 dBA operation – runs at a near‑silent 42 dBA, allowing after‑dinner conversations or open‑concept living without dishwasher noise intrusion.

Time Remaining PowerBeam® display – projects a bright countdown of the remaining cycle time onto the floor so you can see status at a glance.

Multi-color Star Glow interior lighting – Thermador‑exclusive interior lights that can change colors via the Home Connect® app to match your kitchen mood or décor.

Adjustable Chef’s Tool Drawer® 3rd rack – full‑width third rack that adjusts to fit long utensils, spatulas, small bowls, and tools, increasing overall loading capacity.

Crystal Protect® Water Softener System – built‑in water softener that neutralizes hard water to protect fine crystal and glassware from etching and cloudiness.

Home Connect® WiFi-enabled control – allows remote start, cycle selection, notifications, and additional programs through a connected smartphone or tablet.

Star Sapphire® Masterpiece® design – premium Star Sapphire® 24" stainless steel dishwasher with sleek Masterpiece® bar handle to coordinate with Thermador kitchen suites.

24/7 AquaStop® leak protection – continuously monitors for leaks and automatically shuts off water to help prevent floor and cabinet damage.

ENERGY STAR® certified efficiency – meets strict energy‑efficiency standards to help reduce electricity and water consumption over the life of the appliance.

NSF® Certified Sanitize option – high‑temperature final rinse that reduces bacteria on dishes and is certified to meet NSF® sanitization standards.

Folding Glass Care Rack (18 wine glass capacity) – specialized lower‑rack glass care system that securely holds and washes up to 18 wine glasses in a single load.

Flexible Folding Tines – tines fold down in upper and lower racks to accommodate large pots, pans, serving platters, and mixing bowls.

RackMatic® adjustable upper rack – three‑level height adjustment on the upper rack to fit tall stemware above or oversized cookware below.

Stainless steel tub interior – durable, hygienic stainless steel interior that resists staining, supports higher wash temperatures, and enhances drying.

Top control touch panel – fully integrated touch controls hidden on the door top for a clean, modern look and easy cycle selection.

16 place setting capacity – spacious interior layout designed to handle large family meals or entertaining in a single load.

7 wash programs – includes Auto, Normal, Quick, Hand Wash, Pots & Pans, Favorite, and additional specialty cycles for different soil levels and load types.

Multiple wash options – features options such as Remote Start, Sanitize, StarDry™, and ZoneControl™ front/back/custom to fine‑tune each cycle.

Additional Home Connect® programs – unlocks extra cycles like Glass, Machine Care, Save Time, and Rinse through the app for more specialized cleaning.

Condensation plus Zeolite drying – combines traditional condensation drying with Zeolite‑enhanced heat and moisture absorption for superior overall drying results.

Auto program with Aquasensor – sensor‑driven Auto cycle adjusts water temperature, volume, and duration based on soil level for optimal cleaning and efficiency.

Built-in water softener – integrated softening system helps prevent limescale buildup inside the dishwasher and on dishes.

Remote monitoring & notifications – via Home Connect®, receive alerts when a cycle is finished, when detergent tabs are running low, or if service is needed.

Handle-less design option (Push-to-Open† on some installations) – supports sleek, modern kitchens by allowing operation without a protruding handle when paired with compatible cabinetry hardware/installation.

Smooth-glide racks – ball‑bearing rack slides on lower, upper, and third racks for easy loading and unloading, even when fully loaded.

Favorite program memory – lets you store and quickly start your most frequently used combination of cycle and options.

Quick wash cycle – shorter program ideal for lightly soiled dishes and glassware that need a fast turnaround.

Pots & Pans intensive cycle – high‑temperature, longer‑duration program designed to tackle baked‑on food and heavily soiled cookware.

Hand Wash / delicate cycle – gentler spray pressure and temperatures for fragile items such as fine china and delicate glassware.

Save Time option (via app) – shortens cycle duration when you need clean dishes faster, with automatic adjustments to temperature and spray intensity.

Machine Care program – dedicated maintenance cycle that helps clean the interior, remove grease and limescale, and maintain performance.

Rinse program – quick rinse to prevent food from drying on dishes when you plan to run a full cycle later.

Remote Start function – begin a wash cycle from anywhere using the Home Connect® app so dishes are ready when you are.

Floating switch safety system – internal float switch helps detect overfill conditions and protects against water overflow.

All-front adjustable feet – allows leveling and height adjustment from the front for easier, more precise built‑in installation.

Built-under installation design – fits standard 24" under‑counter openings with required cutout dimensions of 33 7/8" H x 24" W x 24" D.

Stainless steel exterior finish – fingerprint‑resistant stainless steel door and toe‑kick for a premium, cohesive look with other Thermador appliances.

Low annual energy and water use – engineered for approximately 240 kWh/year and efficient water consumption to help lower utility bills (actual usage varies by settings and load).

Large capacity silverware and utensil storage – combination of basket and Chef’s Tool Drawer® provides flexible organization for cutlery and cooking tools.

Interior illumination for loading visibility – Star Glow lighting brightens the tub so you can easily see rack positions, tines, and items when loading or unloading.

Child-safe hidden controls – top‑mounted control panel is concealed when the door is closed, helping prevent accidental changes by children.

Manufacturer's Warranty: 2 years

Canadian model: DWHD661EFM

Canadian UPC: 825225972198

EAN: 0825225972198

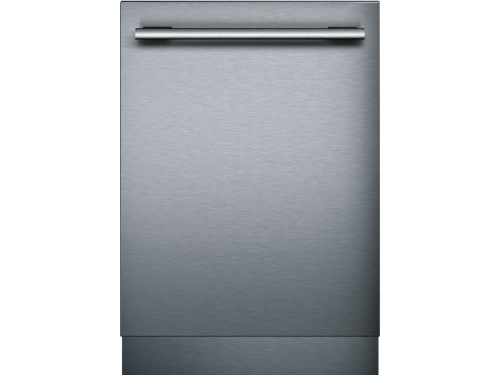

Stainless Steel Panel with Masterpiece® Handle - DWHD661EFM
Stainless Steel Panel with Masterpiece® Handle
DWHD661EFM - Stainless Steel Panel with Masterpiece® Handle
Sleek brushed stainless steel handles with a modern design.

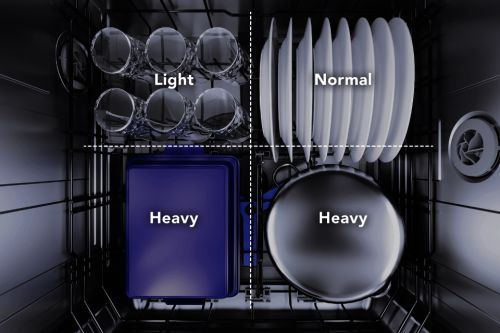

Customize Your Cleaning Power with Zone Control™ - DWHD661EFM
Customize Your Cleaning Power with Zone Control™
DWHD661EFM - Customize Your Cleaning Power with Zone Control™
Design the ideal clean with Zone Control™ where you can specify up to 4 customized lower rack cleaning zones, ensuring the most challenging pieces emerge immaculate and the most delicate are protected.
StarDry™ with Zeolite
DWHD661EFM - StarDry™ with Zeolite
Introducing StarDry™ with Zeolite, an exclusive Thermador drying solution. Zeolite is a natural substance that dries without the use of chemicals. This unique feature helps dry hard to reach crevices, and does not need to be replenished over time.
Multi-color Star Glow Light
DWHD661EFM - Multi-color Star Glow Light
A Thermador Exclusive, Star Glow illuminates the inside of the dishwasher in a variety of colors, so you can set the mood that marches the occasion via the Thermador Connected Experience by Home Connect.

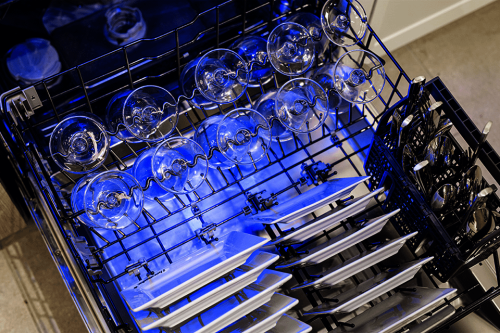

Wash 18 Wine Glasses with the Folding Glass Care Rack - DWHD661EFM
Wash 18 Wine Glasses with the Folding Glass Care Rack
DWHD661EFM - Wash 18 Wine Glasses with the Folding Glass Care Rack
Allowing you to wash up to 18 wine glasses at once. Securely wash your most delicate stems while accommodating every entertaining occasion.

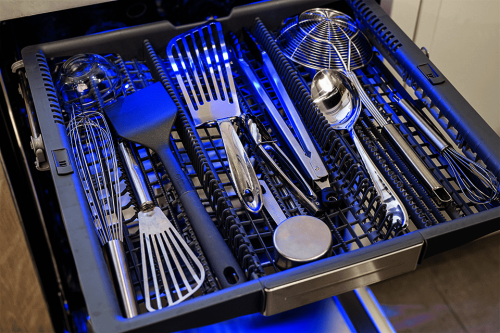

Spacious Adjustable Chef s Tool Drawer - DWHD661EFM
Spacious Adjustable Chef s Tool Drawer
DWHD661EFM - Spacious Adjustable Chef s Tool Drawer
Adjustable Chef s Tool Drawer® delivers added loading capacity as well as flexibility to accommodate larger or smaller items in this additional third rack.

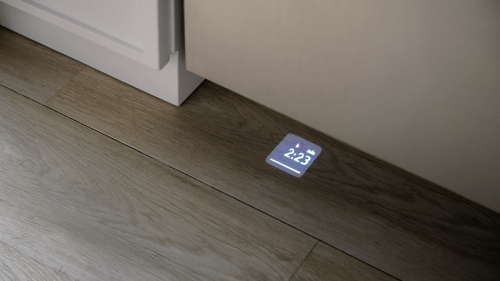

Time Remaining PowerBeam® countdown on floor - DWHD661EFM
Time Remaining PowerBeam® countdown on floor
DWHD661EFM - Time Remaining PowerBeam® countdown on floor
Time Remaining PowerBeam®: shines a countdown of the remaining time of the cycle on the floor.

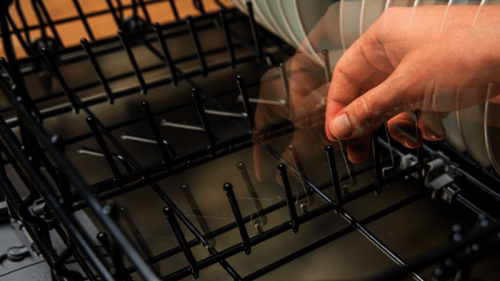

Flexible Folding Tines accommodate larger items. - DWHD661EFM
Flexible Folding Tines accommodate larger items.
DWHD661EFM - Flexible Folding Tines accommodate larger items.
Flexible Folding Tines folds down to accommodate larger pots, pans, and dishes.
Crystal Protection™ System is perfect for fine crystal - DWHD661EFM
Crystal Protection™ System is perfect for fine crystal
DWHD661EFM - Crystal Protection™ System is perfect for fine crystal
The Crystal Protect® Water Softener System utilizes a built-in water softener to neutralize water hardness, making it safe to wash crystal with sparkling results.

Specs
Specification Value
Type Built-in dishwasher
Style Top control
Collection Star Sapphire®, Masterpiece®
Color Stainless Steel
Color Finish Name Stainless Steel
Handle Design Bar handle (Masterpiece handle)
Door Panel Type Solid
Panel Ready No
Installation Type Built-under
Dishwasher Type Built-in
Appliance Fit Width 24 inches
Width 23 9/16 inches
Height 33 7/8 inches
Depth 23 3/4 inches
Depth Without Handle 22 9/16 inches
Depth With Handle 23 3/4 inches
Depth With Door Open 47 inches
Required Cutout Width 24 inches
Required Cutout Height 33 7/8 inches
Required Cutout Depth 24 inches
Product Weight 100–103 lbs (approx. 101 lbs typical)
Net Weight 100–101 lbs
Product Packaging Dimensions (HxWxD) 35 3/4 inches x 26 inches x 29 5/16 inches
Adjustable Feet Yes, all adjustable from front
Number of Place Settings 16
Number of Racks 3
3rd Rack Adjustable Chef’s Tool Drawer®
Adjustable Upper Rack Yes
Rack Adjustability RackMatic® 3-stage
Folding Glass Care Rack Yes, accommodates up to 18 wine glasses
Flexible Folding Tines Yes, in racks to accommodate larger items
Tub Material Stainless Steel
Noise Level 42 dBA
Sound Rating Range Quietest
ENERGY STAR Certified Yes
CEE Rating Tier 1
Total Annual Energy Consumption 240 kWh
Total Annual Water Consumption Approx. 624 gallons
Water Usage Per Cycle Approx. 3.2 gallons
Voltage 120 V (some retail listings show 240 V; manufacturer spec is 120 V)
Frequency 60 Hz
Amperage 12 A
Wattage 1440 W
Power Cord Length 67 inches
Length of Outlet Hose 90 1/2 inches
Minimum Water Pressure Approx. 14 lb/in²
Max. Temperature for Water Intake 140 °F
Control Type Touch control, top control
Fully Integrated Controls No (controls are top-mounted, not panel-ready)
Home Connect® (Wi-Fi Enabled) Yes
Smart Compatible Yes
App / Remote Monitoring Yes, via Home Connect® app
Works With Amazon Alexa, Google Home, SmartThings (via Home Connect ecosystem)
Time Remaining PowerBeam® Yes, projects remaining time on floor
Interior Lighting Yes
Multi-color Star Glow Yes, interior illumination in multiple colors
Sapphire Glow™ No
Crystal Protect® Water Softener System Yes, built-in water softener
Open Door Assist No
Leak Protection System 24/7 AquaStop® / leak sensor
Drying System StarDry™ with Zeolite, condensation dry
Sanitize Option Yes, NSF® certified sanitize option
Water Softener Yes, integrated
AquaSensor Yes (soil sensor)
Five-Level Wash Yes
Number of Wash Cycles / Programs 6 main programs + Favorite
List of Programs Auto, Normal, Quick, Hand Wash, Pots & Pans, Favorite
Cycle Options Remote Start, Sanitize, StarDry™, ZoneControl™ Front, ZoneControl™ Back, ZoneControl™ Custom
Programs & Options Exclusive to Home Connect® Glass, Machine Care, Save Time, Rinse
ZoneControl™ Spray Arm Yes, customizable cleaning power by rack zone
Dishwasher Features (general) Wi-Fi capable, app capable, 3rd rack, cutlery holder, food filter, sensor wash, stemware holder, interior light, leak sensor, movable tines
NSF® Certified Yes, sanitize option
ADA Compliant No (some retail listings show ADA, manufacturer spec is non-ADA)
Made in Canada No
Manufacturer Warranty 2 years parts & labor (some retailers list 1 year limited)
UPC 825225972198
