Manufacturer's Warranty: 2 years
Canadian model: DWHD661EPR
Canadian UPC: 825225971498
EAN: 0825225971498





| Specification | Value |
|---|---|
| Brand | Thermador |
| Series / Collection | Star Sapphire® |
| Model | DWHD661EPR |
| Product Type | Built-in dishwasher |

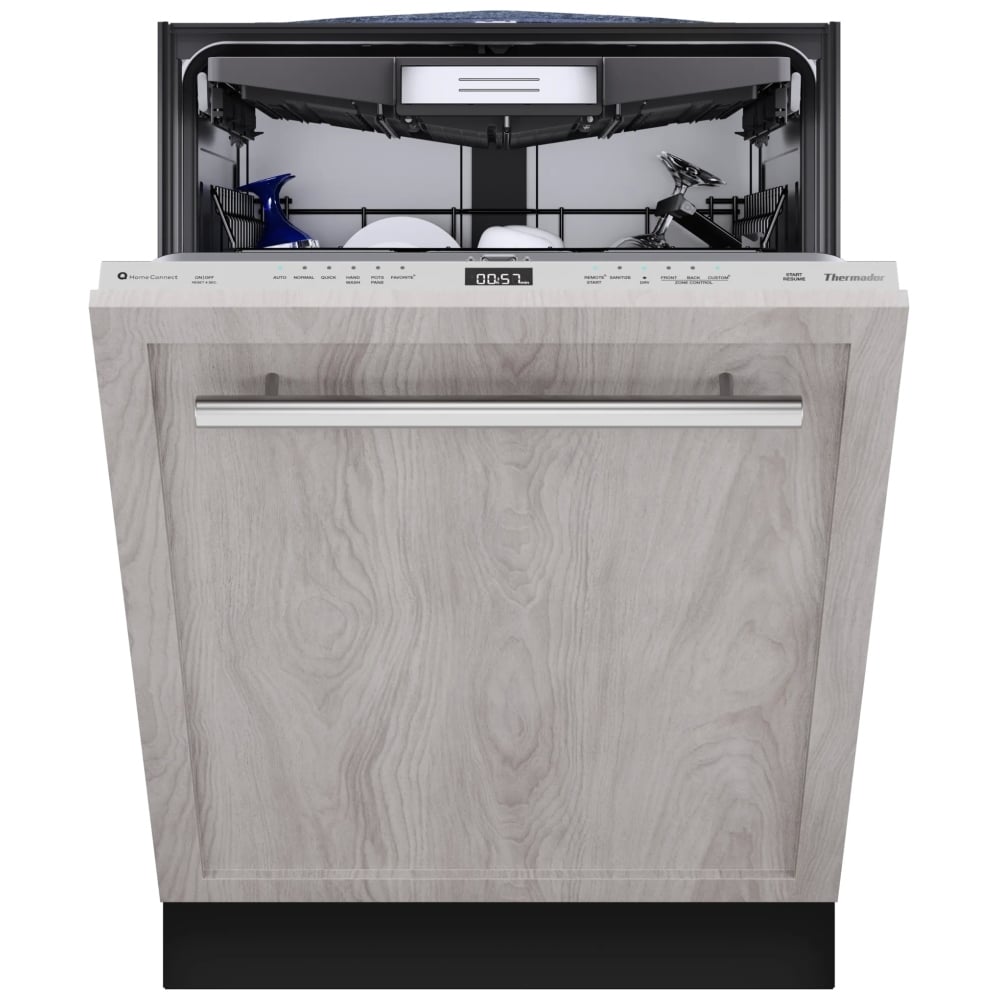

| Style | Fully integrated / panel ready |
| Custom Panel Ready | Yes, panel and handle sold separately |
| Handle Design | Custom panel (handle determined by custom panel) |
| Control Type | Electronic, touch / push-button, via app |
| Control Panel Location | Top (hidden when door closed) |

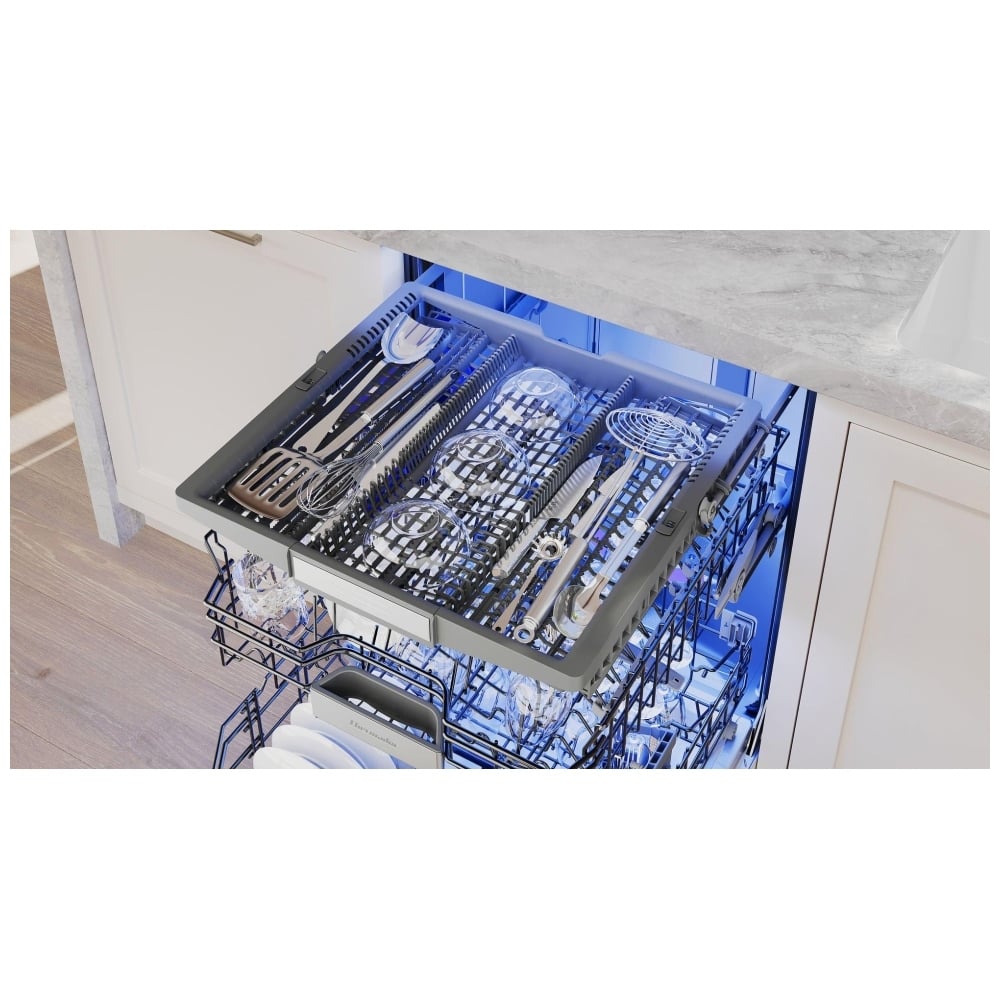

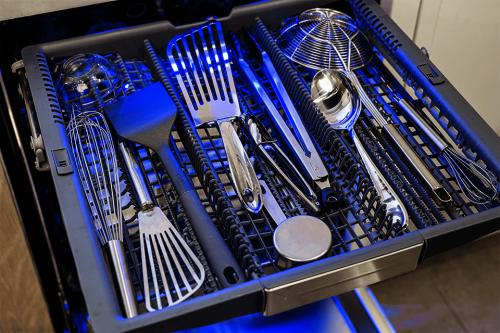

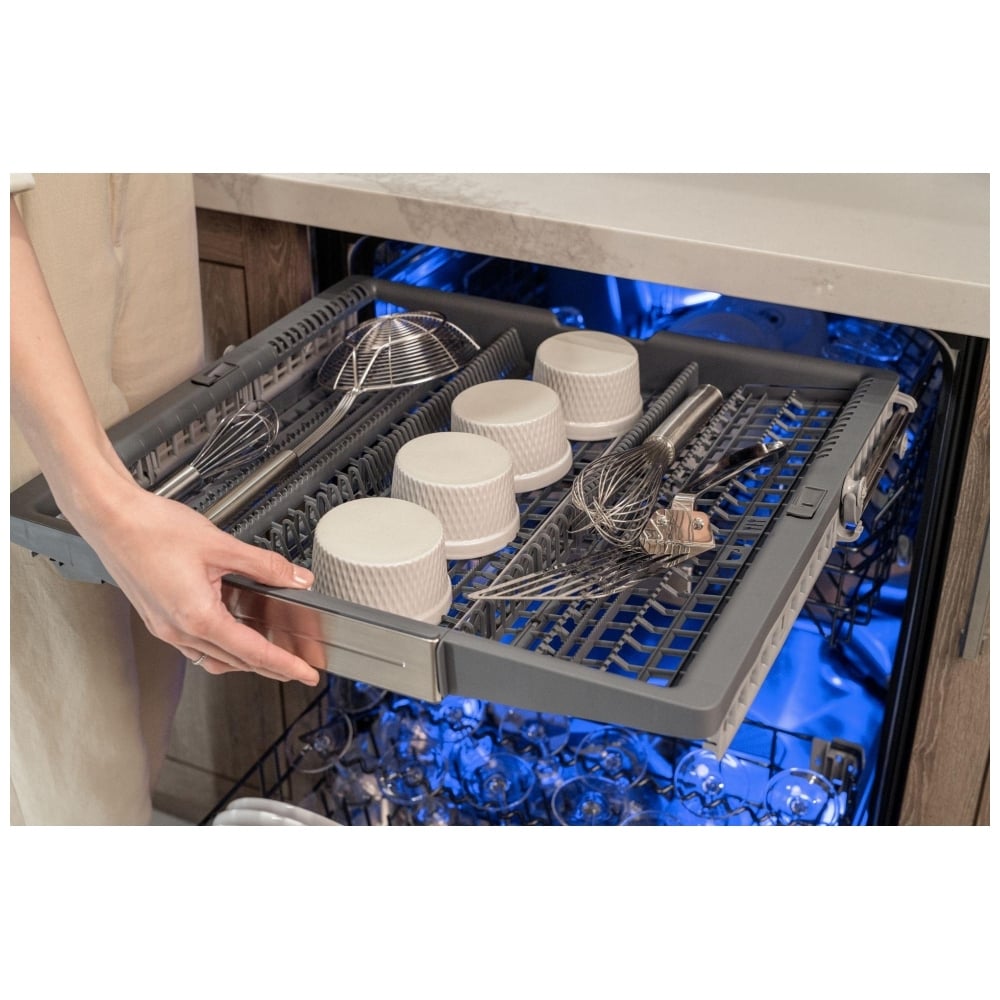

| Third Rack | Adjustable Chef’s Tool Drawer® (VarioDrawer Pro) |
| Tub Material | Stainless steel |
| Color / Finish | Panel ready (color not applicable) |
| Toe Kick Color | Black |
| Hidden Heating Element | Yes |
| Construction Type | Built-in, full-integrated |
| Column Installation | Yes |
| Removable Work Top | No |
| Door Décor Panel | Possible, accessory (custom panel) |
| Capacity & Performance | |
| Number of Place Settings | 16 |
| Silence Level | 42 dBA |
| Sound Rating Range | Quietest |
| Energy Star | ENERGY STAR® certified |
| Total Annual Energy Consumption | 240 kWh/year |
| Total Annual Water Consumption | 624 gallons/year (approx.) |
| Drying System | StarDry™ with Zeolite, condensation dry |
| Sanitize Option | Yes, NSF® Certified Sanitize option |
| Water Softener | Yes, Crystal Protect® water softener system |
| Aqua Sensor | Yes |
| Leak Protection | 24/7 AquaStop® leak protection |
| Dimensions & Weight | |
| Overall Height | 33 7/8 in (33.88 in / 860 mm) |
| Overall Width | 23 9/16 in (23.56 in / 598 mm) |
| Overall Depth | 23 1/16 in (23.06–23.06 in listed; 585 mm) |
| Depth (some retailer quick specs) | 23.56–23.75 in (marketing rounded) |
| Appliance Fit Width | 24 in class |
| Required Cutout Height | 33 7/8 in |
| Required Cutout Width | 24 in |
| Required Cutout Depth | 24 in |
| Minimum Installation Height | 860 mm |
| Maximum Installation Height | 890 mm |
| Depth with Door Open 90° | 1231 mm |
| Net Weight | 100–101 lb (approx. 46 kg) |
| Product Packaging Dimensions (HxWxD) | 35 3/4 in x 26 in x 29 5/16 in |
| Electrical | |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Current | 12 A |
| Connected Load | 1440 W |
| Power Cord Length | 67 in (170 cm) |
| Plug Type | NEMA 5-15P |
| Water & Installation | |
| Length of Outlet Hose | 90 1/2 in (230 cm) |
| Adjustable Feet | Yes, all adjustable from front |
| Adjustability of Feet | Up to 30 mm |
| Adjustable Plinth | No |
| Programs & Options | |
| Wash Programs | Auto, Normal, Quick, Hand Wash, Pots & Pans, Favorite |

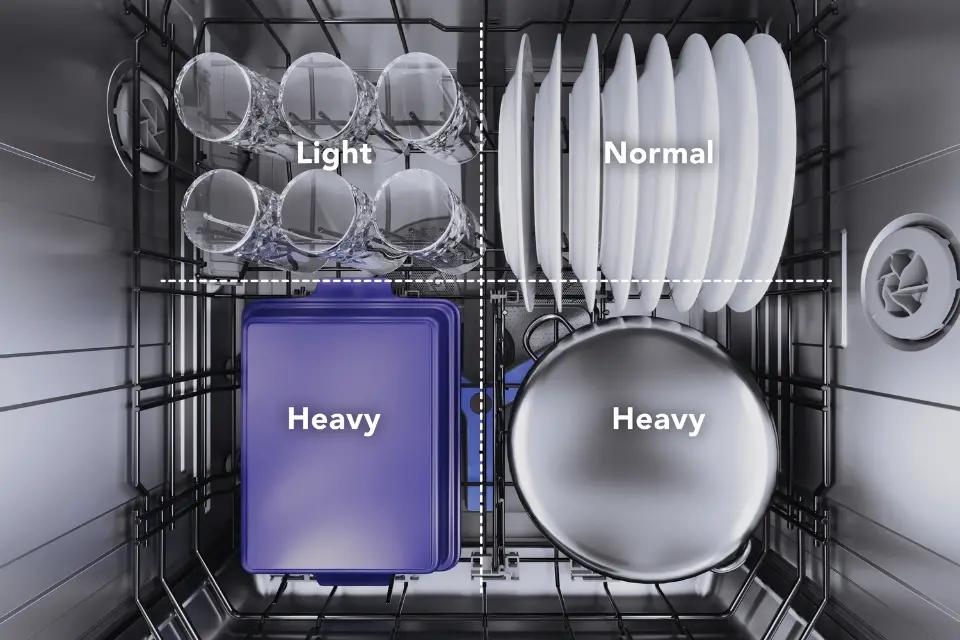

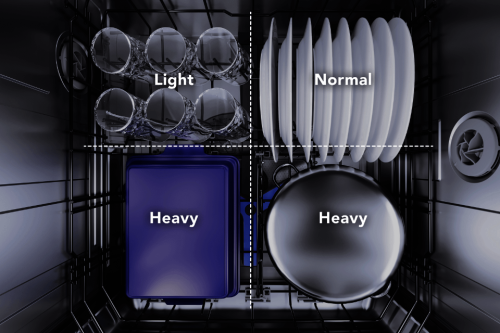

| Cycle Options (on unit) | Remote Start, Sanitize, StarDry™, ZoneControl™ Front, ZoneControl™ Back, ZoneControl™ Custom |
| Programs & Options Exclusive to Home Connect® | Glass, Machine Care, Save Time, Rinse |
| Number of Cycles (retailer listing) | 7 |
| Racks & Interior | |
| Third Rack | Adjustable Chef’s Tool Drawer® (VarioDrawer Pro) |
| Adjustable Upper Rack | Yes |

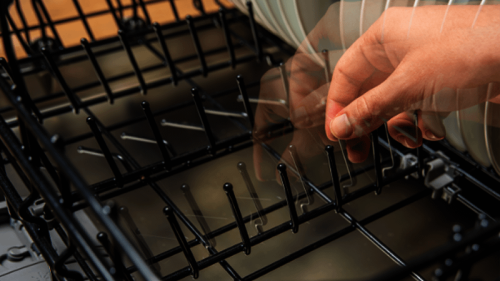

| Flexible Folding Tines | Yes, folds down to accommodate larger pots, pans, and dishes |

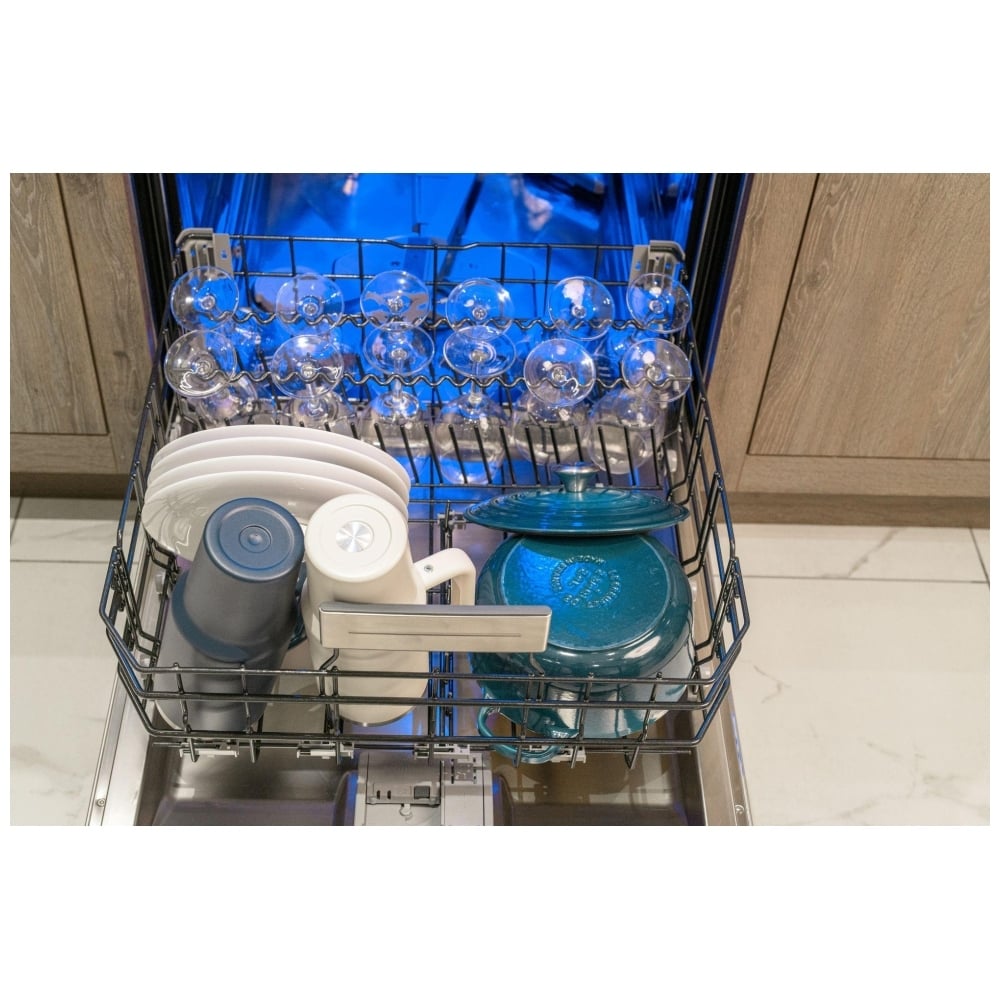

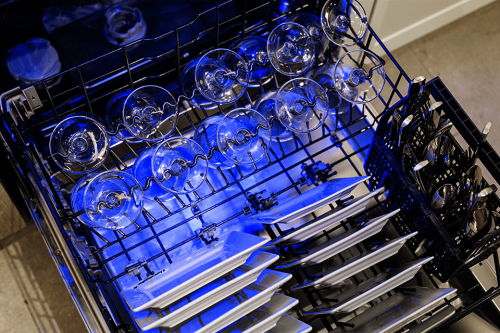

| Glass Care Rack | Folding glass care rack; accommodates up to 18 wine glasses |
| Cutlery Holder | Yes (in racks plus third rack) |
| Stemware Holder | Yes |

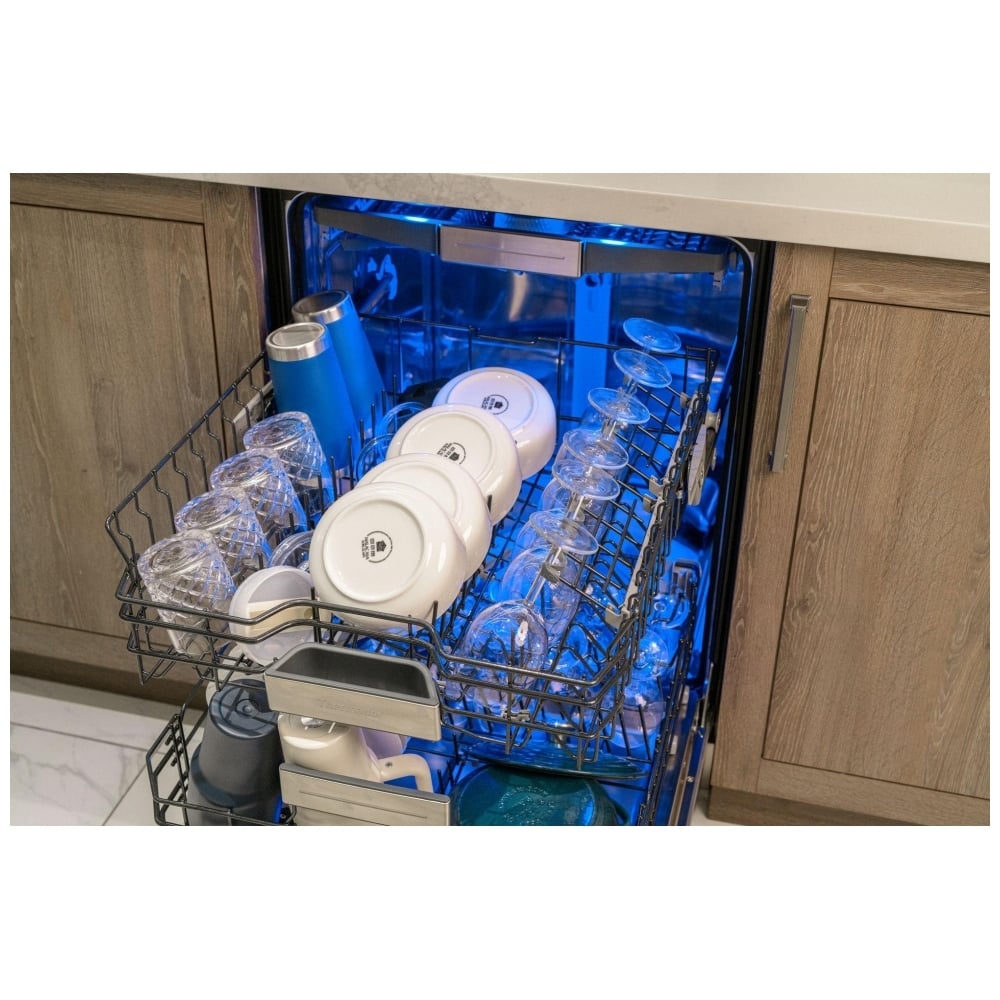

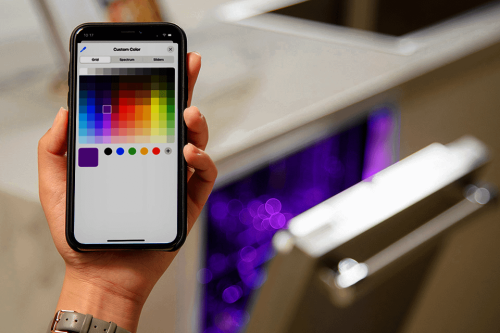

| Interior Lighting | Multi-color Star Glow interior illumination |
| Sapphire Glow™ | No |

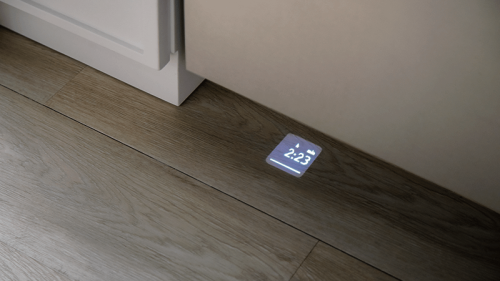

| Time Remaining Indicator | Time Remaining PowerBeam® projected on floor |
| Program Status Light | Not applicable (uses PowerBeam® instead) |
| Comfort & Convenience | |
| Open Door Assist | Yes (push-to-open; handle-less compatible) |
| Crystal Protect® System | Yes, built-in water softener for crystal |
| Multi-color Star Glow | Yes, interior mood lighting |
| Child Lock | Yes |
| Connectivity & Smart Features | |
| Wi-Fi | Home Connect® WiFi-enabled |
| Smart Compatible | Yes (app capable, remote monitoring and control) |
| Home Connect® Features | Remote monitoring and control, Remote Start, access to additional programs and options |
| Smart Home Integration | Compatible with select smart home devices and services (e.g., voice assistants via Home Connect®) |
| Safety | |
| Leak Protection | 24/7 AquaStop® leak protection |
| Safety Features | Floating switch, child lock, push-twice-to-open safety logic |
| Miscellaneous | |
| SKU / Internal Article Number | DWHD661EPR |
| EAN Code | 825225971498 |
| Manufacturer Warranty | 2 years parts & labor (typical for this model) |
