Thermador

HDDB30WS

• Masterpiece® design – premium Thermador Masterpiece® styling coordinates with other Masterpiece® cooking appliances for a cohesive, modern kitchen look.

• Noise Control Deluxe™ technology – utilizes perimeter filters and added insulation to significantly reduce operating noise so conversations and entertaining are more comfortable.

• Home Connect™ Wi-Fi Enabled – allows remote monitoring and control of fan speed and lighting, plus grease‑filter cleaning notifications, through the Home Connect™ app.

• Thermador Connected Experience – integrates this hood into a connected Thermador kitchen suite so multiple appliances can be monitored and managed on one network.

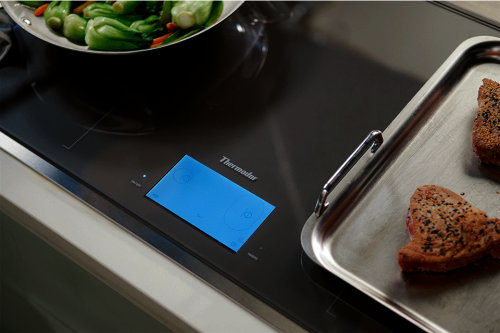

• Hood Sync with Freedom® & Liberty® cooktops – pairs with compatible Thermador Freedom® and Liberty® induction cooktops to automatically turn on task lighting and ventilation when the cooktop is in use.

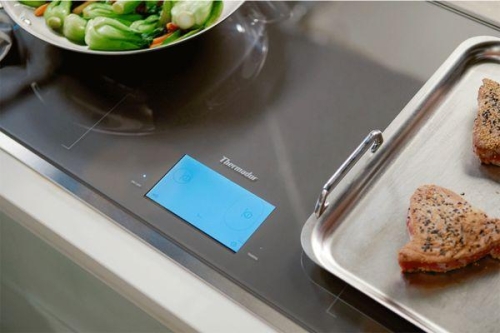

• Cooktop Hood Sync control from Freedom® cooktop – enables hood activation and control directly from the Freedom® induction cooktop touchscreen for added convenience.

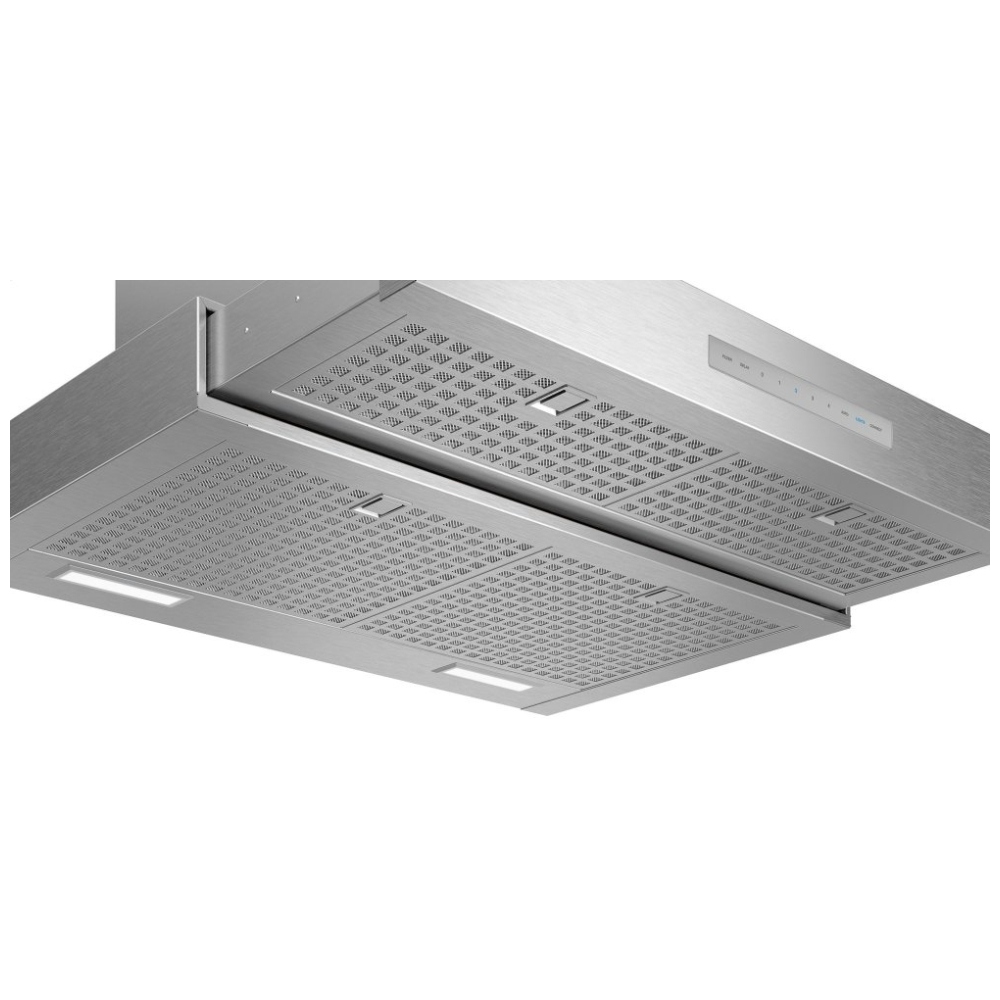

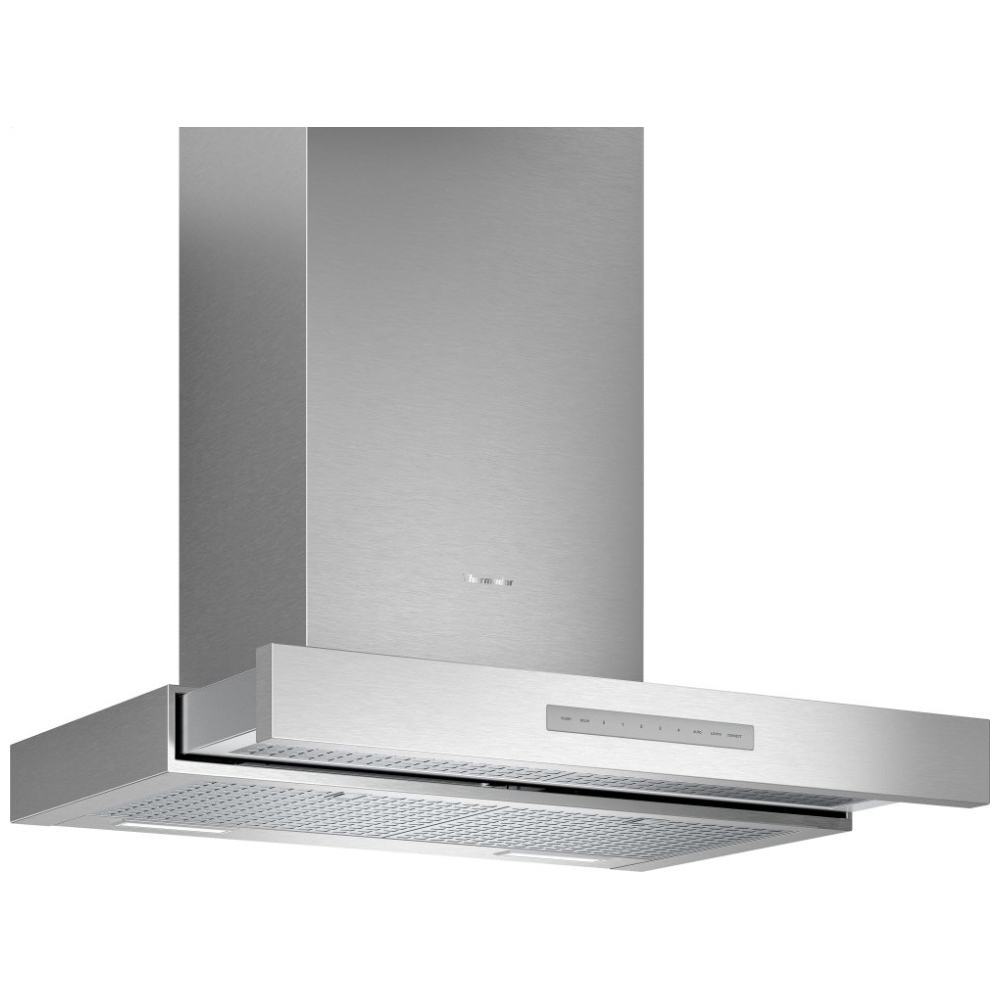

• Masterpiece® Chimney Drawer hood style – drawer‑style canopy can be pulled forward for increased smoke and steam capture or pushed back for a more flush, minimalist appearance.

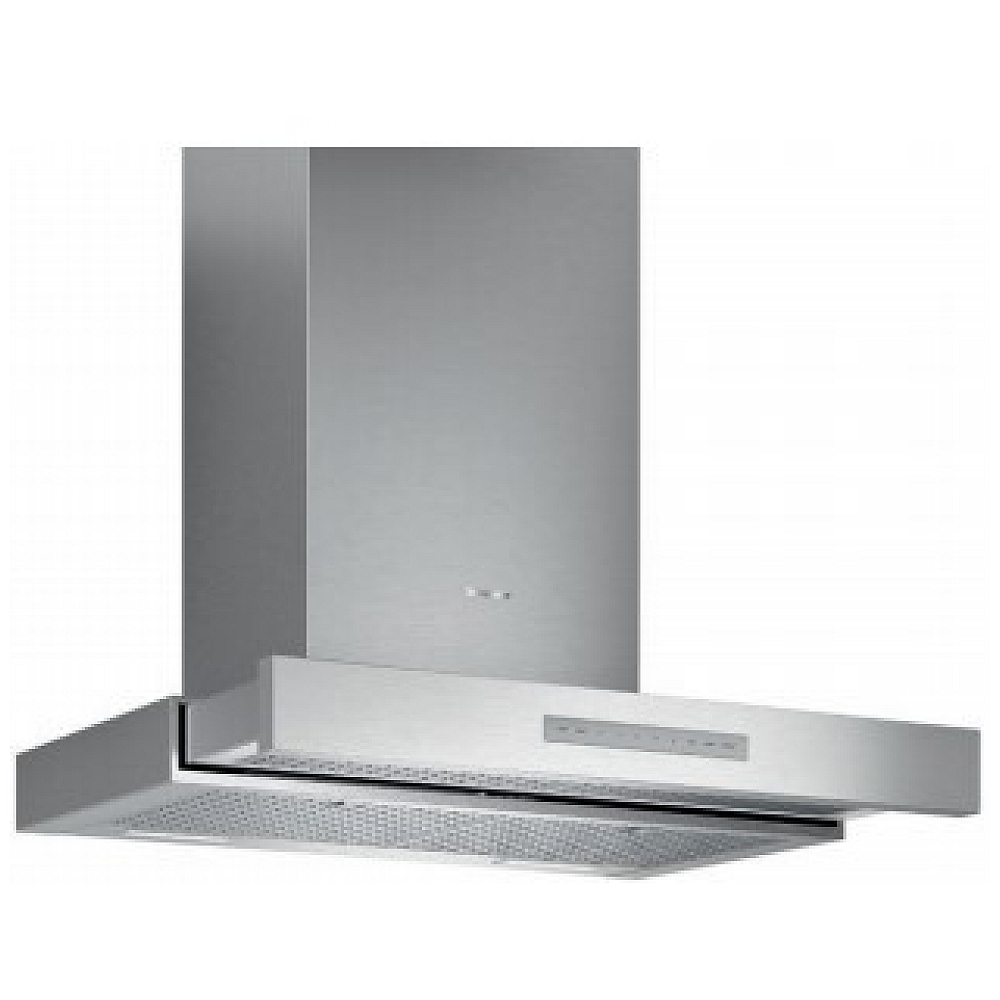

• 30" wall‑mounted chimney configuration – designed for installation over 30‑inch cooktops and ranges in a wall‑mount application.

• 600 CFM internal blower – powerful integrated blower provides strong ventilation performance to match Thermador Masterpiece® cooktops and ranges.

• Ducted or recirculating installation – supports standard ducted venting and can be converted to recirculation with an optional kit for installations where ducting is difficult.

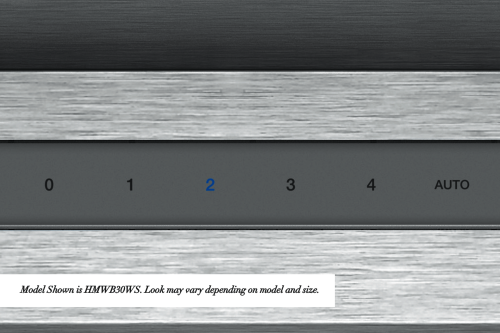

• 4 fan speed settings – multiple blower speeds let you choose the ideal airflow level for simmering, sautéing, or high‑heat searing.

• Automatic Mode – detects cooking conditions and automatically adjusts fan speed to help maintain effective ventilation without manual changes.

• Delay Shut Off function – keeps the fan running for about 10 minutes after cooking ends to help clear lingering smoke and odors, then turns off automatically.

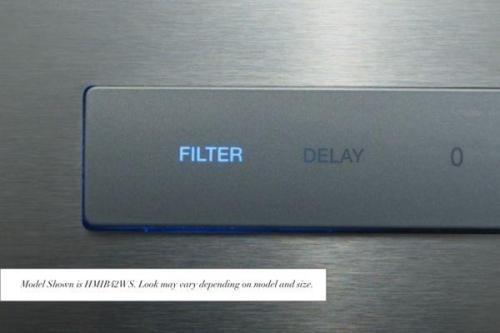

• Check filter reminder light – indicator illuminates after a set number of operating hours to remind you when the grease filters need cleaning for optimal performance.

• Dishwasher‑safe hybrid mesh filters – durable stainless‑framed mesh filters capture grease effectively and can be removed and cleaned in a standard dishwasher.

• Grease‑capturing perimeter filter design – perimeter capture system helps draw smoke and steam toward the edges of the hood for efficient extraction.

• Multi‑level LED lighting – energy‑efficient LED lights provide bright, even illumination of the cooking surface with multiple intensity levels.

• 0–100% light slider in app – Home Connect™ app offers fine‑tuned dimming control of hood lighting from fully off to full brightness.

• Cool white LED color temperature – approximately 4000 K lighting delivers a crisp, neutral white light that enhances visibility while cooking.

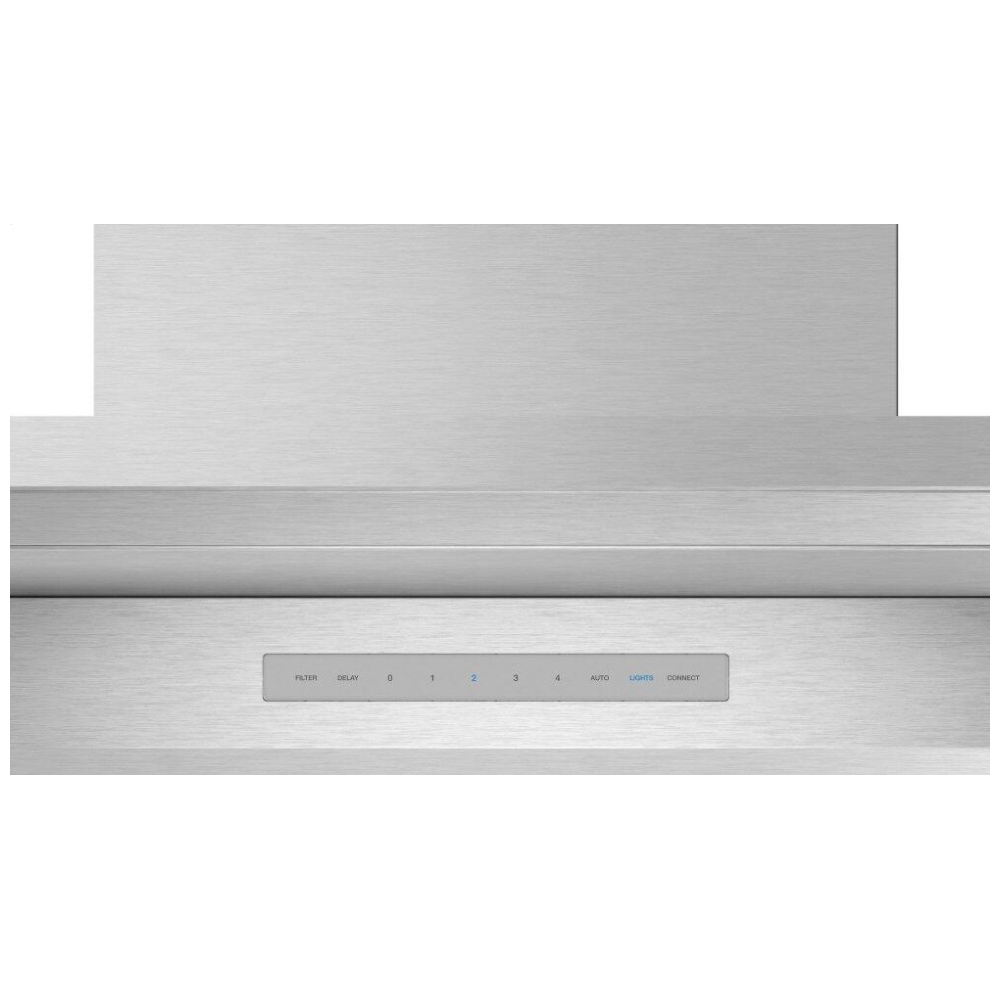

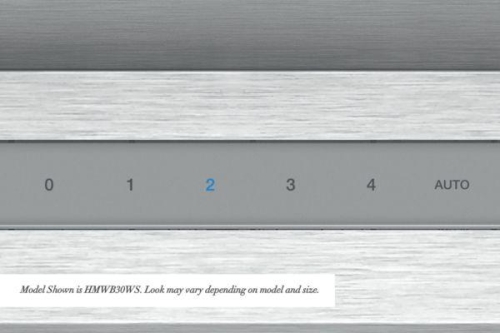

• Sleek electronic touch control panel – smooth, glass‑like touch controls are intuitive to use and easy to wipe clean with a damp cloth.

• Illuminated control indicators – backlit icons and indicators clearly show selected fan speed, lighting level, and active functions.

• Remote control panel ready – compatible with an optional remote control panel accessory, allowing hood operation from a more accessible location if desired.

• Mobile notifications – optional push notifications via Home Connect™ can alert you to filter cleaning needs and other hood status updates.

• Customizable app settings – Home Connect™ allows programming of preferred fan behaviors, lighting levels, and delay‑off times to match your cooking style.

• Vertical 8" round duct discharge – supports common vertical ducting with an 8‑inch round outlet for efficient airflow.

• Convertible recirculation option – optional recirculation kit allows filtered air to be returned to the kitchen when exterior venting is not possible.

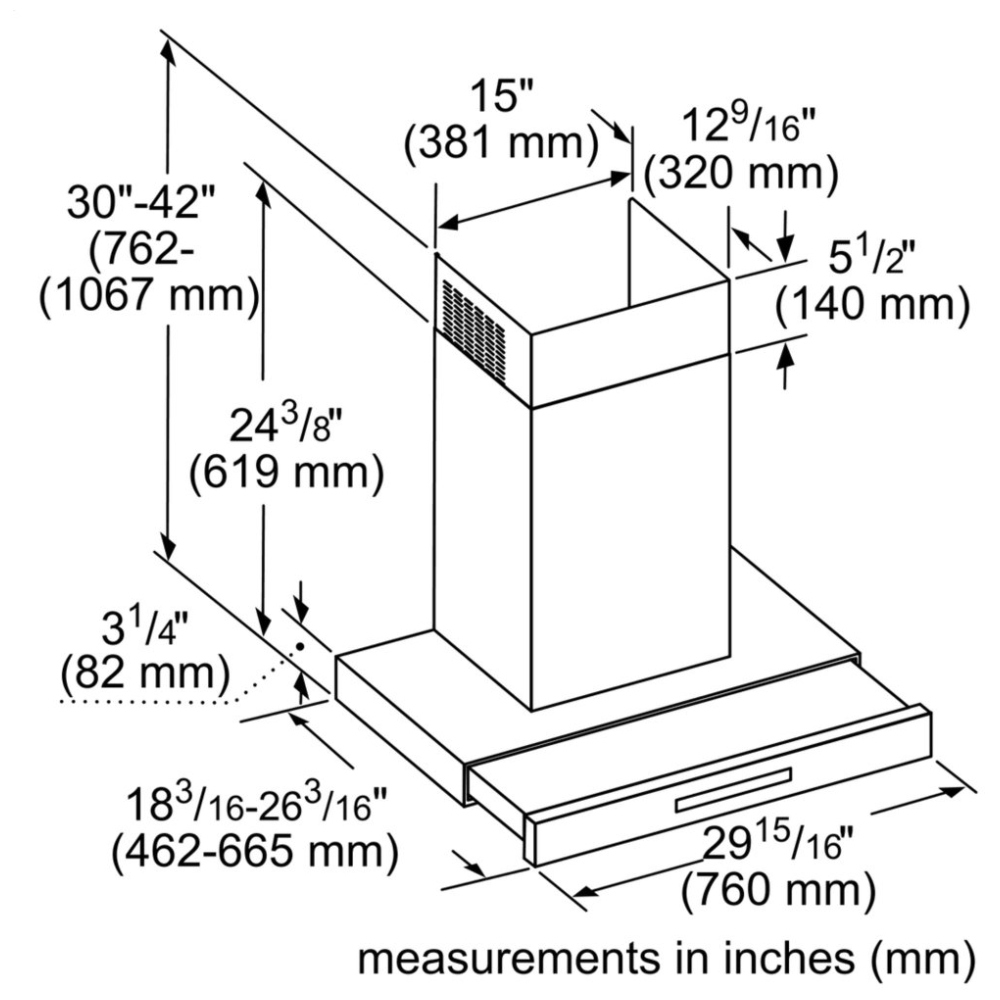

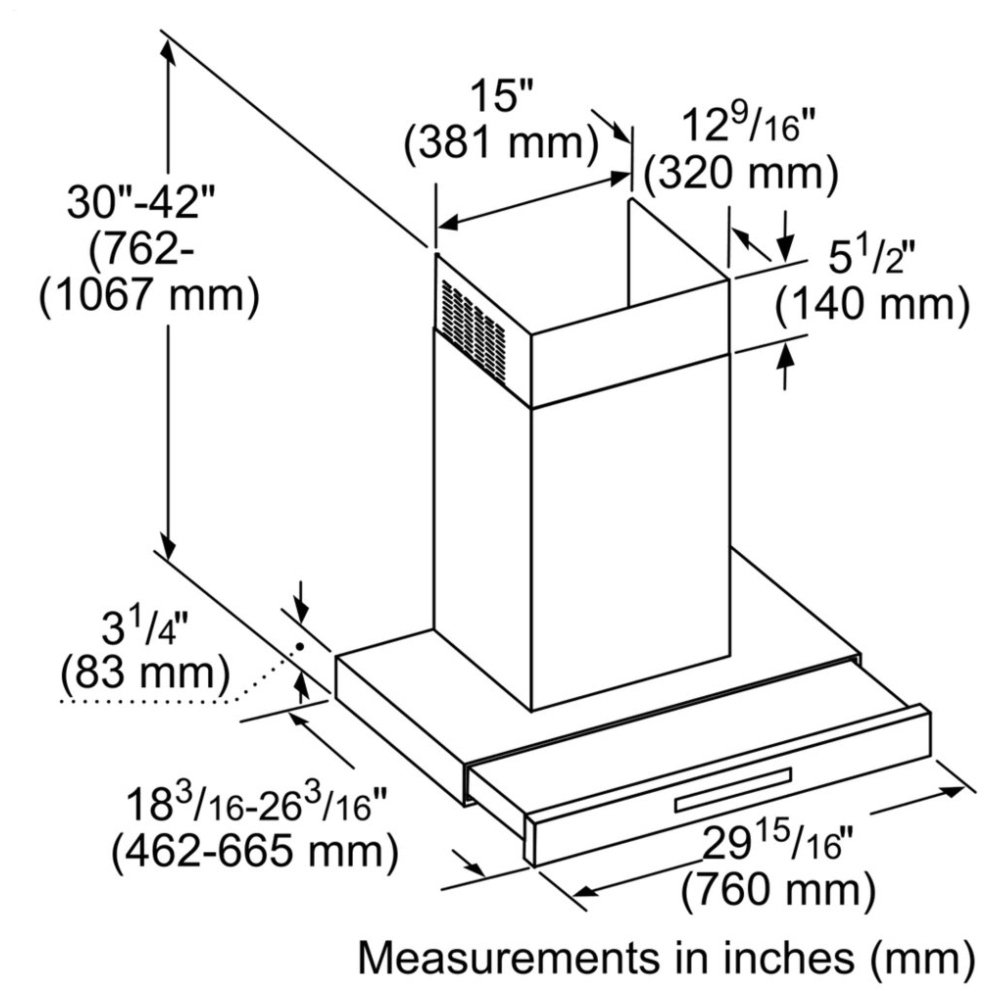

• 30"–42" adjustable chimney height – telescoping chimney accommodates a range of ceiling heights for flexible installation.

• Chimney extension kit available – optional extension kit supports installation in kitchens with taller 9'–12' ceilings.

• 30" minimum clearance above cooktop – designed to be installed at a safe and effective height above standard cooktops and ranges.

• Stainless steel construction – high‑quality stainless steel body and chimney provide durability and a professional appearance.

• Integrated motor in chimney – compact motor placement within the chimney helps maintain a clean, streamlined look over the cooking surface.

• Mesh filter type – mesh filtration system traps airborne grease and particulates to help keep kitchen air cleaner.

• 4‑speed electronic control – precise digital control of all four fan speeds for tailored ventilation performance.

• Low‑consumption lighting system – LED technology reduces energy use compared with traditional halogen bulbs.

• Clean filter reminder in app – Home Connect™ can display filter status and reminders directly on your mobile device.

• ADA‑friendly remote option – when used with the optional remote control and installed per guidelines, controls can be placed in a more accessible location.

• Wall‑mounted installation type – engineered specifically for mounting on a wall rather than under a cabinet or in an island application.

• Convertible venting – supports both external venting and internal recirculation to suit different kitchen layouts and building constraints.

• 30" width size class – sized to match standard 30‑inch cooktops and ranges commonly used in many kitchens.

• Stainless steel filter frames – robust frames help filters maintain shape and fit after repeated cleanings.

• Damper included – built‑in damper helps prevent backdrafts when the hood is not in use.

• Smart‑home compatibility – works with select smart‑home devices and services, including voice assistants such as Amazon Alexa, for hands‑free control of basic functions.
