Manufacturer's Warranty: 2 years
Canadian model: HMCB30WS
Canadian UPC: 825225935704
EAN: 0825225935704



| Specification | Value |
|---|---|
| Model | HMCB30WS |
| Series | Masterpiece® Pyramid Chimney Wall Hood |
| Type | Wall-mounted chimney range hood |
| Venting Type | Ducted; convertible to recirculation mode (recirculation kit required) |
| Installation Type | Wall-mounted |
| Size Class | 30 Inch |

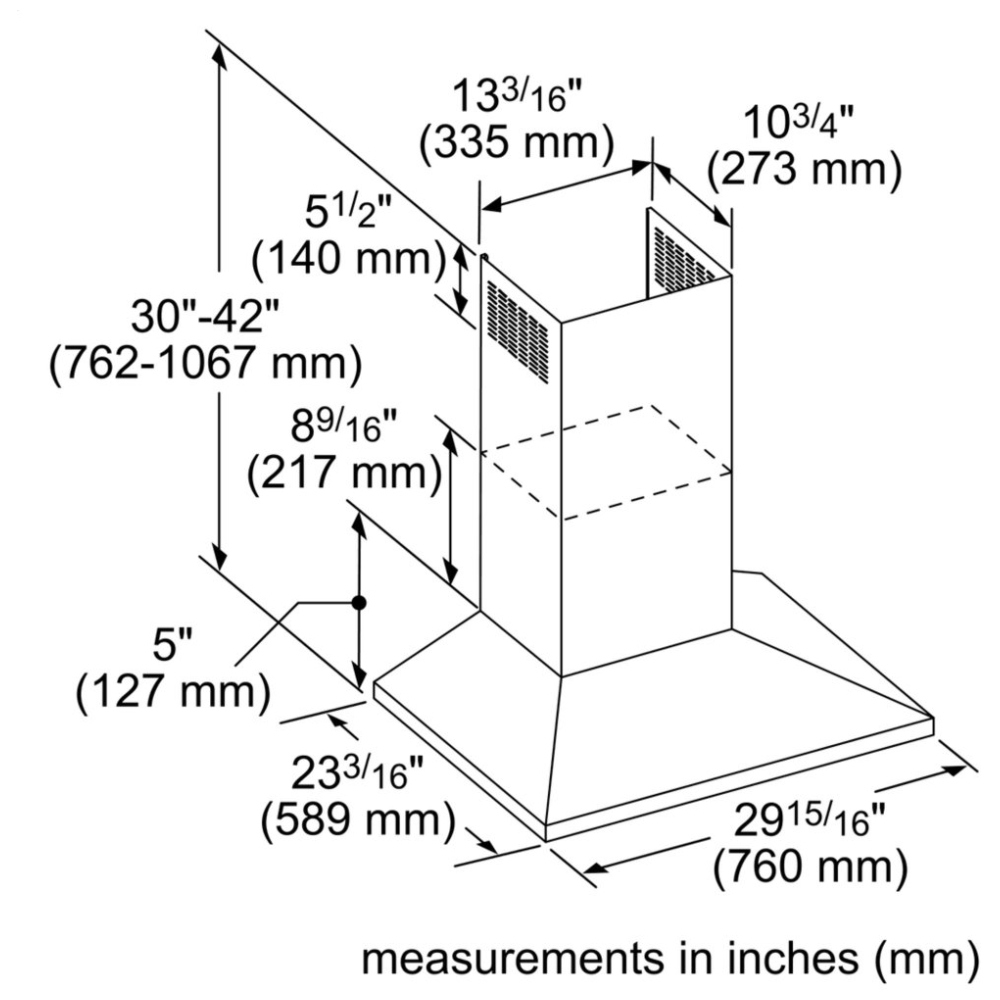

| Width | 29 15/16 inches (29.94" / approx. 76.0 cm) |
| Height (overall hood) | 30" – 42" adjustable (chimney section) |
| Minimum Chimney Height | 30 inches (hood body + minimum chimney) |
| Maximum Chimney Height | 42 inches (hood body + maximum chimney) |
| Depth | 23 3/16 inches (23.19" / approx. 58.9 cm) |
| Required Distance Above Cooktop / Range | 30 inches (electric or gas) |
| Duct Discharge Size | 8 inch round duct (top discharge) |
| Vertical Ducting | Yes, vertical ducting possible |
| Ventilation Type | Convertible (ducted or recirculating with optional kit) |
| Airflow (Max CFM) | 600 CFM |
| Blower Included | Yes, internal blower |

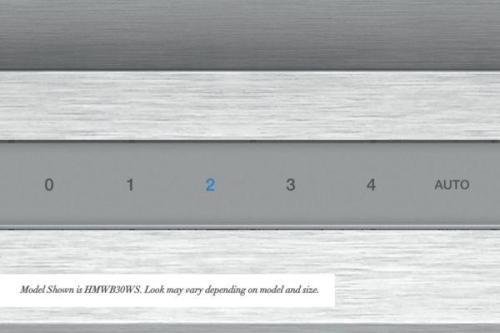

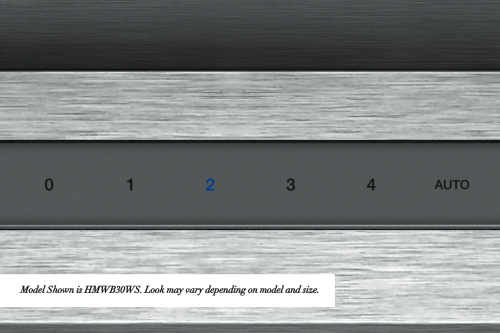

| Number of Fan Speeds | 4 fan speeds |
| Boost Speed | No dedicated boost speed |
| Sones Rating | 1.9 sones (measured at speed 1 in ducted installation) |
| Noise Level Category | Quiet (low) |
| Noise Control Technology | Noise Control Technology™ insulation to reduce noise up to approx. 35% vs. non-insulated hoods |
| Material | Stainless steel |
| Color / Finish | Stainless Steel |

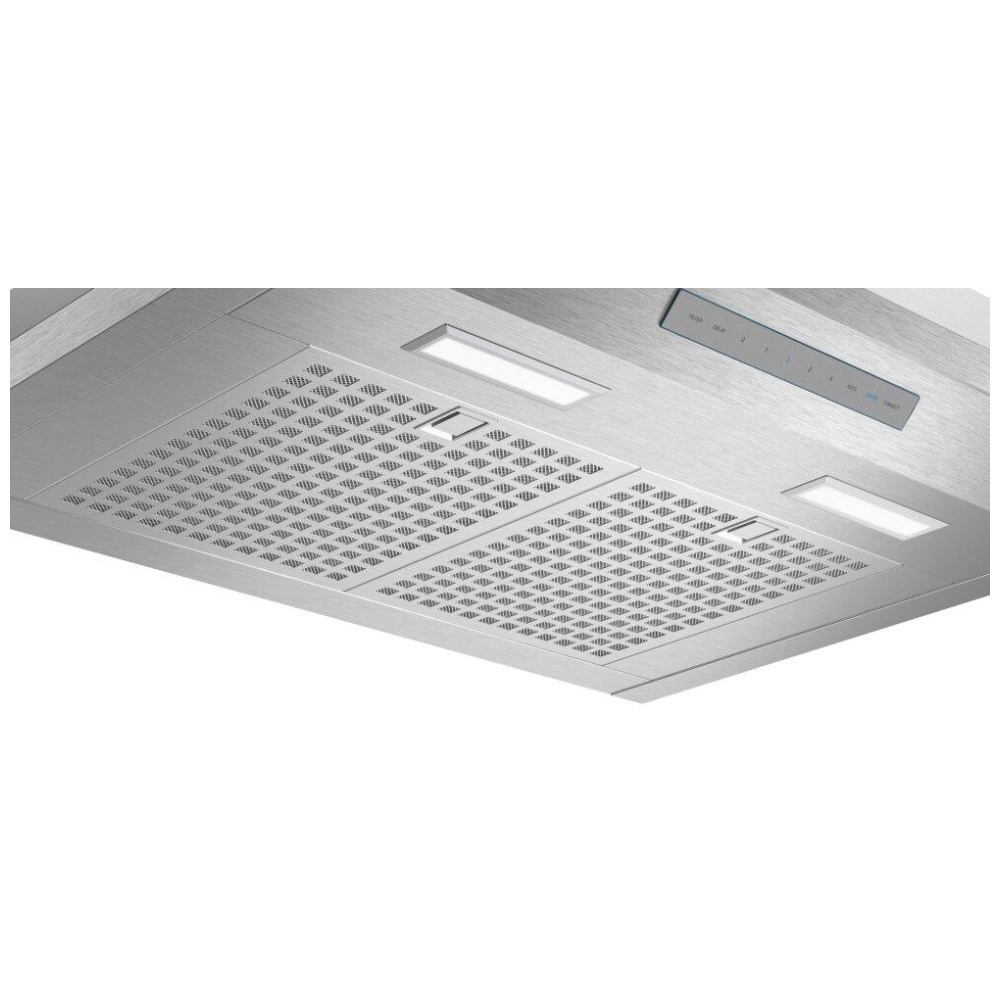

| Filter Type | Hybrid mesh filters with stainless steel frame |
| Filter Material | Stainless-steel washable hybrid mesh grease filters |
| Filter Cleanability | Dishwasher-safe |
| Number of Filters | Hybrid mesh filter set (typically 2 panels) |

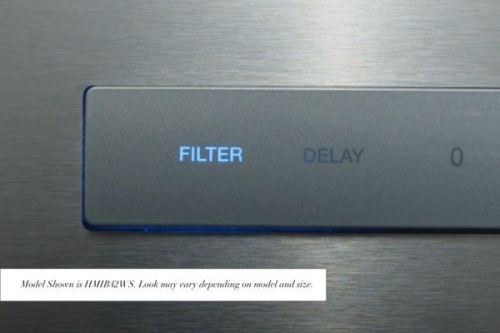

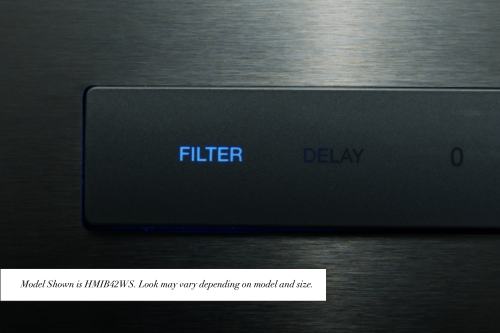

| Clean Filter Reminder | Yes, check filter reminder light (illuminates after approx. 40 hours of operation) |
| Damper | Yes, damper included |

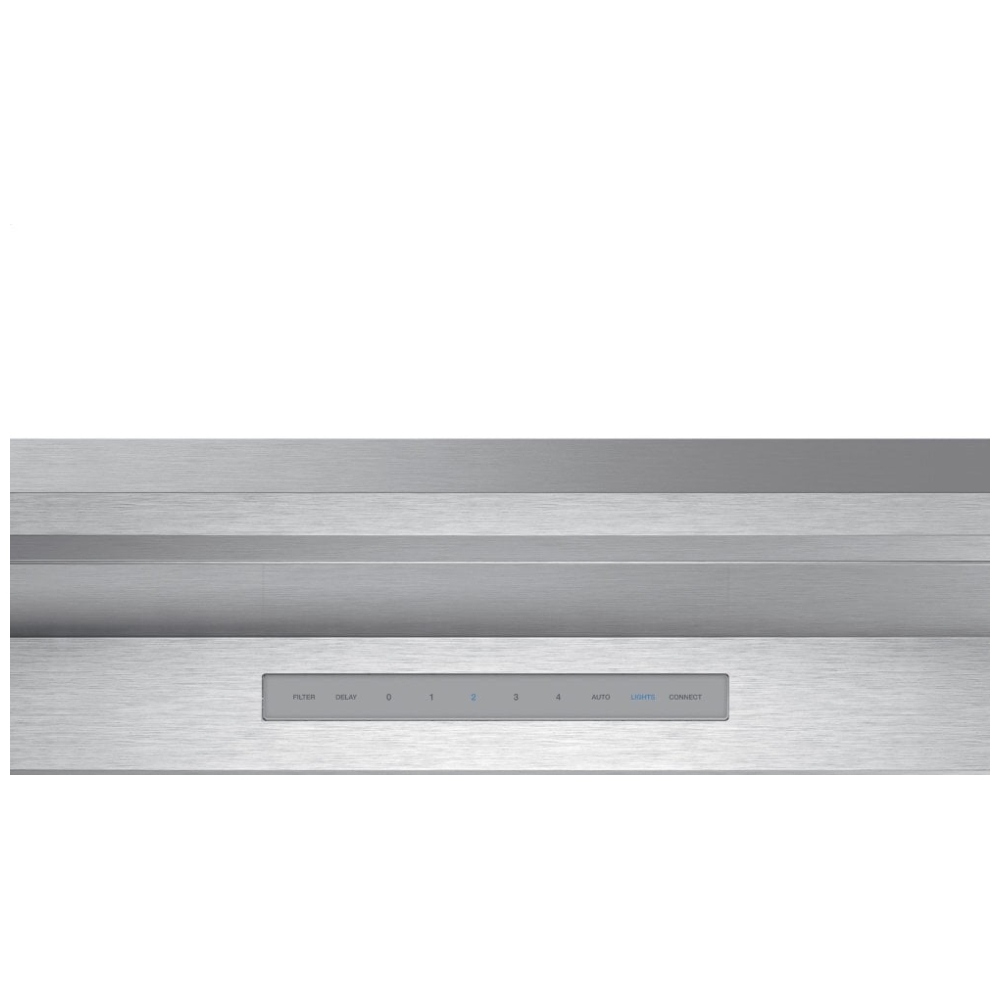

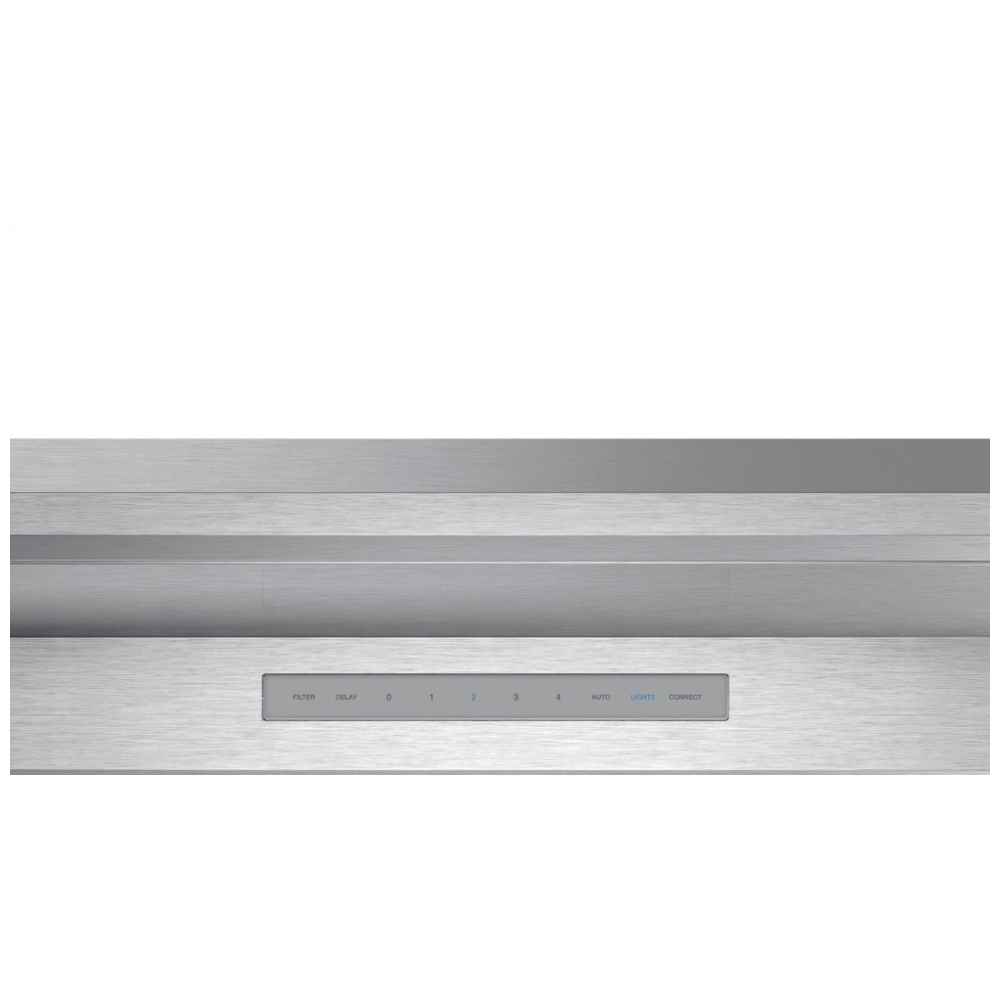

| Control Type | Sleek, smooth touch controls; illuminated buttons; app control via Home Connect |
| Remote Control (Accessory) | Yes, optional built-in remote control panel (REMCPW) |

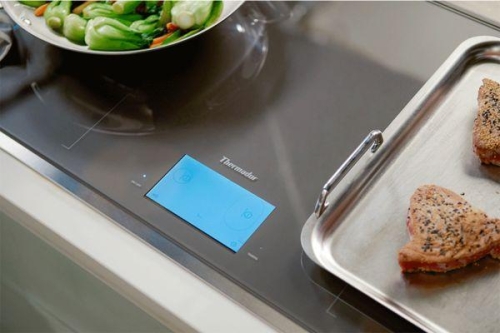

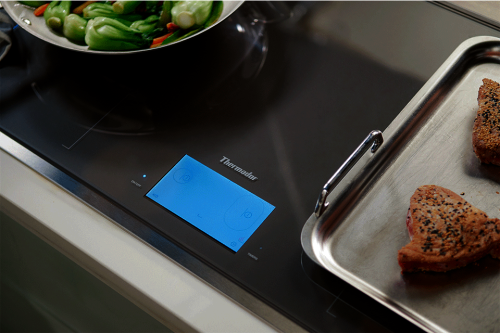

| Cooktop Hood-Sync | Yes, cooktop hood-sync enabled with compatible Thermador cooktops |
| Automatic Mode | Yes, automatic mode adjusts fan speed according to cooking |
| Delay Shut-Off | Yes, 10-minute delay shut-off (adjustable via Home Connect app) |
| Delay Shut-Off Modes | Yes, programmable through controls / app |
| Lighting Type | Low-consumption LED lighting |
| Number of Lights | 2 LED lights |
| Total Luminance | Approx. 150 lumens total |
| Color Temperature | Cold white, approx. 4000 K |
| Lighting Levels | Multi-level LED lights with fading transitions; 0–100% slider via Home Connect app |
| Heat Lamps | No |
| Wi-Fi | Yes, Wi-Fi enabled |
| Connectivity Platform | Home Connect™ |
| Connected Features | Remote monitoring and control, fan speed and light control, delay shut-off adjustment, filter-clean notification, integration with smart home devices (e.g., Amazon Alexa) |
| Smart Home Compatibility | Works with select smart home devices and services (e.g., Amazon Alexa; app-based control) |
| Home Connect Functions | Remote monitoring, remote control, notifications (e.g., clean filter), light level slider, delay shut-off adjustment |
| ADA Compliant (when installed per ADA) | No |
| Outdoor Approved | No |
| ENERGY STAR Certified | No |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Current | 15 A |
| Total Watts (hood) | Approx. 455 W total |
| Plug Type | 120 V, 3-prong plug |
| Product Weight | Approx. 63 lb (28.6 kg) |
| Net Weight (some listings) | Approx. 42 lb (19.0 kg) net; higher values may include packaging |
| Product Packaging Dimensions (HxWxD) | Approx. 29 1/8" x 33 7/8" x 17 1/2" |
| Additional Dimensions (select Canadian listings) | Height of chimney: approx. 25" – 27"; accommodates ceiling heights up to approx. 9 ft with standard chimney |
| Ceiling Height Compatibility (standard) | Up to approx. 9 ft with included chimney |
| Ceiling Height Compatibility (with extension) | Up to approx. 12 ft using optional stainless steel chimney hood extension (CHXTHMCB) |
| Range Hood Type (retailer classification) | Wall mounted / chimney style |
| Positioning | Stationary wall mount |
| Range Hood Features (summary) | Wi-Fi capable, app capable, light, automatic mode, delay shut-off, filter reminder, cooktop hood-sync |
| Included Accessories | Damper |
| Optional Accessories | Stainless steel chimney hood extension (CHXTHMCB) for up to 12 ft ceilings; recirculation kit (RECHMCB) for ductless installation; replacement charcoal filter (CHFHMCD) for recirculation; built-in remote control panel (REMCPW); 8" wall cap (WC8) |
| Warranty (typical) | Limited 2-year warranty on parts and labor |
| UPC (common listing) | 825225935704 (may vary by region) |
