Manufacturer's Warranty: 2 years
Canadian model: HMWB30WS
Canadian UPC: 825225935773
EAN: 0825225935773




| Specification | Value |
|---|---|
| Model | HMWB30WS |
| Series | Masterpiece® Series |

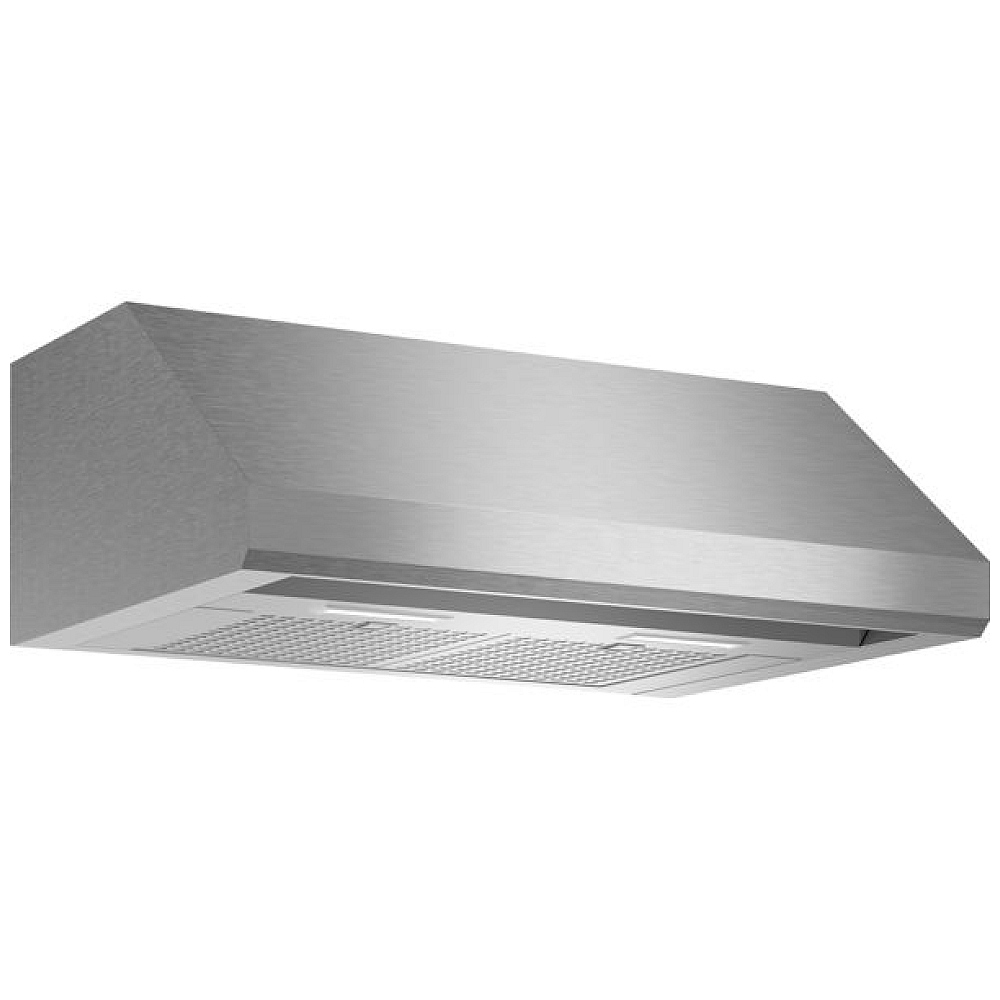

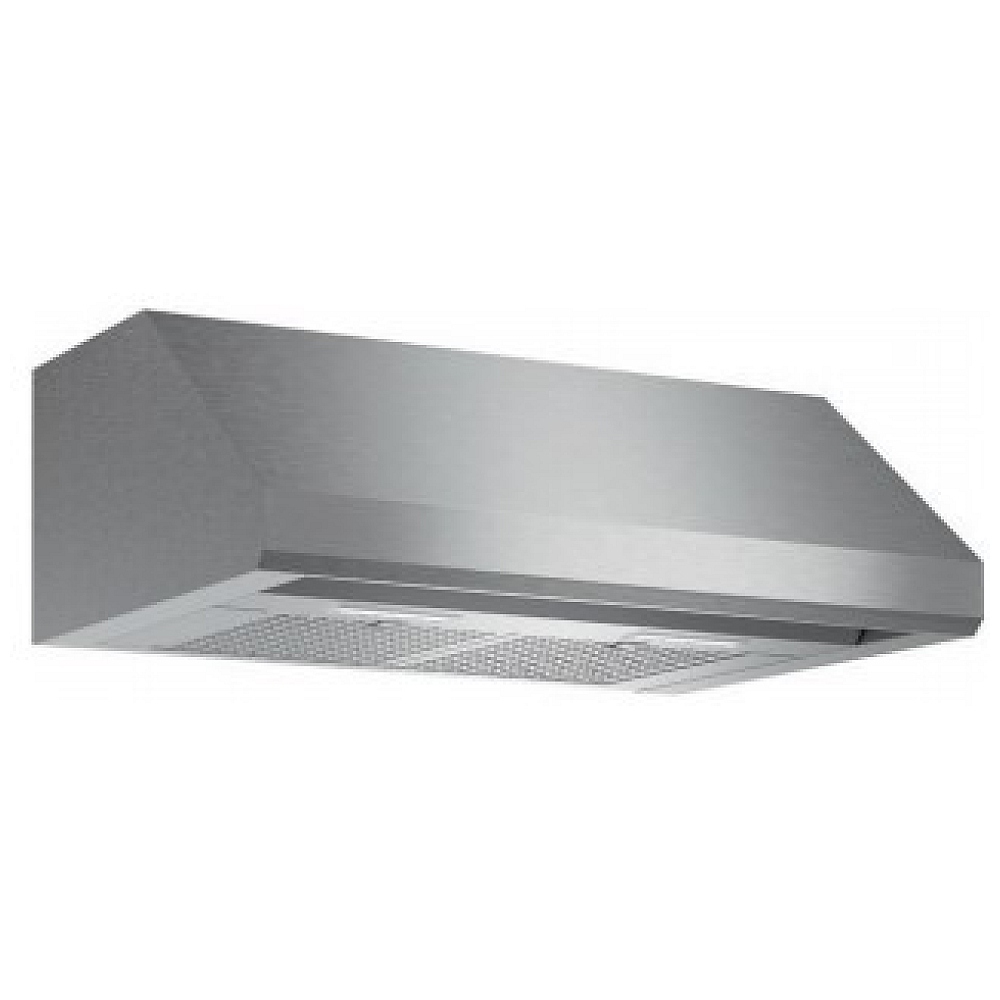

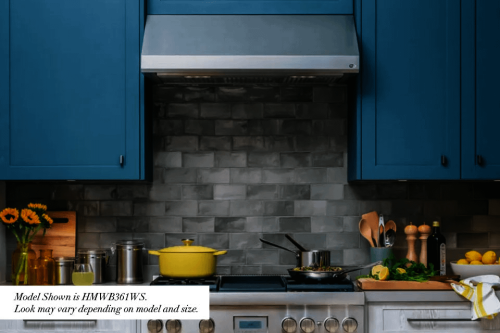

| Product Type | Under-cabinet / wall-mount range hood |
| Hood Type | Convertible (ducted or recirculating) |
| Blower Included | Yes (internal) |
| Maximum Airflow | 600 CFM |
| Noise Level | 1.9 sones (quiet – low) |

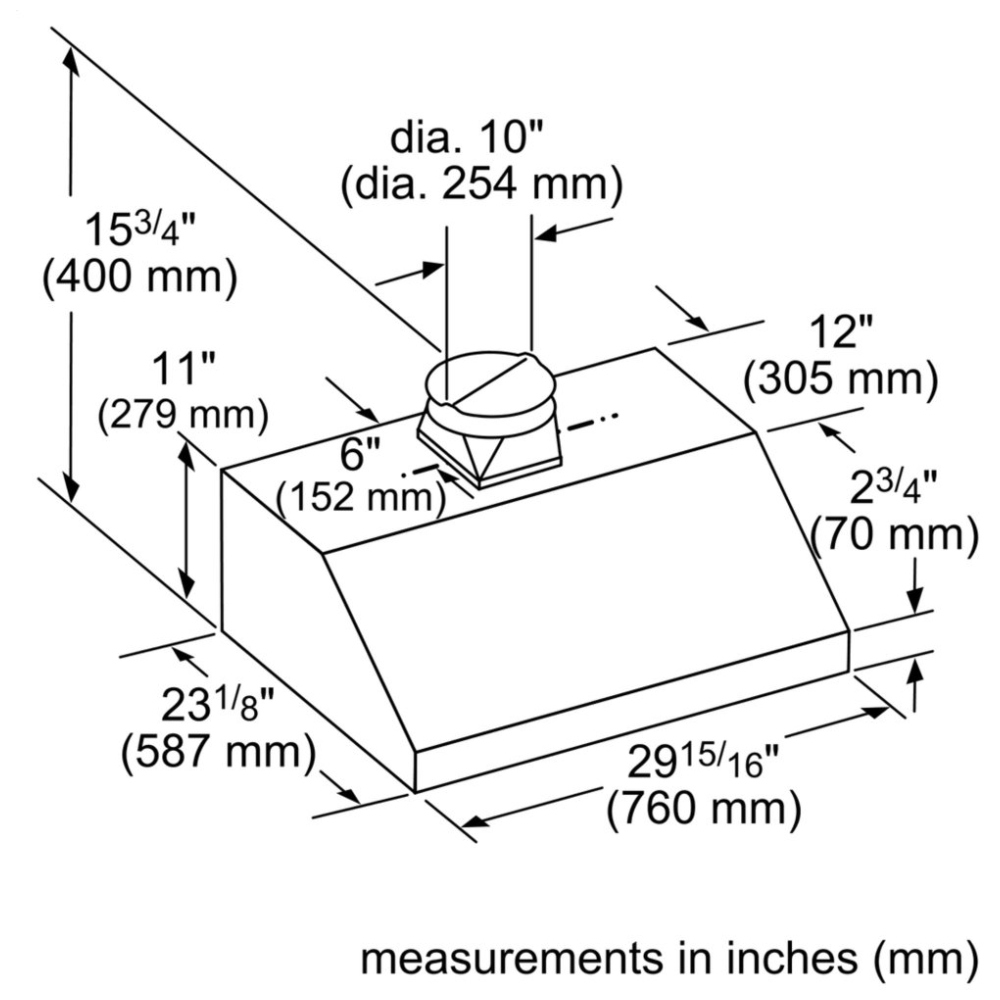

| Width | 29 15/16 inches (approx. 29.94 in / 76.0 cm) |
| Class Width | 30 inches |
| Height (overall hood) | 15.75 inches (approx. 40.0 cm) |
| Depth | 23 1/8 inches (approx. 23.13 in / 58.7 cm) |
| Overall Appliance Dimensions (HxWxD) | 11" x 29 15/16" x 23 1/8" |
| Product Weight | 42 lb (approx. 19.1 kg) |
| Packaging Dimensions (HxWxD) | 26 9/16" x 33 1/8" x 14 9/16" |
| Installation Type | Built-under / under-cabinet |
| Mounting Type | Wall mount / under cabinet |
| Required Distance Above Cooktop | 30 inches (30"/30" above cooktop/range) |
| Venting Type | Ducted; convertible to recirculation (recirculation kit required) |
| Duct Discharge Direction | Vertical |
| Duct Size | 10-inch round |
| Damper | Yes (included) |
| Material / Finish | Stainless steel |
| Color | Stainless steel |

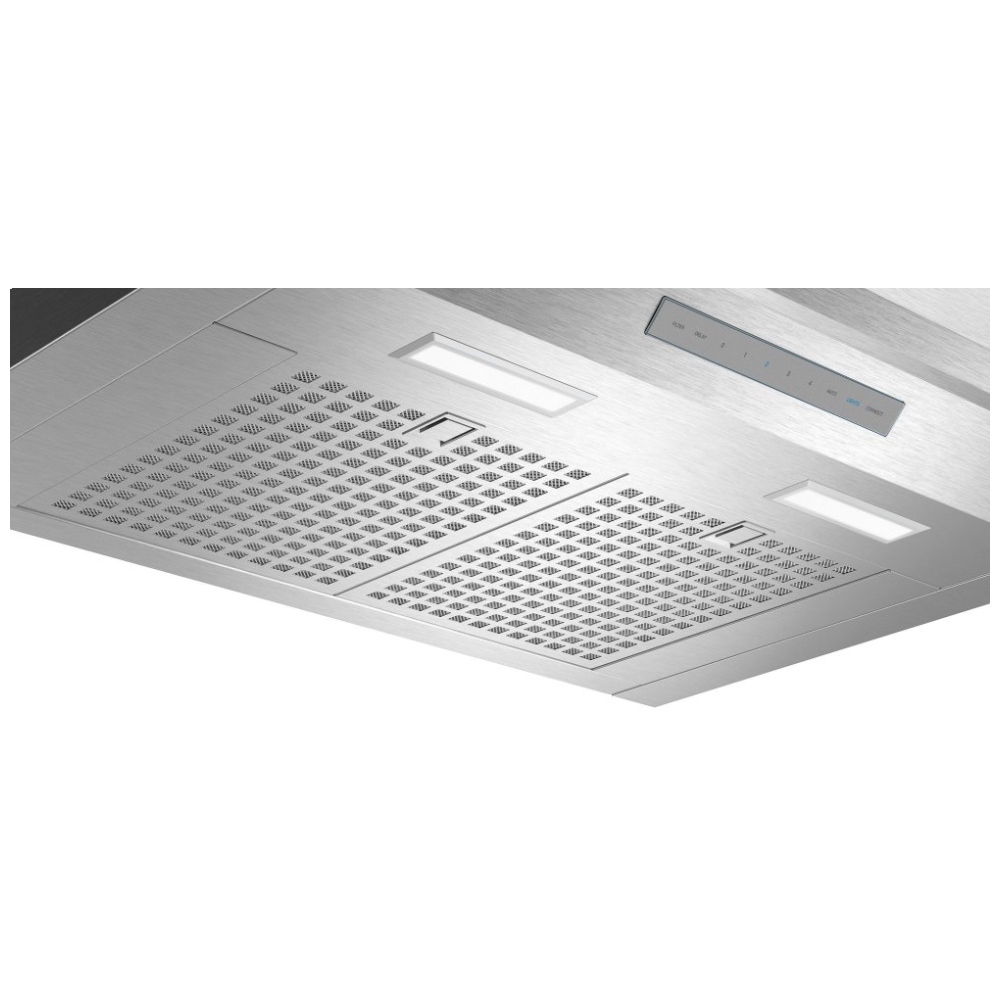

| Filter Type | Hybrid mesh grease filter, stainless-steel frame |
| Grease Filter Material | Washable stainless steel / aluminum mesh (hybrid) |
| Dishwasher-Safe Filters | Yes |
| Number of Filters | Hybrid mesh filters (2-piece assembly, varies by listing) |

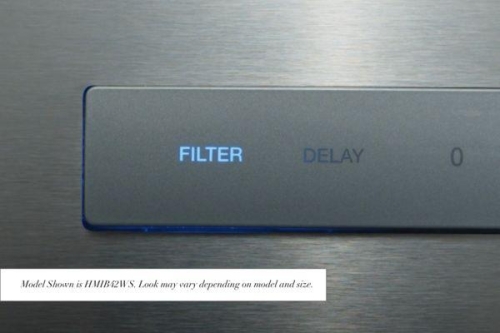

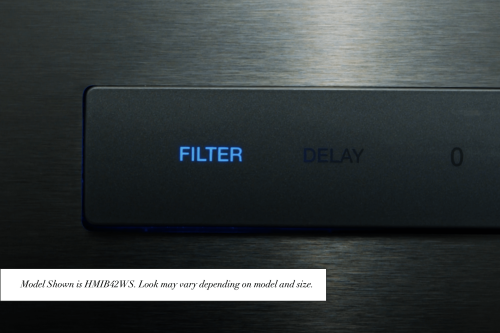

| Filter Indicator / Clean Filter Reminder | Yes (check filter reminder light; app notification) |

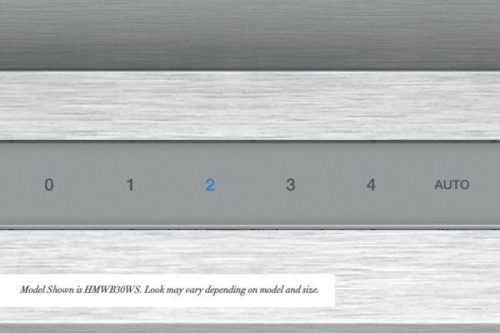

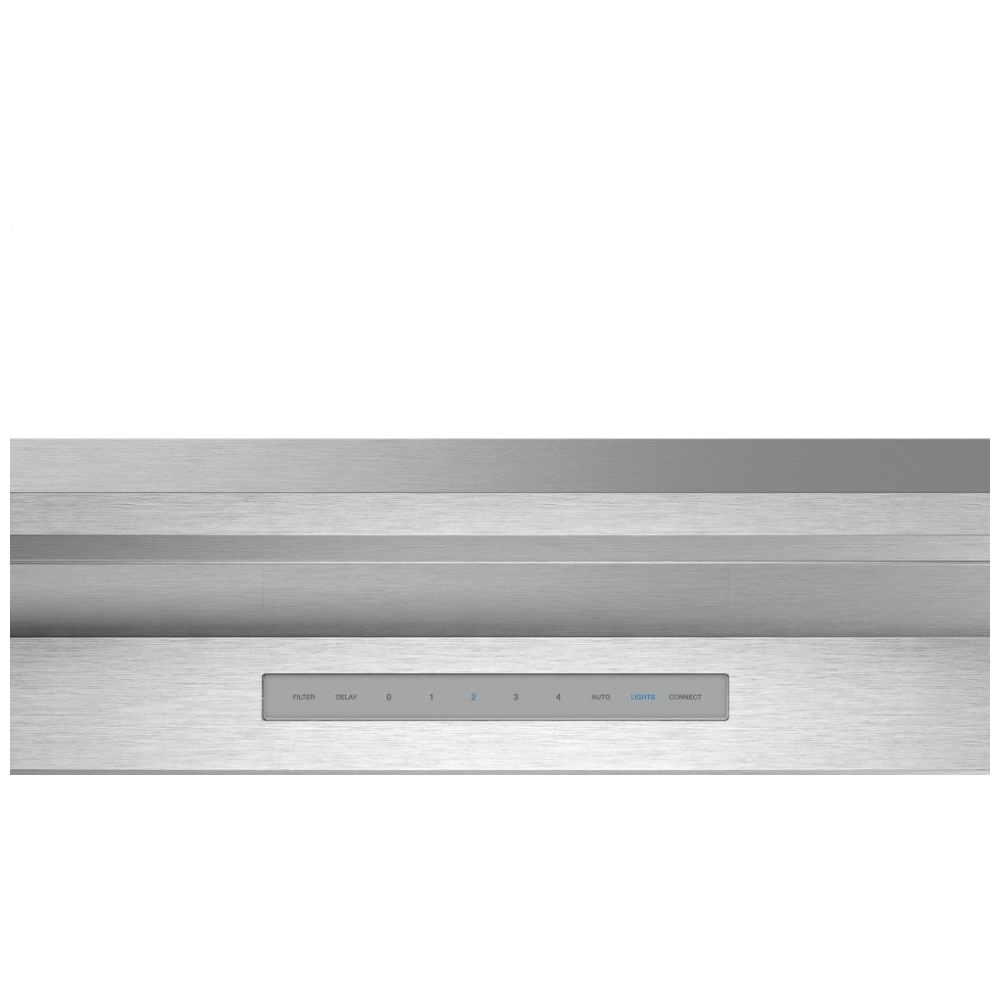

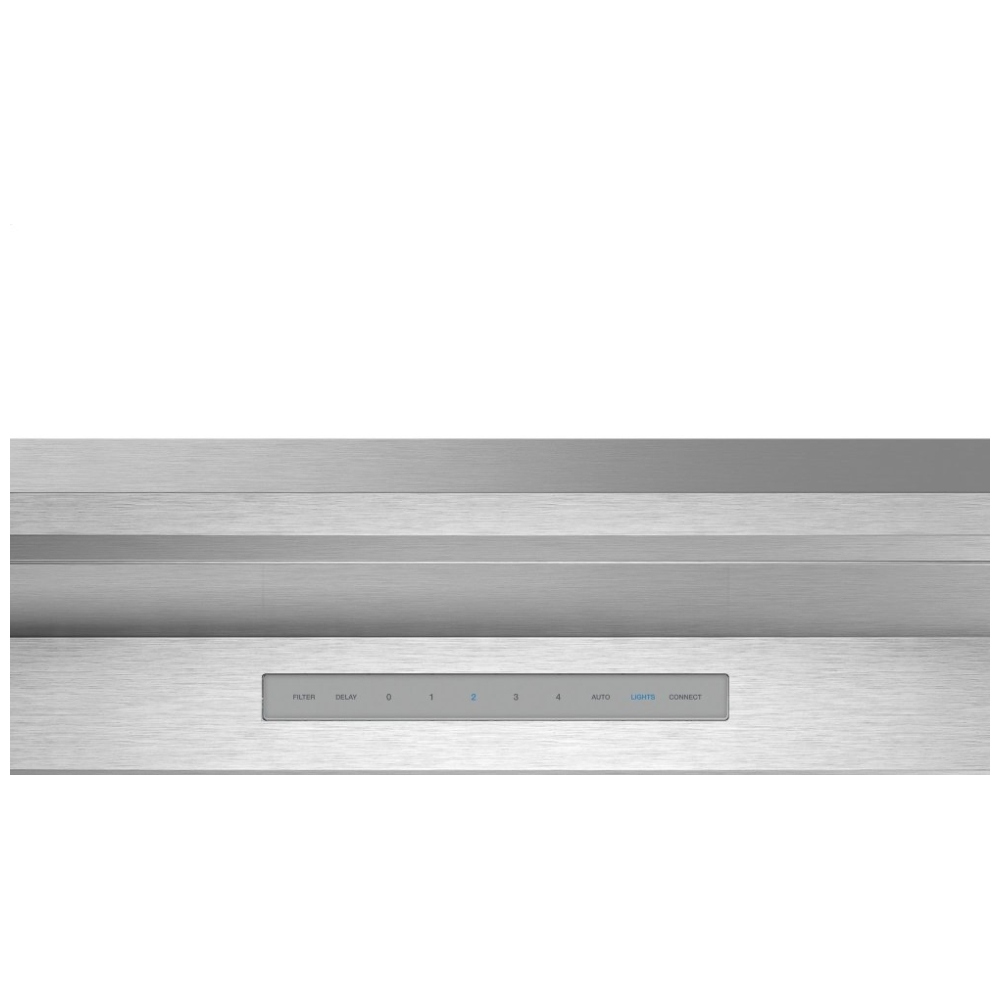

| Control Type | Sleek touch control on hood; app control via Home Connect |
| Control Location | Front underside of hood |

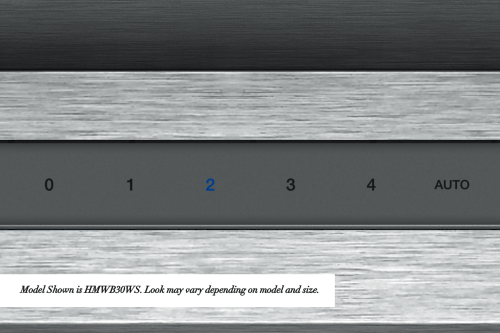

| Number of Fan Speeds | 4 fan speeds (4-stage settings) |
| Boost / Power Boost | No dedicated boost speed |
| Automatic Mode | Yes (fan speed adjusts automatically based on cooking) |
| Delay Shut-Off | Yes, approx. 10-minute delay (adjustable via app) |

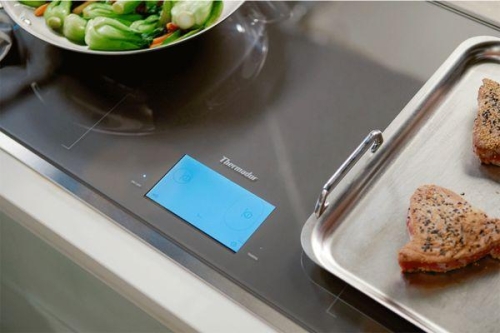

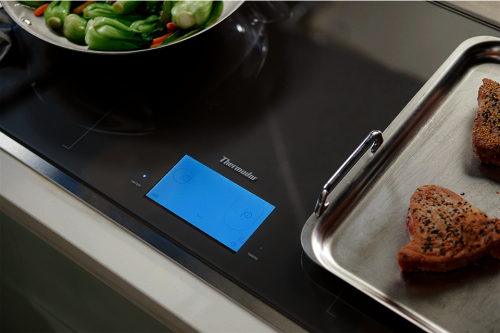

| Cooktop–Hood Sync | Yes, cooktop hood-sync enabled (with compatible Thermador cooktop) |
| Lighting Type | Multi-level LED lighting (low-consumption) |
| Number of Lights | 2 |
| Total Luminance | Approx. 150 lumens (varies by listing) |
| Color Temperature | Cold white, approx. 4000 K |
| Lighting Features | Multi-level LEDs with fade transitions; 0–100% light slider in app |
| Heat Lamps | No |
| Wi-Fi / Connectivity | Yes, Home Connect® WiFi-enabled |
| Smart Features | Remote monitoring, remote control, remote diagnostics, app-based light and fan control |
| Smart Home Compatibility | Works with Amazon Alexa and select smart home services |
| Home Connect Features | Remote monitoring and control, notifications (e.g., clean filter), adjustable delay shut-off, light level control |
| Noise Control Technology™ | Yes (insulation reduces noise up to ~35% vs. non-insulated hoods) |
| Remote Control Accessory | Optional built-in remote control panel (REMCPW) |
| Recirculation Kit (Optional) | RECHMWB30 |
| Replacement Charcoal Filter | CHFILT3036 |
| Duct Cover Accessory (16" tall, 30" wide) | DC3016W |
| Telescopic Duct Cover (approx. 28"–65" tall, 30" wide) | DC30MTW |
| Roof Jack (Optional) | RJ310 |
| Wall Cap Accessories (Optional) | WC8 (8"), WC10 (10") |
| Operating Mode | Convertible ducted / recirculating |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Current | 15 A |
| Total Connected Load | Approx. 455 W |
| Plug Type | 120 V, 3-prong |
| Energy Star Certified | No |
| Outdoor Approved | No |
| ADA Compliant | No (when installed to ADA requirements) |
| Country of Manufacture | Not made in Canada (per retailer listings) |
| Manufacturer Warranty (Canada) | Typically 1-year parts and labor (per Canadian retailer listings) |
| Manufacturer Warranty (U.S.) | 2-year limited warranty on parts and labor (per Thermador U.S. spec) |
| UPC | 825225935773 |
| EAN / GTIN | 0825225935773 / 825225935773 |
| Range Hood Features (summary) | Wi-Fi capable, app capable, light, automatic mode, delay shut-off, check filter reminder, cooktop sync, quiet operation |
