Manufacturer's Warranty: 2 years
Canadian model: ME302YP
Canadian UPC: 825225964148
EAN: 0825225964148
| Specification | Value |
|---|---|
| Capacity: Total | 9.2 Cu Ft |
| Capacity: Upper Oven | 4.6 Cu Ft |
| Capacity: Lower Oven | 4.6 Cu Ft |
| Width | 29.75 inches |
| Height | 52 1/16 inches |
| Depth | 23.5 inches |
| Depth to Handle | 27 1/8 inches |
| Depth with Door Open 90° | 46 inches |
| Cutout Width (Standard Install) | 28.5 inches |
| Cutout Height (Standard Install) | 49.75 – 51.5 inches |
| Cutout Depth (Standard Install) | 23.5 inches |
| Cutout Width (Flush Install) | 30 inches |
| Cutout Height (Flush Install) | 52 3/16 inches |
| Cutout Depth (Flush Install) | 24.5 inches |
| Overall Oven Interior Dimensions (HxWxD) | 17 13/16 x 24 1/8 x 17 13/16 inches |
| Usable Oven Interior Dimensions (HxWxD) | 12 5/16 x 23 1/4 x 15 1/4 inches |
| Class / Nominal Width | 30 inches |
| Fuel Type | Electric |
| Style | Double Wall Oven, Built-In |
| Series | Masterpiece |
| Color | Stainless Steel with Grey Glass Door |
| Door Style | Drop Down |
| Handle Style | Professional Handles, Stainless Steel |
| Door Panel Type | Glass |
| Control Type | Touch Control / Touch Sensor |
| Clock | Yes |
| Wi-Fi / Connectivity | Wi-Fi Enabled, Home Connect, Remote Monitoring & Control |
| Smart Compatible | Yes |
| Remote Diagnostics | Yes |
| Home Connect Features | Access Recipes, Remote Monitoring and Control, iService Remote |
| Total Number of Oven Racks | 5 |

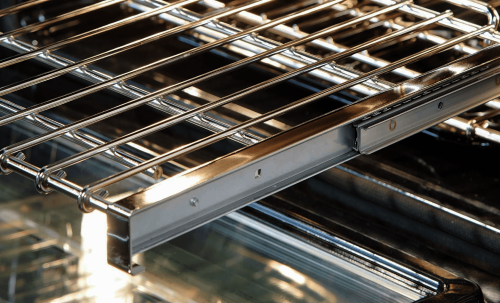

| Upper Oven Racks | 1 Telescopic, 2 Standard |
| Lower Oven Racks | 2 Standard |
| Full Access Telescopic Rack(s) | 1 (Upper Cavity) |
| Rack Levels | 6 rack levels total |
| Interior Lighting | 4 Halogen Lights (2 Upper, 2 Lower) |
| Oven Cleaning Method | Self Clean (Upper & Lower) |
| Self-Clean Cycle Options | 2-hour and 4-hour modes |
| Hidden Bake Element | Yes |
| Sabbath Mode | Yes (Upper & Lower, up to 74 hours) |
| Certification | STAR-K, CSA |
| ADA Compliant | Listed as No in some specs; also noted as ADA Compliant when installed to ADA requirements |
| Convection | Yes |
| Convection System | True Convection (Upper), Convection (Lower), Third Element Convection |

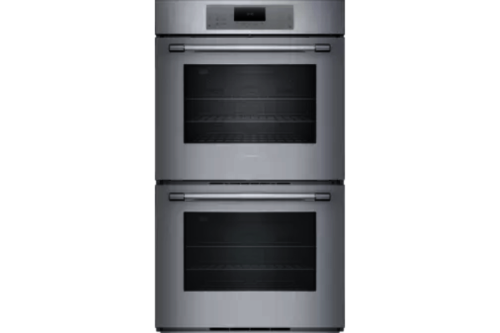

| Upper Oven Heating Modes (Count) | 11 Modes |
| Upper Oven Heating Modes (List) | Bake; Variable Broil (hi & low); Roast; Warm; Proof Dough; Convection Bake; Convection Broil; Convection Roast; Pizza; True Convection; Fast Preheat |
| Lower Oven Heating Modes (Count) | 5 Modes |
| Lower Oven Heating Modes (List) | Bake; Variable Broil (hi & low); Roast; Warm; Sabbath |
| Fast Preheat | Yes (Upper Oven) |
| Proof Mode | Yes (Upper Oven) |
| Broiler | Yes (Both Ovens) |
| Temperature Offset | Yes, adjustable in 1° increments |
| Kitchen Timer | Yes, countdown |
| Oven Timer | Yes, countdown |
| Number of Timers | Two (kitchen and oven) |
| Safety Lock | Yes |
| Keep Warm / Warm Mode | Yes |
| Air Fry | No |
| Microwave Function | No |
| Steam Oven Function | No |
| Speed Oven | No |
| Bake Element (Upper & Lower) | 2,400 W (4 passes) |
| Broil Element (Upper & Lower) | 3,800 W (12 passes) |
| Convection Element (Upper & Lower) | 2,200 W |
| Total Wattage | 8,500 Watts |
| Voltage | 240/208 Volts |
| Frequency | 60 Hz |
| Amperage | 40 Amps |
| Power Cord Length | 73 inches (approx. 185 cm) |
| Plug Type | Fixed connection, no plug |
| Product Weight | Approx. 296 lbs (about 134–149 kg listed) |
| Trim Overlaps (Top – Sides – Bottom) | 3/8" to 2" – 9/16" – 0" |
| Made In Canada | No |
| Energy Star Certified | No |
| Commercial Use Approved | No |
| UPC / EAN | UPC 825225964148; EAN 0825225964148 |
| Warranty | Limited 2 Years Parts and Labor |
