Manufacturer's Warranty: 2 years
Canadian model: MEDS302BS
Canadian UPC: 825225968559
EAN: 0825225968559
| Specification | Value |
|---|---|

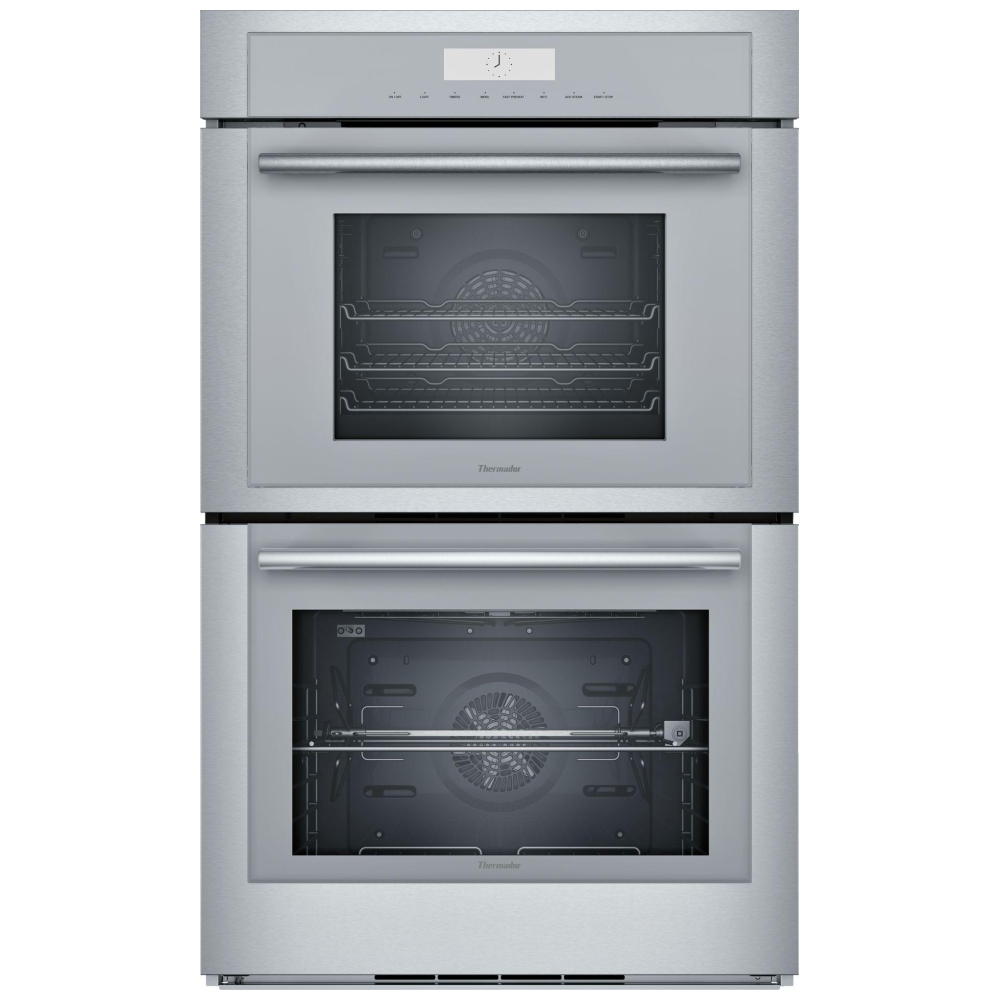

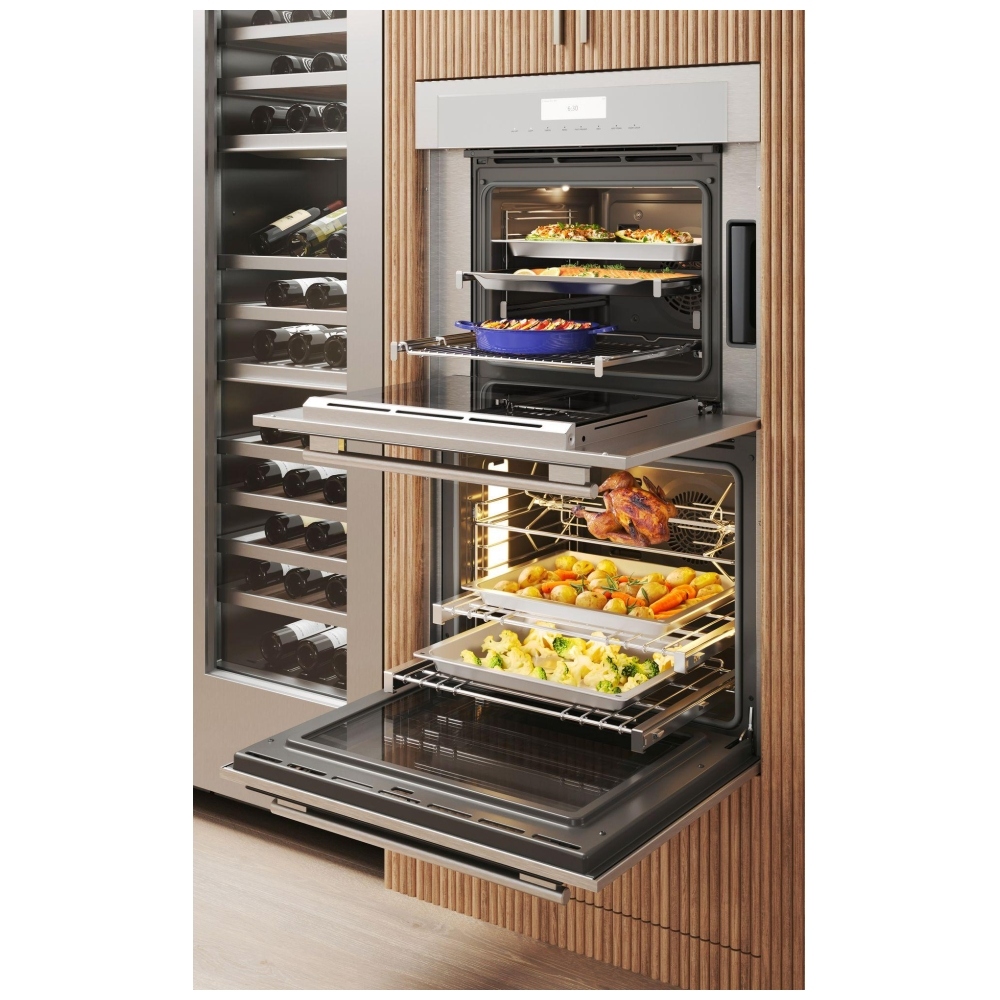

| Product Type | Double Steam Wall Oven |
| Series | Masterpiece® |
| Fuel Type | Electric |
| Installation Type | Built-in |
| Nominal Width | 30 inches |
| Width | 29.75 inches |
| Height | 48.88 inches (48 7/8 inches) |
| Depth | 23.87–24.5 inches (overall body depth commonly listed as 23 7/8" or 24.5") |
| Depth with Door Open 90° | 45.88 inches |
| Required Cutout Width | 28.5 inches |
| Required Cutout Height | 48.13 inches |
| Required Cutout Depth | 23.5–24 inches |
| Total Capacity | 7.3 Cu Ft |

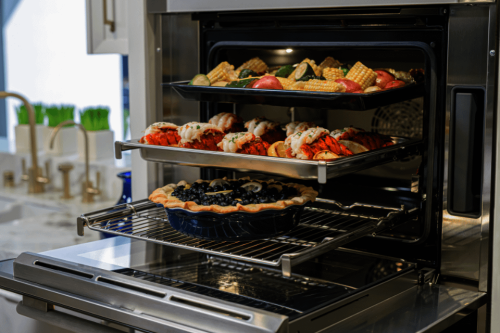

| Upper / Steam Oven Capacity | 2.8 Cu Ft |
| Lower / Convection Oven Capacity | 4.5 Cu Ft |
| Cooking System | Steam and True Convection (electric) |
| Total Number of Cooking Modes (Upper Cavity) | 17 |
| Total Number of Cooking Modes (Lower Cavity) | 17 |
| Primary Oven Cooking Modes | Air Fry Capable, Dehydrate, Max Broil, Rotisserie, Proof, Speed Convection, Roast, Convection Roast, Bake, Convection Bake, Pizza, Slow Roast, True Convection, Max Convection Broil, Convection Broil, Broil, Keep Warm |
| Secondary / Steam Oven Cooking Modes | Steaming Level, Dehydrate, Max Broil, Rotisserie, Proof, Speed Convection, Roast, Convection Roast, Bake, Convection Bake, Pizza, True Convection, Max Convection Broil, Convection Broil, Broil, Keep Warm |
| Range of Temperature | Approx. 38–288 °C |
| Self Clean (Lower Cavity) | Yes |
| Cleaning System (Upper / Steam Cavity) | Ecolyse |
| Air Fry Capable | Yes (with special accessory, sold separately) |
| Fast Pre-Heat | Yes |
| Door Opening | Drop Down |
| Door Hinge | Drop Down Door |
| Door Color / Material | Stainless Steel with Grey Glass |
| Handle Type | Masterpiece® Series |
| Control Type | Rotary control, Buttons, and App control (via Wi-Fi) |

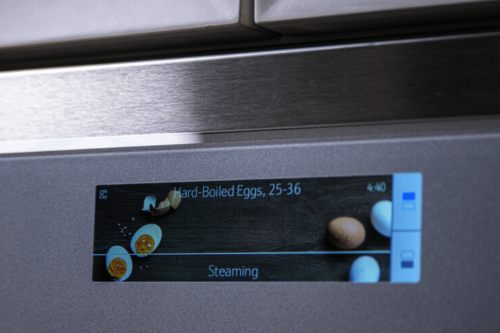

| Display / Interface | Electronic controls with Home Connect® integration |
| Interior Lighting (Upper Cavity) | 2 LED lights |
| Interior Lighting (Lower Cavity) | Halogen, 2 side lights with 2 bulbs each |

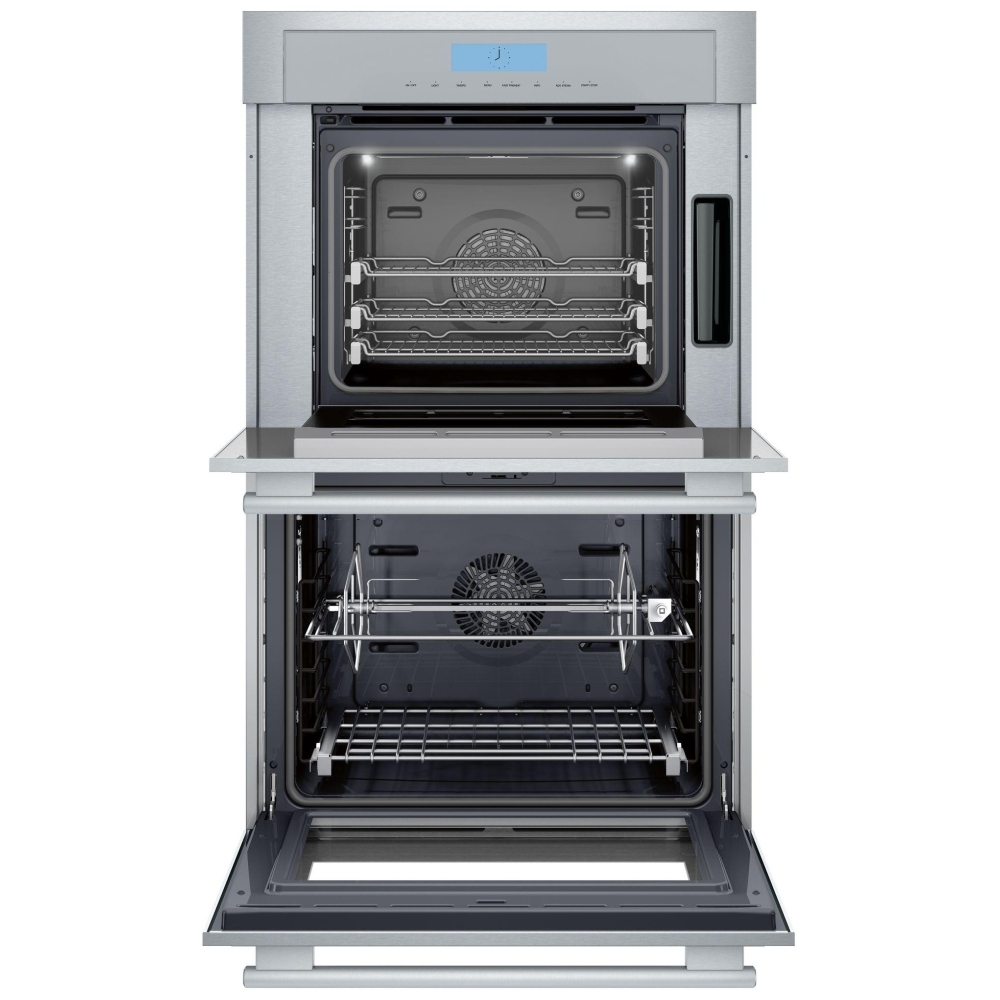

| Number of Oven Racks (Total) | 6 telescopic racks (3 in each cavity) |
| Rack Type | Full-extension telescopic racks on ball bearings |
| Included Accessories (Upper Cavity) | 3 telescopic racks, multi-point meat probe, broil pan, 1 large pan, 1 small pan, 1 small perforated pan |
| Included Accessories (Lower Cavity) | 3 telescopic racks, multi-point meat probe, Max Broil pan, rotisserie |

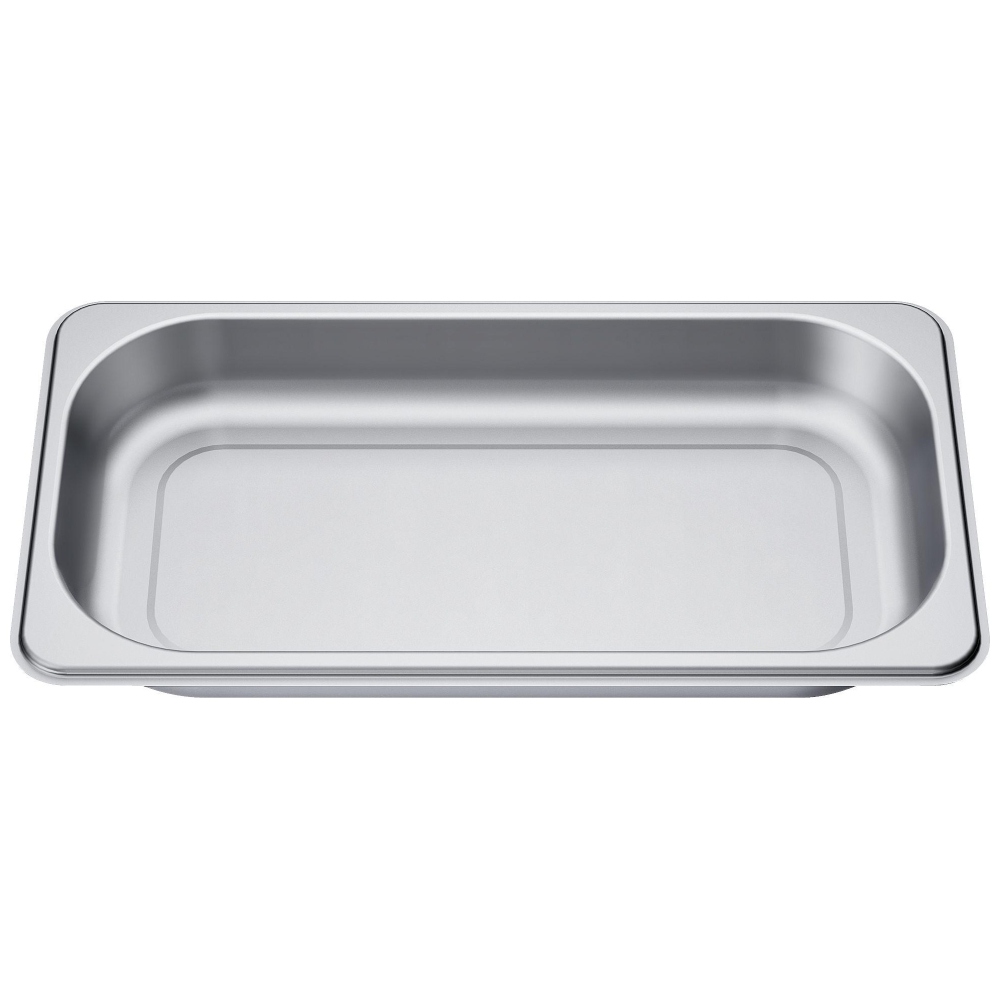

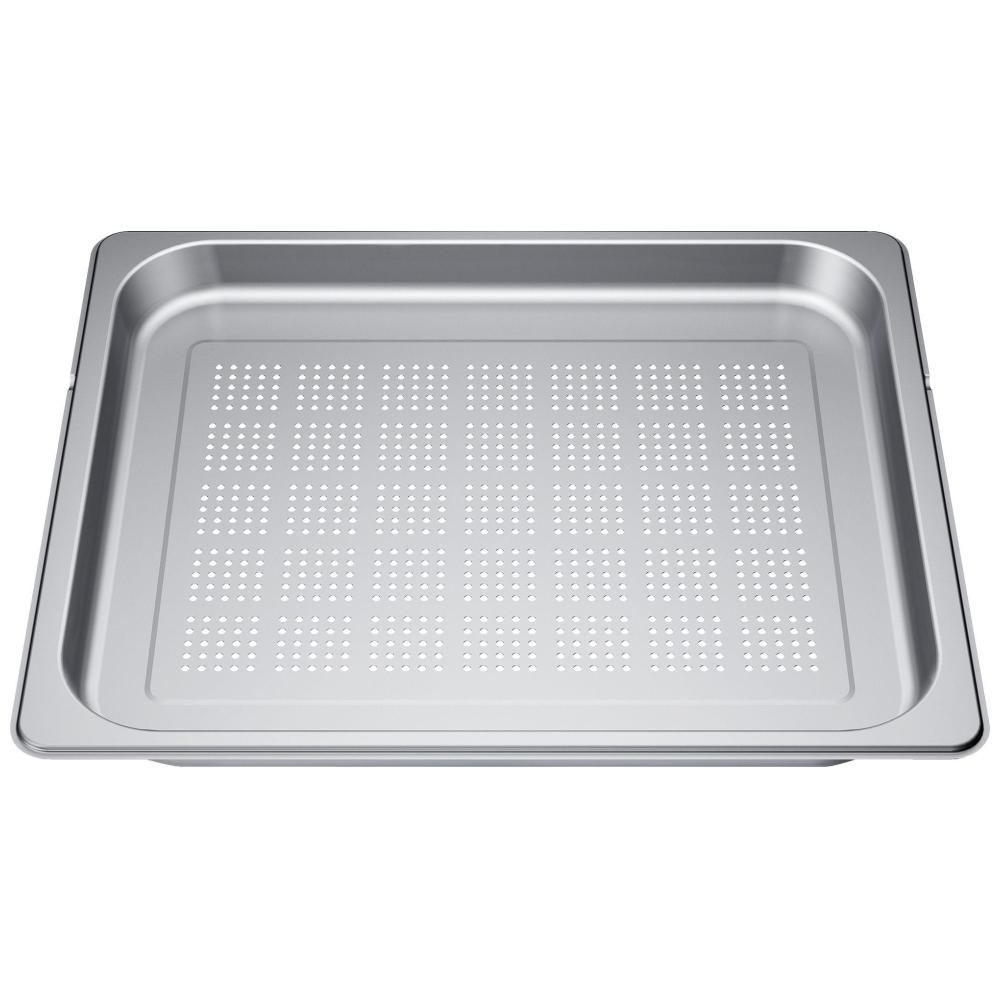

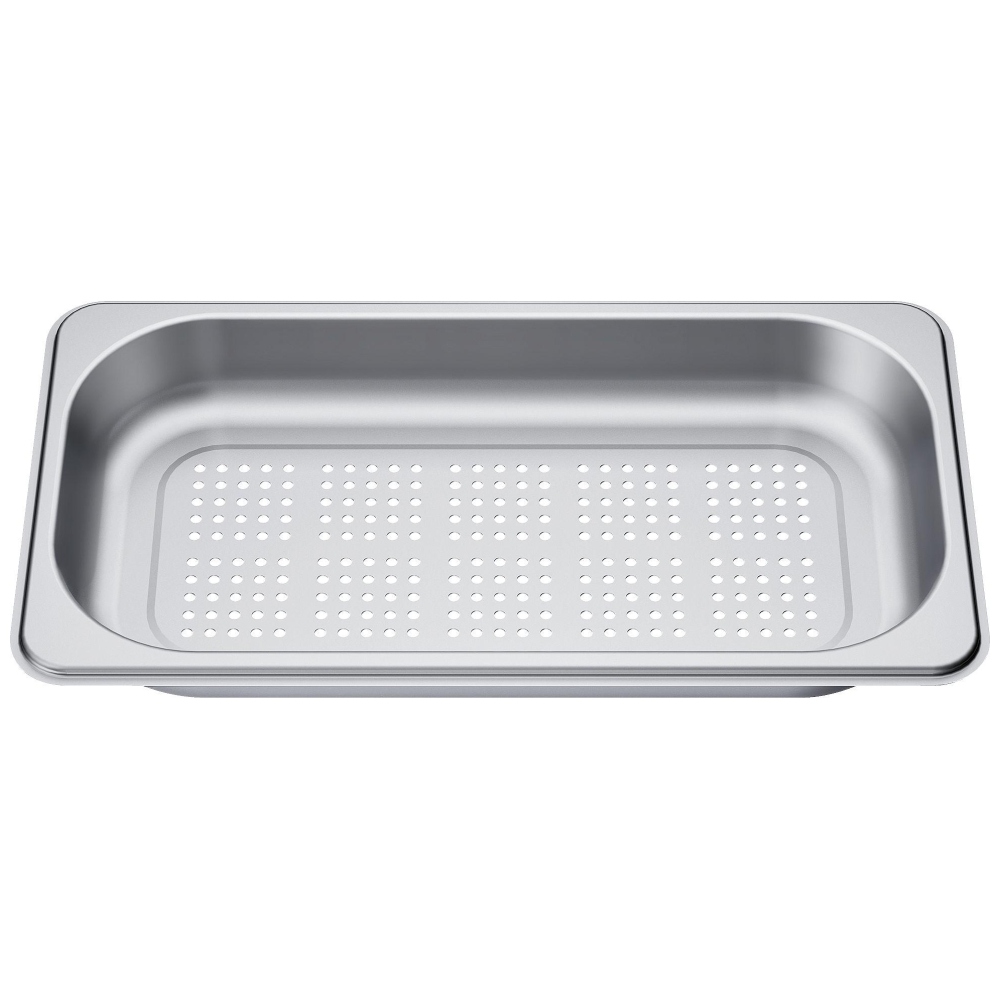

| Included Steam Accessories | Universal pan, steam container punched size S, steam container punched size XL, steam container unpunched size S, large perforated pan, small perforated pan (varies by retailer listing) |
| Rotisserie | Yes (lower cavity, with included spit) |
| Temperature Probe | Multi-Point Temperature Meat Probe (upper and lower cavities) |
| Sensors | Multi-Point Temperature Meat Probe, electronic controls |

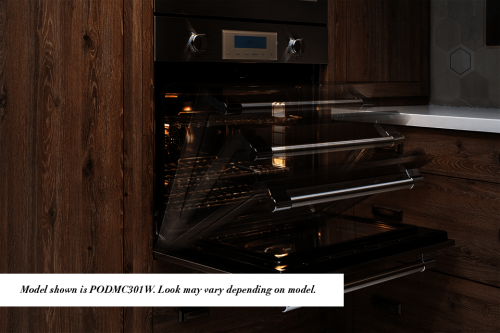

| SoftClose® Door | Yes |
| Safety Features | Electronic door lock, safety switch-off function for oven |
| Sabbath Mode | Yes (Star-K Sabbath compliant) |
| ADA Compliant (when installed to ADA requirements) | No |
| Wi-Fi / Connectivity | Home Connect® WiFi-enabled |
| Connected Features | Remote monitoring and control, access recipes, integration with smart home devices and services (e.g., voice control) |
| Voltage | 240 / 208 V |
| Frequency | 60 Hz |
| Amps | 40 A |
| Watts | Approx. 8,350–9,200 W (manufacturer Canadian spec lists 9,200 W) |
| Power Connection | Fixed connection, no plug |
| Conduit / Power Cord Length | 60 inches, 4-wire |
| Energy Star Certified | No |
| Country of Manufacture | Not made in Canada (per retailer listings) |
| Finish Color Name | Stainless Steel |
| Wall Oven Type | Double Wall Oven with Steam and Convection |
| Product Weight | Approximately 333 lb (151 kg) |
| Packaging Dimensions (HxWxD) | Approx. 55 1/8" x 31.5" x 34" |
| Warranty | Limited 2-year parts and labor |
