Gas Range Connection $189
(Includes Disconnecting Old Gas Unit)
Thermador PRD304WHC
AI5MQB
MSP Before Promo
$10,999
 Add to Cart
Ratings & Reviews
PA30WLBH
PA30WLBH
Product Accessories
$759
PARKB30HY
PARKB30HY
Product Accessories
$699
PAGRIDDLE
PAGRIDDLE
Product Accessories
$329
PA12CHPBLK
PA12CHPBLK
Product Accessories
$329
PWOKRINGHC
PWOKRINGHC
Product Accessories
$209
PALPKITHW
PALPKITHW
Product Accessories
$189
Similar Colours and Options
AI5MQB
Region Availability:
Delayed fulfillment.
When will I get this?

Click here to see showrooms with this item on display to order.
  • Dorval
  • Markham
Description & Features
The Thermador PRD304WHC dual fuel range brings professional‑grade performance into a 30‑inch footprint, making it an ideal choice for serious home cooks who don’t want to compromise on power or precision. Behind its bold, pro‑style stainless steel exterior is a thoughtfully engineered cooking platform built around Star® Burners, a distinctive five‑point design that delivers exceptionally even heat distribution across the bottom of your pans, minimizing hot spots and ensuring consistent searing, sautéing, and simmering. Each of the four burners delivers up to 18,000 BTU, giving you rapid boiling and intense high heat when you need it, while two ExtraLow® simmer burners can drop to ultra‑low temperatures for delicate sauces, slow melting chocolate, or keeping dishes warm without scorching or constant stirring. Inside, the electric oven features True Convection with a dedicated third heating element, allowing you to bake on multiple racks at once with uniform results and reduced cooking times, ideal for batch baking or preparing several courses simultaneously. With a generous 4.4 cu. ft. oven capacity and six rack positions, there is ample room for large roasts, holiday turkeys, and multiple sheet pans, all illuminated by bright halogen lighting and visible through a large viewing window so you can monitor progress without opening the door. Daily use and cleanup are simplified by the QuickClean Base®, a continuous porcelain cooking surface and raised Pedestal Star® Burner design that reduces crevices where spills can collect, making it easier to wipe the cooktop spotless. When it’s time for a deeper clean, the Superfast 2‑hour self‑clean mode tackles baked‑on residue in a fraction of the time of many conventional self‑clean cycles. Designed to integrate seamlessly into modern kitchens, this Pro Harmony model is Truly Flush Mounted™, aligning with standard 24"‑depth cabinetry for a built‑in, custom look without requiring a larger footprint, while heavy‑duty cast‑iron grates, restaurant‑style metal knobs, and signature blue indicator lighting underscore its professional heritage. Combining gas burner responsiveness with the precision of an electric convection oven, the Thermador PRD304WHC offers a premium, space‑efficient solution for homeowners who want commercial‑inspired performance, refined design, and advanced features that stand apart from typical 30‑inch ranges.

Star® Burners with patented five-point design – exclusive Star® Burner shape is 56% longer than a round burner for superior flame spread, more even heating, and fewer cold spots across any pan size.

Two ExtraLow® simmer burners – provide 5 ultra-precise low-heat settings by cycling the flame on and off, ideal for simmering delicate sauces, melting chocolate, or keeping food warm without scorching.

QuickClean Base® cooktop surface – raised, patented Pedestal Star® Burners and a continuous porcelain maintop create a smooth, sealed surface that’s easy to wipe clean after spills.

Full Access® telescopic oven rack – heavy-duty rack glides smoothly on ball bearings, extending fully for safe, easy access to large or heavy dishes, with integrated easy‑grip handles.

Truly Flush Mounted™ installation – designed to sit perfectly flush with standard 24" depth cabinetry for a built‑in, professional look in a 30" footprint.

Pro Harmony® professional-style design – bold, restaurant-inspired styling with robust knobs, continuous grates, and stainless steel finish to match other Thermador Pro Harmony® appliances.

Patented Pedestal Star® Burner configuration – elevates the burners slightly above the cooktop surface to improve airflow and make cleaning around the burners faster and easier.

Superfast 2‑Hour Self‑Clean cycle – high‑temperature self‑clean mode quickly burns off baked‑on residue from oven walls and rack supports, reducing the need for manual scrubbing.

Dual fuel performance – combines a gas cooktop for instant, responsive flame control with an electric convection oven for precise, even baking and roasting.

Four high‑output sealed burners – all four burners deliver up to 18,000 BTU (NG) for rapid boiling, powerful searing, and fast stir‑frying.

Wide simmer range – burners offer a broad output range from approximately 375 BTU up to 3,000 BTU on low, allowing gentle simmering without constant stirring.

True Convection with third heating element – dedicated convection element and fan circulate hot air for even baking on multiple racks without flavor transfer between dishes.

Multiple convection and traditional cooking modes – includes Bake, Convection Bake, Roast, Convection Roast, True Convection, Convection Broil, Broil, and Self‑Clean to suit a wide variety of recipes.

Large 4.4 cu. ft. oven capacity – spacious cavity accommodates large roasts, multiple casserole dishes, or several sheet pans at once, ideal for entertaining and family meals.

Six adjustable rack positions – flexible rack configuration supports everything from tall stockpots and turkeys to multiple trays of cookies.

Professional continuous cast‑iron grates – heavy, interlocking grates create a single, level cooking surface so you can slide pots and pans between burners safely and easily.

Powerful 8‑pass bake and broil elements – large coverage elements promote even browning and baking, and deliver intense top heat for broiling steaks or gratins.

Electronic oven controls – precise temperature regulation and mode selection help ensure consistent cooking results and easier repeatability of favorite recipes.

Large oven viewing window – wide glass door panel lets you monitor cooking progress without opening the door and losing heat.

Bright halogen oven lighting – multiple halogen lights illuminate the entire oven cavity for clear visibility of all rack levels.

Mechanical door lock for self‑clean – automatically secures the oven door during self‑clean cycles to enhance safety.

Individual gas safety shutoff – electromagnetic safety device for each burner helps cut gas flow if the flame is unexpectedly extinguished.

Sabbath Mode (Extended Bake) – specialized operating mode allows compliant use over religious observances by maintaining a preset temperature without user interaction.

Stainless steel finish – durable, premium stainless exterior resists corrosion and pairs well with a wide range of kitchen styles.

Restaurant‑style metal control knobs – robust, easy‑grip knobs provide tactile feedback and a professional appearance.

Signature blue indicator lighting – distinctive blue illumination around the knobs indicates active operation at a glance.

Hot surface indicator – cooktop indicator light alerts you when the surface is still hot to the touch, even after burners are turned off.

Self‑clean plus catalytic partial cleaning – combination of self‑clean cycle and catalytic surfaces helps reduce buildup and simplifies long‑term oven maintenance.

Single‑cavity design – one large oven space maximizes usable capacity and simplifies rack placement for big dishes.

Standard 30" cutout compatibility – engineered to fit common 30" slide‑in range openings for easier replacement of existing ranges.

240/208 V, 4‑prong connection – supports typical North American dual‑fuel electrical requirements with a 4‑wire power cord connection.

Included broiler pan – supplied broiler pan lets you start broiling meats and vegetables right away without needing extra accessories.

2‑year parts and labor warranty (varies by region/dealer) – provides added peace of mind on both functional components and workmanship.

Manufacturer's Warranty: 2 years

Canadian model: PRD304WHC

Canadian UPC: 825225924821

EAN: 0825225924821

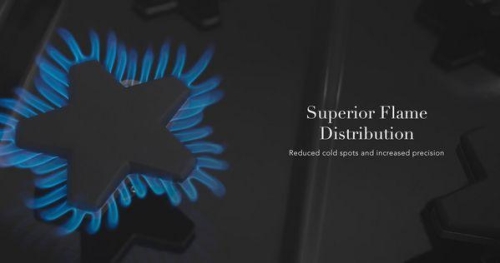

Four Star® Burners provide equal flame distribution
PRD304WHC - Four Star® Burners provide equal flame distribution
Star® Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.

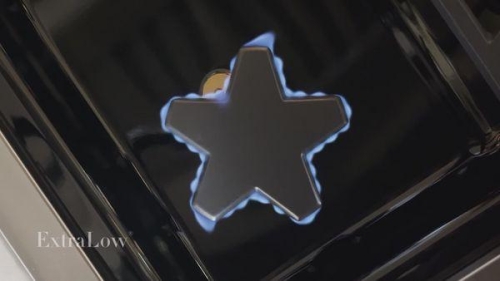

ExtraLow® Burners offer precise settings for cooking
PRD304WHC - ExtraLow® Burners offer precise settings for cooking
Our ExtraLow feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.

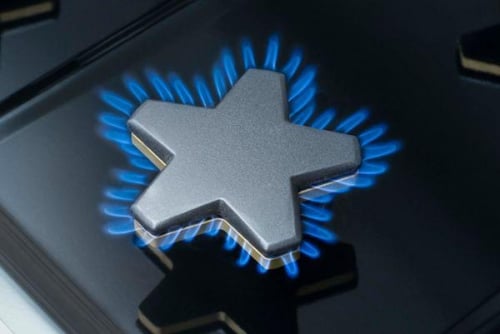

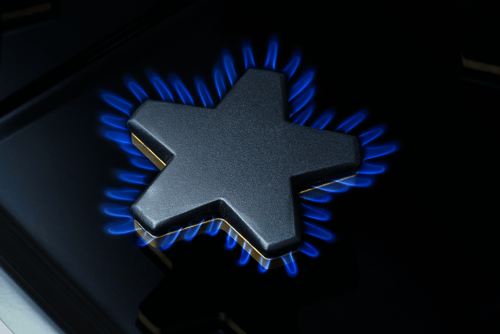

Boil water quickly with 18,000 BTU - PRD304WHC
Boil water quickly with 18,000 BTU
PRD304WHC - Boil water quickly with 18,000 BTU
Optimal for rapid boiling and high heat searing, our patented Star® Burner delivers 18,000 BTU of power.

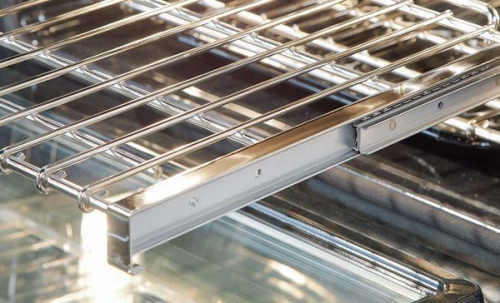

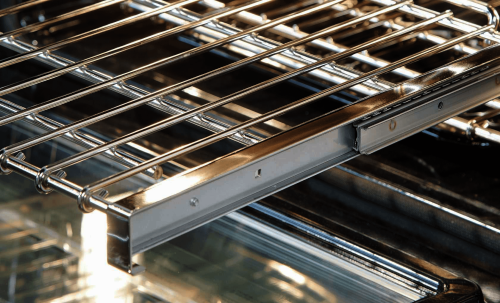

Telescopic racks glide smoothly for easy use - PRD304WHC
Telescopic racks glide smoothly for easy use
PRD304WHC - Telescopic racks glide smoothly for easy use
One Full Access® telescopic racks glide smoothly on ball bearings, allowing them to expand completely for safe, easy access. Additionally, robust construction safely supports the heaviest dishes while integrated easy-grip handles make them easy to use.
True Convection gives you maximum cooking efficiency
PRD304WHC - True Convection gives you maximum cooking efficiency
True Third Element Convection means you can cook multiple dishes - with multiple levels of sheet pans - with even baking results.

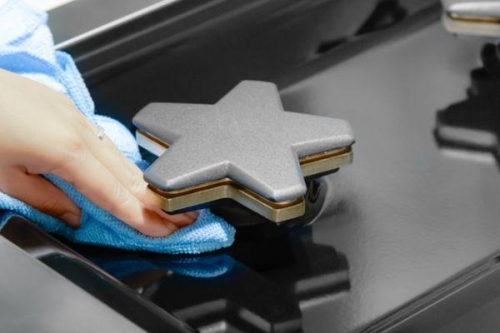

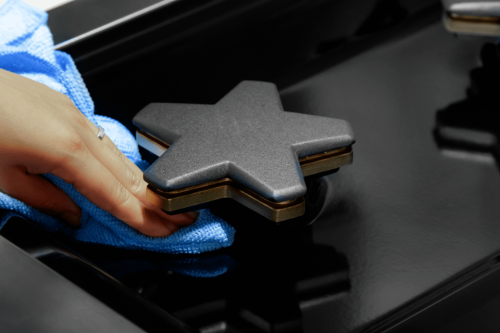

QuickClean Base® allows for easy cleaning - PRD304WHC
QuickClean Base® allows for easy cleaning
PRD304WHC - QuickClean Base® allows for easy cleaning
The raised, patented Pedestal Star® Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.

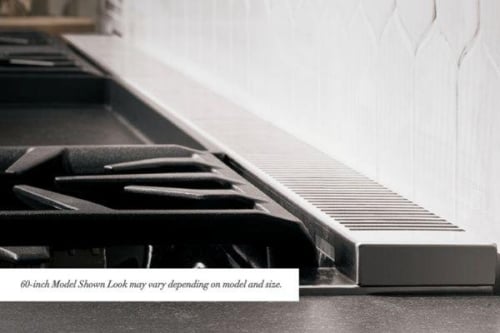

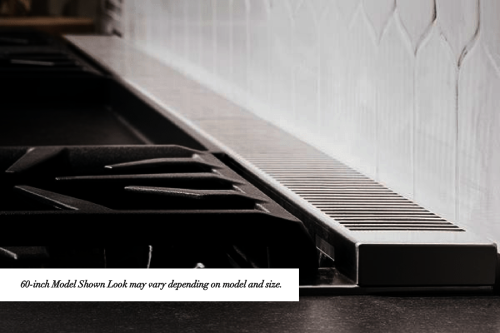

Truly Flush Mounted ranges that are fit seamlessly in your kitchen - PRD304WHC
Truly Flush Mounted ranges that are fit seamlessly in your kitchen
PRD304WHC - Truly Flush Mounted ranges that are fit seamlessly in your kitchen
Designed to fit perfectly flush in standard 24" depth cabinets.

Specs
SpecificationValue
Model PRD304WHC
Product Type 30" Professional Series Pro Harmony Standard Depth Dual Fuel Range
Fuel Type Dual Fuel (Natural Gas Cooktop / Electric Oven)
Finish Stainless Steel
Capacity 4.4 Cu Ft
Total Capacity 4.4 Cu Ft
Oven Capacity (Litres) Approx. 124 L
Width 29 15/16 inches
Nominal Class Width 30 inches
Height (minimum, to cooktop) 35 7/8 inches
Maximum Height 36 3/4 inches
Depth (to front of door, without handle) 24 5/8 – 24 3/4 inches (approx. 24.7 inches)
Depth (total, including handle) 24.75 inches (approx.)
Overall Appliance Dimensions (HxWxD) 35 7/8" x 29 15/16" x 24 3/4"
Overall Dimensions (metric) Height 90.8–93.6 cm x Width 76.0 cm x Depth 63.0 cm
Required Cutout Size (Width) 30 inches
Required Cutout Size (Depth) 24 inches
Required Cutout Size (Height) 35 3/4 – 36 3/4 inches
Cabinet Depth Compatibility Truly Flush Mounted, fits standard 24" cabinet depth
Net Weight 294–306 lb (approx. 133–139 kg)
Product Weight (some retailers) Approx. 368 lb (shipping / packed)
Number of Ovens 1
Number of Burners / Elements 4
Burner Type Sealed Pedestal Star® Burners
Front Left Burner Power 18,000 BTU with ExtraLow® (XLO)
Front Right Burner Power 18,000 BTU with ExtraLow® (XLO)
Back Left Burner Power 15,000 BTU with ExtraLow® (XLO)
Back Right Burner Power 15,000 BTU
Maximum Burner Output (each, NG) Up to 18,000 BTU
Simmer / ExtraLow® Range As low as 100°F (approx. 375 BTU)
Cooktop Surface Continuous porcelain, easy-to-clean cooking surface
Grates Professional style, continuous cast iron grates
Ignition Type Electric ignition
Gas Safety Device Electromagnetic safety for each burner
Oven Type True Convection electric oven
Convection Yes, third-element convection
Number of Rack Levels 6 rack positions
Number of Oven Racks (total) 3
Telescopic Racks 1 Full Access® telescopic rack
Standard Racks 2 standard racks
Rack Type Self-clean safe sliding racks
Interior Lights 2 interior oven lights
Oven Cleaning System Self Clean with catalytic partial cleaning
Self-Clean Mode Yes, including superfast ~2-hour self-clean
Oven Bake Power 2,000 W
Oven Broil Power 4,000 W
Convection Element Power 2,750 W
Cavity Interior Dimensions (HxWxD) 16 1/4" x 25" x 18 5/8"
Cavity Usable Dimensions (HxWxD) 12" x 22 3/8" x 16 5/8" (approx.)
AHAM Usable Cavity Size Approx. 3.0 Cu Ft (usable)
Cooking / Baking Modes Bake, Convection Bake, Extended Bake / Special baking setting, True Convection, Convection Roast, Roast, Convection Broil, Broil, Self-Clean
Delay Bake No
Sabbath Mode Yes (Star-K certified, Extended Bake)
Control Type Front metal knobs (rotary)
Connectivity No Wi-Fi / Home Connect
Residual Heat Indicator Without (per some spec sheets)
Door Type Glass door with stainless steel finish
Handle Type Integrated professional-style handle
Storage Drawer / Warming Drawer None
Built-in Downdraft No
Electrical Requirements 240/208 V, 60 Hz
Voltage 240/208 V
Amps (circuit requirement) 40 A (some listings show 35 A; manufacturer spec generally 40 A)
Connected Load 6,400 W
Plug Type 240 V 4-prong (power cord often optional accessory)
Power Cord Length Approx. 65 inches (if cord installed)
Gas Supply 3/4" gas connection (NG)
Installation Type Freestanding / slide-in style, Pro-style
Range Type Pro-Style, Pro Harmony® Standard Depth
ADA Compliant No (for this Canadian PRD304WHC model)
Outdoor Approved No
Commercial Use Approved No
Star-K Certification Yes
Home Connect® WiFi-enabled No
Included Accessories 1 Telescopic rack, 2 standard racks, 1 large broil pan, island trim
Optional Accessories Power cord, PWOKRINGHC wok ring, PAGRIDDLE professional griddle, PAKNOBLUWH metallic blue knob kit, PAALTKITGW altitude kit, PA12CHPBLK chopping block, PA30WLBH low back backguard, PALPKITHW LP conversion kit
Key Features Exclusive Star® Burners, ExtraLow® simmer, QuickClean Base®, True Convection with third element, superfast 2-hour self-clean, continuous cast iron grates, professional design
Manufacturer Warranty 2 years parts and labor (entire appliance)
