Description & Features

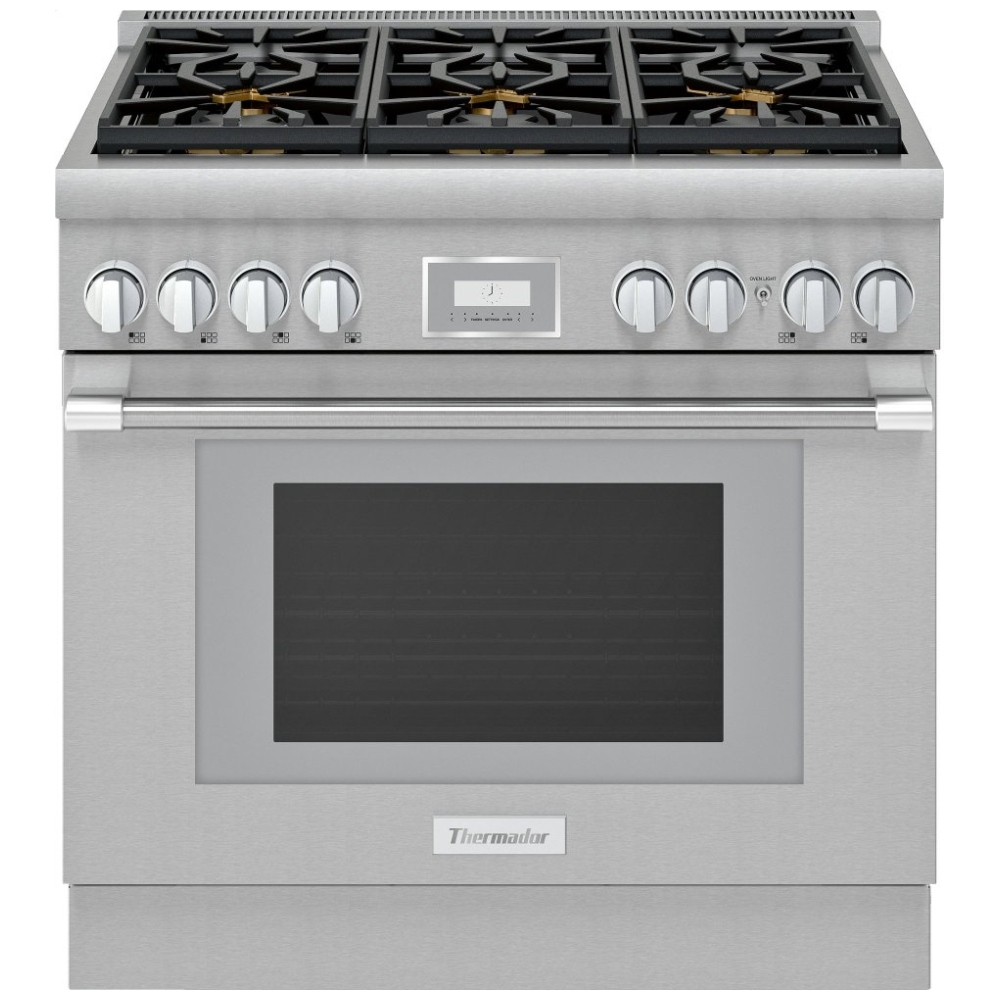

The Thermador PRD366WHC 36" Pro Harmony dual fuel range is designed for serious home cooks who want professional performance in a cabinet‑depth footprint that integrates seamlessly with standard 24" kitchen cabinetry. At approximately 36" wide, this range delivers a generous oven capacity of about 5 cu. ft., giving you ample room for large roasting pans, multiple casserole dishes, or several baking sheets at once, all while maintaining a clean, built‑in look. At the heart of the cooktop are six exclusive Star® Burners, a patented design that offers significantly more flame coverage than traditional round burners, helping to eliminate cold spots and promote faster, more even heating across any size pan. Two of these burners feature ExtraLow® simmer technology, allowing you to hold ultra‑delicate sauces, melt chocolate, or keep dishes warm at extremely low, precise temperatures without scorching or constant stirring, a level of control many standard ranges simply cannot match.

Inside the oven, Third Element Convection enhances traditional convection by adding a dedicated heating element around the fan, creating highly consistent airflow for even baking and roasting on multiple racks without flavor transfer between dishes. This means you can bake cookies, roast vegetables, and finish a main course at the same time with confidence in uniform results. When it comes to cleanup, the PRD366WHC stands out with a Superfast 2‑hour self‑clean mode, one of the fastest self‑cleaning cycles available, including cool‑down time, so you can restore a sparkling oven interior between dinner parties without planning your day around it. The cooktop is equally practical, with a QuickClean Base® beneath the raised Star Burners and continuous cast‑iron grates, making it easier to wipe away spills and crumbs. Professional‑style metal knobs, signature blue indicator lighting, and a bold stainless‑steel façade complete the look, while modern conveniences like electronic oven controls and connected‑oven capability on select models help you monitor and manage cooking with precision. Altogether, the Thermador PRD366WHC combines distinctive burner technology, advanced convection, rapid self‑cleaning, and a built‑in‑ready width and capacity to deliver a premium cooking experience that sets it apart from typical 36" ranges.

Star® Burners with patented five-point design – unique Star® shape provides equal flame distribution and up to 56% more coverage than round burners for faster, more even heating and fewer cold spots.

Six Star® Burners (two with ExtraLow®) – offers six powerful gas burners, including two ExtraLow® simmer burners, to handle everything from rapid boiling to ultra-delicate sauces.

ExtraLow® simmer burners – provide 5 ultra-precise low-heat settings, cycling the flame on and off to maintain very low temperatures ideal for simmering, melting chocolate, or keeping food warm without scorching.

QuickClean Base® under-burner design – raised Star® Burners and a sealed, porcelain surface minimize crevices and make it easy to wipe spills and splatters from the cooktop.

Full Access® telescopic racks – three heavy-duty oven racks glide smoothly on ball bearings and extend fully for safe, easy access to large or heavy dishes.

Home Connect™ WiFi-enabled control – allows remote monitoring and control of oven functions from a compatible smart device, plus access to notifications and select connected features.

Pro Harmony® professional-style design – cabinet-depth, professional look with bold styling that aligns with standard 24" depth cabinetry for a built-in, flush appearance.

Truly Flush Mounted™ installation – engineered to sit truly flush with adjacent 24" deep cabinets for a seamless, integrated kitchen aesthetic.

Dual-fuel performance – combines the responsiveness of a gas cooktop with the precision and evenness of an electric convection oven for versatile, high-end cooking results.

36" professional range width – offers a generous cooking surface with six burners while fitting standard 36" range openings.

Cabinet-depth (approx. 24" deep) chassis – designed to match standard cabinet depth so the range does not protrude excessively into the kitchen.

Six sealed gas burners – sealed burner design helps contain spills on the cooktop surface for easier cleanup and improved safety.

High-output 18,000 BTU front burners – powerful burners on the front provide rapid boiling, high-heat searing, and fast stir-frying.

Wide simmer range from 375 BTU to 3,000 BTU – allows very gentle heat for delicate tasks and slightly higher low heat for flexible simmer control.

Continuous cast-iron grates – heavy-duty, professional-style grates let you slide pots and pans smoothly across the cooking surface without lifting.

Continuous porcelain cooktop surface – durable, glossy surface resists staining and is easy to wipe clean after cooking.

Electronic re-ignition system – automatically re-lights the burner if the flame is accidentally extinguished, enhancing safety and convenience.

Single large-capacity oven (approx. 5.0 cu. ft.) – accommodates large roasts, multiple casserole dishes, or several baking sheets at once for family meals and entertaining.

True Convection oven with third heating element – dedicated convection element and fan provide even heat circulation for uniform baking and roasting on multiple racks without flavor transfer.

Multiple convection and traditional cooking modes – includes Bake, Convection Bake, True Convection, Roast, Convection Roast, Broil, Convection Broil, and Self-Clean to match a wide variety of recipes.

Powerful 8-pass bake and broil elements – large, looped elements deliver consistent heat coverage for thorough baking and intense broiling.

Six rack positions – flexible rack placement options allow you to optimize cooking for tall items, multiple pans, or close-to-broiler browning.

Electronic oven controls – precise digital control of oven temperature and modes for accurate, repeatable cooking results.

Large oven door window – oversized viewing window lets you monitor cooking progress without opening the door and losing heat.

Powerful halogen oven lighting – bright interior lighting illuminates all rack levels for clear visibility of dishes.

Superfast 2-hour self-clean mode – high-temperature self-clean cycle quickly burns off baked-on residue, reducing the need for manual scrubbing.

Self-cleaning oven cavity – simplifies maintenance by turning spills and splatters into ash that can be easily wiped away after the cycle.

All-telescopic rack configuration – all three racks are telescopic, providing full-extension access on every level for maximum convenience.

Integrated easy-grip rack handles – built-in handles on telescopic racks make it easier and safer to pull out and reposition racks, even with heavy cookware.

Professional metal control knobs – robust, restaurant-style knobs provide a premium tactile feel and precise burner adjustment.

Signature blue indicator lighting – distinctive blue illumination around the knobs indicates active burners and adds a recognizable Thermador design accent.

Included island trim – ships with an island trim piece for a finished look when the range is installed in an island or against a wall without a full backsplash.

Dual-fuel natural gas or LP compatibility – configured for natural gas with the option to convert to liquid propane (LP) where required.

240/208V electric oven connection – requires a 240/208V, 40-amp electrical supply for the electric oven and controls.

Mechanical door lock for self-clean – automatically locks the oven door during self-clean cycles to prevent accidental opening and ensure safety.

Individual gas safety shutoff per burner – electromagnetic safety devices monitor each burner and shut off gas if needed for added protection.

Sabbath Mode – specialized operating mode that meets certain Sabbath observance requirements by limiting automatic changes and sounds.

WiFi smart connectivity – supports software updates and select smart features through a wireless home network connection.

Single-oven configuration – one large oven cavity simplifies operation and maximizes usable space for large cookware.

Professional-style appearance – stainless steel finish, robust handles, and pro-style detailing complement high-end kitchen designs.

Standard 36" cutout compatibility – designed to fit common 36" slide-in or freestanding range openings for easier replacement or remodel installations.

Heavy-duty construction – substantial overall weight and robust materials reflect a commercial-inspired build for durability in busy kitchens.

Manufacturer's Warranty: 2 years

Canadian model: PRD366WHC

Canadian UPC: 825225925200

EAN: 0825225925200

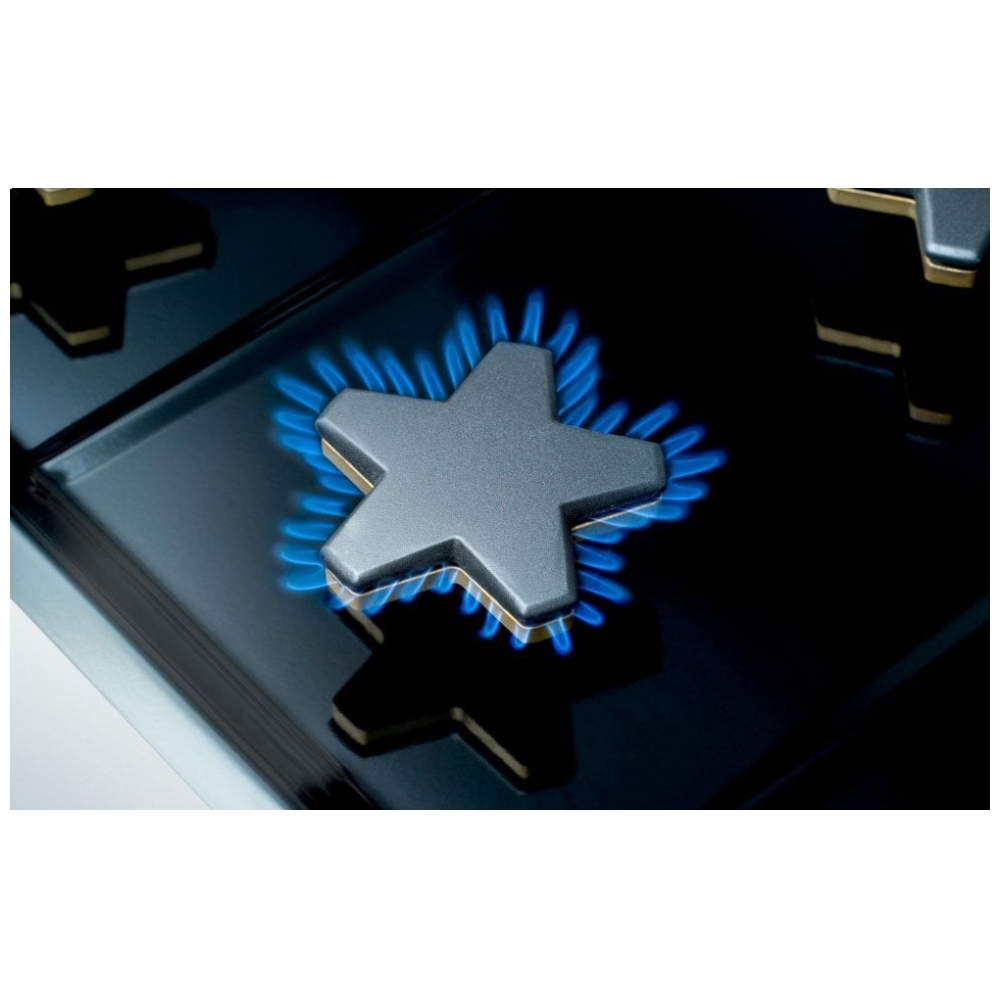

Six Star® Burners provide equal flame distribution
PRD366WHC - Six Star® Burners provide equal flame distribution
Star® Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
ExtraLow® Burners offer precise settings for cooking
PRD366WHC - ExtraLow® Burners offer precise settings for cooking
Our ExtraLow feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.
Track your food's temperature in real time
PRD366WHC - Track your food's temperature in real time
Insert the Meat Probe to your dish and track the temperature in real time while it cooks.

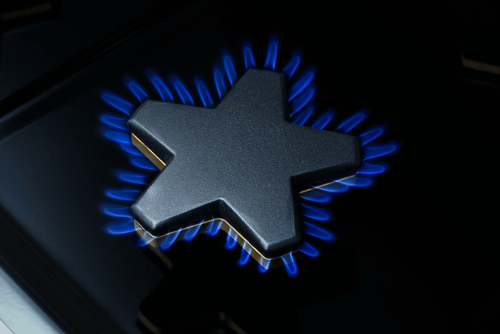

Boil water quickly with 18,000 BTU - PRD366WHC
Boil water quickly with 18,000 BTU
PRD366WHC - Boil water quickly with 18,000 BTU
Optimal for rapid boiling and high heat searing, our patented Star® Burner delivers 18,000 BTU of power.
Connect to your Range with Home Connect®
PRD366WHC - Connect to your Range with Home Connect®
Connect to your range for remote preheating and monitoring via the Home Connect® app, smartwatch and other smart home devices and services, like Amazon Alexa, for hands-free voice control.

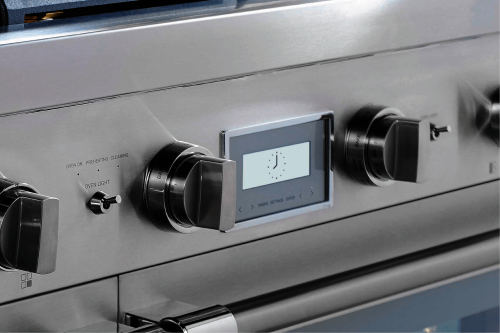

Change settings on the Color TFT Display - PRD366WHC
Change settings on the Color TFT Display
PRD366WHC - Change settings on the Color TFT Display
The TFT display panel offers a vibrant, full-color touchscreen display that lets you easily adjust settings.
True Convection gives you maximum cooking efficiency
PRD366WHC - True Convection gives you maximum cooking efficiency
True Third Element Convection means you can cook multiple dishes - with multiple levels of sheet pans - with even baking results.

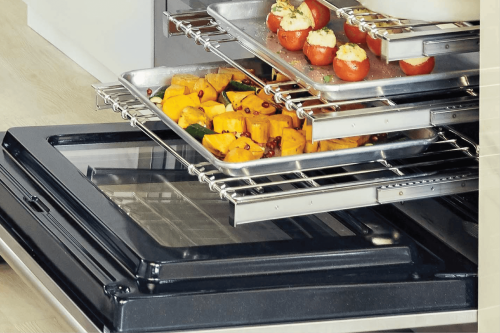

Telescopic racks glide smoothly for easy use - PRD366WHC
Telescopic racks glide smoothly for easy use
PRD366WHC - Telescopic racks glide smoothly for easy use
Three Full Access® telescopic racks glide smoothly on ball bearings, allowing them to expand completely for safe, easy access. Additionally, robust construction safely supports the heaviest dishes while integrated easy-grip handles make them easy to use.

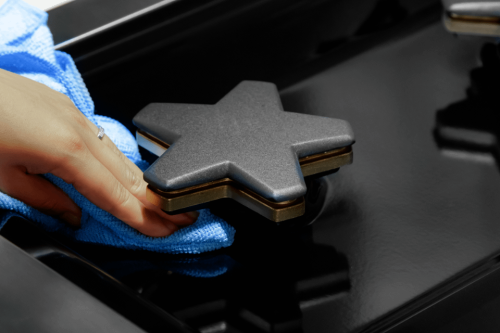

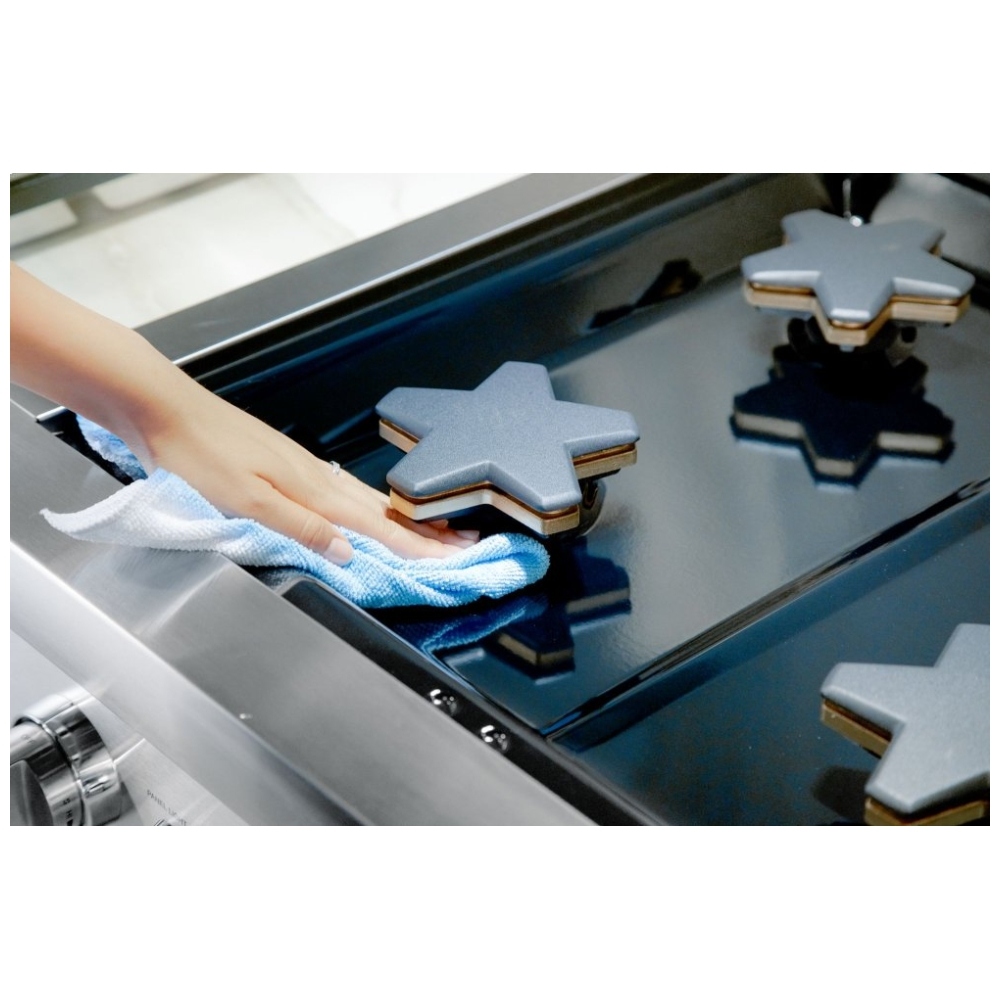

QuickClean Base® allows for easy cleaning - PRD366WHC
QuickClean Base® allows for easy cleaning
PRD366WHC - QuickClean Base® allows for easy cleaning
The raised, patented Pedestal Star® Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.

Specs
SpecificationValue
Capacity 5.0 cu ft

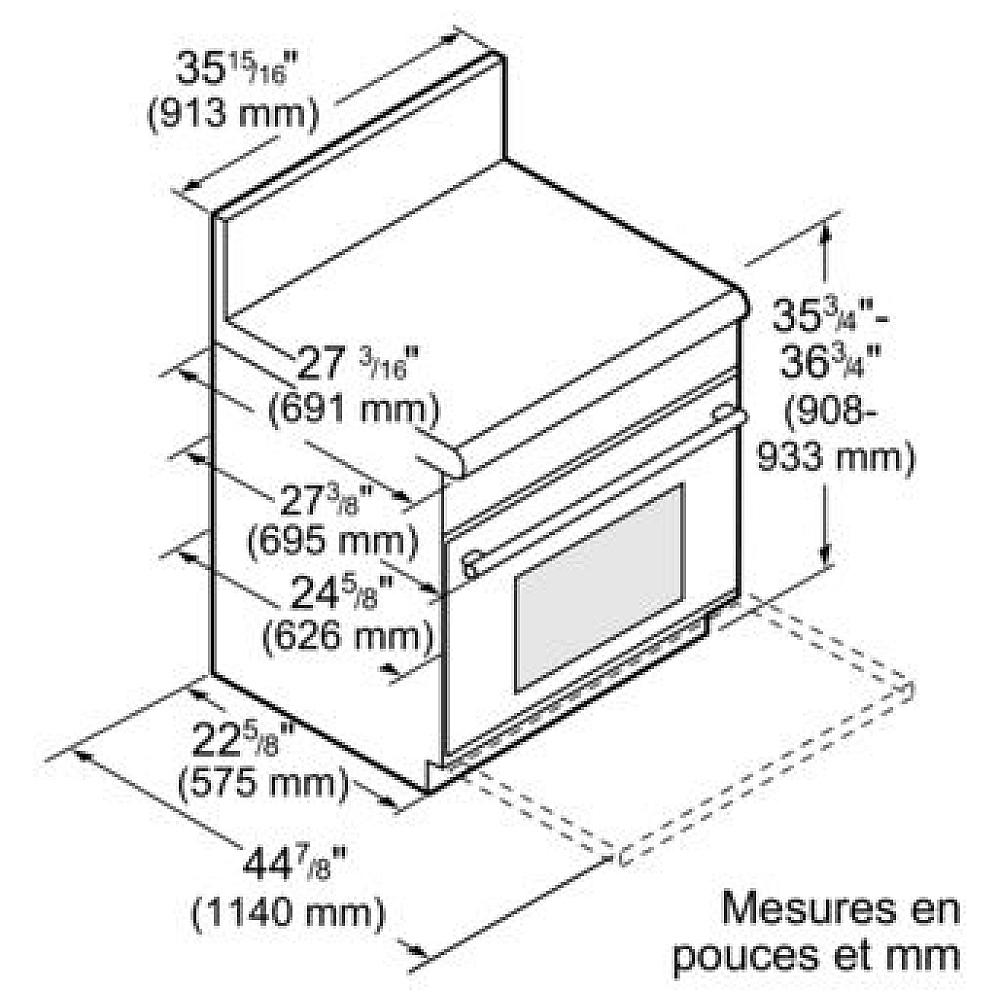

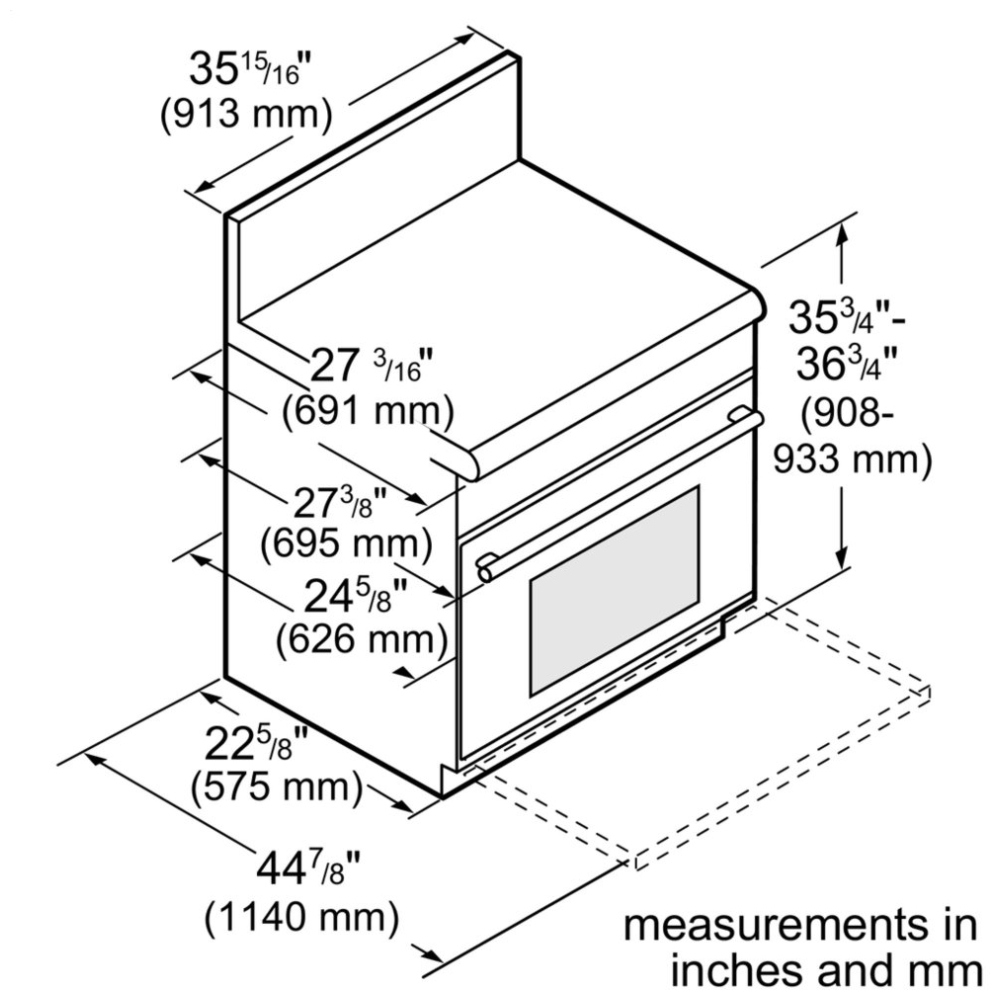

Width 35.94 inches
Appliance Fit Width 36 inches
Height (overall) 36.75 inches
Depth (cabinet / body) 24.75 inches
Depth with Handle 27.38 inches
Depth without Handle 24.63 inches
Depth with Door Open 90° 44.88 inches
Product Weight ≈410 lb
Fuel Type Dual Fuel – Natural Gas Cooktop / Electric Oven
Series / Collection Thermador Pro Harmony® 36" Dual-Fuel Range
Installation Type Freestanding / Slide-in, 24" standard cabinet depth, Truly Flush Mounted™
Range Type Professional style, standard-depth dual-fuel
Number of Ovens Single
Oven Capacity 5.0 cu ft
Cavity Interior Dimensions (H x W x D) 16.25" x 28" x 21.5"
Number of Burners 6
Burner Type Patented Pedestal Star® sealed gas burners
Burner Output (NG) Every burner up to 18,000 BTU (NG)
ExtraLow® Simmer Burners 2 ExtraLow® simmer burners (as low as 100°F / 375 BTU)
Back Left Burner 15,000 BTU
Front Left Burner 18,000 BTU
Back Center Burner 15,000 BTU
Front Center Burner 18,000 BTU
Back Right Burner 15,000 BTU
Front Right Burner 18,000 BTU
Total NG BTUs (approx.) ≈99,000 BTU
Oven Bake Element Power 2,000 W
Oven Broil Element Power 4,000 W
Convection Element Power 2,750 W
Convection System Third Element Convection (True Convection)
Cooking Modes Bake; Convection Bake; True Convection; Convection Roast; Roast; Convection Broil; Broil
Self-Cleaning Yes – 2‑hour rapid self-clean (including cool down)
Number of Rack Levels 6
Telescopic Racks Full Access® telescopic rack with integrated easy‑grip handle (multiple telescopic racks supplied)
Interior Lighting Powerful halogen lighting, 2 interior lights
Oven Door Window Large viewing window, glass door panel
Cooktop Surface Continuous porcelain surface, easy to clean
Grates Professional style, continuous cast-iron grates with rubber feet
Griddle / Grill Included No integrated griddle or grill
Color / Finish Stainless Steel
Door Color Stainless Steel with glass panel
Handle Color Stainless Steel
Control Type Metal knobs with color TFT display
Display Color TFT interface
Smart / Wi‑Fi Yes – Home Connect™ Wi‑Fi enabled
Smart Features Remote control and monitoring, connected oven functions via Home Connect™
Technologies Star® Burner, ExtraLow® simmer, QuickClean Base®, Third Element Convection, Home Connect™
Controls & Indicators Signature blue indicator lighting; hot-surface indicator on cooktop
Electrical Requirements 240 / 208 V, 60 Hz, 35–40 A (dual-fuel connection)
Voltage 208 / 240 V
Frequency 60 Hz
Amperage 35–40 A (circuit requirement)
Plug Type Hardwired / no factory plug (varies by region; check local spec sheet)
Gas Type Natural Gas (LP conversion kit typically available)
Wi‑Fi Capable Yes
Sabbath Mode Yes
ADA Compliant No (for this Canadian PRD366WHC variant)
Outdoor Approved No
Commercial Use Approved No
Energy Star Certified No
Included Accessories Island trim; Full Access® telescopic rack(s)
Manufacturer Warranty (Canada) Typically 2‑year parts & labor (verify regionally)
GTIN / UPC 825225925200
Country of Manufacture Not designated as "Made in Canada" on spec sheets
