Gas Range Connection $189
(Includes Disconnecting Old Gas Unit)
Thermador PRD366WGC
AI6R01
MSP Before Promo
$16,499
 Add to Cart
Ratings & Reviews
PA36WLBG
PA36WLBG
Product Accessories
$1,169
PAGRIDDLE
PAGRIDDLE
Product Accessories
$329
PA12CHPBLK
PA12CHPBLK
Product Accessories
$329
PAALTKITGW
PAALTKITGW
Product Accessories
$299
PWOKRINGHC
PWOKRINGHC
Product Accessories
$209
PA36WTKG
PA36WTKG
Product Accessories
$209
PALPKITDGW
PALPKITDGW
Product Accessories
$209
Similar Colours and Options
AI6R01
Region Availability:
2 - 4 Business Days
When will I get this?

Description & Features
The Thermador PRD366WGC 36" dual-fuel professional range is designed for serious home chefs who want restaurant-inspired performance with refined, built‑in style. With a commercial-depth cooking surface and a generous 5.7 cu. ft. oven capacity, this range easily handles everything from everyday family meals to large holiday roasts and full-size catering trays, all within a standard 36" width opening. At the heart of the cooktop are six exclusive Star® Burners, engineered with a unique star-shaped design that delivers more flame ports and superior heat distribution than traditional round burners, minimizing cold spots and ensuring even results across any size pan. Four of these burners feature ExtraLow® simmer technology, cycling the flame on and off to maintain ultra-low temperatures that are ideal for delicate sauces, melting chocolate, or keeping dishes warm without scorching, a level of precision many conventional ranges simply cannot match.

Inside the oven, True Convection with a dedicated third heating element provides consistent airflow for multi-rack baking, so you can roast, bake, and broil on several levels at once without worrying about flavor transfer or uneven browning. The large-capacity cavity is complemented by robust Full Access® telescopic racks that glide smoothly on ball bearings, extending fully for safe, easy access to heavy cookware while maintaining excellent stability. For added convenience, the PRD366WGC includes a powerful Superfast 2-Hour Self-Clean cycle, one of the quickest in its class, allowing you to restore a fresh, spotless oven interior with minimal downtime between big cooking projects. Thoughtful details such as SoftClose® oven door hinges, professional-style metal knobs, continuous cast-iron grates, and bright halogen lighting enhance both usability and aesthetics, giving your kitchen a true pro-style focal point.

Modern connectivity is built in with Home Connect™ Wi-Fi capability, enabling remote preheating, monitoring, and select control functions from your compatible smart device, and even integration with popular voice assistants for hands-free convenience. Combining high-output burners (including a powerful 22,000 BTU front burner), precise low-heat control, advanced convection baking, and smart features, the Thermador PRD366WGC stands out as a premium choice for homeowners who demand top-tier performance and innovation in a 36" professional-style range.

Pro Grand® commercial-depth design – extra-deep 27"–style chassis provides a professional built-in look and accommodates commercial-size cookware.
Patented Star® Burners – unique star-shaped burners increase flame coverage for faster, more even heating and fewer cold spots across the pan.
ExtraLow® simmer burners (4) – maintain ultra-low temperatures for delicate sauces, melting chocolate, or keeping food warm without scorching.
Home Connect® WiFi-enabled control – allows remote preheating, monitoring, and notifications from a compatible smart device.
SoftClose® oven door hinges – hydraulic hinges prevent slamming and ensure smooth, quiet door closing.
Full Access® telescopic racks (3) – heavy-duty racks glide fully out on ball-bearing rails for safe, easy access to heavy dishes.

36" dual fuel pro-style range – combines a gas cooktop with an electric convection oven for precise baking and powerful stovetop performance.
Six sealed gas burners – offers flexible cooking zones for boiling, searing, sautéing, and simmering at the same time.
Up to 22,000 BTU power burner – high-output front burner delivers intense heat for rapid boiling and high-heat stir-frying.
18,000 BTU Star® burners – strong, even heat on additional burners for everyday cooking tasks.
Precision low-heat control – simmer settings down to approximately 100°F help prevent overcooking delicate foods.
Continuous cast-iron grates – heavy, restaurant-style grates let you slide pots and pans smoothly across the cooking surface.
Stainless steel burner pan – durable, professional-looking surface resists staining and is easy to wipe clean.
Electromagnetic gas safety shutoff – each burner includes flame monitoring that cuts gas flow if the flame goes out.
Hot-surface indicator lighting – alerts you when the cooktop area is still hot to the touch for added safety.

5.7 cu. ft. oven capacity – large cavity fits commercial-size baking sheets and multiple dishes for family meals or entertaining.
True Convection cooking – third heating element with fan circulates hot air for even baking on multiple racks without flavor transfer.
Multiple convection modes – includes Convection Bake, Convection Roast, True Convection, and Convection Broil for tailored results.
Standard bake and roast modes – traditional Bake and Roast options for familiar, straightforward cooking.
High-power broil element – strong top heat quickly browns, sears, and finishes casseroles, meats, and gratins.
Self-cleaning oven – high-heat cycle burns off spills and splatters, reducing the need for manual scrubbing.
Catalytic partial-clean surfaces – select interior surfaces help break down grease during normal cooking and self-clean cycles.
Superfast 2-hour self-clean option – short self-clean cycle minimizes downtime and speeds up deep cleaning.
Multiple rack positions (six levels) – flexible rack placement for tall roasts, multi-rack baking, or large cookware.
Large oven window – oversized viewing glass lets you check cooking progress without opening the door.
Dual halogen oven lights – bright interior lighting improves visibility on every rack level.
Hidden bake element – concealed lower element creates a smooth oven floor that’s easier to wipe clean.

Multi-point temperature probe – monitors internal food temperature and alerts you when your roast or poultry reaches the target doneness.
Electronic oven control panel – color TFT-style interface (model dependent) provides clear settings, timers, and status feedback.
Integrated cook timer – built-in timer helps track cooking durations without needing a separate device.
Preheat status with audible alerts – notifies you when the oven reaches the set temperature so you can load food at the right time.
Safety lock / control lock – disables oven controls to help prevent unintended use or changes to settings.
Mechanical door lock – secures the oven door during self-clean and certain operations for added safety.
Sabbath Mode – specialized operating mode to support certain religious observances.

Stainless steel exterior finish – premium, professional look that coordinates with other stainless appliances.
Restaurant-style metal knobs – robust, easy-grip knobs provide precise burner control and a commercial aesthetic.
Signature blue indicator lighting – distinctive blue illumination highlights active functions and burner status.
Pinhole and panel lighting accents – subtle lighting details enhance the premium appearance of the control panel.
Professional handle design – sturdy, full-width handle offers a solid grip when opening or closing the oven door.

Dual fuel (natural gas cooktop / electric oven) – gas burners deliver instant response while the electric oven offers even, consistent baking.
240/208 V, 40–50 A electrical requirement – supports high-power electric oven performance (check local electrical specs).
Standard 36" width fit – designed to slide into a typical 36-inch range opening for easier replacement or remodels.
Approx. 35 7/8"–36 3/4" adjustable height – leveling legs help align the range with surrounding countertops.
Included LP conversion kit – nozzle set for liquid propane allows conversion from natural gas where permitted.
Included accessories – typically ships with telescopic rack(s), broiler pan, temperature sensor/probe, and island trim for a finished installation.

Star-K certified – meets specific requirements for use in kosher kitchens when used as directed.
ADA-compliant design (model-family dependent) – front controls and accessible features support easier operation for many users.

Manufacturer's Warranty: 2 years

Canadian model: PRD366WGC

Canadian UPC: 825225926580

EAN: 0825225926580


Six Star® Burners provide equal flame distribution
PRD366WGC - Six Star® Burners provide equal flame distribution
Star® Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
ExtraLow® Burners offer precise settings for cooking
PRD366WGC - ExtraLow® Burners offer precise settings for cooking
Our ExtraLow® feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.
Cook precisely with the Multi-Point Temperature Meat Probe
PRD366WGC - Cook precisely with the Multi-Point Temperature Meat Probe
Use the Multi-point Temperature Meat Probe to measure the temperature of your dish from three different points in real time for added precision and consistency. All you have to do is insert the probe while cooking.

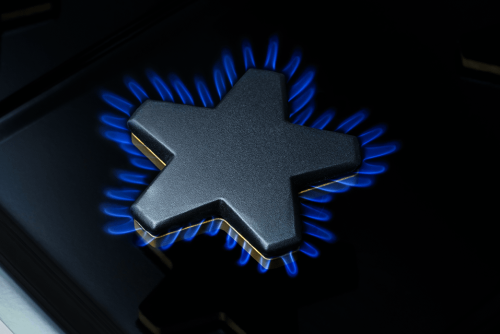

Faster boiling with 22,000 BTU - PRD366WGC
Faster boiling with 22,000 BTU
PRD366WGC - Faster boiling with 22,000 BTU
Our powerful, patented Pedestal Star® Burner delivers 22,000 BTU of pure cooking power for better searing and faster boiling.
Connect to your Range with Home Connect®
PRD366WGC - Connect to your Range with Home Connect®
Connect to your range for remote preheating and monitoring via the Home Connect® app, smartwatch and other smart home devices and services, like Amazon Alexa, for hands-free voice control.

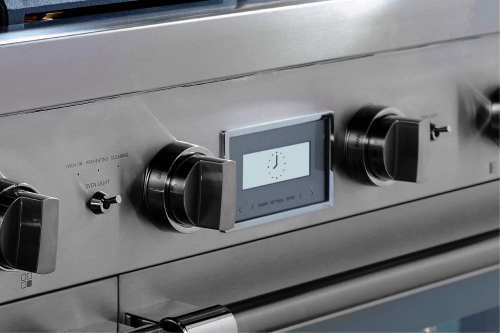

Change settings on the Color TFT Display - PRD366WGC
Change settings on the Color TFT Display
PRD366WGC - Change settings on the Color TFT Display
The TFT display panel offers a vibrant, full-color touchscreen display that lets you easily adjust settings.

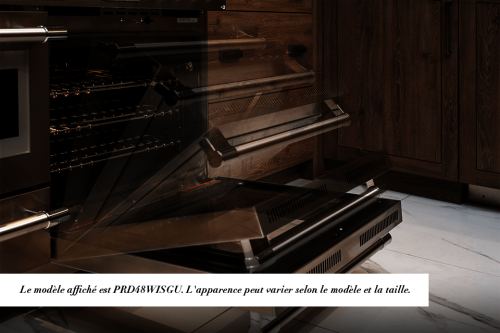

Close the Door Smoothly with SoftClose® Hinges - PRD366WGC
Close the Door Smoothly with SoftClose® Hinges
PRD366WGC - Close the Door Smoothly with SoftClose® Hinges
Hydraulic SoftClose® Hinges prevent slamming and ensure ultra smooth closing for all doors on your appliance.

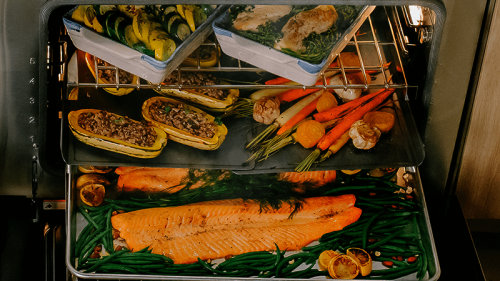

Large Oven boasts 5.7 cubic feet - PRD366WGC
Large Oven boasts 5.7 cubic feet
PRD366WGC - Large Oven boasts 5.7 cubic feet
Large oven accommodates professional-grade catering trays with 5.7 cubic feet.
True Convection gives you maximum cooking efficiency
PRD366WGC - True Convection gives you maximum cooking efficiency
True Third Element Convection means you can cook multiple dishes - with multiple levels of sheet pans - with even baking results.

Specs
SpecificationValue
Brand Thermador
Model PRD366WGC
Series Pro Grand® Professional
Product Type 36" Pro-Style Dual Fuel Range
Fuel Type Dual Fuel (Natural Gas Cooktop / Electric Oven)
Installation Type Freestanding / Slide-in, Commercial Depth
Color / Finish Stainless Steel
Door Color Stainless Steel with Glass Window
Handle Color Stainless Steel
Door Panel Type Glass
Collection Pro Grand®
Range Type Professional / Pro-Style
Capacity 5.7 Cu Ft
AHAM Usable Cavity Size 3.0 Cu Ft (approx., AHAM usable)
Oven Capacity Description Large oven 5.7 cu.ft. accommodates a commercial sheet pan
Number of Ovens Single
Overall Width 35 15/16 inches
Overall Height 35 7/8 inches (adjustable to approx. 36 3/4 inches with legs)
Overall Depth 27 7/8 inches
Depth with Door Open 90° 49 1/8 inches
Required Cutout Width 36 inches
Required Cutout Height Approx. 36 inches
Required Cutout Depth Standard slide-in depth (approx. 25 1/8 inches to front of cabinet)
Overall Dimensions (HxWxD) (metric) 911.2–936.2 mm x 913 mm x 708 mm
Cavity Interior Dimensions (HxWxD) 16.25" x 28" x 21.5"
Cavity Width (metric) 71.1 cm
Cavity Height (metric) 41.3 cm
Cavity Depth (metric) 54.6 cm
Net Weight (approx., Canada listing) ≈ 336 lb (152.6 kg)
Net Weight (spec sheet / other listings) ≈ 330–377 lb (range of published values)
Product Weight Category Approx. 330–390 lb shipping / installed weight
Cooktop Type Gas, Sealed Star® Burners, Continuous Grates
Number of Burners / Elements 6
Burner Type Sealed Pedestal Star® Burners with ExtraLow®
Back Left Burner Output 15,000 BTU + ExtraLow®
Front Left Burner Output 22,000 BTU (Power Burner) + ExtraHigh / ExtraLow®
Back Center Burner Output 15,000 BTU
Front Center Burner Output 18,000 BTU
Back Right Burner Output 15,000 BTU + ExtraLow®
Front Right Burner Output 18,000 BTU or 22,000 BTU (Power Burner, depending on gas configuration)
Maximum Single Burner Output Up to 22,000 BTU (NG)
Precision Simmer Capability As low as 100°F (approx. 375 BTU) on ExtraLow® burners
Total Cooktop BTU (approx.) Up to ~99,000 BTU (NG, across all burners)
Grate Material Continuous Cast Iron Grates
Cooktop Surface Porcelain, Easy-Clean Surface with QuickClean Base®
Cooktop Features Continuous Grate, Indicator Light – Hot Surface, Pedestal Star® Burners, ExtraLow® Simmer
Number of Continuous Grates 3
Residual Heat Indicator Without dedicated residual heat indicator (uses hot-surface indicator light)
Oven Type Electric True Convection Oven
Convection Yes, Third Element True Convection
Number of Cooking Modes 7
Cooking Modes Bake; Convection Bake; True Convection; Convection Roast; Roast; Convection Broil; Broil; plus Self-Clean
Self-Cleaning Yes, Superfast 2–2.5 hour Self-Clean Mode
Cleaning System Self Clean with Partial Catalytic Surfaces
Oven Cleaning Method Self Cleaning
Oven Racks 3 Full Access® Telescopic Racks
Rack Levels 6 Rack Positions
Interior Lights 2 Halogen Lights
Oven Bake Element Power Approx. 2,000 W (8-pass element)
Oven Broil Element Power Approx. 4,000 W (8-pass element)
Convection Element Power Approx. 2,750 W
Oven Features Wi-Fi Capable, Safety Lock, Sabbath Mode, Oven Temperature / Meat Probe, True Convection, Hidden Bake Element
Door Hinges Hydraulic SoftClose® Hinges
SoftClose® Door Yes (smooth closing oven door)
Door Lock Mechanical Door Lock for Self-Clean and Safety
Safety Functions Mechanical door lock, flame failure safety (electromagnetic for each burner)
Gas Safety Device Electromagnetic safety for each burner
Connectivity Home Connect® WiFi-enabled
Smart Compatible Yes, via Home Connect® app
Display Type Color TFT Display
Controls Restaurant-style Metal Knobs with Blue Indicator Lighting
Indicator Lighting Signature Blue Indicator Lighting
Timer / Clock Electronic Oven Display with Cook Timer and Preheat Status
Meat Probe CookControl™ Meat / Temperature Probe Included
Sabbath Mode Yes, Star-K Certified
ADA Compliant No (Canada listing); some U.S. listings show ADA-compliant when installed to requirements
Commercial Use Approved No (Residential Use Only)
Outdoor Approved No
Energy Star Certified No
Electrical Requirements 240/208 V; 60 Hz; 40–50 A (dual fuel oven circuit)
Voltage 240/208 Volts
Frequency 60 Hz
Amperage 40 A (Canada spec) to 50 A (some U.S. spec sheets)
Connected Load Approx. 6,400 W
Plug Type 240 V, 4-prong (Canada); hardwired / no plug in some U.S. specs
Power Cord Length Approx. 65 inches
Gas Connection Natural Gas (convertible to LP with included nozzle set)
Fuel (Cooktop) Natural Gas (NG), convertible to LP
Included Accessories 1 x nozzle set for liquid gas; 1 x temperature sensor / meat probe; 1 x telescopic rack (plus additional telescopic racks factory-installed); 1 x broiler pan; 1 x island trim
Home Connect® Yes, Wi-Fi Enabled for remote monitoring and control
Design Highlights Bold Professional Design, Commercial Depth, Large Oven Window, Powerful Halogen Lighting
Special Features Patented Pedestal Star® Burners, QuickClean Base®, ExtraLow® Simmer, Superfast Self-Clean, Full Access® Telescopic Racks
Country of Manufacture Not Made in Canada (per spec); global Thermador manufacturing
Warranty Limited 2-Year Manufacturer Warranty (parts and labor, region-specific)
