Manufacturer's Warranty: 2 years
Canadian model: PRD48WDSGC
Canadian UPC: 825225933359
EAN: 0825225933359
| Specification | Value |
|---|---|
| Brand | Thermador |
| Model | PRD48WDSGC |
| Product Type | Dual Fuel Professional Range |
| Series / Collection | Pro Grand® |
| Installation Type | Freestanding / Slide-in, Professional Style |
| Fuel Type | Dual Fuel (Natural Gas Cooktop, Electric Ovens) |
| Energy Source – Cooktop | Gas |
| Energy Source – Ovens | Electric |
| Color Finish | Stainless Steel |

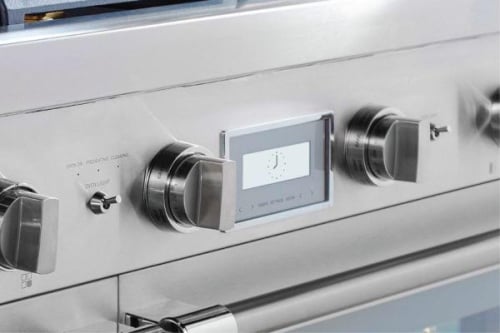

| Control Type | Rotary knobs / sword knobs with color TFT display |
| Range Type | Pro-style, commercial-depth 48" range |
| Capacity | |
| Main Oven Capacity | 4.9 cu ft |
| Secondary Steam / Convection Oven Capacity | 1.6 cu ft |
| Total Oven Capacity | 6.5 cu ft |
| Steam Oven Cavity (Canadian spec) | 1.4 cu ft (usable steam cavity) |
| Large Oven (Canadian spec) | 5.7 cu ft (accommodates commercial baking sheets) |
| Warming Drawer Capacity | 1.1 cu ft (holds up to ten 11" plates) |
| Dimensions & Weight | |
| Overall Height | 35 3/4" – 36 3/4" (adjustable) |
| Overall Width | 47 15/16" (nominal 48") |
| Overall Depth (cabinet to door) | 27 7/8" (approx. 27.88") |
| Depth Without Handle | ~29" |
| Depth With Handle | ~30 5/8" |
| Depth with Door Open 90° | ~49.1" |
| Required Cutout Width | 48" |
| Required Cutout Depth | 24" – 25 1/8" |
| Required Cutout Height | 35 3/4" – 36 3/4" |
| Net Weight (typical) | Approx. 500–550 lb |
| Cooktop Configuration | |
| Total Number of Cooking Zones | 6 gas burners + 1 electric griddle |
| Back Left Burner | 15,000 BTU with XLO simmer |
| Front Left Burner | 22,000 BTU with XHI / XLO |
| Back Center Burner | 15,000 BTU |
| Front Center Burner | 18,000 BTU |
| Back Right Burner | 15,000 BTU with XLO simmer |
| Front Right Burner | 18,000 BTU with XLO simmer |

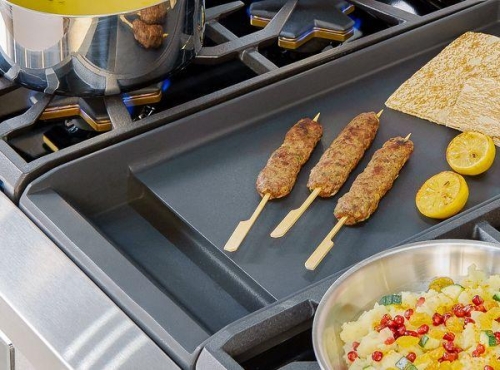

| Center Electric Griddle | 12" titanium-surface cast-aluminum, 1,630 W (6-pass element) |

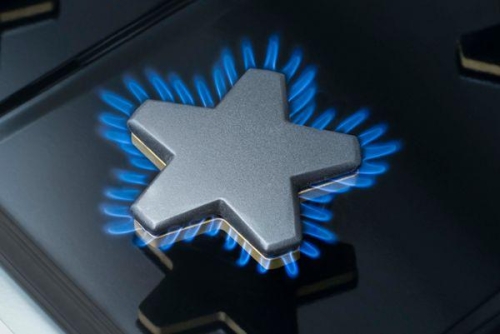

| Burner Type | Patented Pedestal Star® sealed burners |
| Maximum Burner Output | 22,000 BTU (front left) |

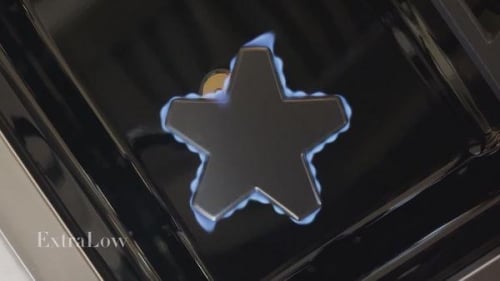

| ExtraLow® Simmer Burners | 4 ExtraLow® burners, simmering as low as 100°F (approx. 375 BTU) |
| Grate Type | Continuous, professional-style cast-iron grates |
| Cooktop Surface | One-piece porcelain-enamel surface for easier cleaning |
| LP Conversion | Convertible; LP nozzle set included |
| Oven Configuration & Performance | |
| Number of Ovens | 2 (large electric convection oven + steam/convection oven) |
| Large Oven Capacity | 4.9 cu ft |
| Small Steam / Convection Oven Capacity | 1.6 cu ft (1.4 cu ft steam cavity usable) |
| Large Oven Interior Dimensions (HxWxD) | 16 3/8" x 24 1/4" x 21 1/2" |
| Large Oven Usable Dimensions (HxWxD) | 12" x 22 1/2" x 19 1/2" |
| Small Oven Interior Dimensions (HxWxD) | 10 1/4" x 14 1/4" x 17 3/8" |
| Small Oven Usable Dimensions (HxWxD) | 9 5/8" x 12" x 16" |
| Large Oven Bake Element | 2,000 W |
| Large Oven Broil Element | 4,000 W (8-pass broil) |
| Large Oven Convection Element | 2,750 W (third-element true convection) |
| Steam Bowl Element | 1,800 W |
| Steam Convection Element | 2,750 W |
| Warming Drawer Element | 400 W |
| Oven Cleaning Type | Self Clean (pyrolytic) with Superfast 2-hour self-clean cycle |
| Steam Oven Cleaning | Steam clean function for steam cavity |

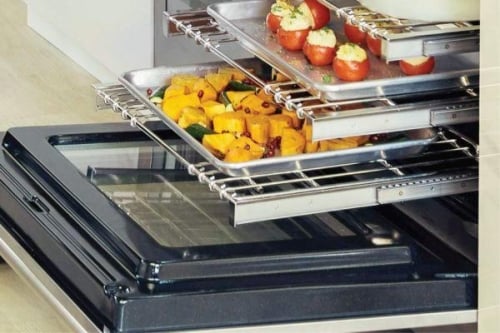

| Racks | Full Access® telescopic racks with integrated easy-grip handles (up to 3 in large oven) |

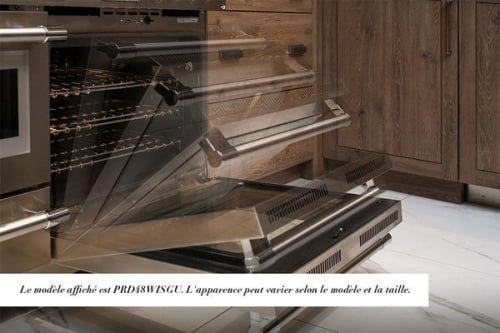

| Oven Door Hinges | Hydraulic SoftClose® hinges on both ovens and warming drawer |
| Oven Window | Extra-large viewing window |
| Cooking Modes – Large Oven | |
| Cooking Modes (Large Cavity) | Bake, Convection Bake, True Convection, Convection Roast, Roast, Convection Broil, Broil, Self-Clean |
| Cooking Modes – Small Steam / Convection Oven | |
| Cooking Modes (Small Cavity) | Proof, Keep Warm, Steam Programs, True Convection, Slow Cook, Defrost, Reheat, Steam Convection, Steam |
| EasyCook® Programs | 27 pre-programmed EasyCook® food programs (automatic temperature and humidity settings) |
| Water Connection | Non-plumbed steam oven (manual water reservoir) |
| Warming Drawer | |
| Drawer Type | Glass-surface warming drawer |
| Capacity | 1.1 cu ft |
| Use | Holds up to ten 11" plates; open side walls for easy access |
| Electrical & Gas Requirements | |
| Voltage | 208 / 240 V |
| Frequency | 60 Hz |
| Amperage | 50 A |
| Total Electric Power | Approx. 15,400 W |
| Plug Type | 240 V, 4-prong (cord may be purchased separately in some regions) |
| Gas Supply Connection | 3/4" gas supply, rear left bottom connection |
| Certified Gas Types | Natural Gas (NG); convertible to LP with included kit |
| Total Connected Gas Load | Approx. 30,200 BTU |
| Features & Connectivity | |
| Display | Full-color TFT touch display |
| Wi-Fi / Smart Connectivity | Home Connect® enabled (remote preheat, monitoring, smart home integration, voice control) |
| Meat Probe | Multi-point temperature meat probe (measures from three points in real time) |
| Lighting | Pin-hole style oven and panel lighting; 2 lights in large oven, 1 in small oven |
| Telescopic Racks | Full Access® telescopic racks glide on ball bearings for full extension |
| Design Highlights | Distinctive 3-door configuration, bold professional aesthetic, stainless steel doors and trim |
| Safety & Certifications | |
| Gas Safety | Electromagnetic safety device for each burner |
| Door Hinges | SoftClose® to prevent slamming |
| ADA Compliance | Varies by region; generally not ADA-compliant in Canada |
| Sabbath Mode | Star-K certified (Sabbath mode available) |
| Key Canadian-Specific Notes | |
| Capacity Measurement Standard | Canadian specifications use IEC measurement; listed capacities (5.7 cu ft large oven, 2.5 cu ft small oven, 1.4 cu ft steam cavity, 6.5 cu ft total) reflect IEC where applicable. |
| Primary Reference | Canadian Thermador specifications take precedence over U.S. retailer listings where discrepancies exist. |
