Manufacturer's Warranty: 2 years
Canadian model: PRG366WH
Canadian UPC: 825225925460
EAN: 0825225925460



| Specification | Value |
|---|---|
| Brand | Thermador |
| Model | PRG366WH |
| Series | Pro Harmony® Standard Depth |
| Product Type | Gas Freestanding Professional Range |
| Fuel Type | Gas |
| Style | Professional |
| Installation Type | Freestanding / Slide-in, designed to fit flush with 24" depth cabinets |
| Color | Stainless Steel |
| Capacity | 5.1 Cu Ft |
| AHAM Usable Cavity Size | 3.0 Cu Ft (approx.) |
| Cavity Capacity (Nominal) | 4.9 Cu Ft |
| Width | 35 15/16 inches |
| Height | 35 7/8 inches |
| Depth (cabinet to front) | 24 3/4 inches |
| Overall Appliance Dimensions (HxWxD) | 35 7/8" x 35 15/16" x 24 3/4" |
| Nominal Width | 36 inches |
| Required Cutout Width | 36 inches (slide-in) |
| Depth with Door Open 90° | Approx. 44.9 inches (1140 mm) |
| Product Packaging Dimensions (HxWxD) | 49 1/4" x 43 1/2" x 40 3/8" |
| Variable Cooker Height (Leveling Range) | Up to 1 inch |
| Net Weight | Approx. 341–415 lbs (154.5–188 kg) |
| Gross Weight | Approx. 421 lbs (191 kg) |
| Number of Cavities | 1 |
| Oven Type | Gas Convection Oven |
| Cooking Modes | Roast, Bake, Convection Bake, Broil |
| Convection | Yes |
| Self-Cleaning | No |
| Steam Clean | No |
| Proof Mode | No |
| Sabbath Mode | No |
| Oven Racks | 3 |

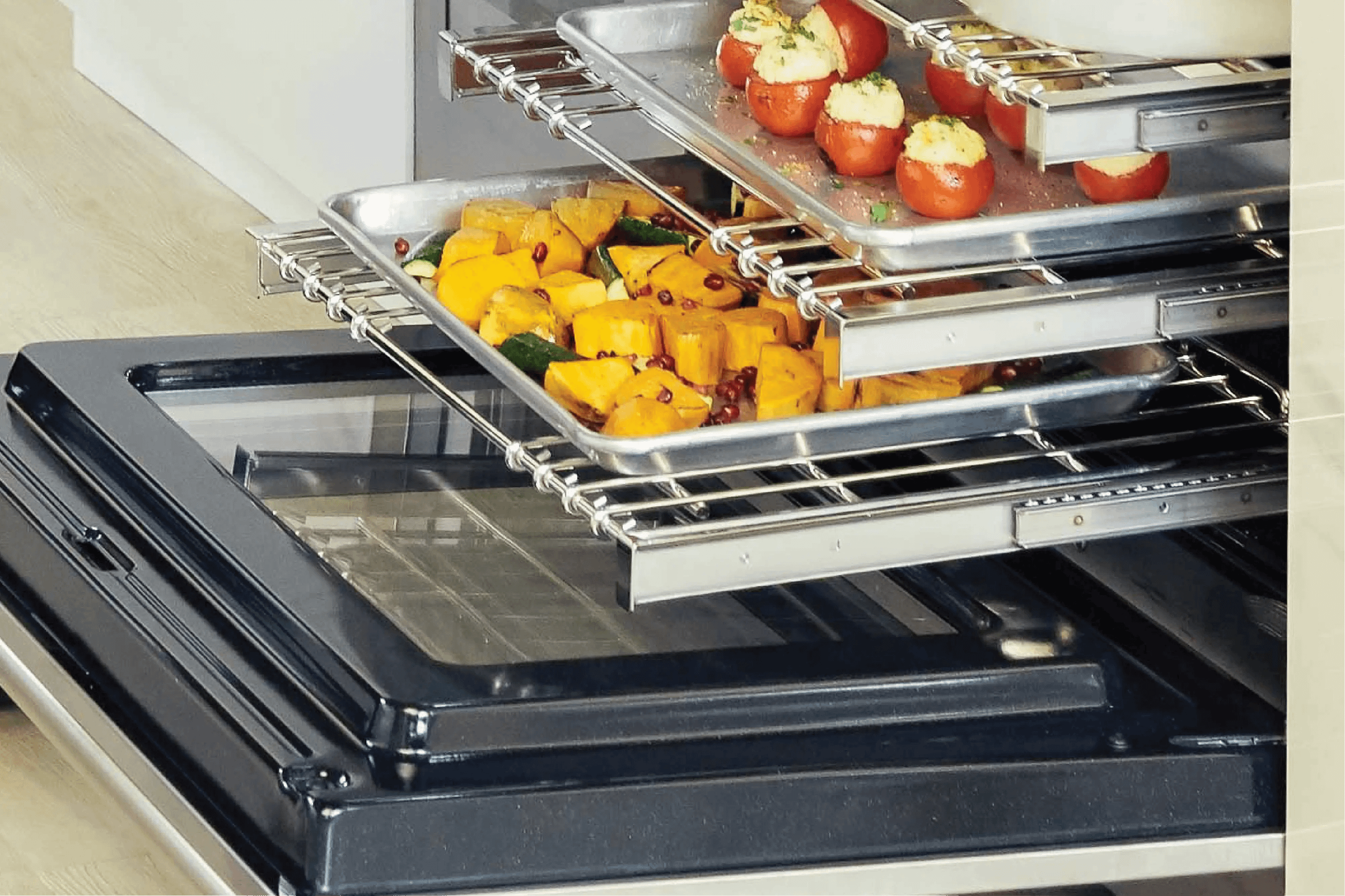

| Rack Type | Full Access® telescopic racks, shelf support and telescopic rails |
| Number of Rack Levels | 6 |
| Interior Oven Light | Yes, 2 interior lights (left and right side) |
| Oven Cavity Dimensions (HxWxD) | 16 3/8" x 28" x 18 1/2" |
| Broiler Element Location | Top |
| Broiler Pan Included | Yes, 1 x broiler pan |
| Oven Bake Burner Power | Approx. 20,500 BTU |
| Oven Broil Burner Power | Approx. 17,500 BTU |
| Oven BTUs (Total) | Approx. 20,500 BTU (bake) |
| Temperature Probe | Yes (on some spec listings) |
| Timer | Yes |
| Delay Bake | No |
| Fast Preheat | No |
| Digital Temperature Display | No (temperature via controls / TFT interface) |

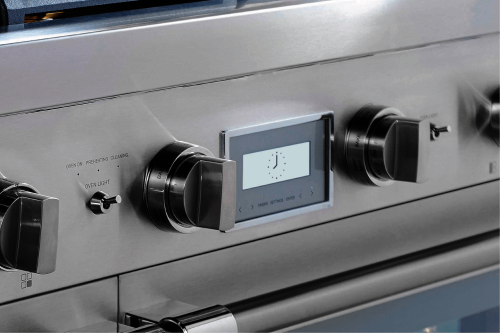

| Display Concept | TFT Display |
| SoftClose® Door | No |
| Door Material | Stainless Steel |
| Door Lock | Mechanical |
| Number of Gas Burners | 6 |
| Total Number of Cooktop Burners | 6 |

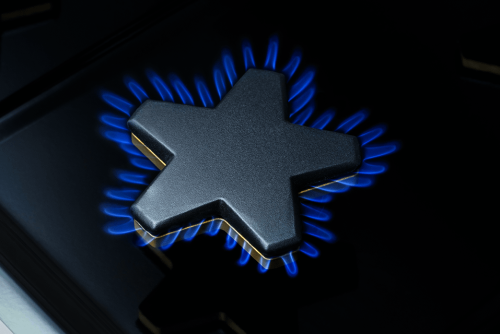

| Burner Type | Pedestal Star® sealed gas burners |
| ExtraLow® Burners | Yes, 2 ExtraLow burners with 5 precise simmer settings |
| Sealed Burners | Yes (pedestal Star burners with sealed design) |
| Simmer Capability | ExtraLow® simmer on 2 burners |
| Number of Cooking Modes (Oven) | 4 |
| Burner Outputs (BTU) | Mix of 18,000 BTU and 15,000 BTU burners (typical: three 18,000 BTU and three 15,000 BTU) |
| Power of 6th Burner | 18,000 BTU |
| Total NG BTU Load | 120,000 BTU |
| Gas Connection Rating | Approx. 35,200 W equivalent |
| Alternative Gas Type | Liquid Propane (LP) 27.5 mbar (conversion kit required) |
| LP Conversion | Yes, LP conversion kit available (purchased separately) |
| Ignition System | Electronic ignition |
| Griddle | No (optional accessory griddle available) |
| French Top | No |
| Grill | No |
| Cooktop Surface Material | Porcelain maintop |
| Surface Materials | Porcelain, Steel |

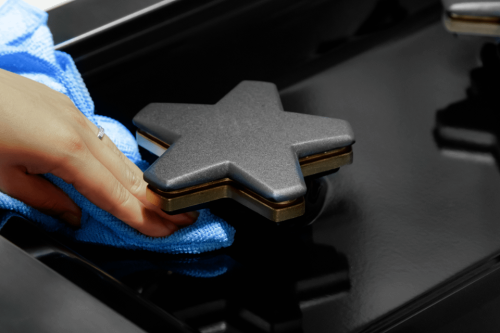

| QuickClean Base® | Yes, raised burners and porcelain maintop for easier cleaning |
| Continuous Grates | Yes |
| Number of Continuous Grates | 3 |
| Grate Material | Cast Iron with Rubber Feet |
| Knob Type | Front control, rotary "sword" knobs |
| Knob Material | Full metal |
| Type of Control | Electronic with front rotary knobs |
| Energy Source | Gas (cooktop and oven) |
| Electrical Requirements | 120 V / 60 Hz / 15 A |
| Voltage | 120 Volts |
| Frequency | 60 Hz |
| Amps | 15 A |
| Watts | Approx. 100 W (electrical load) |
| Plug Type | 120V, 3-prong |
| Power Cord Length | Approx. 65 inches (165 cm) |
| Home Connectivity | Home Connect® WiFi-enabled |
| Remote Diagnostics | Yes (via connected features) |
| Dash Replenishment | No |
| Smart Accessory Required | No |
| ADA Compliant | No |
| Energy Star Rated | No |
| Downdraft Ventilation | No |
| Hood Recommended | Yes |
| Motorized Turnspit | No |
| Settings Backup | No |
| Automatic Programs | No |
| Main On/Off Switch | No |
| Integrated Cleaning System | No (manual clean) |
| Number of Interior Lights | 2 |
| Trays Included | 0 |
| Grids (Oven) | Included via racks; no separate wire grids listed |

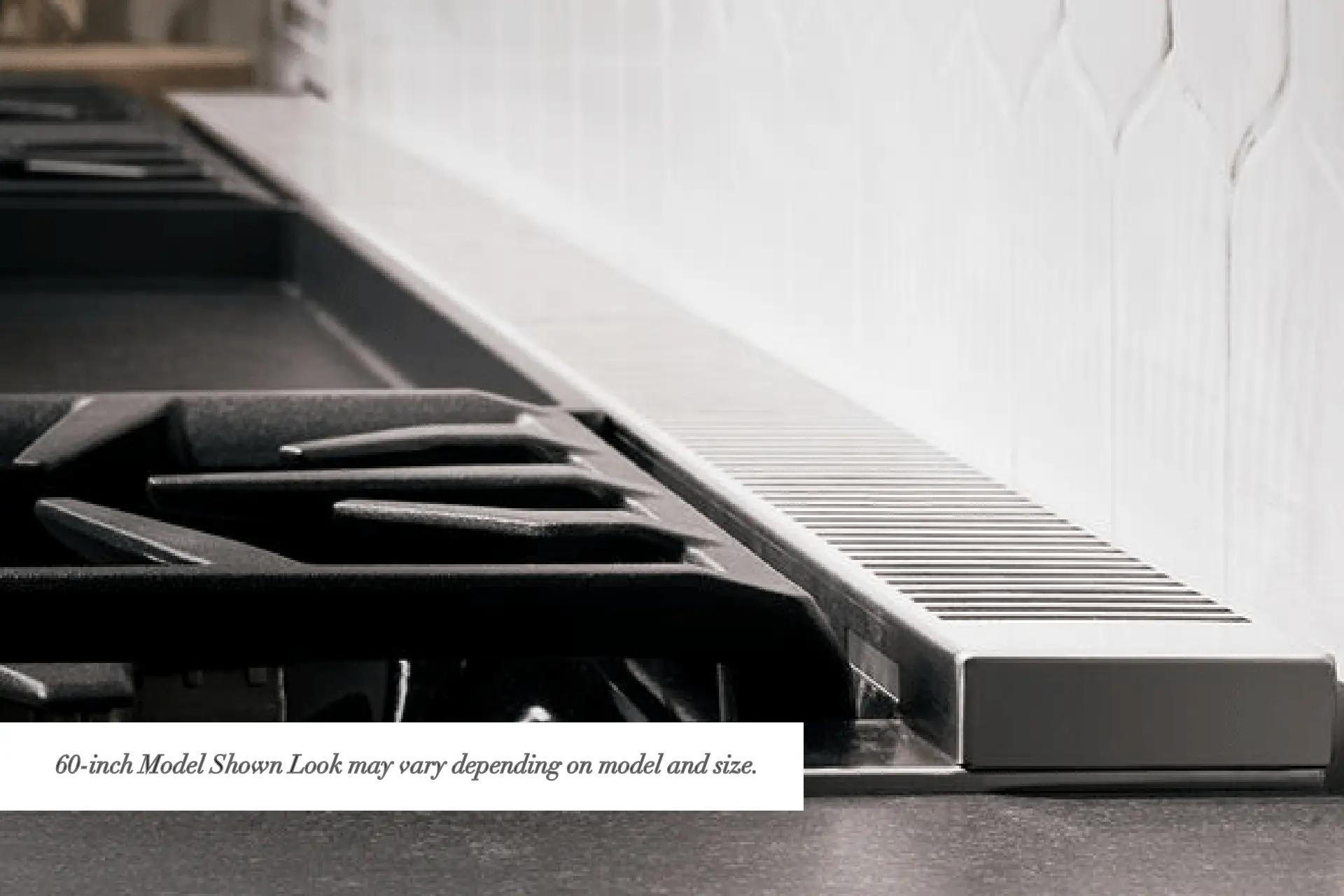

| Included Accessories | 1 x broiler pan, 1 x island trim |
| Optional Accessories (Primary Cavity / Range) | PA12CHPBLK, PA36WLBH, PAALTKITHW or PAALTKITH, PAGRIDDLE, PAKNOBLUWH, PALPKITGW or PALPKITGA, PARKB3XHY, PWOKRINGHC |
| UPC | 825225925460 |
| EAN | 0825225925460 |
