Description & Features
The Thermador SGSXP305TS gas cooktop brings professional‑grade performance and refined design into a compact footprint, making it an ideal centerpiece for serious home cooks who don’t want to compromise on power or precision. At approximately 30 inches wide, it maximizes usable cooking space with five burners arranged to give you the flexibility of a larger cooktop, including a commanding center burner that delivers up to 18,000 BTU of heat for rapid boiling, intense searing, and fast stir‑frying. What truly sets this model apart is its patented Star® Burner design: instead of a traditional round burner, the unique five‑point shape offers more flame ports and more even heat distribution across the bottom of your cookware, helping to eliminate cold spots and reduce cooking times while maintaining precise control. For delicate tasks, the ExtraLow® Select simmer burners provide ultra‑gentle heat with multiple low settings, cycling the flame on and off to keep sauces, custards, and melted chocolate at a steady temperature without scorching, so you can leave a pot on the burner with confidence. Cleaning is also thoughtfully engineered thanks to the raised Pedestal Star® Burners and QuickClean Base®, which create enough clearance for a sponge or cloth to glide underneath, while the smooth porcelain maintop helps contain spills and wipes down quickly after a busy dinner service. Continuous cast‑iron grates allow you to slide heavy pots from burner to burner without lifting, and the progressive illuminated light ring around each knob provides an elegant visual cue that a burner is in use, enhancing both safety and style. With its sleek stainless‑steel surface, robust metal control knobs, and a width designed to fit standard 30‑inch cutouts while offering the capacity and flexibility of a larger cooktop, the Thermador SGSXP305TS delivers a premium cooking experience that stands out in both performance and everyday usability.

Patented Pedestal Star® Burners – unique five-point Star® design offers more flame ports and more even flame distribution than round burners for faster, more uniform pan heating.

Star® Burner equal-flame coverage – 56% longer burner shape helps reduce cold spots and delivers consistent heat across the entire cookware surface.

QuickClean Base® design – raised burners and a teardrop-embossed porcelain maintop keep spills contained and away from burner bases for easier wipe-down cleaning.

ExtraLow® Select simmer burners (2) – provide 5 ultra-precise low-heat settings ideal for simmering sauces, melting chocolate, or keeping food warm without scorching.

Illuminated control knobs – progressive light ring around each knob clearly indicates which burners are in use for enhanced visibility and safety.

STAR-K Sabbath compliant – meets STAR-K certification requirements to support Sabbath and holiday cooking needs.

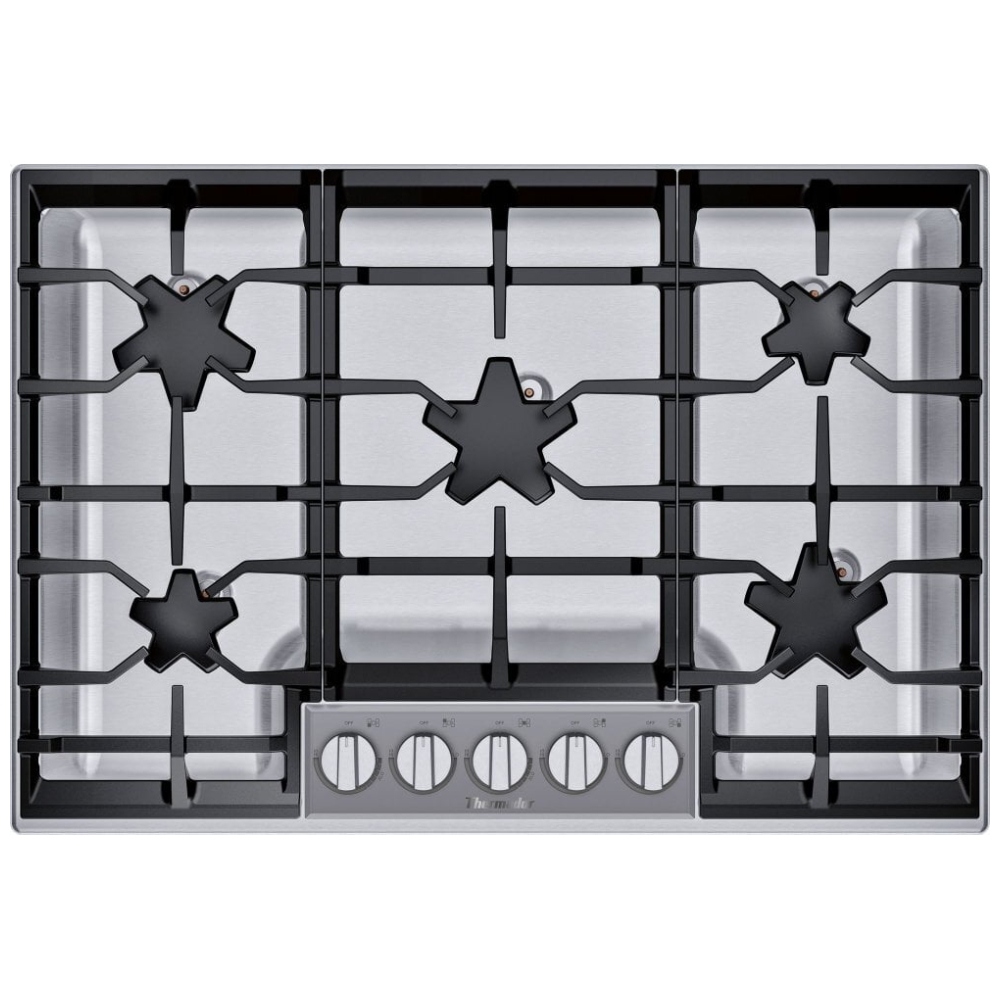

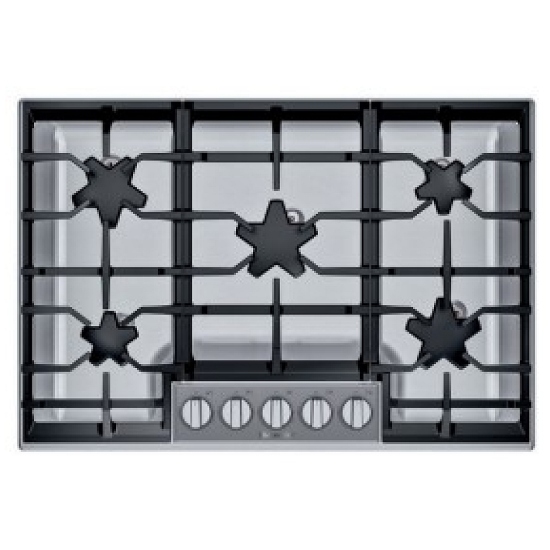

Thermador® Masterpiece® 30" gas cooktop – premium built-in gas cooktop offering the performance of many 36" models while fitting a 30" cutout.

Powerful 18,000 BTU center burner – extra high-heat burner in the center position for rapid boiling, searing, stir-frying, and large stock pots.

Five-burner configuration – includes 2 front 10,000 BTU burners, 2 rear 8,000–10,000 BTU burners, and 1 high-output center burner to handle multiple pots and pans at once.

54,000 BTU total output – high combined BTU capacity supports everything from fast boiling to gentle simmering across all burners.

Continuous cast-iron grates – heavy-duty, edge-to-edge grates let you slide cookware smoothly between burners without lifting.

Raised pedestal burner layout – elevates burners above the surface so a sponge or cloth can easily reach underneath for quick cleanup.

Sealed gas burners – help prevent spills from entering the burner box, improving safety and simplifying maintenance.

Electronic re-ignition system – automatically re-lights the burner if the flame is accidentally extinguished, maintaining consistent cooking performance.

“Push-to-turn” safety knobs – require inward pressure before turning, helping prevent accidental burner activation.

Top-mounted analog controls – front/top control placement keeps settings easy to see and adjust while cooking.

Stainless steel cooktop surface – durable, modern stainless finish coordinates with other kitchen appliances and resists everyday wear.

Seamless stainless steel burner pan – smooth, one-piece pan design minimizes crevices where food can collect, making surface cleaning easier.

High-grade die-cast metal knobs – robust, premium-feel knobs designed for long-term durability and a professional look.

Sleek glass-and-stainless control panel – combines glass accents with stainless steel for a contemporary, upscale appearance.

30" width with compact cutout – fits standard 30" cooktop openings while maximizing usable cooking area.

Natural gas operation (LP convertible) – factory set for natural gas with optional LP conversion kit available for propane installations.

120V, 15A electrical requirement – standard household electrical connection simplifies installation.

Installs over built-in ovens – compatible with many under-counter wall oven installations for flexible kitchen layouts.

2-year parts and labor warranty – manufacturer-backed coverage for added peace of mind.

Manufacturer's Warranty: 2 years

Canadian model: SGSXP305TS

Canadian UPC: 825225932819

EAN: 0825225932819

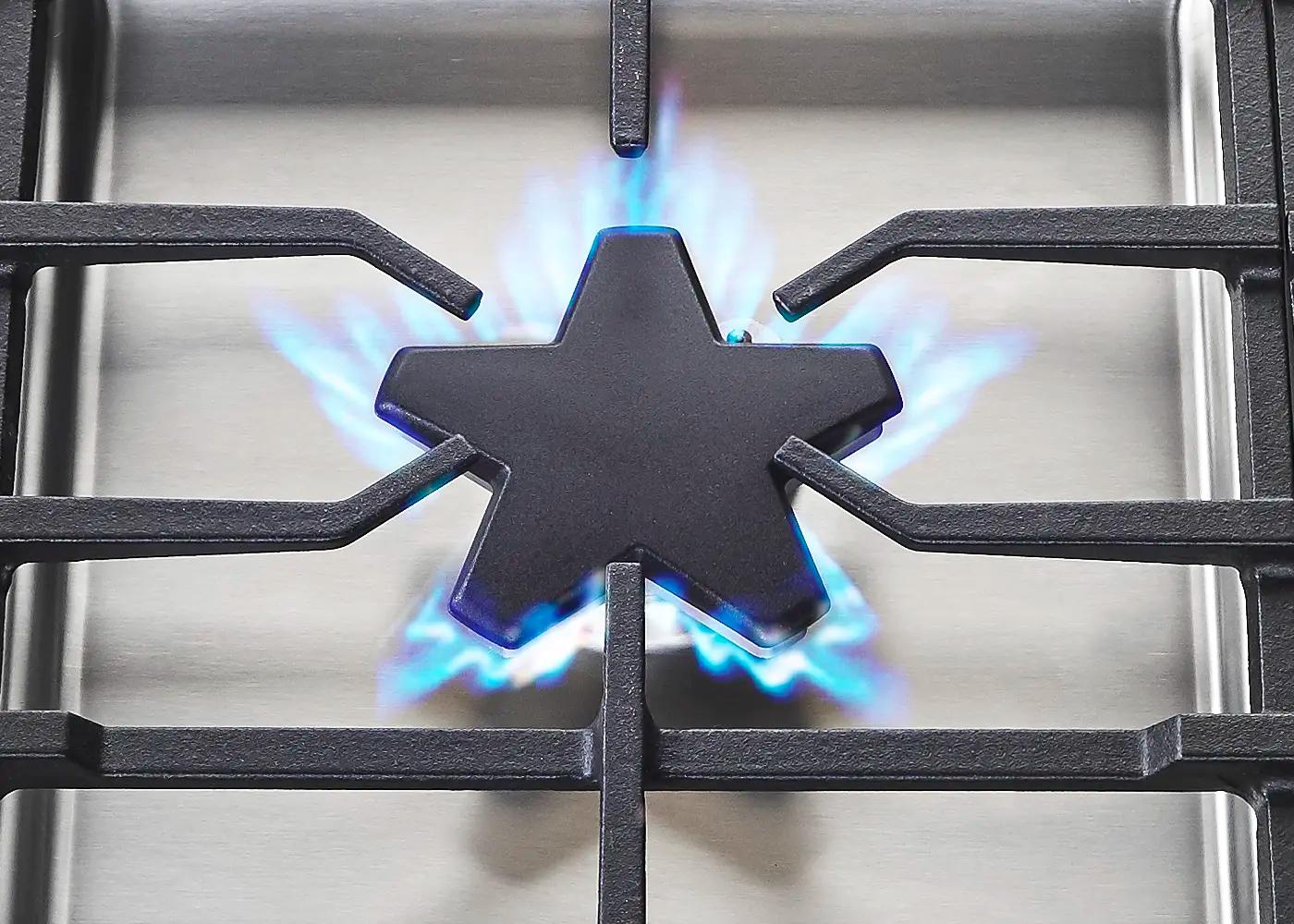

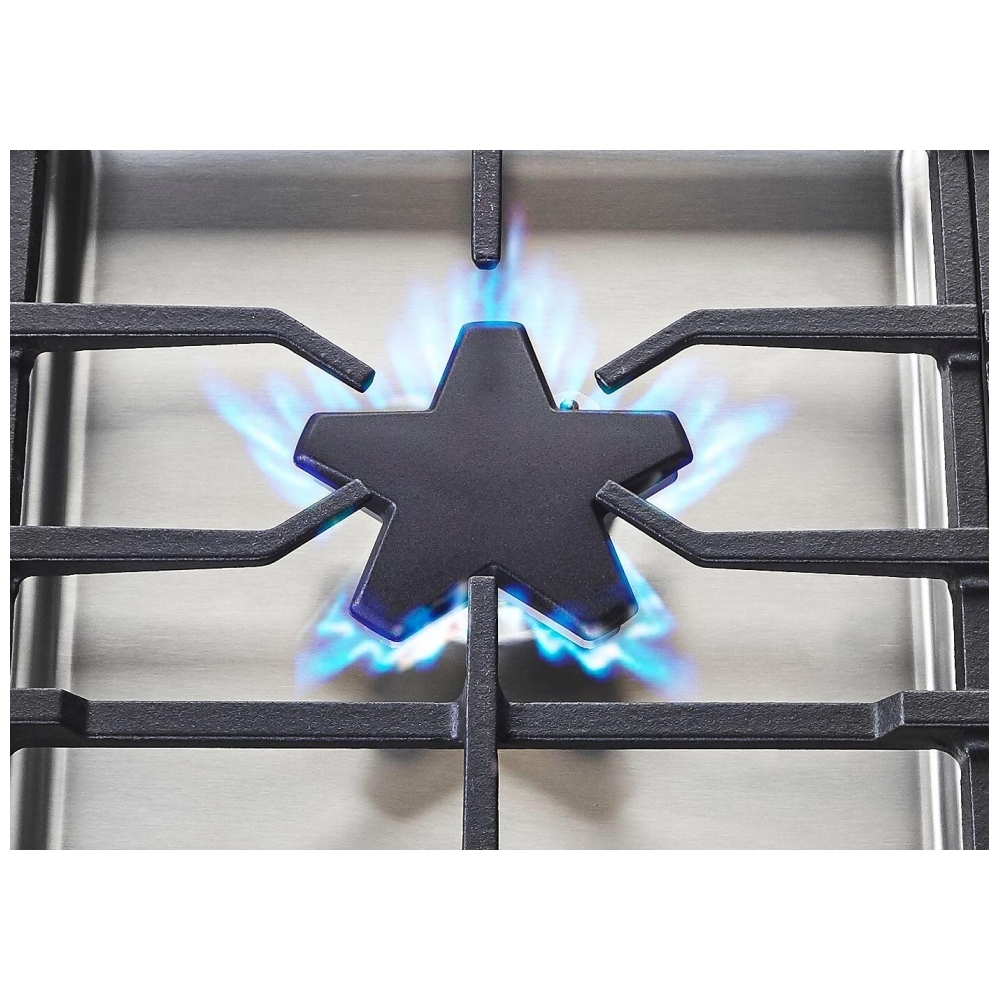

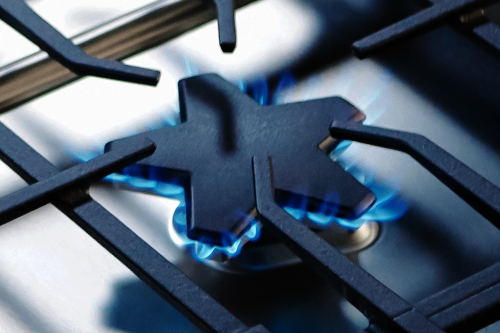

Our Star® Burner provides equal flame distribution - SGSXP305TS
Our Star® Burner provides equal flame distribution
SGSXP305TS - Our Star® Burner provides equal flame distribution
Star® Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating. Features a QuickClean Base® for easy cleaning.
ExtraLow® for slowly simmering delicate recipes
SGSXP305TS - ExtraLow® for slowly simmering delicate recipes
Our ExtraLow® feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.

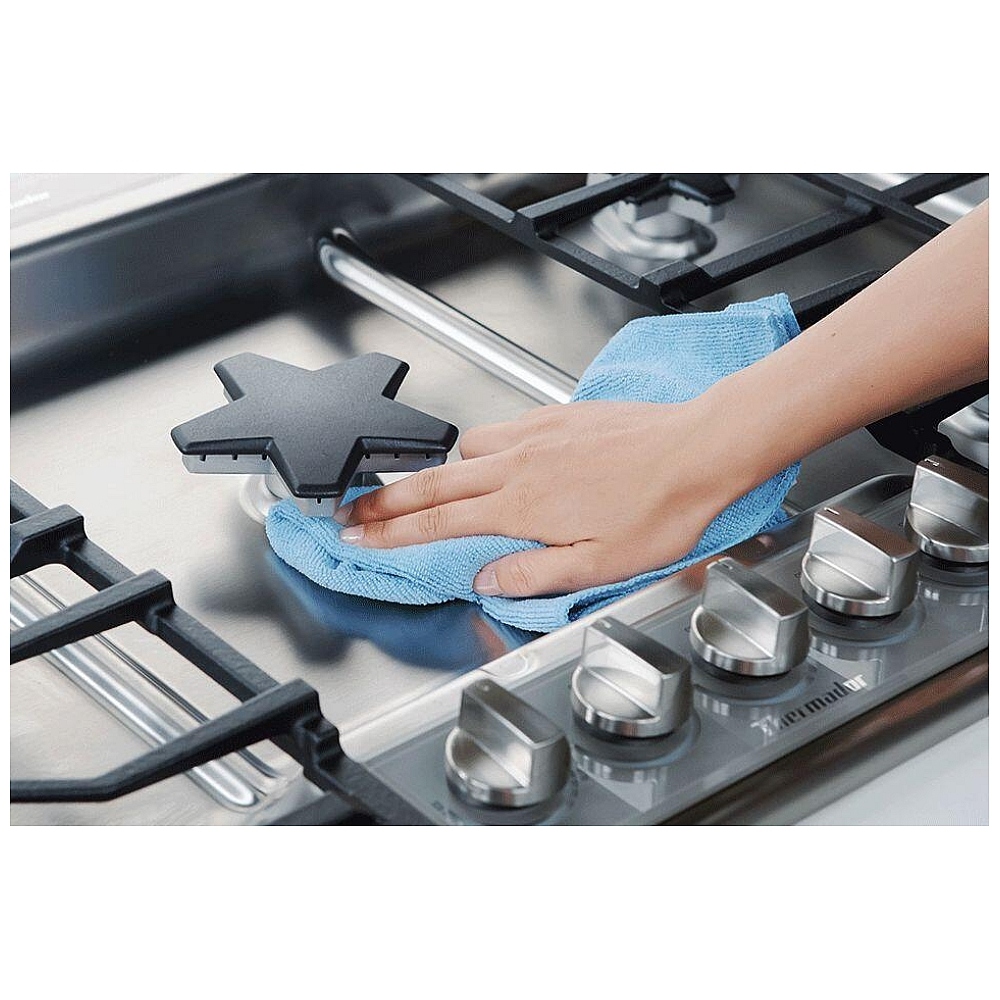

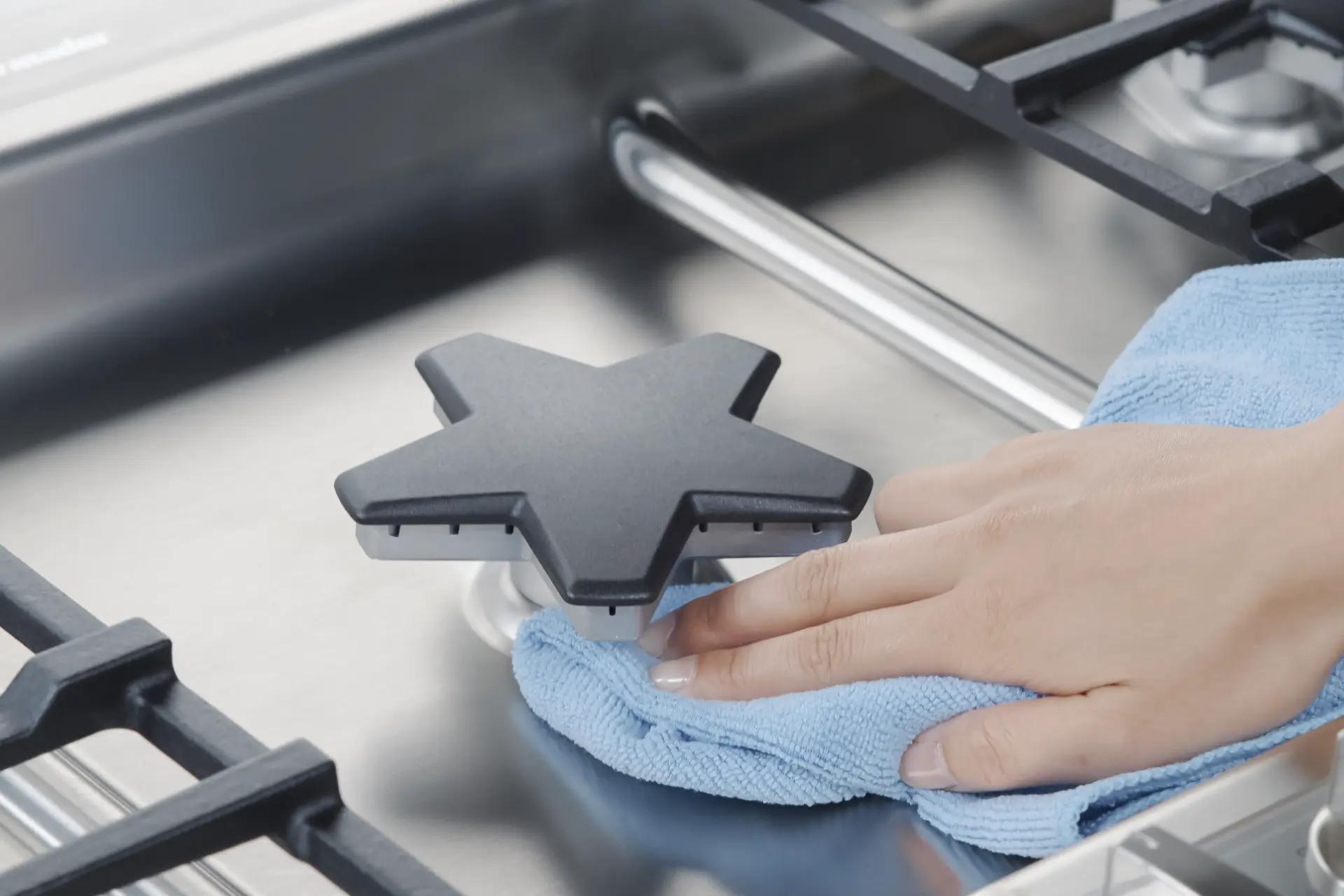

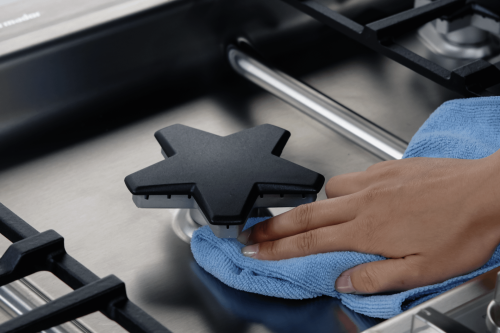

QuickClean Base® allows for easy cleaning - SGSXP305TS
QuickClean Base® allows for easy cleaning
SGSXP305TS - QuickClean Base® allows for easy cleaning
The raised, patented Pedestal Star® Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.

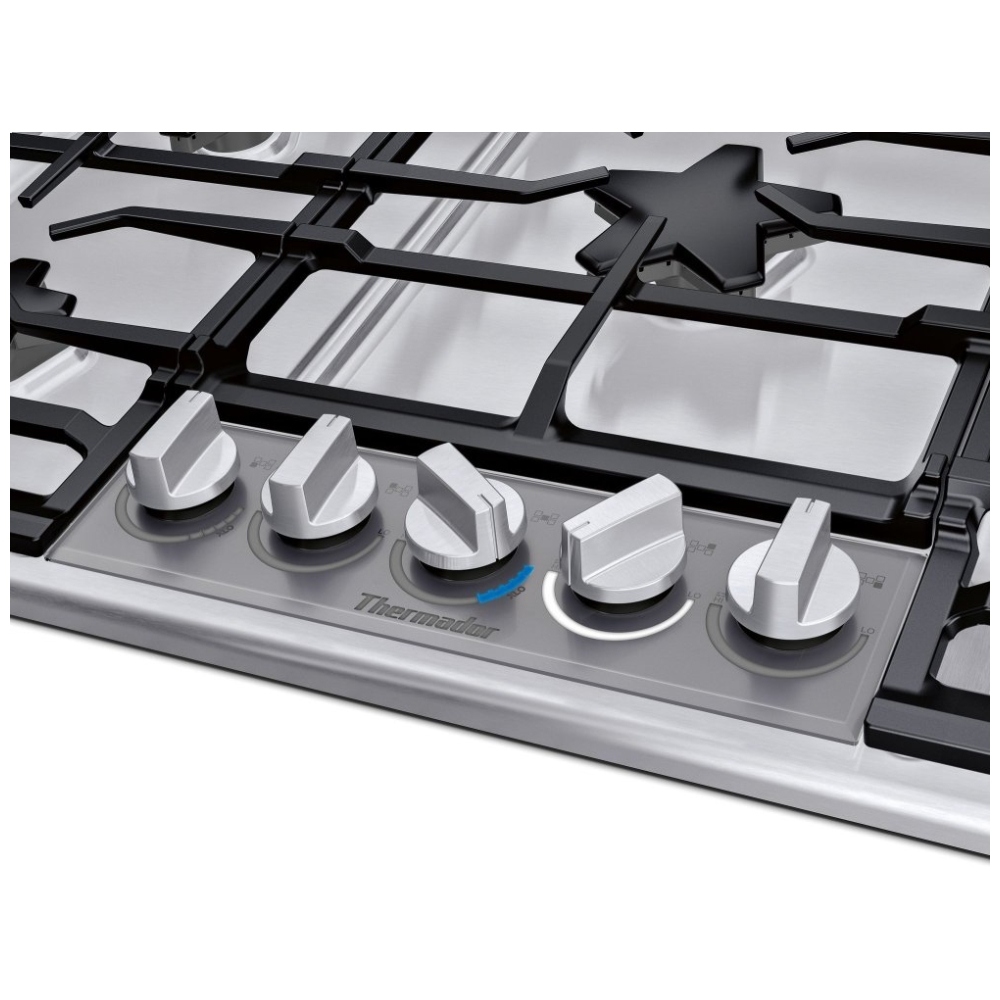

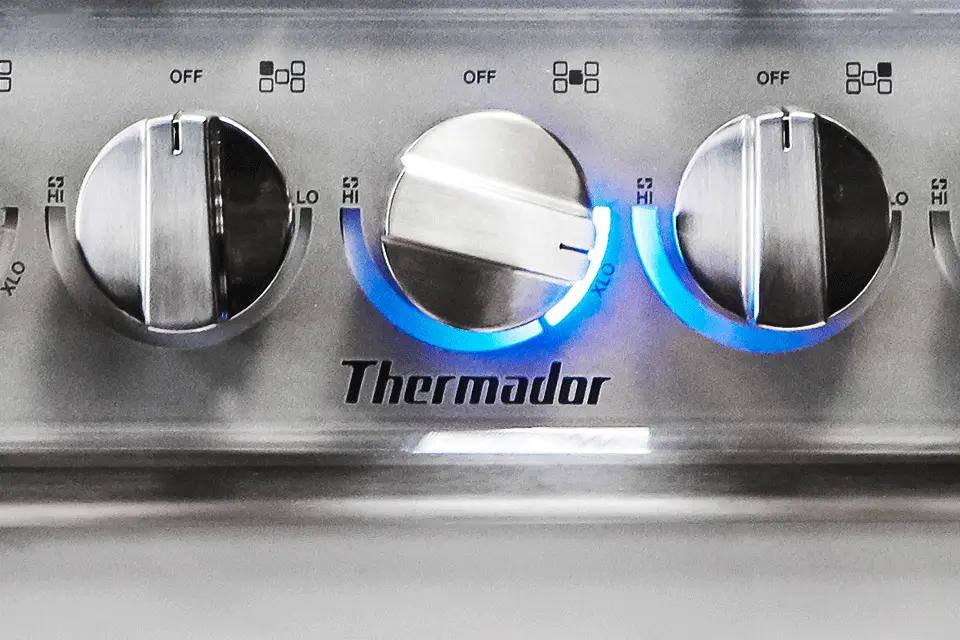

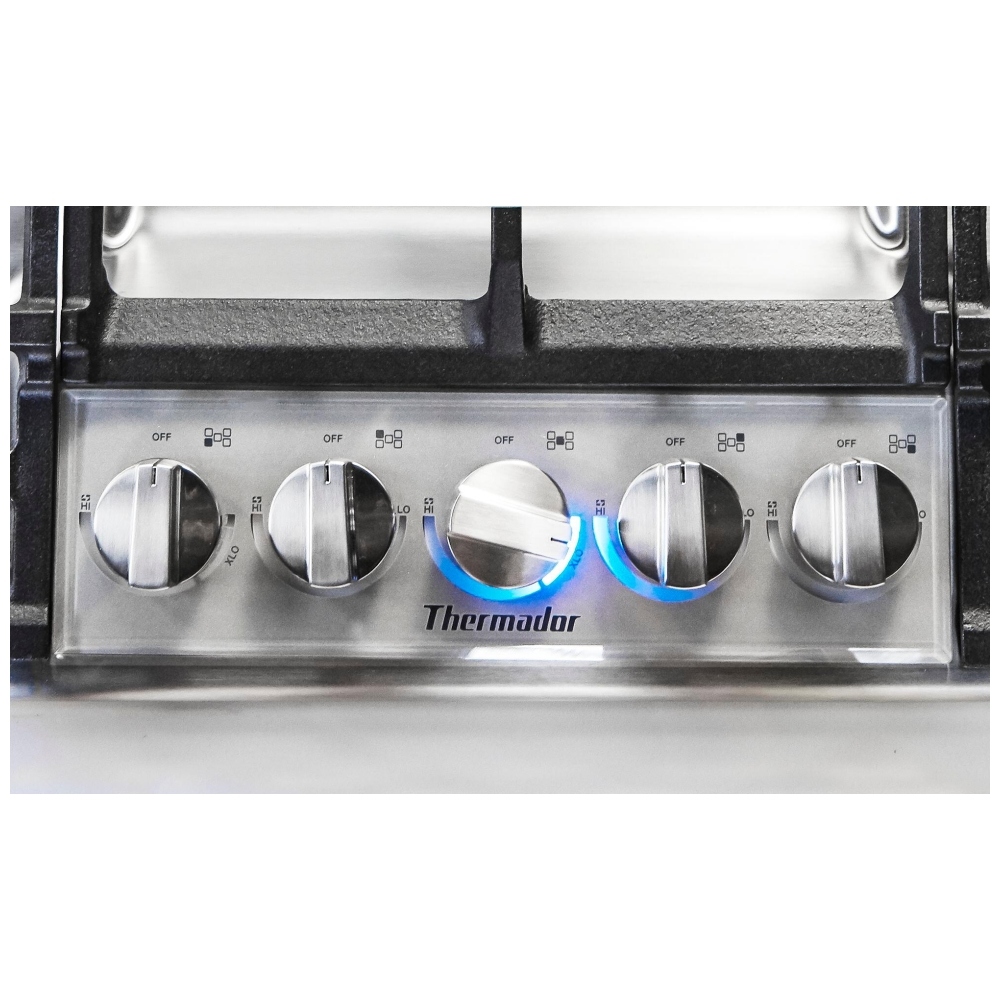

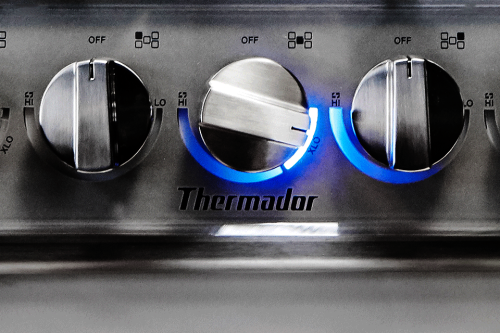

Illuminate knobs with a ring of light when in use - SGSXP305TS
Illuminate knobs with a ring of light when in use
SGSXP305TS - Illuminate knobs with a ring of light when in use
A ring of light encircles knobs when in use, artfully illuminating the controls.

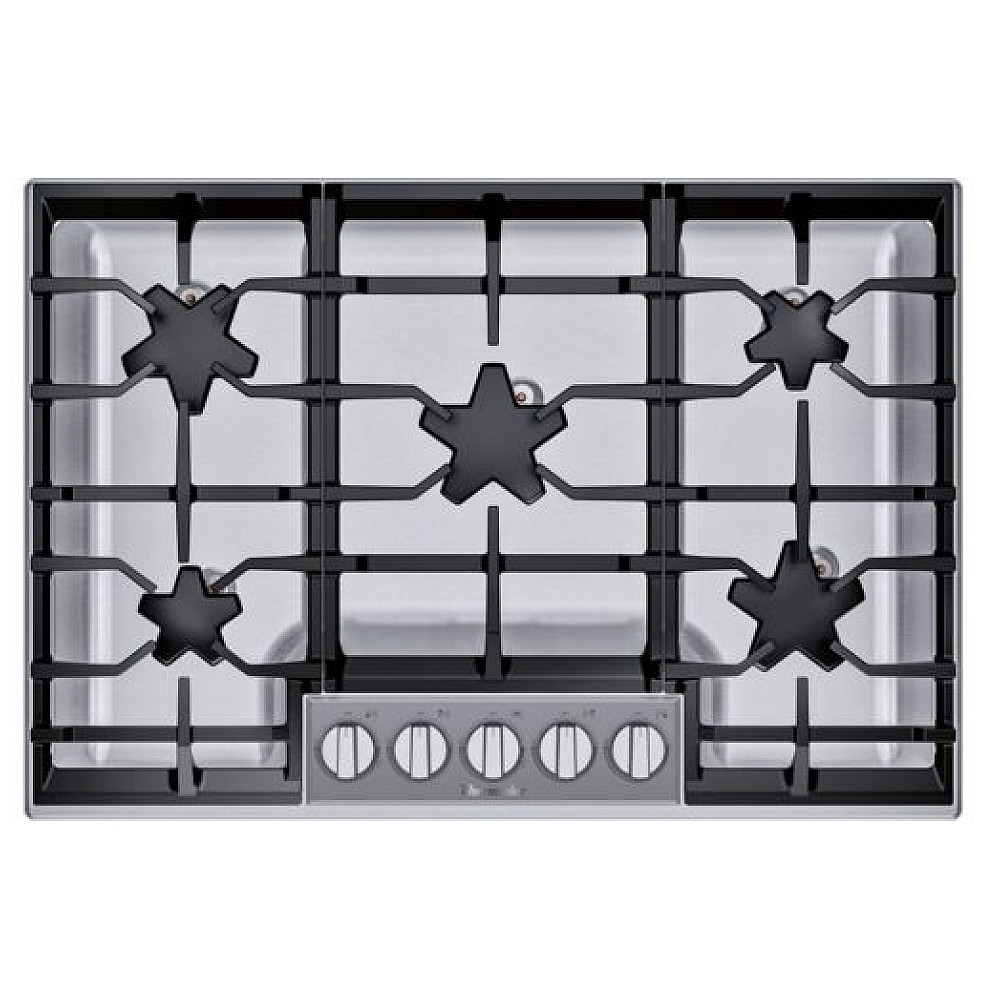

30-inch cooktop with functionality of a 36-inch cooktop - SGSXP305TS
30-inch cooktop with functionality of a 36-inch cooktop
SGSXP305TS - 30-inch cooktop with functionality of a 36-inch cooktop
30-inch 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment.
Continuous Grates make it easy to move pans - SGSXP305TS
Continuous Grates make it easy to move pans
SGSXP305TS - Continuous Grates make it easy to move pans
The connected gridwork allows for moving pots and pans effortlessly across the cooktop.
Electronic Re-ignition keeps your flame ignited - SGSXP305TS
Electronic Re-ignition keeps your flame ignited
SGSXP305TS - Electronic Re-ignition keeps your flame ignited
Your burners will automatically re-ignite in case the flame goes out.
Star-K Sabbath Compliant - SGSXP305TS
Star-K Sabbath Compliant
SGSXP305TS - Star-K Sabbath Compliant
This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.
Sealed burners make clean up easier - SGSXP305TS
Sealed burners make clean up easier
SGSXP305TS - Sealed burners make clean up easier
The burner box is covered and safe from spills, making clean up easier.

Specs
SpecificationValue
Brand Thermador
Series Masterpiece® Pedestal Star®
Model SGSXP305TS
Product Type Gas Cooktop
Fuel Type Natural Gas (convertible to LP with included kit)
Installation Type Built-in
Number of Burners 5
Burner Type Sealed Star® burners
ExtraLow® Burners Yes (2 ExtraLow® simmer burners)
Simmer Capability ExtraLow® cycling for precise low-heat simmering
Continuous Grates Yes
Grate Material Cast iron with rubber feet
Surface Material Stainless steel
Control Location Front
Control Type Die-cast metal knobs
Illuminated Knobs Yes, progressive light ring around each knob
Ignition Type Automatic electronic re-ignition
Safety Features Electronic flame failure safety device / automatic re-ignition; push-to-turn knobs
Star-K Sabbath Compliance Yes
Downdraft Ventilation No
WiFi / Smart Connectivity No (not Home Connect® enabled)
ADA Compliant (when installed to ADA requirements) No
Commercial Use Approved No
Outdoor Approved No
ENERGY STAR® Certified No

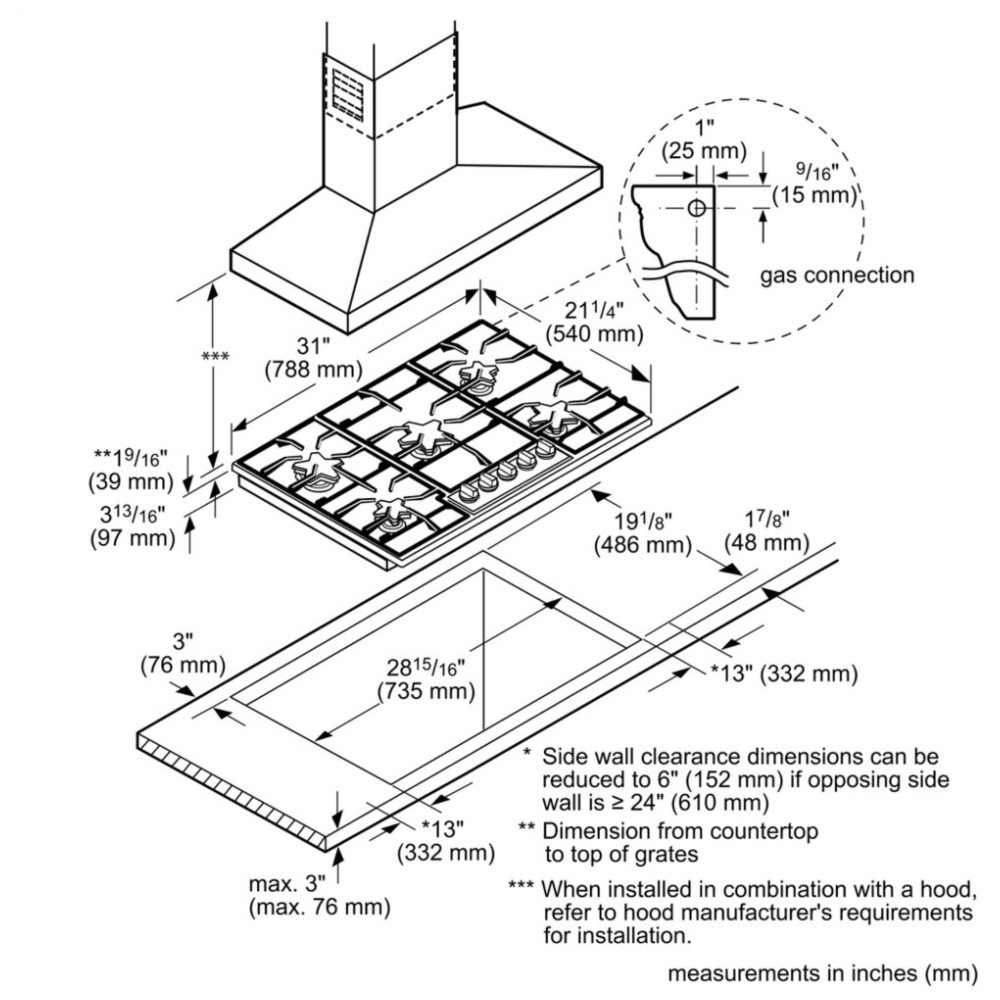

Dimensions & Weight
Width 31 inches
Depth 21 1/4 inches
Height (overall appliance) 3 13/16 inches (approx. 5 3/8 inches to top of grates)
Nominal Width 30 inches
Appliance Fit Width 31 inches
Product Weight 38 lbs
Cutout Width 28 15/16 inches
Cutout Depth 19 1/8 inches (approx. 19.13 inches)
Cutout Height 3 13/16 inches (approx. 3.81 inches)
Product Packaging Dimensions (HxWxD) 8 3/8 inches x 37 1/8 inches x 24 3/4 inches
Burner Performance
Total BTU Load (Natural Gas / LP) 54,000 BTU (NG) / 45,200 BTU (LP)
Front Left Burner (NG / LP) 8,000 BTU / 6,000 BTU
Back Left Burner (NG / LP) 10,000 BTU / 9,100 BTU
Center Burner (NG / LP) 18,000 BTU / 15,000 BTU
Back Right Burner (NG / LP) 8,000 BTU / 6,000 BTU
Front Right Burner (NG / LP) 10,000 BTU / 9,100 BTU
Maximum Single Burner Output 18,000 BTU (center burner, NG)
Simmer / ExtraLow® Settings Multiple precise low-heat settings on designated ExtraLow® burners
Electrical Requirements
Volts 120 V
Frequency 60 Hz
Amps 15 A
Plug Type 120 V, 3-prong
Power Cord Length 60 inches
Gas Requirements
Gas Type (preset) Natural gas, 15 mbar (USA)
Alternative Gas Type Liquid propane, 27.5 mbar (USA), nozzle set included
LP Conversion Yes, LP conversion kit included
Design & Finish
Finish / Color Stainless steel
Cooktop Surface Style Grate over stainless steel surface
Cooktop Surface Seamless stainless steel burner pan
Knob Material High-grade die-cast metal
Design Features Sleek control panel with glass and stainless steel accents
Convenience & Features
QuickClean Base® Yes, raised burners and teardrop emboss to reduce food buildup and contain spills
Re-ignition System Electronic re-ignition automatically relights burners if flame goes out
Special Features ExtraLow® simmer, re-ignition, illuminated knobs, continuous grates
Griddle Included No
Hood Recommended Yes
Accessories
Included Accessories 3 x cast iron pan supports (grates)
Certifications & Warranty
Star-K Certified Yes (Sabbath compliant)
Manufacturer Warranty 2 years parts and labor
Country of Manufacture Not made in Canada
