Manufacturer's Warranty: 2 years
Canadian model: TCM24TS
Canadian UPC: 825225947523
EAN: 0825225947523
| Specification | Value |
|---|---|
| Brand | Thermador |
| Series | Masterpiece® |
| Model | TCM24TS |

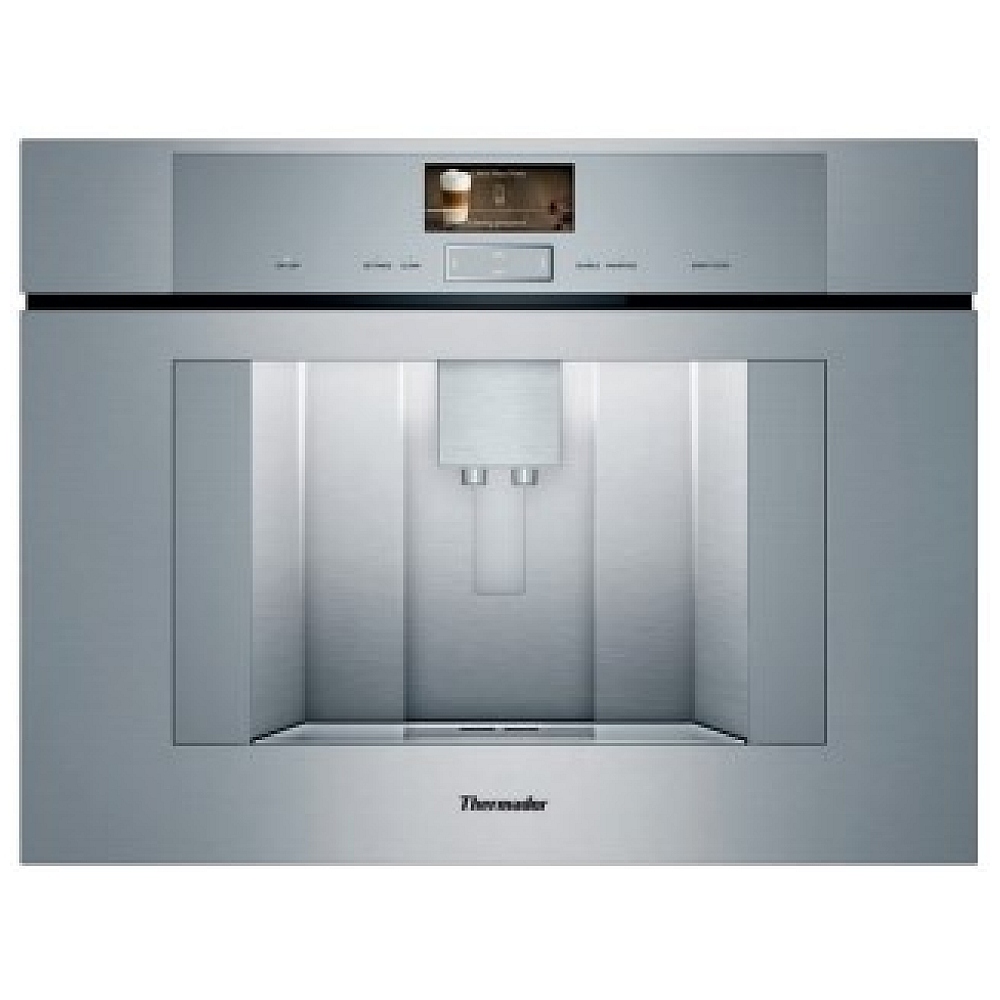

| Type | 24" Built-in Fully Automatic Coffee Machine |
| Color / Finish | Stainless Steel |
| Typology | Fully automatic built-in coffee system |
| Water Intake | Removable water tank (non-plumbed) |
| Control Type | Electronic controls with TFT color display |
| Display Concept | TFT display |
| Wi-Fi / Connectivity | Home Connect® Wi-Fi enabled |
| Home Connect Features | Remote monitoring and control; access to additional CoffeeWorld beverages; works with select smart home devices (e.g. Amazon Alexa) |
| Automatic Shut Off | Yes |

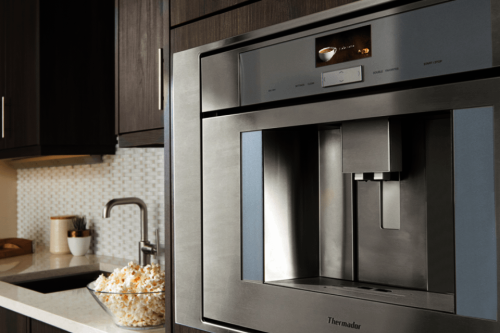

| Self Cleaning | Yes (automatic cleaning programs) |
| Cleaning Methods | Steam Clean; Clean; Descaling; automatic rinse at turn-on and turn-off |
| Rinsing Program | Automatic rinse program at start-up and shut-down |
| Water Filter | Built-in water filter; water hardness adjustable |
| Pump Pressure | 19 bar |
| Grinder Type | Ceramic disk grinding system |
| Number of Bean Containers | 1 |
| Bean Container Capacity (oz) | Approx. 17.6 oz (500 g) |
| Bean Container Capacity (g) | 500 g (some listings 453 g; manufacturer-level data supports 500 g) |
| Water Container Capacity (L) | Approx. 2.36–2.4 L |
| Water Container Capacity (gal) | Approx. 5/8 gallon |
| Milk Container Capacity | Approx. 16.9–17 oz (insulated stainless or insulated container, depending on accessory description) |
| Capacity (cups) | 10 cups (approximate serving capacity reference) |
| Simultaneous Preparation | Yes, up to 2 cups at once |
| One Touch Double Cup | Yes (one-touch double cup option) |

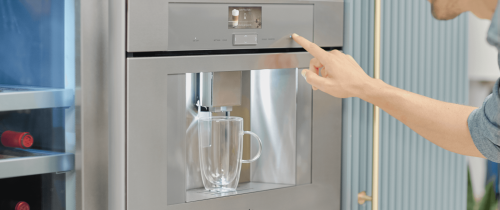

| Automatic Double Shot | Yes (extra shot for select beverages) |

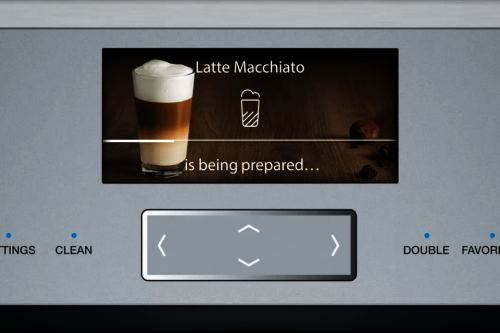

| MyCoffee / Memory Beverages | Stores up to 8 personalized beverages by name |
| Number of Beverages Available (on unit) | 10 core beverages |
| Number of Beverages Available (with Home Connect CoffeeWorld) | Up to 28 beverages |
| Core Beverage Programs | Ristretto; Espresso; Espresso Doppio; Espresso Macchiato; Coffee; Cappuccino; Latte Macchiato; Caffè Latte; Milk Froth; Warm Milk; Hot Water |
| CoffeeWorld App Beverages (examples) | Americano; Café au lait; Café Cortado; Café con Leche; Cortado; Flat White; Galão; Garoto; Großer Brauner; Kleiner Brauner; Koffie Verkeerd; Red Eye; Verlängerter; Verlängerter Braun; Wiener Melange, and others |
| Beverage Customizations | Size; milk ratio; strength; temperature; grind adjustment |
| Settings | One or two cups; adjustable cup sizes; brewing temperature; coffee strength; grind adjustment |
| Programming Options | Personalized beverages; language; light and display brightness; water hardness; temperature; time; demo mode; child-proof lock; key sounds |
| Sensor Alerts | Water level; bean container; drip tray; coffee grounds container |

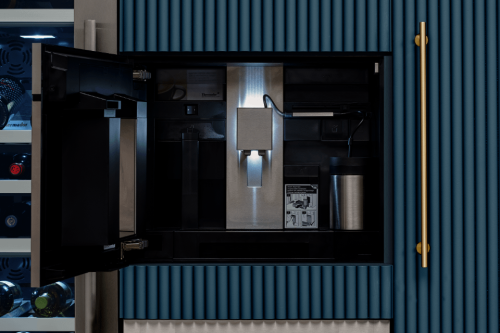

| Milk System | Integrated milk system with hose |
| Milk Container | Insulated milk container (often stainless or insulated plastic, depending on accessory set) |
| Adjustable Coffee Outlet | Yes, adjustable height to fit tall cups |
| Illuminated Cup Area | Yes (cup illumination) |
| Ground Coffee Container | Yes (for pre-ground coffee use) |
| Dishwasher-Safe Parts | Drip tray cover; milk nozzle; milk tube; coffee grounds container; drip tray (per multiple spec sheets) |
| Energy Source | Electric |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Amps | 10 A |
| Circuit Breaker (recommended) | 15 A |
| Wattage | 1600 W |
| Plug Type | NEMA 5-15, 120 V 3-prong, 2-pole 3-wire grounding |
| Power Cord Length | Approx. 39" (1 m) |

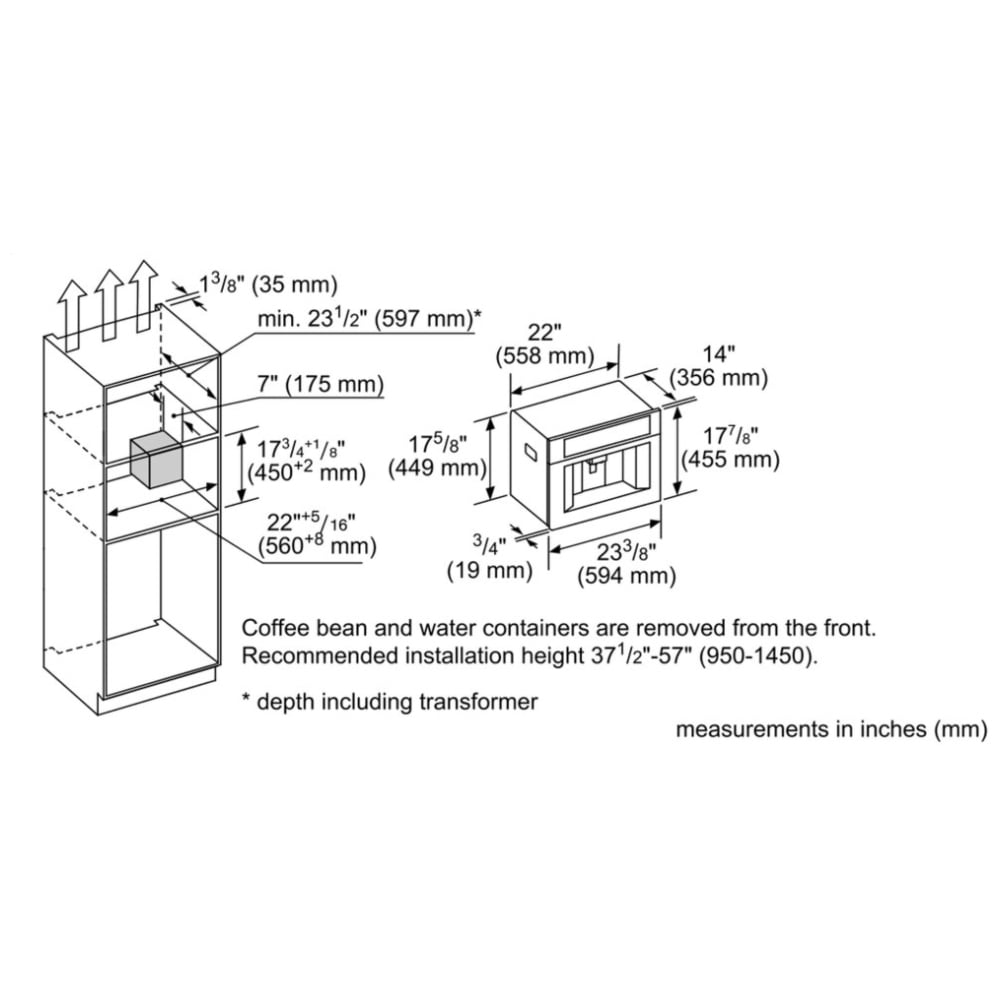

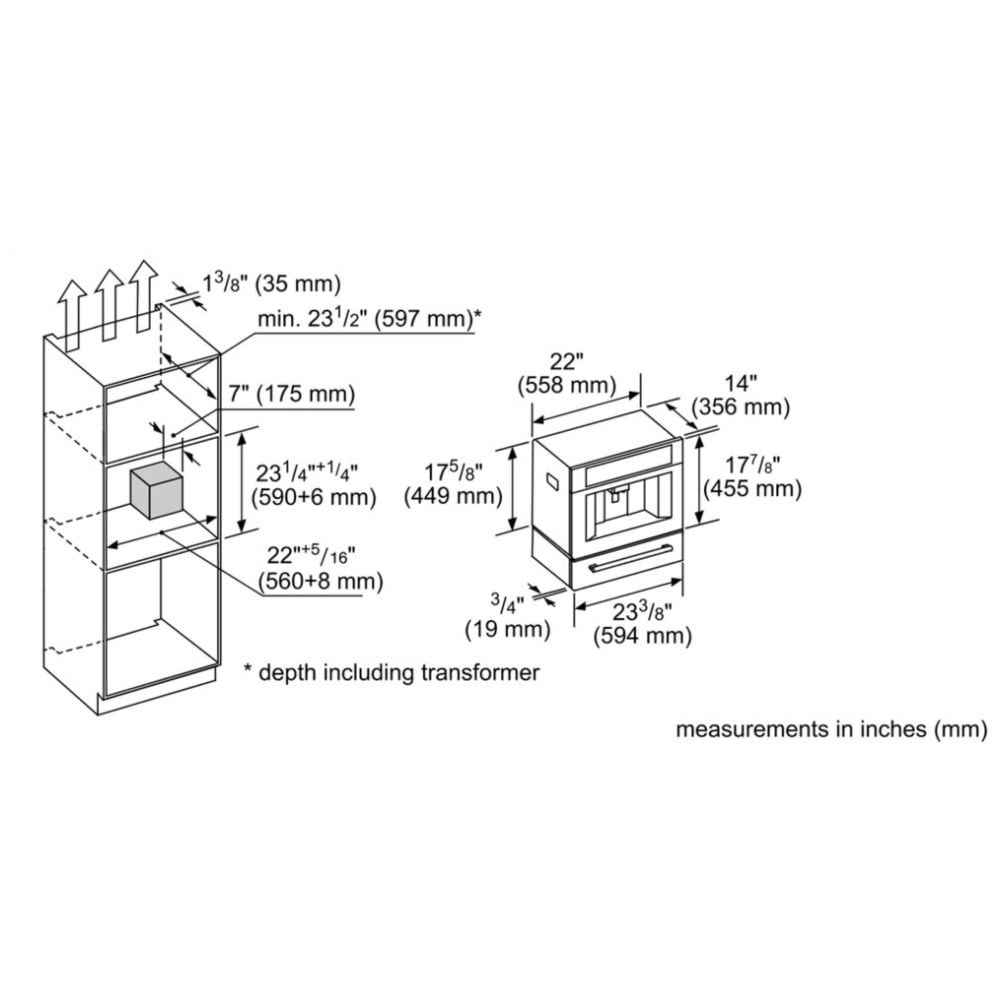

| Overall Appliance Width (inches) | 23 3/8" (23.38") |
| Overall Appliance Height (inches) | 17 7/8" (17.88") |
| Overall Appliance Depth (inches) | 14" (front to back, chassis depth) |
| Overall Appliance Dimensions (HxWxD) (inches) | 17 7/8" x 23 3/8" x 14" |
| Canadian Listed Width (mm) | 596 mm (≈ 23.46") |
| Canadian Listed Height (mm) | 455 mm (≈ 17.9") |
| Canadian Listed Depth (mm) | 377 mm (≈ 14.8") |

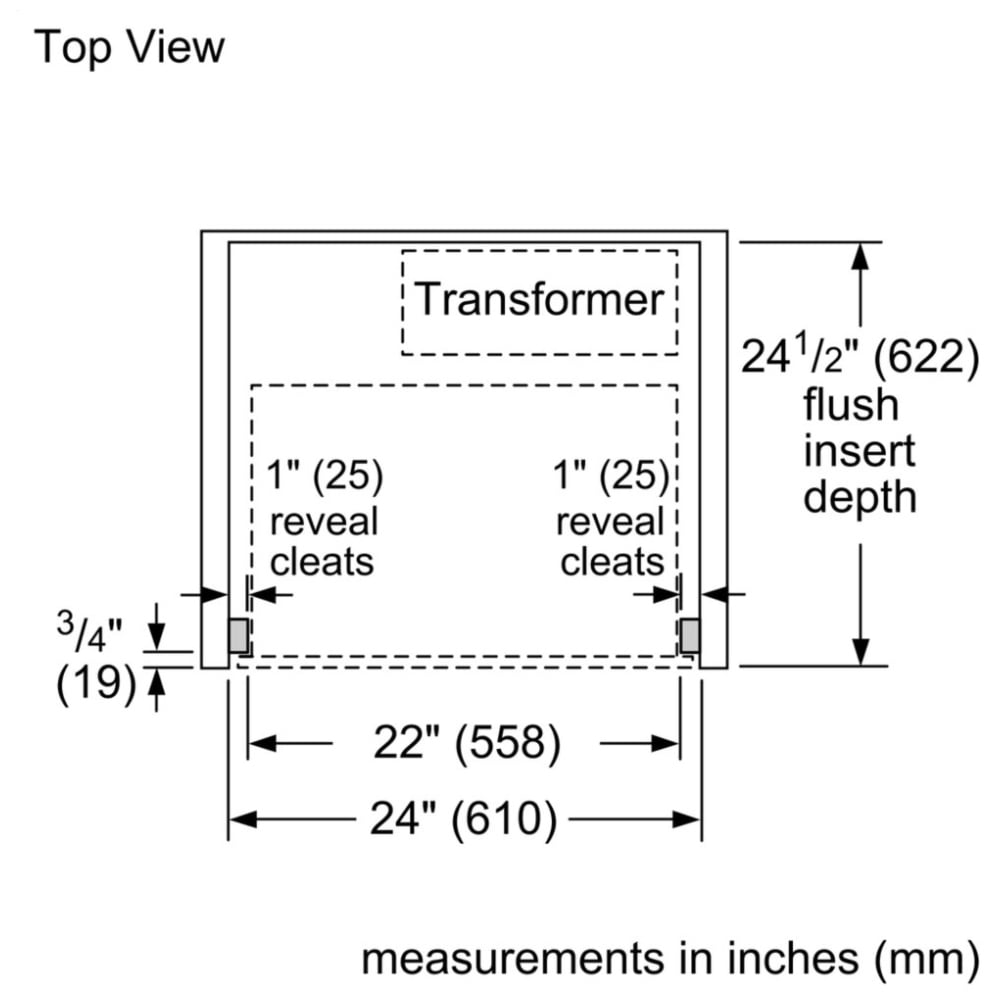

| Required Cutout Size (HxWxD) (mm) | 449 x 558 x 597 mm |
| Required Cutout Height (inches, approx.) | 17 11/16" |
| Required Cutout Width (inches, approx.) | 21 31/32" to 22" class opening (varies slightly by sheet; 558 mm nominal) |
| Required Cutout Depth (inches, approx.) | 23 1/2"–23 5/8" (597 mm nominal cabinet depth) |
| Appliance Fit Width Class | 24" cabinet width class |
| Net Weight (lbs) | Approx. 71 lbs (some US retail listings show 43 lbs; manufacturer-level and Canadian data support higher shipping/net weights) |
| Net Weight (kg) | Approx. 32.3 kg |
| Gross Weight (kg) | Approx. 37.0 kg (boxed) |
| Outdoor Approved | No |
| ADA Compliant | No |
| Energy Star Rated | No |
| Smart Compatible | Yes (Home Connect, select smart home integrations) |
| WiFi Capable | Yes |
| Child Safety | Child-proof lock; button suspension; electronic safety interlocks |
| Safety Devices (examples) | Lock if drip tray is full; lock if brewing unit missing; lock if milk nozzle missing; lock if water tank empty or missing; lock if grounds container full |
| Included Accessories (typical) | Water filter cartridge; measuring scoop; water hardness test strip; insulated milk container; milk connection hose; milk pipe; assembly screws; power transformer (for some regions); other small accessories as listed per region |
| Brews Into | Up to 2 cups simultaneously |
| Supported Coffee Types | Standard coffee; espresso; cappuccino; latte; latte macchiato; ristretto; milk-based drinks; hot water for tea |
| Recommended Cleaning Method | Automatic self-cleaning programs plus descaling program; dishwasher-safe removable parts |
| Manufacturer Warranty (US & Canada) | 2 years parts and labor (entire appliance) |
| UPC / EAN | UPC/EAN family around 825225947523 (regional formatting may vary) |
