Thermador UCVP36RS
Discontinued
Replaced by UCVP36XS
Step up to Thermador UCVP36XS for an extra $1,117
Step down to Thermador UCVM36XS for an extra $307
BGKUFG
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $187.89 for 18 months
Ratings & Reviews
UCVRECIRC
UCVRECIRC
Product Accessories
$1,099
CVTSIDE10
CVTSIDE10
Product Accessories
$479
EXTNCE5
EXTNCE5
Product Accessories
$249
UCV36ST
UCV36ST
Product Accessories
$249
UCVFILTER
UCVFILTER
Product Accessories
$229
CVTFRONT10
CVTFRONT10
Product Accessories
$189
Similar Colours and Options
UCVM36RS
UCVM36RS
Stainless Steel
Visit showroom for prices
UCVP36XS
UCVP36XS
Stainless Steel
$4,499.00 CAD
BGKUFG
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $187.89 for 18 months
Description & Features

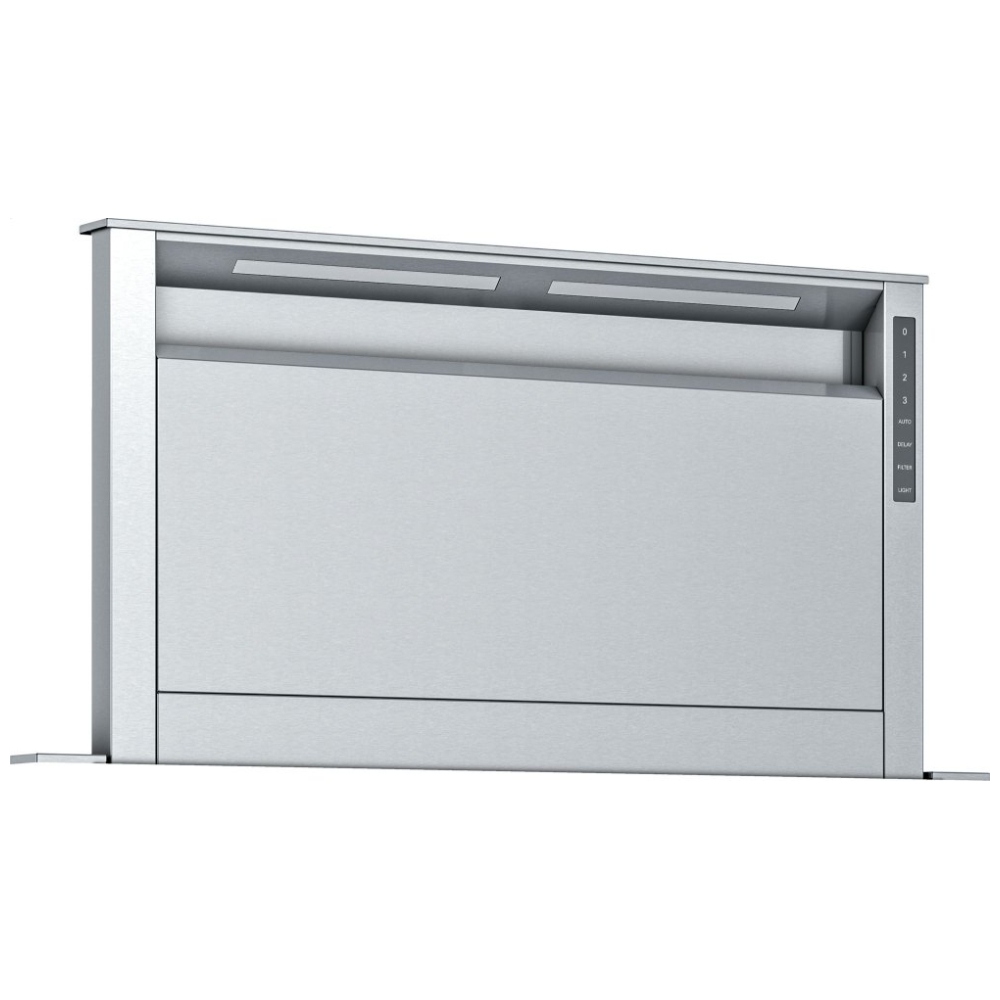

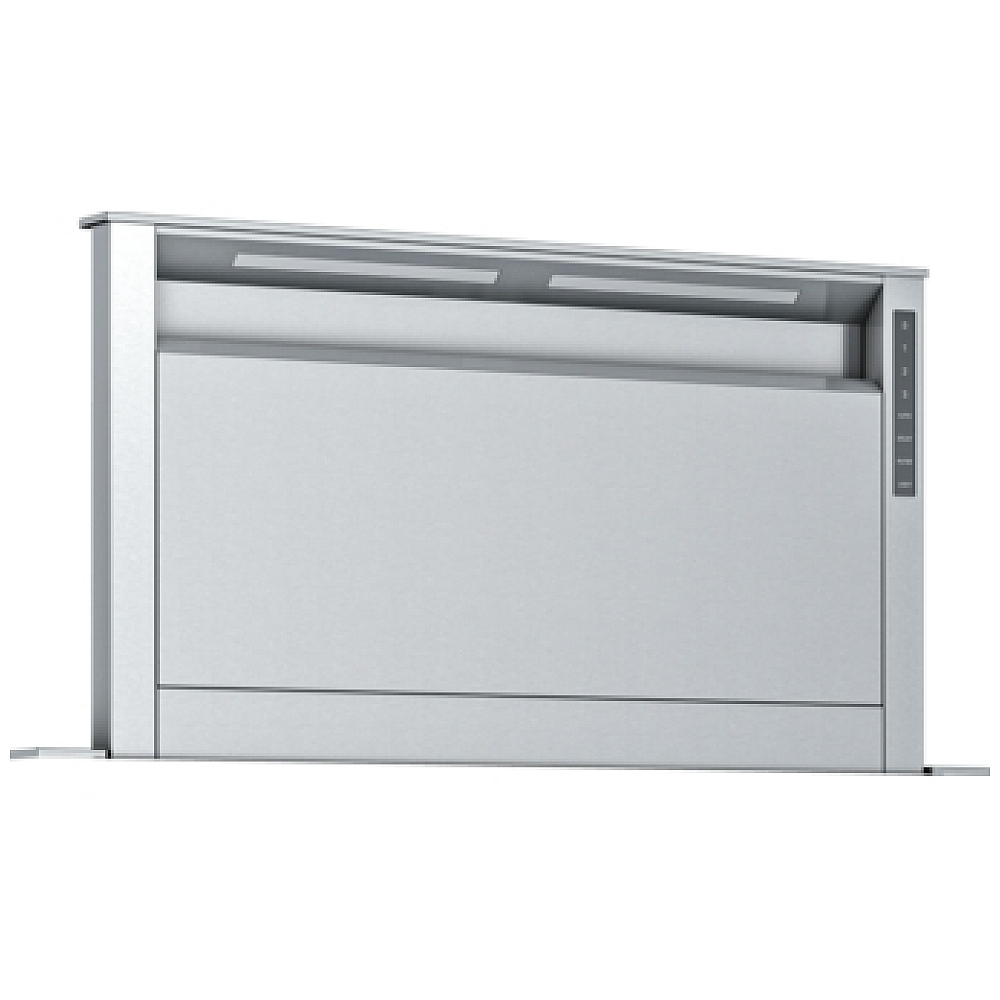

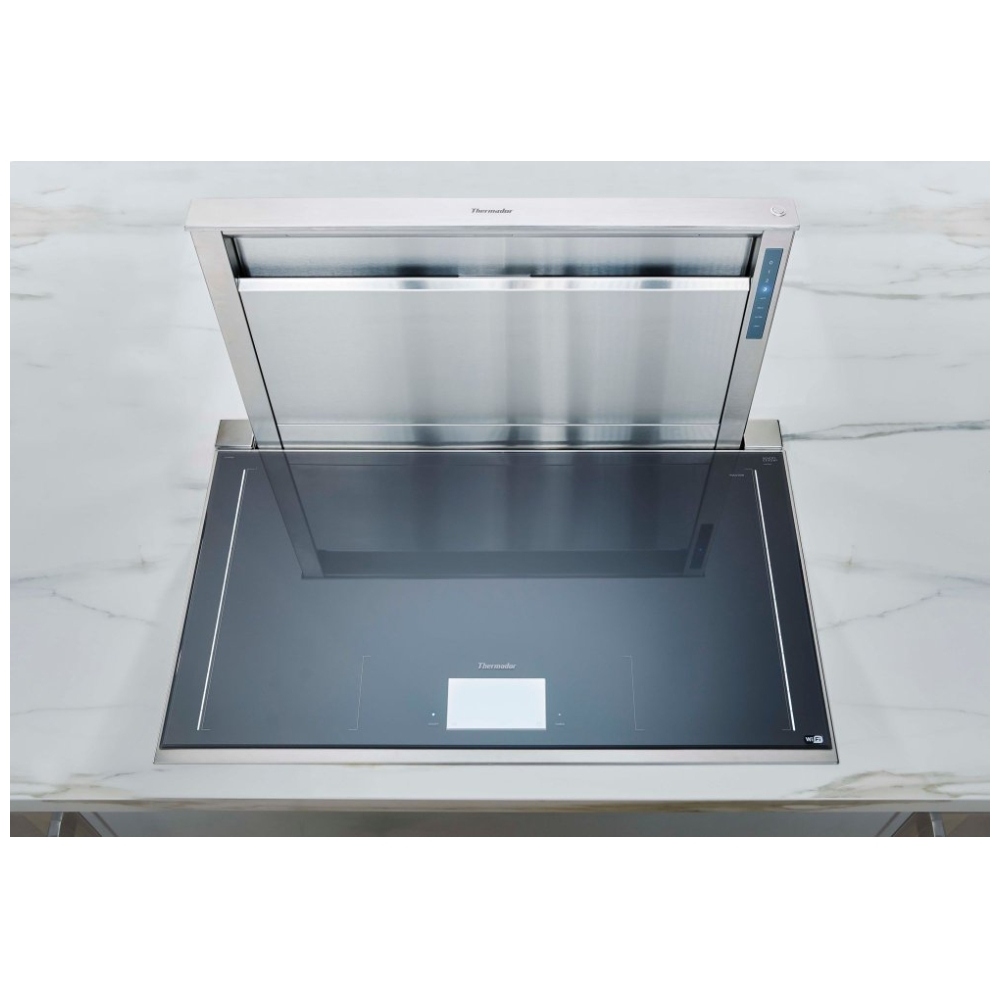

36" Downdraft - Masterpiece Series
These subtle units retract out of sight when not in use, keeping sightlines clear. At a push of a button, downdraft rises 18\" tall
  • Performance
  • Designed to create the ultimate cooking system with Thermador cooktops
  • Downdraft rises 18" to capture heat, grease and steam from pots
  • Powerfully Quiet and efficient in operation at 1.2 sones on low speed
  • Engineered to allow for flexibility to exhaust at sides, front or rear
  • Sleek, removeable front filter panel that acts as a splatter shield
  • Grease mesh filters are dishwasher safe and easy to clean
  • Select the precise fan speed needed with four different settings
  • Automatic mode detects temperatures to adjust fan speed automatically
  • 10-min delay shut-off ensure lingering odors are whisked away
  • Check filter reminder light illuminates after 40 hours of operation
  • Blowers sold separately and required to complete installation

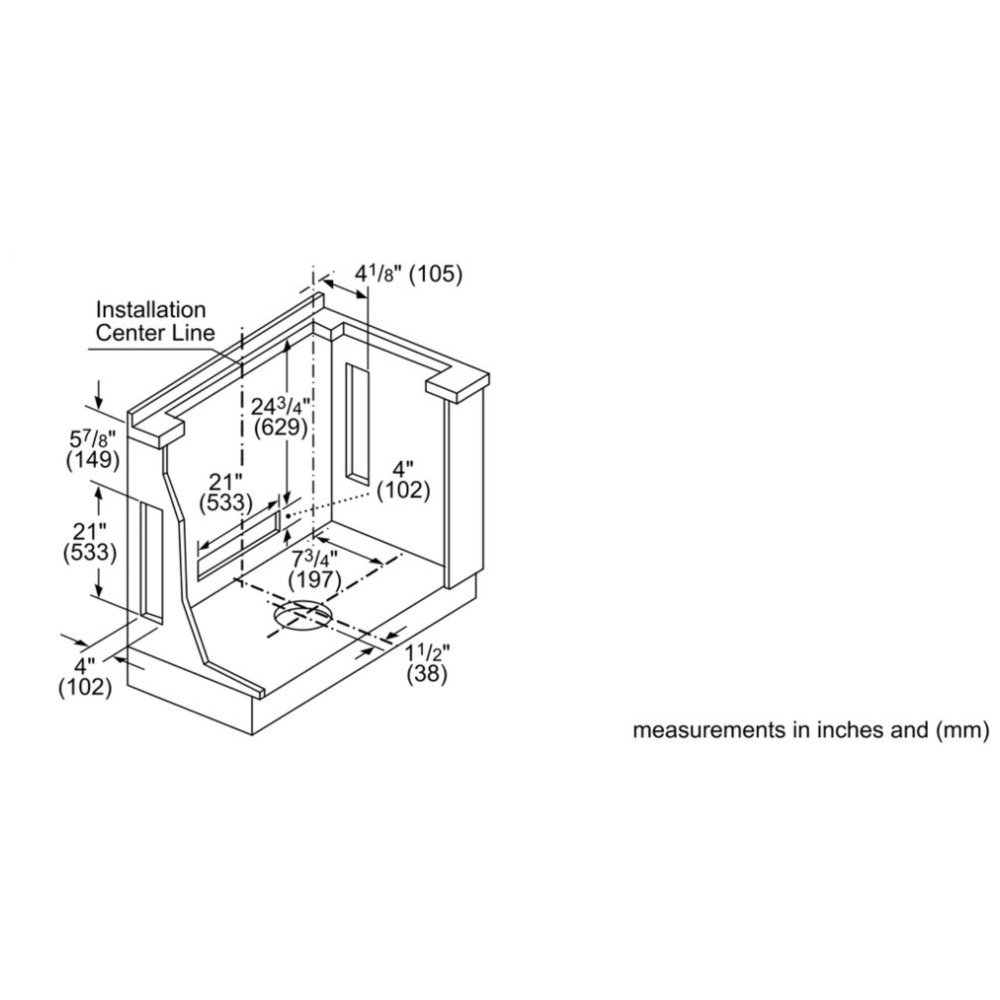

  • Some blower positions may need deeper cabinets. See installation guide
  • Recirculation kit available, use with induction/electric cooktops only
  • Replacement charcoal filters for recirculation kit sold separately
  • Gas cooktop seal kit required to use with gas cooktops, sold separate
  • Additional accessories may be required for installation, see manual
  • Design
  • Design match to Thermador Masterpiece Series cooktops

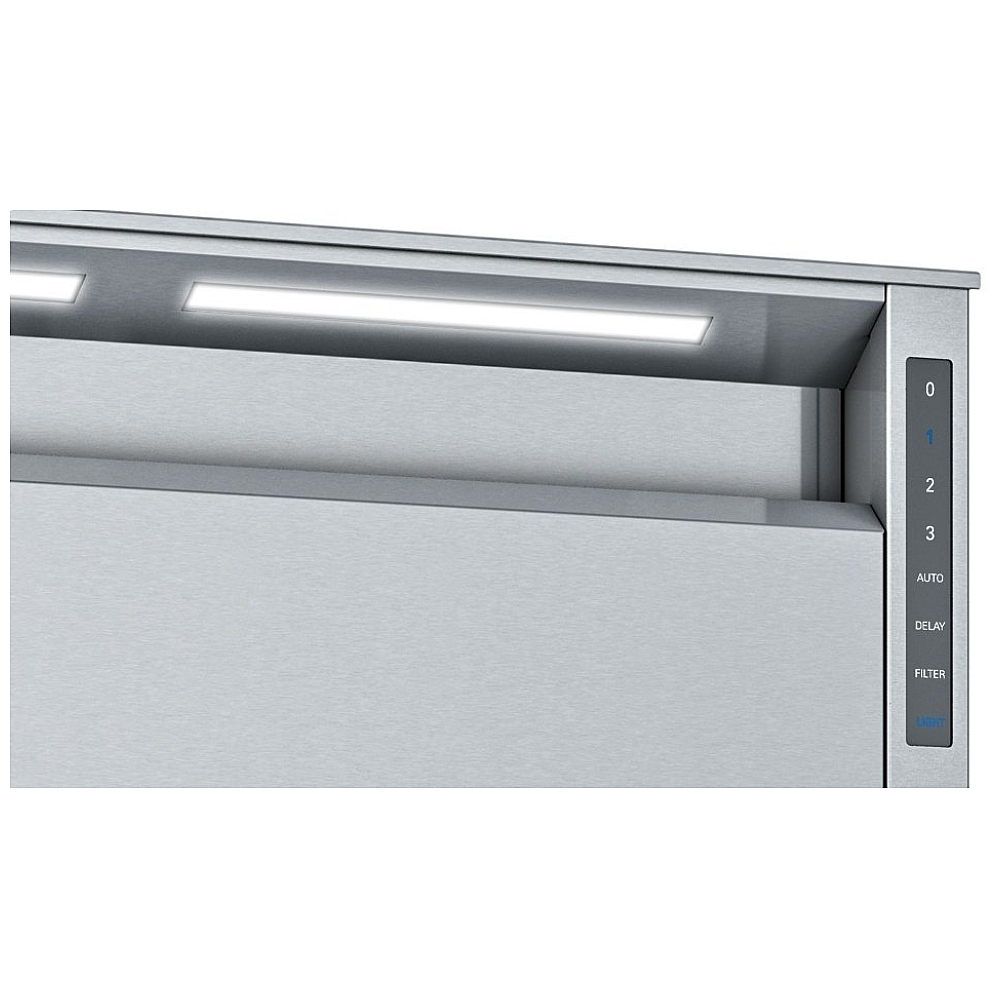

  • Two light bars that provide multi-level, white vivid LED lighting
  • Suitable for wall or island applications
  • Authentic, brushed stainless steel finish
  • Sleek, smooth touch control make cleaning easy with a damp cloth
  • Designed to allow for flexibility to exhaust at sides, front or rear

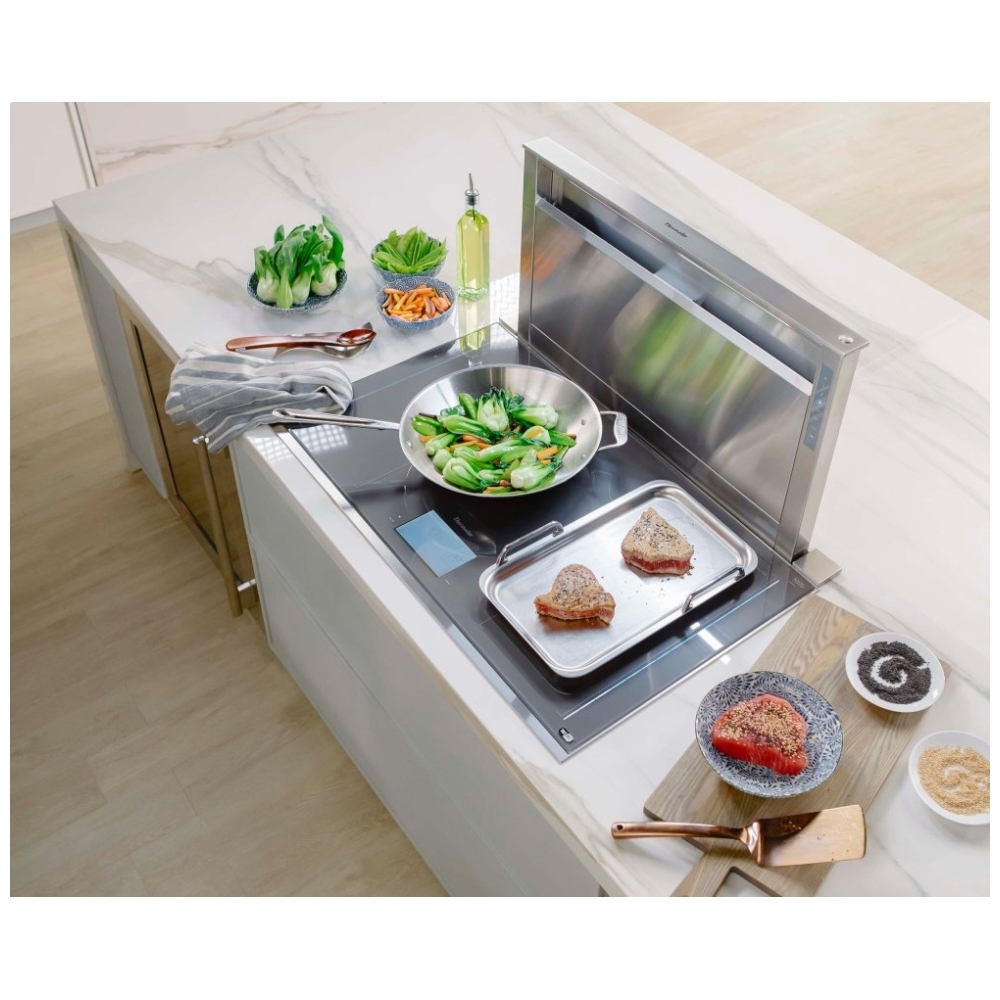

These subtle units retract out of sight when not in use, keeping sightlines clear. At a push of a button, downdraft rises 18" tall

  • 18" telescopic design rises to capture heat, smoke, grease, and steam
  • Beautiful illumination with white multiple level LED lighting
  • Flexible discharge design gives 5 configurations to maximize space
  • Remote or inline blowers to reduce noise, integral for top performance
  • Features automatic mode, delay shut-off, and check filter light
Performance
  • Designed to create the ultimate cooking system with Thermador cooktops
  • Downdraft rises 18" to capture heat, grease and steam from pots
  • Powerfully Quiet® and efficient in operation at 1.2 sones on low speed
  • Engineered to allow for flexibility to exhaust at sides, front or rear
  • Sleek, removeable front filter panel that acts as a splatter shield
  • Grease mesh filters are dishwasher safe and easy to clean
  • Select the precise fan speed needed with four different settings
  • Automatic mode detects temperatures to adjust fan speed automatically
  • 10-min delay shut-off ensure lingering odors are whisked away
  • Check filter reminder light illuminates after 40 hours of operation
  • Blowers sold separately and required to complete installation
  • Some blower positions may need deeper cabinets. See installation guide
  • Recirculation kit available, use with induction/electric cooktops only
  • Replacement charcoal filters for recirculation kit sold separately
  • Gas cooktop seal kit required to use with gas cooktops, sold separate
  • Additional accessories may be required for installation, see manual
 Design
  • Design match to Thermador Masterpiece Series cooktops
  • Two light bars that provide multi-level, white vivid LED lighting
  • Suitable for wall or island applications
  • Authentic, brushed stainless steel finish
  • Sleek, smooth touch control make cleaning easy with a damp cloth
  • Designed to allow for flexibility to exhaust at sides, front or rear
  • Some blower positions may need deeper cabinets. See installation guide
  • Additional accessories may be required for installation, see manual

Manufacturer's Warranty: 2 years

Canadian model: UCVP36RS

Canadian UPC: 825225919087

EAN: 0825225919087

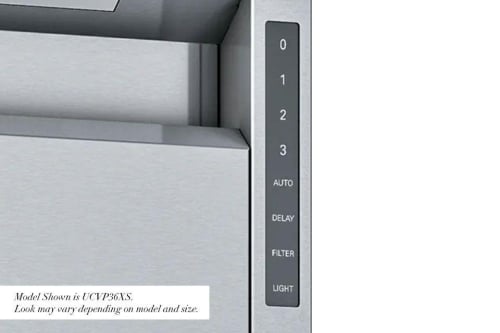

3 Fan speeds for the perfect air flow for any cooking situation - UCVP36RS
3 Fan speeds for the perfect air flow for any cooking situation
UCVP36RS - 3 Fan speeds for the perfect air flow for any cooking situation

3 fan speeds that lets you choose the perfect air flow power for any cooking situation and can handle high-power cooking.

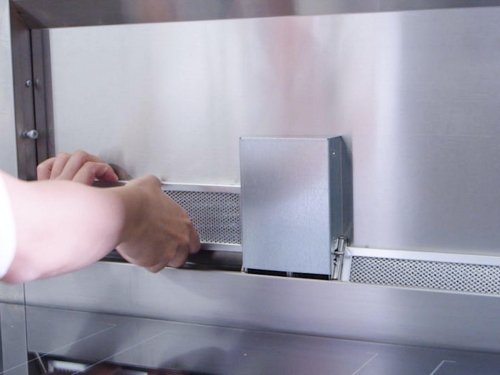

Easy-to-remove, dishwasher-safe filters - UCVP36RS
Easy-to-remove, dishwasher-safe filters
UCVP36RS - Easy-to-remove, dishwasher-safe filters

Dishwasher-Safe Filters combine the elements of a filter with a splatter shield in one easy-to-remove, dishwasher-safe element. These filters maximize grease capture without affecting Downdraft range airflow.


Specs
General
Depth (in) 2 3/4
Construction type Built-in
Air circulation Recirculated
Type of control Rotary switches
Construction type
Color body Stainless Steel
Grease filter material Washable aluminium
Grease filter type Multilayer cassette
Installation Type Built-in
Material Stainless steel
Motor location External motor
Number of motors 0
Air circulation Recirculated
Typology Downdraft
Connection
Frequency 60 Hz
Volts 120 V
General
Depth of the product 70 mm
Installation type Built-in
Air circulation Convertible
Type of control Rotary switches
Construction type
Color body Stainless steel
Grease filter material Washable aluminium
Grease filter type Multilayer cassette
Installation Type Built-in
Material Stainless steel
Motor location External motor
Number of motors 0
Air circulation Convertible
Connection
Power cord length (cm) 150 cm
Frequency (Hz) 60 Hz
Volts (V) 120 V
