Manufacturer's Warranty: 2 years
Canadian model: VCIN60GWS
Canadian UPC: 825225931225
EAN: 0825225931225
| Specification | Value |
|---|---|
| Brand | Thermador |
| Series | Professional |
| Model | VCIN60GWS |
| Product Type | Custom Insert Range Hood |
| Range Hood Type | Insert / Built-in |
| Installation Type | Wall-mounted; suitable for wall or island applications (with appropriate cabinetry) |
| Venting Type | Ducted |
| Motor / Blower | Blower sold separately (accepts integral, inline, or remote blowers) |
| Motor Location | Without motor (separate blower required) |
| Maximum CFM | Up to 1000 CFM (depending on selected blower) |
| Number of Fan Speeds | 4 fan speeds |
| Automatic Mode | Yes, adjusts fan speed according to cooking conditions |
| Boost Speed | No dedicated boost speed |
| Delay Shut-Off | Yes, runs hood ~10 minutes after cooking to clear lingering odors |
| Clean Filter Reminder | Yes, filter indicator light |

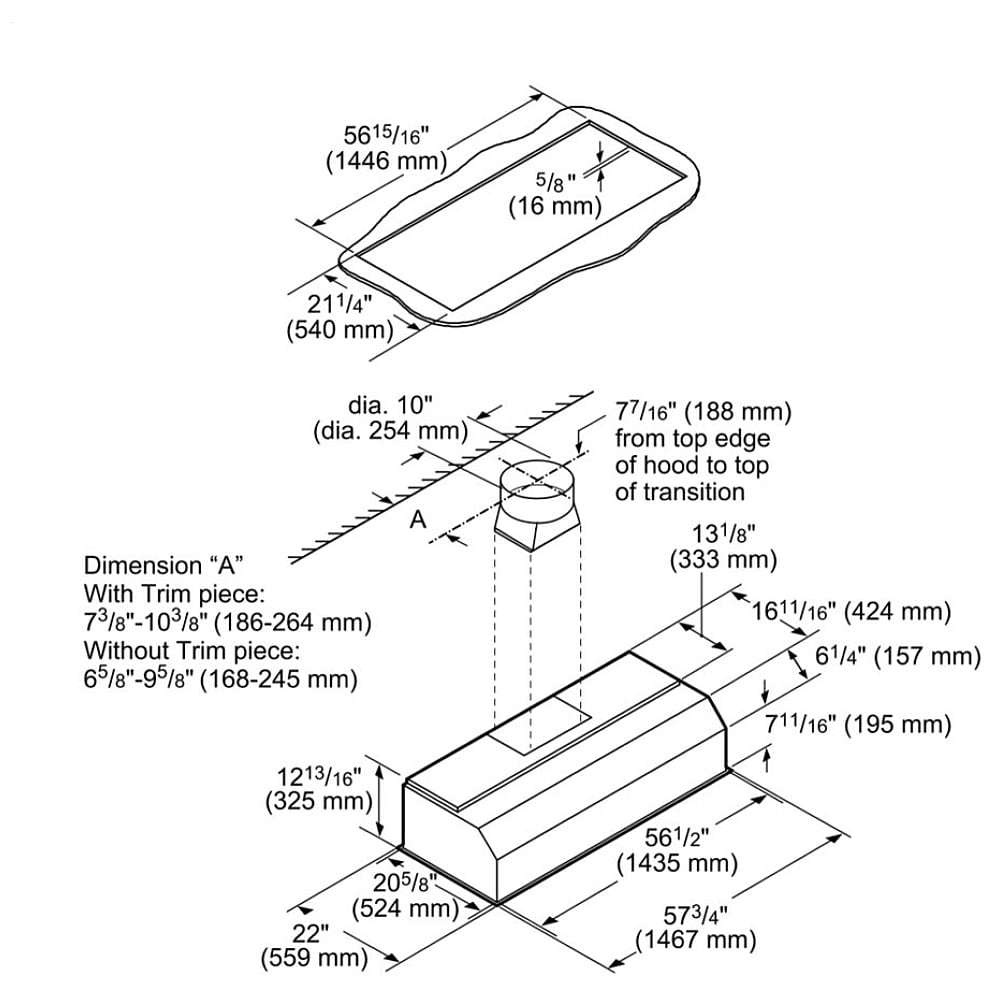

| Overall Width | 57 3/4 inches |
| Overall Height | 12 13/16 inches |
| Overall Depth | 22 inches |
| Nominal Appliance Fit Width | 60 inches |
| Required Distance Above Cooktop / Range | 30 inches (gas or electric) |
| Duct Size (Top Discharge) | 10 inch round |
| Damper Included | Yes |
| Net Product Weight | Approx. 77–81 lbs (varies slightly by listing) |
| Packaging Dimensions (H x W x D) | 17 5/8" x 63 3/8" x 27 1/4" |
| Material / Finish | Stainless steel |
| Color | Stainless steel |
| Grease Filter Material | Washable stainless steel |
| Grease Filter Type | Commercial-style baffle filters, dishwasher-safe |

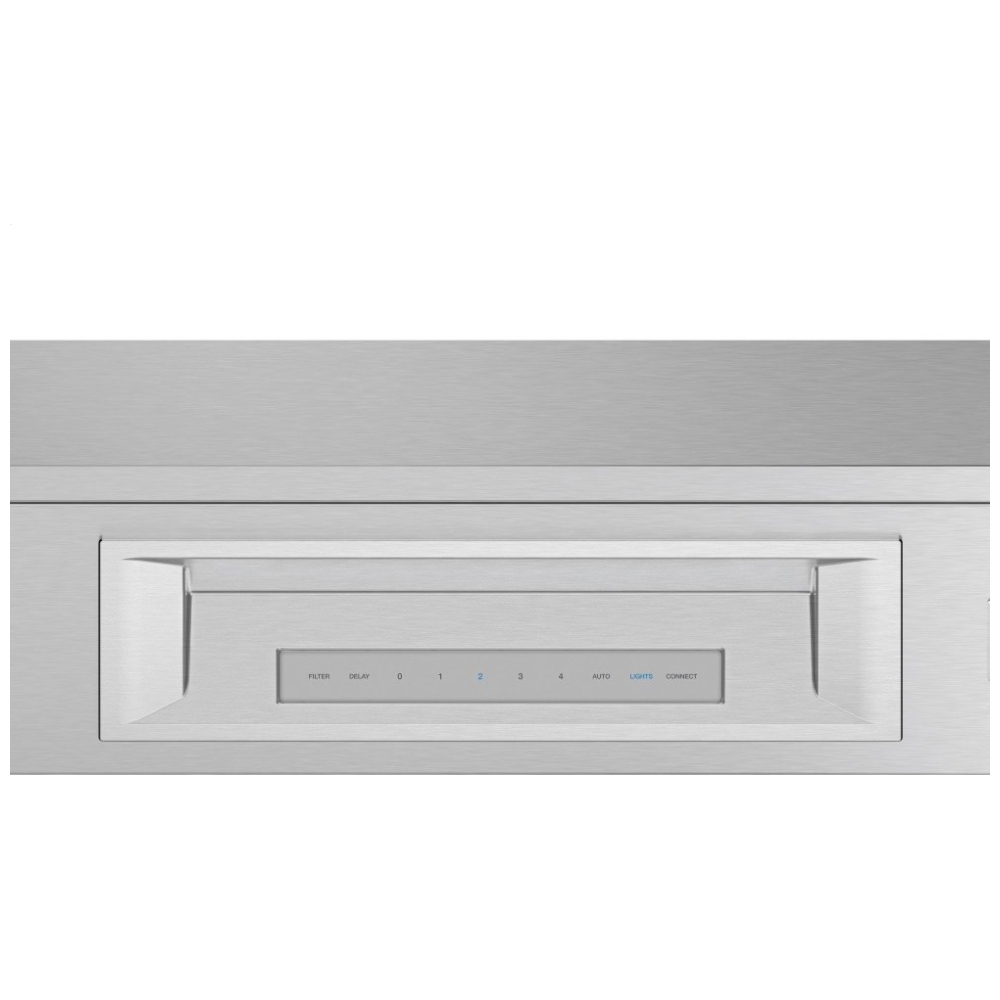

| Controls | Illuminated touch controls (smooth glass-style, easy to wipe clean) |
| Control Type (Electronics) | Electronic; local touch control plus app control via Wi-Fi |
| Remote Control | Remote control panel accessory available, sold separately |
| Wi-Fi / Connectivity | Yes, Home Connect enabled |
| Smart Features | Remote monitoring and control of fan and lights; filter-clean notifications; integration with compatible smart home services (e.g., Amazon Alexa) |
| Cooktop–Hood Sync | Available with compatible Thermador Freedom / Liberty cooktops featuring Home Connect (automatic light and ventilation sync) |
| Lighting Type | Low-consumption LED |
| Number of Lights | 4 LEDs (some retailer quick-specs list 2, manufacturer documentation specifies 4) |
| Total Luminance | Approx. 150 lumens |
| Color Temperature | Cool white (~4000 K) |
| Light Level Control | Multiple levels; 0–100% slider via Home Connect app |
| Heat Lamps | No |
| Operating Mode | Ducted only (no recirculating / filter kit option listed) |
| Ventilation Features | Automatic mode, delay shut-off, clean filter reminder, multi-speed control, quiet operation with compatible blowers |
| Electrical Requirements | 120 V / 60 Hz |
| Connected Load | Approx. 1428 W (with appropriate blower configuration) |
| Current | 15 A |
| Plug Type | Fixed connection, no plug (hardwired) |
| Power Cord Length | 0" (field wiring required) |
| Country of Manufacture | Not made in Canada (per multiple retailer listings) |
| Outdoor Approved | No |
| ADA Compliant | No (not ADA compliant when installed per standard instructions) |
| Energy Star Certified | No |
| Manufacturer Warranty | 2 years parts and labor |
| Key Design Notes | Designed to match Thermador Professional ranges and rangetops; can be concealed in custom cabinetry or soffit; “Powerfully Quiet” system when paired with appropriate blower |
