Manufacturer's Warranty: 2 years
Canadian model: WD30WC
Canadian UPC: 825225937463
EAN: 0825225937463



| Specification | Value |
|---|---|
| Brand | Thermador |
| Model | WD30WC |
| Product Type | Built-in Warming Drawer |
| Fuel Type | Electric |
| Finish / Color | Stainless Steel |
| Capacity | 2.2 Cu Ft |
| Dinner Plate Capacity | 27–28 plates (approx. 10.5" diameter) |

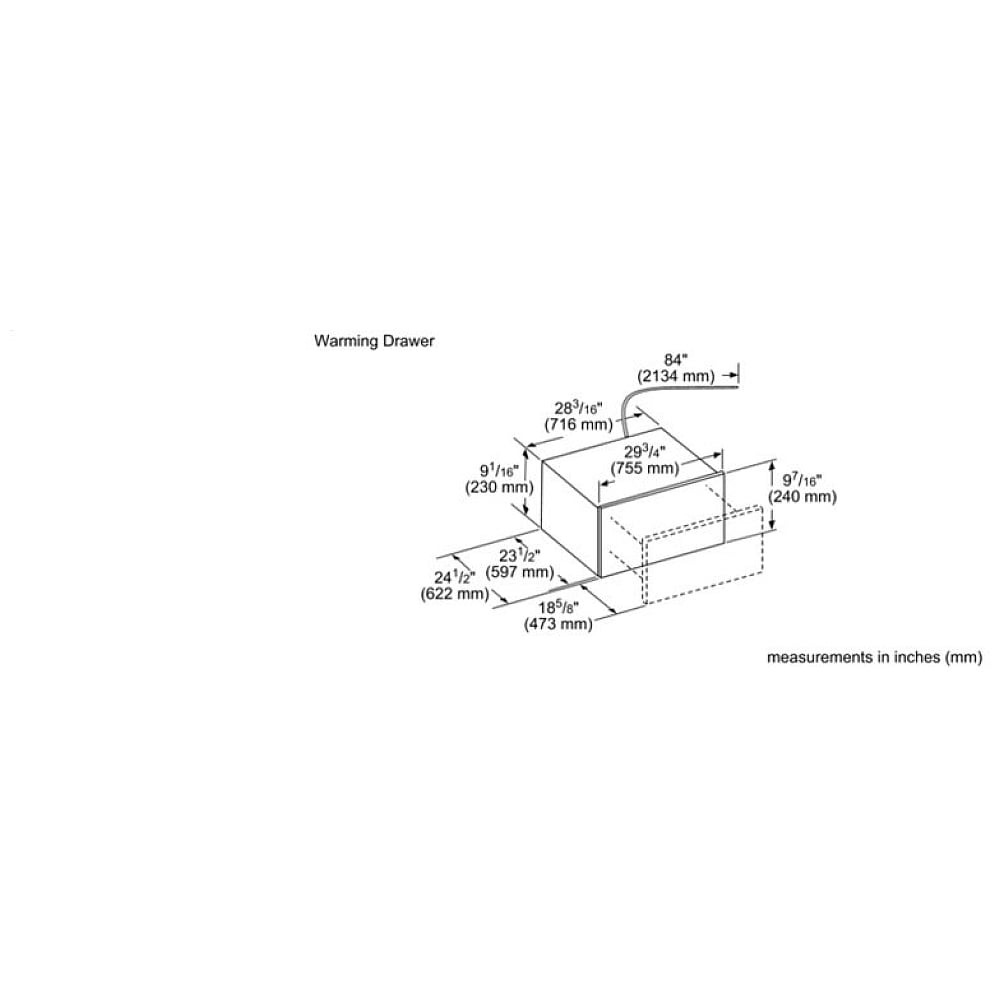

| Overall Width | 29.75 inches |
| Overall Height | 9.44 inches (9 7/16") |
| Overall Depth | 24.5 inches (24 1/2") |
| Nominal Width | 30 inches |
| Cavity Dimensions (HxWxD) | 7 11/16" x 21 7/8" x 20 1/4" |

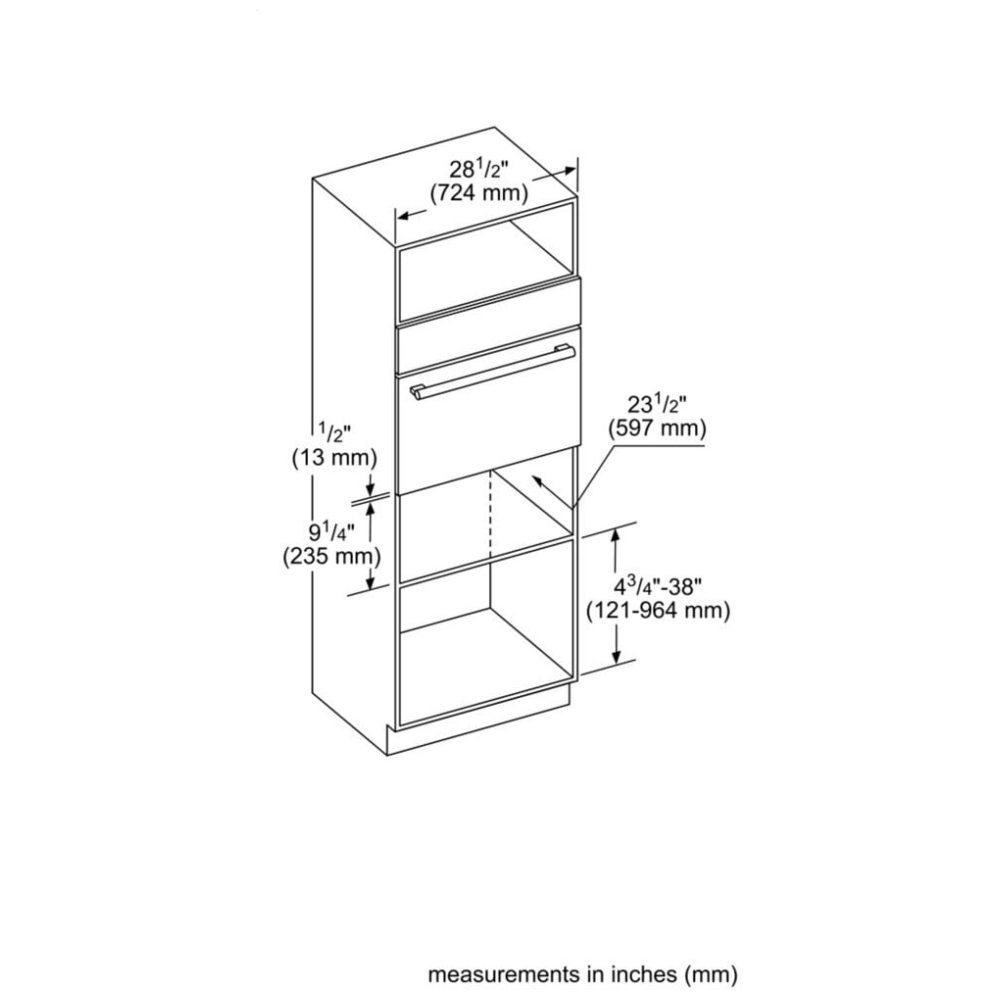

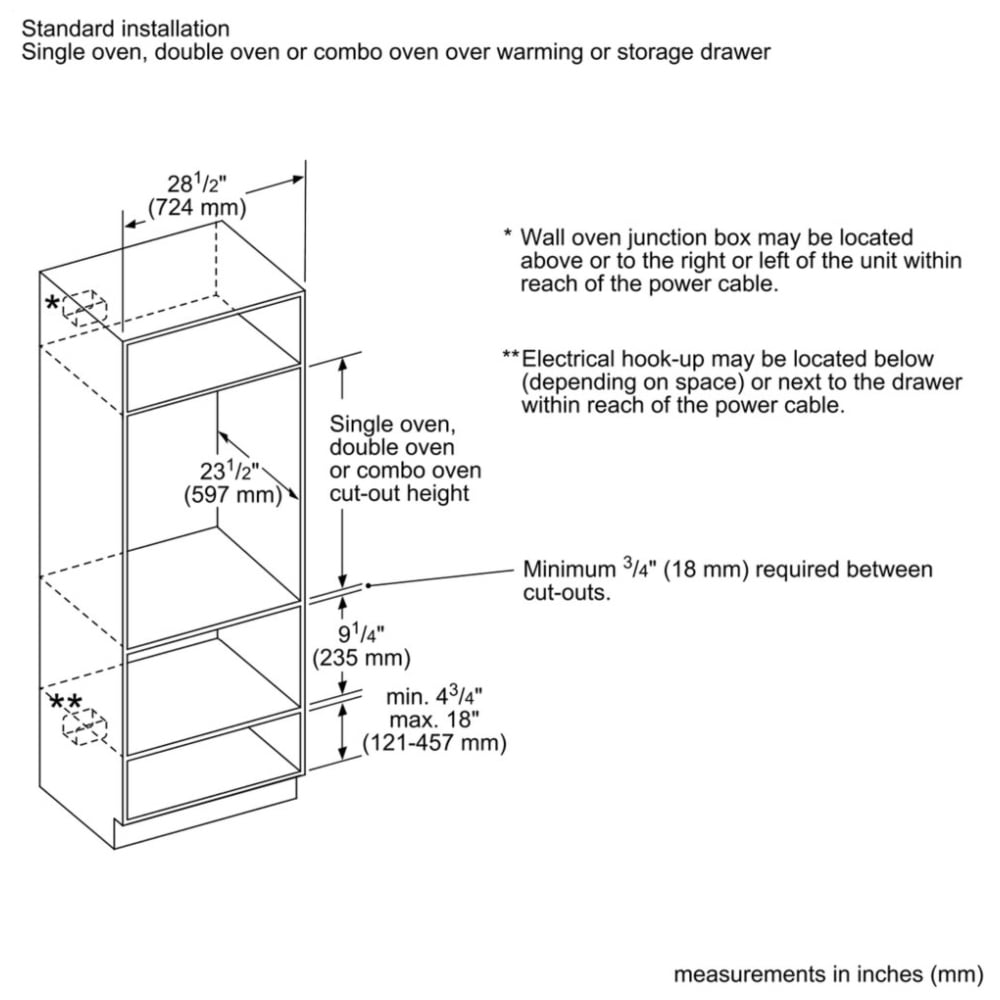

| Required Cutout Size (HxWxD) – Standard | 9 1/4" x 28 1/2" x 23 1/2" |

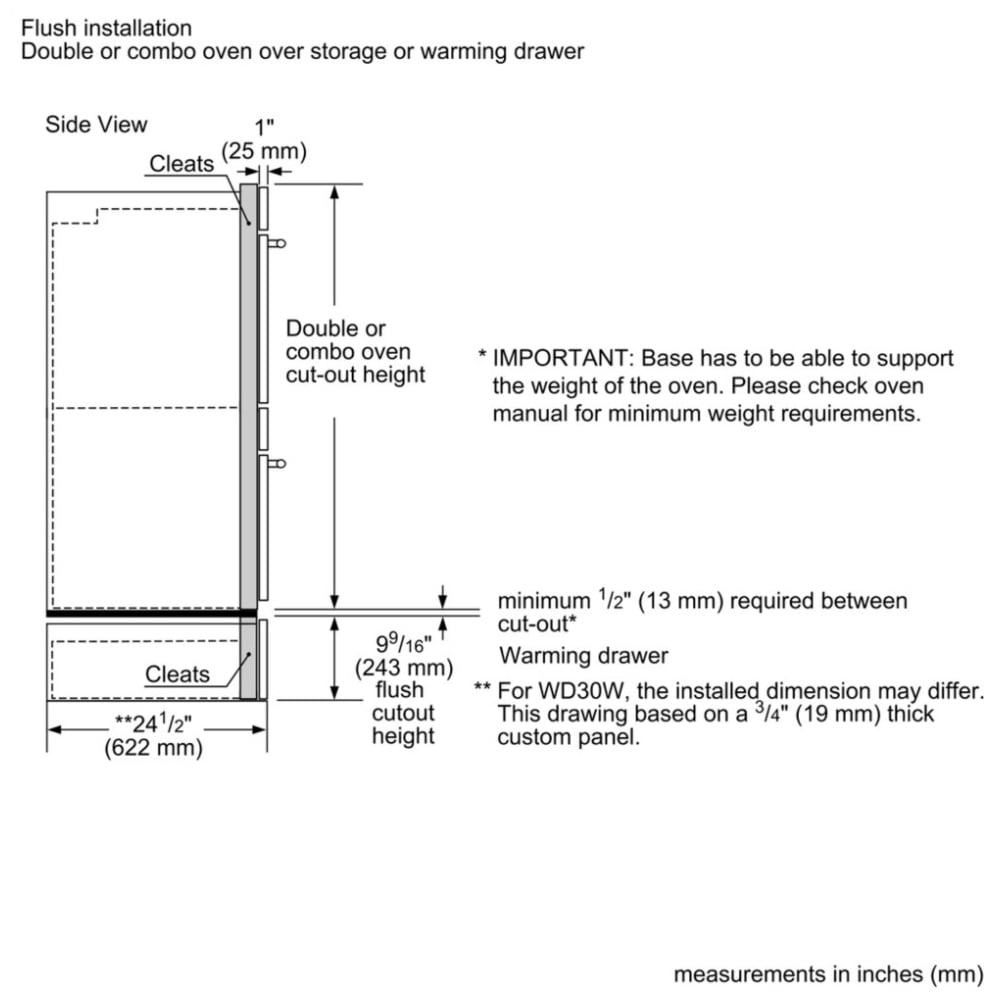

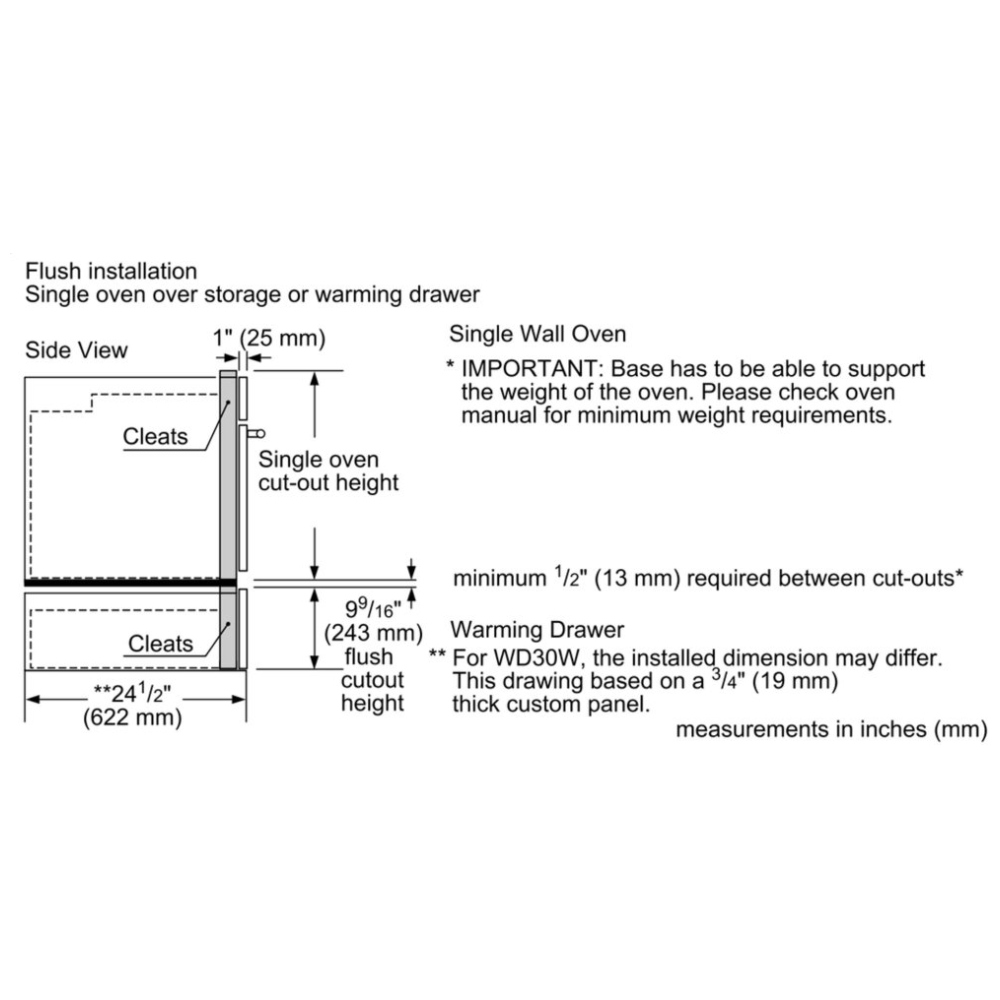

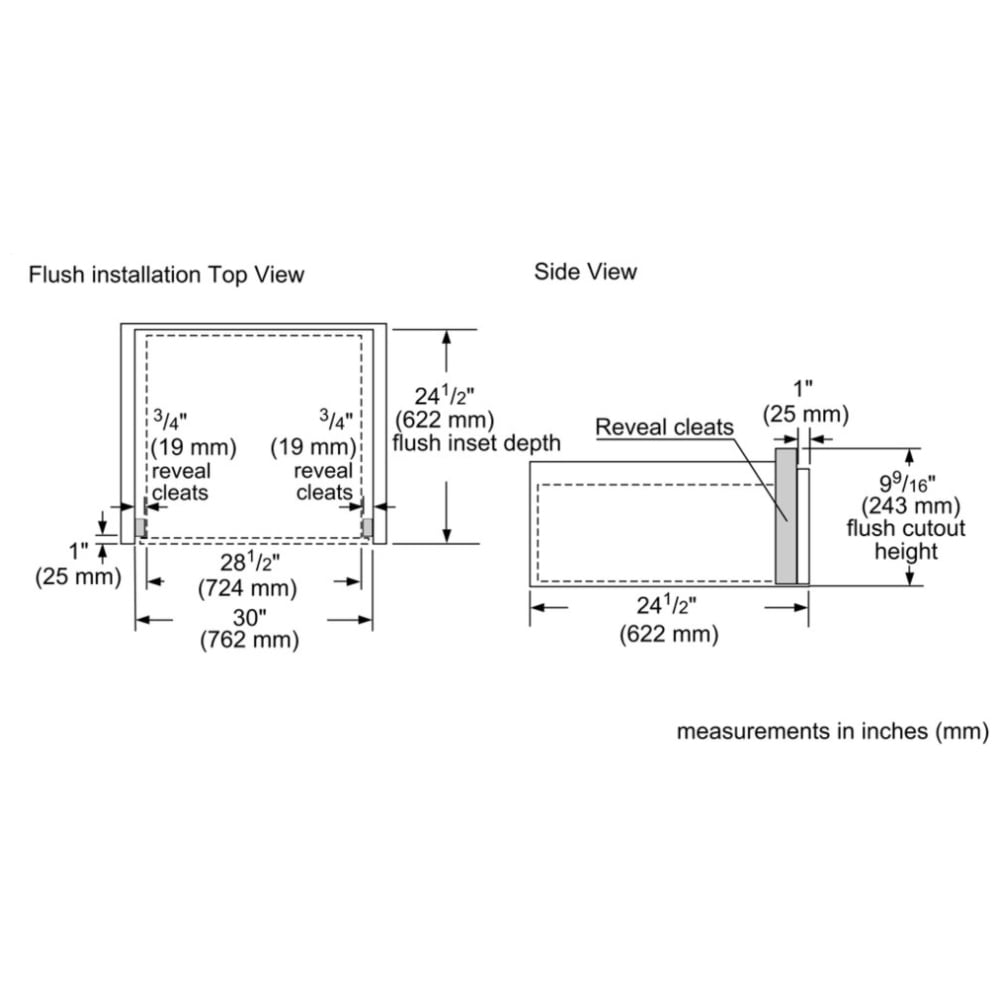

| Required Cutout Size (HxWxD) – Flush | 9 9/16" x 30" x 24 1/2" |
| Product Packaging Dimensions (HxWxD) | 14 1/2" x 35 5/8" x 30 1/2" |
| Approximate Net Weight | 55–72 lbs (24.95–32.9 kg) |
| Approximate Shipping / Gross Weight | ~80–112 lbs (36.3 kg reported gross) |
| Shipping Dimensions (WxHxL) | Approx. 34.75" x 14.44" x 29.5" |
| Power | 450 Watts |
| Voltage | 120 Volts |
| Amperage | 15 Amps |
| Frequency | 60 Hz |
| Plug Type | 120V, 3-prong |
| Power Cord Length | 84 inches (213 cm) |

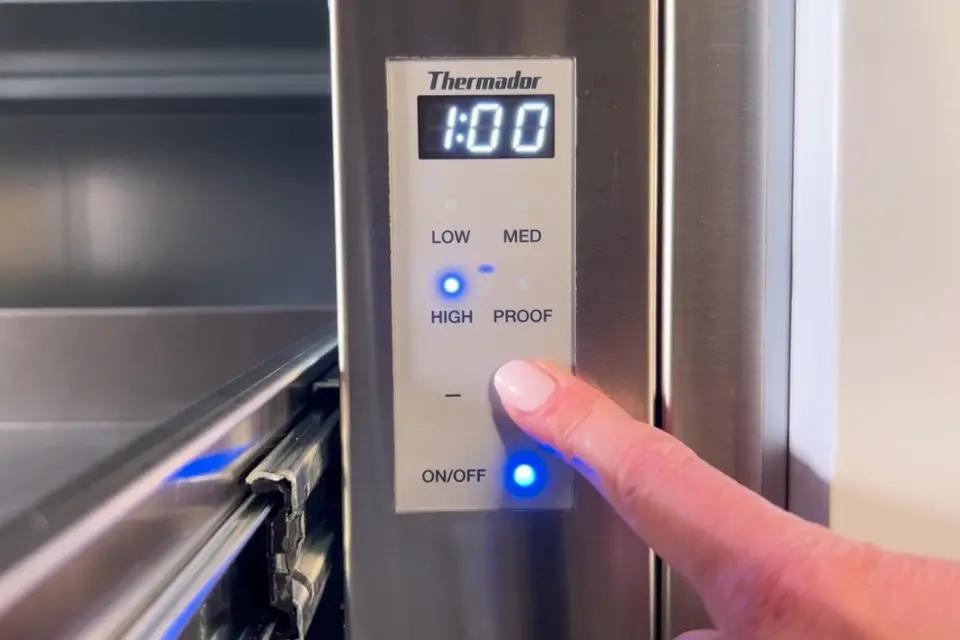

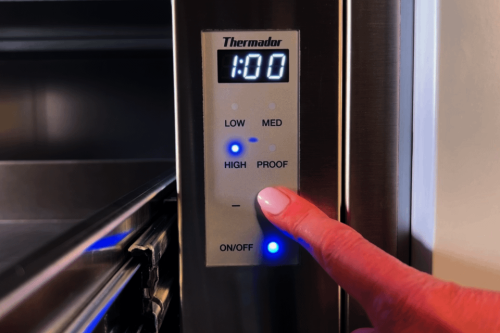

| Control Type | Illuminated electronic touch control (push-to-open drawer) |
| Temperature Settings | Low, Medium, High, Proof |
| Temperature Range | 100°F – 190°F |
| Timer Range | 5 minutes – 5 hours |
| Automatic Shut-Off | After 1 hour (with timer / safety shut-off) |
| Warming Modes | 3 warming levels (Low / Med / High) plus Proof mode |
| Proof Mode | Yes (bread-proofing) |
| Sabbath Mode | Yes (Star-K compliant) |

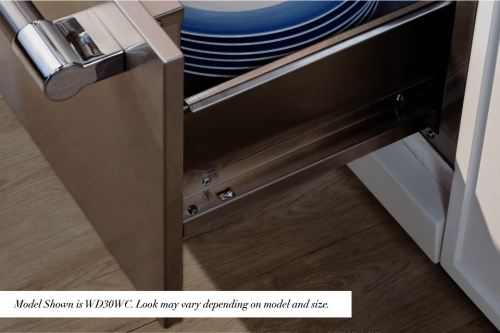

| SoftClose / Premium Rails | SoftClose® telescopic ball-bearing rails, supports up to 40 lbs |
| Interior Light | No |
| Viewing Window | No |
| Clock | No |
| Wi-Fi / Home Connect | No (not WiFi-enabled) |
| Energy Star Rated | No |
| ADA Compliant (when installed to ADA requirements) | No |
| Installation Type | Built-in, installs vertically under Thermador wall, speed, or steam ovens |
| Door / Drawer Swing | Drawer, push-to-open |
| Time-Setting Options | Start and Stop |
| Keep-Warm Function | Yes (warming drawer primary function) |
| Indicator Light | Yes (on control panel) |
| UPC | 825225937463 |
| EAN | 0825225937463 |
| GTIN | 00825225937463 |
| Warranty (Canada / US) | Limited 2 years parts and labor |
