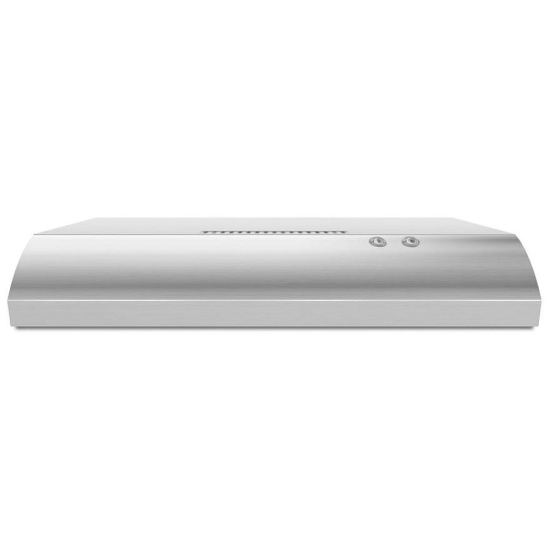

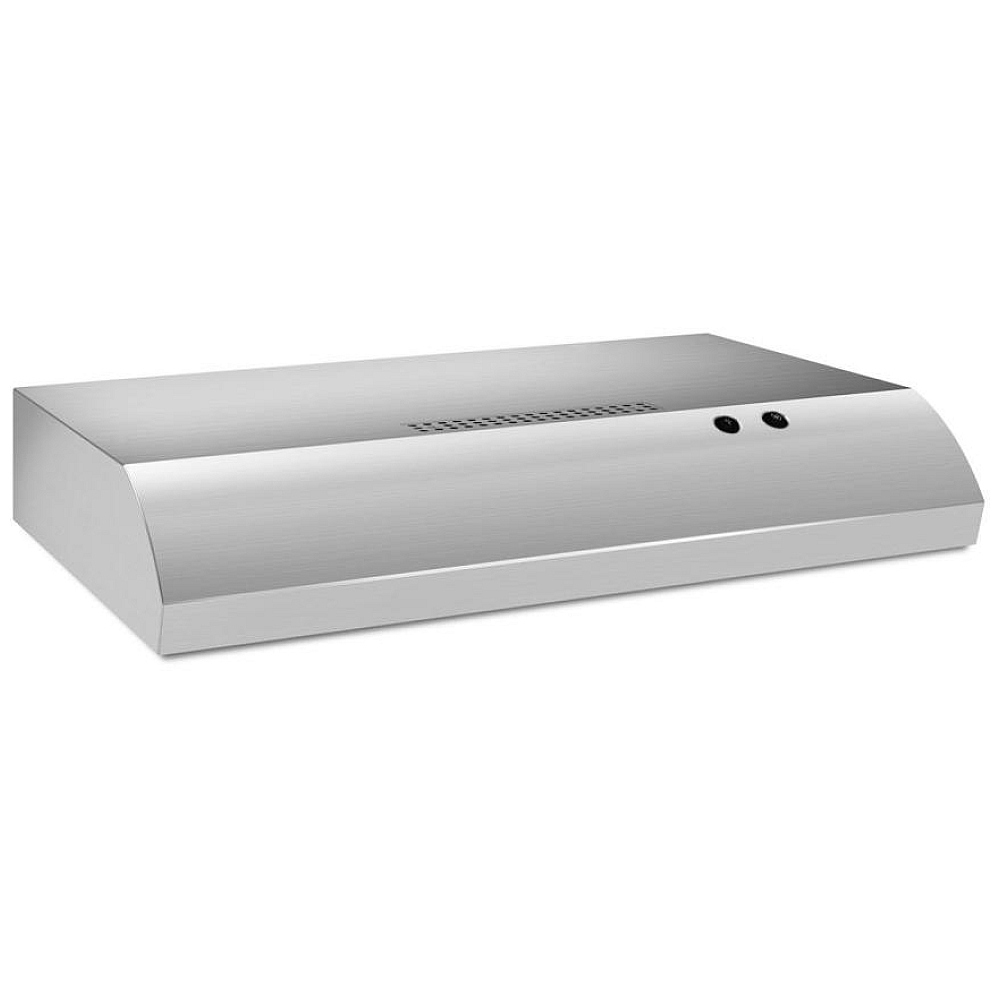

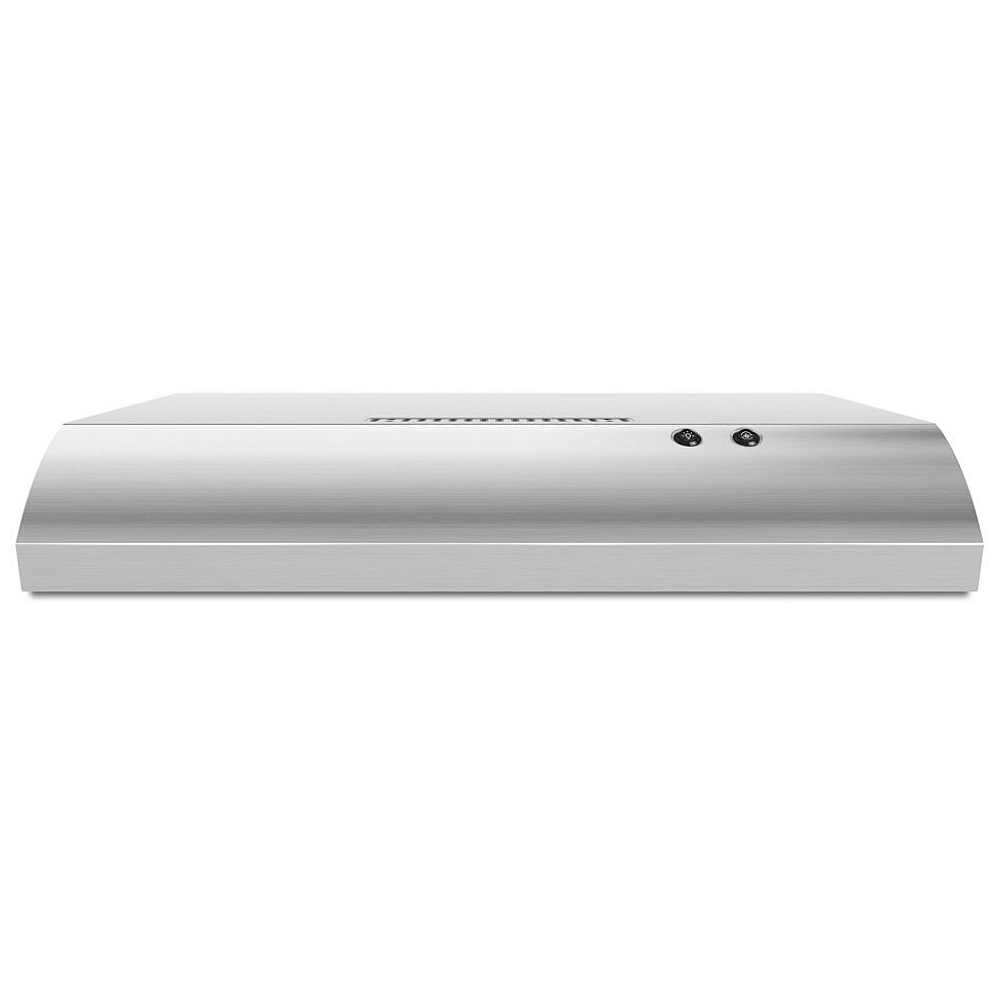

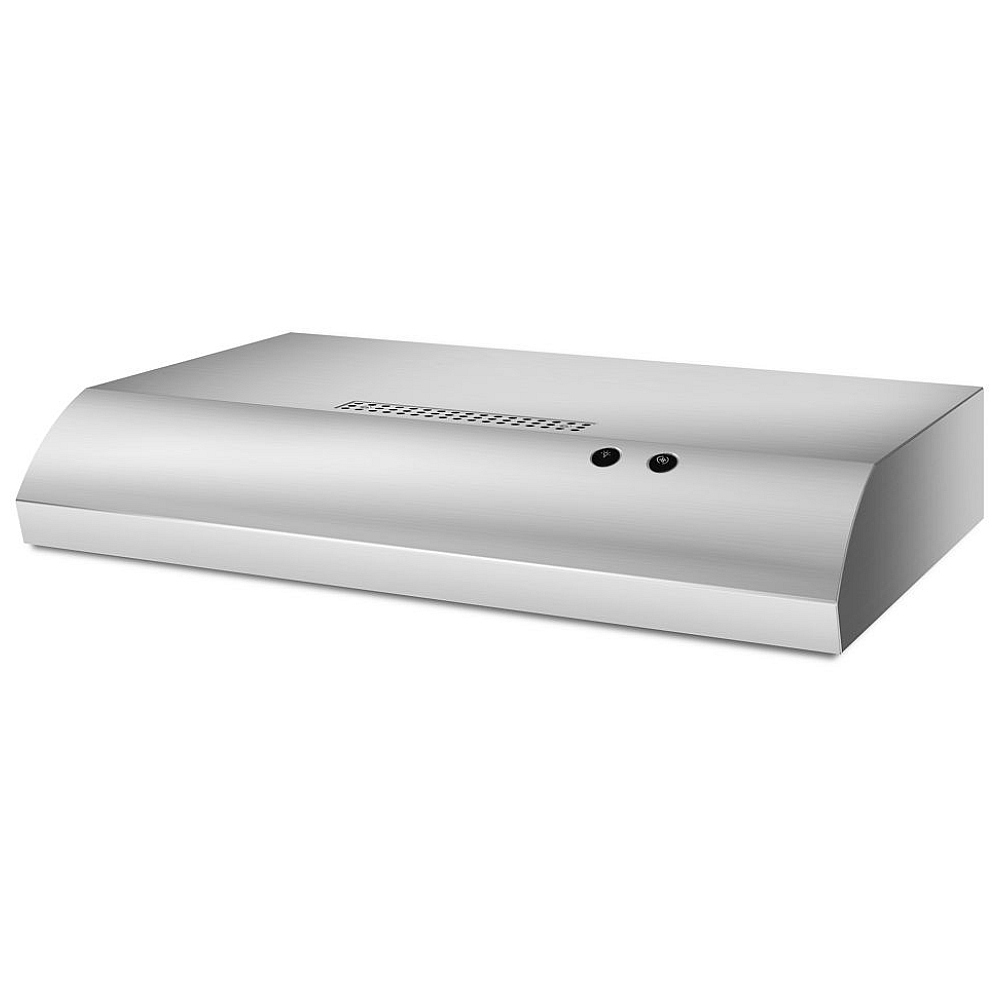

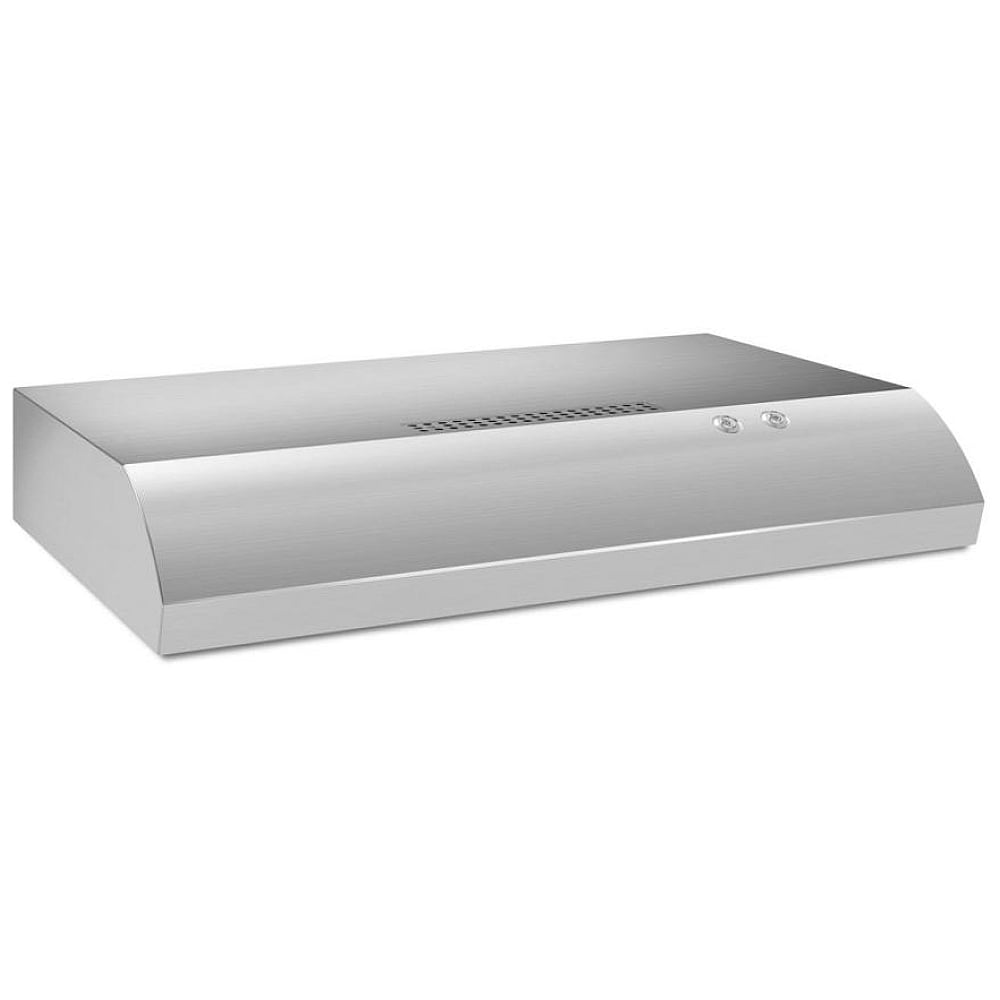

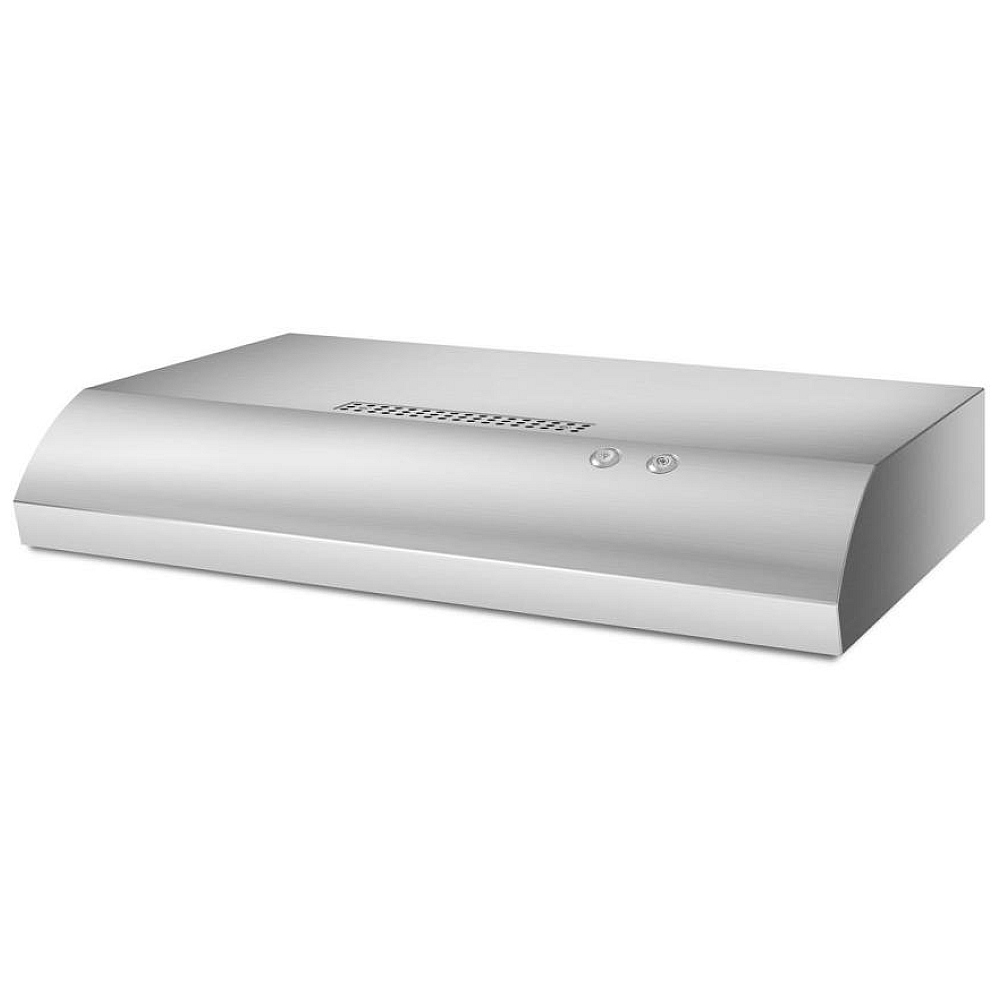

Whirlpool UXT4030ADS Undercabinet Hood, 30in, 190 CFM, 4.5 Sones, 2 Speed Fan, Non-vented Recirculating With Filters, Axial Fan, Dishwasher Safe Mesh Grease Filter, Hidden Vents, Fit System
- FIT system
- The FIT system helps reduce measuring, cutting and trim so that your hood is a perfect fit every time.
- Grease filter
- The grease filter helps trap unwanted grease and helps remove odors.
- Hidden Vent
- Incandescent Lighting
- Incandescent lighting makes it easy to see what you re cooking with bulbs that are inexpensive to replace.
- Powerful 2-speed fan
- Two fan speeds provide the right amount of ventilation for every meal you prepare.
Top Features
One person. No measuring. Easy install.
Time consuming ways of installing hoods are now a thing of the past. The FIT system provides fast installation that’s simple enough for one person.
FIT System
The FIT system eliminates measuring, cutting and filler strips for a perfect fit every time. The FIT system ensures your hood will install seamlessly into your cabinet cutout in three easy steps. First, attach FIT brackets and prep hood for electrical connection; second, position hood and attach to cabinet; third, complete electrical connection to hood. Now the only thing left to do is use it. Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.
Hidden Vent
This sleek and stylish hidden vent matches almost every modern or traditional kitchen. The design moves the ventilation out of sight to create a seamless look and a surface that's super easy to clean.
Additional Features
Two-Speed, 190 CFM Fan
Cooking introduces steam, grease, smoke and odors into the surrounding air. With 190 CFM and two fan speeds, this hood pairs well with many cooktops and most cooking methods.
Incandescent Lighting
Incandescent bulbs provide bright cooktop lighting to make preparation easy.
Recirculation (Non-Vented/Duct-Free)
By not having to connect to outside air, this hood can be installed almost anywhere. Recirculation happens through filters to keep the air fresh. It's perfect for people in condos or those without existing ductwork.
Manufacturer's Warranty: 1 year
Canadian model: UXT4030ADS
Canadian UPC: 883049326467
EAN: 0883049326467
| Certifications | |
| Ada Compliant | Yes |
| Prop65 | Standard |
| Star K Certified | Yes |
| Controls | |
| Control Type | Push Button |
| Details | |
| Hood Type | Under-the-Cabinet |
| Lighting Control Type | Rocker Switch |
| Material | Painted Steel |
| Number of Task Light Settings | 2 |
| Number of Vent Speeds | 2 |
| Task Lighting | Yes |
| Dimensions | |
| Product Height | 4.3125 |
| Carton Height | 7 |
| Gross Weight | 17 |
| Carton Depth | 20.75 |
| Carton Width | 31.75 |
| Product Depth | 18.625 |
| Net Weight | 14 |
| Product Width | 29.9375 |
| General | |
| Hood & Vent Features | FIT System |
| Ventilation Details | |
| BTU Threshold | 40 K |
| Blower Type | Axial |
| Cfm Motor Class | 140 |
| Filters | Charcoal Odor Removing Filter |
| Sones High Speed Vertical | 4 |
| Task Light Type | Incandescent |
| Venting | Recirculating |
Configuration and Overview
Dimensions
Style and Extras
Use & Care Guide (UXT4030ADS-use-care-guide-canada.pdf)
