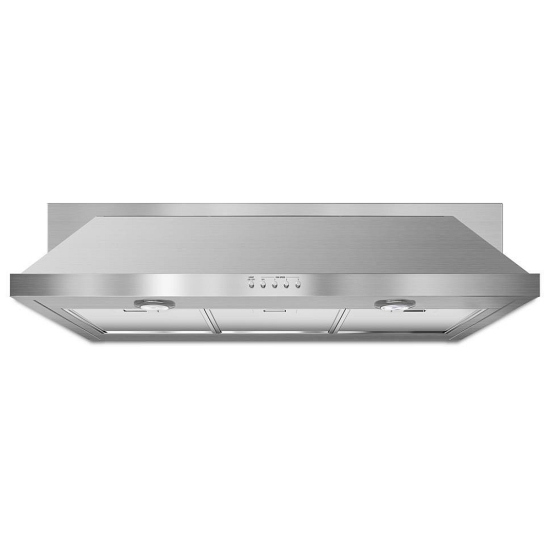

Whirlpool UXT5536AAS Under Cabinet Hood, 36in, with High Performance 400 CFM Centrifugal Blower, 8.0 Sones, Dishwasher-Safe Mesh Filters and Dual Halogen Work Surface Lighting
This convertible under-cabinet hood combines stylish design with efficient ventilation. It features a high-performance 400-CFM blower, three speed settings and dual halogen work surface lighting.
- 3 speed levels
- 400 CFM Exhaust Rating
- Classic and Functional, Under Cabinet Exhaust
- Dual Halogen Worksurface Lighting
- High style, ceiling-mounted canopy hoods
- High Performance 400 CFM Centrifugal Blower
- Sophisticated, Designer Styling
- 8.0 Sones
- Push Button Controls with 3 Speed Settings
- Dual Halogen Work Surface Lighting
- Dishwasher-Safe Mesh Filters
- Damper
- Power Cord Included for Easy Installation
- Vertical or Horizontal Exterior Ventilation (3-1/4" X 10" Rectangular Duct)
- Convertible to Recirculating (Ductless Installation) - NO Kit Required
Manufacturer's Warranty: 1 year
Canadian model: UXT5536AAS
Canadian UPC: 883049179698
EAN: 0883049179698
| Certifications | |
| Prop65 | Standard |
| Controls | |
| Control Location | Front |
| Control Type | Push Button |
| Details | |
| Lighting Control Type | Push Button |
| Material | Stainless Steel |
| Number of Night Light Settings | 1 |
| Number of Task Light Settings | 1 |
| Number of Vent Speeds | 3 |
| Task Lighting | Yes |
| Dimensions | |
| Product Height | 9.0 |
| Carton Height | 24 |
| Gross Weight | 41.9 |
| Carton Depth | 13 |
| Carton Width | 39 |
| Product Depth | 19.75 |
| Net Weight | 34.39 |
| Product Width | 35.875 |
| General | |
| Hood & Vent Features | 400 CFM Power |
| Ventilation Details | |
| BTU Threshold | 60 K |
| Blower Type | Centrifugal |
| Cfm Motor Class | 400 |
| Duct Direction | Vertical |
| Duct Outlet Size | 3.25 W x 10 H |
| Duct Type | Rectangular |
| Filters | Charcoal Odor Removing Filter; Grease Filters |
| Sones High Speed Horizontal | 9 |
| Sones High Speed Vertical | 8.5 |
| Sound Max Speed | 8.2 |
| Sound Max Speed (sones) | 8.2 |
| Task Light Type | Halogen |
| Venting | Exterior or Recirculating |
| Type | |
|---|---|
| VentilationType | Updraft |
| Performance | |
| Blower Type | Centrifugal |
| Duct Outlet Type | Rectangular |
| Duct Outlet Size | 3 1/4" x 10" Rectangular |
| Sones (Vertical, Rectangular) | 8.2 |
| CFM (Horizontal, Rectangular) | 400 |
| CFM (Vertical, Rectangular) | 400 |
| Sones (Horizontal, Rectangular) | 8.1 |
| Lighting / Controls | |
| Number of Speeds | 3 |
| # of Light Settings | 1 |
| Control Type | Push Button |
| Cooktop Light Type | Halogen |
| # of Cooktop Lights | 2 |
>> View & Compare Whirlpool Ventilation Line Up <<
Dimension Guide (UXT5536AAS-dimension-guide-canada.pdf)
