MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).














- Get a space-saving design with closet-depth fit that allows for more flexible installation in your laundry space.*
*Designed to fit a 33"" installation depth.
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years

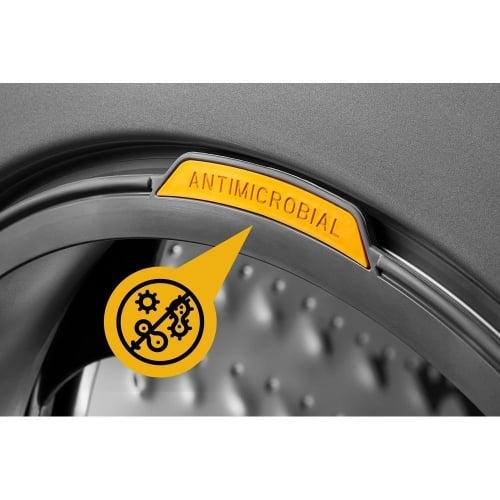

- Antimicrobial protection on the rubber seal helps keep your washer fresh by preventing the growth of odor-causing bacteria and mold.
- After you take the clothes out, close your washer door and select the Dry Drum Cycle. A powerful fan reduces excess moisture from the drum, rubber gasket and door.
- ENERGY STAR® certified models exceed government standards to help conserve natural resources and save money on your utility bills.
- Keep your clothes fresh in the washer after a cycle. The FanFresh® Option uses a built-in fan and periodic tumbling to keep your just-washed clothes fresh until they're ready for the dryer, using less energy than you would re-washing your clothes.*
*Based on rewashing an 8 lb load on Normal cycle.
- Finish laundry in under 1 hour by pairing the 25 minute Quick Wash cycle with a 30 minute timed dry.* Experience the ultimate time-saving duo for hassle-free laundry days.
*Based on a 10 lb load on medium heat

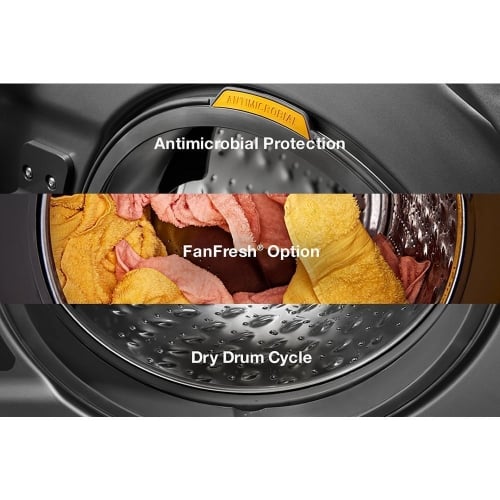

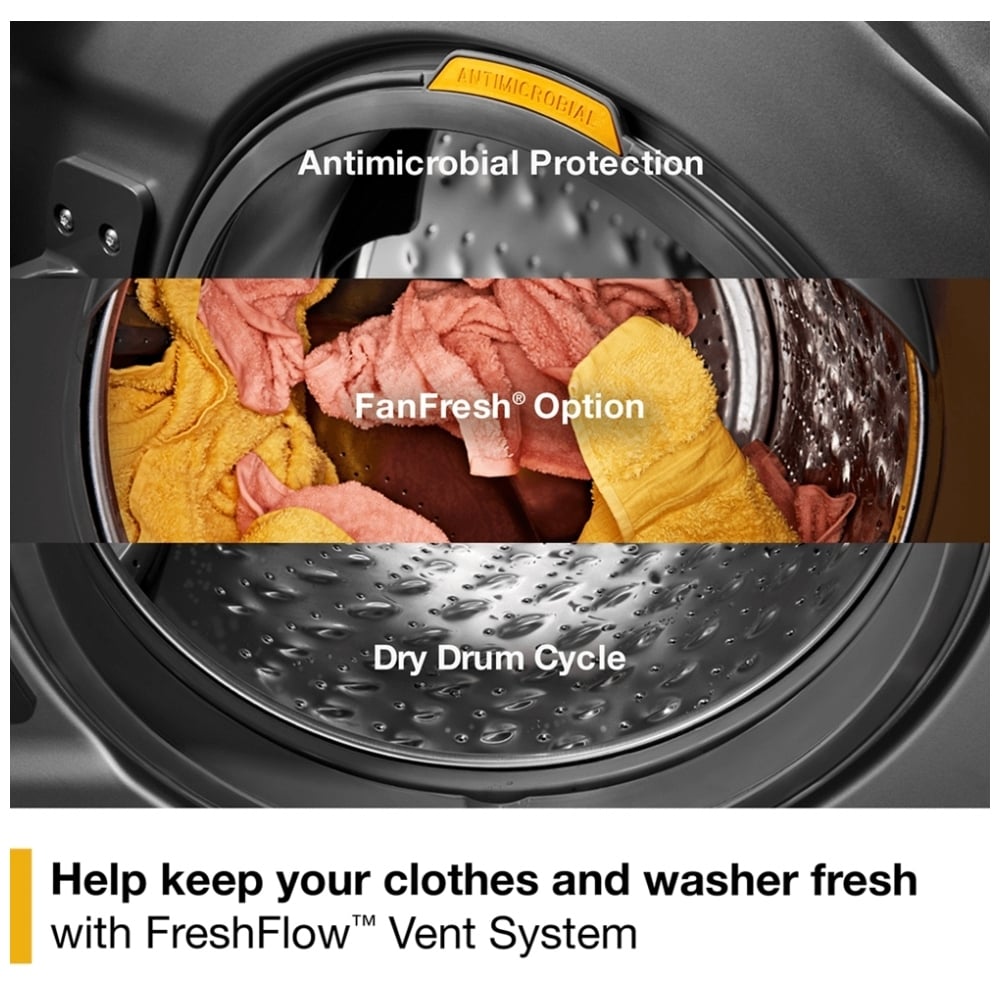

- The FreshFlow™ Vent System, now with UV Clean Technology, keeps your clothes and machine fresh and clean. It includes the Dry Drum Cycle, FanFresh® Option, Antimicrobial protection, and industry-first UV Clean Technology.

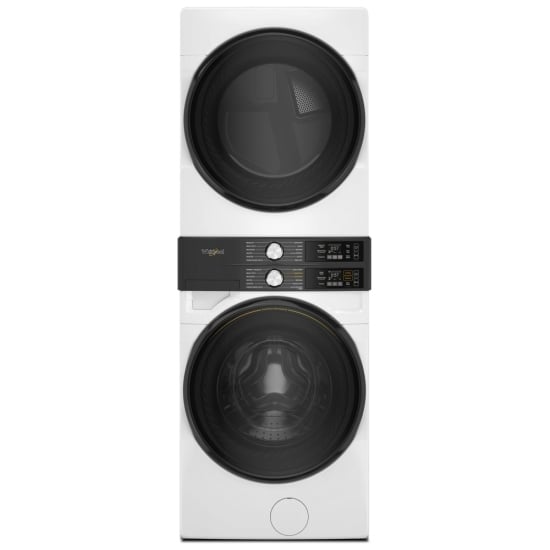

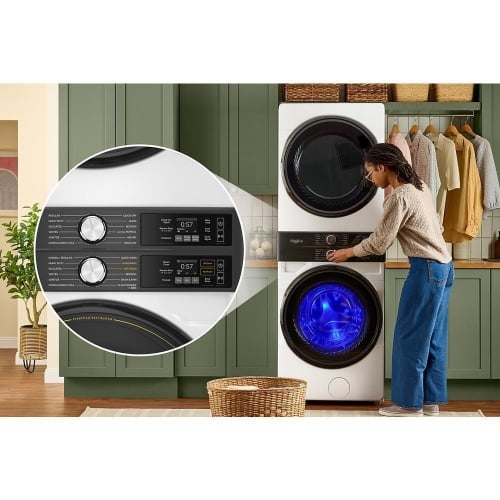

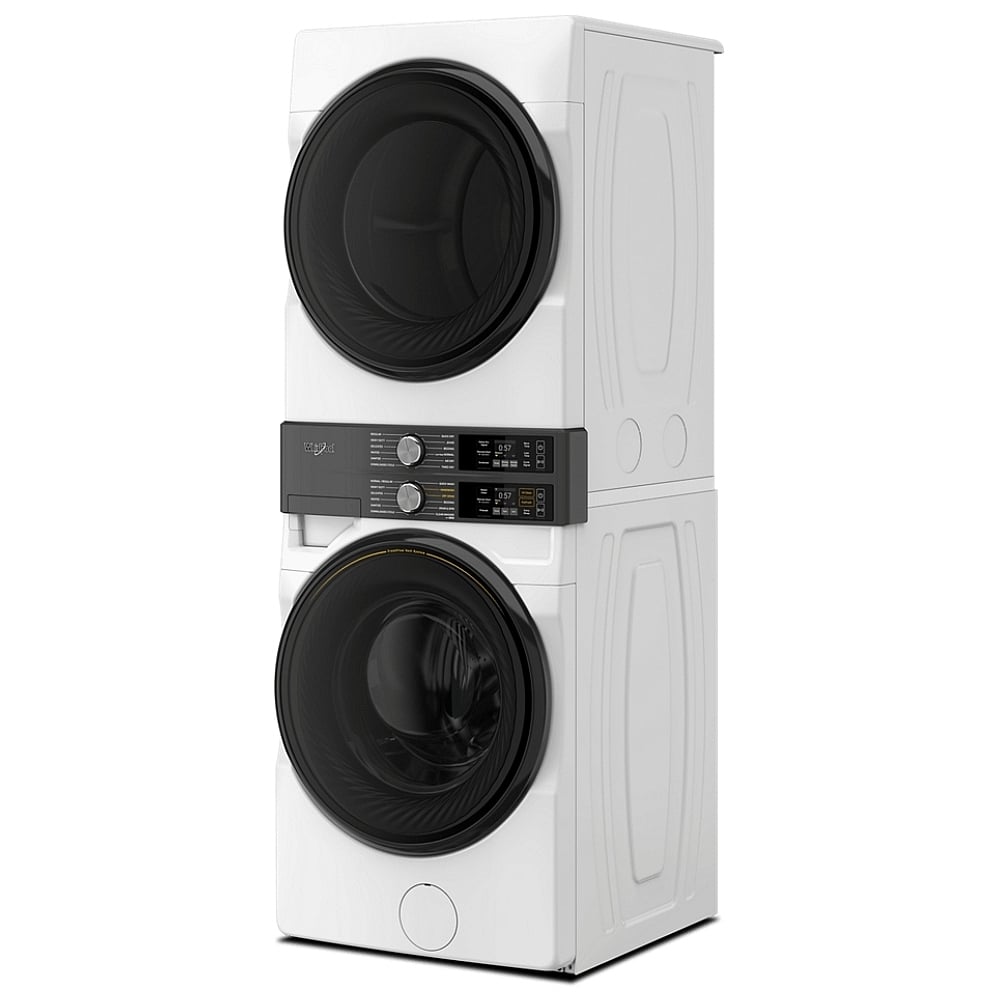

- Save space and easily reach the centralized control panel with a front load laundry tower configuration
- Gently loosen soils in delicate items that need a little extra care with the Handwash Cycle. Choose your preferred water temperature and soil level, then gentle agitation mimics handwashing to soak away stains while helping maintain the shape and size of your fabrics.

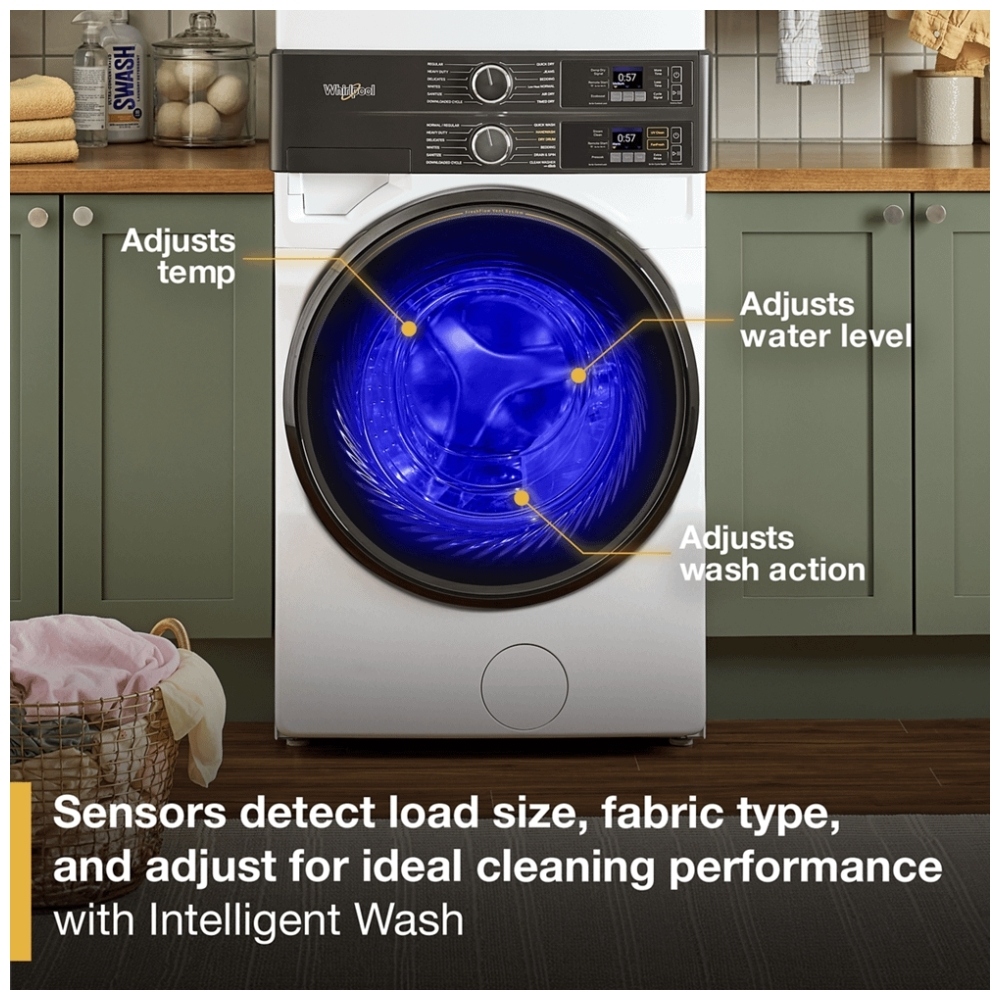

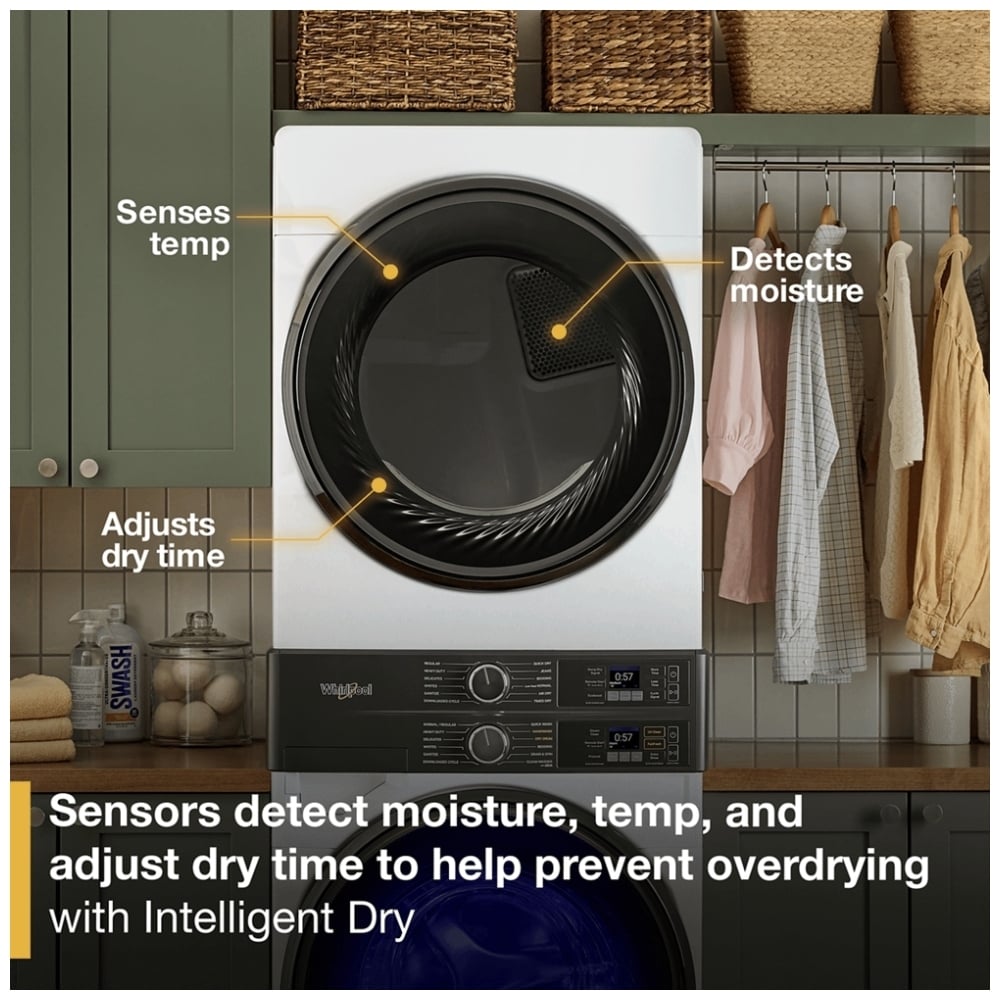

- Intelligent Wash & Dry technology uses sensors in the washer to detect load size and fabric type, automatically adjusting water level, temperature, and wash action for ideal fabric care and cleaning performance. Then sensors in the dryer detect moisture and temperature to adjust dry time to help prevent overdrying.
- Easily access the drain pump for more convenient cleaning and maintenance.
- Be in control and stay connected from anywhere. The Whirlpool® App lets you start, pause, track progress and receive notifications when you're away, so you can manage laundry day right from your smartphone.*
*Features subject to change. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to Remote Enable.

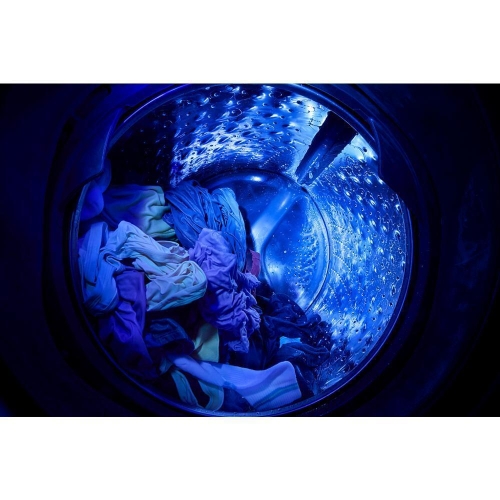

- Industry-first UV Clean Technology reduces bacteria* in the wash without requiring high temperatures or fading fabrics. When selected, a bright blue light signals the UV technology is working to tackle the bacteria in the water, giving your clothes a deep clean while keeping fabric care in mind.
*Available on select cycles. Bacteria tested include Staphylococcus aureus, Bacillus subtilis, Pseudomonas aeruginosa
- Help keep wrinkles from setting into clean, dry laundry with the Wrinkle Shield™ Option. It keeps clothes tumbling for up to 150 minutes after the cycle ends, or until you open the door.
Manufacturer's Warranty: 1 year
Canadian model: YWEF5727TW
Similar to USA model: WEF5727TW
Canadian UPC: 883049938851
Similar to USA UPC: 883049938837
EAN: 0883049938851
| Certifications | |
| Ada Compliant | No |
| Cee Tier Rating | Tier I |
| Energy Rating | 140 |
| Imef | 2.76 |
| Iwf | 3.2 |
| Prop65 | CA |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Knob and Button |
| Electronic Display Type | Cycle Indicator Lights with Digital Time Remaining |
| End of Cycle Signal | Yes |
| Feedback-status Indicators | Add Garment; Check Vent; Control Lock; Cooling Down; Damp; End; Estimated Time Remaining; Sensing; Washing; Wet |
| LED Color | White |
| Cycles | |
| Drying Cycles Selections | Air Dry; Bedding; Delicates; Downloaded cycle; Heavy Duty; Jeans; Normal (Low Heat); Quick Dry; Regular Normal Dry; Timed Dry; Whites |
| Number of Dryer Cycles | 12 |
| Number of Wash Cycles | 12 |
| Washer Cycle Selections | Bedding; Clean Washer; Custom Cycle; Delicates; Drain & Spin; Dry Drum; Hand Wash; Heavy Duty; Normal / Regular; Quick Wash; Sanitize; Whites |
| Details | |
| Dryer Cycle Time Remaining | Yes |
| Dryer Door Reversible | Yes |
| Dryer Interior Light | Yes |
| Dryer Lint Filter Indicator | Yes |
| Fuel Type | Electric |
| Hoses Included | Yes |
| Maximum Spin Speed | 1,160 |
| Sound Package | No |
| Water Factor | 3.2 |

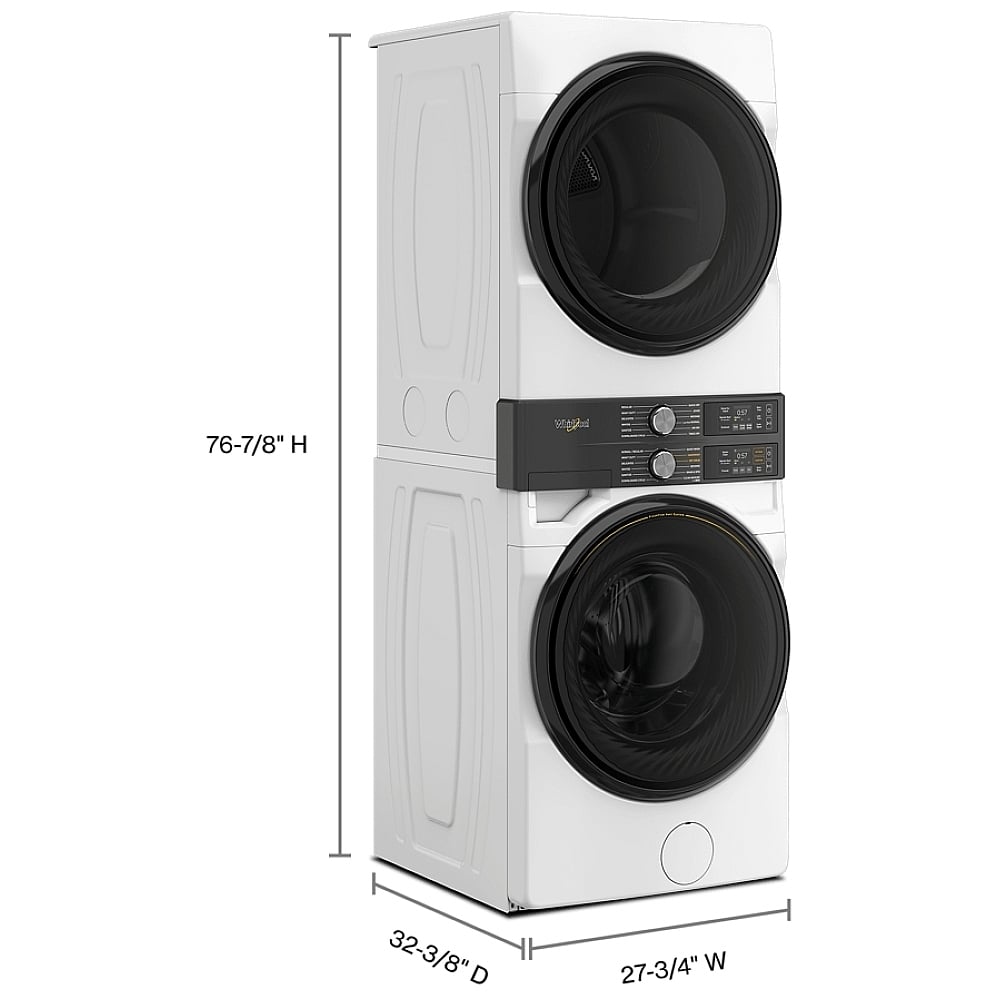

| Dimensions | |
| Product Height | 76.875 |
| Washer Capacity | 4.5 |
| Carton Height | 80 |
| Gross Weight | 362 |
| Washer Door Opening Width | 23.5 |
| Height To Top of Cabinet | 76.875 |
| Dryer Capacity | 7.4 |
| Carton Width | 30 |
| Product Depth | 32.375 |
| Depth With Door Open 90 Degree | 55.625 |
| Capacity Iec Canada | 5.2 |
| Carton Depth | 35.5 |
| Net Weight | 352 |
| Product Width | 27.75 |
| Electrical | |
| Amps (dryer) | 30 |
| Amps (washer) | 15 |
| Power Cord Included | No |
| Volts Dryer | 240 |
| Volts Washer | 120 |
| Exterior Details | |
| Adjustable Feet | Yes |
| Lid/door Finish | Glass |
| Lid/door Lock | Yes |
| Lid/door Swing | Left |
| Slow Close Lid | N/A |
| Window | Yes |
| General | |
| Console Language | English |
| Energy Star® Qualified | ENERGY STAR® Qualified |
| Literature Language | English; French |
| Installation Considerations | |
| Ventless | N/A |
| Interior Details | |
| Automatic Load Size Sensing Technology | Yes |
| Dispense System | Detergent, Fabric Softener & Bleach |
| Dryer Drum Material | Powder Coat |
| Lint Screen Location | Front |
| Washer Drum Material | Stainless Steel |
| Modifiers | |
| Dryer Temperature Selections | Air Only; Extra Low; High; Low; Medium |
| Number of Soil Levels | 4 |
| Number of Spin Speeds | 4 |
| Number of Wash/rinse Temperatures | 5 |
| Rinse Temperature | Cold |
| Temperature Selections | Cold; Cool; Extra Hot; Hot; Warm |
| Washer Soil Selections | Extra Heavy; Heavy; Light; Medium |
| Options | |
| Dryer Option Selections | Control Lock; Cycle Signal; Damp Dry Signal; Eco Boost™; Wrinkle Shield™ |
| Washer Option Selections | Control Lock; Delay Wash; End of Cycle Signal; Extra Rinse; Fan Fresh®; Presoak; Remote Enable; Soil Level; Spin Speed; Steam Clean; Temperature; UV Clean |
| Smart Compatibility | |
| Connectivity | Amazon Alexa; Android; Google Assistant; iOS |
| Smart Appliance | Yes |
| Works With | App; Remote Access; Voice Controlled; WiFi |
| Dimensions | |
|---|---|
| Depth | 32.38 " |
| Width | 27.75 " |
| Height | 76.88 " |
| Carton Depth | 35.5 " |
| Carton Height | 80.0 " |
| Carton Width | 30.0 " |
| Gross Weight | 362.0 lbs |
| Net Weight | 352 lbs |
| Depth With Door Open 90 Degree | 55.63 " |
| Capacity IEC CAN (cubic feet) | 5.2 |
| Cycles | |
| Drying Cycles Selections | Air Dry; Delicates; Downloaded cycle; Heavy Duty; Jeans; Normal (Low Heat); Quick Dry; Regular; Sanitize; Timed Dry; Whites |
| Washer Cycle Selections | Bedding; Clean Washer; Custom Cycle; Delicates; Drain & Spin; Dry Drum; Hand Wash; Heavy Duty; Normal - Regular; Quick Wash; Sanitize; Whites |
| Number Of Dryer Cycles | 12 |
| Number Of Wash Cycles | 12 |
| Options | |
| Washer Option Selections | Control Lock; Delay Wash; End of Cycle Signal; Extra Rinse; Fan Fresh®; Presoak; Remote Enable; Soil Level; Spin Speed; Steam Clean; Temperature |
| Dryer Option Selections | Wrinkle Shield™ |
| Modifiers | |
| Temperature Selections | Cold; Cool; Extra Hot; Hot; Warm |
| Soil Selections | Light, Medium, Heavy, Extra Heavy |
| Number Of Wash Rinse Temperatures | 5 |
| Number Of Spin Speeds | 4 |
| Number Of Soil Levels | 4 |
| Exterior | |
| Window | Yes |
| Details | |
| Maximum Spin Speed Rpm | 1,160 |
| Drum Material | Stainless Steel |
| Dispense System | Detergent, Fabric Softener & Bleach |
| Automatic Load Size Sensing Technology | Yes |
| Hoses Included | 4ft 4in Drain Hose Included |
| Compatibility | |
| Connectivity | App; Remote Access; Voice Controlled; WiFi |
| Works With | Amazon Alexa; Android; Google Assistant; iOS |
| Certifications | |
| Energy Rating Kwh Year | 140 |
| Specifications | |
| Extended Service Plan Parent | EW04IW1Y, EW04IW2Y, EW04IW4Y |
| Required Accessories | 285666, 8212546RP, 8212638RP, 8212641RP, 8212656RP, DRNEXT4, W10323246, W11281268 |
| Optional Accessories | 285666, 4396028, DRNEXT4, SWHLDLFF2BS, SWHLDLFL2BS, W10135699B, W10322470A, W10323246, W11281268 |
| Country Of Origin | USA |
| Electrical | |
| Volts | 240 |
| Power Cord Included | Yes |
| Amps | 30 |
| Controls | |
| End Of Cycle Signal | Yes |
| Control Type | Knob & Buttons |
There are currently no documents available for this product.
