American Range ARR530N
Discontinued
AD4Q8C
Why Buy This at CAS?
In Home Delivery
Haul Away Included
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $266.00 for 18 months
Ratings & Reviews
AD4Q8C
When will I get this?

Why Buy This at CAS?
In Home Delivery
Haul Away Included
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $266.00 for 18 months
Description & Features

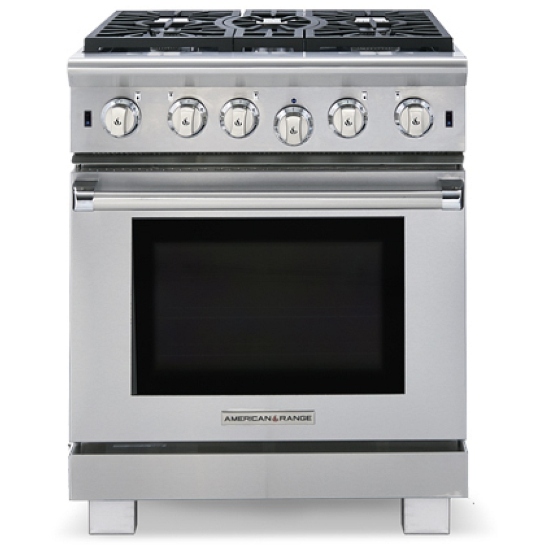

 American Range Cuisine Series ARR530N 30 in Pro-Style Gas Range with 5 Sealed Burners, 4.3 cu. ft. Innovection Oven, Manual Clean, Infrared Broiler and Island Trim Included

5 Sealed Gas Burners and 30" Convection Oven With Infrared Gas Broiler. Island Back Included and Installed. Shown With Optional Leg Caps & 4" Stub Back.

 Range Top Features

  • Sealed burners deliver exceptional performance at every level setting and lift off to provide easy cleanup.
  • 3 sizes of burners to serve your everyday needs: 17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm).
  • Variable infinite flame settings for all sealed top burners.
  • Fail-safe system ensures re-ignition in the event the flame goes out even on the lowest burner setting.
  • Continuous and flush commercial-grade cast iron grates allow for easy transfer of pots and pans across the entire cooking surface.
  • Sealed Single Piece tooled porcelainized cook top can hold more than a gallon of spills.
  • Analog controls provide easy, push and turn operation ensuring child safety.
  • Blue LED light indicates oven functions.
  • Heavy metal die-cast black satin knobs with chrome bezels.
  • Stainless Steel Island Back Trim is included and installed.

Oven Features

  • Multiple functions include: Standard Bake, Innovection Convection Bake, Infrared Broil and Fan mode.
  • Innovection System with convection fan optimizes uniform air flow.
  • Two chrome racks glide at 5 (including base) cooking levels on heavy chrome side supports.
  • Accommodates full size commercial sheet pan.
  • Front panel switch controls oven lighting for optimal visibility.
  • Oven front construction is a durable, precision-made one piece frame.

Manufacturer's Warranty: 1 year

Canadian model: ARR530N

Specs



Technical Specifications
Overall Oven Capacity: 4.3 Cu. Ft.
Surface Burner Rating - Large: 17,000 BTU
Surface Burner Rating - Medium: 13,000 BTU
Surface Burner Rating - Small: 9,000 BTU
Infrared Broiler: 17,000 BTU
Oven Bake Burner: 28,000 BTU
Total Gas Connection Rating: 114,000 BTU 5 Burners
Gas Supply: 7" W.C. Natural, 11" W.C Propane
Electrical Supply: 120 VAC 15 Amp 60 Hz Single Phase
Shipping Weight: 330.5 Lbs.
Dimensions
Oven Interior Width: 26"
Oven Interior Depth: 19"
Oven Interior Height: 15"
Overall Width: 29 7/8"
Overall Depth: 30 1/2"
Overall Height: 37 3/4"
