MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).














Manufacturer's Warranty: 1 year
Canadian model: HBL8642UC
Canadian UPC: 825225950158
EAN: 4242005077113









| Specification | Value |
|---|---|
| Brand | Bosch |
| Series | 800 Series |
| Model | HBL8642UC |
| Type | Double Wall Oven |
| Fuel Type | Electric |

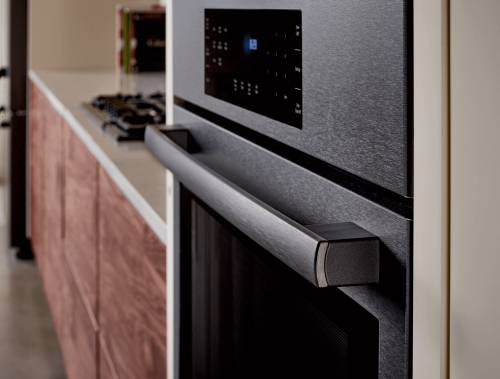

| Installation Type | Built-in, flush installation capable |

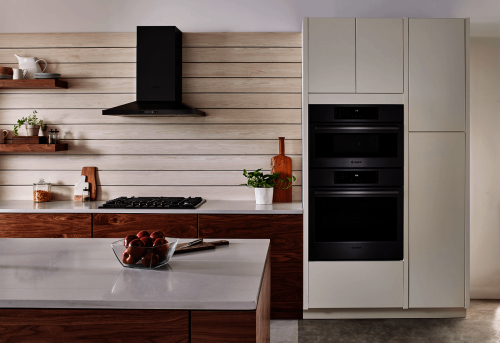

| Finish / Color | Black Stainless Steel |
| Handle Type | Bar / Bow handle |
| Door Style | Drop down |
| Door Options | Standard drop down |

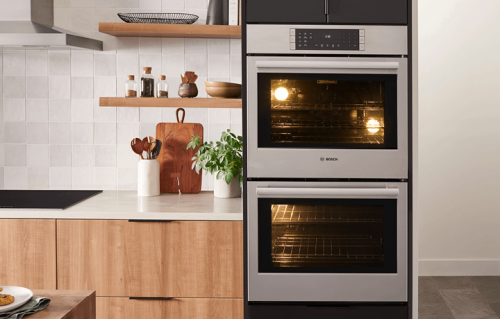

| Soft Close Door | Yes (QuietClose) |

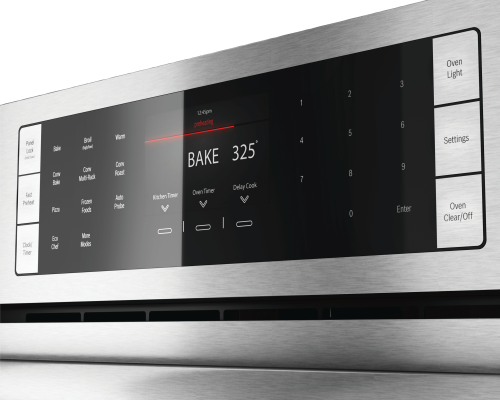

| Control Type | Electronic, SteelTouch buttons, Color TFT / White LED display |
| Digital Clock | Yes |
| Digital Temperature Display | Yes |
| Total Capacity | 9.2 cu ft |
| Upper Oven Capacity | 4.6 cu ft |
| Lower Oven Capacity | 4.6 cu ft |
| Overall Width | 29 3/4 inches |
| Overall Height | 52 1/16 inches |
| Overall Depth (cabinet front to back) | 23 1/2 inches |
| Overall Depth (to handle / front) | 24 1/2 inches |
| Cutout Width | 28 1/2 inches |
| Cutout Height | 49 3/4 – 51 1/2 inches |
| Cutout Depth | 23 1/2 inches |
| Metric Dimensions (H x W x D) | 1323 x 755 x 597 mm |
| Minimum Installation Height | 1,264 mm |
| Maximum Installation Height | 1,308 mm |
| Maximum Installation Width | 724 mm |
| Installation Depth (metric) | 597 mm |
| Interior Width (each cavity) | 24 1/8 inches |
| Interior Height (each cavity) | 17 13/16 inches |
| Interior Depth (each cavity) | 18 inches |
| Usable Volume Cavity 2 (metric) | 128 L |
| Net Weight | approx. 291–303 lbs (132–137.5 kg) |
| Gross Weight (shipping) | approx. 328 lbs |
| Shipping Dimensions (H x W x D) | 53 7/8 x 34 x 31 1/2 inches |
| Electrical Connection Rating | 8,495–8,600 W |
| Voltage | 240 / 208 V |
| Frequency | 60 Hz |
| Circuit Breaker / Fuse Protection | 40 A |
| Energy Input | Electric |
| Power Cord Length | 50 inches (approx. 127 cm) |
| Plug Type | Fixed connection, no plug (hardwired) |
| Bake Element Power (upper) | 2,400 W |
| Broil Element Power (upper) | 3,800 W |
| Convection Element Power (upper) | 2,000 W |
| Bake Element Power (lower) | 2,400 W |
| Broil Element Power (lower) | 3,800 W |
| Cleaning System | Self Clean (EcoClean 2-hour self clean) |
| Active Clean | Yes |
| Fast Preheat | Yes |
| Convection | Yes (Genuine European Convection in upper cavity) |
| Convection Fan Location | Upper cavity |

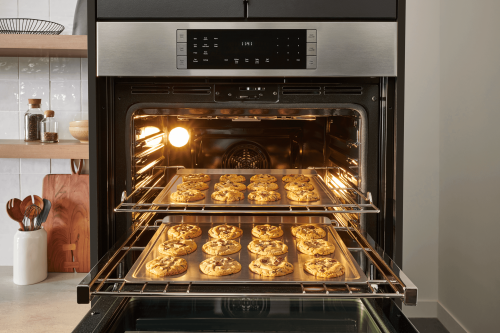

| Convection Multi-Rack | Yes (upper cavity) |
| Total Cooking Modes (upper / primary cavity) | 11–12 modes (depending on listing) |
| Total Cooking Modes (lower / secondary cavity) | 5 modes |

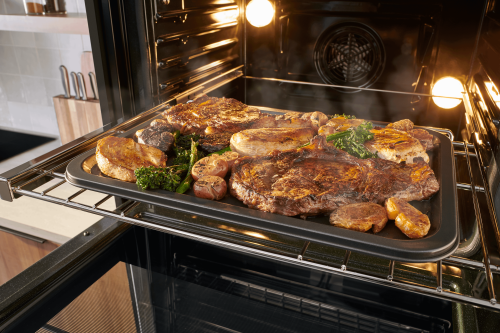

| Upper Cavity Cooking Modes | Bake, Variable Broil (Hi/Low), Roast, Warm, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Convection Multi-Rack, Genuine European Convection, Convection Conversion, Fast Preheat, Sabbath |
| Lower Cavity Cooking Modes | Bake, Variable Broil (Hi/Low), Roast, Warm, Sabbath |
| Temperature Range (approx.) | 100°F – 450°F (about 38°C – 288°C) |
| Number of Racks (total) | 5 |
| Upper Oven Racks | 3 |
| Lower Oven Racks | 2 |

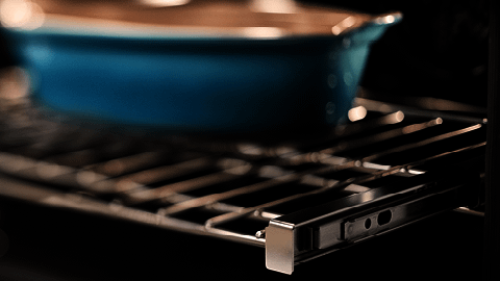

| Telescopic Rack | 1 full-extension telescopic rack (upper cavity) |

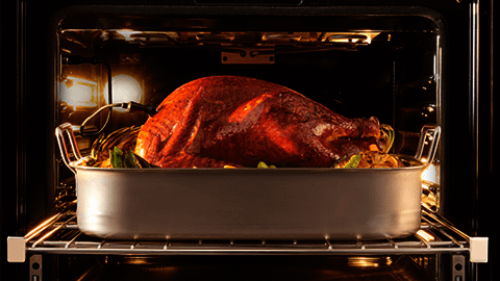

| Temperature Probe | Yes (upper cavity) |
| Interior Lights (upper) | 2 |
| Interior Lights (lower) | 1 |
| Viewing Window | Extra-large door windows |
| Timer | Programmable timer with cook time and delay start |
| Electronic Timer Type | Programmable, switch-off |
| Proofing | Yes (Proof Dough mode in upper oven) |

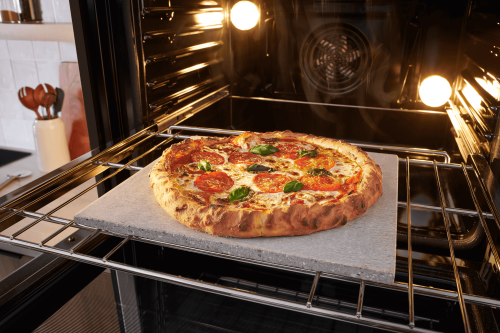

| Pizza Mode | Yes (upper oven, high-intensity heat) |
| Warm Function | Yes (both ovens) |
| Delay Bake | Yes |
| Temperature Conversion | Yes (convection conversion) |
| Sabbath Mode | Yes (Star-K certified) |
| Child Lock | Yes (childproof lock) |
| Door Lock | Electronic door lock |
| Safety Switch-Off Function | Yes |
| Home Connect / Wi-Fi | No (not Wi-Fi connected) |
| ADA Compliant | No |
| Energy Star Certified | No |
| Included Accessories | 1 x oven rack (upper), 1 x oven rack (lower), 1 x temperature probe (upper) |
| Category | Wall Oven – Electric Double |
| Nominal Width | 30 inches |
| UPC | 825225950158 |
