MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).














Manufacturer's Warranty: 1 year
Canadian model: HBL8743UC
Canadian UPC: 825225957171
EAN: 4242005137398







| Specification | Value |
|---|---|
| Model | HBL8743UC |
| Series | 800 Series |
| Type | 30" Electric Built-In Combination Wall Oven with Speed Oven (Microwave + Convection) |
| Fuel Type | Electric |
| Installation Type | Built-in / Wall Oven Combo |

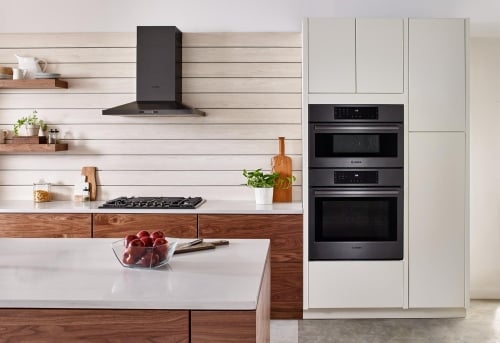

| Color / Finish | Black Stainless Steel |
| Door Panel Type | Glass with metal handle |
| Handle Type | Metal |
| Control Type | Electronic touch controls / numeric keypad |
| Display | Digital display with clock and temperature indication |

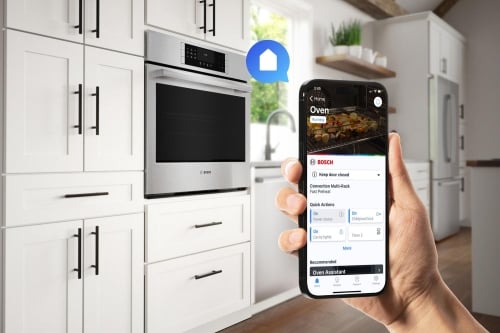

| Wi-Fi / Connectivity | Yes, Home Connect enabled (remote monitoring and control) |
| Smart Features | Remote monitoring, remote control, remote preheat, diagnostics, recipes, cooking tips |
| Sabbath Mode | Yes (Star-K certified) |
| Capacity | |
| Total Capacity | 6.2 Cu Ft |
| Lower Oven Capacity | 4.6 Cu Ft |
| Upper Speed Oven (Microwave/Convection) Capacity | 1.6 Cu Ft |
| Overall Product Dimensions | |
| Height | 49 inches |
| Width | 29 3/4 inches (29.75 inches) |
| Depth (US Bosch) | 23 1/2 inches |
| Depth (common retail listing) | 24 1/2 inches (24.5 inches) |
| Depth Without Handle | 24 1/2 inches |
| Depth With Handle | 26 5/8 inches |
| Approximate Net Weight | 259 lbs (about 117.5 kg) |
| Cutout Dimensions | |
| Cutout Height | 48 5/8 inches (approx. 48.63 inches) |
| Cutout Width | 28 1/2 inches (approx. 28.5 inches) |
| Cutout Depth | 24 1/2 inches (24.5 inches) |
| Electrical Requirements | |
| Voltage | 208–240 V |
| Frequency | 60 Hz |
| Amperage | 40 A |
| Connection Rating / Total Wattage | 9,600 W |
| Power Source | Hardwired (fixed connection, no plug) |
| Oven Configuration | |

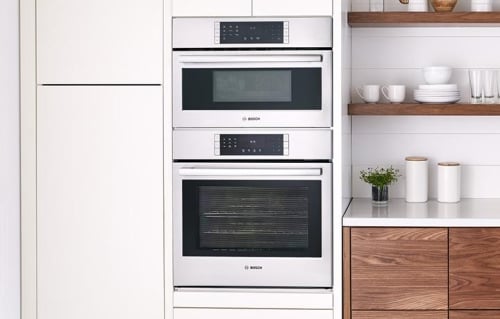

| Number of Ovens | 2 (upper speed oven + lower wall oven) |
| Combination With | Speed Oven (microwave + convection) |
| Cooking System | Convection (Genuine European Convection in lower oven) |
| Number of Heating & Combination Modes | 28 total |
| Door Opening | Drop-down door |
| Soft Close / QuietClose Door | Yes (dampened hinges) |

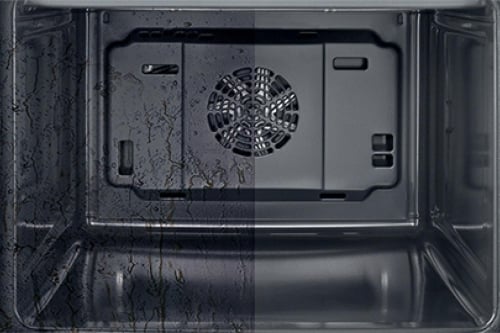

| Self-Cleaning | Yes, lower oven self-clean |
| Self-Clean Cycles | 2, 3, and 4 hour options (lower oven) |
| Interior Light | Yes (LED in upper, incandescent or halogen in lower) |
| Interior Oven Material | Porcelain |
| Heating Elements (Lower Oven) | |
| Bake Element Power | 2,400 W |
| Broil Element Power | 3,800 W |
| Convection Element Power | 2,000 W (where listed) |
| Microwave / Speed Oven (Upper Cavity) | |
| Microwave Cooking Wattage | Approx. 1,000 W (900–1,099 W range listed) |
| Microwave Features | One-touch settings, defrost, sensor cook |
| SpeedChef Programs | 9 SpeedChef programs |
| Auto Programs | 12 auto programs (e.g., Defrost, Melt Butter, Soften Ice Cream, Pizza) |
| Sensor Programs | 9 sensor programs |
| Use as Microwave Only | Yes, with 10 power levels |
| Cooking Modes – Lower Oven | |
| Standard Bake | Yes |
| Variable Broil | Yes (High & Low) |
| Roast | Yes |
| Warm / Keep Warm | Yes |
| Sabbath Mode | Yes |
| Dough Proofing | Yes |
| Convection Bake | Yes |
| Convection Broil | Yes |
| Convection Roast | Yes |

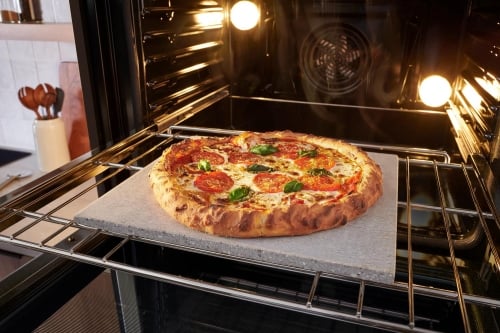

| Pizza | Yes |

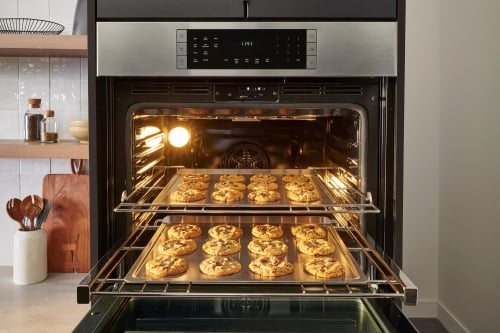

| True Convection / Convection Multi-Rack | Yes (Genuine European Convection) |
| Convection Conversion | Yes |
| Fast Preheat | Yes |
| Cooking Modes – Upper Speed Oven | |
| Microwave Only | Yes (10 power levels) |
| Convection Cooking | Yes |
| SpeedChef Programs | 9 SpeedChef programs |
| Auto Programs | 12 auto programs (including Defrost, Melt Butter, Soften Ice Cream, Pizza) |
| Sensor Cooking | Yes (9 sensor programs) |
| Keep Warm | Yes (where listed) |
| Frozen Foods Settings | Yes (via programs) |
| Racks & Accessories | |

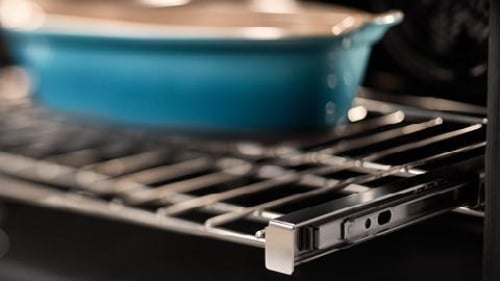

| Lower Oven Racks | 2 standard racks + 1 telescopic rack (3 total) |
| Upper Oven Turntable | Metal turntable |
| Upper Oven Rack | Square rack / grill |
| Cooking Tray | Ceramic cooking / baking tray (upper) |

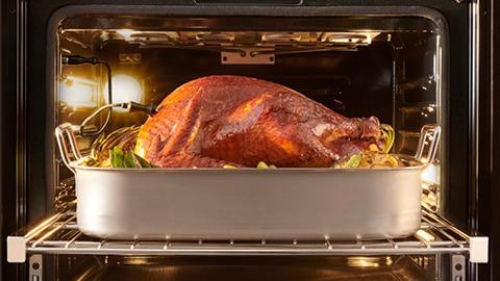

| Temperature Probe | Yes, for lower oven |
| Included Accessories (summary) | 2 standard lower racks, 1 telescopic lower rack, temperature probe (lower), metal turntable (upper), square rack (upper), ceramic tray (upper) |
| Convenience & Safety | |
| Timer | Yes |
| Cooking Complete Reminder | Yes (adjustable volume where listed) |
| Child Lock / Control Lockout | Yes |
| Keep Warm Setting | Yes |
| Interior Lighting | Yes (LED upper, incandescent/halogen lower) |
| ADA Compliant | No |
| Air Fry | No |
| Bluetooth Capable | No |
| Design & Installation | |
| Nominal Width | 30 inches |
| Width Class | 30" |
| Installation Style | Flush or proud installation possible |
| Wall Oven Type | Wall oven / microwave combo |
| Certifications & Warranty | |
| Star-K Certified | Yes (for Sabbath mode) |
| Manufacturer Warranty | 1-year limited warranty on entire appliance, parts and labor |
| Identification | |
| Material Number | HBL8743UC |
| UPC | 825225957171 |
