800 Series 30" 5 Burner Gas Cooktop, NGM8046UC, Black with Black Stainless Knobs
Bosch gas cooktops are engineered to perform precisely, offering high heat and low simmer options for optimal cooking flexibility.
- Performance
- Five Burner 30 Inch Cooktop--Same Versatility of 36 Inch Cooktop in Compact 30 Inch Format. For Kitchens Where Space is Limited
- Powerful 19,000 BTU Burner for Boiling, Searing and Stir-Frying
- STAR-K Sabbath compliant
- Convenience
- Sealed Burners Prevent Spills from Entering the Burner Box
- Push-to-Turn Knobs
- Porcelain enamel on cast iron grates
- Automatic Electronic Re-Ignition - In Case Flame Goes Out, the Burner is Automatically Re-Ignited
- Distinctive Single Red LED Light Indicates Burners Are On
- LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
- Design
- Seamless, one-piece black porcelain steel design
- Heavy-Duty Black Stainless Steel Finish Metal Knobs for a Premium Look and Feel
- Low-Profile Design for an Integrated Appearance
- Perfect Results are Within Reach With Up-Front Centralized Controls
- Cooktop Design Coordinates with Bosch Black Stainless Steel Ovens and Ventilation
Bosch gas cooktops are engineered to perform precisely, offering high heat and low simmer options for optimal cooking flexibility.
Manufacturer's Warranty: 1 year
Canadian model: NGM8046UC
Canadian UPC: 825225949008
EAN: 0825225949008

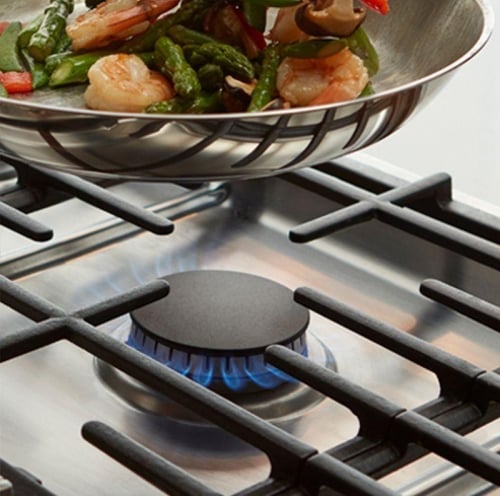

Better flame control with the OptiSim
The OptiSim® burner cap design is wider and thicker, offering more flame control at the lowest settings so you can simmer delicate sauces and melt chocolate without scorching.

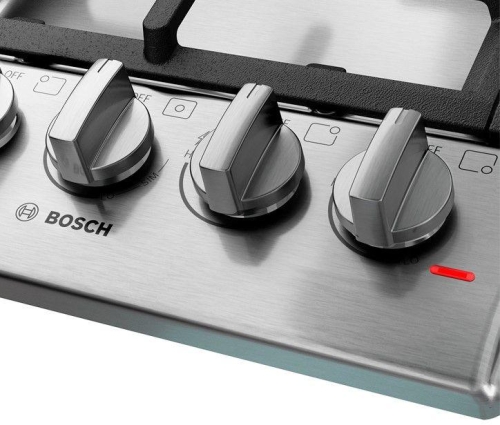

Continuous cast iron grate design
The full width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
| Technical Specifications | |
| General | |
| Cooktop type | Gas cooktop |
| Self-sufficient cooker control | Self-sufficient gas hobs |
| Width | 76 cm |
| Total number of cooktop burners | 5 |
| Basic surface material | Porcelain, steel |
| Color | Black |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
| Construction type | |
| Color of frame | Black |
| Color of surface | Black |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 31'' x 21 1/4'' |
| Net weight | 41.000 lbs |
| Minimum distance from counter front (in) | 1 7/8'' |
| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual heat indicator | without |
| Type of safety device for gas | Without |
| Connection | |
| Gas connection rating | 10 W |
| Location of gas connection | bottom, rear, right |
| Frequency | 60 Hz |
| Energy source | Gas |
| Power Cord Length | 60'' |
| Watts | 360 W |
| Accessories | |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
Performance
- Powerful 19,000 BTU Burner for Boiling, Searing and Stir-Frying
- Five Burner 30" Cooktop--Same Versatility of 36" Cooktop in Compact 30" Format. For Kitchens Where Space is Limited
- STAR-K Sabbath compliant
Convenience
- Sealed Burners Prevent Spills from Entering the Burner Box
- Push-to-Turn Knobs
- Automatic Electronic Re-Ignition - In Case Flame Goes Out, the Burner is Automatically Re-Ignited
- Distinctive Single Red LED Light Indicates Burners Are On
- LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
Design
- Heavy-Duty Black Stainless Steel Finish Metal Knobs for a Premium Look and Feel
- Low-Profile Design for an Integrated Appearance
- Perfect Results are Within Reach With Up-Front Centralized Controls
- Cooktop Design Coordinates with Bosch Black Stainless Steel Ovens and Ventilation
Technical Specifications
General
| Energy source | Gas |
|---|---|
| Type of control | sword knobs |
| Safety device | automatic reignition |
Connectivity
| Home Connect |
|---|
Construction type
| Color of frame | Black |
|---|---|
| Color of surface | Black |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
Size and weight
| Overall appliance dimensions (HxWxD) (mm) | 97 x 788 x 540 mm |
|---|---|
| Net weight (kg) | 18.471 kg |
Cooking zone 1
| Location of 1st heating element | front left |
|---|---|
| Type of heating element | Gas |
Cooking zone 2
| Location of 2nd heating element | center left |
|---|
Cooking zone 3
| Location of 3rd heating element | back left |
|---|---|
| Type of 3rd heating element | Gas |
Cooking zone 4
| Location of 4th heating element | middle back |
|---|
Cooking zone 5
| Location of 5th heating element | back right |
|---|---|
| Type of 5th heating element | Gas |
Cooking zone 6
| Location of 6th heating element | center right |
|---|
Cooking zone 7
| Location of 7th heating element | front right |
|---|---|
| Type of 7th heating element | Gas |
Cooking zone 8
| Location of 8th heating element | front middle / central |
|---|
Cooking zone 9
| Location of 9th heating element | front centre/cent |
|---|
Safety
| Type of safety device for gas | Without |
|---|---|
| Power on indicator | |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Main on/off switch |
Connection
| Power cord length (cm) | 152 cm |
|---|---|
| Watts (W) | 360 W |
| Energy source | Gas |
| Frequency (Hz) | 60 Hz |
| Location of gas connection | bottom, rear, right |
| Gas connection rating (W) | 10 W |
