Technical Overview Overall Appliance Dimensions (HxWxD) (in) 3 13/16" x 37" x 21 1/4" Required Cutout Size (HxWxD) (in) 3 13/16" x 34 15/16" x 19 1/8"
- 19,000 BTU Burner: - for boiling, searing, and stir-frying.
- OptiSim® Burner: - the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
- Electronic Re-Ignition: - automatically re-ignites the burner in case the flame goes out.
- Continuous Cast Iron Grates: - makes it easy to slide pots & pans from burner to burner.
Manufacturer's Warranty: 1 year
Canadian model: NGM8646UC
Canadian UPC: 825225949015
EAN: 0825225949015
Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Automatic re-ignition
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.

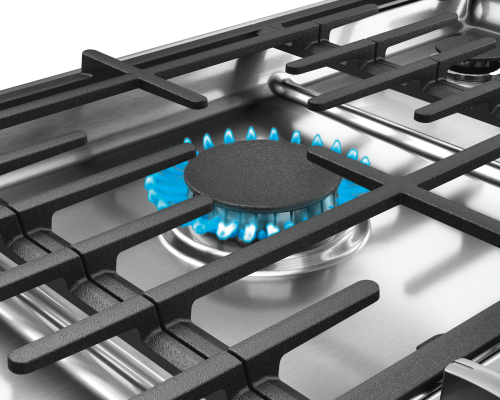

Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.

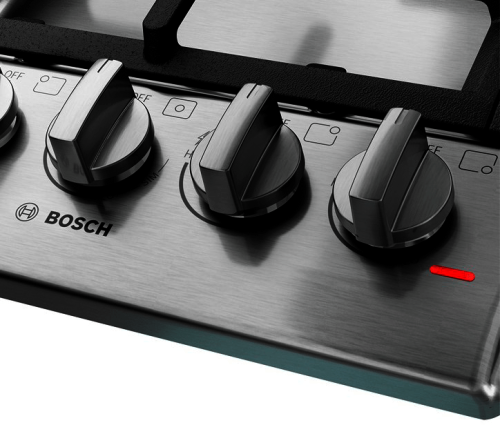

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.
| Specifications | |
| General | |
| Total NG BTUs | 52400 |
| Total LP BTUs | 47300 |
| ExtraLow® Burners | No |
| Installation | |
| Overall Appliance Dimensions (HxWxD) (in) | 3 13/16'' x 37'' x 21 1/4'' |
| Required Cutout Size (HxWxD) (in) | 3 13/16'' x 34 15/16'' x 19 1/8'' |
| Gas type | Natural gas 15 mbar (USA) |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug Type | 120V-3 prong |
| Power Cord Length | 60'' |
| Fuse protection | 15 |
| Volts | 120 |
| Product Packaging Dimensions (HxWxD) | 8 3/8'' x 43 1/8'' x 24 3/4'' |
| Design | |
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
| Comfort and Convenience | |
| Number of Gas Burners | 5 |
| Pedestal Star® Burners | No |
| Sealed Burners | Yes |
| ExtraLow® Burners | No |
| Special Features | Reignition, Simmer Cap |
| Griddle | No |
| ADA Compliant (When Installed to ADA requirements) | No |
| Connectivity | |
| Home Connect™ | No |
| Safety | |
| Safety | Electronic flame failure safety device |
| Accessories | |
| Included Accessories | 1 x nozzle set for liquid gas, 3 x cast iron pan support |
Performance
- Powerful 19,000 BTU Burner for Boiling, Searing and Stir-Frying
- STAR-K Sabbath compliant
Convenience
- Sealed Burners Prevent Spills from Entering the Burner Box
- Push-to-Turn Knobs
- Automatic Electronic Re-Ignition - In Case Flame Goes Out, the Burner is Automatically Re-Ignited
- Distinctive Single Red LED Light Indicates Burners Are On
- LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
Design
- Heavy-Duty Black Stainless Steel Finish Metal Knobs for a Premium Look and Feel
- Low-Profile Design for an Integrated Appearance
- Perfect Results are Within Reach With Up-Front Centralized Controls
- Cooktop Design Coordinates with Bosch Black Stainless Steel Ovens and Ventilation
Technical Specifications
General
| Energy source | Gas |
|---|---|
| Type of control | sword knobs |
| Safety device | automatic reignition |
Connectivity
| Home Connect |
|---|
Construction type
| Color of frame | Black, Stainless steel |
|---|---|
| Color of surface | Black, Stainless steel |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
Size and weight
| Overall appliance dimensions (HxWxD) (mm) | 97 x 940 x 540 mm |
|---|---|
| Net weight (kg) | 20.933 kg |
Cooking zone 1
| Location of 1st heating element | front left |
|---|---|
| Type of heating element | Gas |
Cooking zone 2
| Location of 2nd heating element | center left |
|---|
Cooking zone 3
| Location of 3rd heating element | back left |
|---|---|
| Type of 3rd heating element | Gas |
Cooking zone 4
| Location of 4th heating element | middle back |
|---|
Cooking zone 5
| Location of 5th heating element | back right |
|---|---|
| Type of 5th heating element | Gas |
Cooking zone 6
| Location of 6th heating element | center right |
|---|
Cooking zone 7
| Location of 7th heating element | front right |
|---|---|
| Type of 7th heating element | Gas |
Cooking zone 8
| Location of 8th heating element | front middle / central |
|---|
Cooking zone 9
| Location of 9th heating element | front centre/cent |
|---|
Safety
| Type of safety device for gas | Without |
|---|---|
| Power on indicator | |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Main on/off switch |
Connection
| Power cord length (cm) | 152 cm |
|---|---|
| Watts (W) | 360 W |
| Energy source | Gas |
| Frequency (Hz) | 60 Hz |
| Location of gas connection | bottom, rear, right |
| Gas connection rating (W) | 15,360 W |
Accessories
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
|---|
