Bosch SHE863WF6N
Discontinued
ENERGY STAR®
>> View & Compare Bosch Dishwasher Line Up << >> View & Compare Bosch Dishwasher Line Up <<
Bosch Dishwashers 2024 Bosch Dishwashers 2024
AW4SS5
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Ratings & Reviews
SMZPCJB1UC
SMZPCJB1UC
Product Accessories
$33
AW4SS5
When will I get this?

Description & Features

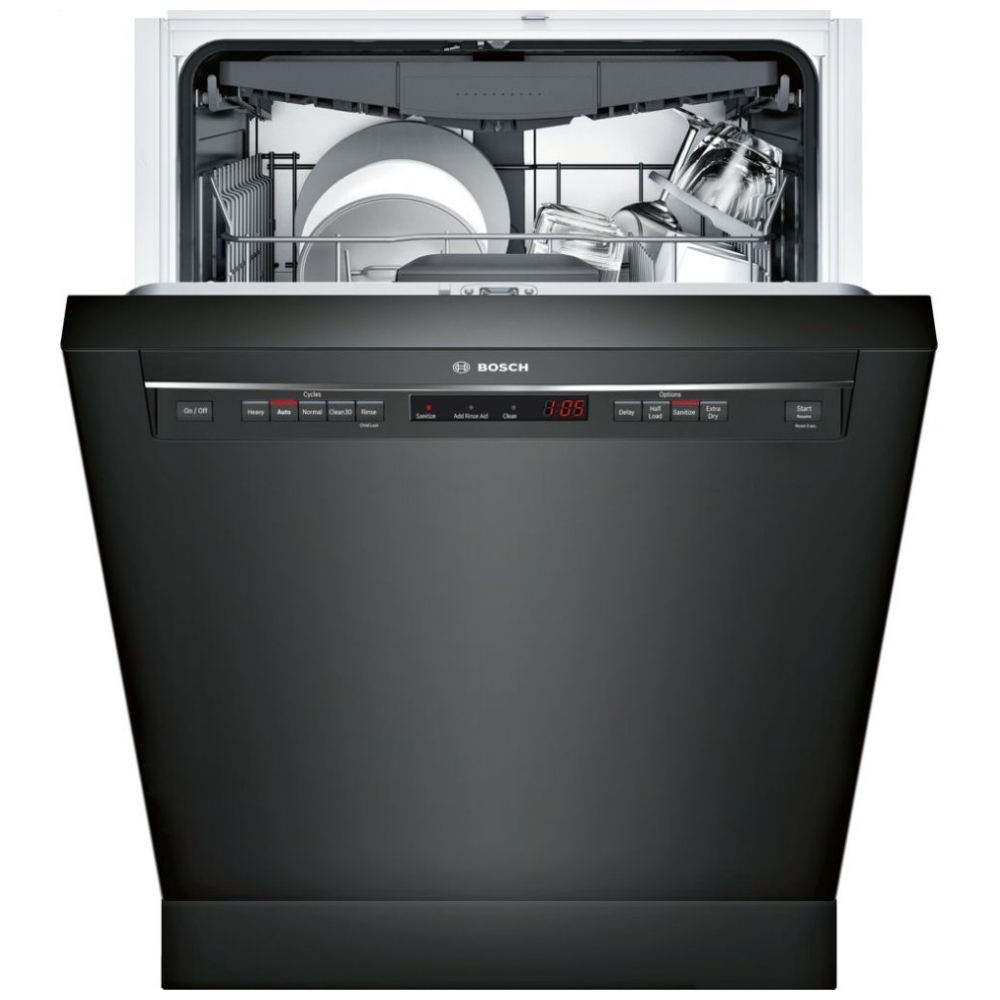

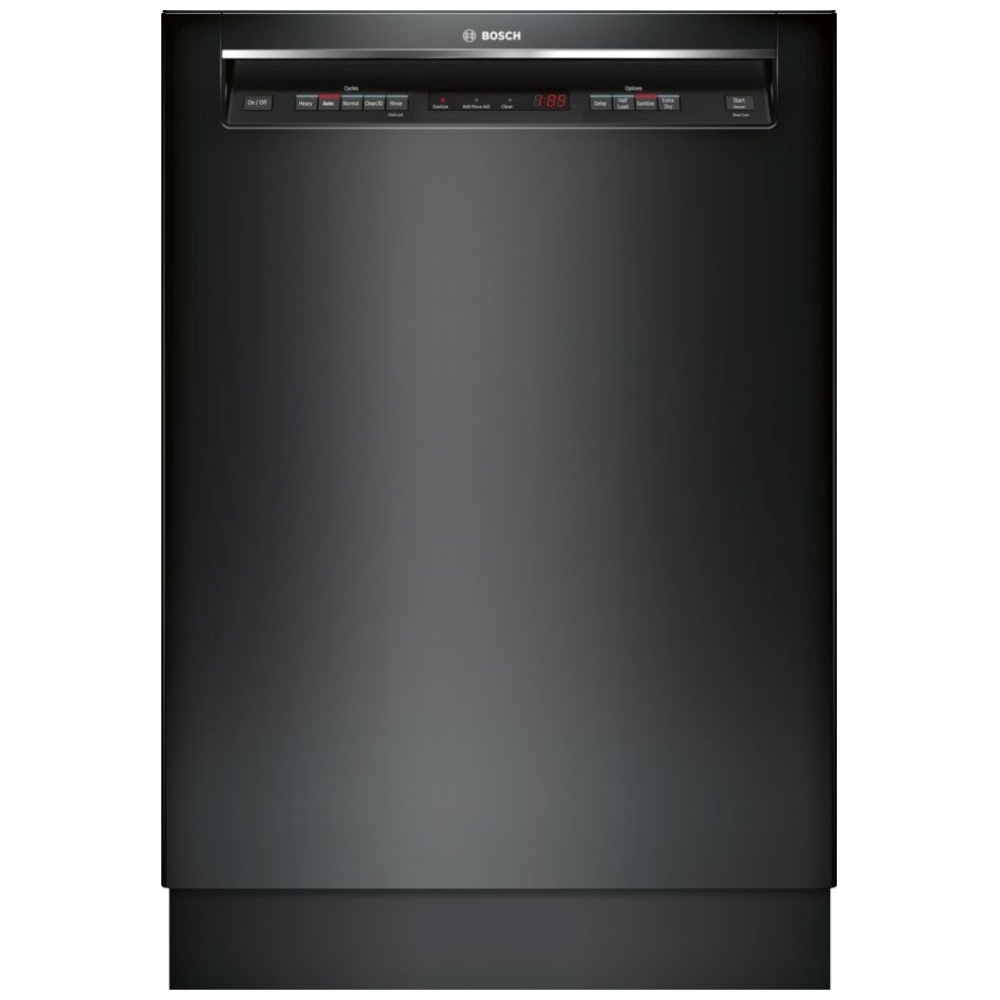

300 Series 24" Recessed Handle Dishwasher 300 Series- Black SHE863WF6N

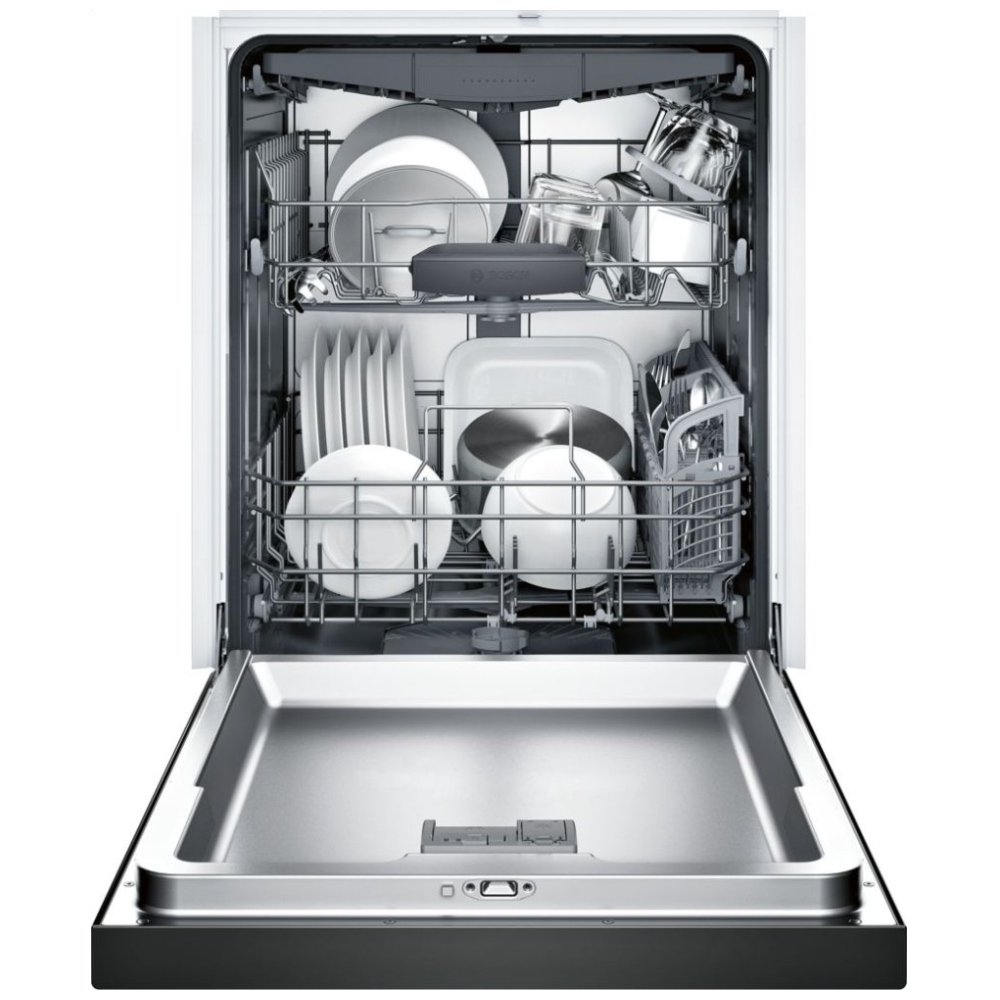

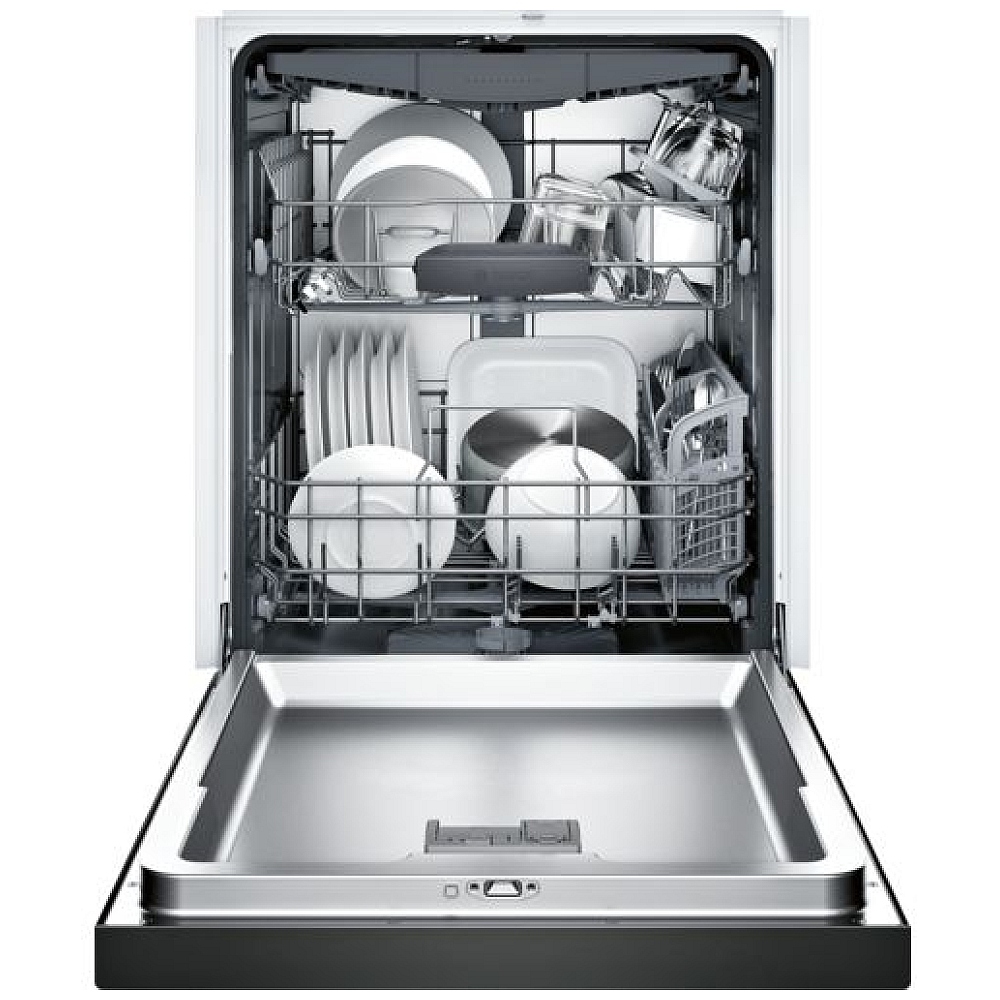

The 3rd rack provides the perfect space for silverware and large utensils while its V shape leaves room below for taller items.


The 3rd rack provides the perfect space for silverware and large utensils while its V shape leaves room below for taller items.

  • Key Features
  • 44 dBA- Quietest Dishwasher Brand.
  • 3rd Rack for Additional Loading Capacity
  • InfoLight® Beams on Floor to Indicate Dishwasher is Running
  • RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
  • AquaStop® Leak Protection Works 24/7
  • Design
  • Full Size Stainless Steel Tall Tub Installs Perfectly Flush
  • 3rd Rack for Additional Loading Capacity
  • 16 Place Setting Capacity
  • LED Remaining Time Display
  • RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
  • Flexible Silverware Basket Can be Split into Two Pieces and Placed Anywhere for Added Flexibility
  • Performance
  • 44 dBA- Quietest Dishwasher Brand.
  • 5 Wash Cycles and 4 Options
  • Detergent Tray Optimizes Detergent Dissolving
  • Extra Dry Option for Better Drying Results
  • Load Size Sensor Automates Wash Temperature
  • Sanitize Option Eliminates Bacteria and Enhances Drying Results
  • Efficiency
  • 269 kwh/yr - Energy Star®
  • Convenience
  • 24 h Delay Start Timer
  • AquaStop® Leak Protection Works 24/7
  • Self-Latching Door

Easy pre-select programme start for the desired start time.

With the time delay function you can pre-select the programme for the desired start time. This allows you to handle your appliance conveniently, at any time during the day, during work hours or at night. After the start of the programme a display indicates the precise remaining time.

LoadSensor automatically saves water and energy for fewer dishes.



The load weight is detected by a rotary speed sensor which recognizes the water level. For bigger loads, more water is needed to soak the dishes and the water level decreases. In that case more water is added. For smaller loads, less water is needed for rinsing. The load sensor provides for optimal water usage even for half loads or partial loads, saving water and electricity.



SuperSilence: exceptionally quiet operation at only 40-45 dB.

The electronically operated engine and many noise reduction measures, secure the exceptionally quiet operation of our SuperSilence dishwashers. Advantageous for eat-in kitchen or open areas.

Our quality guarantee: 10-year rust through warranty against interior rusting.

We have developed special surface treatments and production processes that are precisely tailored to the materials used in the interior of our dishwashers. As a result, a 10-year guarantee against rust through of the inner cavity, from the inside out, on all our dishwashers can be offered. This guarantee can be activated for all dishwashers purchased from 01.01.2012 onwards.





Manufacturer's Warranty: 1 year

Canadian model: SHE863WF6N

Canadian UPC: 825225924975

EAN: 0825225924975

Specs
Technical Specifications
General
Installation Type Built-under
Number of place settings 16
List of programmes Auto, Normal, Pots & Pans, Quick, Rinse
Cycle Options Extra dry, half load, Sanitation
Display
Silence level (dBA) 44
Third Rack Standard Third Rack
Interior Light
Removable top
Power Cord Length 55 1/8''
Connectivity
Home Connect
Connectivity type Not applicable
Size and weight
Overall appliance dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 23 3/4''
Adjustable plinth
Net weight (lbs) 93 lbs
Programmes
Status indicator sanitized LED US, Time remaining indicator front
List of programmes Auto, Normal, Pots & Pans, Quick, Rinse
Program 1 Pots & Pans
Program 2 Auto
Program 3 Normal
Program 4 Quick
Program 5 Rinse
Programme duration, programme1 (min.) 110-135
Programme duration, programme2 (min.) 105-129
Programme duration, programme3 (min.) 130-135
Programme duration, programme4 (min.) 30
Programme duration, programme5 (min.) 9
Reference programme Regular US
Temperature program 1 150-160 °F
Temperature program 2 127-150 °F
Temperature program 3 113-131 °F
Temperature program 4 113 °F
Safety
Glass protection
Surge-back protect. installed
Leak protection system Aqua Stop
Consumption values
Glass protection
Water consumption program 1 4.9-6.4 gal
Water consumption program 2 3.5-6.5 gal
Water consumption program 3 2.4-5.5 gal
Water consumption program 4 2.8 gal
Water consumption program 5 1.1 gal
Total annual water consumption (g) 624 gallons
Maximum temperature for water intake (°C) 60 °C
Connection
Watts (W) 1,300 W
Power Cord Length 55 1/8''
Current (A) 12 A
Plug type fixed connection
Construction type
Color / Material housing Lacquered
Color / Control Panel Black
Construction type Built-in
Panel ready Not possible
Drying system Inherent heat
Concealed heating element
Installation Type Built-under
Tub material Stainless steel
Water Softener

Key Features
  • 44 dB - Quietest Dishwasher Brand.
  • 3rd Rack for Additional Loading Capacity
  • InfoLight® Beams on Floor to Indicate Dishwasher is Running
  • RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
  • AquaStop® Leak Protection Works 24/7
Design
  • Full Size Stainless Steel Tall Tub Installs Perfectly Flush
  • 3rd Rack for Additional Loading Capacity
  • 16 Place Setting Capacity
  • LED Remaining Time Display
  • RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
  • Flexible Silverware Basket Can be Split into Two Pieces and Placed Anywhere for Added Flexibility
Performance
  • 44 dB - Quietest Dishwasher Brand.
  • 5 Wash Cycles and 4 Options
  • Detergent Tray Optimizes Detergent Dissolving
  • Speed60® gets your dishes from dirty to dry in about an hour.
  • Extra Dry Option for Better Drying Results
  • Load Size Sensor Automates Wash Temperature
  • Sanitize Option Eliminates Bacteria and Enhances Drying Results
Efficiency
  • 269 kwh/yr - Energy Star®
Convenience
  • Electronic delay timer: 1-24 hours Delay Start Timer
  • AquaStop® Leak Protection Works 24/7
  • Self-Latching Door
Technical Specifications
General
Width of the product (mm) 598 mm
Height of the product (mm) 860 mm
Installation Type Built-under
Number of place settings 16
List of programmes Auto, Power Scrub Plus, Quick Wash, Regular, Rinse & Hold
Cycle Options Extra dry, half load, Sanitation
Display
Silence level (dBA) 44
3rd Rack 3rd Rack 1.0
Interior light
Removable top
Power cord length (cm) 140 cm
Length outlet hose (cm) 200 cm
Connectivity
Home Connect
Construction type
Color / Material housing Lacquered
Color / Control Panel Black
Construction type Built-in
Panel ready Not possible
Drying system Inherent heat
Height of the product (mm) 860 mm
Concealed heating element
Installation Type Built-under
Removable top
Tub material Stainless steel
Water softener
Width of the product (mm) 598 mm
Size and weight
Height of removable worktop (mm) 0 mm
Number of Options 4
Adjustable plinth
Net weight (kg) 35.789 kg
Programmes
List of programmes Auto, Power Scrub Plus, Quick Wash, Regular, Rinse & Hold
Program 1 Power Scrub Plus
Program 2 Auto
Program 3 Regular
Program 4 Quick Wash
Program 5 Rinse & Hold
Programme duration, programme1 (min.) 110-135
Programme duration, programme2 (min.) 105-129
Programme duration, programme3 (min.) 130-135
Programme duration, programme4 (min.) 30
Programme duration, programme5 (min.) 9
Reference programme Regular US
Temperature, programme 1 (°C) 66-71
Temperature, programme 2 (°C) 53-66
Temperature, programme 3 (°C) 45-55
Temperature, programme 4 (°C) 45
Safety
Glass protection
Surge-back protect. installed
Leak protection system Total system
Consumption values
Glass protection
Water consumption, programme 1 (l) 18.6-24.2
Water consumption, programme 2 (l) 13.1-24.5
Water consumption, programme 3 (l) 8.8-20.8
Water consumption, programme 4 (l) 10.5
Water consumption, programme 5 (l) 4.1
Maximum temperature for water intake (°C) 60 °C
Connection
Watts (W) 1,300 W
Power cord length (cm) 140 cm
Current (A) 12 A
Length outlet hose (cm) 200 cm
Plug type fixed connection
