Broan

BU230SF

• PrintGuard™ technology – fingerprint‑resistant stainless finish that helps the hood stay looking clean and matches other stainless‑steel appliances.
• HVI 2100 certified 230 CFM MAX blower – independently tested performance to effectively capture smoke, steam and cooking odors.
• UL/cULus listed construction – safety‑tested design for reliable operation in residential kitchens.
• Broan® BU2 Series design – trusted brand and series known for dependable, affordable under‑cabinet ventilation.

• Under‑cabinet range hood – installs neatly beneath a standard 30" cabinet to save space and provide focused cooktop ventilation.
• 30" width – sized to fit most 30" cooktops and ranges for broad coverage of front and back burners.
• 230 CFM MAX airflow – helps quickly clear smoke, grease and odors from everyday frying, boiling and sautéing.
• 3.5 sones sound level (normal speed) – operates at a noise level comparable to normal conversation for more comfortable cooking.
• Four‑way convertible venting – supports horizontal, vertical, 7" round and non‑ducted configurations for flexible installation.
• Convertible ducted / non‑ducted operation – can be vented outdoors or used in recirculating mode with an optional charcoal filter.
• Non‑duct capable with charcoal filter (41F) – optional filter allows recirculation when exterior venting isn’t possible.

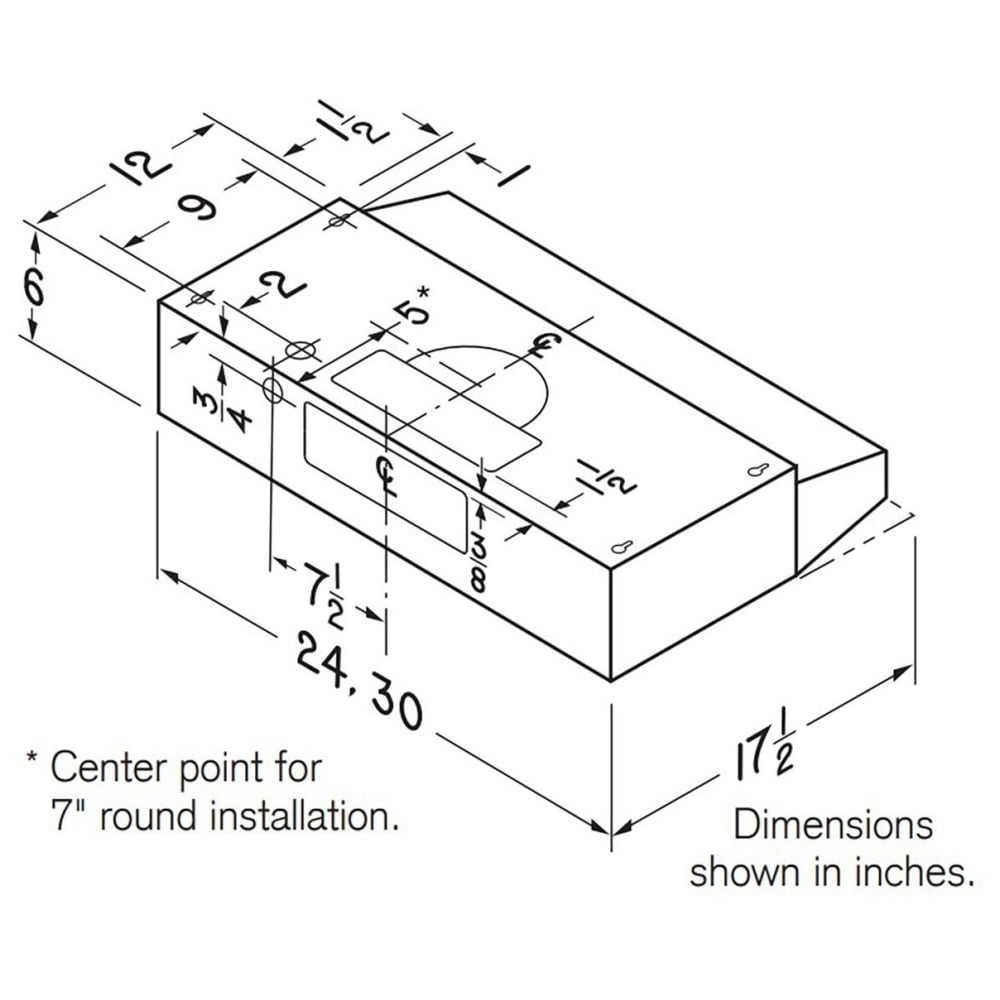

• 3¼" x 10" duct connection (H/V) – standard rectangular duct size for straightforward hookup to existing ductwork.
• Horizontal or vertical discharge – lets installers choose the most convenient direction to route the exhaust.

• 2‑speed rocker fan control – simple switches let you choose between low and high ventilation levels.
• Dedicated rocker light switch – separate control for the light so you can use illumination without running the fan.
• Designed for LED bulb, 75 W max – accommodates an energy‑efficient A19‑base bulb (not included) for bright cooktop lighting.
• Single light level – straightforward on/off lighting for clear visibility while cooking.

• Stainless finish exterior – modern look that coordinates with stainless appliances and resists discoloration.
• Scratch‑resistant surface – durable finish helps minimize visible wear and tear over time.
• Easy‑to‑wipe surfaces – smooth stainless finish inside and out simplifies cleanup of grease and splatters.

• Aluminum mesh grease filter – captures airborne grease and particulates to help keep cabinets and walls cleaner.
• Removable, washable filter – filter can be taken out and cleaned to maintain airflow and performance.

• Hardwire installation ready – can be directly wired into household electrical for a clean, built‑in look.
• Optional power cord kit (HCK44) – allows plug‑in installation when hardwiring is not desired.
• 120 V, 60 Hz, 2.5 A electrical rating – standard North American household power requirements.

• Minimum 18" above cooktop clearance – meets recommended installation height for effective capture and safety.
• Compact 6" height – low‑profile body fits under shallow cabinets and in tighter spaces.
• 17.5" depth – provides good coverage over front burners without protruding excessively into the kitchen.

• Proudly manufactured in the USA – built by a leading indoor air quality brand using foreign and domestic components.
• One‑year limited warranty – manufacturer coverage against defects for added purchase confidence.
• Ideal replacement for older BU230SS/NU230SS models – compatible sizing and venting make upgrades easier.
