Broan

EW4630SS

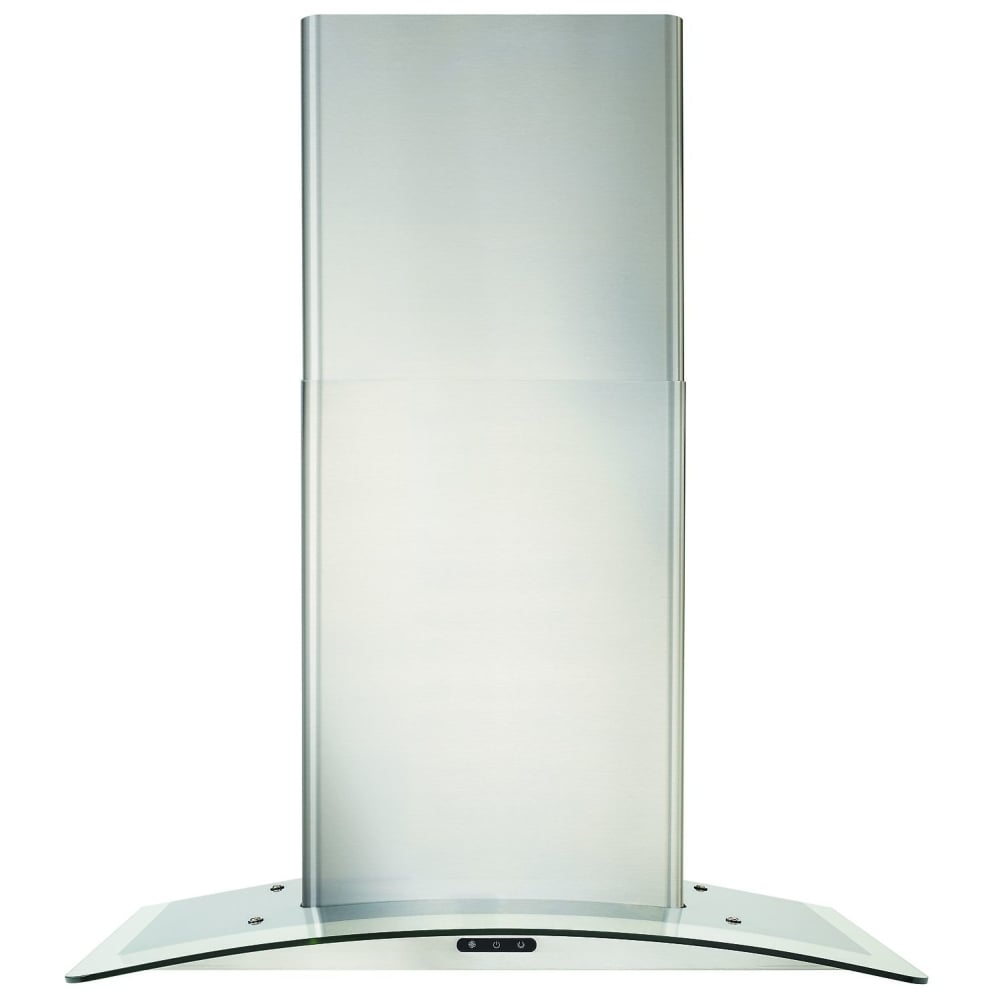

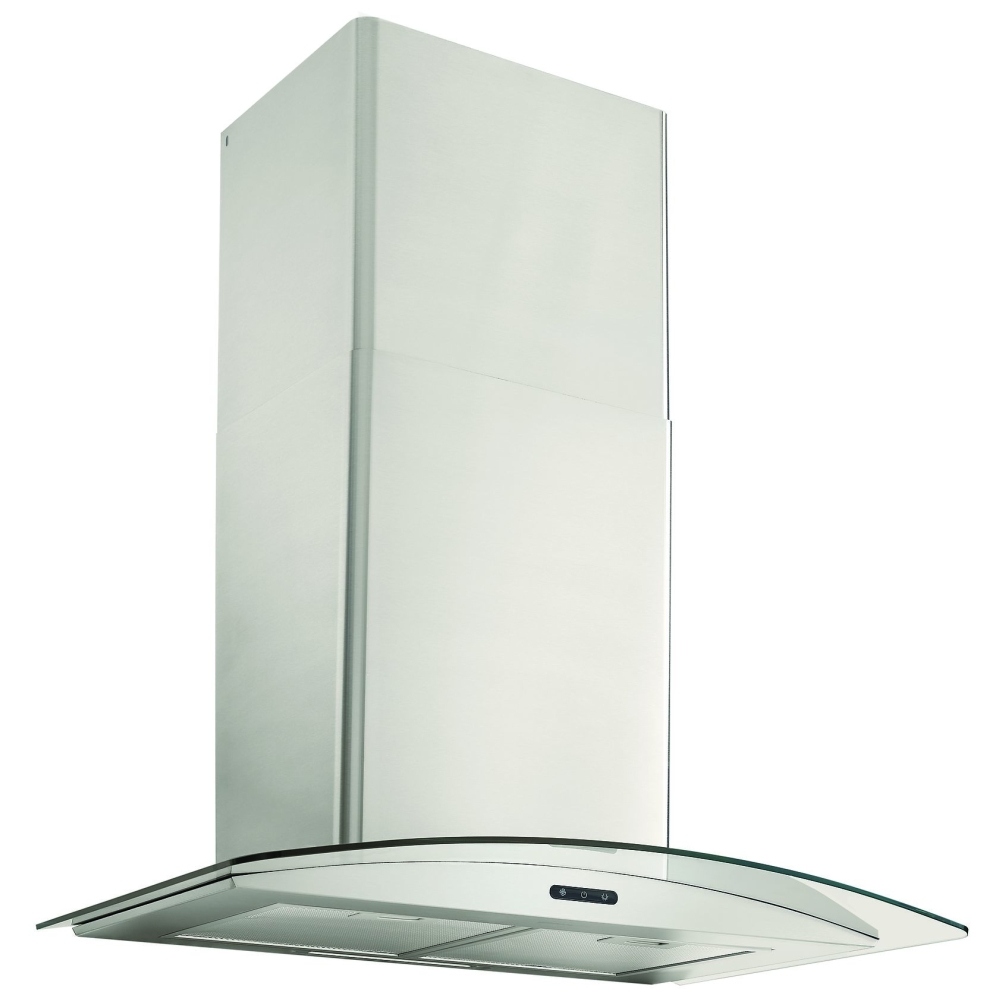

• Broan® Elite EW46 Series design – premium Broan Elite curved-glass chimney style creates a striking focal point and coordinates with modern stainless steel appliances.

• Quiet 460 Max Blower CFM – powerful ventilation up to 460 CFM quickly clears smoke, steam and odors from the cooking area.

• Best‑in‑class low noise performance – operates at only 1.5 sones at normal speed for quiet everyday cooking comfort.

• Three‑speed blower control – 3 distinct fan speeds let you match ventilation power to light simmering, regular cooking or high‑heat searing.

• Tap‑touch capacitive controls – smooth, flat touch panel is easy to operate and wipes clean without knobs or crevices.

• Bright 2‑level LED lighting – integrated LED module offers two brightness levels for clear visibility of the cooktop.

• Energy‑efficient LED module – long‑life 7W LED lighting reduces bulb replacements and energy use compared with halogen lights.

• Wide, even cooktop illumination – centrally positioned LED module spreads light across front and back burners for safer cooking.

• Convertible ducted or ductless installation – can be vented outdoors or used in recirculating mode with an optional non‑duct kit to suit different kitchen layouts.

• Optional non‑duct recirculation kit – compatible with kit ARKEW46 (sold separately) to filter and return air indoors when exterior venting isn’t possible.

• CRT airflow reduction capability – built‑in CRT function allows airflow to be reduced to 300 CFM to help meet local building codes when required.

• 10‑minute delay‑off function – keeps the fan running briefly after cooking to remove lingering smoke and odors, then shuts off automatically.

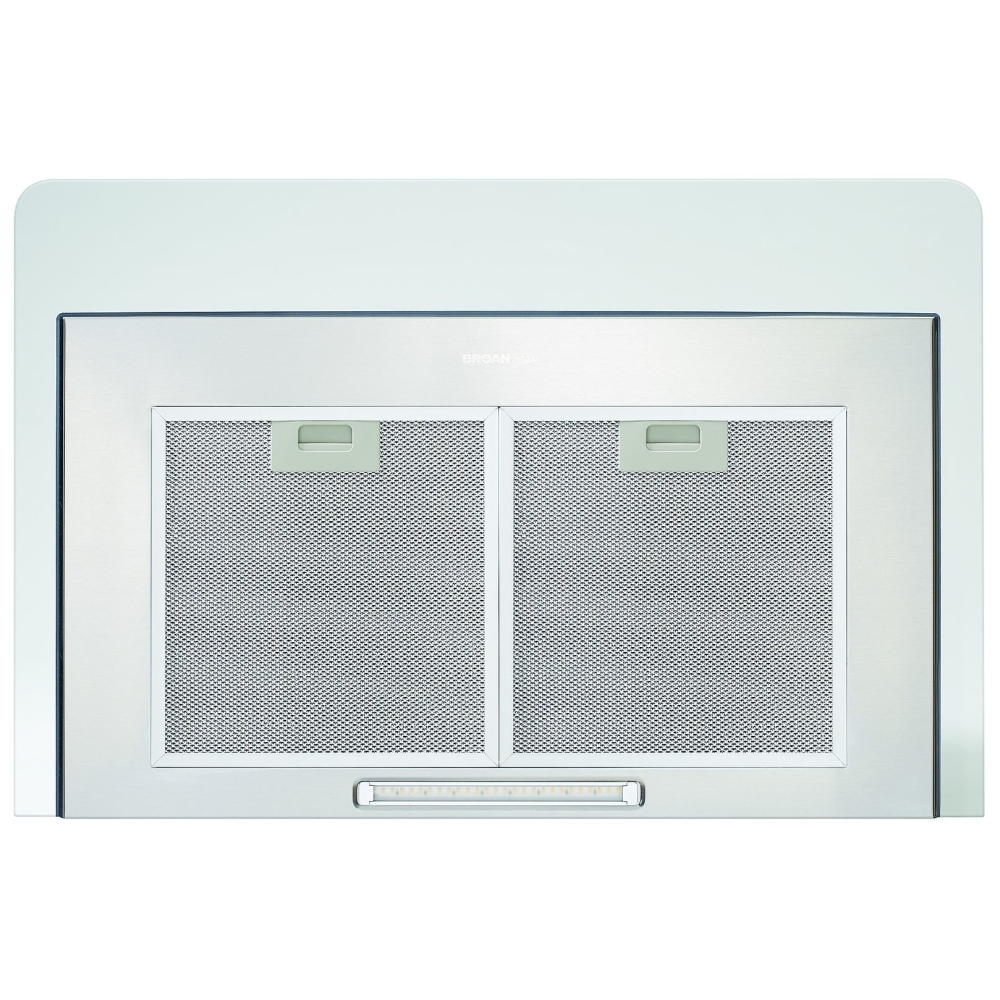

• Dishwasher‑safe deluxe filters – high‑efficiency aluminum or micro‑mesh filters capture grease and can be cleaned easily in the dishwasher.

• Quick‑release filter latches – tool‑free latches allow fast removal and reinstallation of filters for routine cleaning.

• High‑efficiency micro‑mesh filtration – fine mesh design improves grease capture to help keep cabinets and kitchen air cleaner.

• Curved glass canopy – tempered glass canopy helps capture rising smoke while maintaining an open, airy look over the range.

• Stainless steel chimney and body – durable stainless construction resists corrosion and staining for long‑term use and easy cleaning.

• Telescopic flue extension – adjustable chimney accommodates standard 8'–9' ceiling heights for flexible installation.

• Optional flue extension for tall ceilings – additional extension (model AEEW46SS, sold separately) allows installation in kitchens with 9'–10' ceilings.

• 30‑inch width coverage – designed to fit and properly cover standard 30" cooktops and ranges.

• Vertical 6" round duct connection – standard 6‑inch round vertical outlet simplifies ductwork planning and installation.

• Integrated backdraft damper – helps prevent outside air from coming back into the kitchen through the duct.

• HVI certified performance – airflow and sound ratings are independently verified so you can trust the published CFM and sone levels.

• UL listed safety certification – tested to meet recognized safety standards for household electrical appliances.

• Quiet operation at low speed – low fan setting provides effective everyday ventilation with minimal background noise.

• Three‑speed touch selection – simple icons make it easy to choose low, medium or high fan speed at a tap.

• Easy‑clean control surface – flat glass and stainless surfaces can be wiped down quickly after cooking.

• Improved indoor air quality – removes airborne grease, smoke and cooking fumes to help reduce odors and residue on surfaces.

• Helps protect cabinets and walls – effective capture of steam and grease reduces moisture and buildup on surrounding finishes.

• Modern, minimalist styling – slim chimney and curved glass complement contemporary, transitional and open‑concept kitchen designs.

• Space‑saving wall‑mount design – mounts to the wall above the range, freeing up overhead cabinet space compared with under‑cabinet hoods.

• 1‑year limited manufacturer’s warranty – provides coverage against defects in materials and workmanship for added purchase confidence.

• Standard 120V power connection – plugs into typical household electrical supply for straightforward installation by a qualified installer.

• Designed for 24"–30" cooking surfaces – optimized capture area for most standard ranges and cooktops in this width class.

• Helps meet local ventilation codes – convertible airflow and CRT reduction feature support compliance with various regional requirements.
