Product Line	Front Load Washer
Power Type	Electric 120v
Installation Type	Free-Standing
Factory	Juarez
Color	White
Dispenser
Bleach Dispenser	Yes
Detergent Dispenser	Yes
Dispenser Drawer	Yes
Fabric Softener Dispenser	Yes
Prewash Detergent Dispenser	No
Installation
Optional Pedestal	Yes
Stackable	No
Washer Cycles
Cycle Count	5
Allergen	No
Casual	No
Clean Washer	Yes
Colors	No
Delicates	Yes
Fast Wash	No
Normal	Yes
Rinse and Spin	Yes
Whites	No
General Specifications
Chime On / Chime Off	Yes
Leveling Legs	Yes
Product Weight	223.25 lbs
Prop 65 Label	No
Sound Package	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Exterior
Door Latch	Yes
Reversible Door	No
Water Inlet Location	Left Top Rear
Washer
Balance System	Yes
Drum Light	No
Drum Material	Stainless Steel
Maximum Spin Speed	1,100 RPM
Water Heater	No
Water Level Adjustment	Yes
Washer Spin Speeds
Spin Speed Selections	3
Accessories
Drain Hose Extension Kit Available	No
Dryer Stacking Kit Included	No
Electrical Specifications
Connection Location	Left Center
Minimum Circuit Required	15 Amps
Voltage Rating	120 V
Dimensions and Volume
Height	38"
Height With Pedestal	53"
Width	27"
Depth	32"
Depth (to Arc Exclude Hose)	31 1/2"
Depth With Door 90° Open	53 1/2"
Washer Drum Capacity	4.3 Cu. Ft.
Temperature Settings
Auto Temperature Control	Yes
Cold	Yes
Warm	Yes
Hot	Yes
Sanitize	No
Washer Options
Extended Spin	No
Freshwater Rinse	No
Prewash	No
Steam	No
Safety Certifications and Approvals
UL Listed	Yes
ETL Listed	Yes
NSF Certified	No
Performance Certifications and Approvals
ANSI Certified	No
CEE Tier	Tier 1
ENERGY STAR Certified	Yes
ENERGY STAR Most Efficient	Yes
Controls
Child Lock	Yes
Delay Start	Yes
Delay Start Time	720 Minutes
Energy Data
Integrated Water Factor	3.2
kWh/cycle	0.2 kWh
kWh/year	60 kWh
Modified Energy Factor	2.76
Water Usage/Year	4,059 Gallons
Soil Levels
Soil Level Selections	Yes
Light	No
Heavy	Yes

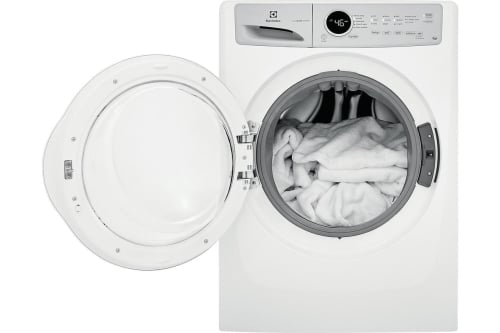

Electrolux EFLW317TIW

Electrolux EFLW317TIW

Electrolux EFLW317TIW Front Load Washer, 1,100 RPM Washer Spin Speed, 5 Wash Cycles, 3 Temperature Settings, ENERGY STAR Certified, White colour

Accessories

Accessories

Dryer Stacking Kit:

Luxury-Glide® Pedestal with Spacious Storage Drawer:

Drain Hose Extension Kit:

Washer: Cycles

Delicates:

Normal:

Colors:

My Favorite:

Clean Washer:

Heavy:

Wash Cycles:

Quick Cycle:

Whites:

Rinse & Spin:

Casual:

Energy Data

Integrated Modified Energy Factor:

kWh/year:

Integrated Water Factor:

Washer: Temperature Settings

Sanitize:

Auto Temp Control:

Hot:

Warm:

Cold:

Electrical Specifications

Min Circuit Required:

Power Cord Length:

Connection Location:

Connected Load @ 120V:

Voltage Rating:

Amps @ 120 Volts:

Washer: Options

Stain Pretreat:

Individual Custom Option:

Extended Spin:

Temp Selections:

Soil Level Selections:

Max Fill:

Freshwater Rinse:

Allergy:

Delay Start - hours:

Energy Saver:

Spin Speed Selections:

Add Steam:

Prewash:

End-of-Cycle Chime:

Light:

Controls

Control Location:

Control Lock:

Control Type:

Installation Type

Under Counter:

Stacked (Above Dryer):

Hidden (In Closet):

Pedestal:

General Specifications

Reconditioned:

PROP 65 Label:

Shipping Weight (lbs):

Sound Package:

Water Inlet Location:

Style:

Power Cord Included:

Leveling Legs:

Made In USA:

Exterior Dimensions

Height(w/o 15" Pedestal):

Height:

Height (w/15" Pedestal):

Width:

Depth:

Depth(to Arc Exlude Hose:

Depth(w/ 90° Door Open):

Electrolux
EFLW317TIW

Electrolux
EFLW317TIW

Luxury-Glide^® Pedestal with Spacious Storage Drawer:

ENERGY STAR^® Most Efficient:

NSF^® Certified:

ENERGY STAR^® Certified:

Offered by Quick Contractors^®
