Certifications & Approvals
ADA Compliant	Yes
CSA Certified	Yes
ENERGY STAR ® Certified	No
Controls
Control Buttons	4
Delay Mode	Yes
Eco Mode	Yes
Control Location	Top of Door
Control Lock	Yes
Control Panel	Touch
Controls	IQ-Touch™
Power On/Off Control	Yes
Control Type Color
Controls	Smooth Black
Exterior Dimensions
Case Height	33-3/4"
Case Width	14-15/16"
Case Depth	21-3/4"
Depth	21-3/4"
Depth (with Door 90° Open)	37-3/4"
Depth with Doors and Handles	26-3/4"
Height	34-3/4"
Height (Min.)	33-3/4"
Width	14-7/8"
Dimensions: Exterior
Depth w/ Door No Handle	24"
Cut-Out Dimensions
Cut-Out Width	15-1/8"
Exterior Specifications
Cabinet Color	Black
Door Closers	Yes
Door Gasket	Black
Door Stops	Yes
Door Swing Type	Free Standing or Under-Counter Right-Swing
Reversible Door	No
Toe Grille	Stainless Steel
Door Finish
Exterior Specifications	Stainless Steel
General Specifications
Frost-Free Performance	Yes
Condenser Type	Dynamic
Adjustable Leveling Legs	4
Water Inlet Location	Left Rear Bottom
Product Weight (lbs)	100
Shipping Weight (lbs)	105
Vacation Mode	Yes
Ice Maker
Daily Ice Production	Over 34 lbs
Ice Cube Type	Clear
Ice Cube Size	7/8"
Ice Cubes Produced per Cycle	130
Self-Cleaning Process Steps	3
Self-Cleaning of Mineral Deposits	Yes
Electrical Specifications
Power Supply Connection Location	Left Rear Bottom
Voltage Rating	120V 60Hz
Connected Load (kW Rating) @ 120V	0.48
Minimum Circuit Required (Amps)	15A
Power Cord Length	72"
Accessories
Ice Scoop	Included
Cleaning Kit	Optional order item no. EIM41978
Handle Kit	Optional order item no. 5304503432

Electrolux UR15IM20RS

Electrolux UR15IM20RS

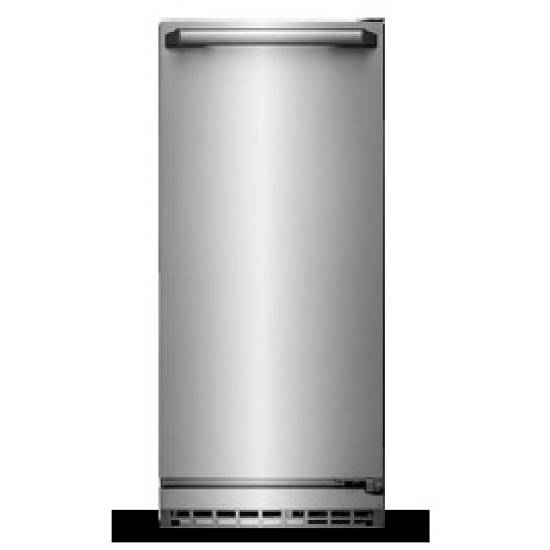

Electrolux Icon UR15IM20RS Ice Maker, 34 lb./day Ice Production, 130 lb. Ice Storage capacity (lbs.), Stainless Steel colour

Features

Large Capacity

Crystal-Clear Ice Cubes

Factory Installed Drain Pump

Low Maintenance

Additional features

Integrated Controls

Versatile Installation Options

Platinum Star® Limited Warranty

Right Hinge Door

Energy-saving eco mode

Delay Mode

Specifications

Certifications & Approvals

ADA Compliant:

CSA Certified:

ENERGY STAR® Certified:

Controls

Control Buttons:

Delay Mode:

Eco Mode:

Control Location:

Control Lock:

Control Panel:

Controls:

Power On/Off Control:

Control Type Color

Controls:

Exterior Dimensions

Case Height:

Case Width:

Case Depth:

Depth:

Depth (with Door 90° Open):

Depth with Doors and Handles:

Height:

Height (Min.):

Width:

Dimensions: Exterior

Depth w/ Door No Handle:

Cut-Out Dimensions

Cut-Out Width:

Exterior Specifications

Cabinet Color:

Door Closers:

Door Gasket:

Door Stops:

Door Swing Type:

Reversible Door:

Toe Grille:

Door Finish

Exterior Specifications:

General Specifications

Frost-Free Performance:

Condenser Type:

Adjustable Leveling Legs:

Water Inlet Location:

Product Weight (lbs):

Shipping Weight (lbs):

Vacation Mode:

Ice Maker

Daily Ice Production:

Ice Cube Type:

Ice Cube Size:

Ice Cubes Produced per Cycle:

Self-Cleaning Process Steps:

Self-Cleaning of Mineral Deposits:

Electrical Specifications

Power Supply Connection Location:

Voltage Rating:

Connected Load (kW Rating) @ 120V:

Minimum Circuit Required (Amps):

Power Cord Length:

Accessories

Ice Scoop:

Cleaning Kit:

Handle Kit:

Electrolux
UR15IM20RS

Electrolux
UR15IM20RS

Platinum Star^® Limited Warranty

ENERGY STAR^® Certified:

Offered by Quick Contractors^®
